Parts List Complete for HUSQVARNA HTC T5

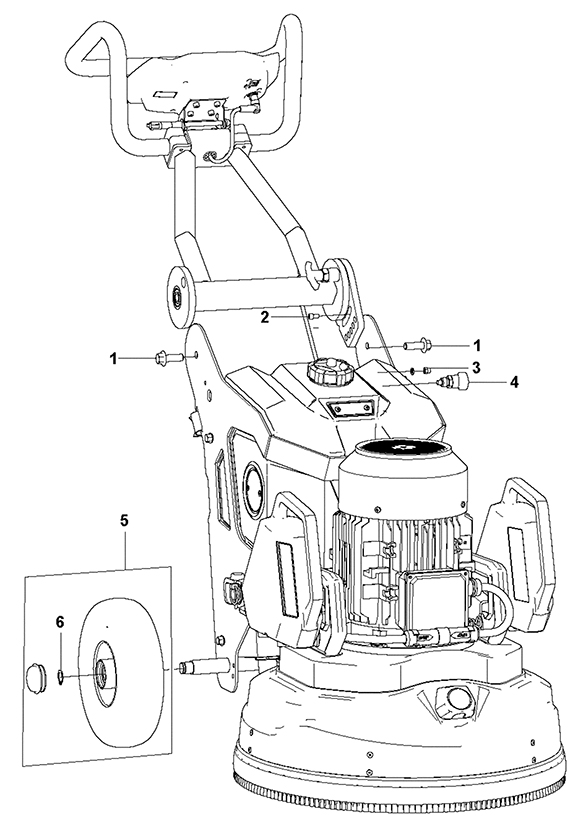

Wheel and Tire Assembly - 156-1014
RefNbr Part Number Description Req Notes
1 156-1130 Screw M12 x 35 2
2 156-1131 Screw M6 x 12 1
3a 156-1132 Nut M6 1
3b 156-1133 Washer M6 1
4 156-1134 Piston 1
5 156-1135 Wheel 2 (includes 6)
6 156-1136 Circlip 1

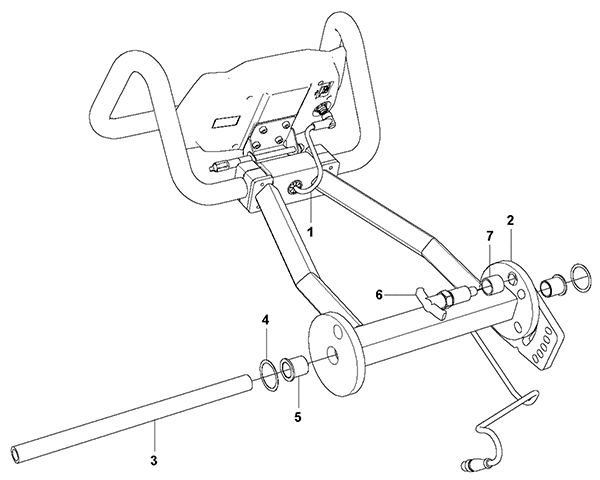

Pull Handle Assembly - 156-1015
RefNbr Part Number Description Req Notes
1 156-1137 Cable 1
2 156-1138 Adjustment disc 1
3 156-1139 Handle 1
4 156-1140 Spring washer 2
5 156-1141 Bearing 2
6 156-1142 Lever 1
7 156-1143 Sleeve 1

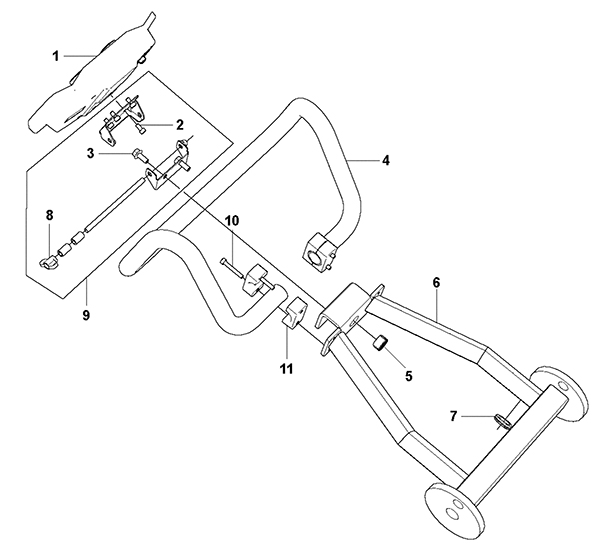

Handles and Controls Assembly - 156-1016
RefNbr Part Number Description Req Notes
1 156-1144 Control panel 1
2 156-1145 Screw M6 x 10 4
3 156-1146 Screw M8 x 20 2
4 156-1147 Handle 1
5 156-1148 Grommet 1
6 156-1149 Handle arm 1
7 156-1150 Cable entry gland 1
8 156-1151 Knob 1
9 156-1152 Control panel bracket kit 1 (includes 8) (will need to order parts 2 and 3 separately when ordering this kit)
10 156-1153 Screw M6 x 40 1
11 156-1154 Pipe clamp 2

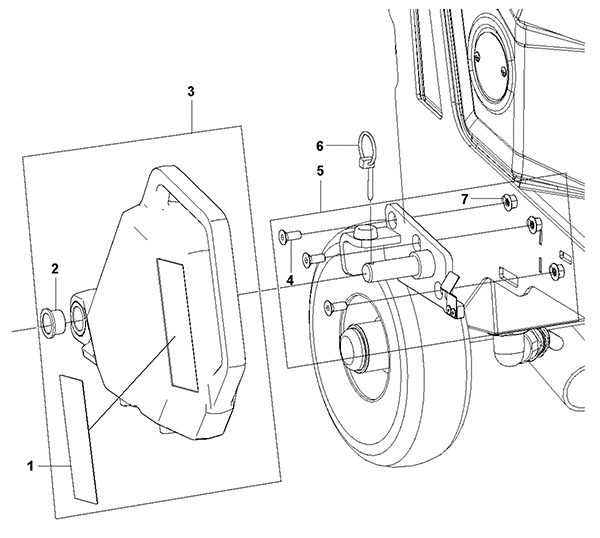

Weight Assembly - 156-1017
RefNbr Part Number Description Req Notes
1 N/A Not available 1
2 156-1155 Bearing 2
3 156-1156 Weight arm complete 1 (includes 2)
4 156-1157 Screw M8 x 20 3
5 156-1158 Weight bracket kit 1 (includes 4,7)
6 156-1159 Locking pin 1
7 N/A Not available 3 (nut M8)

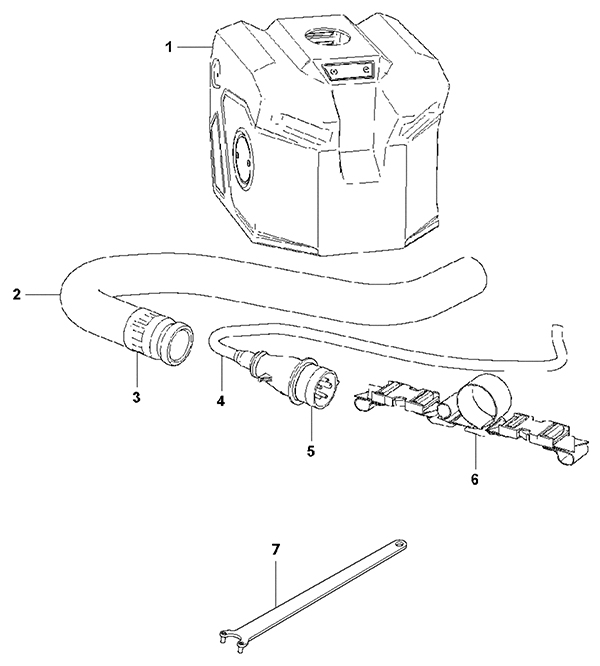

Accessories Assembly - 156-1018
RefNbr Part Number Description Req Notes
1 156-1160 Cover 1
2 156-1161 Hose 1
3 156-1162 Hose nipple 1
4a 156-1163 Cable 1 (16A)
4b 156-1164 Cable 1 (30A)
5a 156-1165 Plug 1
5b 156-1166 Connector 1 (for 5a)
5c 156-1167 Plug 1
5d 156-1168 Connector 1 (for 5c)
5e 156-1169 Plug 1
5f 156-1170 Connector 1 (for 5e)
5g 156-1171 Plug 1
5h 156-1172 Connector 1 (for 5g)
6 156-1173 Strap 1
7 156-1174 Service tools 1

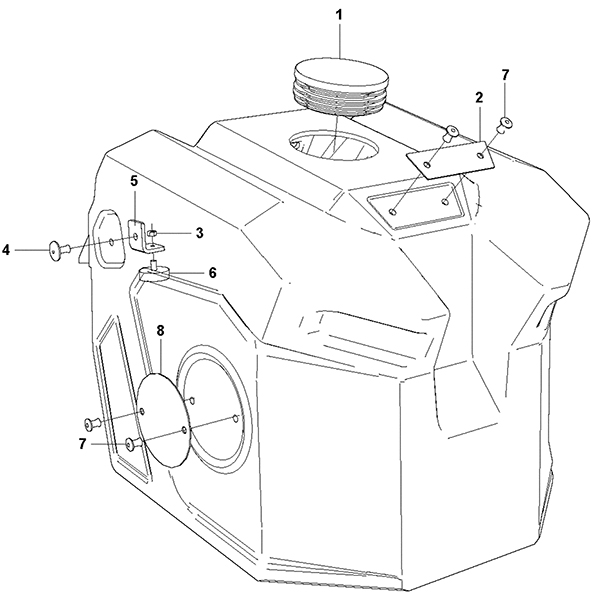

Decal Assembly - 156-1019
RefNbr Part Number Description Req Notes
1 156-1175 Tubing 1
2 156-1176 Decal 1
3 156-1177 Counter nut M4 2
4 156-1178 Rivet 2
5 156-1179 Magnet holder 2
6 156-1180 Magnet 2
7 156-1181 Rivet 6
8 156-1182 Decal 2

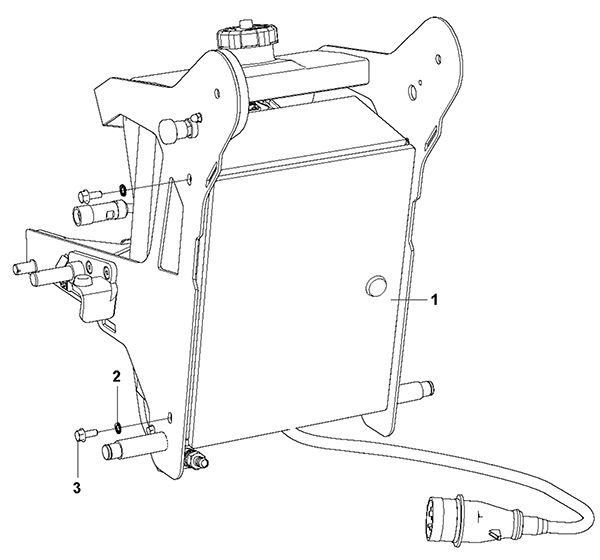

Power Unit Assembly - 156-1020
RefNbr Part Number Description Req Notes
1a 156-1183 Power unit 1 (1 x 200V 2.2Kw)
1b 156-1184 Power unit 1 (1 x 200V 4Kw)
1c 156-1185 Power unit 1 (3 x 200V 4Kw)
1d 156-1186 Power unit 1 (3 x 400V 4Kw)
2 156-1187 Lockwasher 4
3 156-1146 Screw M8 x 20 4

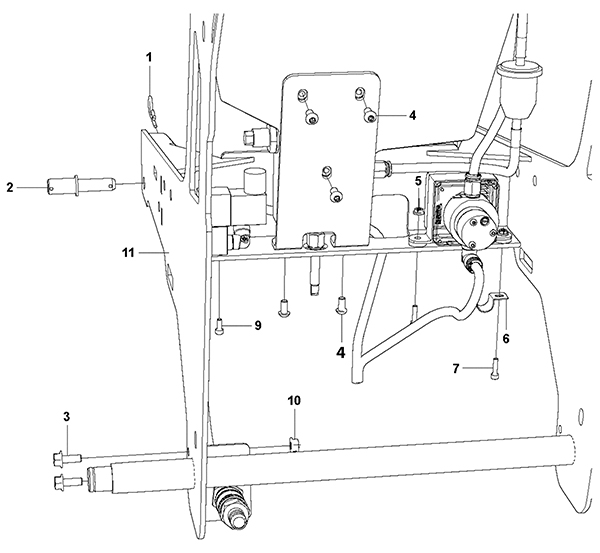

Chassis Assembly - 156-1021
RefNbr Part Number Description Req Notes
1 156-1188 Clip 2
2 156-1189 Axle 2
3 156-1190 Screw M6 x 16 2
4 156-1191 Screw M5 x 12 5
5 156-1177 Counter nut M4 2
6 156-1192 Clamp 1
7 156-1193 Screw M16 x 55 2
9 156-1194 Screw M4 x 10 2
10 156-1195 Lock nut M6 2
11 156-1196 Chassis 1

Water Tank Assembly - 156-1022
RefNbr Part Number Description Req Notes
1 156-1197 Water tank cap 1
2 156-1198 Water tank 1
3 156-1199 Water tank bracket 1
4 156-1200 Hose 3
5 156-1201 Prefilter 1
7 156-1202 Connector 2
8 156-1203 Pump 1
9 156-1204 Connector 1
11 156-1205 Water level switch 1

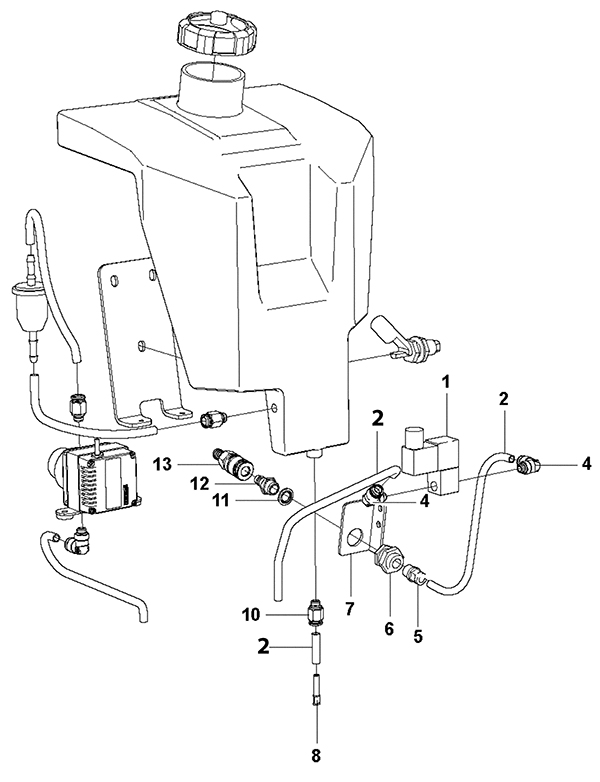

Valve Assembly - 156-1023
RefNbr Part Number Description Req Notes
1 156-1206 24V water valve 1
2 156-1200 Hose 3
4 156-1207 Connector 2
5 156-1208 Connector 1
6 156-1209 Connector 1
7 156-1210 Water connector bracket 1
8 156-1211 Connector 1
10 156-1202 Connector 1
11 156-1212 Seal washer M12 1
12 156-1213 Connector quick male 1
13 156-1214 Connector quick female 1

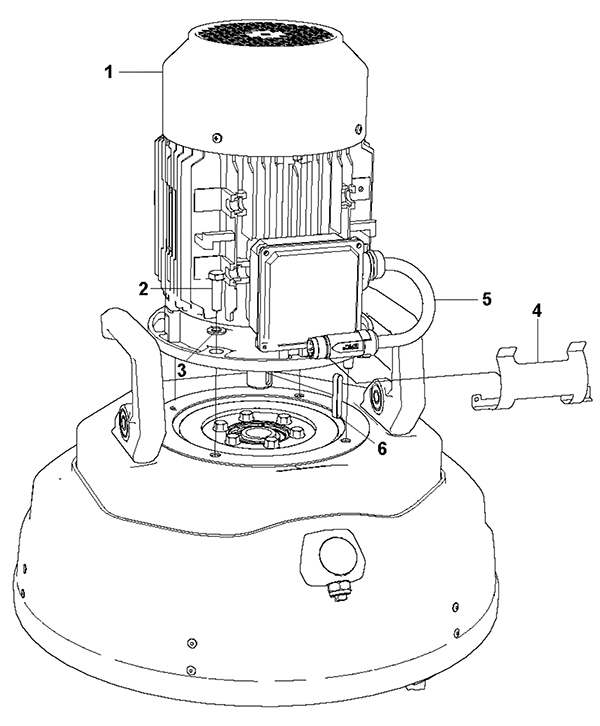

Motor Assembly - 156-1024
RefNbr Part Number Description Req Notes
1a 156-1215 Motor 1 (230/400V 2.2 KW)
1b 156-1216 Motor 1 (230/400V 4KW)
2 156-1217 Screw M10 x 35 4
3 156-1218 Washer M10 4
4 156-1219 Clip 1
5 156-1220 Cable 1
6 156-1221 Wedge 1

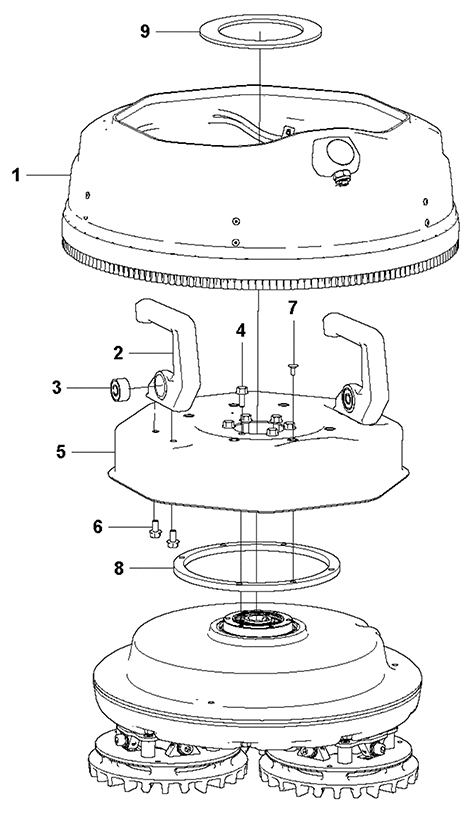

Grinding Cover Assembly - 156-1025
RefNbr Part Number Description Req Notes
1a 156-1222 Cover 1 (grinding cover water complete)
1b 156-1223 Cover 1 (grinding cover complete)
2 156-1224 Handle 2 (includes 3)
3 156-1225 Bushing 2
4 156-1146 Screw M8 x 20 6
5 156-1226 Grinding cover guide 1
6 156-1227 Screw M8 x 1 4
7 156-1228 Screw 1
8 156-1229 Ring 1
9 156-1230 Motor gasket 1

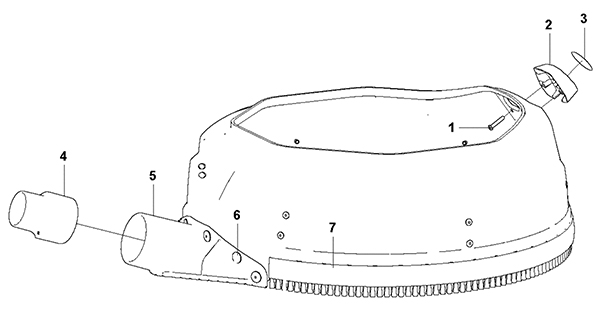

Skirt Assembly - 156-1026
RefNbr Part Number Description Req Notes
1 156-1231 Screw 2
2 156-1232 Bracket 1
3 156-1233 Decal 1
4 156-1234 Adapter 1
5 156-1235 Nozzle 1
6 156-1178 Rivet 6
7 156-1236 Brush strip 1

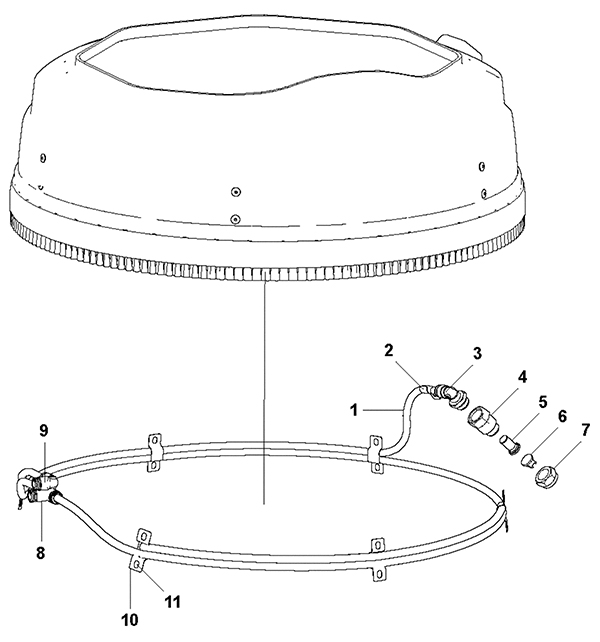

Mist Assembly - 156-1027
RefNbr Part Number Description Req Notes
1 156-1237 Hose 1
2 156-1238 Cable clamp 1
3 156-1239 Connector 1
4 156-1240 Extension joint 1
5 156-1241 Filter 1
6 156-1242 Nozzle 1
7 156-1243 Mist nut G3/8 stainless 1
8 156-1244 Connector 1
9 156-1245 Connector 1
10 156-1246 Clip 6
11 156-1181 Rivet 12

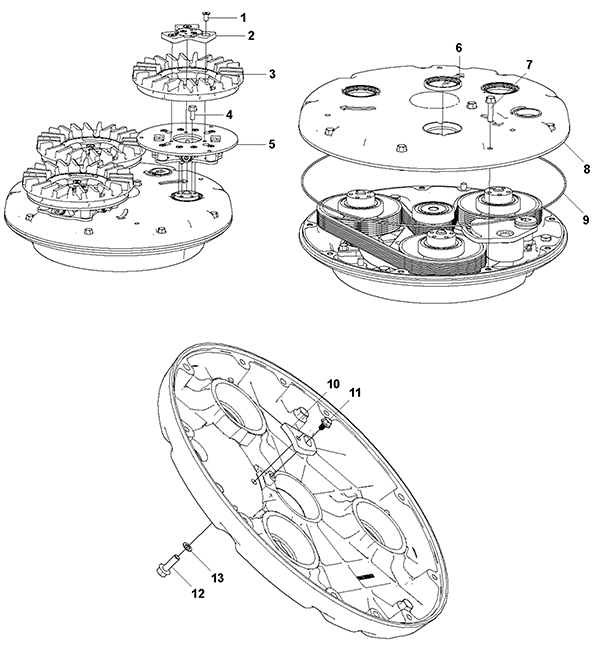

Lower Grinding Head Assembly - 156-1028
RefNbr Part Number Description Req Notes
1 156-1247 Screw M6 x 16 9
2 156-1248 Cross member 3 (includes 1)
3a 156-1249 EZ airflow tool holder 3 (ez airflow)
3b 156-1250 Tool holder 3
4 156-1146 Screw M8 x 20 15
5 156-1251 Grinding holder 3
6 156-1252 Shaft 3
7 156-1253 Screw M8 x 35 9
8 156-1254 Housing 1
9 156-1255 O-ring 1
10 156-1256 Tensioner locking plate 1
11 156-1190 Screw M6 x 16 1
12 156-1257 Screw M8 x 25 1
13 156-1258 Washer M8 copper 1

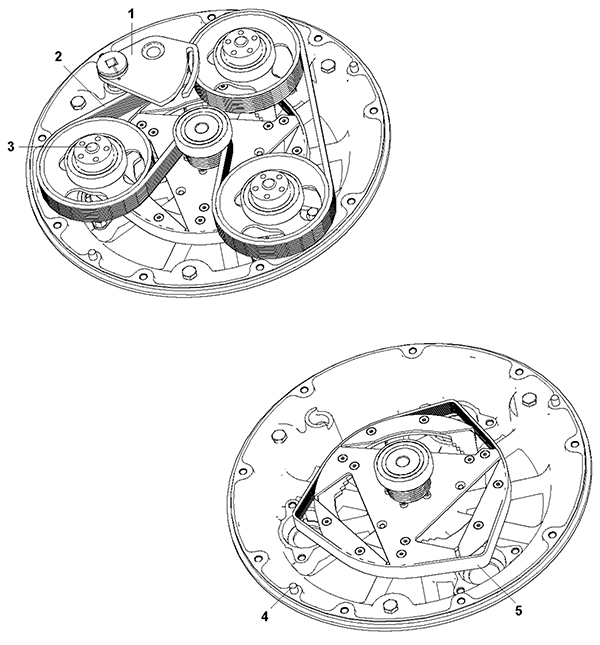

Internal and Upper Grinding Head Assembly - 156-1029
RefNbr Part Number Description Req Notes
1 156-1259 Tensioner 1
2 156-1260 Belt 1 (primary)
3 156-1261 Shaft 3
4 156-1262 Pin 2
5 156-1263 Belt 1 (secondary)

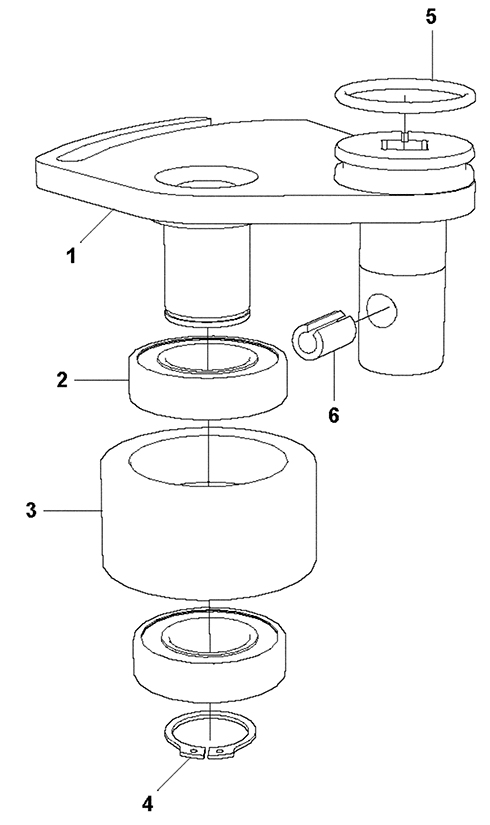

Idler Assembly - 156-1030
RefNbr Part Number Description Req Notes
1 156-1264 Tensioner 1
2 156-1265 Ball bearing 2
3 156-1266 Pulley 1
4 156-1267 Circlip 1
5 156-1268 O-ring 1
6 156-1269 Spring pin 1

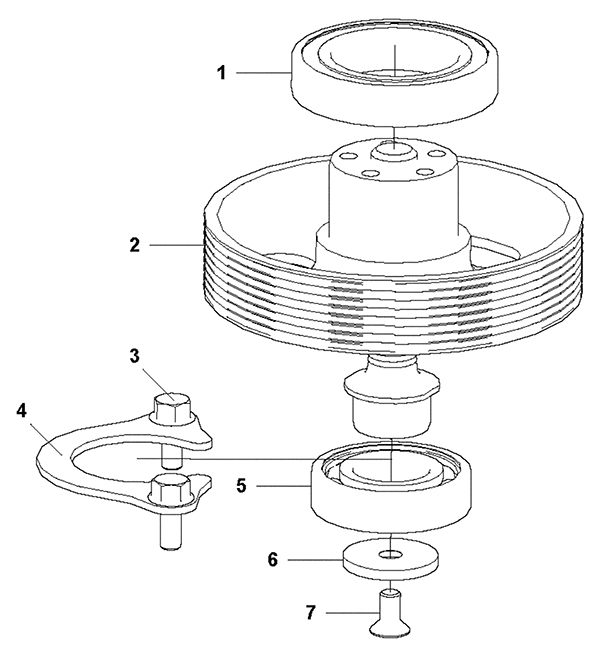

Pulley Assembly - 156-1031
RefNbr Part Number Description Req Notes
1 156-1270 Ball bearing 1
2 156-1271 Shaft 1
3 156-1146 Screw M8 x 20 2
4 156-1272 Washer 1
5 156-1273 Ball bearing 1
6 156-1274 Washer 1
7 156-1247 Screw M6 x 16 1

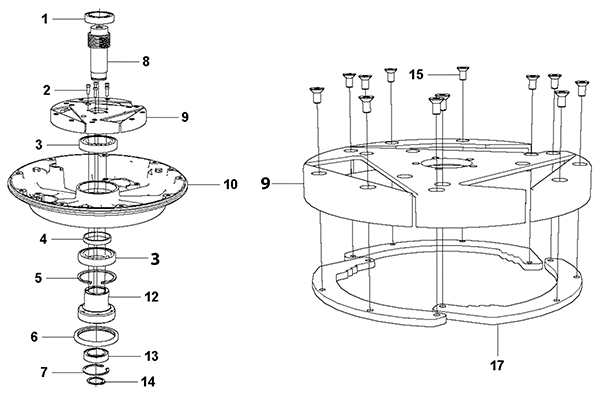

Center Hub Assembly - 156-1032
RefNbr Part Number Description Req Notes
1 156-1275 Ball bearing 1
2 156-1276 Screw M6 x 20 2
3 156-1277 Ball bearing 2
4 156-1278 Spacer ring 1
5 156-1279 Circlip 1
6 156-1280 Radial seal 1
7 156-1281 Circlip 1
8 156-1282 Pulley center 1
9 156-1283 Pulley 2
10 156-1284 Housing 1
12 156-1285 Center hub 1
13 156-1286 Ball bearing 1
14 156-1287 Circlip 1
15 156-1288 Screw M6 x 12 12
17 156-1289 Plate 3

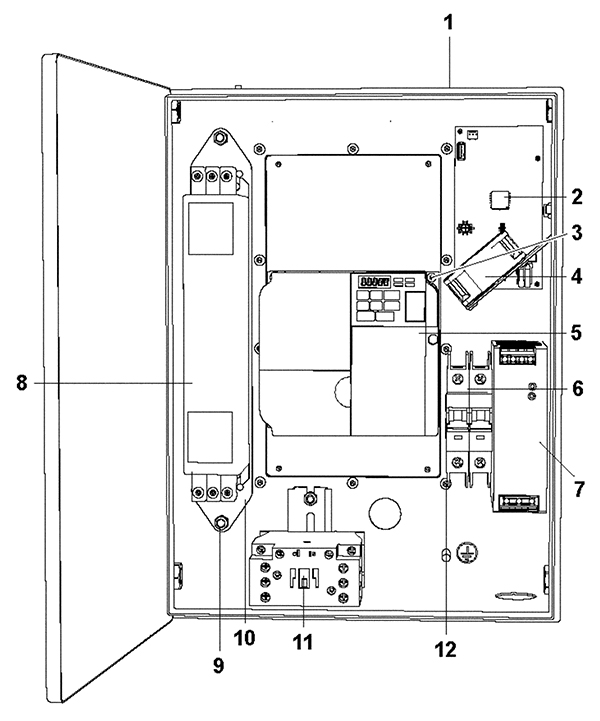

Electrical Cabinet Assembly - 156-1033
RefNbr Part Number Description Req Notes
1 156-1290 Enclosure 1
2 156-1291 Circuit board 1
4a 156-1293 24V fan 1
4b 156-1294 Fan mount 4
4c 156-1295 Mount plate 1
4d 156-1296 Lock nut M6 2
5a 156-1297 Frequency inverter 1 (1 x 200V 2.2 KW)
5b 156-1298 Frequency inverter 1 (1/3 x 200V 4KW)
5c 156-1299 Frequency inverter 1 (3 x 400V 4KW)
6 156-1300 Circuit breaker 1
7 156-1301 Power supply 1
8a 156-1302 Filter 1 (1 x 200V 2.2 KW 16A)
8b 156-1303 Filter 1 (1 x 200V 4KW 30A)
8c 156-1304 Filter 1 (3 x 200V 4KW 30A)
8d 156-1305 Filter 1 (3 x 400V 4KW 16A)
9 156-1296 Lock nut M6 2
10 156-1306 Filter mount 1
11a 156-1307 Contactor 1 (18A 24V)
11b 156-1308 Contactor 1 (36A 24V)
12 156-1309 Screw M5 x 10 10

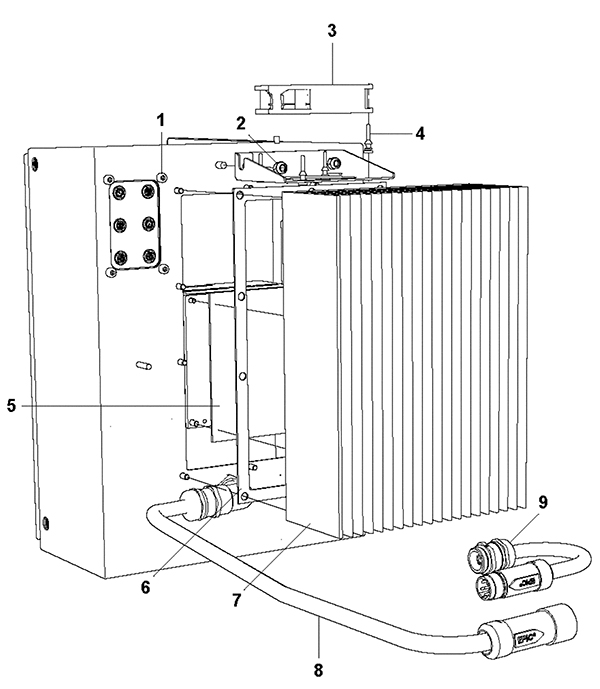

Inverter Assembly - 156-1034
RefNbr Part Number Description Req Notes
1 156-1310 Screw M5 x 10 4
2 156-1296 Lock nut M6 2
3 156-1311 24V fan 1
4 156-1294 Fan mount 4
5 156-1312 Heatsink 1
6 156-1313 Gasket 1
7 156-1314 Heatsink 1
8 156-1315 Cable 1
9 156-1220 Cable 1

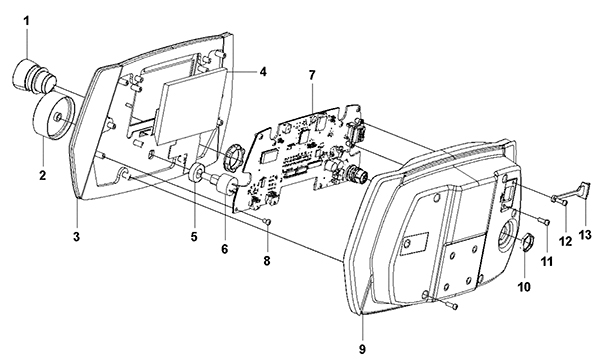

Control Panel Assembly - 156-1035
RefNbr Part Number Description Req Notes
1 156-1316 Push button 1
2 156-1317 Knob 1
3a 156-1318 Control panel front 1 (front)
3b 156-1319 Control panel gasket 1 (control panel gasket)
4 156-1320 Display 1
5 156-1321 O-ring 1
6 156-1322 Potentiometer 1
7 156-1323 Control panel circuit board 1
8 156-1324 Screw M3 x 6 8
9 156-1325 Control panel enclosure 1
10 156-1326 Nut PG18 x 2.8 1
11 156-1327 Screw 4-40 x 8 UNC 1
12 156-1328 Screw 4-40 x 9.5 UNC 1
13 156-1329 USB cover 1

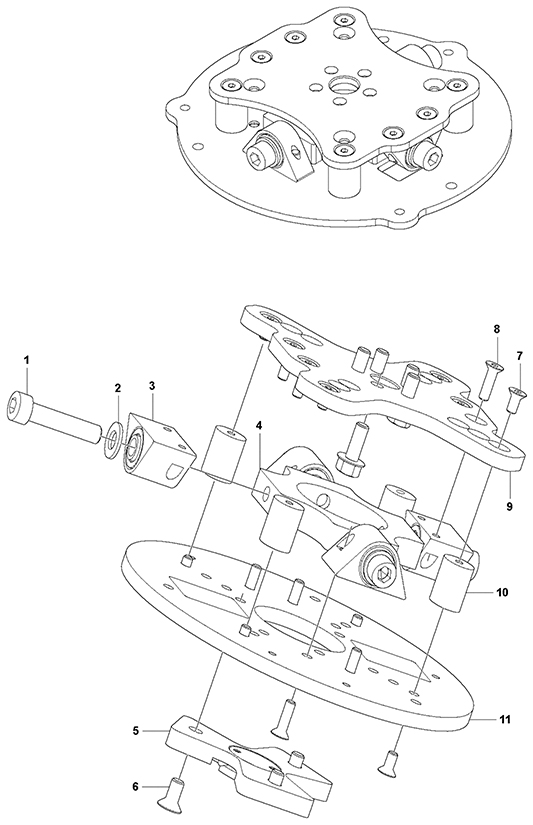

Grinding Holder Assembly - 156-1036
RefNbr Part Number Description Req Notes
1 156-1330 Screw 4
2 156-1218 Washer M10 4
3 156-1331 Bushing 4
4 156-1332 Connector 1
5 156-1248 Cross member 1 (includes 6)
6 156-1333 Screw M8 x 16 3
7 156-1334 Screw M6 x 9 8.8 zp iso 14851 8
8 156-1335 Screw M6 x 20 8.8 zp iso 14851 8
9 156-1336 Upper grind holder plate 1
10 156-1337 Shock absorber 4
11 156-1338 Grinder holder plate 1
