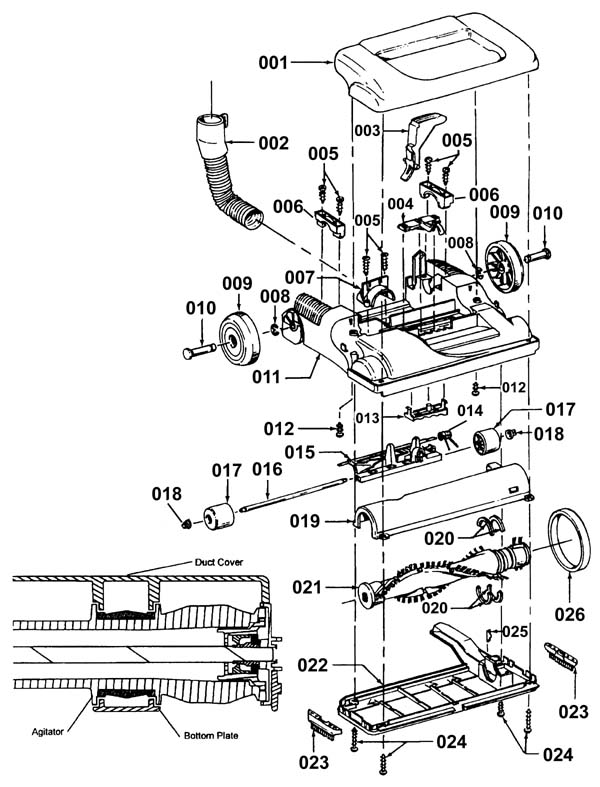

Base Assembly - 215-2001 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
215-0110 |
15 inch Hood |
|
|
| 001b |
215-0111 |
13 inch Hood |
|
|
| 002 |
215-0112 |
Angled hose connector assembly (OBSOLETE) |
|
|
| 003 |
215-0113 |
Handle release lever |
|
|
| 004 |
215-4358 |
Nozzle adjustment lever |
|
|
| 005 |
215-0052 |
Screw, self tapping |
|
|
| 006 |
215-0115 |
Trunnion cover (OBSOLETE) |
|
|
| 008 |
215-0055 |
Retaining ring |
|
|
| 011a |
215-0119 |
Main body, 15 inch |
|
|
| 011b |
215-0120 |
13 inch main body (OBSOLETE) |
|
|
| 012 |
215-0121 |
Self tapping screw |
|
|
| 013 |
215-0114 |
Nozzle adjustment cam |
|
|
| 014 |
215-0123 |
Torsion spring (OBSOLETE) |
|
|
| 015a |
215-0124 |
Front wheel support |
|
|
| 015b |
215-0943 |
Front wheel assembly |
|
|
| 017 |
215-0127 |
Front wheel (OBSOLETE) |
|
|
| 018 |
215-0128 |
Wheel retainer |
|
|
| 019a |
215-0129 |
Bottom plate/ duct cover (OBSOLETE) |
|
15 inch Labrynth design |
| 019c |
215-0131 |
Bottom plate/ duct cover (OBSOLETE) |
|
13 inch |
| 020 |
215-0132 |
Agitator pulley seal |
|
|
| 021a |
215-0033 |
Agitator brush roll, 15 inch (OBSOLETE) |
|
|
| 021b |
215-0133 |
Agitator assembly complete, 13 inch (OBSOLETE) |
|
|
| 022a |
215-0129 |
Bottom plate/ duct cover (OBSOLETE) |
|
15 in. labrynth design |
| 022c |
215-0131 |
Bottom plate/ duct cover (OBSOLETE) |
|
13 in. |
| 023 |
215-0134 |
Litter picker (OBSOLETE) |
|
|
| 024 |
215-0845 |
Screw (OBSOLETE) |
|
|
| 025 |
215-0136 |
Rug nozzle rib shoe |
|
|
| 026 |
215-0032 |
Agitator belt |
|
|
|
|

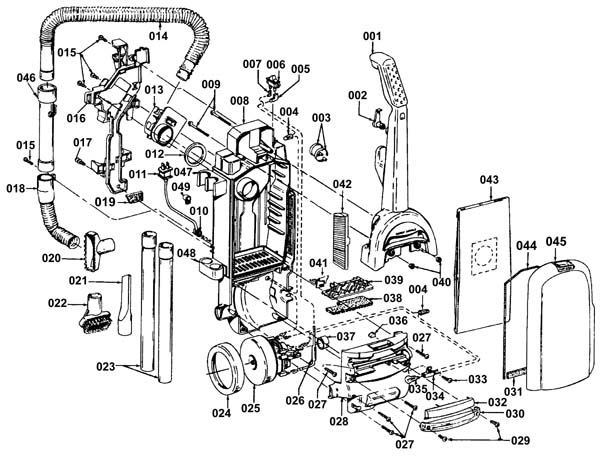

Top Part Assembly - 215-2036 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
215-0338 |
Upper handle assembly (OBSOLETE) |
|
|
| 001b |
215-0339 |
Handle cap, standard |
|
|
| 004 |
215-0139 |
Wire connector |
|
|
| 005 |
N/A |
Not available |
|
Not available(terminal) |
| 006a |
215-0341 |
Swtich, 3/16 inch terminals |
|
|
| 006b |
215-0140 |
Switch (on/off) |
|
|
| 007 |
N/A |
Not available |
|
Not available(terminal) |
| 009 |
215-0142 |
Handle hardware |
|
|
| 010 |
215-0143 |
Strain relief (OBSOLETE) |
|
|
| 011c |
215-0345 |
35' cord, 1/4 inch terminals |
|
|
| 011d |
215-0346 |
50' cord, 1/4 inch terminals |
|
|
| 012 |
215-0145 |
Hose connector gasket |
|
|
| 013 |
215-0146 |
Hose connector |
|
|
| 014 |
215-0147 |
Hose assembly (OBSOLETE) |
|
|
| 018 |
215-0112 |
Angled hose connector assembly (OBSOLETE) |
|
|
| 019 |
215-0151 |
Wire opening seal |
|
|
| 020 |
215-0152 |
Furniture nozzle (OBSOLETE) |
|
|
| 021 |
215-0153 |
Crevice tool (OBSOLETE) |
|
|
| 022 |
215-0154 |
Dusting brush assembly |
|
|
| 023 |
215-0155 |
Extension tube |
|
|
| 024 |
215-0156 |
Large motor mount |
|
|
| 025a |
215-0157 |
Motor assembly (OBSOLETE) |
|
|
| 025b |
215-0158 |
Motor brushes (2) (OBSOLETE) |
|
|
| 025c |
215-0159 |
Motor fan assembly |
|
|
| 026a |
215-0347 |
Thermal protector, 3/16 inch terminal |
|
|
| 026b |
215-0348 |
Thermal protector, 1/4 inch terminal |
|
|
| 029 |
215-0121 |
Self tapping screw |
|
|
| 031 |
215-0350 |
Bag door gasket, bottom |
|
|
| 033 |
215-0052 |
Screw, self tapping |
|
|
| 034a |
215-0351 |
Wiring harness, 3/16 inch terminal |
|
|
| 034b |
215-0167 |
Wiring harness |
|
|
| 036 |
215-0169 |
Wire opening plug |
|
|
| 038 |
215-0171 |
Secondary filter (OBSOLETE) |
|
|
| 039 |
215-0352 |
Secondary filter retainer |
|
|
| 041 |
215-0353 |
Filter holder |
|
|
| 042 |
215-0354 |
Cartridge filter |
|
|
| 043a |
215-0268 |
Paper bags Type Y (3 pack) |
|
|
| 043b |
N/A |
Not available |
|
(Cloth vag) |
| 044 |
215-0356 |
Bag door gasket (OBSOLETE) |
|
|
| 045 |
215-0357 |
Bag housing door (OBSOLETE) |
|
|
| 046 |
215-0191 |
Hose door assembly |
|
|
| 047 |
215-0181 |
Upper wand holder |
|
|
| 048 |
215-0180 |
Lower wand holder |
|
|
| 049 |
215-0194 |
Attachment cord clamp |
|
|
| N/S |
215-0360 |
Cord protector |
|
|
| N/S |
215-0195 |
Lead wire- red |
|
|
|
|
|
