Parts List Complete for HOOVER U6485-900

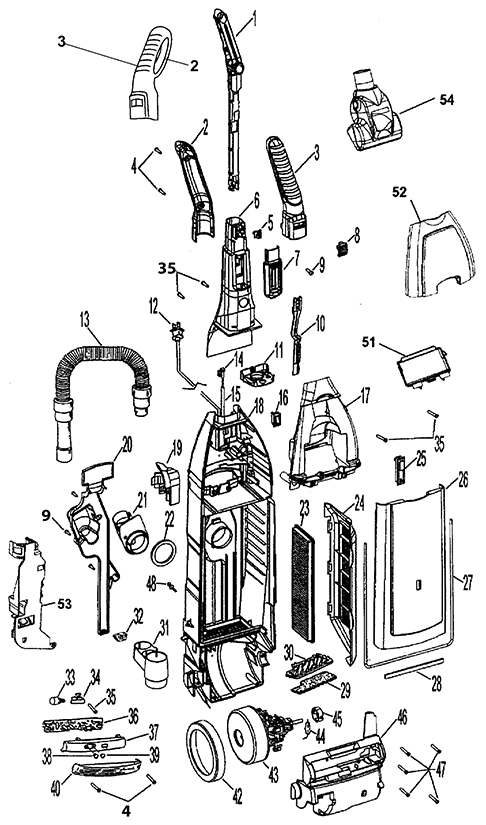

Main Assembly - 215-0010
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (upper handle grip)
2a N/A Not available 1 (models u6439-900 and u6454-900) (back upper handle grip cover)
2b N/A Not available 1 (models u6485-900, uh50000, and uh50005b) (back upper handle grip cover)
3 N/A Not available 1 (front upper handle grip cover)
4 215-0121 Self tapping screw 4
5 N/A Not available 1 (drive control pin)
6a N/A Not available 1 (models u6439-900 and u6454-900) (upper handle (gray))
6b N/A Not available 1 (models u6485-900, uh50000, and uh50005b) (upper handle)
7 N/A Not available 1 (switch rod holder)
8 N/A Not available 1 (switch button (gray))
9 215-0148 Screw 4
10 N/A Not available 1 (switch rod)
11 215-2043 Rod guide 1
12 215-0841 35 foot power cord (OBSOLETE) 1 (models u6439-900 and u6454-900)
13a 215-0147 Hose assembly (OBSOLETE) 1
13b 215-0196 Hose- 20' stretch (OBSOLETE) 1
14 N/A Not available 1 (control cable push/pull)
15 N/A Not available 1 (control cable tube)
16 215-0140 Switch (on/off) 1
17 215-2044 Tool holder 1
18 N/A Not available 1 (back panel/bag housing (gray))
19 N/A Not available 1 (upper hose/wand holder)
20 N/A Not available 1 (rear cover (gray))
21a N/A Not available 1 (models u6439-900, u6454-900, u6485-900, and uh50005b) (microphone/duct assembly)
21b N/A Not available 1 (model uh50000) (duct assembly(gray))
22 215-0145 Hose connector gasket 1
23a N/A Not available 1 (models u6439-900 and u6454-900) (hepa final/exhaust filter)
23b N/A Not available 1 (final/exhaust filter)
23c N/A Not available 1 (models u6485-900, uh50000, and uh50005b) (final/exhaust filter)
24a N/A Not available 1 (models u6439-900 and u6454-900) (final exhaust filter cover grill)
24b 215-2045 Final/exhaust filter cover grill 1 (models u6485-900, uh50000, and uh50005b)
25 215-2046 Bag indicator 1
26a 215-2047 Bag door 1 (models u6439-900 and u6454-900)
26b N/A Not available 1 (model u6485-900) (front panel/bag door)
26c N/A Not available 1 (models uh50000 and uh5000b) (front panel/bag door)
27 215-0356 Bag door gasket (OBSOLETE) 1
28 215-0350 Bag door gasket, bottom 1
29 215-0171 Secondary filter (OBSOLETE) 1
30 215-0352 Secondary filter retainer 1
31 N/A Not available 1 (wand/hose holder)
32 215-2048 Wire opening seal 1
34 215-2049 Wiring harness 1
35 215-0052 Screw, self tapping 3
36 N/A Not available 1 (printed circuit board)
37a 215-2050 EDF cover (gray) 1 (models u6439-900 and u6454-900)
37b 215-2051 EDF cover (gray) 1 (models u6485-900 and uh50005b)
37c 215-2052 EDF cover (gray) 1 (model uh50000)
38 N/A Not available 1 (green lens) (models u6439-900, u6454-900, u6485-900, and uh50005b)
39 N/A Not available 1 (models u6439-900, u6454-900, u6485-900, and uh50005b) (red lens)
40 215-2053 Lens 1
42 215-0842 Large motor mount 1
43a 215-4168 Vac motor assembly 1
43b 215-0158 Motor brushes (2) (OBSOLETE) 1
43c N/A Not available 1 (fan assembly)
44 N/A Not available 1 (thermal protector)
45 215-2054 Motor mount 1
46 N/A Not available 1 (motor cover)
47 215-0162 Screw 5
48 215-2055 Tapping screw and washer 1
51 N/A Not available 1 (tool holder cap)
52 N/A Not available 1 (tool door)
53 N/A Not available 1 (tool rack)
54 N/A Not available 1 (turbine tool)
N/S 215-2056 Handle sleeve 1
N/S 215-4131 Strain relief (OBSOLETE) 1
N/S 215-0268 Paper bags Type Y (3 pack) 1
N/S 215-4202 Type Y hepa bag (pkg of 2) 1
N/S 215-0078 Cord wrap 1
N/S 215-1022 Furniture nozzle (OBSOLETE) 1
N/S N/A Not available 1 (furniture nozzle (black))
N/S N/A Not available 1 (short crevice tool)
N/S 215-1020 Crevice tool (OBSOLETE) 1
N/S 215-0155 Extension tube 1
N/S 215-0154 Dusting brush assembly 1

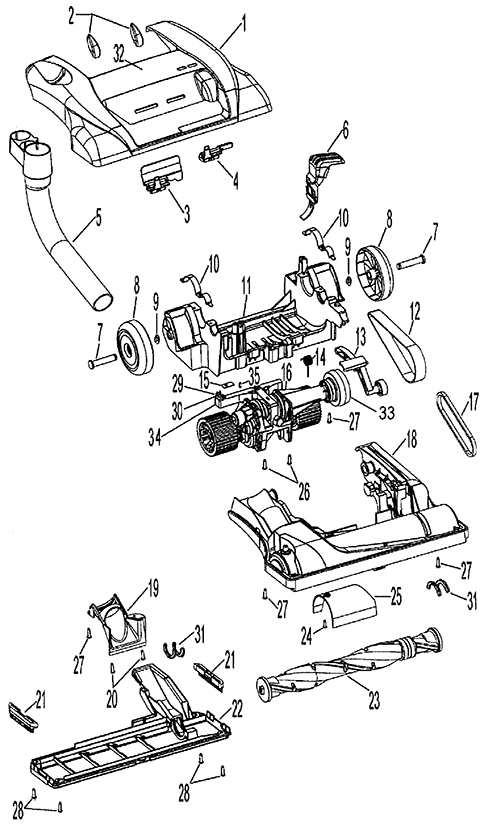

Base Assembly - 215-0014
RefNbr Part Number Description Req Notes
1a 215-4162 Hood assembly 1 (model u6439-900)
1b N/A Not available 1 (model u6454-900) (hood/nozzle cover (ice blue))
1c N/A Not available 1 (model u6485-900) (hood/nozzle cover (techno blue))
1d N/A Not available 1 (models uh50000 and uh50005b) (hood/nozzle cover (aluminum alloy))
2a 215-2057 Height adjustment knob 2 (models u6439-900 and u6454-900)
2b 215-0871 Knob 2 (models u6485-900, uh50000, and uh50005b)
3 215-2058 Height adjustment cam 1
4 215-0872 Idler arm lock (OBSOLETE) 1
5 N/A Not available 1 (wand/hose holder)
6 215-4135 Handle release lever 1
7 215-0057 Rear axle (OBSOLETE) 2
8a N/A Not available 2 (models u6439-900 and u6454-900) (rear wheel)
8b N/A Not available 2 (rear wheel assembly)
9 215-0055 Retaining ring 2
10 215-2059 Trunion cover 2
11 N/A Not available 1 (main body/nozzle base (dark charcoal gray))
12 215-0823 Flat belt 1
13a N/A Not available 1 (idler arm assembly)
13b N/A Not available 1 (models u6439-900 and u6454-900) (idler pulley and bearing assembly)
14 N/A Not available 1 (torsion spring)
15a N/A Not available 1 (retainer control table)
15b 215-0148 Screw 1
16 215-4084 Transmission 1
18 N/A Not available 1 (agitator/brush roll housing)
19 N/A Not available 1 (hose clamp)
20 N/A Not available 2 (screw-self tapping)
21a 215-0134 Litter picker (OBSOLETE) 2
22 N/A Not available 1 (bottom plate/nozzle guard)
23 N/A Not available 1 (agitator/brush roll)
24 N/A Not available 1 (screw-self tapping)
25 N/A Not available 1 (duct cover-nozzle)
26 215-0148 Screw 2
27 215-0121 Self tapping screw 4
28 215-0845 Screw (OBSOLETE) 4
29 215-2060 Screw 1
30 N/A Not available 1 (washer)
31 215-0132 Agitator pulley seal 2
33 N/A Not available 1 (drive pulley)
34 N/A Not available 1 (actuator arm assembly)
35 N/A Not available 1 (lock ring)
N/S 215-4165 Hood label (OBSOLETE) 1 (models u6439-900 and u6454-900)
N/S 215-4165 Hood label (OBSOLETE) 1 (models u6485-900, uh50000, and uh50005b)
N/S 215-2061 Control cable support 1

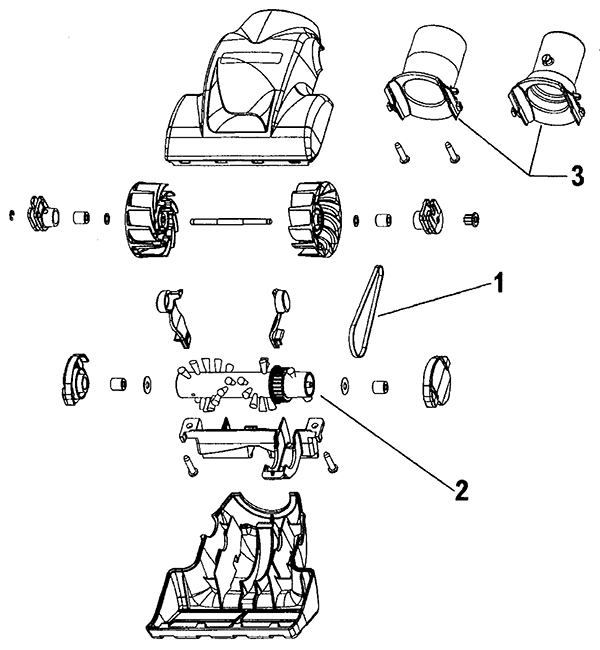

Brush Assembly - 215-0015
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (belt)
2 N/A Not available 1 (agitator/brush roll)
3 215-2062 Connector 2

- Commonly Asked For Parts - 215-1002
RefNbr Part Number Description Req Notes
1 215-0196 Hose- 20' stretch (OBSOLETE)
2 215-4202 Type Y hepa bag (pkg of 2)
3 215-0823 Flat belt
