Parts List Complete for HOOVER GUARDSMAN C1433

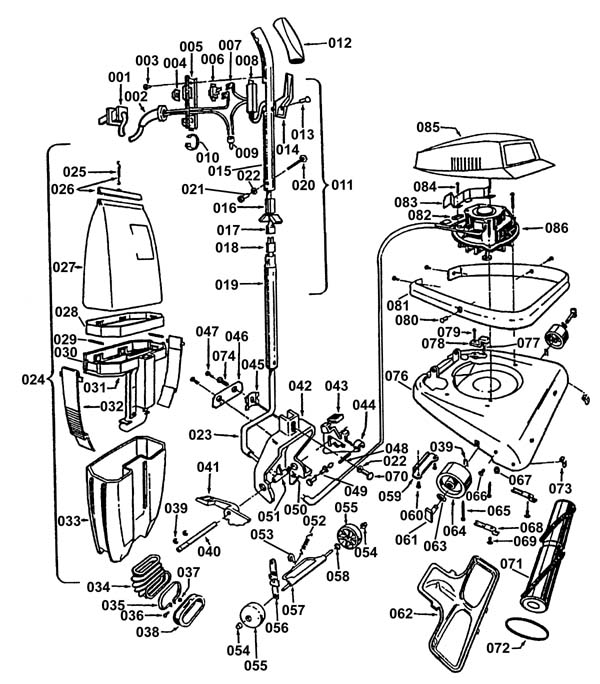

Entire Assembly - 215-2007
RefNbr Part Number Description Req Notes
001 215-0198 Cord- 35'
002 215-0199 Cord protector
003 215-0200 Screw
004 215-0201 Switch button (OBSOLETE)
005 215-0202 Switch cover
006 215-0203 Switch
007 215-0204 Terminal
008 215-0205 Switch case
009 215-0206 Wire nut
010 215-0138 Wire tie
011 215-0207 Complete handle
012 215-0208 Handle grip
013 215-0209 Rivet
014 215-0197 Cord clip
015 215-0210 Upper handle
016 215-0211 Insulator
017 215-0212 Connector cord
018 215-0213 Cord assembly
019 215-0214 Lower handle
020 215-0215 Handle bolt
021 215-0216 Nut
022 215-0217 Washer
023 215-0218 Motor lead spring
024 215-0219 Dust cup assembly
025 215-0220 Spring
026 215-0221 Bag clip and spring
027 215-0222 Cloth bag
028 215-0223 Bag expander
029 215-0224 Seal
030 215-0225 Support & bellows
031 215-0008 Seal
032 215-0007 Latch (OBSOLETE)
033 215-0006 Dirt cup (OBSOLETE)
034 215-0005 Bellows
035 215-0009 Clamp band
036 215-0226 Screw
037 215-0227 Nut
038 215-0228 Bag flange (OBSOLETE)
039 215-0229 Lock ring
040 215-0230 Bail shaft
041 215-0231 Nozzle adjustment lever
042 215-0232 Bail
043 215-0233 Foot pad
044 215-0234 Handle control lever
045 215-0235 Handle plate
046 215-0236 Bail cover plate
047 215-0237 Screw
048 215-0238 Pivot pin
049 215-0239 Roller kit
050 215-0240 Spring
051 215-0241 Bag flange clamp lever
052 215-0242 Spring
053 215-0243 Yoke
054 215-0244 Wheel retainer (OBSOLETE)
055 215-0245 Rear wheel (OBSOLETE)
056 215-0246 Cam follower
057 215-0247 Wheel shaft & support assembly
058 215-0248 Washer
059 215-0249 Axle retainer
060 215-0250 Screw
061 215-0251 Wheel shaft
062 215-0252 Bottom plate (OBSOLETE)
063 215-0253 Washer
064 215-0254 Carrier wheel
065 215-0044 Screw, self tapping
066 215-0255 Rivet
067 215-0256 Washer
068 215-0257 Latch
069 215-0250 Screw
070 215-0258 Nut
071 215-0259 Agitator
072 215-0034 Belt
073 215-0260 Agitator retainer spring
074 215-0261 Handle bolt
076 215-0262 Main body
077 215-0263 Spring
078 215-0264 Pin retainer
079 215-0250 Screw
080 215-0265 Rivet
081 215-0266 Furniture guard
082 215-0267 Retainer & sleeve
083 215-0269 Baffle
084 215-0270 Screw
085 215-0271 Hood
086 215-0272 Motor, 1 speed

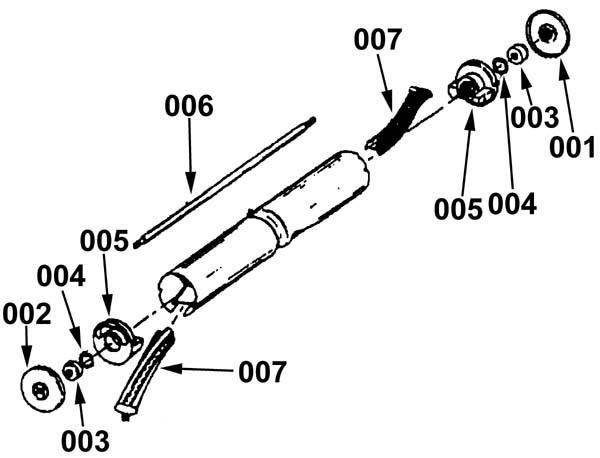

Agitator Assembly - 215-2008
RefNbr Part Number Description Req Notes
001 215-0279 Thread guard RH
002 215-0280 Thread guard LH
003 215-0281 Bearing
004 215-0282 Washer conical
005 215-0283 End
006 215-0284 Shaft
007 215-0285 Agitator brush

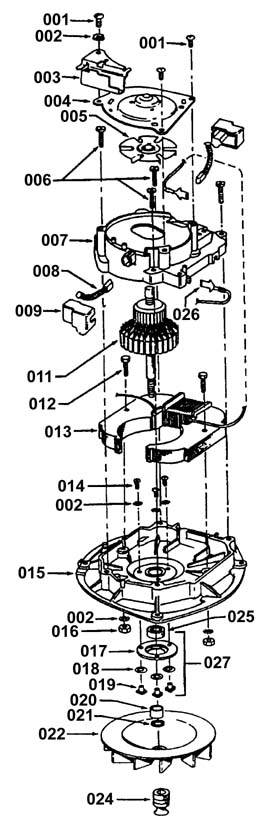

Motor Assembly - 215-2009
RefNbr Part Number Description Req Notes
001 N/A Not available Screw
002 215-0287 Washer
003 215-0288 Indicator guide
004 215-0289 Upper bearing (OBSOLETE)
005 215-0290 Vent fan (OBSOLETE)
006 215-0291 Screw
007 215-0292 Upper motor casting
008 215-0293 Carbon brush (OBSOLETE)
009 215-0294 Brush insulator
011 215-0295 Armature
012 215-0296 Bolt
013 215-0297 Field coil
014 215-0298 Screw
015 215-0299 Lower motor case
016 215-0300 Nut
017 215-0301 Retainer
018 215-0302 Washer
019 215-0303 Nut
020 215-0304 Spacer
021 215-0305 Washer
022 215-0306 Poly fan
024 215-0307 Motor pulley
025 215-0001 Brush bearings
026 215-0308 Terminal
027 215-0309 Bearing kit (OBSOLETE)
N/S 215-0310 Indicator guide spring
