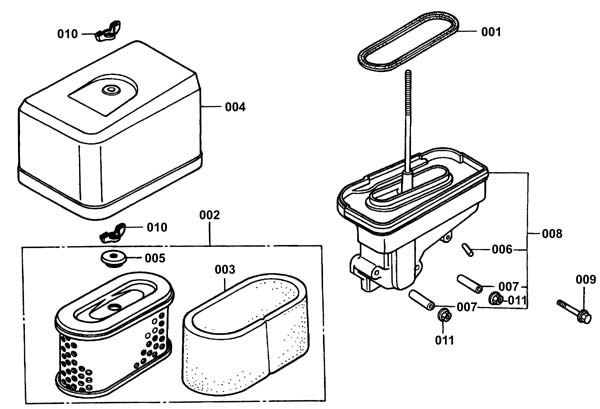

DP23 Air Cleaner - 177-4018 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
177-0186 |
Elbow gasket |
1 |
|
| 002 |
177-0022 |
Air filter element |
1 |
|
| 003 |
177-0188 |
Outer filter |
1 |
|
| 004 |
177-0192 |
Air Cleaner Cover (Dual) From S/N 1035690 |
1 |
|
| 005 |
177-0193 |
Air cleaner grommet |
1 |
|
| 006 |
177-0194 |
Air Cleaner Collar |
1 |
|
| 007 |
177-0196 |
Air Cleaner Collar |
2 |
|
| 008 |
177-0200 |
Air Cleaner Elbow From S/N 1035690 |
1 |
|
| 009 |
177-0076 |
Bolt 6x35 flange |
2 |
|
| 010 |
177-0203 |
Nut tool box setting |
2 |
|
| 011 |
999-0951 |
Nut M6-1 flanged |
2 |
|
|
|

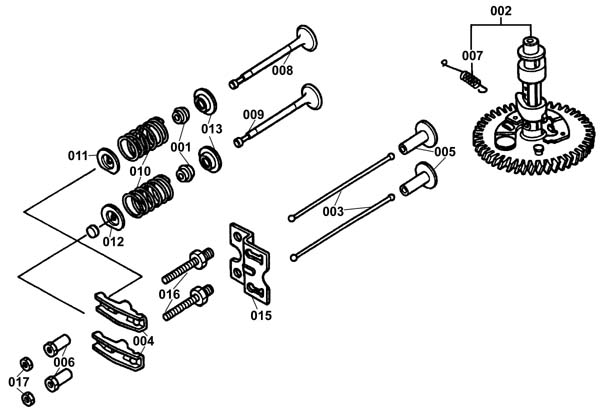

DP23 Camshaft - 177-4019 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
177-0108 |
Valve stem seal |
2 |
|
| 002 |
177-0310 |
Camshaft assembly |
1 |
|
| 004a |
177-0112 |
Valve rocker arm |
2 |
|
| 004b |
177-0311 |
Valve rocker arm |
2 |
|
| 005 |
177-0113 |
Valve lifter |
2 |
|
| 006 |
177-0115 |
Rocker arm pivot |
2 |
|
| 007 |
177-0116 |
Weight return spring |
1 |
|
| 008 |
177-0117 |
Internal valve |
1 |
|
| 009 |
177-0118 |
External valve (stelite) |
1 |
|
| 010 |
177-0119 |
Valve spring |
2 |
|
| 011 |
177-0120 |
Internal valve spring retainer |
1 |
|
| 012 |
177-0120 |
Internal valve spring retainer |
1 |
|
| 013 |
177-0121 |
Valve spring seat |
2 |
|
| 015 |
177-0312 |
Push rod guide |
1 |
|
| 016 |
177-0123 |
Bolt pivot |
2 |
|
| 017 |
177-0124 |
Nut pivot adjustment |
2 |
|
|
|

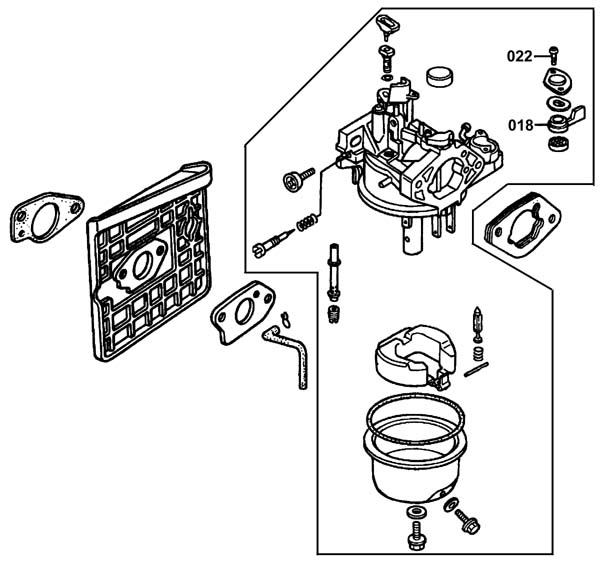

DP23 Carburetor 1 - 177-4020 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 018 |
177-0313 |
Valve lever |
1 |
|
| 022 |
177-0314 |
Screw 3x6 pan head phillips |
2 |
|
|
|

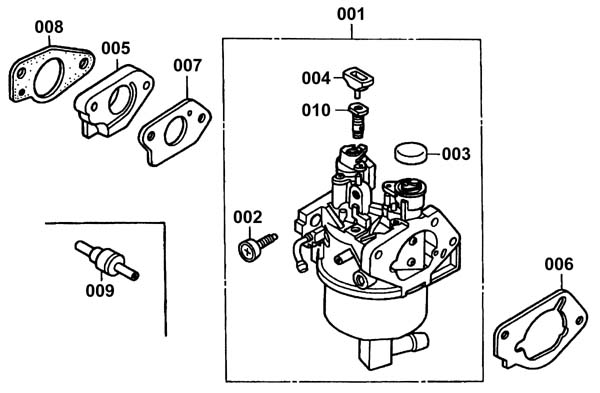

DP23 Carburetor 2 - 177-4021 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
177-0315 |
Carburetor assembly |
1 |
|
| 002 |
177-0150 |
Throttle stop screw |
1 |
|
| 003 |
177-0151 |
Choke lever dust cap |
1 |
|
| 004 |
177-0316 |
Collar set |
1 |
|
| 005 |
177-0317 |
Carburetor Insulator |
1 |
|
| 006 |
177-0011 |
Carburetor spacer |
1 |
|
| 007 |
177-0318 |
Carburetor gasket |
1 |
|
| 008 |
177-0158 |
Insulator gasket |
1 |
|
| 009 |
177-0319 |
Dashpot check valve |
1 |
|
|
|

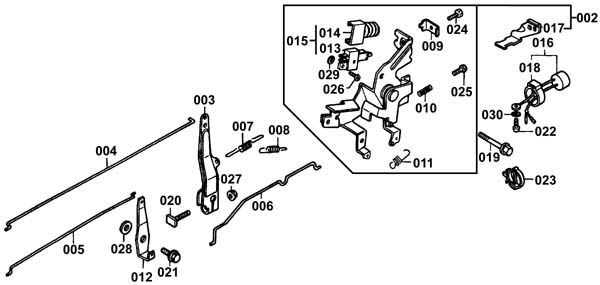

DP23 Control - 177-4022 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 002 |
177-0321 |
Control assembly |
1 |
|
| 003 |
177-0016 |
Governor arm |
1 |
|
| 004 |
177-0234 |
Governor Rod |
1 |
|
| 007 |
177-0322 |
Governor spring |
1 |
|
| 008 |
177-0239 |
Governor Spring (Primary) |
1 |
|
| 009 |
177-0252 |
Cable Holder |
1 |
|
| 010 |
177-0253 |
Control Adjusting Spring |
1 |
|
| 011 |
177-0255 |
Cable Return Spring (From S/N 1010251) |
1 |
|
| 012 |
177-0323 |
Choke joint lever |
1 |
|
| 013 |
177-0257 |
Engine Switch Assembly |
1 |
|
| 014 |
177-0258 |
Switch Cover |
1 |
|
| 015 |
177-0259 |
Engine Stop Switch Assembly |
1 |
|
| 016 |
177-0260 |
Buzzer Assembly |
1 |
|
| 017 |
177-0324 |
Stay buzzer |
1 |
|
| 018 |
177-0263 |
Audible Pilot Suspension |
1 |
|
| 019 |
177-0075 |
Bolt 6x12 flange |
1 |
|
| 020 |
177-0264 |
Bolt Governor Arm (From 1035471) |
1 |
|
| 021 |
177-0265 |
Bolt 6MM Flange |
1 |
|
| 022 |
177-0266 |
Screw 5x8 Tapping |
1 |
|
| 023 |
177-0129 |
Wire harness clip |
1 |
|
| 024 |
177-0274 |
Bolt 5x16 Recessed (From S/N 1019388) |
1 |
|
| 025 |
177-0278 |
Srew 4x14 Pan |
1 |
|
| 026 |
177-0279 |
Srew 5x20 Pan |
1 |
|
| 027 |
999-0951 |
Nut M6-1 flanged |
1 |
|
| 028 |
177-0053 |
Washer 6mm plain |
1 |
|
| 029 |
177-0281 |
Washer 4mm spring |
1 |
|
| 030 |
177-0282 |
Washer 5mm spring |
1 |
|
|
|

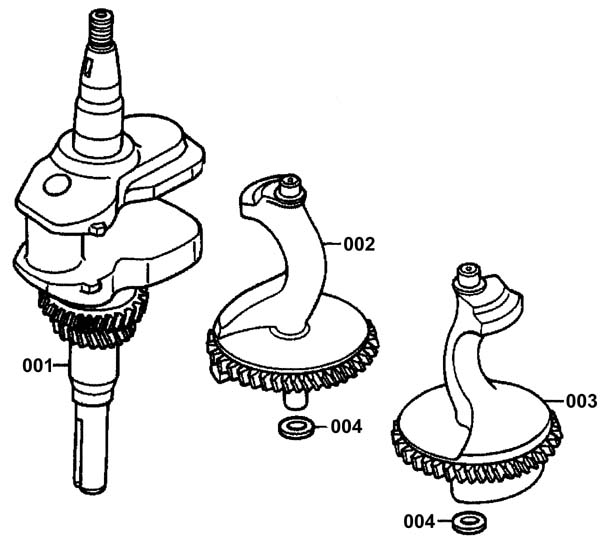

DP23 Crankshaft - 177-4023 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
177-0325 |
Crankshaft complete |
1 |
|
| 002 |
177-0326 |
Balancer weight A |
1 |
|
| 003 |
177-0327 |
Balancer weight B |
1 |
|
| 004 |
177-0328 |
Washer 14mm thrust |
2 |
|
|
|

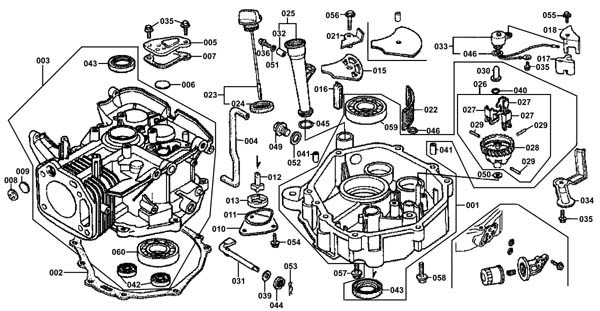

DP23 Cylinder Barrel - 177-4024 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
177-0329 |
Oil pan assembly |
1 |
|
| 002 |
177-0027 |
Oil pan gasket |
1 |
|
| 003 |
177-0331 |
Cylinder assembly |
1 |
|
| 004 |
177-0332 |
Breather tube |
1 |
|
| 005 |
177-0333 |
Breather chamber cap |
1 |
|
| 006 |
177-0031 |
Breather valve |
1 |
|
| 007 |
177-0032 |
Breather cap gasket |
1 |
|
| 008 |
177-0334 |
One-way valve plate |
1 |
|
| 009 |
177-0335 |
One-way valve |
1 |
|
| 010 |
177-0009 |
Oil pump cover |
1 |
|
| 011 |
177-0010 |
Oil pump cover o-ring |
1 |
|
| 012 |
177-0033 |
Rotor (inner) |
1 |
|
| 013 |
177-0034 |
Oil pump rotor (outer) |
1 |
|
| 015 |
177-0036 |
Oil filter plate |
1 |
|
| 016 |
177-0037 |
Oil return rubber |
1 |
|
| 017 |
177-0038 |
Oil stopper |
1 |
|
| 018 |
177-0039 |
Oil stopper plate |
1 |
|
| 021 |
177-0040 |
Suction plate |
1 |
|
| 022 |
177-0041 |
Oil filter screen |
1 |
|
| 024 |
177-0046 |
Oil filler cap gasket |
1 |
|
| 025 |
177-0047 |
Oil filler tube |
1 |
|
| 026 |
177-0337 |
Governor assembly |
1 |
|
| 027 |
177-0048 |
Governor weight |
3 |
|
| 028 |
177-0338 |
Governor weight holder |
1 |
|
| 029 |
177-0050 |
Governor weight pin |
3 |
|
| 030 |
177-0051 |
Governor slider |
1 |
|
| 031 |
177-0339 |
Governor arm shaft |
1 |
|
| 032 |
177-0073 |
Extension collar |
1 |
|
| 033 |
177-0043 |
Oil level switch |
1 |
|
| 034 |
177-0341 |
Protector switch |
1 |
|
| 035 |
177-0075 |
Bolt 6x12 flange |
4 |
|
| 036 |
177-0076 |
Bolt 6x35 flange |
1 |
|
| 039 |
177-0077 |
Washer 8.1mm thrust |
1 |
|
| 040 |
177-0079 |
Governor holder clip |
1 |
|
| 041 |
177-0342 |
Dowel pin 8 x 12 |
2 |
|
| 042 |
177-0343 |
Radial ball bearing |
2 |
|
| 044a |
177-0081 |
Oil seal 8x14x5 |
1 |
|
| 044b |
177-0081 |
Oil seal 8x14x5 |
1 |
|
| 046 |
177-0084 |
O-Ring 11.8x2.4 |
2 |
|
| 049 |
177-0052 |
Bolt 20mm drain plug |
1 |
|
| 050 |
177-0053 |
Washer 6mm plain |
1 |
|
| 051 |
177-0054 |
Washer 6mm plain |
1 |
|
| 052 |
177-0055 |
Washer 20mm drain plug |
1 |
|
| 053 |
177-0345 |
10mm lock pin |
1 |
|
| 054 |
177-0060 |
Bolt 6 x 12 flange |
3 |
|
| 055 |
177-0064 |
Bolt 6 x 16 flange |
1 |
|
| 056 |
177-0066 |
Bolt 6x25 flange |
1 |
|
| 057 |
177-0068 |
Bolt 8x40 flange |
6 |
|
| 058 |
177-0346 |
Bolt 8x60 flange |
1 |
|
| 059a |
177-0071 |
Radial ball bearing (6207) |
1 |
|
| 059b |
177-0071 |
Radial ball bearing (6207) |
1 |
|
| 060a |
177-0071 |
Radial ball bearing (6207) |
1 |
|
| 060b |
177-0071 |
Radial ball bearing (6207) |
1 |
|
|
|

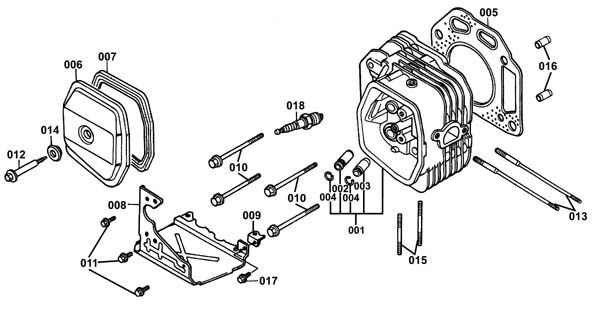

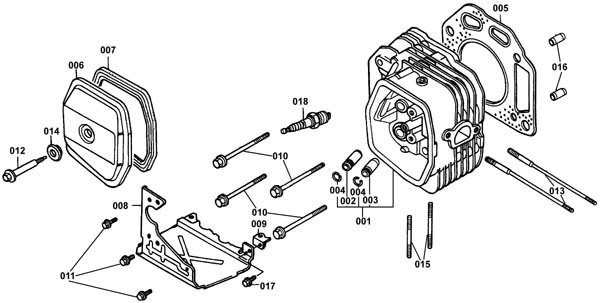

DP23 Cylinder Head - 177-4025 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
177-0348 |
Bare cylinder head |
1 |
|
| 002 |
177-0288 |
Valve guide (exhaust) |
1 |
|
| 003 |
177-0290 |
Valve guide (intake) |
1 |
|
| 004 |
177-0291 |
Valve guide clip |
2 |
|
| 005 |
177-0349 |
Cylinder head gasket |
1 |
|
| 006 |
177-0293 |
Valve cover |
1 |
|
| 007 |
177-0014 |
Valve cover gasket |
1 |
|
| 008 |
177-0350 |
Lower cover |
1 |
|
| 009 |
177-0351 |
Lower cover stay complete |
1 |
|
| 010 |
177-0352 |
Bolt 10x85 flange |
4 |
|
| 011 |
177-0075 |
Bolt 6x12 flange |
3 |
|
| 012 |
177-0295 |
Valve cover bolt |
1 |
|
| 013 |
177-0296 |
Intake bolt 8 x 131.5 stud |
2 |
|
| 014 |
177-0299 |
Valve cover washer |
1 |
|
| 015 |
177-0353 |
Bolt 8x32 stud |
2 |
|
| 016 |
177-0300 |
Dowell insert 12x20 |
2 |
|
| 017 |
177-0060 |
Bolt 6 x 12 flange |
1 |
|
| 018 |
177-0303 |
Spark plug (BPR5ES) (NGK) |
1 |
|
|
|

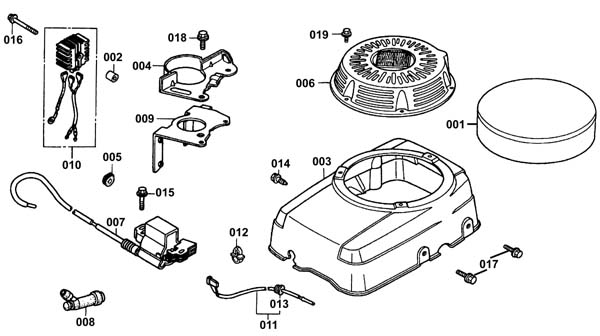

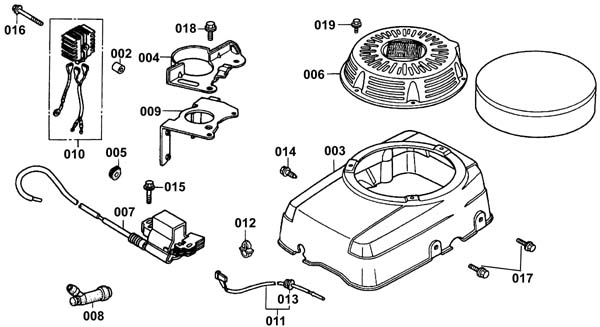

DP23 Fan Cover - 177-4026 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
177-0354 |
Dust bonnet |
1 |
|
| 001b |
N/A |
Not available |
1 |
Re-coil dust filter for Honda 11 HP |
| 002 |
177-0134 |
Air cleaner elbow spacer |
1 |
|
| 003 |
177-0355 |
Complete fan cover |
1 |
|
| 004 |
177-0222 |
Complete Side Plate |
1 |
|
| 005 |
177-0356 |
Wire grommet |
1 |
|
| 006 |
177-0357 |
Filter cage |
1 |
|
| 007 |
N/A |
Not available |
1 |
Ignition coil assembly |
| 008 |
177-0358 |
Noise suppressor cap assembly |
1 |
|
| 009 |
177-0223 |
Starter Stay |
1 |
|
| 010 |
177-0141 |
Silicon rectifier assembly |
1 |
|
| 011 |
177-0125 |
Stop switch wire |
1 |
|
| 012 |
177-0126 |
Stop switch wire holder |
1 |
|
| 013 |
177-0127 |
Wire grommet |
1 |
|
| 014 |
177-0075 |
Bolt 6x12 flange |
1 |
|
| 015 |
177-0128 |
Bolt 6 x 28mm flanged |
2 |
|
| 016 |
177-0133 |
Bolt M6 x 40mm flanged |
1 |
|
| 017 |
177-0359 |
Bolt M8 x 16mm flanged |
2 |
|
| 018 |
177-0224 |
Bolt 8x28 Flange |
2 |
|
| 019 |
177-0360 |
Bolt 6x12 flange |
3 |
|
|
|

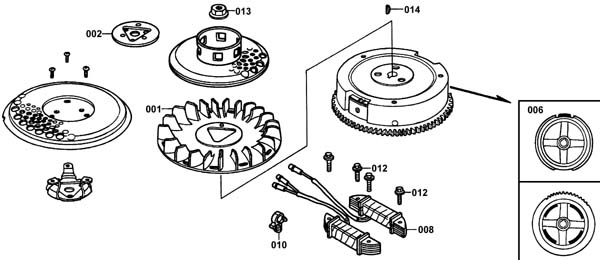

DP23 Flywheel - 177-4027 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
177-0241 |
Cooling fan |
1 |
|
| 002 |
177-0361 |
Cooling fan setting plate |
1 |
|
| 006 |
177-0362 |
Flywheel complete |
1 |
|
| 008 |
177-0246 |
Coil assembly |
1 |
|
| 010 |
177-0363 |
Brake pipe clip |
2 |
|
| 012 |
177-0128 |
Bolt 6 x 28mm flanged |
2 |
|
| 014 |
177-0286 |
Key 25x18 special woodruff |
1 |
|
|
|

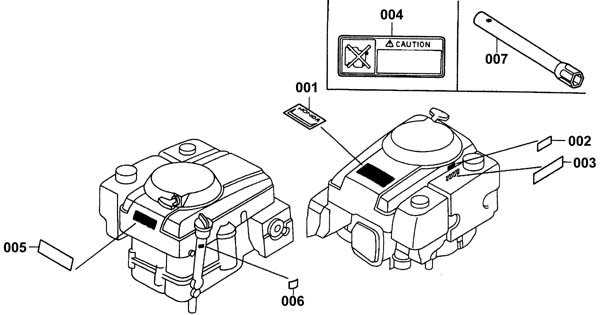

DP23 Labels - 177-4028 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
177-0365 |
Top cover emblem mark |
1 |
|
| 002 |
177-0366 |
Fuel caution label |
1 |
|
| 003a |
177-0367 |
Honda label |
1 |
|
| 003b |
177-0368 |
Honda label |
1 |
|
| 004 |
177-0369 |
Maintenance caution label |
1 |
|
| 005 |
177-0371 |
Caution label |
1 |
|
| 006 |
177-0370 |
DP23 label |
1 |
|
| 007 |
177-0232 |
Box wrench |
1 |
|
|
|

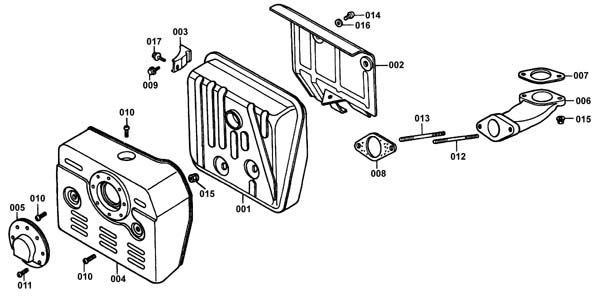

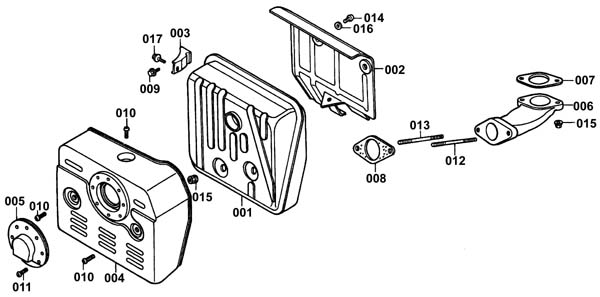

DP23 Muffler - 177-4029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
177-0002 |
Muffler complete |
1 |
|
| 002 |
177-0208 |
Muffler Separator |
1 |
|
| 003 |
177-0205 |
Muffler clamp |
1 |
|
| 004 |
177-0372 |
Muffler protector |
1 |
|
| 005 |
177-0373 |
Muffler cap |
1 |
|
| 006 |
177-0374 |
Exhaust Pipe |
1 |
|
| 007a |
177-0211 |
Pipe gasket |
1 |
|
| 007b |
177-0211 |
Pipe gasket |
1 |
|
| 008 |
177-0214 |
Pipe gasket |
1 |
|
| 009 |
177-0215 |
Bolt 8x16 flange |
1 |
|
| 010 |
177-0266 |
Screw 5x8 Tapping |
3 |
|
| 011 |
177-0375 |
Screw 4x6 tapping |
3 |
|
| 012 |
177-0273 |
Bolt 5x16 Hex (To S/N 1019388) |
1 |
|
| 013 |
177-0216 |
Stud bolt M8 x 70mm |
1 |
|
| 014 |
177-0217 |
Screw 6x6 pan head |
3 |
|
| 015 |
999-0665 |
Nut M8-1.25 flange lock |
4 |
|
| 016a |
999-1261 |
Washer M6 flat stainless steel |
3 |
|
| 016b |
177-0053 |
Washer 6mm plain |
3 |
|
| 017 |
177-0378 |
Bolt 8x14 flange |
1 |
|
|
|

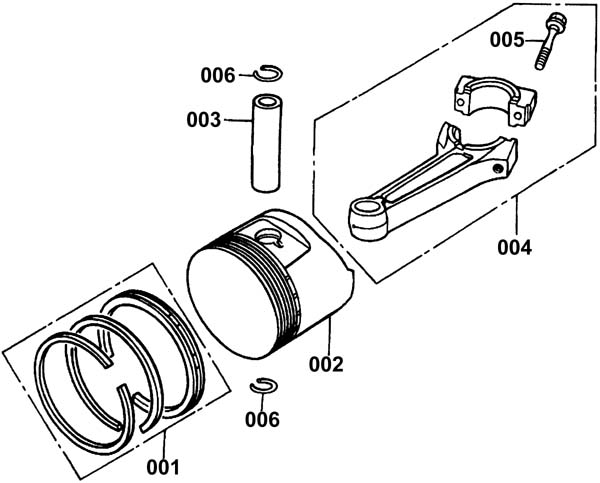

DP23 Piston - 177-4030 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
177-0379 |
Standard piston ring set |
1 |
|
| 001b |
177-0380 |
Piston ring set |
1 |
|
| 001c |
177-0381 |
Piston ring set |
1 |
|
| 001d |
177-0382 |
Piston ring set |
1 |
|
| 001e |
177-0383 |
Piston ring set |
1 |
|
| 003 |
177-0098 |
Piston pin |
1 |
|
| 004a |
177-0100 |
Connecting rod assembly |
1 |
|
| 004b |
177-0102 |
Connecting rod assembly (0.25 lower size) |
1 |
|
| 005 |
177-0106 |
Bolt connecting rod |
2 |
|
| 006 |
177-0107 |
Piston pin clip (20mm) |
2 |
|
|
|

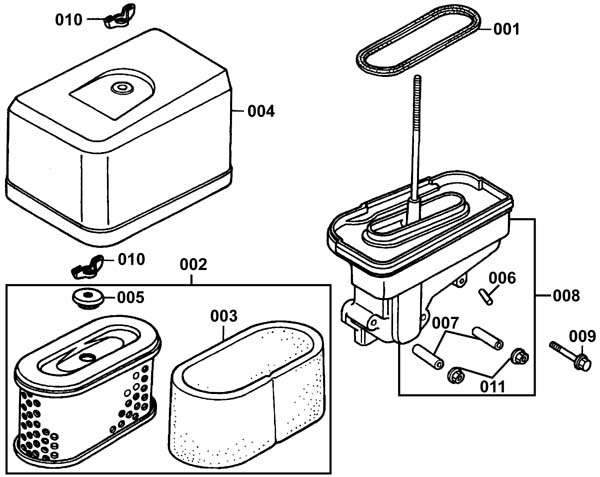

DEP1 Air Cleaner - 177-4031 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
177-0186 |
Elbow gasket |
1 |
|
| 002 |
177-0022 |
Air filter element |
1 |
|
| 003 |
177-0188 |
Outer filter |
1 |
|
| 004 |
177-0192 |
Air Cleaner Cover (Dual) From S/N 1035690 |
1 |
|
| 005 |
177-0193 |
Air cleaner grommet |
1 |
|
| 006 |
177-0194 |
Air Cleaner Collar |
1 |
|
| 007 |
177-0196 |
Air Cleaner Collar |
2 |
|
| 008 |
177-0200 |
Air Cleaner Elbow From S/N 1035690 |
1 |
|
| 009 |
177-0076 |
Bolt 6x35 flange |
2 |
|
| 010 |
177-0203 |
Nut tool box setting |
2 |
|
| 011 |
999-0951 |
Nut M6-1 flanged |
2 |
|
|
|
DEP1 Camshaft - 177-4032 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
177-0108 |
Valve stem seal |
2 |
|
| 002 |
177-0310 |
Camshaft assembly |
1 |
|
| 004 |
177-0311 |
Valve rocker arm |
2 |
|
| 005 |
177-0113 |
Valve lifter |
2 |
|
| 006 |
177-0115 |
Rocker arm pivot |
2 |
|
| 007 |
177-0116 |
Weight return spring |
1 |
|
| 008 |
177-0117 |
Internal valve |
1 |
|
| 009 |
177-0118 |
External valve (stelite) |
1 |
|
| 010 |
177-0119 |
Valve spring |
2 |
|
| 011 |
177-0120 |
Internal valve spring retainer |
2 |
|
| 013 |
177-0121 |
Valve spring seat |
2 |
|
| 015 |
177-0312 |
Push rod guide |
1 |
|
| 016 |
177-0123 |
Bolt pivot |
2 |
|
| 017 |
177-0124 |
Nut pivot adjustment |
2 |
|
|
|
DEP1 Carburetor - 177-4033 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
177-0315 |
Carburetor assembly |
1 |
|
| 002 |
177-0150 |
Throttle stop screw |
1 |
|
| 003 |
177-0151 |
Choke lever dust cap |
1 |
|
| 004 |
177-0316 |
Collar set |
1 |
|
| 005 |
177-0317 |
Carburetor Insulator |
1 |
|
| 006 |
177-0011 |
Carburetor spacer |
1 |
|
| 007 |
177-0318 |
Carburetor gasket |
1 |
|
| 008 |
177-0158 |
Insulator gasket |
1 |
|
| 009 |
177-0319 |
Dashpot check valve |
1 |
|
|
|
DEP1 Control - 177-4034 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 002 |
177-0321 |
Control assembly |
1 |
|
| 003 |
177-0016 |
Governor arm |
1 |
|
| 004 |
177-0234 |
Governor Rod |
1 |
|
| 007 |
177-0322 |
Governor spring |
1 |
|
| 008 |
177-0239 |
Governor Spring (Primary) |
1 |
|
| 009 |
177-0252 |
Cable Holder |
1 |
|
| 010 |
177-0253 |
Control Adjusting Spring |
1 |
|
| 011 |
177-0255 |
Cable Return Spring (From S/N 1010251) |
1 |
|
| 012 |
177-0323 |
Choke joint lever |
1 |
|
| 013 |
177-0257 |
Engine Switch Assembly |
1 |
|
| 014 |
177-0258 |
Switch Cover |
1 |
|
| 015 |
177-0259 |
Engine Stop Switch Assembly |
1 |
|
| 016 |
177-0260 |
Buzzer Assembly |
1 |
|
| 017 |
177-0324 |
Stay buzzer |
1 |
|
| 018 |
177-0263 |
Audible Pilot Suspension |
1 |
|
| 019 |
177-0075 |
Bolt 6x12 flange |
1 |
|
| 020 |
177-0264 |
Bolt Governor Arm (From 1035471) |
1 |
|
| 021 |
177-0265 |
Bolt 6MM Flange |
1 |
|
| 022 |
177-0266 |
Screw 5x8 Tapping |
1 |
|
| 023 |
177-0129 |
Wire harness clip |
1 |
|
| 024 |
177-0274 |
Bolt 5x16 Recessed (From S/N 1019388) |
1 |
|
| 025 |
177-0278 |
Srew 4x14 Pan |
1 |
|
| 026 |
177-0279 |
Srew 5x20 Pan |
1 |
|
| 027 |
999-0951 |
Nut M6-1 flanged |
1 |
|
| 028 |
177-0053 |
Washer 6mm plain |
1 |
|
| 029 |
177-0281 |
Washer 4mm spring |
1 |
|
| 030 |
177-0282 |
Washer 5mm spring |
1 |
|
|
|
DEP1 Crankshaft - 177-4035 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
177-0325 |
Crankshaft complete |
1 |
|
| 002 |
177-0326 |
Balancer weight A |
1 |
|
| 003 |
177-0327 |
Balancer weight B |
1 |
|
| 004 |
177-0328 |
Washer 14mm thrust |
2 |
|
|
|

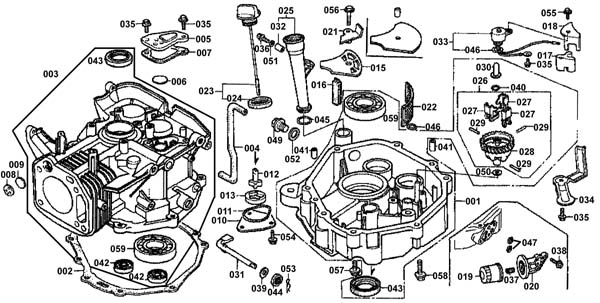

DEP1 Cylinder Barrel - 177-4036 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
177-0389 |
Oil pan assembly |
1 |
|
| 002 |
177-0027 |
Oil pan gasket |
1 |
|
| 003 |
177-0331 |
Cylinder assembly |
1 |
|
| 004 |
177-0332 |
Breather tube |
1 |
|
| 005 |
177-0333 |
Breather chamber cap |
1 |
|
| 006 |
177-0031 |
Breather valve |
1 |
|
| 007 |
177-0030 |
Breather chamber cap |
1 |
|
| 008 |
177-0334 |
One-way valve plate |
1 |
|
| 009 |
177-0335 |
One-way valve |
1 |
|
| 010 |
177-0009 |
Oil pump cover |
1 |
|
| 011 |
177-0010 |
Oil pump cover o-ring |
1 |
|
| 012 |
177-0033 |
Rotor (inner) |
1 |
|
| 013 |
177-0034 |
Oil pump rotor (outer) |
1 |
|
| 015 |
177-0036 |
Oil filter plate |
1 |
|
| 016 |
177-0037 |
Oil return rubber |
1 |
|
| 017 |
177-0038 |
Oil stopper |
1 |
|
| 018 |
177-0039 |
Oil stopper plate |
1 |
|
| 019 |
177-0388 |
Oil filter |
1 |
|
| 020 |
177-0390 |
Oil filter base |
1 |
|
| 021 |
177-0040 |
Suction plate |
1 |
|
| 022 |
177-0041 |
Oil filter screen |
1 |
|
| 024 |
177-0046 |
Oil filler cap gasket |
1 |
|
| 025 |
177-0047 |
Oil filler tube |
1 |
|
| 026 |
177-0337 |
Governor assembly |
1 |
|
| 027 |
177-0048 |
Governor weight |
3 |
|
| 028 |
177-0338 |
Governor weight holder |
1 |
|
| 029 |
177-0050 |
Governor weight pin |
3 |
|
| 030 |
177-0051 |
Governor slider |
1 |
|
| 031 |
177-0339 |
Governor arm shaft |
1 |
|
| 032 |
177-0073 |
Extension collar |
1 |
|
| 033 |
177-0043 |
Oil level switch |
1 |
|
| 034 |
177-0341 |
Protector switch |
1 |
|
| 035 |
177-0075 |
Bolt 6x12 flange |
4 |
|
| 036 |
177-0076 |
Bolt 6x35 flange |
1 |
|
| 037 |
177-0391 |
Oil filter holder |
1 |
|
| 038 |
177-0284 |
Bolt 6x25 flange |
2 |
|
| 039 |
177-0077 |
Washer 8.1mm thrust |
1 |
|
| 040 |
177-0079 |
Governor holder clip |
1 |
|
| 041 |
177-0342 |
Dowel pin 8 x 12 |
2 |
|
| 042 |
177-0343 |
Radial ball bearing |
2 |
|
| 044 |
177-0081 |
Oil seal 8x14x5 |
1 |
|
| 046 |
177-0084 |
O-Ring 11.8x2.4 |
2 |
|
| 049 |
177-0052 |
Bolt 20mm drain plug |
1 |
|
| 050 |
177-0053 |
Washer 6mm plain |
1 |
|
| 051 |
177-0054 |
Washer 6mm plain |
1 |
|
| 052 |
177-0055 |
Washer 20mm drain plug |
1 |
|
| 053 |
177-0345 |
10mm lock pin |
1 |
|
| 054 |
177-0060 |
Bolt 6 x 12 flange |
3 |
|
| 055 |
177-0064 |
Bolt 6 x 16 flange |
1 |
|
| 056 |
177-0066 |
Bolt 6x25 flange |
1 |
|
| 057 |
177-0068 |
Bolt 8x40 flange |
6 |
|
| 058 |
177-0346 |
Bolt 8x60 flange |
1 |
|
| 059 |
177-0071 |
Radial ball bearing (6207) |
2 |
|
|
|
DEP1 Cylinder Head - 177-4037 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
177-0348 |
Bare cylinder head |
1 |
|
| 002 |
177-0288 |
Valve guide (exhaust) |
1 |
|
| 003 |
177-0290 |
Valve guide (intake) |
1 |
|
| 004 |
177-0291 |
Valve guide clip |
2 |
|
| 005 |
177-0349 |
Cylinder head gasket |
1 |
|
| 006 |
177-0293 |
Valve cover |
1 |
|
| 007 |
177-0014 |
Valve cover gasket |
1 |
|
| 008 |
177-0350 |
Lower cover |
1 |
|
| 009 |
177-0351 |
Lower cover stay complete |
1 |
|
| 010 |
177-0352 |
Bolt 10x85 flange |
4 |
|
| 011 |
177-0075 |
Bolt 6x12 flange |
3 |
|
| 012 |
177-0295 |
Valve cover bolt |
1 |
|
| 013 |
177-0296 |
Intake bolt 8 x 131.5 stud |
2 |
|
| 014 |
177-0299 |
Valve cover washer |
1 |
|
| 015 |
177-0353 |
Bolt 8x32 stud |
2 |
|
| 016 |
177-0300 |
Dowell insert 12x20 |
2 |
|
| 017 |
177-0060 |
Bolt 6 x 12 flange |
1 |
|
| 018 |
177-0303 |
Spark plug (BPR5ES) (NGK) |
1 |
|
|
|
DEP1 Fan Cover - 177-4038 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 002 |
177-0134 |
Air cleaner elbow spacer |
1 |
|
| 003 |
177-0355 |
Complete fan cover |
1 |
|
| 004 |
177-0222 |
Complete Side Plate |
1 |
|
| 005 |
177-0356 |
Wire grommet |
1 |
|
| 007 |
N/A |
Not available |
1 |
Ignition coil assembly |
| 008 |
177-0358 |
Noise suppressor cap assembly |
1 |
|
| 009 |
177-0223 |
Starter Stay |
1 |
|
| 010 |
177-0141 |
Silicon rectifier assembly |
1 |
|
| 011 |
177-0125 |
Stop switch wire |
1 |
|
| 012 |
177-0126 |
Stop switch wire holder |
1 |
|
| 013 |
177-0127 |
Wire grommet |
1 |
|
| 014 |
177-0075 |
Bolt 6x12 flange |
1 |
|
| 015 |
177-0128 |
Bolt 6 x 28mm flanged |
2 |
|
| 016 |
177-0133 |
Bolt M6 x 40mm flanged |
1 |
|
| 017 |
177-0359 |
Bolt M8 x 16mm flanged |
2 |
|
| 018 |
177-0224 |
Bolt 8x28 Flange |
2 |
|
|
|

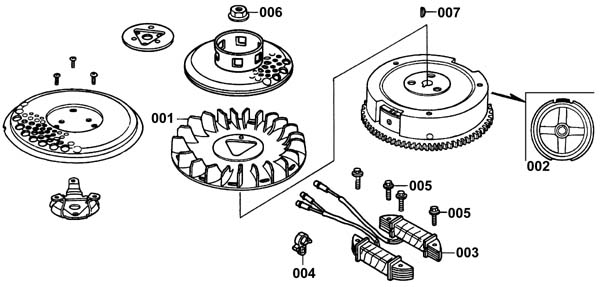

DEP1 Flywheel - 177-4039 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
177-0241 |
Cooling fan |
1 |
|
| 002 |
177-0362 |
Flywheel complete |
1 |
|
| 003 |
177-0246 |
Coil assembly |
1 |
|
| 004 |
177-0363 |
Brake pipe clip |
2 |
|
| 005 |
177-0128 |
Bolt 6 x 28mm flanged |
2 |
|
| 006 |
177-0285 |
Nut M16 special |
1 |
|
| 007 |
177-0286 |
Key 25x18 special woodruff |
1 |
|
|
|
DEP1 Labels - 177-4040 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
177-0365 |
Top cover emblem mark |
1 |
|
| 002 |
177-0366 |
Fuel caution label |
1 |
|
| 003a |
177-0367 |
Honda label |
1 |
|
| 003b |
177-0368 |
Honda label |
1 |
|
| 004 |
177-0369 |
Maintenance caution label |
1 |
|
| 005 |
177-0371 |
Caution label |
1 |
|
| 007 |
177-0232 |
Box wrench |
1 |
|
|
|
DEP1 Muffler - 177-4041 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
177-0002 |
Muffler complete |
1 |
|
| 002 |
177-0208 |
Muffler Separator |
1 |
|
| 003 |
177-0205 |
Muffler clamp |
1 |
|
| 004 |
177-0372 |
Muffler protector |
1 |
|
| 005 |
177-0373 |
Muffler cap |
1 |
|
| 006 |
177-0374 |
Exhaust Pipe |
1 |
|
| 007 |
177-0211 |
Pipe gasket |
1 |
|
| 008 |
177-0214 |
Pipe gasket |
1 |
|
| 009 |
177-0215 |
Bolt 8x16 flange |
1 |
|
| 010 |
177-0266 |
Screw 5x8 Tapping |
3 |
|
| 011 |
177-0375 |
Screw 4x6 tapping |
3 |
|
| 012 |
177-0273 |
Bolt 5x16 Hex (To S/N 1019388) |
1 |
|
| 013 |
177-0216 |
Stud bolt M8 x 70mm |
1 |
|
| 014 |
177-0217 |
Screw 6x6 pan head |
3 |
|
| 015 |
999-0665 |
Nut M8-1.25 flange lock |
4 |
|
| 016 |
999-1261 |
Washer M6 flat stainless steel |
3 |
|
| 017 |
177-0378 |
Bolt 8x14 flange |
1 |
|
|
|
DEP1 Piston - 177-4042 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
177-0379 |
Standard piston ring set |
1 |
|
| 003 |
177-0098 |
Piston pin |
1 |
|
| 004 |
177-0100 |
Connecting rod assembly |
1 |
|
| 005 |
177-0106 |
Bolt connecting rod |
2 |
|
| 006 |
177-0107 |
Piston pin clip (20mm) |
2 |
|
|
|

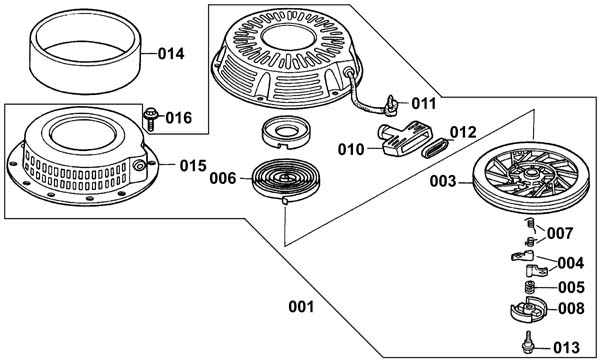

DEP1 Recoil starter - 177-4043 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
177-0164 |
Filter cage |
1 |
|
| 003 |
177-0394 |
Recoil starter pulley |
1 |
|
| 004 |
177-0395 |
Starter ratchet |
2 |
|
| 005 |
177-0396 |
Friction spring |
1 |
|
| 006 |
177-0397 |
Starter return ring |
1 |
|
| 007 |
177-0398 |
Ratchet spring |
2 |
|
| 008 |
177-0399 |
Spring retainer |
1 |
|
| 010 |
177-0400 |
Starter grip |
1 |
|
| 011 |
177-0401 |
200 foot recoil starter rope |
1 |
|
| 012 |
177-0402 |
Reinforcement grip |
1 |
|
| 013 |
177-0403 |
Center screw |
1 |
|
| 014 |
177-0024 |
Dust Bonnet |
1 |
|
| 015 |
177-0404 |
Recoil starter case assembly |
1 |
|
| 016 |
177-0405 |
Bolt 6 x 10 flange |
3 |
|
| N/S |
991-1606 |
120V Starter for Honda |
|
|
| N/S |
991-1607 |
12V starter for Honda |
|
|
|
|
- Entire Assembly - 177-9000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
154-0023 |
Bolt M8 x 30mm flanged |
2 |
(2800 only) |
| 002a |
N/A |
Not available |
1 |
(includes 002b) (120v electric starter) |
| 002b |
154-0599 |
Electric starter cord (OBSOLETE) |
1 |
|
| 003 |
154-0440 |
Screw M6 x 20mm |
2 |
|
| 004 |
154-0539 |
Screw 8 x 2 1/2 sheet metal |
2 |
|
| 005 |
177-0133 |
Bolt M6 x 40mm flanged |
1 |
|
| 006 |
177-0141 |
Silicon rectifier assembly |
1 |
|
| 007 |
N/A |
Not available |
1 |
(Ignition coil assembly) |
| 008 |
177-0128 |
Bolt 6 x 28mm flanged |
2 |
|
| 009 |
999-0446 |
Screw 5/16-18 x 1 3/4 round head slotted zinc plated |
1 |
|
| 010 |
999-0665 |
Nut M8-1.25 flange lock |
2 |
|
| 011 |
N/A |
Not available |
1 |
Re-coil dust filter for Honda 11 HP |
| 012 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
1 |
|
| 013 |
154-0541 |
Throttle control cable |
1 |
|
| 014 |
154-0542 |
Spacer (OBSOLETE) |
1 |
|
| 015 |
999-1158 |
Washer #6 flat stainless steel |
1 |
|
| 016 |
154-0544 |
Screw 4-40 x 3/4 UNF round head machine |
1 |
|
| 017 |
154-0545 |
Choke lever knob (OBSOLETE) |
1 |
|
| 018 |
154-0548 |
Choke lever bushing (OBSOLETE) |
1 |
|
| 019 |
154-0547 |
Choke lever (OBSOLETE) |
1 |
|
| 020 |
154-0546 |
Choke extension spring (OBSOLETE) |
1 |
|
| 021 |
177-0190 |
Air cleaner cover (dual) |
1 |
|
| 023 |
177-0193 |
Air cleaner grommet |
1 |
|
| 024 |
177-0203 |
Nut tool box setting |
1 |
|
| 025 |
177-0022 |
Air filter element |
1 |
|
| 026 |
177-0359 |
Bolt M8 x 16mm flanged |
1 |
|
| 027 |
177-0188 |
Outer filter |
1 |
|
| 028 |
177-0186 |
Elbow gasket |
1 |
|
| 029 |
N/A |
Not available |
1 |
(Air cleaner elbow) |
| 030 |
154-0555 |
Centrifugal top clutch spacer (OBSOLETE) |
1 |
|
| 031 |
154-0549 |
Square keyway |
1 |
|
| 032a |
154-0552 |
Centrifugal clutch |
1 |
(includes 032b) |
| 032b |
154-0553 |
4 inch pulley AB sheave |
1 |
|
| 033 |
154-0016 |
Bottom clutch spacer |
1 |
|
| 034 |
999-0208 |
Bolt 7/16-20 x 1 1/2 hex head grade 5 zinc plated |
1 |
|
| 035 |
999-0024 |
Washer 5/16 flat stainless steel |
4 |
|
| 036 |
999-0028 |
Washer 5/16 split lock plain finish |
2 |
|
| 037 |
154-0554 |
Screw 5/16-24 x 1 1/4 cap |
2 |
|
| 038 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
| 039 |
177-0454 |
Cylinder head support gasket |
1 |
|
| 040 |
177-0453 |
Cylinder head |
1 |
|
| 041 |
177-0290 |
Valve guide (intake) |
1 |
|
| 042 |
177-0288 |
Valve guide (exhaust) |
1 |
|
| 043 |
177-0303 |
Spark plug (BPR5ES) (NGK) |
1 |
|
| 045 |
177-0294 |
Valve cover bolt |
2 |
|
| 046 |
177-0014 |
Valve cover gasket |
1 |
|
| 047 |
177-0293 |
Valve cover |
1 |
|
| 048 |
177-0295 |
Valve cover bolt |
1 |
|
| 049 |
177-0299 |
Valve cover washer |
1 |
|
| 050 |
177-0301 |
Bolt M10-1.25 flange |
2 |
|
| 051 |
177-0291 |
Valve guide clip |
2 |
|
| 052 |
177-0206 |
Muffler protector |
1 |
|
| 053 |
177-0204 |
Muffler (non-catalytic) |
1 |
|
| 055 |
177-0214 |
Pipe gasket |
1 |
|
| 056 |
177-0216 |
Stud bolt M8 x 70mm |
1 |
|
| 057 |
154-0273 |
Stud bolt M8 x 60mm |
1 |
|
| 059 |
999-0665 |
Nut M8-1.25 flange lock |
6 |
|
| 061 |
177-0211 |
Pipe gasket |
1 |
|
| 062 |
177-0139 |
Noise suppressor cap assembly |
1 |
|
| 065a |
177-0045 |
Oil filler cap assembly (OBSOLETE) |
1 |
(includes 065b and 066) |
| 066 |
177-0046 |
Oil filler cap gasket |
1 |
|
| 067 |
177-0047 |
Oil filler tube |
1 |
(includes 068) |
| 068 |
177-0073 |
Extension collar |
1 |
|
| 069 |
177-0076 |
Bolt 6x35 flange |
1 |
|
| 071 |
177-0052 |
Bolt 20mm drain plug |
1 |
|
| 072 |
177-0054 |
Washer 6mm plain |
1 |
|
| 073 |
177-0055 |
Washer 20mm drain plug |
1 |
|
| 074 |
177-0404 |
Recoil starter case assembly |
1 |
|
| 075 |
177-0394 |
Recoil starter pulley |
1 |
|
| 076 |
177-0397 |
Starter return ring |
1 |
|
| 077 |
177-0400 |
Starter grip |
1 |
|
| 078 |
177-0401 |
200 foot recoil starter rope |
1 |
|
| 079 |
177-0405 |
Bolt 6 x 10 flange |
3 |
|
| N/S |
177-0388 |
Oil filter |
1 |
(GXV340) |
| N/S |
991-1832 |
Emission tester |
1 |
|
| N/S |
991-1810 |
Compression tester |
1 |
|
| N/S |
991-6002 |
12V fuel lock off (Model 152) |
1 |
|
| N/S |
991-6001 |
Fuel regulator (T60) |
1 |
|
| N/S |
177-0158 |
Insulator gasket |
1 |
|
| N/S |
177-0052 |
Bolt 20mm drain plug |
1 |
|
| N/S |
177-0043 |
Oil level switch |
1 |
|
| N/S |
177-0259 |
Engine Stop Switch Assembly |
1 |
|
| N/S |
155-0003 |
Motor oil 10W30 |
1 |
|
| KIT |
050-0112 |
Honda GXV340/390 100 hour service kit |
1 |
(includes oil filter, pre-air filter, air filter and spark plug) |
| N/S |
991-4039 |
Spark plug tester |
1 |
|
|
|
