- Pads - 255-1300 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1340 |
13 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1335 |
13 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1364 |
13 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1342 |
13 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1312 |
13 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-1377 |
13 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1338 |
13 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1321 |
13 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1350 |
13 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1365 |
13 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1330 |
13 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1387 |
13 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 13 |
255-1390 |
13 inch premium black stripping pad (pkg of 5) |
|
|
| 14 |
255-1370 |
13 inch premium blue cleaning pad (pkg of 5) |
|
|
| 15 |
255-1392 |
13 inch premium brown stripping pad (pkg of 5) |
|
|
| 16 |
255-1380 |
13 inch premium green scrubbing pad (pkg of 5) |
|
|
| 17 |
255-1360 |
13 inch premium red scrubbing pad (pkg of 5) |
|
|
| 18 |
255-1352 |
13 inch premium tan polishing pad (pkg of 5) |
|
|
| 19 |
255-1320 |
13 inch premium white polishing pad (pkg of 5) |
|
|
| 20 |
255-1311 |
13 inch superspeed rubberized pad (pkg of 5) |
|
|
| 21 |
255-1395 |
13 inch razorback stripping pad (pkg of 5) |
|
|
| 22 |
255-1347 |
13 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 23 |
255-1355 |
13 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 24 |
255-1323 |
13 inch sand screen driver pad (pkg of 2) |
|
|
| 25 |
255-0198 |
13 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 26 |
255-0199 |
13 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 27 |
255-0200 |
13 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 28 |
255-0201 |
13 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 29 |
255-0202 |
13 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 30 |
255-0203 |
13 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 31 |
255-0196 |
13 inch Superscreen sand screen 60 grit(pkg of 10) (OBSOLETE |
|
|
| 32 |
255-0197 |
13 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 33 |
255-0113 |
13 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 34 |
255-0114 |
13 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 35 |
255-0115 |
13 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 36 |
255-0116 |
13 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 37 |
255-0117 |
13 inch Pro sand screen 220 grit (pkg of 10) (OBSOLETE) |
|
|
| 38 |
255-0118 |
13 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 39 |
255-0111 |
13 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 40 |
255-0112 |
13 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 41 |
255-1324 |
13 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 42 |
255-9542 |
13 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 43 |
255-9539 |
13 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 44 |
255-9536 |
13 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 45 |
255-9540 |
13 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 46 |
255-9537 |
13 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 47 |
255-9538 |
13 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 48 |
255-9541 |
13 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 49 |
255-9638 |
13 inch Diamond starter pack (1 of each grit) |
|
|
| 50 |
255-1382 |
13 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 51 |
255-1315 |
13 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 52 |
255-1316 |
13 inch 2001 Duala clean and shine pad-high speed (OBSOLETE) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|

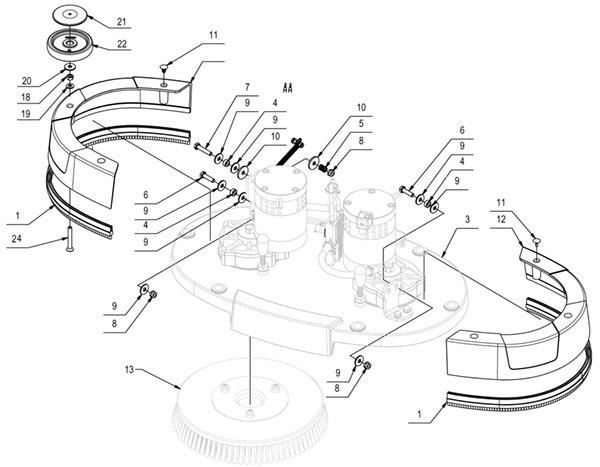

Skirt Assembly - 283-0000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
283-3317 |
Splash guard |
2 |
|
| 2 |
283-3318 |
Left skirt assembly |
1 |
|
| 3 |
283-3319 |
Deck assembly |
1 |
|
| 4 |
283-1533 |
BUSHING D.14.9(8.25)X7 OT58 |
3 |
|
| 5 |
283-1539 |
SPRING 12X1.5X15 - BRUSH CONTROL |
1 |
|
| 6 |
283-1617 |
SCREW M8X30 UNI 5739 DIN 933 (8.8) GA |
2 |
|
| 7 |
283-1620 |
SCREW M8X40 UNI 5739 (8.8) GALV. |
1 |
|
| 8 |
283-1735 |
M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA |
3 |
|
| 9 |
283-1777 |
WASHER 9X24X2.5 UNI 6593 GALV. |
8 |
|
| 10 |
283-1780 |
NYLON WASHER 8X30X3 |
2 |
|
| 12 |
283-3321 |
Splash guard |
1 |
|
| 13 |
283-2312 |
Brush PPL 0.3 |
2 |
|
| 14 |
283-2323 |
BRUSH D=340 PPL 0.6 |
2 |
|
| 15 |
283-2324 |
Brush PPL 0.9 |
2 |
|
| 16 |
283-2327 |
TINEX BRUSH |
2 |
|
| 17 |
283-2325 |
PAD HOLDER D=330 |
2 |
|
| 18 |
283-1718 |
NUT M8X6.5 UNI 5588 GALV. |
1 |
|
| 19 |
283-1774 |
8X17X1,6 WASHER UNI 6592 GALV. |
1 |
|
| 20 |
283-1777 |
WASHER 9X24X2.5 UNI 6593 GALV. |
1 |
|
| 21 |
283-2495 |
BASE WHEEL BUSHING R22 |
1 |
|
| 22 |
283-2496 |
BASE BUMPER WHEEL R22 |
1 |
|
| 23 |
283-3321 |
Splash guard |
1 |
|
|
|

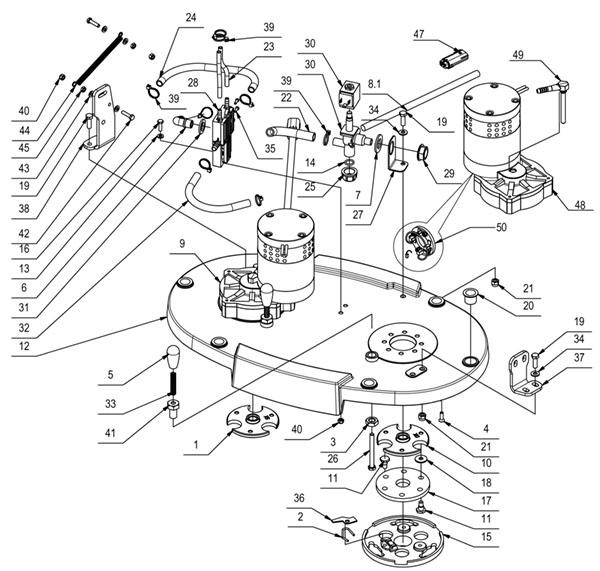

Brush Base Assembly - 283-0001 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
283-2094 |
Nut M4X2 UNI 5589 ZINC. |
2 |
|
| 4 |
283-1700 |
SCREW 6X20 UNI 5933 A2 |
8 |
|
| 5 |
283-1866 |
CYLINDRICAL KNOB MCT/25X50 M8 |
2 |
|
| 6 |
283-1887 |
ELBOW CONNECTOR 3/8X13 MALE |
1 |
|
| 7 |
283-1795 |
WASHER 21X37X3 UNI 6592 GALV. |
1 |
|
| 8 |
283-1007 |
GEARMOTOR 24V 400W 240RPM DX W/MOLEX |
1 |
|
| 9 |
283-1333 |
GEARED MOTOR 24V 400W 240RPM W/ MOLEX |
1 |
|
| 11 |
283-1102 |
STUD BOLT FOR JOINT |
12 |
|
| 13 |
283-2229 |
WASHER D.6,4x12 INOX |
2 |
|
| 14 |
283-1590 |
O-RING 3056 (118) D.13.95X2.62 |
1 |
|
| 15 |
283-1454 |
PLATE - BRUSH HOLDER D.164 |
2 |
|
| 16 |
283-1519 |
SCREW 6X20 UNI 5739 A2 |
2 |
|
| 17 |
283-1456 |
ELASTIC JOINT 108X8 - RUBBER |
2 |
|
| 18 |
283-1777 |
WASHER 9X24X2.5 UNI 6593 GALV. |
6 |
|
| 19 |
283-1616 |
SCREW 8X25 UNI 5739 A2 |
5 |
|
| 21 |
283-1736 |
LOCK NUT M8X10.6 UNI 7473 GALV. |
5 |
|
| 23 |
283-1189 |
TRANSPARENT HOSE 8X5X105 |
2 |
|
| 25 |
283-1900 |
FEMALE CAP 1/2 inch |
1 |
|
| 27 |
283-1032 |
BRACKET FILTER SUPPORT MX |
1 |
|
| 28 |
283-3002 |
WATER DISPENSER |
1 |
|
| 29 |
283-1902 |
BLACK PLASTIC NUT 1/2' |
1 |
|
| 30 |
283-1525 |
COMPLETE SOLENOID VALVE 24V 1/2 inch ACL |
1 |
|
| 31 |
283-1459 |
WASHER 18x30x3 NYLON-G.FIBER |
1 |
|
| 33 |
283-1163 |
COMPR. SPRING 10.5X1X50 |
2 |
|
| 34 |
283-1776 |
WASHER M8 UNI 6592 ST.STEEL |
5 |
|
| 35 |
283-1675 |
3.9X13 S/S PHP SELF-TAPP. SCREW UNI 6 |
2 |
|
| 36 |
283-1101 |
SAFETY PLAQUE |
2 |
|
| 39 |
283-1868 |
PLASTIC CLAMP 2.5X98 |
8 |
|
| 40 |
283-1732 |
LOCK NUT M6X6 UNI 7474 DIN 985 GALV. |
4 |
|
| 42 |
283-1520 |
SCREW M6X25 TE UNI 5739 DIN933(8.8)GA |
2 |
|
| 43 |
283-1765 |
WASHER 6X12X1.6 UNI 6592 GALV. |
4 |
|
| 44 |
283-1549 |
EXTENSION SPRING10X1X103 |
1 |
|
| 45 |
999-1308 |
Nut M6-1 hex stainless steel |
2 |
|
| 46 |
283-1994 |
SHEATH D.12,7x300 TERMOR. |
1 |
|
| 47 |
283-2553 |
CONNECTOR MOLEX MX150L FEM. 19433-0013 |
1 |
|
| 49 |
283-2331 |
HEXAG.HOSE TAIL G1/4 THREAD.MALE |
1 |
|
| 50 |
283-2315 |
CARBON BRUSH |
2 |
|
|
|

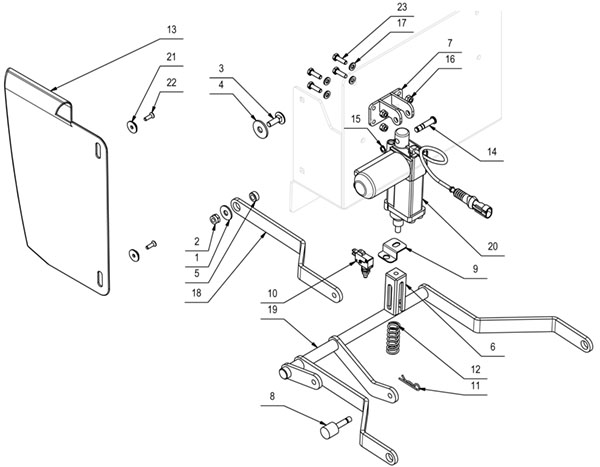

Control Base Assembly - 283-0002 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
283-1777 |
WASHER 9X24X2.5 UNI 6593 GALV. |
1 |
|
| 2 |
283-1735 |
M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA |
1 |
|
| 3 |
283-1594 |
SCREW 8X25 UNI 5732 GALV. |
1 |
|
| 4 |
283-2736 |
WASHER 10X30X2.5 UNI 6593 |
1 |
|
| 5 |
283-1533 |
BUSHING D.14.9(8.25)X7 OT58 |
1 |
|
| 6 |
283-3203 |
EXTRA PRESSURE MAXIMA 2017 PRO |
1 |
|
| 7 |
283-3204 |
PIN FOR SCRUBDECK ACTUATOR MAXIMA 2017 |
1 |
|
| 8 |
283-3205 |
PIN EXTRA PRESS MAXIMA 2017 |
1 |
|
| 10 |
283-2386 |
BUTTON MICROSWITCH 10A FASTON 6.3 |
1 |
|
| 12 |
283-3206 |
SPRING COMP. De=19.5 Df=2.5 L=50 6 |
1 |
|
| 13 |
283-3143 |
TANK BAR CARTER |
1 |
|
| 15 |
283-1555 |
SEEGER RING (NS13) |
1 |
|
| 16 |
283-2276 |
M6 AUTOLOCK. NUT UNI 7473 ZINC. |
4 |
|
| 17 |
283-1765 |
WASHER 6X12X1.6 UNI 6592 GALV. |
4 |
|
| 18b |
283-3171 |
THIRD POINT ARM MAXIMA 2017 |
1 |
(T20SC Pro) |
| 19b |
283-3170 |
LIFT LEVER BAS. MAXIMA 2017 1SP |
1 |
(T20SC Pro)
(T20SC Pro) |
| 21 |
283-1448 |
SPECIAL WASHER D.5X20 |
2 |
|
| 22 |
283-2677 |
SCREW M5x16 TSPTC UNI 7688 ZINC. BLAC |
2 |
|
| 23 |
283-1518 |
SCREW M6X20 UNI 5739 DIN 933 (8.8) GA |
4 |
|
|
|

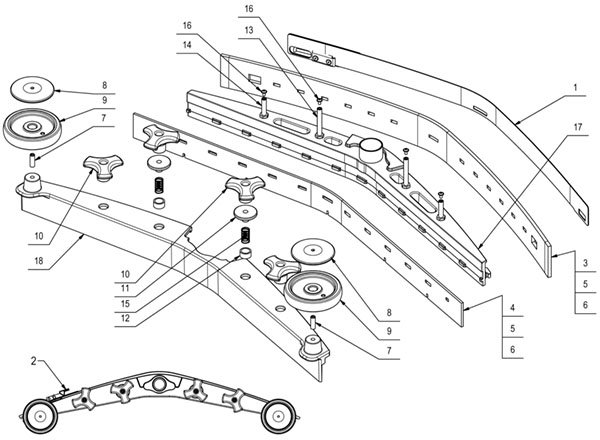

Squeegee Assembly - 283-0003 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
283-3646 |
Blade |
1 |
(T26SC Plus) |
| 1b |
283-1363 |
SQUEEGEE RUBBER HOLDER MAXIMA 2017 |
1 |
(T20SC Pro) |
| 2b |
283-1364 |
SQUEEGEE ASSEMBLY KIT L=700 MAXIMA 2017 |
1 |
(T20SC Pro) |
| 3b |
283-1379 |
SQUEEGEE RUBBER KIT PARA 33SH L= MAXIMA |
1 |
(T20SC Pro) |
| 4b |
283-1380 |
PARA RUBBER BLADES KIT 40SH L=700 MAXIMA |
1 |
(T20SC Pro) |
| 5b |
283-1381 |
RUBBER KIT PU L=700 MAXIMA |
1 |
(T20SC Pro) |
| 6b |
283-1382 |
linatex RUBBER SET L=700 MAXIMA |
1 |
(T20SC Pro) |
| 7 |
283-1690 |
DOWEL M8X25 UNI 5923 ST.STEEL |
2 |
0 |
| 8 |
283-2495 |
BASE WHEEL BUSHING R22 |
2 |
|
| 9 |
283-2496 |
BASE BUMPER WHEEL R22 |
2 |
|
| 10 |
283-3027 |
SQUEEGEE LOCK LEVER |
4 |
|
| 11 |
283-3040 |
SQUEEGEE BUSHING |
2 |
|
| 12 |
283-3041 |
BUSHING De=19 Di=14,4 L=10 BRASS |
2 |
|
| 13 |
283-3042 |
SUPPORT BAR M8-M12 CH=13 H=73 - A2 |
2 |
|
| 14 |
283-3044 |
STUD BOLT M8-M12 CH=13 H=51 - A2 |
2 |
|
| 15 |
283-3046 |
COMPRESSION SPRING De=14 Df=0,9L=25 S |
2 |
|
| 16 |
283-3047 |
SCREW M4x8/8 ISO 7380-2 A2 |
4 |
|
| 17a |
283-3130 |
Squeegee body |
1 |
(T26SC Plus) |
| 18a |
283-3131 |
SQUEEGEE OUTER BODY L=800 |
1 |
(T26SC Plus) |
| N/S |
283-3177 |
REAR RUBBER 40 SHORE S=6 H=65 L=787 |
1 |
|
| N/S |
283-3178 |
REAR RUBBER 40 SH S=4 L=741 |
1 |
|
|
|

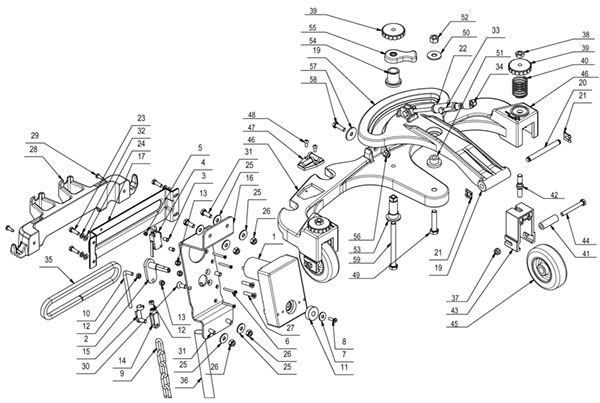

Squeegee Base Assembly - 283-0004 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
283-2419 |
GEARMOTOR. 24V DC 4W 14RPM K9179SA |
1 |
|
| 4 |
283-1821 |
MICROSWITCH 3X22 |
2 |
|
| 5 |
283-1727 |
LOCK NUT M3 UNI 7474 DIN 985 GALV. |
4 |
|
| 7 |
283-1761 |
WASHER 5X15X1.5 UNI 6593 GALV. |
1 |
|
| 12 |
283-1711 |
NUT M5 UNI 5589 GALV. LOW |
2 |
|
| 13 |
283-2174 |
M5X5 AUTOLOCK. NUT UNI 7474 DIN985 ZI |
3 |
|
| 14 |
283-1906 |
FORK M5 LONG |
1 |
|
| 15 |
283-1909 |
CLIP FOR FORK M5 LONG |
1 |
|
| 18 |
283-1365 |
SQUEEGEE SUPPORT KIT MAXIMA 2017 |
1 |
|
| 20 |
283-2980 |
PIN - SQUEEGEE COUPLING ANTEA B-BT |
1 |
|
| 21 |
283-2320 |
SPRING SL - FORKED PIN D.8 |
2 |
|
| 22 |
283-2515 |
GAS PRING 16-1 L=146 STROKE=40 F=150 |
1 |
|
| 23 |
283-1508 |
SCREW M5X16 UNI 5739 DIN 933 (8.8) GA |
4 |
|
| 24 |
283-2226 |
WASHER D.5,5x15 ZNT |
4 |
|
| 25 |
283-1767 |
WASHER 6X18X1.5 UNI 6593 GALV. |
8 |
|
| 26 |
283-1732 |
LOCK NUT M6X6 UNI 7474 DIN 985 GALV. |
4 |
|
| 29 |
283-2248 |
SELF-TAPPING SCREW 4,2x13 TC T.C. |
2 |
|
| 30 |
283-1699 |
SCREW M6X16 UNI5933 DIN7991 (10.9) Z |
2 |
|
| 31 |
283-1515 |
SCREW M6X16 UNI 5739 DIN 933 GALV. |
4 |
|
| 32 |
283-1764 |
LOCK WASHER M5 UNI1751 ST.STEEL GROWE |
4 |
|
| 33 |
283-1519 |
SCREW 6X20 UNI 5739 A2 |
2 |
|
| 34 |
283-1733 |
LOCK NUT M6X8 UNI 7473/4-DIN 982/5 S. |
2 |
|
| 35 |
283-3233 |
GASKET EPDM 8 x 7 L=396 (POR304/B/OPC) |
1 |
|
| 37 |
283-2097 |
LOCK NUT M6 UNI 7474 DIN 985 ST.STEEL |
2 |
|
| 38 |
283-1719 |
NUT M8 UNI 5589 ST.STEEL LOW |
2 |
|
| 39 |
283-3282 |
LOCKING WHEEL M8 D=40 S=9 YELLOW |
3 |
|
| 40 |
283-1538 |
COMPR. SPRING 26x1.5x30 |
2 |
|
| 41 |
283-1537 |
SPACER D.12(6.2)X36 |
2 |
|
| 42 |
283-1463 |
ADJUSTING PIN |
2 |
|
| 43 |
283-1462 |
WHEEL SUPPORT |
2 |
|
| 44 |
250-1275 |
Screw M6 x 50mm |
2 |
|
| 45 |
283-2707 |
WHEEL D=80 H=25 GREY RUBBER 70Sh |
2 |
|
| 47 |
283-3049 |
DOUBLE BUBBLE LEVEL |
1 |
|
| 48 |
283-2305 |
SCREW 4X10 ISO 7380 A2 TCBEI |
2 |
|
| 49 |
283-1621 |
SCREW M8X40 HEX HEAD UNI5739 A2 ST.ST |
1 |
|
| 50 |
283-1781 |
WASHER M8X24 UNI 6593 LARGE FL. ST.ST |
1 |
|
| 51 |
283-3175 |
BUSHING D=25-14,9 d=8,2 S=14,7 OT58 |
1 |
|
| 52 |
283-1721 |
NUT INOX M8X8 UNI 5587 |
1 |
|
| 53 |
283-3172 |
SQUEEGEE PIN ADJUSTMENT MAXIMA 2017 P.01 |
1 |
|
| 54 |
283-3174 |
ADJUSTMENT PIN MAXIMA 2017 P.02 SQUEEGEE |
1 |
|
| 55 |
283-3129 |
SQUEEGEE CONTROL HANDLE |
1 |
|
| 56 |
283-2276 |
M6 AUTOLOCK. NUT UNI 7473 ZINC. |
1 |
|
| 57 |
283-1772 |
WASHER M6 D.24 UNI 6593 ST.STEEL |
1 |
|
| 58 |
283-1518 |
SCREW M6X20 UNI 5739 DIN 933 (8.8) GA |
1 |
|
| 59 |
283-3279 |
SCREW M8X90 TE UNI 5739 A2 |
1 |
|
|
|

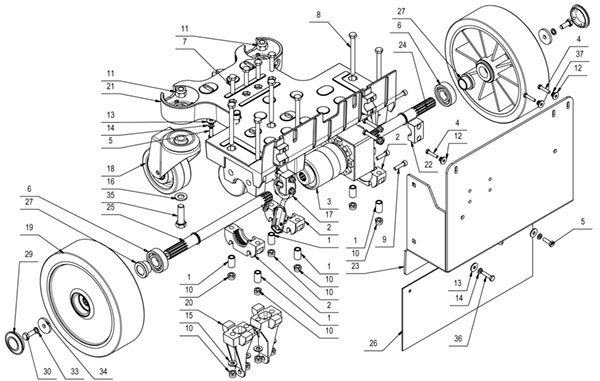

Chassis Assembly - 283-0005 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
283-1090 |
BUSHING 8.2X13X22 HOPPER GUIDE |
6 |
|
| 2 |
283-1166 |
INF. BEARING SUPPORT HS50 |
3 |
|
| 3 |
283-1329 |
TRACTION GEARMOTOR |
1 |
|
| 4 |
283-1511 |
SCREW M5X25 UNI 5739 DIN 933 (8.8) GA |
3 |
|
| 5 |
283-1518 |
SCREW M6X20 UNI 5739 DIN 933 (8.8) GA |
5 |
|
| 6 |
283-1573 |
BALL BEARING 6204-2RS1 |
2 |
|
| 7 |
283-1619 |
SCREW M8X35 UNI 5739 DIN 933 (10.9) G |
4 |
|
| 9 |
999-1300 |
Screw M6-1 x 25mm socket head stainless steel |
4 |
|
| 10 |
283-1735 |
M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA |
10 |
|
| 11 |
283-1742 |
LOCK NUT M12X1.75 UNI 7473 GALV. |
2 |
|
| 12 |
283-1761 |
WASHER 5X15X1.5 UNI 6593 GALV. |
5 |
|
| 13 |
283-1767 |
WASHER 6X18X1.5 UNI 6593 GALV. |
6 |
|
| 14 |
283-1770 |
WASHER 6X2.5X1.8 GROWER GALV. |
6 |
|
| 15 |
283-1774 |
8X17X1,6 WASHER UNI 6592 GALV. |
4 |
|
| 16 |
283-1790 |
WASHER M12 UNI 6592 GALV. |
2 |
|
| 18 |
283-2368 |
CASTOR WHEEL D.100 H141 MX |
2 |
|
| 19 |
283-2375 |
WHEEL D=225 L=69 RES SMX BT |
2 |
|
| 22 |
283-3163 |
SHAFT SUPPORT |
2 |
|
| 24 |
283-1037 |
LEFT AXLE SHAFT L=176,5 MMX |
1 |
|
| 25 |
283-3173 |
RIGHT AXLE SHAFT MAXIMA 2017 |
1 |
|
| 26 |
283-3176 |
SPLASH GUARD MAXIMA 2017 |
1 |
|
| 27 |
283-3238 |
SPACER D=33-25 d=20,2 L=18 S235 |
2 |
|
| 28 |
283-1680 |
SELF THREAD. SCREW 4.8X13 UNI 6954 GA |
2 |
|
| 30 |
283-1614 |
SCREW M8X20 UNI 5739 DIN 933 (8.8) GA |
2 |
|
| 31 |
283-1607 |
SCREW M6x45 UNI 5739 - DIN 933 ST.STE |
4 |
|
| 32 |
283-1734 |
NUT M6x9 AUTOBL+FLANGIA DIN6926 ST.ST |
4 |
|
| 33 |
283-1779 |
WASHER 8X13X2.2 GROWER GALV. |
2 |
|
| 35 |
283-2061 |
Screw M12-1.75 x 40mm hex head |
2 |
|
| 36 |
283-1520 |
SCREW M6X25 TE UNI 5739 DIN933(8.8)GA |
1 |
|
| 37 |
283-1763 |
WASHER 5X1.6X1.6 GROWER DIN 7980 GALV |
3 |
|
|
|

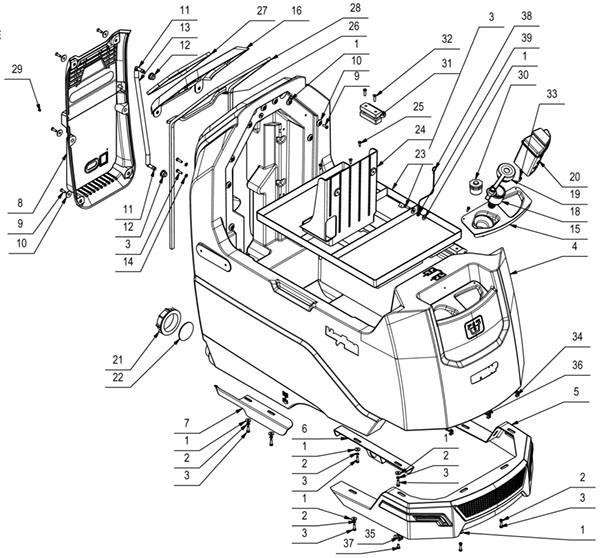

Solution Tank Assembly - 283-0006 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
283-1761 |
WASHER 5X15X1.5 UNI 6593 GALV. |
14 |
|
| 2 |
283-1763 |
WASHER 5X1.6X1.6 GROWER DIN 7980 GALV |
10 |
|
| 3 |
283-1508 |
SCREW M5X16 UNI 5739 DIN 933 (8.8) GA |
15 |
|
| 4 |
283-3134 |
SOLUTION TANK T20/26 2017 |
1 |
|
| 5 |
283-3146 |
FRONT CARTER |
1 |
|
| 6 |
283-3138 |
REAR LEFT CARTER |
1 |
|
| 7 |
283-3139 |
REAR RIGHT CARTER |
1 |
|
| 8 |
283-3161 |
LOWER CHARGER CARTER |
1 |
|
| 9 |
283-2677 |
SCREW M5x16 TSPTC UNI 7688 ZINC. BLAC |
17 |
|
| 10 |
283-1448 |
SPECIAL WASHER D.5X20 |
17 |
|
| 11 |
283-2413 |
ELBOW FITTING D.8X30 |
2 |
|
| 12 |
283-2412 |
GASKET D.20(8)X12.5 |
2 |
|
| 13 |
283-1366 |
HOSE D.12(8)X350 CLEAR |
1 |
|
| 14 |
283-2226 |
WASHER D.5,5x15 ZNT |
4 |
|
| 16 |
283-3160 |
UPPER CHARGER CARTER |
1 |
|
| 17 |
283-2540 |
FLEX HOSE EVA D=19,5 L=1500 |
1 |
|
| 18 |
283-2466 |
FILLING JOINT MY 50 |
1 |
|
| 19 |
283-1244 |
DRILLED PLUG FAST FILL SYS CLEAN WATE |
1 |
|
| 20 |
283-2550 |
WATER LOAD CAP W/ DISPENSER |
1 |
|
| 21 |
283-3194 |
CAP D=80 G2 |
1 |
|
| 22 |
283-3193 |
GASKET D=57,5 S=2 PARA 40Sh |
1 |
|
| 23 |
283-3195 |
BATTERY BASE |
1 |
|
| 24 |
283-3196 |
DISPENSER SUPPORT |
1 |
|
| 25 |
283-1693 |
SELF THREAD.SCREW 4.2X16 RAPID-FIX GA |
3 |
|
| 26 |
283-3232 |
GASKET EPDM 8 x 7 L=280 (POR304/B/OPC) |
1 |
|
| 27 |
283-3234 |
ADHESIVE GASKET EPDM 8 x 10 L=580 |
1 |
|
| 28 |
283-3235 |
ADHESIVE GASKET EPDM 8 x 10 L=1640 |
1 |
|
| 29 |
283-1848 |
SNAP CAP D.4.8 |
1 |
|
| 30 |
283-3087 |
MALE CAP G 1 inch COD.215040 ARAG |
1 |
|
| 31 |
283-2132 |
HINGE C65/A |
2 |
|
| 33 |
283-1677 |
SELF THR. SCREW 4.2X13 UNI6954 ST.STE |
2 |
|
| 36 |
283-2959 |
SCREW UNI 9707-Pz-TZ Ø3x10 A2 |
3 |
|
| 37 |
283-2255 |
SCREW M5x10 TC T.C.ZNT UNI 7687(4.8)Z |
1 |
|
| 39 |
283-1711 |
NUT M5 UNI 5589 GALV. LOW |
1 |
|
|
|

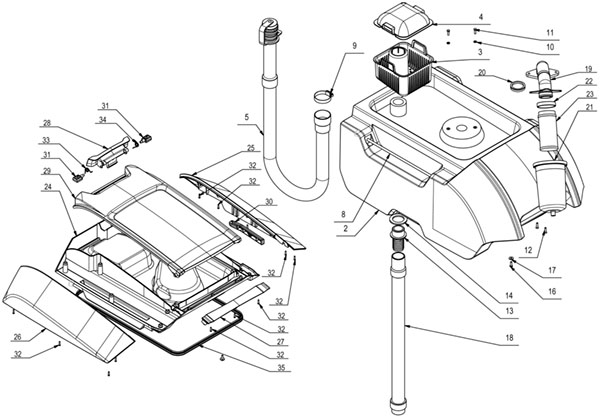

Recovery Tank Assembly - 283-0007 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
283-1369 |
MAXIMA FLOATING ASSEMBLY |
1 |
|
| 2 |
283-3133 |
RECOVERY TANK T20/26 2017 |
1 |
|
| 5a |
283-3147 |
Drain hose |
1 |
(Before SN 2019003977) |
| 5b |
283-3401 |
Drain hose |
1 |
(After SN 2019003976) |
| 7 |
283-1367 |
SUCTION COVER ASSEMBLY MAXIMA 2017 |
1 |
|
| 8 |
283-3179 |
PIN FOR MAXIMA 2017 COVER |
1 |
|
| 9 |
283-1876 |
Discontinued replaced by HIL420512 |
1 |
|
| 10 |
283-1759 |
WASHER M5 UNI 6592 ST.STEEL |
2 |
|
| 11 |
283-1509 |
SCREW M5X16 TE UNI 5739 A2 |
2 |
|
| 13 |
283-1898 |
STRAIGHT FITTING RECOV. TANK 1 inch1/4 |
1 |
|
| 14 |
283-1496 |
RUBBER GASKET - FITTING 410397 |
1 |
|
| 16 |
283-1508 |
SCREW M5X16 UNI 5739 DIN 933 (8.8) GA |
1 |
|
| 17 |
283-1761 |
WASHER 5X15X1.5 UNI 6593 GALV. |
1 |
|
| 19 |
283-3135 |
SUCTION PIPE |
1 |
|
| 20 |
283-3180 |
GUARNIZIONE V-RING VA0040 H=9 NBR |
1 |
|
| 21 |
283-2467 |
FLOAT PROTECTION MY 50 |
1 |
|
| 22 |
283-2464 |
FILTER CLAMP |
1 |
|
| 23 |
283-1975 |
FILTER ASSEMBLY CARTRIDGE MM 17 ( |
1 |
|
| 24 |
283-3153 |
LOWER COVER CARTER |
1 |
|
| 25 |
283-3156 |
UPPER LEFT CARTER |
1 |
|
| 26 |
283-3159 |
UPPER RIGHT CARTER |
1 |
|
| 27 |
283-3158 |
COVER CARTER RAIL |
1 |
|
| 28 |
283-3154 |
COVER HANDLE |
1 |
|
| 30 |
283-3155 |
COVER HANDLE |
1 |
|
| 31 |
283-3166 |
HANDLE SUPPORT |
2 |
|
| 32 |
283-2890 |
SCREW UNI 9707-Pz-TZ D.3,5 x 14 A2 |
13 |
|
| 33 |
283-3224 |
LEFT HANDLE SPRING |
1 |
|
| 34 |
283-3226 |
RIGHT HANDLE SPRING |
1 |
|
| 35 |
283-1388 |
SEAL GASKET MAXIMA L=1650 |
1 |
|
|
|

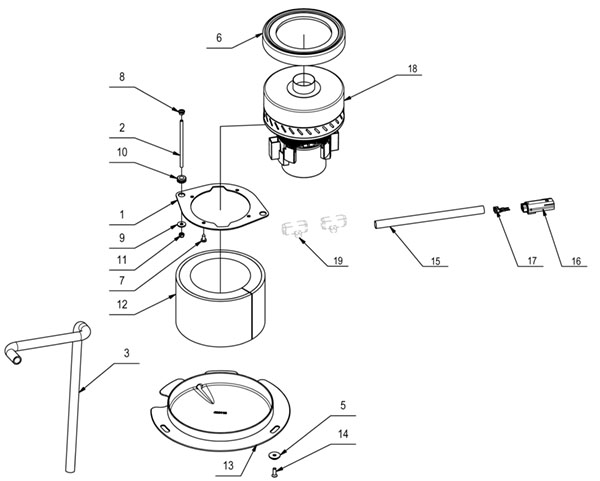

Vacuum Motor Assembly - 283-0008 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
283-1020 |
MOTOR PLAQUE ABILA/VISPA |
1 |
|
| 4 |
283-1412 |
SUCTION MOTOR ASSEMBLY 24V 422W H1216 |
1 |
|
| 5 |
283-1448 |
SPECIAL WASHER D.5X20 |
3 |
|
| 6 |
283-1494 |
CAP - SUCTION MOTOR |
1 |
|
| 7 |
283-1680 |
SELF THREAD. SCREW 4.8X13 UNI 6954 GA |
4 |
|
| 8 |
283-1746 |
NUT M5 DIN 6923 |
2 |
|
| 9 |
283-1761 |
WASHER 5X15X1.5 UNI 6593 GALV. |
2 |
|
| 10 |
283-1843 |
FAIRLEAD FOR HOLE D.12 Di.8 |
2 |
|
| 11 |
283-2174 |
M5X5 AUTOLOCK. NUT UNI 7474 DIN985 ZI |
2 |
|
| 12 |
283-2468 |
ABSORBING SP= 6+10 L=410 H=100 |
1 |
|
| 13 |
283-2489 |
ELECTRIC MOTOR CARTER R22 |
1 |
|
| 14 |
283-2677 |
SCREW M5x16 TSPTC UNI 7688 ZINC. BLAC |
3 |
|
| 15 |
283-1219 |
HEAT-SHRINK SHEATH D.12.7X200 BLACK |
1 |
|
| 16 |
283-2553 |
CONNECTOR MOLEX MX150L FEM. 19433-0013 |
1 |
|
| 17 |
283-2554 |
END MOLEX MX150L MAS. 19431-0001 |
2 |
|
| 18a |
283-3272 |
SUCT. MOTOR 24V 422W H1216 BB30SC66 |
1 |
(2 stage) |
| 18b |
283-3106 |
3 STAGE SUCTION MOTOR |
1 |
(3 stage) |
| 19 |
283-2357 |
CARBON BRUSH FOR VACUUM MOTOR 11,2X71 |
2 |
|
|
|

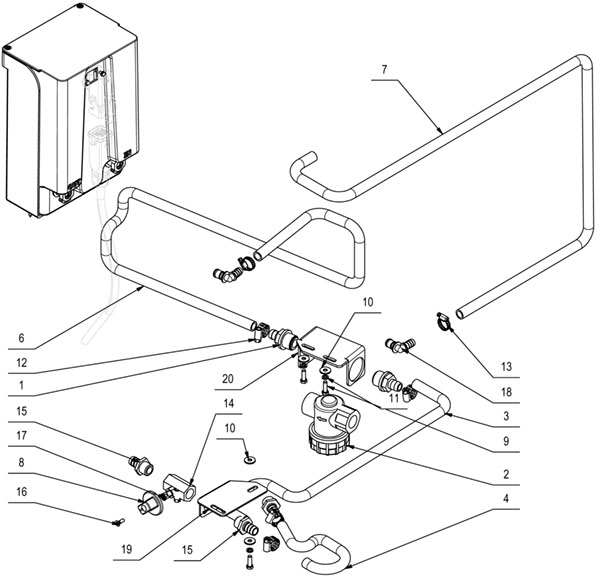

Solution Pump Assembly - 283-0009 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
283-1168 |
STRAIGHT HOSE TAIL 1/2 inchM. D.13 SHORT |
2 |
|
| 2 |
283-1177 |
WATER FILTER SOLUTION TANK 1/2 F/F CO |
1 |
|
| 3 |
283-1368 |
TRANSPARENT HOSE D=10 L=700 |
1 |
|
| 4 |
283-1370 |
HOSE D10 x 210 |
1 |
|
| 6 |
283-1429 |
HOSE D=10 L=820 |
1 |
|
| 7 |
283-1430 |
HOSE D=10 L=1150 |
1 |
|
| 8 |
283-1452 |
WATER VALVE KNOB |
1 |
|
| 9 |
283-1508 |
SCREW M5X16 UNI 5739 DIN 933 (8.8) GA |
3 |
|
| 10 |
283-1761 |
WASHER 5X15X1.5 UNI 6593 GALV. |
4 |
|
| 12 |
283-1875 |
CLAMP W/SCREW 11/17 ABA |
5 |
|
| 13 |
283-1877 |
CLAMP 11-19 X 5 |
2 |
|
| 14 |
283-1884 |
WATER VALVE BODY 3/8 THREADED HOLE M5 |
1 |
|
| 15 |
283-1890 |
MALE STRAIGHT HOSE BARB 3/8 M D.12, |
3 |
|
| 16 |
283-2075 |
SCREW M4X12 UNI 7688 (4.8) GALV. |
1 |
|
| 17 |
283-2105 |
LOCK WASHER M5 UNI6798/A BLACK SERRAT |
1 |
|
| 18 |
283-2714 |
Sight gage elbows |
2 |
|
| N/S |
283-1383 |
MAXIMA PLUS WATER PUMP BOX |
1 |
|
| N/S |
283-1350 |
TRANSPARENT SILICONE HOSE 10x400 |
1 |
|
| N/S |
283-1389 |
PUMP 3210YB-24-100 8L-MIN + MOLEX |
1 |
|
| N/S |
283-1693 |
SELF THREAD.SCREW 4.2X16 RAPID-FIX GA |
5 |
|
| N/S |
283-1749 |
WASHER 3X7X0,5 ST.STEEL UNI 6592 |
2 |
|
| N/S |
283-1762 |
WASHER 5X15X1.5 UNI 6593 ST.STEEL |
4 |
|
| N/S |
283-1875 |
CLAMP W/SCREW 11/17 ABA |
4 |
|
| N/S |
283-2053 |
SCREW M3X12 HEX H UNI5739 ST.STEEL |
2 |
|
| N/S |
283-2095 |
LOCK NUT M3 UNI 7473 ST.STEEL |
2 |
|
| N/S |
283-2249 |
SELF-TAPPING SCREW 4,8x16 SP |
4 |
|
| N/S |
283-2270 |
STRAIGHT FITTING 3/8X13 BRASS |
2 |
|
| N/S |
283-2400 |
ELBOW FITTING 3/8 inch BRASS NICKEL |
2 |
|
| N/S |
283-2715 |
FEMALE COUPLING 3/8 |
2 |
|
| N/S |
283-3239 |
COVER FOR PUMP FLR MAXIMA 2017 |
1 |
|
| N/S |
283-3240 |
SUPPORT FLR MAXIMA 2017 |
1 |
|
| N/S |
283-1763 |
WASHER 5X1.6X1.6 GROWER DIN 7980 GALV |
3 |
|
|
|

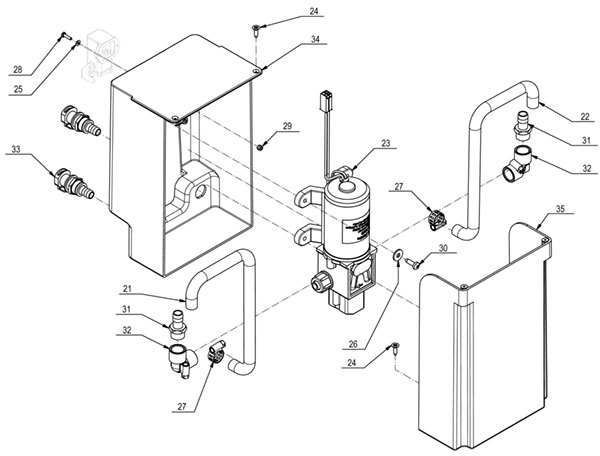

Water Unit Assembly - 283-0010 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 21 |
283-1350 |
TRANSPARENT SILICONE HOSE 10x400 |
1 |
|
| 22 |
283-1350 |
TRANSPARENT SILICONE HOSE 10x400 |
1 |
|
| 23 |
283-1389 |
PUMP 3210YB-24-100 8L-MIN + MOLEX |
1 |
|
| 24 |
283-1693 |
SELF THREAD.SCREW 4.2X16 RAPID-FIX GA |
5 |
|
| 25 |
283-1749 |
WASHER 3X7X0,5 ST.STEEL UNI 6592 |
2 |
|
| 26 |
283-1762 |
WASHER 5X15X1.5 UNI 6593 ST.STEEL |
4 |
|
| 27 |
283-1875 |
CLAMP W/SCREW 11/17 ABA |
4 |
|
| 28 |
283-2053 |
SCREW M3X12 HEX H UNI5739 ST.STEEL |
2 |
|
| 29 |
283-2095 |
LOCK NUT M3 UNI 7473 ST.STEEL |
2 |
|
| 30 |
283-2249 |
SELF-TAPPING SCREW 4,8x16 SP |
4 |
|
| 31 |
283-2270 |
STRAIGHT FITTING 3/8X13 BRASS |
2 |
|
| 32 |
283-2400 |
ELBOW FITTING 3/8 inch BRASS NICKEL |
2 |
|
| 33 |
283-2715 |
FEMALE COUPLING 3/8 |
2 |
|
| 34 |
283-3239 |
COVER FOR PUMP FLR MAXIMA 2017 |
1 |
|
| 35 |
283-3240 |
SUPPORT FLR MAXIMA 2017 |
1 |
|
|
|
Control Handle Assembly- Part 1 - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

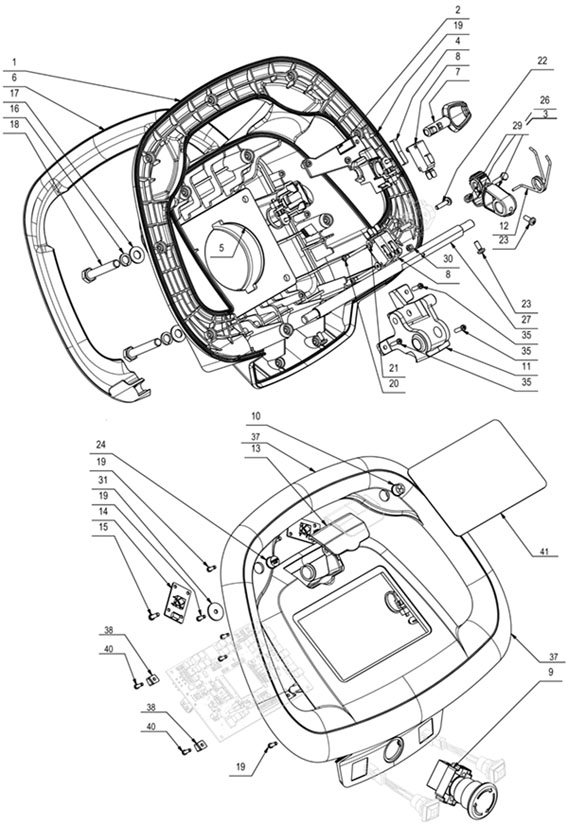

Control Handle Assembly- Part 2 - 283-0012 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
283-3142 |
LOWER HANDLEBAR |
1 |
|
| 3 |
283-3169 |
POTENTIOMETER CAM |
1 |
|
| 4 |
283-3181 |
HANDLEBAR KEY SPRING MAXIMA 2017 |
1 |
|
| 6a |
283-3140 |
DEAD MAN LEVER |
1 |
(T26SC Plus) |
| 6b |
283-3141 |
UPPER HANDLEBAR PRO |
1 |
(T20SC Pro) |
| 8 |
283-1820 |
MICROSWITCH 10A 3X22 |
3 |
|
| 9 |
283-2483 |
STOP BUTTON NP2-BS542 |
1 |
|
| 10 |
283-2522 |
GREY CAP RAL7004 REVERSE |
1 |
|
| 12 |
283-3220 |
HANDLEBAR LEVER SPRING MAXIMA 2017 |
1 |
|
| 13 |
283-3148 |
SOS COVER BUTTON RAL7016 |
1 |
|
| 14 |
283-3182 |
CARD 7CFCT020 |
2 |
|
| 15 |
283-2876 |
SELF-TAPPING SCREW 3,5x12 SP |
4 |
|
| 16 |
283-1779 |
WASHER 8X13X2.2 GROWER GALV. |
4 |
|
| 17 |
283-1774 |
8X17X1,6 WASHER UNI 6592 GALV. |
4 |
|
| 18 |
283-1629 |
M8X50 HH SCREW UNI 5739 (8.8) GALV. |
4 |
|
| 19 |
283-2888 |
SCREW UNI 9707-Pz-TZ D.3 x 10 ZINC |
18 |
|
| 20 |
283-1663 |
SCREW M3X30 TCTC UNI 7687 (4.8) GALV. |
2 |
|
| 21 |
283-1750 |
WASHER 3X8X1 UNI 6593 GALV. |
2 |
|
| 22 |
283-1665 |
SCREW 4X16 UNI 7687 GALV. |
2 |
|
| 23 |
283-2175 |
SCREW M4x10 TCTC UNI 7687 ZINC |
3 |
|
| 24b |
283-3244 |
GREY CAP RAL7004 EXTRAPRESSURE |
1 |
(T20SC Pro) |
| 26a |
283-3236 |
GEAR SHAFT |
1 |
(T26SC Plus) |
| 26b |
283-1728 |
LOCK NUT M4X6 UNI 7473 DIN 982 GALV. |
1 |
(T20SC Pro) |
| 28 |
283-1601 |
SCREW M4X20 TE UNI5739 DIN933 (8.8) Z |
1 |
|
| 29 |
283-1728 |
LOCK NUT M4X6 UNI 7473 DIN 982 GALV. |
1 |
|
| 30 |
283-1727 |
LOCK NUT M3 UNI 7474 DIN 985 GALV. |
1 |
|
| 31 |
283-3237 |
WASHER 4X18X1.5 GALV. |
1 |
|
| 33 |
283-2552 |
EYELET SUPPORT D=4,1 (COD. 5461E) |
2 |
|
| 34 |
283-1868 |
PLASTIC CLAMP 2.5X98 |
2 |
|
| 35 |
283-2892 |
SCREW UNI 9707-Pz-TZ D.3,5 x 14 ZN |
3 |
|
| 36 |
283-3125 |
MEMORY CARD - MICRO SD 8GB SDC4 |
1 |
|
| 38 |
283-3145 |
RIGHT CARD LOCK |
2 |
|
| 39 |
283-3144 |
LEFT CARD LOCK |
2 |
|
| 40 |
283-2959 |
SCREW UNI 9707-Pz-TZ Ø3x10 A2 |
4 |
|
| 41a |
283-3416 |
LCD display |
1 |
(T26SC Plus) |
| 41b |
283-3263 |
Dashboard control panel |
1 |
(T20SC Pro) (button panel only, no display) |
| 41c |
283-1073 |
Control panel display |
1 |
(T20SC Pro) (replaces broken display) |
|
|

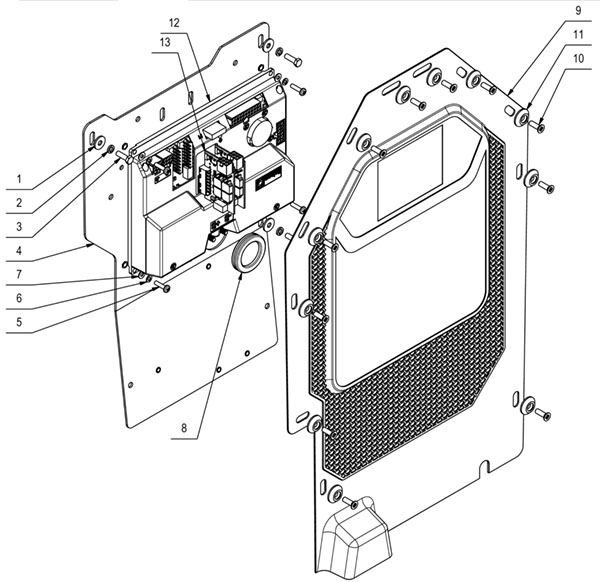

Electrical Assembly - 283-0013 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
283-1761 |
WASHER 5X15X1.5 UNI 6593 GALV. |
3 |
|
| 2 |
283-1763 |
WASHER 5X1.6X1.6 GROWER DIN 7980 GALV |
3 |
|
| 3 |
283-1508 |
SCREW M5X16 UNI 5739 DIN 933 (8.8) GA |
3 |
|
| 5 |
283-1665 |
SCREW 4X16 UNI 7687 GALV. |
4 |
|
| 6 |
283-2104 |
WASHER M4 UNI 1751 GALV. GROWER |
4 |
|
| 7 |
283-1753 |
WASHER M4 UNI 6592 GALV. |
4 |
|
| 10 |
283-2677 |
SCREW M5x16 TSPTC UNI 7688 ZINC. BLAC |
11 |
|
| 11 |
283-1448 |
SPECIAL WASHER D.5X20 |
11 |
|
| 12a |
283-1018 |
CARD 7CFCP002 |
1 |
(T26SC Plus) |
| 12b |
283-3026 |
ACTUATOR CARD 7MADAC010 |
1 |
(T20SC Pro) |
| 13a |
283-2637 |
ACTUATORS 10A CONTROL SLOT (7MDAC010) |
2 |
(T26SC Plus) |
| 13b |
283-1017 |
CARD 7CFS1030 |
1 |
(T20SC Pro) |
|
|

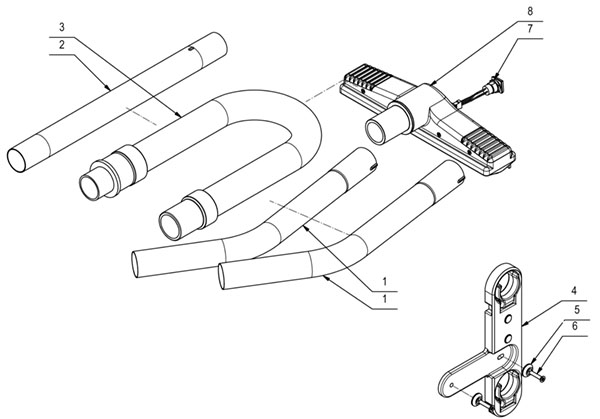

Vacuum Wand Kit Assembly - 283-0014 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 5 |
283-1448 |
SPECIAL WASHER D.5X20 |
2 |
|
| 7 |
283-3063 |
GREEN LED SWITCH APEM IRC1F422L0G+CON |
1 |
|
|
|

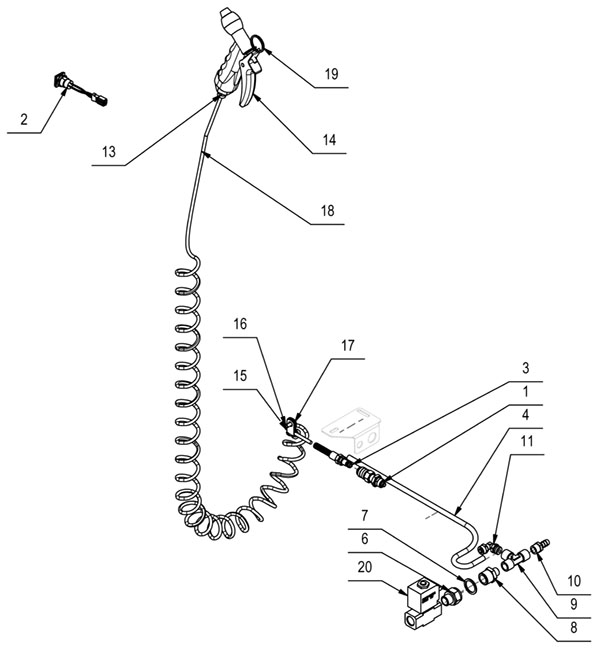

Spray Gun Kit Assembly - 283-0015 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
283-3063 |
GREEN LED SWITCH APEM IRC1F422L0G+CON |
1 |
|
| 10 |
283-1896 |
MALE STRAIGHT HOSE BARB 1/4X10 |
1 |
|
| 16 |
283-2677 |
SCREW M5x16 TSPTC UNI 7688 ZINC. BLAC |
1 |
|
| 17 |
283-1448 |
SPECIAL WASHER D.5X20 |
1 |
|
|
|

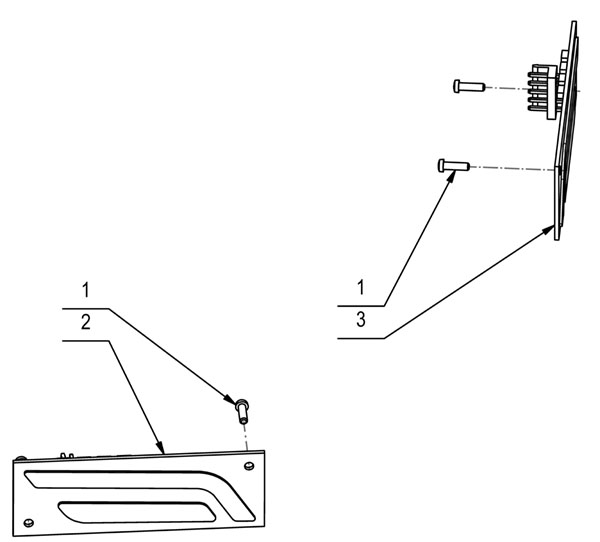

Front Lights Kit Assembly - 283-0016 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
283-2959 |
SCREW UNI 9707-Pz-TZ Ø3x10 A2 |
4 |
|
| 2 |
283-3090 |
RIGHT LED CARD R28/30 2016 |
1 |
|
| 3 |
283-3091 |
LEFT LED CARD R28/30 2016 |
1 |
|
|
|
Onboard Charger Assembly - 283-0017 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
283-2559 |
BATTERY CHARGER NE284-F 24V 15A |
1 |
|
| 2 |
283-1755 |
WASHER M4X12 UNI 6593 LARGE FL. GALV. |
2 |
|
| 5 |
283-1946 |
SPACER D.15(6.5)X5 - PVC |
4 |
|
|
|

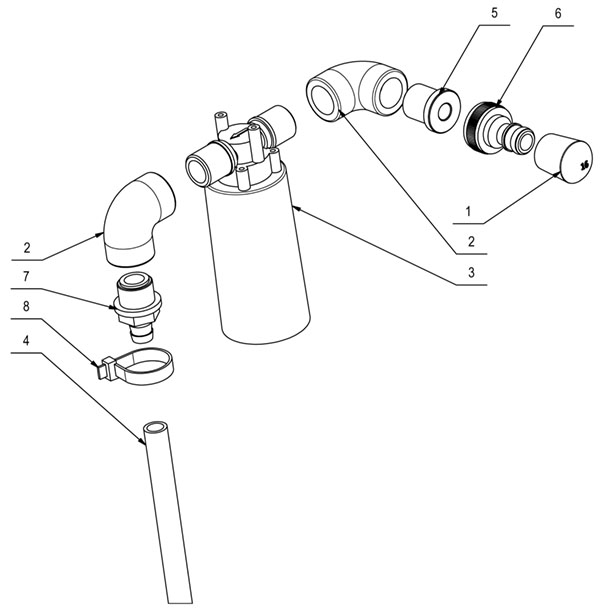

Float Assembly - 283-0018 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 7 |
283-1168 |
STRAIGHT HOSE TAIL 1/2 inchM. D.13 SHORT |
1 |
|
| 8 |
283-1872 |
CLAMP PLASTIC 7.8X240 |
1 |
|
|
|

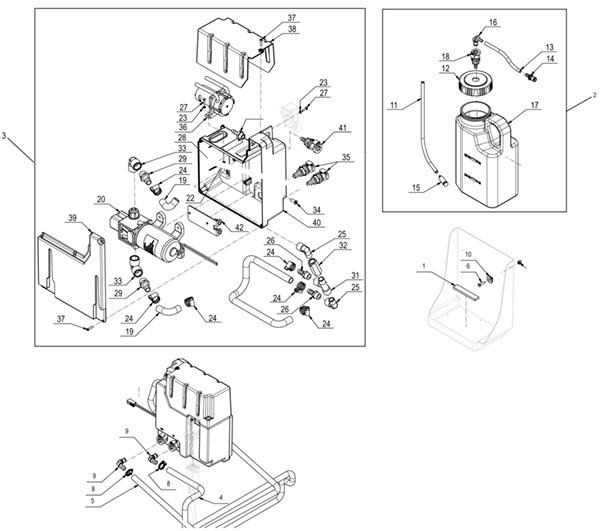

Solution Pump Assembly 2 - 283-0019 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
283-1210 |
FOAM GASKET 15X5 L=80 |
1 |
|
| 2 |
283-1340 |
ANTEA DOSING TANK ASSEMBLY |
1 |
|
| 3 |
283-1391 |
FSS BOX MAXIMA 2017 |
1 |
|
| 4 |
283-1429 |
HOSE D=10 L=820 |
1 |
|
| 5 |
283-1430 |
HOSE D=10 L=1150 |
1 |
|
| 7 |
283-1731 |
LOCK NUT M5 UNI7473/4-DIN982/5 ST. ST |
2 |
|
| 8 |
283-1877 |
CLAMP 11-19 X 5 |
2 |
|
| 9 |
283-2714 |
Sight gage elbows |
2 |
|
| 11 |
283-1217 |
HOSE D.8-5X300 CLEAR |
1 |
|
| 12 |
283-1338 |
COMPLETE CAP D=80 DS ANTEA-VERSA |
1 |
|
| 13 |
283-1339 |
TRANSPARENT HOSE D=8 d=5 L=140 |
1 |
|
| 14 |
283-1051 |
MALE COUPLING 1/4 inch M - VISPA/GENIE |
1 |
|
| 15 |
283-2299 |
CERAMIC WATER FILTER |
1 |
|
| 16 |
283-2345 |
SLIP CLUTCH M.1/4 inch 90° |
1 |
|
| 17 |
283-2398 |
CAN - 3 LTR. MMX HOLE D=80 |
1 |
|
| 18 |
283-3007 |
FEMALE COUPLING |
1 |
|
| 19 |
283-1336 |
SPIRAL HOSE D=14 d=10 L=60 |
2 |
|
| 20 |
283-1389 |
PUMP 3210YB-24-100 8L-MIN + MOLEX |
1 |
|
| 21 |
283-1390 |
HOSE D=14 d=10 L=350 |
1 |
|
| 22 |
283-1727 |
LOCK NUT M3 UNI 7474 DIN 985 GALV. |
2 |
|
| 23 |
283-1749 |
WASHER 3X7X0,5 ST.STEEL UNI 6592 |
4 |
|
| 24 |
283-1875 |
CLAMP W/SCREW 11/17 ABA |
6 |
|
| 26 |
283-1896 |
MALE STRAIGHT HOSE BARB 1/4X10 |
2 |
|
| 27 |
283-2053 |
SCREW M3X12 HEX H UNI5739 ST.STEEL |
4 |
|
| 28 |
283-2095 |
LOCK NUT M3 UNI 7473 ST.STEEL |
2 |
|
| 29 |
283-2270 |
STRAIGHT FITTING 3/8X13 BRASS |
2 |
|
| 30 |
283-2310 |
FITTING HOSE 1/4x7 BRASS NICH. |
1 |
|
| 31 |
283-2373 |
FITTING A T F-F-M- 1/4 inch |
1 |
|
| 32 |
283-2374 |
ONE-WAY VALVE 0.2 BAR |
1 |
|
| 33 |
283-2400 |
ELBOW FITTING 3/8 inch BRASS NICKEL |
2 |
|
| 34 |
283-2677 |
SCREW M5x16 TSPTC UNI 7688 ZINC. BLAC |
2 |
|
| 35 |
283-2715 |
FEMALE COUPLING 3/8 |
2 |
|
| 37 |
283-2892 |
SCREW UNI 9707-Pz-TZ D.3,5 x 14 ZN |
7 |
|
| 41 |
283-3007 |
FEMALE COUPLING |
1 |
|
|
|
- Batteries, Brushes, and Chargers - 999-9099 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0018 |
12V 130Ah wet battery |
2 |
|
| 2 |
162-0045 |
12V 140Ah AGM battery |
2 |
|
| 3 |
283-2559 |
BATTERY CHARGER NE284-F 24V 15A |
1 |
|
| 4a |
283-2312 |
Brush PPL 0.3 |
2 |
|
| 4b |
283-2323 |
BRUSH D=340 PPL 0.6 |
2 |
|
| 4c |
283-2324 |
Brush PPL 0.9 |
2 |
|
| 4d |
283-2327 |
TINEX BRUSH |
2 |
|
|
|
