Parts List Complete for HILLYARD TRIDENT R22SC ORB


- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

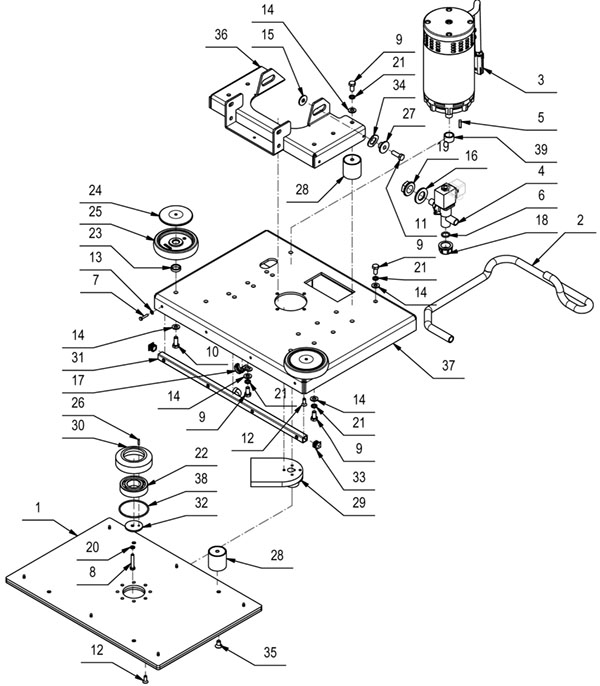

Base Assembly - 283-0046
RefNbr Part Number Description Req Notes
1 283-1330 PLATE BAS.ECCENTR + ANCHOR PLATE 1
2 283-1337 SHEAT FX15N L=600 1
3 283-1426 24V 680W 2000G MOTOR WITH MOLEX CONN. 1
4 283-1525 COMPLETE SOLENOID VALVE 24V 1/2 inch ACL 1
5 283-1565 KEY 5X5X20 UNI 6604/A 1
6 283-1590 O-RING 3056 (118) D.13.95X2.62 1
7 283-1604 SCREW M4X20 INOX UNI 5739 4
8 283-1606 SCREW 6X35 TE UNI 5739 ST.STEEL 1
9 283-1613 SCREW M8X16 UNI 5739 DIN 933 (8.8) GA 16
10 283-1614 SCREW M8X20 UNI 5739 DIN 933 (8.8) GA 2
11 283-1615 M8X25 HH SCREW UNI 5739 DIN 933(8.8)G 2
12 283-1701 SCREW M6X16 UNI5933 FLATH HEX.SOCKET 12
13 283-1754 WASHER M4 UNI 6592 ST. STEEL 4
14 283-1774 8X17X1,6 WASHER UNI 6592 GALV. 18
15 283-1777 WASHER 9X24X2.5 UNI 6593 GALV. 2
16 283-1795 WASHER 21X37X3 UNI 6592 GALV. 1
17 283-1879 CLIP 1
18 283-1900 FEMALE CAP 1/2 inch 1
19 283-1902 BLACK PLASTIC NUT 1/2' 1
20 283-2106 washer M6 UNI 1751 INOX GROWER 1
21 283-2107 LOCK WASHER M8 UNI 1751 ZINC. 16
22 283-2289 BEARING 1
23 283-2469 SPACER D=22 d=17,3 S=6 Fe360 2
24 283-2495 BASE WHEEL BUSHING R22 2
25 283-2496 BASE BUMPER WHEEL R22 2
26 283-2682 SPRING PLUG 3X14 UNI 28740 1
27 283-2990 BUSHING D=28-14,9 d=8,5 S=12 OT58 2
28 283-2991 ANTIVIBRATION D=40x40 - 45Sh 10
29 283-2992 FLANGE 1
30 283-2993 FLANGE 1
31 283-2994 WATER DISTRIBUTION HOSE 1
32 283-2995 WASHER 1
33 283-2996 CAP FOR HOSE 15 X 15 2
34 283-2998 WASHER UNI 8840 - B - 14 2
35 283-3124 INOX SCREW M8x14 TPSEI UNI5933 INOX 4
36 283-3277 ORBITAL DECK SUPPORT FOR MXR RAL 7016 1
37 283-3278 ORBITAL DECK MXR L=500 RAL 7016 1
38 283-2367 GASKET OR D.61.60 X 2.62 1
39 283-3288 SPACER D=22 d=17 S=13 S235 1

Squeegee Assembly - 283-0047
RefNbr Part Number Description Req Notes
1 283-1234 COLUMN - RELEASE M10-CH22 - M8 (28-45 2
2a 283-1235 FRONT RUBBER PU H=45 L=690 S=4 1 (28 inch)
2b 283-1236 FRONT RUBBER D.790X45X4 PU 1 (31 inch)
3a 283-1237 RUBBER KIT 33 SHORE L= 680 1 (28 inch) (optional)
3b 283-1246 RUBBER KIT 33 SH. - SQUEEGEE 2010 L=7 1 (31 inch) (optional)
4a 283-1238 RUBBER KIT POLYURETHANE 1 (28 inch) (optional)
4b 283-1247 POLYURETHANE RUBBER KIT - SQ.2010 L=780 1 (31 inch) (optional)
5a 283-1239 RUBBER KIT LATEX 1 (28 inch) (optional)
5b 283-1248 LATEX RUBBER KIT - SQ.2010 L=780 1 (31 inch) (optional)
7a 283-1253 SQUEEGEE ASSEMBLY KIT R22 = 705 1 (28 inch) (includes 1,2,8-29)
7b 283-1258 SQUEEGEE ASSEMBLY KIT MXR = 800 1 (31 inch) (includes 1,2,8-29)
8 283-1439 LOCKING WHEEL M8 D=40 S=9 BLACK 2
9 283-1042 SPRING - WHEEL SUPPORT MAGNA 65 2
10 283-1690 DOWEL M8X25 UNI 5923 ST.STEEL 2
11 283-1719 NUT M8 UNI 5589 ST.STEEL LOW 2
12 283-1737 NUT M8 AUTOBL. UNI 7474 INOX LOW 2
13 283-1781 WASHER M8X24 UNI 6593 LARGE FL. ST.ST 4
14 283-1784 WASHER M10 INOX UNI 6592 2
15 283-1789 WAHSER 10X2,5X2,5 GROWER A2 2
16 283-2436 KNOB PIN D=11,8 d=7 M=6 H=22 14
17a 283-2438 SQUEEGEE BODY 2010 L=638 1 (28 inch)
17b 283-2439 SQUEEGEE BODY 2010 L=736 1 (31 inch)
18 283-2440 Front center blade retainer 1
19a 283-2441 Front outside blade retainer 2 (28 inch)
19b 283-2442 FRONT BLADE L=736 SQUEEGEE 2010 2 (31 inch)
20 283-2443 Rear central blade retainer 1
21a 283-2444 Rear outside blade retainer 2 (28 inch)
21b 283-2445 REAR BLADE L=736 SQUEEGEE 2010 2 (31 inch)
22 283-2446 WING NUT FOR FRONT CLOSING SQUEEGEE 2 7
23 283-2447 WING NUT FOR REAR CLOSING SQUEEGEE 20 7
24 283-2449 STRAIGHT OPENING D=40 SQUEEGEE 2010 1
25a 283-2454 REAR RUBBER 33 SHORE H=70 L=750 S=4 1 (28 inch)
25b 283-2477 REAR RUBBER 33 SHORE H=70 L=850 S=4 1 (31 inch)
26 283-2459 O-RING 7x1,5 NBR 70 SHORE 28
27 283-2480 KNURLED KNOB ZPX/22 M5x10 6331400 2
28 283-2495 BASE WHEEL BUSHING R22 2
29 283-2496 BASE BUMPER WHEEL R22 2

Squeegee Control Assembly - 283-0048
RefNbr Part Number Description Req Notes
1 283-1105 CHAIN 4-LINK 1
2 283-1443 FRONT WHEEL BUSHING L16 1
3 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA 1
4 283-1521 SCREW 6X25 UNI 5739 ST.STEEL 1
5 283-1605 SCREW M6X35 UNI 5739 DIN 933 (8.8) GA 1
6 283-1607 SCREW M6x45 UNI 5739 - DIN 933 ST.STE 1
7 250-1276 Nut 1
8 283-1732 LOCK NUT M6X6 UNI 7474 DIN 985 GALV. 2
9 283-1733 LOCK NUT M6X8 UNI 7473/4-DIN 982/5 S. 2
10 283-1768 WASHER M6X18 UNI 6593 LARGE FL. ST.ST 2
11 283-1966 PROLONGED NUT M6 CH10 H=18 RESI 2
12 283-2097 LOCK NUT M6 UNI 7474 DIN 985 ST.STEEL 3
13 283-2384 WHEEL D.80x23 SUPERLAN GREY 2
14 283-2490 REAR SQUEEGEE SUPPORT R22 1
15 283-2514 LIFTING BOW SQUEEGEE R22 1
16 283-2515 GAS PRING 16-1 L=146 STROKE=40 F=150 1
17 283-2568 BUSHING D=20-12 d=6,1 L=68 ST.STEEL 2
18 283-2569 PIN D=6 L=200 M6 THREAD (20/10) ST.ST 1

Rear Wheel Assembly - Part 1 - 283-0049
RefNbr Part Number Description Req Notes
5 283-1214 MICROSWITCH 1
6 283-1231 Support 1
12 220-0375 Bushing (OBSOLETE) 3
17 283-1617 SCREW M8X30 UNI 5739 DIN 933 (8.8) GA 3
24 283-1661 SCREW M3X20 UNI 7687 (4.8) GALV. 2
31 999-1550 Nut M10-1.5 nylon insert lock 1
37 283-1777 WASHER 9X24X2.5 UNI 6593 GALV. 6
38 283-1779 WASHER 8X13X2.2 GROWER GALV. 5
41 283-1796 SPESSORE RAM 10x16x0.5 DIN 988 3
46 283-1961 JOINT CHAIN 3/8 SIMPLE 1
47 283-1963 BALL BEARING 6200-2RS1 2
59 283-2509 FRAME R22 1

Frame Assembly - Part 1 - 283-0050
RefNbr Part Number Description Req Notes
1 283-1159 SPACER 2
6 283-1214 MICROSWITCH 1
7 283-1231 Support 1
21 283-1617 SCREW M8X30 UNI 5739 DIN 933 (8.8) GA 4
22 283-1622 M8X45 HH SCREW UNI5739 DIN933(10.9)GA 2
29 283-1661 SCREW M3X20 UNI 7687 (4.8) GALV. 2
38 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA 7
45 283-1777 WASHER 9X24X2.5 UNI 6593 GALV. 11
46 283-1779 WASHER 8X13X2.2 GROWER GALV. 6
57 283-2080 SCREW 8X16 UNI 5933 GALV. 1
68 283-2509 FRAME R22 1
74 283-2990 BUSHING D=28-14,9 d=8,5 S=12 OT58 6
75 283-2998 WASHER UNI 8840 - B - 14 8
83 283-3274 SPACER D=28-15 d=8.5 S=8 SV OT58 2
85 283-3275 UPPER ARM 2

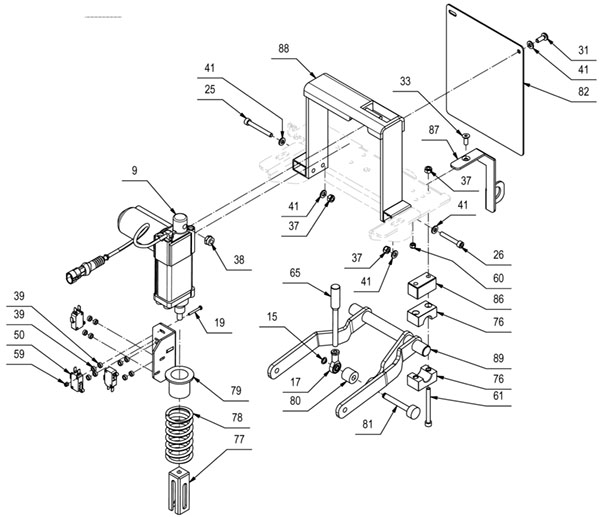

Frame Assembly - Part 3 - 283-0051
RefNbr Part Number Description Req Notes
9 283-1417 ACTUATOR 1
15 283-1555 SEEGER RING (NS13) 1
17 283-1577 ARTICULATED HEAD D.8X12 M.8 DIN468K 1
19 283-1599 SCREW M3X25 TE UNI 5739 INOX 6
25 283-1650 SCREW M6X50 UNI 5931 DIN 912 (8.8) 2
26 283-1651 SCREW M6X40 UNI 5931 DIN 912(12.9) GA 3
31 283-1672 SCREW M6X16 TCTC UNI 7687 (4.8) ZINC. 2
33 283-1701 SCREW M6X16 UNI5933 FLATH HEX.SOCKET 1
37 283-1732 LOCK NUT M6X6 UNI 7474 DIN 985 GALV. 14
38 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA 7
39 283-1758 WASHER 4x8x3 NYLON 12
41 283-1765 WASHER 6X12X1.6 UNI 6592 GALV. 18
50 283-1820 MICROSWITCH 10A 3X22 3
59 283-2095 LOCK NUT M3 UNI 7473 ST.STEEL 6
60 283-2174 M5X5 AUTOLOCK. NUT UNI 7474 DIN985 ZI 2
61 283-2303 SCREW M6X65 UNI 5931 DIN912 GALV 4
65 283-2424 STOP EXTRA PRESSURE BUTTON 1
76 283-3163 SHAFT SUPPORT 4
77 283-3203 EXTRA PRESSURE MAXIMA 2017 PRO 1
78 283-3267 SPRING DE=43 DF=5 L=80 6 SPIRE 1
79 283-3268 EXTRAPRESSURE BRACKET BTO 1
80 283-3269 SPACER D=20 d=8,2 S017 S235 1
81 283-3270 EXTRAPRESSURE PIN D=8 1
82 283-3273 LUBRITENE WIPER RUBBER PROTECTION 370x14 1
86 283-3276 SPACER L=42 H=22 l=22 2

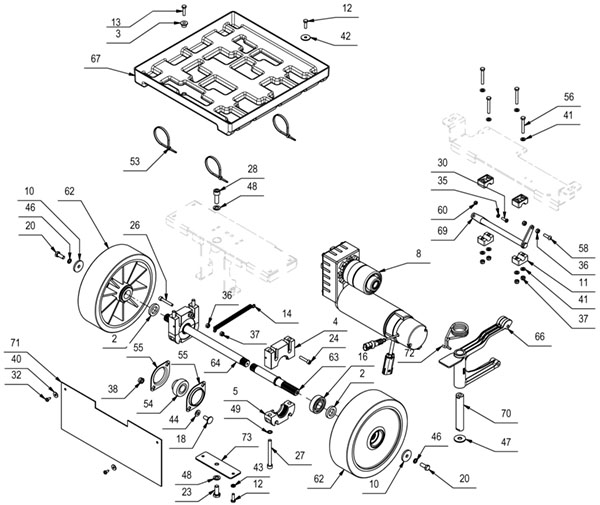

Chassis Assembly - 283-0052
RefNbr Part Number Description Req Notes
2 283-1161 SPACER 2
2 283-1161 SPACER 2
3 283-1162 BUSHING 18-12(7)X10 1
3 283-1162 BUSHING 18-12(7)X10 1
4 283-1165 SUP. BEARING SUPPORT HS50 2
4 283-1165 SUP. BEARING SUPPORT HS50 2
5 283-1166 INF. BEARING SUPPORT HS50 2
5 283-1166 INF. BEARING SUPPORT HS50 2
10 250-1320 Washer 2
10 250-1320 Washer 2
11 283-1450 HOLDFAST 4
11 283-1450 HOLDFAST 4
12 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA 3
12 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA 3
13 283-1520 SCREW M6X25 TE UNI 5739 DIN933(8.8)GA 1
13 283-1520 SCREW M6X25 TE UNI 5739 DIN933(8.8)GA 1
14 283-1549 EXTENSION SPRING10X1X103 1
14 283-1549 EXTENSION SPRING10X1X103 1
16 283-1573 BALL BEARING 6204-2RS1 2
16 283-1573 BALL BEARING 6204-2RS1 2
18 283-1597 SCREW M8X20 UNI 5732 GALV. 2
18 283-1597 SCREW M8X20 UNI 5732 GALV. 2
20 283-1614 SCREW M8X20 UNI 5739 DIN 933 (8.8) GA 2
20 283-1614 SCREW M8X20 UNI 5739 DIN 933 (8.8) GA 2
23 283-1634 SCREW M10X25 UNI 5739 DIN 933 GALV. 1
23 283-1634 SCREW M10X25 UNI 5739 DIN 933 GALV. 1
24 283-1648 SCREW M6X30 TCEI UNI 5931 DIN912 (8.8 4
24 283-1648 SCREW M6X30 TCEI UNI 5931 DIN912 (8.8 4
26 283-1651 SCREW M6X40 UNI 5931 DIN 912(12.9) GA 3
26 283-1651 SCREW M6X40 UNI 5931 DIN 912(12.9) GA 3
27 283-1658 8X80 HEX SKT PN SCREW UNI 5931 (8.8)Z 4
27 283-1658 8X80 HEX SKT PN SCREW UNI 5931 (8.8)Z 4
28 283-1659 M10x30 TCEI UNI5931 ZINC 1
28 283-1659 M10x30 TCEI UNI5931 ZINC 1
30 283-1670 SCREW 5X16 UNI 7687 GALV. TCTC 1
30 283-1670 SCREW 5X16 UNI 7687 GALV. TCTC 1
32 283-1680 SELF THREAD. SCREW 4.8X13 UNI 6954 GA 2
32 283-1680 SELF THREAD. SCREW 4.8X13 UNI 6954 GA 2
35 283-1711 NUT M5 UNI 5589 GALV. LOW 1
35 283-1711 NUT M5 UNI 5589 GALV. LOW 1
36 283-1713 NUT M6 UNI 5588 DIN 934 GALV. 2
36 283-1713 NUT M6 UNI 5588 DIN 934 GALV. 2
37 283-1732 LOCK NUT M6X6 UNI 7474 DIN 985 GALV. 14
37 283-1732 LOCK NUT M6X6 UNI 7474 DIN 985 GALV. 14
38 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA 7
38 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA 7
40 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. 2
40 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. 2
41 283-1765 WASHER 6X12X1.6 UNI 6592 GALV. 18
41 283-1765 WASHER 6X12X1.6 UNI 6592 GALV. 18
42 283-1769 WASHER M6 D.24 UNI 6593 LARGE FL. GAL 1
42 283-1769 WASHER M6 D.24 UNI 6593 LARGE FL. GAL 1
43 283-1770 WASHER 6X2.5X1.8 GROWER GALV. 2
43 283-1770 WASHER 6X2.5X1.8 GROWER GALV. 2
44 283-1774 8X17X1,6 WASHER UNI 6592 GALV. 2
44 283-1774 8X17X1,6 WASHER UNI 6592 GALV. 2
46 283-1779 WASHER 8X13X2.2 GROWER GALV. 6
46 283-1779 WASHER 8X13X2.2 GROWER GALV. 6
47 283-1785 WASHER 11X30X2,5 UNI 6593 GALV. 1
47 283-1785 WASHER 11X30X2,5 UNI 6593 GALV. 1
48 283-1787 WASHER 10X2.5X2.5 GROWER DIN 7980 GAL 2
48 283-1787 WASHER 10X2.5X2.5 GROWER DIN 7980 GAL 2
49 283-1812 WASHER M8X13 SCHNORR 4
49 283-1812 WASHER M8X13 SCHNORR 4
53 283-1871 PLASTIC CLAMP 4.5X200 7
53 283-1871 PLASTIC CLAMP 4.5X200 7
54 283-2046 BEARING 1
54 283-2046 BEARING 1
55 283-2047 SUPPORT 2
55 283-2047 SUPPORT 2
56 283-2058 SCREW M6x45 TE UNI 5739 ZINC 4
56 283-2058 SCREW M6x45 TE UNI 5739 ZINC 4
58 283-2084 SCREW 6X20 ISO 7380 GALV. 1
58 283-2084 SCREW 6X20 ISO 7380 GALV. 1
60 283-2174 M5X5 AUTOLOCK. NUT UNI 7474 DIN985 ZI 2
60 283-2174 M5X5 AUTOLOCK. NUT UNI 7474 DIN985 ZI 2
62 283-2375 WHEEL D=225 L=69 RES SMX BT 2
62 283-2375 WHEEL D=225 L=69 RES SMX BT 2
63 283-1063 LEFT AXLE SHAFT L=165,5 SMX 1
63 283-1063 LEFT AXLE SHAFT L=165,5 SMX 1
64 283-1064 RIGHT AXLE SHAFT L=300 SMX 1
64 283-1064 RIGHT AXLE SHAFT L=300 SMX 1
66 283-2491 FRONT SQUEEGEE SUPPORT R22 1
66 283-2491 FRONT SQUEEGEE SUPPORT R22 1
67 283-2497 BATTERY COMPARTMENT ABS DIM. 371x360 1
67 283-2497 BATTERY COMPARTMENT ABS DIM. 371x360 1
69 283-2512 LIFT LEVER R22 1
69 283-2512 LIFT LEVER R22 1
70 283-2513 PIN BLADE ROTATION CONTROL R22 1
70 283-2513 PIN BLADE ROTATION CONTROL R22 1
71 283-2549 LUBRITENE WIPER RUBBER PROTECTION 370 1
71 283-2549 LUBRITENE WIPER RUBBER PROTECTION 370 1
72 283-2551 SQUEEGEE ROTATING CONTROL SPRING D=4, 1
72 283-2551 SQUEEGEE ROTATING CONTROL SPRING D=4, 1
73 283-2561 STAFFA RINFORZO PERNO ATTACCO TERGI 1
73 283-2561 STAFFA RINFORZO PERNO ATTACCO TERGI 1

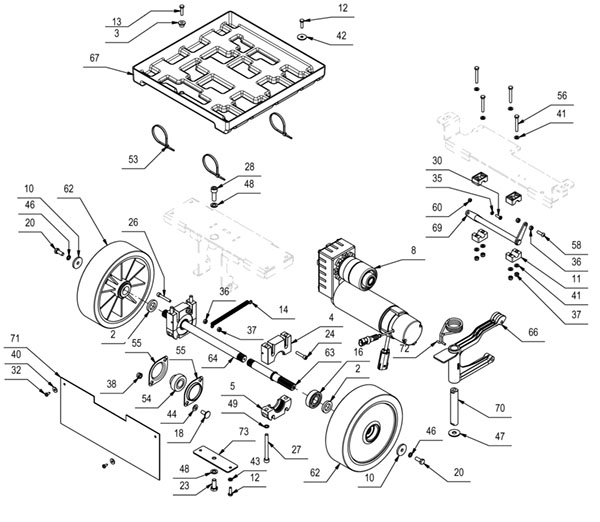

Frame Assembly - Part 2 - 283-0052
RefNbr Part Number Description Req Notes
2 283-1161 SPACER 2
2 283-1161 SPACER 2
3 283-1162 BUSHING 18-12(7)X10 1
3 283-1162 BUSHING 18-12(7)X10 1
4 283-1165 SUP. BEARING SUPPORT HS50 2
4 283-1165 SUP. BEARING SUPPORT HS50 2
5 283-1166 INF. BEARING SUPPORT HS50 2
5 283-1166 INF. BEARING SUPPORT HS50 2
10 250-1320 Washer 2
10 250-1320 Washer 2
11 283-1450 HOLDFAST 4
11 283-1450 HOLDFAST 4
12 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA 3
12 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA 3
13 283-1520 SCREW M6X25 TE UNI 5739 DIN933(8.8)GA 1
13 283-1520 SCREW M6X25 TE UNI 5739 DIN933(8.8)GA 1
14 283-1549 EXTENSION SPRING10X1X103 1
14 283-1549 EXTENSION SPRING10X1X103 1
16 283-1573 BALL BEARING 6204-2RS1 2
16 283-1573 BALL BEARING 6204-2RS1 2
18 283-1597 SCREW M8X20 UNI 5732 GALV. 2
18 283-1597 SCREW M8X20 UNI 5732 GALV. 2
20 283-1614 SCREW M8X20 UNI 5739 DIN 933 (8.8) GA 2
20 283-1614 SCREW M8X20 UNI 5739 DIN 933 (8.8) GA 2
23 283-1634 SCREW M10X25 UNI 5739 DIN 933 GALV. 1
23 283-1634 SCREW M10X25 UNI 5739 DIN 933 GALV. 1
24 283-1648 SCREW M6X30 TCEI UNI 5931 DIN912 (8.8 4
24 283-1648 SCREW M6X30 TCEI UNI 5931 DIN912 (8.8 4
26 283-1651 SCREW M6X40 UNI 5931 DIN 912(12.9) GA 3
26 283-1651 SCREW M6X40 UNI 5931 DIN 912(12.9) GA 3
27 283-1658 8X80 HEX SKT PN SCREW UNI 5931 (8.8)Z 4
27 283-1658 8X80 HEX SKT PN SCREW UNI 5931 (8.8)Z 4
28 283-1659 M10x30 TCEI UNI5931 ZINC 1
28 283-1659 M10x30 TCEI UNI5931 ZINC 1
30 283-1670 SCREW 5X16 UNI 7687 GALV. TCTC 1
30 283-1670 SCREW 5X16 UNI 7687 GALV. TCTC 1
32 283-1680 SELF THREAD. SCREW 4.8X13 UNI 6954 GA 2
32 283-1680 SELF THREAD. SCREW 4.8X13 UNI 6954 GA 2
35 283-1711 NUT M5 UNI 5589 GALV. LOW 1
35 283-1711 NUT M5 UNI 5589 GALV. LOW 1
36 283-1713 NUT M6 UNI 5588 DIN 934 GALV. 2
36 283-1713 NUT M6 UNI 5588 DIN 934 GALV. 2
37 283-1732 LOCK NUT M6X6 UNI 7474 DIN 985 GALV. 14
37 283-1732 LOCK NUT M6X6 UNI 7474 DIN 985 GALV. 14
38 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA 7
38 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA 7
40 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. 2
40 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. 2
41 283-1765 WASHER 6X12X1.6 UNI 6592 GALV. 18
41 283-1765 WASHER 6X12X1.6 UNI 6592 GALV. 18
42 283-1769 WASHER M6 D.24 UNI 6593 LARGE FL. GAL 1
42 283-1769 WASHER M6 D.24 UNI 6593 LARGE FL. GAL 1
43 283-1770 WASHER 6X2.5X1.8 GROWER GALV. 2
43 283-1770 WASHER 6X2.5X1.8 GROWER GALV. 2
44 283-1774 8X17X1,6 WASHER UNI 6592 GALV. 2
44 283-1774 8X17X1,6 WASHER UNI 6592 GALV. 2
46 283-1779 WASHER 8X13X2.2 GROWER GALV. 6
46 283-1779 WASHER 8X13X2.2 GROWER GALV. 6
47 283-1785 WASHER 11X30X2,5 UNI 6593 GALV. 1
47 283-1785 WASHER 11X30X2,5 UNI 6593 GALV. 1
48 283-1787 WASHER 10X2.5X2.5 GROWER DIN 7980 GAL 2
48 283-1787 WASHER 10X2.5X2.5 GROWER DIN 7980 GAL 2
49 283-1812 WASHER M8X13 SCHNORR 4
49 283-1812 WASHER M8X13 SCHNORR 4
53 283-1871 PLASTIC CLAMP 4.5X200 7
53 283-1871 PLASTIC CLAMP 4.5X200 7
54 283-2046 BEARING 1
54 283-2046 BEARING 1
55 283-2047 SUPPORT 2
55 283-2047 SUPPORT 2
56 283-2058 SCREW M6x45 TE UNI 5739 ZINC 4
56 283-2058 SCREW M6x45 TE UNI 5739 ZINC 4
58 283-2084 SCREW 6X20 ISO 7380 GALV. 1
58 283-2084 SCREW 6X20 ISO 7380 GALV. 1
60 283-2174 M5X5 AUTOLOCK. NUT UNI 7474 DIN985 ZI 2
60 283-2174 M5X5 AUTOLOCK. NUT UNI 7474 DIN985 ZI 2
62 283-2375 WHEEL D=225 L=69 RES SMX BT 2
62 283-2375 WHEEL D=225 L=69 RES SMX BT 2
63 283-1063 LEFT AXLE SHAFT L=165,5 SMX 1
63 283-1063 LEFT AXLE SHAFT L=165,5 SMX 1
64 283-1064 RIGHT AXLE SHAFT L=300 SMX 1
64 283-1064 RIGHT AXLE SHAFT L=300 SMX 1
66 283-2491 FRONT SQUEEGEE SUPPORT R22 1
66 283-2491 FRONT SQUEEGEE SUPPORT R22 1
67 283-2497 BATTERY COMPARTMENT ABS DIM. 371x360 1
67 283-2497 BATTERY COMPARTMENT ABS DIM. 371x360 1
69 283-2512 LIFT LEVER R22 1
69 283-2512 LIFT LEVER R22 1
70 283-2513 PIN BLADE ROTATION CONTROL R22 1
70 283-2513 PIN BLADE ROTATION CONTROL R22 1
71 283-2549 LUBRITENE WIPER RUBBER PROTECTION 370 1
71 283-2549 LUBRITENE WIPER RUBBER PROTECTION 370 1
72 283-2551 SQUEEGEE ROTATING CONTROL SPRING D=4, 1
72 283-2551 SQUEEGEE ROTATING CONTROL SPRING D=4, 1
73 283-2561 STAFFA RINFORZO PERNO ATTACCO TERGI 1
73 283-2561 STAFFA RINFORZO PERNO ATTACCO TERGI 1

Steering Assembly - Part 1 - 283-0053
RefNbr Part Number Description Req Notes
1 283-1102 STUD BOLT FOR JOINT 2
2 283-1167 COMPLET KEY SWITCH (ELFI D.22) 1 (includes N/S and 54-57)
4 283-1232 INTERNAL LIFTING LEVER MR 2
6 283-1535 BUSHING 4
7 283-1552 CIRCLIP D.42 UNI 7437 1
8 250-1152 Bearing 2
10 283-1599 SCREW M3X25 TE UNI 5739 INOX 2
12 283-1619 SCREW M8X35 UNI 5739 DIN 933 (10.9) G 4
13 283-1666 SCREW M5x10 TC T.C. INOX UNI 7687 4
14 283-1689 CAPPED DOWEK M6X16 UNI 5929 ZINC 6
15 283-1713 NUT M6 UNI 5588 DIN 934 GALV. 6
17 283-1723 NUT M8X5 UNI 5589 GALV. 2
18 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA 6
20 283-1774 8X17X1,6 WASHER UNI 6592 GALV. 14
21 283-1777 WASHER 9X24X2.5 UNI 6593 GALV. 2
23 283-1821 MICROSWITCH 3X22 3
24 283-1846 BASE 5496 4
25 283-1871 PLASTIC CLAMP 4.5X200 4
26 283-1909 CLIP FOR FORK M5 LONG 1
31 283-2054 M3X16 TE UNI 5739 INOX A2 2
33 283-2173 VITE M8X35 TCBCE ISO 7380 (10.9) ZINC 2
34 283-2366 SCREW M8X20 TBEI ISO 7380 INOX 2
36 283-2478 JOINT WITH HOLE D=37 d=18 1
37 283-2483 STOP BUTTON NP2-BS542 1
38 283-2506 SQUEEGEE LIFTING CABLE 1
39 283-2507 SCRUBDECK LIFTING CABLE 1
45 283-2564 BASE CONTROL STEEL LEVER R22 2
46 283-2565 BASE CONTROL LEVER GRIP R22 2
47 283-2566 SPACER D = 41.5 d = 34 S = 6 C45 1
48 283-2432 CENTERING BELLOWS MG 1
49 283-1415 STEERING WHEEL ASSEMBLY HILLYARD 1
50 283-2576 STEERING COLUMN ALUMINUM R22 1
51 283-1241 FLEX HOSE R28/30 1
54 283-1800 CONTACT - KEY SWITCH 1
55 283-1802 SWITCHER W/ KEY MOD 020ST 1
56 283-1807 On/Off Key 1
57 283-1803 FLANGE - CONTACT KEY SWITCH 1
N/S 283-1802 SWITCHER W/ KEY MOD 020ST 1

Steering Assembly - Part 2 - 283-0054
RefNbr Part Number Description Req Notes
5 283-1250 PREASS. FRONT WHEEL MXR 1
9 283-1594 SCREW 8X25 UNI 5732 GALV. 2
11 283-1615 M8X25 HH SCREW UNI 5739 DIN 933(8.8)G 4
16 283-1718 NUT M8X6.5 UNI 5588 GALV. 3
18 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA 6
20 283-1774 8X17X1,6 WASHER UNI 6592 GALV. 14
22 283-1779 WASHER 8X13X2.2 GROWER GALV. 4
27 283-1961 JOINT CHAIN 3/8 SIMPLE 1
28 283-1965 M8x40 EI UNI 5923 ZINC 2
29 283-2044 SUPPORT 2
30 283-2045 BEARING 1
40 283-2526 LOWER STEERING SHAFT MXR L = 553 D = 1
41 283-2529 Support 1
42 283-2533 SPACER D=65 d=50,2 S=5 S235 1
43 283-2534 BUSHING D=35-25 d=22 S=31 NYLON 1
44 283-2539 CHAIN ISO 06B - 3/8 inch - 49 STEPS 1
53 283-2573 BUZZER HP4560 - 24V - 80 dB - 2900 Hz 1

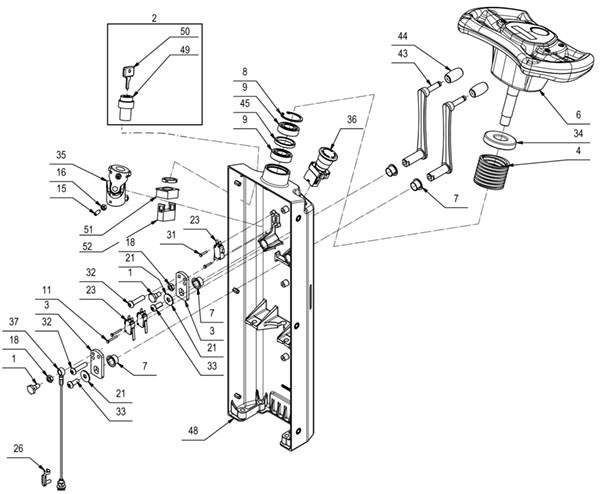

Steering Assembly - Part 1 - 283-0055
RefNbr Part Number Description Req Notes
1 283-1102 STUD BOLT FOR JOINT 2
2 283-1167 COMPLET KEY SWITCH (ELFI D.22) 1 (inlcudes N/S and 49-51)
3 283-1232 INTERNAL LIFTING LEVER MR 2
4 283-1241 FLEX HOSE R28/30 1
6 283-1415 STEERING WHEEL ASSEMBLY HILLYARD 1
7 283-1535 BUSHING 4
8 283-1552 CIRCLIP D.42 UNI 7437 1
9 250-1152 Bearing 2
11 283-1599 SCREW M3X25 TE UNI 5739 INOX 2
15 283-1689 CAPPED DOWEK M6X16 UNI 5929 ZINC 6
16 283-1713 NUT M6 UNI 5588 DIN 934 GALV. 6
18 283-1723 NUT M8X5 UNI 5589 GALV. 2
21 283-1777 WASHER 9X24X2.5 UNI 6593 GALV. 2
23 283-1821 MICROSWITCH 3X22 3
26 283-1909 CLIP FOR FORK M5 LONG 1
31 283-2054 M3X16 TE UNI 5739 INOX A2 2
32 283-2173 VITE M8X35 TCBCE ISO 7380 (10.9) ZINC 2
33 283-2366 SCREW M8X20 TBEI ISO 7380 INOX 2
34 283-2432 CENTERING BELLOWS MG 1
35 283-2478 JOINT WITH HOLE D=37 d=18 1
36 283-2483 STOP BUTTON NP2-BS542 1
37 283-2506 SQUEEGEE LIFTING CABLE 1
43 283-2564 BASE CONTROL STEEL LEVER R22 2
44 283-2565 BASE CONTROL LEVER GRIP R22 2
45 283-2566 SPACER D = 41.5 d = 34 S = 6 C45 1
48 283-2576 STEERING COLUMN ALUMINUM R22 1
49 283-1802 SWITCHER W/ KEY MOD 020ST 1
50 283-1807 On/Off Key 1
51 283-1803 FLANGE - CONTACT KEY SWITCH 1
52 283-1800 CONTACT - KEY SWITCH 1
N/S 283-1802 SWITCHER W/ KEY MOD 020ST 1

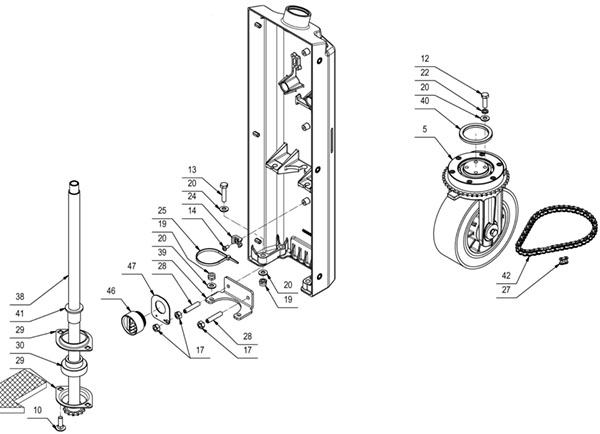

Steering Assembly - Part 2 - 283-0056
RefNbr Part Number Description Req Notes
5 283-1250 PREASS. FRONT WHEEL MXR 1
10 283-1594 SCREW 8X25 UNI 5732 GALV. 2
12 283-1615 M8X25 HH SCREW UNI 5739 DIN 933(8.8)G 4
13 283-1619 SCREW M8X35 UNI 5739 DIN 933 (10.9) G 4
14 283-1666 SCREW M5x10 TC T.C. INOX UNI 7687 4
17 283-1718 NUT M8X6.5 UNI 5588 GALV. 3
19 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA 6
20 283-1774 8X17X1,6 WASHER UNI 6592 GALV. 14
22 283-1779 WASHER 8X13X2.2 GROWER GALV. 4
24 283-1846 BASE 5496 4
25 283-1871 PLASTIC CLAMP 4.5X200 4
27 283-1961 JOINT CHAIN 3/8 SIMPLE 1
28 283-1965 M8x40 EI UNI 5923 ZINC 2
29 283-2044 SUPPORT 2
30 283-2045 BEARING 1
38 283-2526 LOWER STEERING SHAFT MXR L = 553 D = 1
39 283-2529 Support 1
40 283-2533 SPACER D=65 d=50,2 S=5 S235 1
41 283-2534 BUSHING D=35-25 d=22 S=31 NYLON 1
42 283-2539 CHAIN ISO 06B - 3/8 inch - 49 STEPS 1
46 283-2573 BUZZER HP4560 - 24V - 80 dB - 2900 Hz 1

Control Panel Assembly - 283-0057
RefNbr Part Number Description Req Notes
1 283-1757 ROSE 7
2 283-1868 PLASTIC CLAMP 2.5X98 1
3 283-1871 PLASTIC CLAMP 4.5X200 1
4 283-2065 SCREW M5x16 TCEI UNI 5931 ZINC-PLATED 4
5 283-2088 LOCK NUT 2.9X9.5 DIN 7981 GALV. 20
6 283-2519 SEAL RING NUT MEC 1UW STEERING WHEEL 4
7 283-2520 GREY CAP RAL7004 HORN 1
8 283-2521 GREY CAP RAL7004 BRUSH 1
9 283-2522 GREY CAP RAL7004 REVERSE 1
10 283-2523 GREEN CAP RAL6018 inchECO MODE inch 1
11 283-2527 SUP. STEERING SHAFT R22 L=105 FLANG.6 1
12 283-2543 STEERING CONTROL CARD 7CFCT000 R22-IM 1
13 283-2544 STEERING WHEEL SUP.COVER + WINDOW R22 1
14 283-2545 STEERING WHEEL INF.COVER R22 1
15 283-2546 INTERNAL STEERING WHEEL PLAQUE MXR 1
16 283-2552 EYELET SUPPORT D=4,1 (COD. 5461E) 1
N/S 283-2665 CABLESTEERING FSR L=2400 1

Front Wheel Assembly - 283-0058
RefNbr Part Number Description Req Notes
1 283-1157 SPACER D.27(20)X8 2
2 250-1320 Washer 2
3 283-1575 PAD SF.6010-2RS(50X80X16) 2
4 283-1616 SCREW 8X25 UNI 5739 A2 2
5 283-1648 SCREW M6X30 TCEI UNI 5931 DIN912 (8.8 6
6 283-1664 SCREW M3X10 UNI 7687 (4.8) GALV. 3
7 283-1782 Washer 8X13X2,2 GROWER A2 2
8 283-2498 FRONT WHEEL INF.SUPPORT R22 1
9 283-2502 FRONT WHEEL CAMSHAFT R22 1
10 283-2503 BEARING SUPPORT + CROWN WHEEL 1
11 283-2530 WHEEL SUPPORT D=50-65 H=41 1
12 283-2531 FRONT WHEEL SHAFT D=20 L=83,5 1
13 283-2532 WHEEL D=175 d=20 s=60 WITH BEARINGS 1

Solution Tank and Accessories Assembly - 283-0059
RefNbr Part Number Description Req Notes
1 283-1251 FRONT NOSE ASSEMBLY 1
2 283-1257 POLYESTER CORD F.16 D=3 x 460 1
3 283-1262 SOLUTION TANK ASSEMBLY MXR 22 RAL 7016 1
5 283-1264 RUBBER -U- SHAPE 8,5X6 L=470 1
6 283-1292 PEDAL ASSEMBLY R22 inchCTS inch 1
7 283-1416 RECOVERY TANK ASSEMBLY R22SC RAL 5012 1
8 283-1448 SPECIAL WASHER D.5X20 16
9 283-1586 SCREW M5X16 UNI 7689 GALV. 18
10 283-1670 SCREW 5X16 UNI 7687 GALV. TCTC 2
11 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA 6
12 999-9100 Washer M5 flat stainless steel 10
13 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. 2
14 283-1777 WASHER 9X24X2.5 UNI 6593 GALV. 6
15 283-1822 SEAT MICROSWITCH 1
16 283-1843 FAIRLEAD FOR HOLE D.12 Di.8 1
17 283-1970 SPRING - HOSE FASTENING D=38 ABS 1
18 283-2065 SCREW M5x16 TCEI UNI 5931 ZINC-PLATED 10
19 283-2314 HUB COVER 2
20 283-2472 HINGE 2
21 283-2499 FOOTBOARD MxR 1
22 283-2575 PU SEAT R22 EM 1
24 283-3241 vac hose 1
25 283-1143 WASHER D.6X18 2
26 283-1692 SCREW M3X10 TPSTC UNI 6109 INOX A2 2
27 283-2364 SELF THREAD.SCREW 4.2x19,UNI 6955 ZINC 2
28 283-2433 MAGNET D.15X3 F=3 KG 2
29 283-2501 FRONT CARTER -R22 1
30 283-2505 GLOVE BOX - R22 1
31 283-2983 HOLE COVER CAP RAL7016 1

Solution Tank Assembly - 283-0060
RefNbr Part Number Description Req Notes
1 283-1460 THREADED COVER D.130 THR. D.127 1
2 283-1482 CUP FILTER 118(108)X40 1
3 283-1670 SCREW 5X16 UNI 7687 GALV. TCTC 1
4 283-1680 SELF THREAD. SCREW 4.8X13 UNI 6954 GA 4
5 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. 1
6 283-1846 BASE 5496 5
7 283-1871 PLASTIC CLAMP 4.5X200 5
9 283-2255 SCREW M5x10 TC T.C.ZNT UNI 7687(4.8)Z 1
10 283-2580 SOLUTION TANK R22 22 RAL 7016 1
11 283-2485 CLIP EXHAUS HOSE D=37 FILO D=2,5 1

Recovery Tank Assembly - 283-0061
RefNbr Part Number Description Req Notes
1 283-1020 MOTOR PLAQUE ABILA/VISPA 1
2 283-1228 THREADED ROD M5 L = 102 ZINC 2
3 283-1001 SUCTION MOTOR ASSEMBLY 24V 310W H950 1
4 283-1260 BLACK SHEAT 12N L= 150 1
5 283-1441 COVER 1
6 283-1442 THREADED RING W/GASKET D.355 1
7 283-1448 SPECIAL WASHER D.5X20 3
8 283-1494 CAP - SUCTION MOTOR 1
9 283-1586 SCREW M5X16 UNI 7689 GALV. 3
10 283-1670 SCREW 5X16 UNI 7687 GALV. TCTC 3
11 283-1680 SELF THREAD. SCREW 4.8X13 UNI 6954 GA 4
12 283-1746 NUT M5 DIN 6923 2
13 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. 5
14 283-1763 WASHER 5X1.6X1.6 GROWER DIN 7980 GALV 3
15 283-1843 FAIRLEAD FOR HOLE D.12 Di.8 2
16 283-1846 BASE 5496 2
17 283-1871 PLASTIC CLAMP 4.5X200 2
18 283-2485 CLIP EXHAUS HOSE D=37 FILO D=2,5 3
19 283-2089 VITE D.4,8X19 AUTOF. TCTC UNI 6954 A2 8
20 283-2174 M5X5 AUTOLOCK. NUT UNI 7474 DIN985 ZI 2
21 283-2255 SCREW M5x10 TC T.C.ZNT UNI 7687(4.8)Z 2
23 283-2468 ABSORBING SP= 6+10 L=410 H=100 1
24 283-2727 FLOAT LOWER PART R22-OPTIMA 1
25 283-2488 FLOAT R22 - MOBILE BODY 1
26 283-2489 ELECTRIC MOTOR CARTER R22 1
27 283-2517 FLOAT GASKET D=62 d=47 S=3 1
28 283-2548 SPONGE FILTER D.103x25 ART.126/30 AU 1
29 283-2572 POLYURETHANE FLOATING RING D=105/70 H 1
30 283-2578 HOSE D.38x745 D.50 WITH CAP 1
31 283-2581 RECOVERY TANK R22 22 RAL 5012 1
32 283-2724 FLOAT COVER R22-OPTIMA 1
33 283-2726 FLOAT UPPER PART R22-OPTIMA 1
34 283-1588 O-RING OR 3218 (2.6X55.2) 1
35 283-1873 CLAMP 40-60 X 8 1
36 283-2357 CARBON BRUSH FOR VACUUM MOTOR 11,2X71 1
37 283-2553 CONNECTOR MOLEX MX150L FEM. 19433-0013 1
38 283-1219 HEAT-SHRINK SHEATH D.12.7X200 BLACK 1
39 283-2554 END MOLEX MX150L MAS. 19431-0001 2
N/S 283-2450 SUCT. MOTOR 24V 410W H1200PERIPHERAL 1
N/S 283-3799 Recovery drain hose 1

Water Unit Assembly - 283-0062
RefNbr Part Number Description Req Notes
1 283-1080 TUBE 1
2 283-1177 WATER FILTER SOLUTION TANK 1/2 F/F CO 1
3 283-1255 SPIRAL HOSE D.12X650 1
4 283-1261 TUBE METALFLEX-I D=18X740 1
5 283-1448 SPECIAL WASHER D.5X20 1
6 283-1465 SHORT WATER VALVE LEVER 1
7 283-1539 SPRING 12X1.5X15 - BRUSH CONTROL 1
8 283-1711 NUT M5 UNI 5589 GALV. LOW 1
9 283-1746 NUT M5 DIN 6923 1
10 283-1771 PVC SPECIAL WASHER 6X30X3 BLACK 1
11 283-1859 HANDWHEEL VZB-18 M5 1
12 283-1875 CLAMP W/SCREW 11/17 ABA 2
13 283-1883 WATER VALVE BODY 1/2' F.F. 1
14 283-1885 THREADED ELBOW 1/2X16 1
15 283-1888 LINK 1
16 283-1889 MALE STRAIGHT HOSE BARB 1/2 inch-16 1
17 283-1893 STRAIGHT HOSE TAIL 1/2 inchX20M. 1
18 283-1894 STRAIGHT HOSE TAIL 1/2M D.13 1
19 283-1901 FITTING MM 1/2-1/2 2
20 283-2042 RING EL.RAD.5 DIN 6799 2
21 283-2124 JUBILEE CLIP 15/24 3
22 283-2256 SCREW M5x10 UNI 5739 (8.8) GALV. 2
23 283-2369 CAP - SILICONE MX 1
24 283-2466 FILLING JOINT MY 50 1
25 283-2524 BRACKET FILTER TAP-R22 1
26 283-2525 ROD TAP MXR 1
27 283-2271 FILTER BODY E1/2' FF PP 1
28 283-2272 FILTER CAP PP 1
29 283-2273 NET 27X50 MM 50 MESH ST. STEEL 1
30 283-2274 O RING GASKET 2X38 MM 1

Rear Wheel Assembly - Part 1 - 283-0063
RefNbr Part Number Description Req Notes
39 283-1758 WASHER 4x8x3 NYLON 12
41 283-1765 WASHER 6X12X1.6 UNI 6592 GALV. 18
50 283-1820 MICROSWITCH 10A 3X22 3
59 283-2095 LOCK NUT M3 UNI 7473 ST.STEEL 6
60 283-2174 M5X5 AUTOLOCK. NUT UNI 7474 DIN985 ZI 2
61 283-2303 SCREW M6X65 UNI 5931 DIN912 GALV 4
65 283-2424 STOP EXTRA PRESSURE BUTTON 1
76 283-3163 SHAFT SUPPORT 4
77 283-3203 EXTRA PRESSURE MAXIMA 2017 PRO 1
78 283-3267 SPRING DE=43 DF=5 L=80 6 SPIRE 1
79 283-3268 EXTRAPRESSURE BRACKET BTO 1
80 283-3269 SPACER D=20 d=8,2 S017 S235 1
81 283-3270 EXTRAPRESSURE PIN D=8 1
82 283-3273 LUBRITENE WIPER RUBBER PROTECTION 370x14 1
86 283-3276 SPACER L=42 H=22 l=22 2

Rear Wheel Assembly - Part 2 - 283-0064
RefNbr Part Number Description Req Notes
40 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. 2
41 283-1765 WASHER 6X12X1.6 UNI 6592 GALV. 18
42 283-1769 WASHER M6 D.24 UNI 6593 LARGE FL. GAL 1
43 283-1770 WASHER 6X2.5X1.8 GROWER GALV. 2
44 283-1774 8X17X1,6 WASHER UNI 6592 GALV. 2
46 283-1779 WASHER 8X13X2.2 GROWER GALV. 6
47 283-1785 WASHER 11X30X2,5 UNI 6593 GALV. 1
48 283-1787 WASHER 10X2.5X2.5 GROWER DIN 7980 GAL 2
49 283-1812 WASHER M8X13 SCHNORR 4
53 283-1871 PLASTIC CLAMP 4.5X200 7
54 283-2046 BEARING 1
55 283-2047 SUPPORT 2
56 283-2058 SCREW M6x45 TE UNI 5739 ZINC 4
58 283-2084 SCREW 6X20 ISO 7380 GALV. 1
60 283-2174 M5X5 AUTOLOCK. NUT UNI 7474 DIN985 ZI 2
62 283-2375 WHEEL D=225 L=69 RES SMX BT 2
63 283-1063 LEFT AXLE SHAFT L=165,5 SMX 1
64 283-1064 RIGHT AXLE SHAFT L=300 SMX 1
66 283-2491 FRONT SQUEEGEE SUPPORT R22 1
67 283-2497 BATTERY COMPARTMENT ABS DIM. 371x360 1
69 283-2512 LIFT LEVER R22 1
70 283-2513 PIN BLADE ROTATION CONTROL R22 1
71 283-2549 LUBRITENE WIPER RUBBER PROTECTION 370 1
72 283-2551 SQUEEGEE ROTATING CONTROL SPRING D=4, 1
73 283-2561 STAFFA RINFORZO PERNO ATTACCO TERGI 1

Electrical Assembly - 283-0065
RefNbr Part Number Description Req Notes
1 283-1413 ASSOTECH PROFILE 1
2 283-1665 SCREW 4X16 UNI 7687 GALV. 4
3 283-2225 TOOTHED LOCK WASHER D.4,3x9 ZNT 4
4 283-2326 SCREW 1
5 283-2684 CABLE for BATTERY - FUSE 80A+MORS.+COPR 1
6 283-3265 MAIN ELECTRICAL HARNESS 1
7 283-3271 BATTERY CABLE S=16 L=450 SB175 ANE3 M8 1
9 283-3289 FUNCTIONS CARD 7CFCP001 1
N/S 283-4004 Microswitch kit 1
N/S 283-4005 Trident R22SC main harness 1

Flashing Light Kit - 283-0066
RefNbr Part Number Description Req Notes
1 283-2117 INDICATOR 24V 1
2 283-2555 CABLES FOR BLINKING KIT MXR 1
3 283-2087 SCREW 3
4 283-2725 LAMP 24V 5W BA15D 1

Rear Wheel Assembly - Part 2 - 283-0067
RefNbr Part Number Description Req Notes
1 283-1161 SPACER 2
2 283-1162 BUSHING 18-12(7)X10 1
3 283-1165 SUP. BEARING SUPPORT HS50 2
7 283-1002 GEARMOTOR 24V 300W 115G EL.BR.+MOLEX 1
8 250-1320 Washer 2
9 283-1450 HOLDFAST 4
10 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA 3
11 283-1520 SCREW M6X25 TE UNI 5739 DIN933(8.8)GA 1
13 283-1549 EXTENSION SPRING10X1X103 1
14 283-1573 BALL BEARING 6204-2RS1 2
15 283-1597 SCREW M8X20 UNI 5732 GALV. 2
16 283-1614 SCREW M8X20 UNI 5739 DIN 933 (8.8) GA 2
18 283-1634 SCREW M10X25 UNI 5739 DIN 933 GALV. 1
20 283-1648 SCREW M6X30 TCEI UNI 5931 DIN912 (8.8 4
21 283-1651 SCREW M6X40 UNI 5931 DIN 912(12.9) GA 1
23 283-1659 M10x30 TCEI UNI5931 ZINC 1
25 283-1670 SCREW 5X16 UNI 7687 GALV. TCTC 1
26 283-1680 SELF THREAD. SCREW 4.8X13 UNI 6954 GA 2
27 283-1711 NUT M5 UNI 5589 GALV. LOW 1
28 283-1713 NUT M6 UNI 5588 DIN 934 GALV. 2
29 283-1732 LOCK NUT M6X6 UNI 7474 DIN 985 GALV. 6
30 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA 2
32 283-1761 WASHER 5X15X1.5 UNI 6593 GALV. 2
33 283-1765 WASHER 6X12X1.6 UNI 6592 GALV. 8
34 283-1769 WASHER M6 D.24 UNI 6593 LARGE FL. GAL 1
35 283-1770 WASHER 6X2.5X1.8 GROWER GALV. 2
36 283-1774 8X17X1,6 WASHER UNI 6592 GALV. 2
38 283-1779 WASHER 8X13X2.2 GROWER GALV. 5
39 283-1785 WASHER 11X30X2,5 UNI 6593 GALV. 1
40 283-1787 WASHER 10X2.5X2.5 GROWER DIN 7980 GAL 2
45 283-1871 PLASTIC CLAMP 4.5X200 7
48 283-2046 BEARING 1
49 283-2047 SUPPORT 2
50 283-2058 SCREW M6x45 TE UNI 5739 ZINC 4
51 283-2084 SCREW 6X20 ISO 7380 GALV. 1
52 283-2174 M5X5 AUTOLOCK. NUT UNI 7474 DIN985 ZI 1
55 283-1063 LEFT AXLE SHAFT L=165,5 SMX 1
56 283-1064 RIGHT AXLE SHAFT L=300 SMX 1
57 283-2491 FRONT SQUEEGEE SUPPORT R22 1
58 283-2497 BATTERY COMPARTMENT ABS DIM. 371x360 1
59 283-2509 FRAME R22 1
60 283-2512 LIFT LEVER R22 1
61 283-2513 PIN BLADE ROTATION CONTROL R22 1
62 283-2549 LUBRITENE WIPER RUBBER PROTECTION 370 1
63 283-2551 SQUEEGEE ROTATING CONTROL SPRING D=4, 1
64 283-2561 STAFFA RINFORZO PERNO ATTACCO TERGI 1
Webpage Problem Reporting
