Parts List Complete for HILLYARD TRIDENT NM14

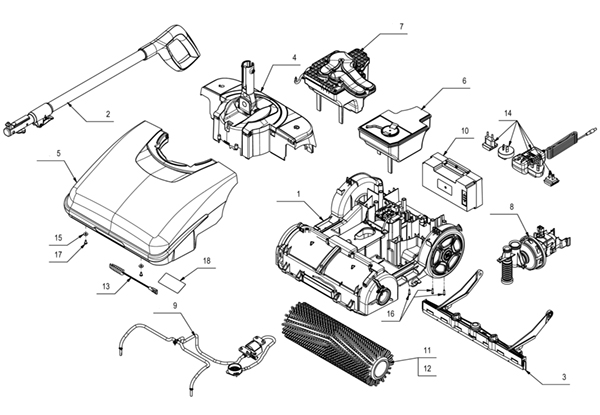

Entire Assembly - 283-0210
RefNbr Part Number Description Req Notes
1 283-3346 Frame assembly 1
2 283-1311 EXTENDABLE HANDLE GROUP NM14 1
3 283-1312 SQUEEGEE ASSY KIT FIMOP 1
4 283-3347 Frame assembly 1
5 283-1313 FRONT CARTER ASSEMBLY 1
6 283-1314 SOLUTION TANK GROUP NM14 1
7 283-1392 RECOVERY TANK NM14 2017 1
8 283-3348 Suction assembly 1
9 283-3349 Water assembly 1
10 283-2939 BATTERY PACK NM14 1
11 283-2893 CYL.BRUSH D=110 L=340 PPL0,3 +SPRING 1
12 283-3350 Cylindrical brush 1
13 283-2956 PIPE CLEANER L=180 D=15,5 FIMOP 1
14 283-2964 CHARGER FIMOP WITH ADAPTERS 1
15 283-1756 WASHER 4X12X1 INOX UNI 6593 2
16 283-2890 SCREW UNI 9707-Pz-TZ D.3,5 x 14 A2 8
17 283-2961 SCREW UNI 9708-Pz-TZ D.4 x 8 A2 2
18 283-3351 Decal 1

Chassis Assembly - 283-0211
RefNbr Part Number Description Req Notes
1 283-1310 TUNNEL COVER ASSEMBLY NM14 1
2 283-1006 CYLIND. MOTOR 24V 32W 375RPM + MOLEX 1
3 283-1541 COMPR. SPRING 9.5x0.8x34 1
4 283-1666 SCREW M5x10 TC T.C. INOX UNI 7687 5
5 283-1752 WASHER 3X12X0.8 ST.STEEL 1
6 283-1810 LOCK WASHER DIAM.3 DIN 6798/A 1
7 283-1964 SCREW 2
8 283-2053 SCREW M3X12 HEX H UNI5739 ST.STEEL 1
9 283-1742 LOCK NUT M12X1.75 UNI 7473 GALV. 1
10 283-2696 LED HEADLIGHT 24 V 1
11 283-2773 FRONT WHEEL BROOM - TPE 2
12 283-2784 CONTROL CARD ITALSEA - 7CFSS000-23041 1
13 283-2890 SCREW UNI 9707-Pz-TZ D.3,5 x 14 A2 4
14 283-2896 ROLLER HOUSING SIDE SUPPORT 1
15 283-3352 Lower frame 1
16 283-2901 CABLE LOCK 1
17 283-2904 HOSE COVER 1
18 283-2905 FILTER COVER 1
19 283-2906 FILTER SUPPORT 2
20 283-2907 SUCTION MOTOR LOWER CARTER 1
21 283-2911 BATTERY LOCK LEVER 1
22 283-2912 BATTERY COMPARTMENT INSERT 1
23 283-2913 CONTACTS BOX 1
24 283-2922 CARTER INSERT 1
25 283-2923 PUMP LOWER CARTER 1
26 283-2933 SQUEEGEE CONTROL LEFT HANDLE 1
27 283-2934 SQUEEGEE CONTROL RIGHT HANDLE 1
28 283-2935 SQUEEGEE LOCK LEFT LEVER 1
29 283-2936 SQUEEGEE LOCK RIGHT LEVER 1
30 283-2937 WHEEL COVER 2
31 283-2938 MIDDLE BRUSH PULLING JOINT 1
32 283-2942 WHEEL D=150 d=10 S=25 2
33 283-2943 BUSHING 2
34 283-2944 WHEEL SUPPORT 2
35 283-2945 BUSHING D=30-16,9 d=12,1 S=5 STAINLES 1
36 283-2949 COVER ROTATION PIN NM14 2
37 283-2950 COVER ROD NM14 1
38 283-2952 BEARING 6303-2RSL 17x47x14 LOW FRICT. 1
39 283-2958 POLYESTER DUST FILTER 88x17 SP.7 2
40 283-2959 SCREW UNI 9707-Pz-TZ Ø3x10 A2 15
41 283-2986 STOP WASHER FOR NM14 ENGINE 1
42 283-2989 METRIC O-RING 12x1 2
43 283-3353 Support 1
44 283-1772 WASHER M6 D.24 UNI 6593 ST.STEEL 2
45 283-2051 SCREW 1
46 283-2097 LOCK NUT M6 UNI 7474 DIN 985 ST.STEEL 1
47 283-2900 SIDE COVER 1
48 283-2946 BUSHING D=30-16,9 d=6,1 S=15,8 STAINL 1
49 283-2952 BEARING 6303-2RSL 17x47x14 LOW FRICT. 1
50 283-2953 24V battery fill kit 2

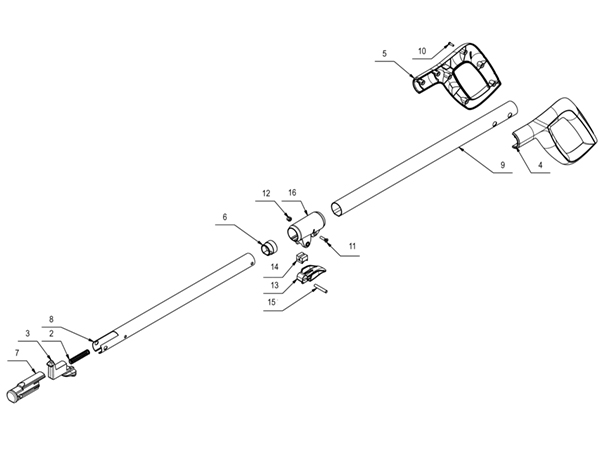

Handle Assembly - 283-0212
RefNbr Part Number Description Req Notes
1 283-1309 PREASS.TELESCOPIC HANDLE JOINT 1
2 283-1498 COMPR. SPRING 9.5X1X47 ST.STEEL 1
3 283-2897 HANDLE HOOK LEVER 1
4 283-2927 HANDLE LEFT COVER 1
5 283-2928 HANDLE RIGHT COVER 1
6 283-2931 HOSE CLOSING UPPER CAP 1
7 283-2932 HOSE CLOSING LOWER CAP 1
8 283-3003 LOWER HANDLE BAR NM14 1
9 283-2941 UPPER HOSE NM14 HANDLE 1
10 283-2959 SCREW UNI 9707-Pz-TZ Ø3x10 A2 7
11 283-1585 SCREW 1
12 283-1729 LOCK NUT M4 UNI7473/4-DIN 982/5 ST.ST 1
13 283-3342 Joint handle 1
14 283-3343 Joint handle 1
15 283-3344 Pin 1
16 283-3345 Joint handle 1

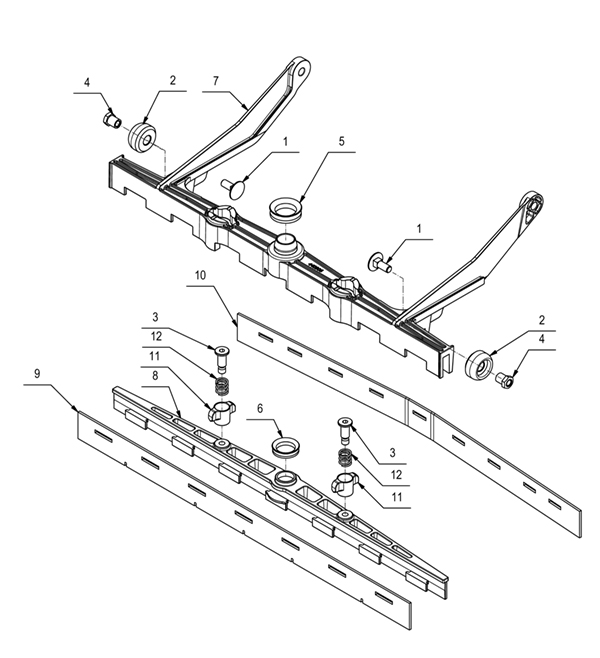

Squeegee Assembly - 283-0213
RefNbr Part Number Description Req Notes
1 283-2277 SCREW M6X16TTQST (UNI 5732 DIN 603) I 2
2 283-2281 SQUEEGEE WHEEL D=24 d=8.2 S=12.7 NYLO 2
3 283-2436 KNOB PIN D=11,8 d=7 M=6 H=22 2
4 283-2457 BUSHING CH 10 M6 D.8X11.9 2
5 283-2851 V-RING TYPE GASKET VA0020 H=7,5 NBR 1
6 283-2854 V-RING TYPE GASKET VA0018 H=5,5 NBR 1
7 283-2894 SUEEGEE COUPLING SUPPORT 1
8 283-2895 SQUEEGEE BODY 1
9 283-2898 FRONT SQUEEGEE RUBBER 1
10 283-2899 REAR SQUEEGEE RUBBER 1
11 283-2972 SQUEEGEE HANDLE 2
12 283-2973 SPRING COMP. De=10,5 Df=1,2 L=11,3 it 2

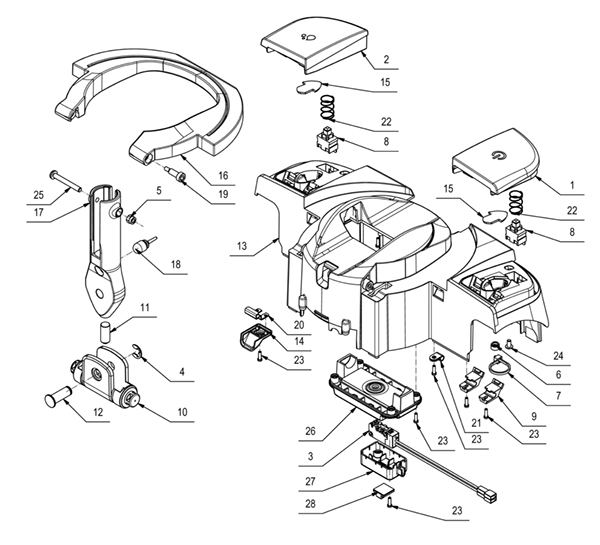

Rear Cover Assembly - 283-0214
RefNbr Part Number Description Req Notes
1 283-1307 ON OFF BUTTON + COVER 1
2 283-1308 WATER BUTTON + COVER 1
3 283-1327 MICROSWITCH ABV1610403 + FASTON 4,8 ( 1
4 283-1564 SEEGER RING (NS13) 1
5 283-1731 LOCK NUT M5 UNI7473/4-DIN982/5 ST. ST 1
6 283-1825 SUPPORT 2
7 283-1868 PLASTIC CLAMP 2.5X98 2
8 283-2747 SWITCH BUTTON SB-50A1L11Q 2
9 283-2764 ON-OFF BUTTON PIN PLATE 4
10 283-2769 LOWER JUNCTION NS13 1
11 283-2774 PRESS D=10 SFERA D=8 F1=54N F2=100N 1
12 283-2776 PIN D=10 FOR HANDLE JUNCTION 1
13 283-2908 REAR CARTER 1
14 283-3339 Cover 1
15 283-2909 LIGHT SPREADING PLATE 2
16 283-2910 CARRYING HANDLE 1
17 283-2929 UPPER JOINT 1
18 283-2930 JOINT RUBBER SUPPORT 1
19 283-2947 HANDLE PIN 2
20 283-2948 HOOK LEVER BRACKET FOR FIMOP 1
21 283-2954 CABLE RETAINER SCREW FASTPOINT 2
22 283-2955 COMP. SPRING De=14,4 Df=0,7 L=22 SPIR 2
23 283-2959 SCREW UNI 9707-Pz-TZ Ø3x10 A2 19
24 283-2961 SCREW UNI 9708-Pz-TZ D.4 x 8 A2 2
25 283-2962 SCREW M5x40 TCTC UNI 7687 - A2 1
26 283-2981 MICROSWITCH PLATE 1
27 283-2982 MICROSWITCH COVER 1
28 283-3340 Cable clip 1
29 283-3341 Gasket 2

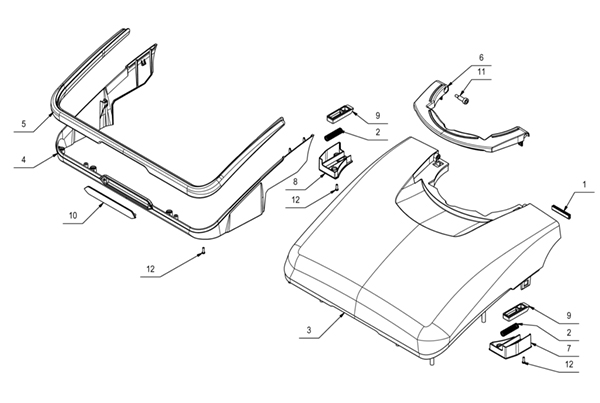

Front Cover Assembly - 283-0215
RefNbr Part Number Description Req Notes
1 283-1318 RUBBER -U FORM-8,5X6 L=40 1
2 283-1541 COMPR. SPRING 9.5x0.8x34 2
3 283-2914 UPPER CARTER 1
4 283-2915 LOWER CARTER 1
5 283-2916 BUMPER RUBBER 1
6 283-2917 UPPER CARTER HANDLE 1
7 283-2918 LEFT LEVER COVER 1
8 283-2919 RIGHT COVER LEVER 1
9 283-2920 CARTER CLOSING TOOTH 2
10 283-2921 FRONT LIGHT COVER 1
11 283-2947 HANDLE PIN 2
12 283-2959 SCREW UNI 9707-Pz-TZ Ø3x10 A2 10

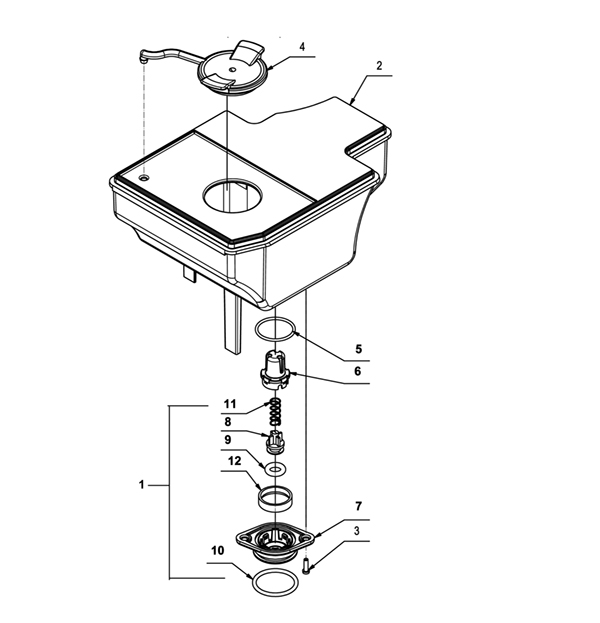

Solution Tank Assembly - 283-0216
RefNbr Part Number Description Req Notes
1 283-1302 WATER VALVE XM13 1 ( includes 5-12)
2 283-2924 SOLUTION TANK NM14 1
3 283-2959 SCREW UNI 9707-Pz-TZ Ø3x10 A2 2
4 283-2967 TANK CAP WITH VALVE XM13 1
5 283-2321 RING OR 2100 1,78x25,12 1
6 283-2834 WATER VALVE PART.01 1
7 283-2835 WATER VALVE PART.02 1
8 283-2836 WATER PISTON VALVE 1
9 283-2852 RING OR 4028 Silopren RS 1
10 283-2853 RING OR 3106 SILICONE 1
11 283-2868 SPRING COMP. 6.3x0.6x20 INOX 1
12 283-3039 RING 1

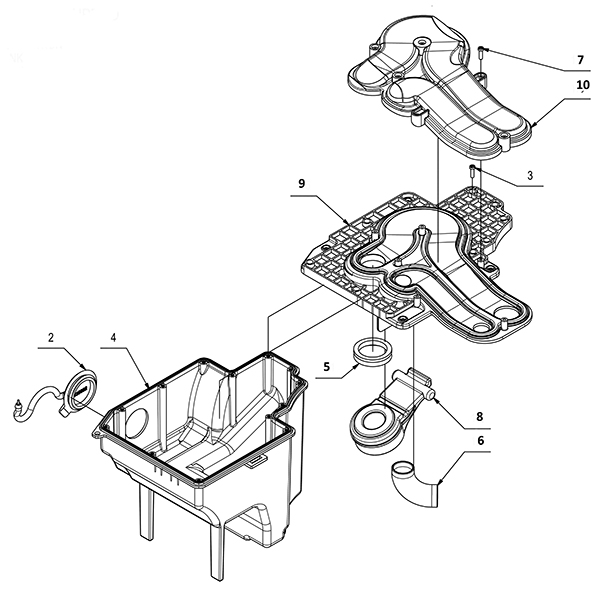

Recovery Tank Assembly - 283-0217
RefNbr Part Number Description Req Notes
2 283-2818 TANK CAP Ø25mm 1
3 283-2959 SCREW UNI 9707-Pz-TZ Ø3x10 A2 13
4 283-3338 Recovery tank 1
5 283-2286 GASKET 1
6 283-2925 RECOVERY TANK JOINT 1
7 283-2959 SCREW UNI 9707-Pz-TZ Ø3x10 A2 6
8 283-2978 CLOSING VALVE INLET - XM13 1
9 283-3336 Cover 1
10 283-3337 Cover 1
N/S 283-3335 Recovery tank cover 1 (includes 5-10

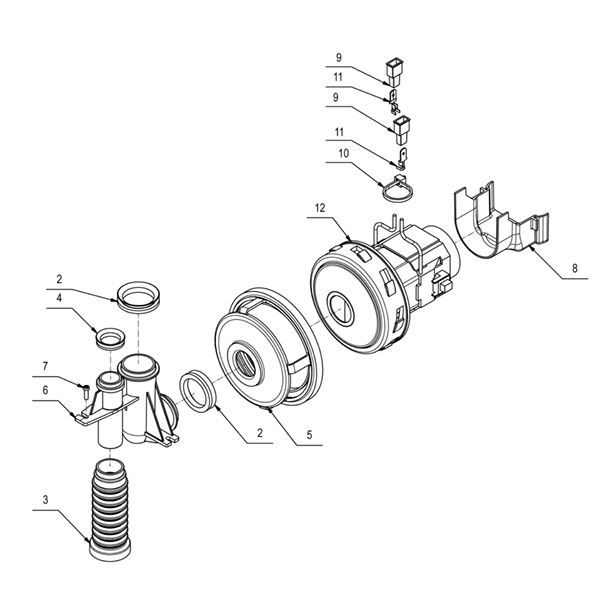

Vacuum Motor Assembly - 283-0218
RefNbr Part Number Description Req Notes
1 283-2951 SUCTION MOTOR 24V 100W 1
2 283-2286 GASKET 2
3 283-2745 RUBBER SUCTION HOSE EPDM 1
4 283-2854 V-RING TYPE GASKET VA0018 H=5,5 NBR 1
5 283-2883 GASKET SUCTION MOTOR XM13 - XSR 1
6 283-2926 WATER-AIR SUCTION HOSES 1
7 283-2959 SCREW UNI 9707-Pz-TZ Ø3x10 A2 3
8 283-2977 AIR CONDUCT CARTER 1
9 283-1857 COVER - MALE CONNECTOR 6.3 2
10 283-1868 PLASTIC CLAMP 2.5X98
10 283-1868 PLASTIC CLAMP 2.5X98 1
11 283-2120 FASTON MALE NUDE D6.3 MTA 13.01 2
12 283-2951 SUCTION MOTOR 24V 100W 1

Solution Flow Assembly - 283-0219
RefNbr Part Number Description Req Notes
1 283-1316 SILICONE HOSE D=7 d=4 L=225 1
2 283-1316 SILICONE HOSE D=7 d=4 L=225 1
3 283-1316 SILICONE HOSE D=7 d=4 L=225 1
4 283-1317 SILICONE HOSE D=7 d=4 L=350 1
5 283-1752 WASHER 3X12X0.8 ST.STEEL 4
6 283-2813 CLEAN WATER VALVE PLATE 1
7 283-2814 CLEAN WATER FILTER 1
8 283-2825 PUMP ANTI-VIBRATION SUPPORT 1
9 283-2826 PUMP ANTI-VIBRATION SUPPORT - LOCK 1
10 283-2857 ELECTRO PUMP ULKA - NME1 1
11 283-2902 T-SHAPED CONNECTION D.4 1
12 283-2903 WATER NOZZLE 2

- Batteries, Brushes, and Chargers - 999-9098
RefNbr Part Number Description Req Notes
1 283-2939 BATTERY PACK NM14 1
2 283-2964 CHARGER FIMOP WITH ADAPTERS 1
3 283-2893 CYL.BRUSH D=110 L=340 PPL0,3 +SPRING 1
4 283-3350 Cylindrical brush 1
