Parts List Complete for HILLYARD TRIDENT FMD20


Solution Tank Kit - NON-OEM - 172-2089
RefNbr Part Number Description Req Notes
000a 209-0013 4 gallon solution tank kit for round handle side x sides 1 (includes 001-018)
000b 209-0014 4 gallon solution tank kit for square handle side x sides 1
000c 209-0017 2 1/2 gallon solution tank kit (OBSOLETE) 1
001 209-0033 Cap (black) 1
002 209-0034 Brass handle rod (OBSOLETE) 1
003 209-0035 1/8 inch grommet 1
004 N/A Not available 1 (Tank only)
005 209-0036 Solution valve 1 (includes 006 and 007)
006 N/A Not available 1 (Washer)
007 209-0038 Nut 1/4 brass pipe thread straight 1
008 209-0039 Hose barb 1/4 1
009 209-0040 Hose 3/8 x 24 inch 1
010 209-0041 Coupling 1/8 brass 1
011 209-0042 1/8 inch brass nipple 1
012 209-0043 Washer 1/8 brass 2
013 209-0044 Nut 1/8 brass lock (OBSOLETE) 1
014 209-0045 Hose assembly (OBSOLETE) 1 (includes 009-013)
015 209-0046 5/16 inch u bolt 2 (only used for round handle buffers)
016 209-0047 Washer bar 2
017 999-0069 Nut 5/16-18 hex 2
018 209-0049 U bolt assembly (set of 2) 1 (only used for round handle side x sides) (includes 015-017)
019 209-0051 Advance adapter U-bolts assembly (set of 2) (OBSOLETE) 1

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

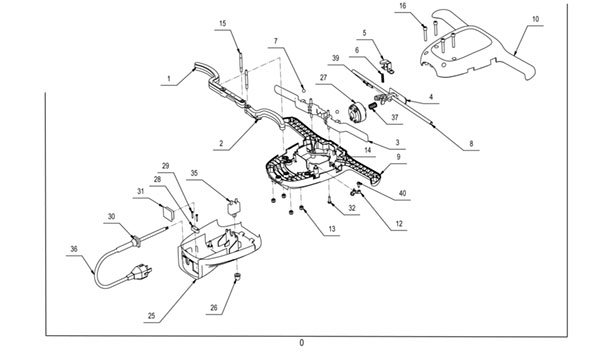

Upper Handle Assembly - 283-0025
RefNbr Part Number Description Req Notes
0 283-1397 HANDLE ASSEMBLY WITH ZAMA JOINT 1
1 283-2145 LEVER 1
2 283-2149 LEVER 1
3 283-2734 SWITCH HANDLE RAL 9005 2
4 283-1473 LEVER 1
5 283-2148 STIRRUP 1
6 283-2164 RUBBER BAND 1
7 283-2168 BALL D. 8 2
8 283-2735 REINFORCING GALVANIZED BAR 1
9 283-2732 HANDLEBAR RAL 7016 PANT.432C 1
10 283-2731 HANDLEBAR COVER RAL 7016 PANT. 432C 1
12 283-2190 WRAPPER 1
13 283-1732 LOCK NUT M6X6 UNI 7474 DIN 985 GALV. 7
14 283-1584 SCREW 5X20 UNI7687 GALV 9
15 283-2721 Spring Pin 4
16 283-1649 SCREW 4
25 283-2733 FLAP RAL 7016 PANT.432C 1
26 283-2186 CAP FOR CIRCUIT BREAKER 1
27 283-2182 STARTING SWITCH 1
28 283-1841 CABLE GRIP 1
29 283-2246 SELF-TAPPING SCREW 2,9x19 TC T.C. ZNT 2
30 283-2219 FLEX GRIP 1
31 283-2242 CORK 1
32 283-2177 SCREW 2
35 283-2181 Circuit breaker 16amp 1
36 283-2875 CABLE AWG 3x14X500 115V US PLUG 1
37 283-2882 SPRING 13X20X1 1
39 283-1601 SCREW M4X20 TE UNI5739 DIN933 (8.8) Z 1
40 283-2179 SCREW 1

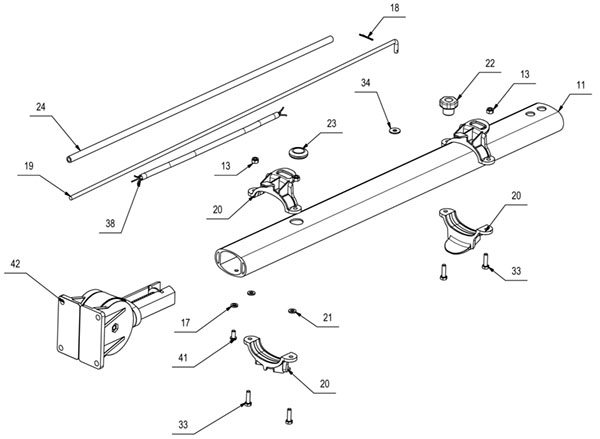

Lower Handle Assembly - 283-0026
RefNbr Part Number Description Req Notes
11 283-1291 OVAL HANDLE BAR 70X40 L=768 1
13 283-1732 LOCK NUT M6X6 UNI 7474 DIN 985 GALV. 7
17 283-1770 WASHER 6X2.5X1.8 GROWER GALV. 2
18 283-1816 SPLIT PIN D.2X20 UNI 1336 GALV. 1
19 283-2146 ROD 1
20 283-2588 TANK SUPPORT STIRRUP TEAR PROOF 4
21 283-1765 WASHER 6X12X1.6 UNI 6592 GALV. 2
22 283-1862 KNOB VBA-25 M6 1
23 283-2187 FLEX GRIP 1
24 283-2159 TUBE 1
33 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA 4
34 283-1767 WASHER 6X18X1.5 UNI 6593 GALV. 1
38 283-2957 AWG CABLE X14X1680 FAST.(FOR 115V) 1
41 283-2171 SCREW 2
42 283-1138 JOINT ASM. - HANDLE BAR ZAMA 1

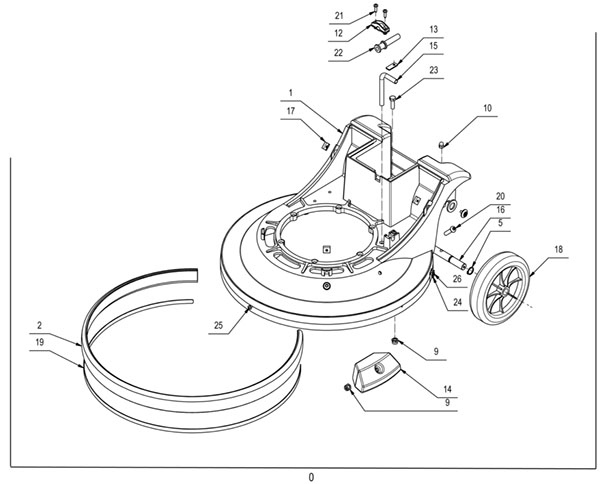

Base Assembly - 283-0027
RefNbr Part Number Description Req Notes
1 283-1134 BASE BODY - SINGLE DICS S50 1
2 283-1137 BUMPER PROFILE S50 1
5 283-1558 SEEGER E 16 X1 DIN 471 2
9 283-1735 M8X8,5 AUTOLOCK.NUT UNI7474 DIN985 GA 6
10 283-1744 NUT M6 BLIND UNI 5721 INOX 2
12 283-1840 CABLE FASTENER 1
13 283-2134 PLAQUE 1
14 283-2135 COUNTERWEIGHT 1
15 283-2136 TUBE 1
16 283-2141 PIVOT 1
17 283-2151 PLAQUE 4
18 283-2158 WHEEL D.175 2
19 283-2166 RUBBER BAND 1
20 283-2173 VITE M8X35 TCBCE ISO 7380 (10.9) ZINC 1
21 283-2177 SCREW 3
23 283-1615 M8X25 HH SCREW UNI 5739 DIN 933(8.8)G 4
24 283-1767 WASHER 6X18X1.5 UNI 6593 GALV. 2
25 283-2178 SCREW D.4,8X9,5 AUTOF.TCCR UNI 7981(D 1
26 283-2180 SCREW 2
27 283-1728 LOCK NUT M4X6 UNI 7473 DIN 982 GALV. 2
28 283-1586 SCREW M5X16 UNI 7689 GALV. 2
29 283-1448 SPECIAL WASHER D.5X20 2
30 283-2085 SCREW 8X16 ISO 7380 TCBEI 1
31 283-1774 8X17X1,6 WASHER UNI 6592 GALV. 1
32 283-1611 SCREW M6X30 UNI 5739 DIN 933 (8.8)GAL 2
33 283-1793 WASHER 17X30X3 UNI 6592 GALV. 2
N/S 996-8194 19 inch pad driver /w velcro face 1

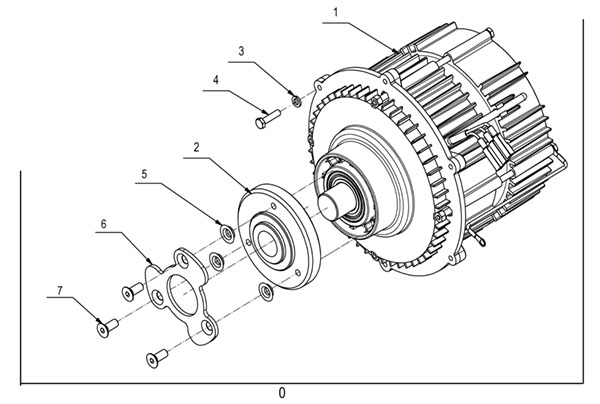

Motor Assembly - 283-0028
RefNbr Part Number Description Req Notes
1 283-1418 GEARED MOTOR KIT HIQ STE. 1100W115V60 1
2 283-1279 FLANGE ASSY 1
3 283-1770 WASHER 6X2.5X1.8 GROWER GALV. 6
4 283-1520 SCREW M6X25 TE UNI 5739 DIN933(8.8)GA 6
5 283-1021 BRUSH COUPLING SPACER ABILA/VISPA 3
6 283-1149 BRUSH COUPLING FLANGE 1
7 283-2079 SCREW 3
0 283-1424 MOTOR ASSEMBLY HIQ 1100W 115/60 ACC WIR 1

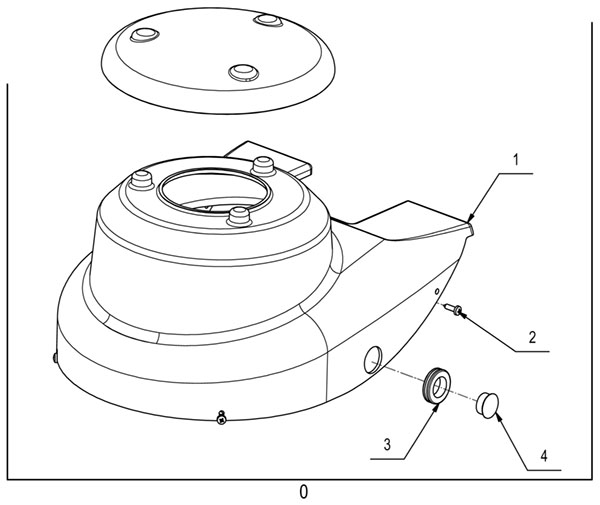

Motor Cover Assembly - 283-0029
RefNbr Part Number Description Req Notes
0 283-1395 CARTER ASSEMBLY S43 RAL 5012 1
1 283-2154 MOTOR 1
2 283-2177 SCREW 4
3 283-1844 FAIR LEAD D.26X22X2 1
4 283-2188 PLUG KSS HP22 1

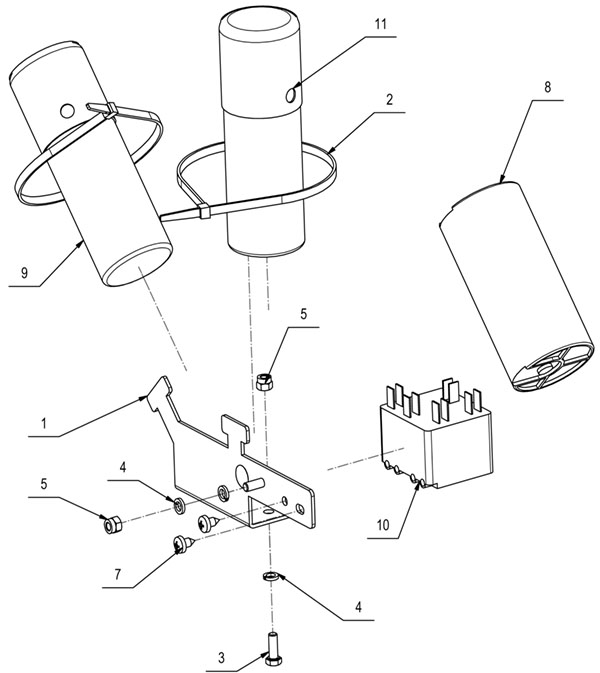

Electrical Assembly - 283-0030
RefNbr Part Number Description Req Notes
1 283-2156 STIRRUP 1
2 283-2191 WRAPPER 2
3 283-2139 SCREW M5X14 TE UNI 5739 DIN 933 ZINC 2
4 283-1763 WASHER 5X1.6X1.6 GROWER DIN 7980 GALV 4
5 283-1730 LOCK NUT M5X7 UNI 7473 DIN 982 GALV. 3
6 283-2157 CABLES MASS LABEL - SMALL-1NP=49 ET 1
7 283-2178 SCREW D.4,8X9,5 AUTOF.TCCR UNI 7981(D 2
8 283-2571 START COND 324-389MF 110V RESIS + CAP 1
9 283-2300 CONDENSER 80MF 250V 50/60HZ 2
10 283-2184 KLIXON 115V 1
11 283-2195 HOOD 2

Tank Assembly - 283-0031
RefNbr Part Number Description Req Notes
0 283-1322 TANK ASSEMBLED FOR ORBITAL 1
1 283-2194 TUBE 1
2 283-1929 HOSE VITREA D=10 1
3 283-2191 WRAPPER 1
4 283-1283 TANK KIT FOR SINGLE DISC 2
5 283-2590 DISCONTINUED & REPLACED BY HIL224741 1
6 283-1591 GASKET 1
7 283-1475 GUIDE 1
9 283-1542 SPRING 13,5X36X1 2
11 283-1851 CORK 1
12 283-2150 PROPORTIONAL VALVE TIE ROD 1
13 283-2591 CAP FOR SINGLE DISC TANK 1
14 283-2691 SCREW D.3,9X19 TCTC AUTOF. ZINC 4
15 283-1447 WATER BELLOWS 1
16 283-2191 WRAPPER 1
17 283-2192 RING - WATER VALVE TIE ROD D.20X2X4 1
18 283-1331 CHAIN 13 LINK TANK 1
19 283-2189 CORK 1
