Parts List Complete for HILLYARD EX12

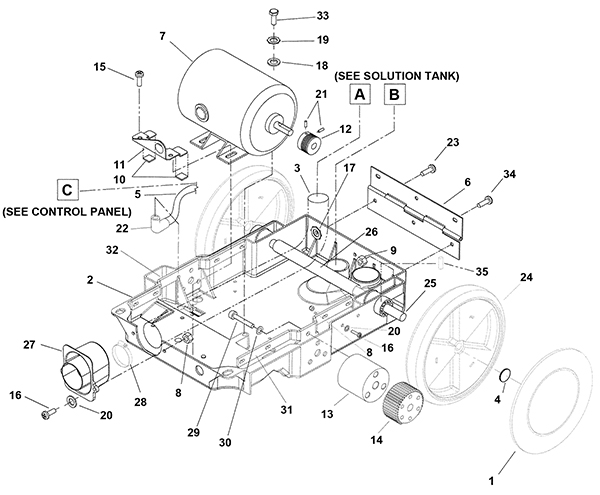

Frame Assembly - 283-0420
RefNbr Part Number Description Req Notes
1 273-3529 Hubcap (black) 2
2 173-2143 Frame 1
3 189-4175 Vacuum hose 1 1/2 x 15 1/2 inch 1
4 173-2064 Axle cap 2
5 173-2180 Main harness 1
6 173-2192 Hinge 1
7 189-4148 120V brush motor assembly 1
8 999-0086 Nut 10-32 nylon insert lock zinc plated 10
9 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 3
10 173-2194 Foam tape 2
11 173-2195 Clamping plate 1
12 173-2196 Pulley 1
13 173-2197 Handle pivot spacer 2
14 173-2198 40 tooth gear 2
15 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 2
16 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 10
17 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 3
18 999-0123 Washer 1/4 SAE flat zinc plated 2
19 999-0017 Washer 1/4 external star lock 2
20 999-0998 Washer #10 flat stainless steel 10
21 999-1635 Screw 10-32 x 1/4 socket set 2
22 173-2199 90 degree strain relief 1
23 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel 1
24 273-4000 10 inch gray wheel 2
25 173-2200 Axle 1
26 173-2201 Heat shrink 10
27 189-4247 Frame and tank seal 1
28 273-5693 Hose clamp 1
29 173-2552 Bolt 5/16-18 x 3 1/2 plated socket cap 6
30 999-0028 Washer 5/16 split lock plain finish 6
31 173-2204 Right handle support bracket 1
32 173-2205 Left handle support bracket 1
33 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
34 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel 2
35 173-2206 Roll pin 1

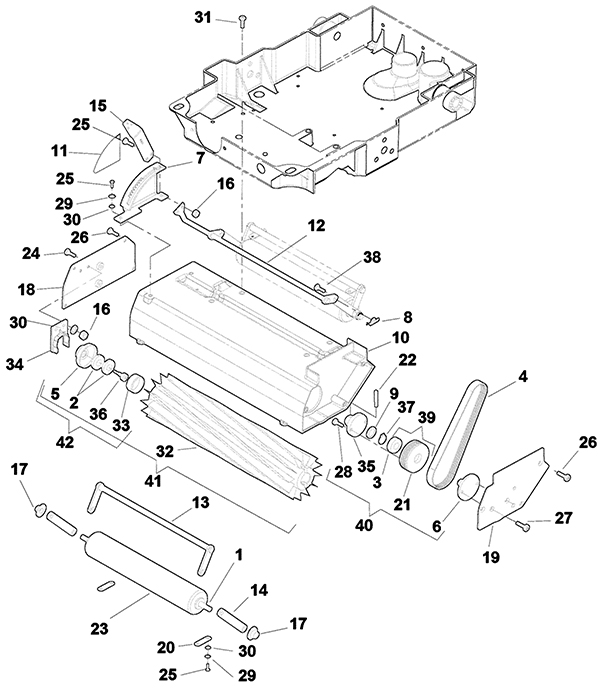

Brush Assembly - 283-0421
RefNbr Part Number Description Req Notes
1 173-2061 Roller axle 1
2 173-5224 Bearing 2
3 289-0021 Bearing 1 1/8 x 1/2 x 3/8 2
4 173-2139 Belt 1
5 173-5223 Brush bearing adapter 1
6 189-4222 Pulley bracket 1
7 173-2142 Brush height bracket 1
8 173-1130 Cotter ring 2
9 273-6289 Spacer 1
10 173-2145 Brush housing (18 inch) (OBSOLETE) 1
11 173-6407 Brush height decal 1
12 173-2147 Brush height linkage assembly 1
13 173-2148 Roller support linkage assembly 1
14 173-2149 Front roller link 2
15 173-2150 Height adjustment lever 1
16 999-0086 Nut 10-32 nylon insert lock zinc plated 4
17 173-2535 Nut 3/8 push 2
18 173-2151 Right brush housing plate 1
19 173-2152 Left brush housing plate 1
20 173-2153 Axle retainer plate 2
21 173-2154 Pulley 1
22 173-2880 Roll pin 1
23 173-2155 Brush roller 1
24 999-0087 Screw 10-32 x 5/8 flat head slotted zinc plated 2
25 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 6
26 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel 7
27 999-0417 Screw 10-24 x 3/4 flat head slotted zinc plated 2
28 999-0322 Screw 10-24 x 1/2 socket head alloy plain finish 2
29 999-0311 Washer #10 external star lock zinc plated 4
30 999-0998 Washer #10 flat stainless steel 6
31 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel 4
32 173-2843 18 inch brush 1
33 173-5220 Tolerance ring 7/8 inch 1
34 189-4155 Bearing clip 1
35 189-4234 Brush driver 1
36 173-1545 Shoulder bolt 1
37 173-1059 Snap ring (OBSOLETE) 1
38 173-2158 Clevis pin (OBSOLETE) 2
39 189-4239 Brush pulley assembly 1
40 189-4156 Brush driver assembly 1 (includes 3, 6, 21, 28, and 35)
41 173-2162 Brush assembly 1
42 173-4152 Brush bearing kit 1 (includes 2, 5, 33, and 36)

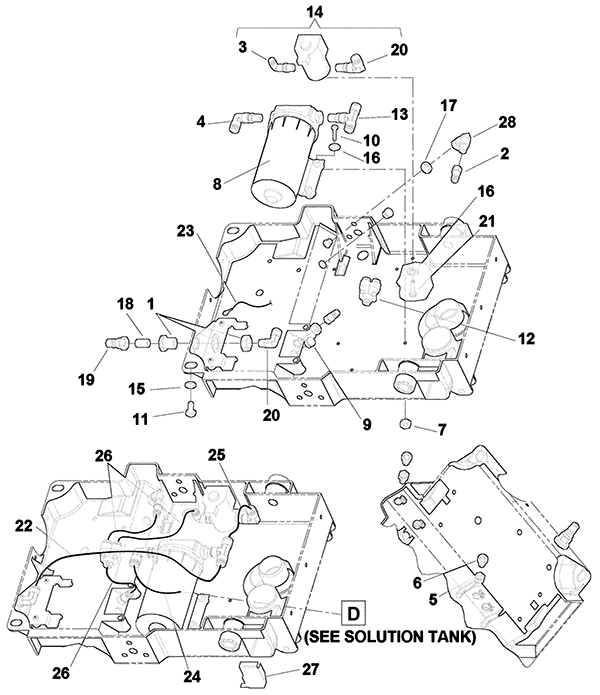

Pump Assembly - 283-0422
RefNbr Part Number Description Req Notes
1 189-4207 Anchor coupling 1
2 173-2207 Quick connect 2
3 189-4208 90 degree swivel elbow 1/4 x 1/4 inch 1
4 189-4209 90 degree swivel elbow 3/8 x 3/8 inch 1
5 173-2210 Jet body 2
6 173-2211 Mini promax jet 2
7 999-0086 Nut 10-32 nylon insert lock zinc plated 2
8 189-4159 Pump assembly 1
9 173-2213 Nylon plug (OBSOLETE) 2
10 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated 2
11 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2
12 173-2214 Fitting 1
13 189-4212 Tee fitting 3/8 x 3/8 inch 1
14 173-2216 Solenoid valve assembly 1 (includes 3 and 20)
15 999-6684 Washer 1/4 flat stainless steel 2
16 999-0998 Washer #10 flat stainless steel 4
17 173-2555 Washer 7/16 x 3/16 inch rubber 2
18 189-4213 1/4 inch nipple 1
19 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) 1
20 189-4214 90 degree elbow 1/4 x 3/8 inch 2
21 999-0896 Screw 10-32 x 3/8 round head phillips stainless steel 2
22 173-8593 Nylon hose 3/8 x 29 inch 1
23 173-2218 22 inch wire (green) 1
24 189-4161 Urethane hose 3/8 x 29 inch 1
25 189-4217 Nylon hose 3/8 x 6 inch 1
26 189-4162 Urethane hose 1/4 x 6 inch 3
27 173-2222 Intake screen 1
28 173-2223 90 degree elbow 1

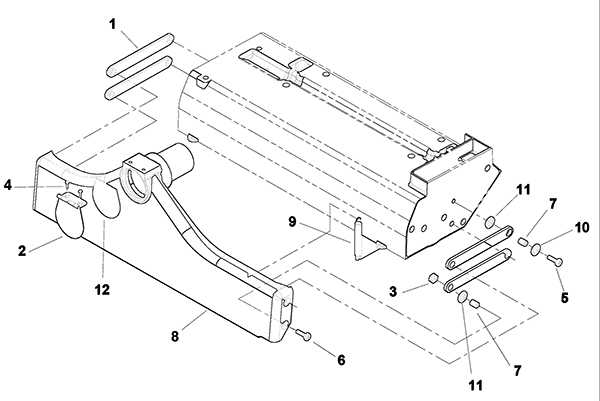

Vacuum Shoe Assembly - 283-0423
RefNbr Part Number Description Req Notes
1 173-2137 Parallel arm 4
2 189-4204 Accessory port cover 1
3 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4
4 173-2549 Bolt 10-32 x 3/8 hex head thread rolling with star washer 2
5 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated 4
6 999-1345 Screw 1/4-20 x 1 flat head phillips stainless steel 4
7 189-4140 Spacer 8
8 173-2254 18 inch vacuum shoe 1
9 173-2255 Extension spring 2
10 999-0123 Washer 1/4 SAE flat zinc plated 4
11 999-1053 Washer 5/16 internal star lock stainless steel 8
12 189-4141 Accessory port gasket 1

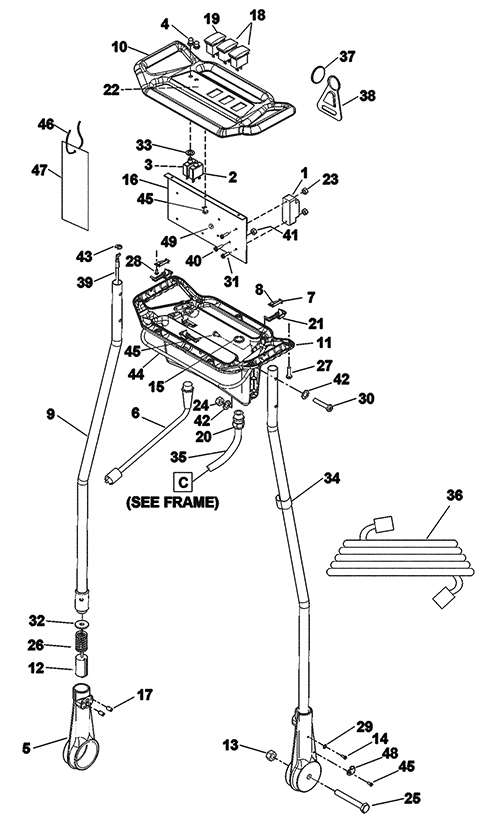

Control Panel Assembly - 283-0424
RefNbr Part Number Description Req Notes
1 173-1888 Terminal block 1
2 189-4092 15amp circuit breaker 1
3 173-2053 6amp circuit breaker 1
4 189-0312 3/8 inch circuit breaker boot 2
5 173-0345 Handle pivot housing 2
6 189-4164 14/3 pigtail cord with twist lock 22 inch 1
7 173-2167 Electrical contact (flat) 3
8 173-2168 Electrical contact (bent) 3
9 173-2169 Handle 2
10 173-2170 Front Handle 1
11 173-2171 Rear Handle 1
12 173-2172 Handle position lock 2
13 173-3886 Nut 1/2-13 lock thin 2
14 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel 2
15 173-2478 Nut 1/2 conduit nickel plated thread (OBSOLETE) 2
16 173-2173 Control panel plate 1
17 173-2543 Screw 5/16-18 x 1/2 set cone point 4
18 273-8956 2 position rocker switch 2
19 173-2174 3 position rocker switch 1
20 173-0682 Strain relief 1
21 173-2176 Trigger switch 3
22 373-5008 Trident control panel decal 1
23 173-2522 Nut 6-32 with star washer 2
24 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4
25 174-9695 Screw 1/2-13 x 4 3/4 2
26 173-2178 Compression spring 2
27 173-2566 Screw #10 x 1/2 pan head 9
28 999-0418 Screw 6-32 x 1/4 pan head slotted zinc plated 6
29 999-0148 Washer #6 external star lock zinc plated 2
30 173-5054 Bolt 1/4-1-3/4 hex head 4
31 174-9696 Screw 6-32 X 1 2
32 173-2548 Washer M10 x 30mm plated 2
33 173-2518 Washer 1/8 interlock 2
34 173-2077 Power cord clip 2
35 173-2180 Main harness 1
36a 173-2059 14/3 extension cord 50 foot twist lock (yellow) 1
36b 991-5001 14/3 extension cord 50 foot (yellow) 1
36c 991-5005 14/3 replacement power cord 50 foot (yellow) 1
37 173-2182 2 inch split ring 1
38 173-0708 Strain relief cord hook 1
39 173-2184 Cable 2
41 173-2472 Nut 10-32 with star washer 3
42 999-0017 Washer 1/4 external star lock 6
43 173-8224 1/4 clip ring 2
44 173-2185 Handle adjustment lever assembly 1
45 173-2549 Bolt 10-32 x 3/8 hex head thread rolling with star washer 5
46 173-3412 Cord 1/8 x 12 inch 1
47 N/A Not available 1 (Card instructions)
48 173-2094 P clamp 1
49 173-2188 Ground symbol decal 1

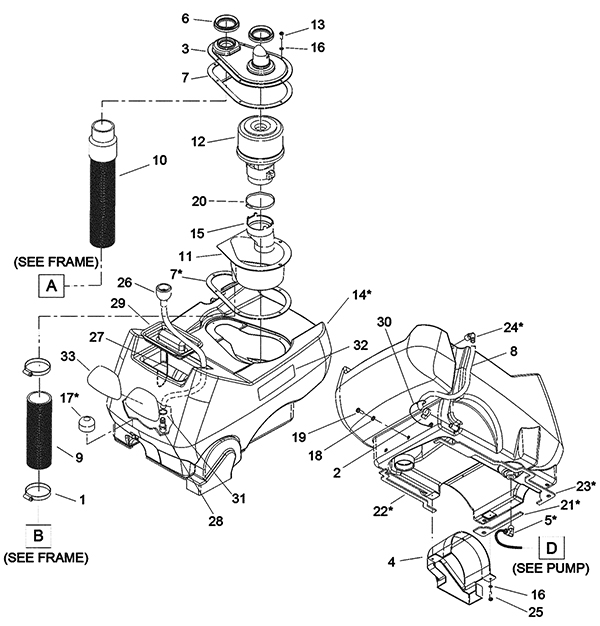

Solution Tank and Vacuum Assembly - 283-0425
RefNbr Part Number Description Req Notes
1 273-5693 Hose clamp 2
2 173-1821 Hose clamp 1
3 173-2230 Vacuum motor cover 1
4 173-2231 Belt cover 1
5 189-4166 Elbow 3/8 x 3/8 inch 1
6 173-2233 Gasket 2
7 173-2234 Gasket 2
8 173-2235 Hose 1/2 x 12 inch (clear) 1
9 173-2236 vacuum hose 1.5 x 5.0 1
10 189-4175 Vacuum hose 1 1/2 x 15 1/2 inch 1
11 173-2238 Vacuum motor housing 1
12a 173-2239 120V vacuum motor assembly 1
12b 273-4028 Carbon brush set (OBSOLETE) 4
13 173-0627 Screw 10 x 1 pan head phillips self tapping type b 6
14 173-2240 Solution tank 1
15 173-2241 Large vent 1
16 999-0998 Washer #10 flat stainless steel 8
17 189-4181 3/8 inch mesh strainer 1
18 999-0123 Washer 1/4 SAE flat zinc plated 3
19 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel 3
20 173-2242 Hose clamp 1
21 173-2243 Front left tank gasket 1
22 173-2244 Rear left tank gasket 1
23 173-2245 Right tank gasket (OBSOLETE) 1
24 173-1072 Hosebarb 3/8 x 1/2 inch 1
25 173-2454 Screw 10-3/4 polyfast 2
26 173-2246 Fill hose assembly 1
27 173-3412 Cord 1/8 x 12 inch 1
28 173-2247 Hosebarb 1/2 x 3/8 inch 1
29 173-2248 Solution cover 1
30 173-2249 Lanyard 1
31 173-2741 Hose clamp 1
32 373-5009 Trident EX12 decal 2
33 373-5010 Hillyard dome decal 1
N/S 173-2250 Solution tank assembly 1 (includes 5, 7, 14, 17, 21, 22, 23, and 24)

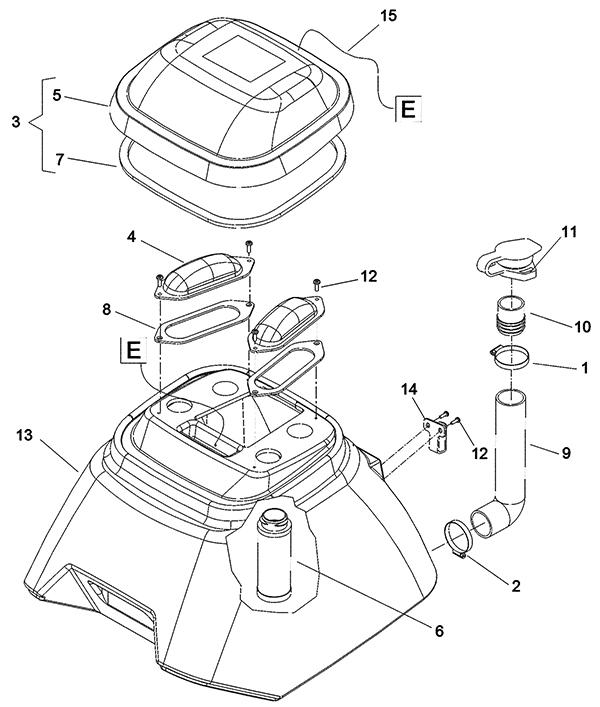

Recovery Tank Assembly - 283-0426
RefNbr Part Number Description Req Notes
1 189-0329 Hose clamp 1
2 273-5693 Hose clamp 1
3 189-4145 Recovery tank lid assembly 1 (inlcudes 5 and 7)
4 173-2224 Recovery tank lid 2
5 173-2002 Tank lid 1
6 189-4142 Shut-off float 1
7 173-2003 Tank lid gasket 1
8 189-4144 Recovery tank lid gasket 2
9 173-2106 Drain hose 1 1/2 x 12 inch 1
10 173-5207 Hose insert 1
11 173-5208 Drain plug 1
12 173-2454 Screw 10-3/4 polyfast 6
13 373-5011 Recovery tank 1
14 173-5210 Hose mounting bracket (OBSOLETE) 1
15 173-3412 Cord 1/8 x 12 inch 1

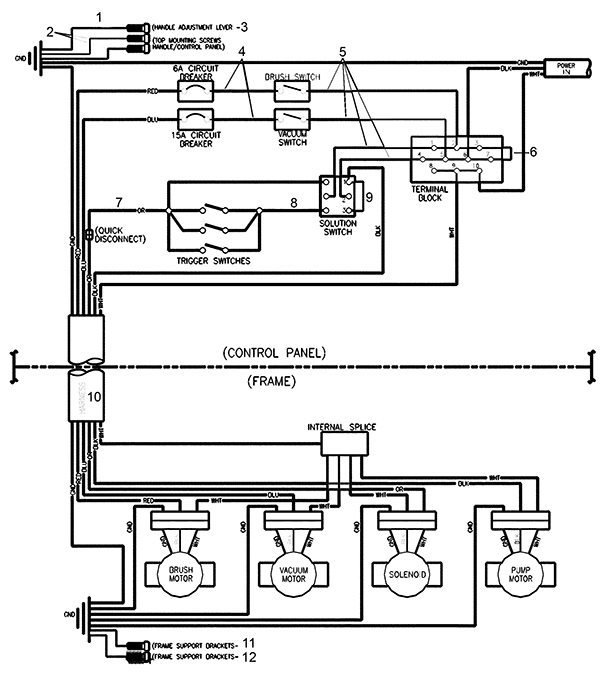

Wiring Diagram - 283-0427
RefNbr Part Number Description Req Notes
1 173-4418 10 inch green wire
2 373-5012 11 inch wire green
3 173-2185 Handle adjustment lever assembly
4 373-5013 9 inch wire (black)
5 373-5014 6 inch wire (black)
6 N/A Not available
7 373-5015 Switch harness
8 273-6242 Wire 8 inch (black)
9 273-6243 Wire 6 inch (black)
10 373-5016 27 inch wire (blue)
11 189-3061 Wire assembly 26 inch black
12 173-1532 16 inch strip wire (red)

- Frequently Replaced Parts - 283-0428
RefNbr Part Number Description Req Notes
173-2059 14/3 extension cord 50 foot twist lock (yellow)
991-5001 14/3 extension cord 50 foot (yellow)
991-5005 14/3 replacement power cord 50 foot (yellow)
173-0682 Strain relief
273-8956 2 position rocker switch
173-2174 3 position rocker switch
173-2236 vacuum hose 1.5 x 5.0
189-4175 Vacuum hose 1 1/2 x 15 1/2 inch
173-2239 120V vacuum motor assembly
373-5038 Carbon brush 4
189-4181 3/8 inch mesh strainer
173-2216 Solenoid valve assembly
189-4159 Pump assembly
173-2106 Drain hose 1 1/2 x 12 inch
189-4142 Shut-off float
173-2139 Belt
173-2843 18 inch brush

- Extractor Fit All Parts - 999-9400
RefNbr Part Number Description Req Notes
001a 991-8000 12 inch stainless head wand, 1 jet 120 PSI plastic valve (wands)
001b 991-8001 12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) (wands)
001c 991-8002 12 inch aluminum head wand, 3 jet, 120 PSI plastic valve (wands)
001d 991-8227 500psi brass valve (wands)
002a 991-8222 30 inch stair wand (open spray) (stair wand)
002b 991-8223 30 inch swivel head ergonomic stair wand (open spray) (stair wand)
004 991-8129 Handle 1-1/2 inch low profile comfort grip assist (wands)
005a 991-8128 120 PSI, acetel plastic valve, low heat 140 degrees (wands)
005b 991-8127 120 PSI, brass valve, stainless steel stem (wands)
005c 991-8226 Valve
005d 991-8171 400psi cast aluminum valve
007 991-8130 3-1/2 inch wide 120 PSI standard detailer, external spray (wands)
008 991-8132 10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings (hose assemblies and parts)
009 991-8133 20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings (hose assemblies and parts)
010 991-8136 10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml (hose assemblies and parts)
011 991-8137 20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml (hose assemblies and parts)
012 991-8134 10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi (hose assemblies and parts)
013 991-8135 20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings (hose assemblies and parts)
014 991-8138 10ft 100psi vac/sol hose assembly w/ 1/4 male fittings (hose assemblies and parts)
015 991-8139 20ft 100psi vac/sol hose assembly with male fittings (hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI)
016 991-8142 10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male (hose assemblies and parts)
017 991-8143 20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male (hose assemblies and parts)
018 991-8140 10ft 100psi vac/sol hose assembly w/ 1/4 female fittings (hose assemblies and parts)
021 991-8004 1 1/2 inch vacuum hose (sold by the foot) (hose assemblies and parts)
022 991-8005 1 1/2 inch replacement hose cuff (black) (hose assemblies and parts)
023 991-8131 1 1/2 inch hide-a-hose cuff (no swivel) (hose assemblies and parts)
026 991-8045 1/8 inch brass vee jet 8001 (1/8 brass vee jet)
027 991-8046 1/8 inch brass vee jet 8001.5 (1/8 brass vee jet)
028 991-8047 1/8 inch brass vee jet 8002 (1/8 brass vee jet)
029 991-8048 1/8 inch brass vee jet 8003 (1/8 brass vee jet)
030 991-8049 1/8 inch brass vee jet 8004 (1/8 brass vee jet)
031 991-8050 1/8 inch brass vee jet 8005 (OBSOLETE) (1/8 brass vee jet)
032 991-8051 1/8 inch brass vee jet 8006 (1/8 brass vee jet)
033 991-8052 1/8 inch brass vee jet 8008 (1/8 brass vee jet)
034 991-8053 1/8 inch brass vee jet 8010 (1/8 brass vee jet)
035 991-8054 1/8 inch brass vee jet 9502 (1/8 brass vee jet)
036 991-8055 1/8 inch brass vee jet 9503 (1/8 brass vee jet)
037 991-8056 1/8 inch brass vee jet 9504 (1/8 brass vee jet)
038 991-8057 1/8 inch brass vee jet 9505 (1/8 brass vee jet)
039 991-8058 1/8 inch brass vee jet 9506 (1/8 brass vee jet)
040 991-8059 1/8 inch brass vee jet 9508 (1/8 brass vee jet)
041 991-8060 1/8 inch brass vee jet 11001 (1/8 brass vee jet)
042 991-8061 1/8 inch brass vee jet 11001.5 (1/8 brass vee jet)
043 991-8062 1/8 inch brass vee jet 11002 (1/8 brass vee jet)
044 991-8063 1/8 inch brass vee jet 11003 (1/8 brass vee jet)
045 991-8064 1/8 inch brass vee jet 11004 (1/8 brass vee jet)
046 991-8065 1/8 inch brass vee jet 11005 (1/8 brass vee jet)
047 991-8066 1/8 inch brass vee jet 11006 (1/8 brass vee jet)
048 991-8067 1/8 inch brass vee jet 11008 (1/8 brass vee jet)
049 991-8068 1/8 inch brass vee jet 11010 (1/8 brass vee jet)
050 991-8021 1/4 inch brass vee jet 8001 (1/4 brass vee jet)
051 991-8022 1/4 inch brass vee jet 8001.5 (1/4 brass vee jet)
052 991-8023 1/4 inch brass vee jet 8002 (1/4 brass vee jet)
053 991-3005 1/4 inch brass vee jet 8003 (1/4 brass vee jet)
054 991-8025 1/4 inch brass vee jet 8004 (1/4 brass vee jet)
055 991-8026 1/4 inch brass vee jet 8005 (1/4 brass vee jet)
056 991-8027 1/4 inch brass vee jet 8006 (1/4 brass vee jet)
057 991-8028 1/4 inch brass vee jet 8008 (1/4 brass vee jet)
058 991-8029 1/4 inch brass vee jet 8010 (1/4 brass vee jet)
059 991-8030 1/4 inch brass vee jet 9502 (1/4 brass vee jet)
060 991-8031 1/4 inch brass vee jet 9503 (1/4 brass vee jet)
061 991-8032 1/4 inch brass vee jet 9504 (1/4 brass vee jet)
062 991-8033 1/4 inch brass vee jet 9505 (1/4 brass vee jet)
063 991-8034 1/4 inch brass vee jet 9506 (1/4 brass vee jet)
064 991-8035 1/4 inch brass vee jet 9508 (1/4 brass vee jet)
065 991-8036 1/4 inch brass vee jet 11001 (1/4 brass vee jet)
066 991-8037 1/4 inch brass vee jet 11001.5 (1/4 brass vee jet)
067 991-8038 1/4 inch brass vee jet 11002 (1/4 brass vee jet)
068 991-8039 1/4 inch brass vee jet 11003 (1/4 brass vee jet)
069 991-8040 1/4 inch brass vee jet 11004 (1/4 brass vee jet)
070 991-8041 1/4 inch brass vee jet 11005 (OBSOLETE) (1/4 brass vee jet)
071 991-8042 1/4 inch brass vee jet 11006 (1/4 brass vee jet)
072 991-3006 1/4 inch brass vee jet 11008 (1/4 brass vee jet)
073 991-8044 1/4 inch brass vee jet 11010 (1/4 brass vee jet)
074 991-8069 1/4 inch stainless vee jet 8001 (1/4 stainless vee jet)
075 991-8070 1/4 inch stainless vee jet 8002 (1/4 stainless vee jet)
076 991-8071 1/4 inch stainless vee jet 8003 (1/4 stainless vee jet)
077 991-8072 1/4 inch stainless vee jet 8004 (1/4 stainless vee jet)
078 991-8073 1/4 inch stainless vee jet 9501 (1/4 stainless vee jet)
079 991-8074 1/4 inch stainless vee jet 9502 (1/4 stainless vee jet)
080 991-8085 1/4 inch stainless/plastic tee jet 9502 (1/4 stainless vee jet)
081 991-8076 1/4 inch stainless vee jet 9504 (1/4 stainless vee jet)
082 991-8077 1/4 inch stainless vee jet 11003 (1/4 stainless vee jet)
083 991-8078 1/4 inch stainless vee jet 11004 (1/4 stainless vee jet)
084 991-8079 1/4 inch stainless vee jet 11006 (1/4 stainless vee jet)
085 991-8080 1/4 inch stainless vee jet 11008 (1/4 stainless vee jet)
086 991-8081 1/4 inch stainless/plastic tee jet 8002 (1/4 stainless/plastic tee jet)
087 991-8082 1/4 inch stainless/plastic tee jet 8003 (1/4 stainless/plastic tee jet)
088 991-8083 1/4 inch stainless/plastic tee jet 8004 (1/4 stainless/plastic tee jet)
089 991-8084 1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) (1/4 stainless/plastic tee jet)
090 991-8085 1/4 inch stainless/plastic tee jet 9502 (1/4 stainless/plastic tee jet)
091 991-8086 1/4 inch stainless/plastic tee jet 9504 (1/4 stainless/plastic tee jet)
092 991-3010 1/4 inch stainless/plastic tee jet 11003 (1/4 stainless/plastic tee jet)
093 991-8088 1/4 inch stainless/plastic tee jet 11004 (1/4 stainless/plastic tee jet)
094 991-8089 1/4 inch stainless/plastic tee jet 11006 (1/4 stainless/plastic tee jet)
095 991-8090 1/4 inch stainless/plastic tee jet 11008 (1/4 stainless/plastic tee jet)
096 991-8091 1/4 inch x 1/8 hex nipple H21
097 991-8092 1/4 inch x 1/4 hex nipple H22
098 991-8093 1/4 inch x 3/8 hex nipple H23
099 991-8094 45 degree street elbow 1/4 inch H24
100 991-8095 45 degree street elbow 1/8 inch H25
101 991-8096 45 degree union elbow 1/4 inch H26
102 991-8098 90 degree street elbow short 1/4 inch H28
103 991-8098 90 degree street elbow short 1/4 inch H28
104 991-8099 90 degree street elbow 1/8 inch H29
105 991-8100 90 degree street elbow short 1/8 inch H30
106 991-8101 90 degree union elbow 1/4 inch H31
107 991-8102 90 degree union elbow 1/8 inch H32
108 991-8103 30 degree union elbow 1/4 inch H33
109 991-8104 1/4 inch coupling H34
110 991-8105 1/8 inch coupling H35
111 991-8106 1/4 inch adapter H36
112 991-8107 1/8 inch adapter H37
113 991-8108 1/4 inch branch tee H38
114 991-8109 1/8 inch branch tee H39
115 991-8110 1/8 inch tee H40
116 991-8111 7/16 inch stainless steel hose clamp H41
117 997-2002 Hose clamp #6
118 991-8113 Strainer for 1/8 inch vee jets H43
119 991-8114 Strainer for 1/4 inch vee jets H44
120 991-8115 Strainer/check valve for 1/4 inch vee jets H45
121 991-8116 Brass strainer/check valve for tee jets H46
122 991-8117 500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47
123 991-8118 500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48
124 991-8119 500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49
125 991-8120 1/4 inch brass flood jets K1 or K2 H54
126 991-8158 1/4 inch BH2-60 female coupler (mate to QD40)
127 991-8150 1/4 inch BH2-61 male nipple (mate to QD80)
128 991-8144 B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55
129 991-8152 B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15
130 991-8145 B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55
131 991-8153 B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15
132 991-8146 BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65
133 991-8154 B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25
134 991-8147 BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65
135 991-8155 B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25
136 991-8148 Hansen 02 male nipple, mate to QD70
137 991-8156 Quick disconnect socket female to QD30
138 991-8149 1/8 inch male quick disconnect
139 991-8157 1/8 inch female quick disconnect socket
140 991-8151 BH3-61,3/8 inch FPT, Male Nipple, mate to QD85
141 991-8159 BH3-60, 3/8 inch fpt, female coupler, mate to QD45
142 991-8123 Bottom hex nut for Kingston or P valve H57
143 991-8121 1/8 inch brass flood jets K1 or K2 H55
144 991-8124 Inline filter H58
145 991-8122 1/8 inch special brass flood jets for V1245 H56
146 991-8008 120V 50 PSI Flo Jet pump (pumps)
147 991-8009 120V 100 PSI Flo Jet pump (pumps)
148 991-8218 120V 120 PSI pump (pumps)
149 991-8220 1/8 fpt brass female connector
150 991-1835 Crevice tool
Webpage Problem Reporting
