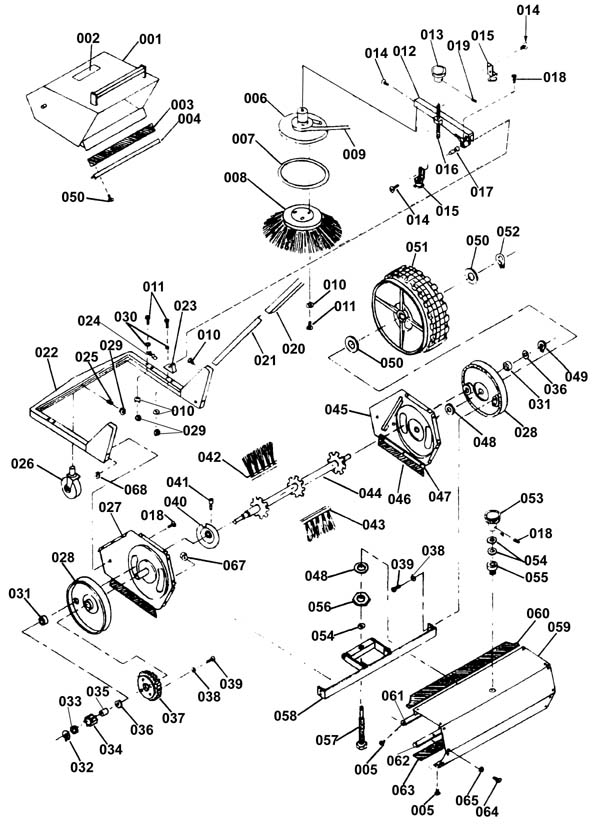

Entire Assembly - 170-9000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
170-4492 |
Hopper assembly (OBSOLETE) |
1 |
|
| 002 |
170-0484 |
Alto label (OBSOLETE) |
1 |
|
| 003 |
170-4493 |
Hopper skirt (OBSOLETE) |
1 |
|
| 004 |
170-4494 |
Skirt retainer (OBSOLETE) |
1 |
|
| 005 |
170-4495 |
Screw M4 x 45/64 x 10 (OBSOLETE) |
30 |
|
| 006 |
170-4496 |
Pulley assembly (OBSOLETE) |
1 |
|
| 007 |
170-4497 |
Side broom bumper (OBSOLETE) |
1 |
|
| 008 |
170-4498 |
Side broom (OBSOLETE) |
1 |
|
| 009 |
170-4499 |
V belt (OBSOLETE) |
1 |
|
| 010 |
999-0060 |
Washer 1/4 split lock plain finish |
13 |
|
| 011 |
999-0807 |
Screw M6-1 x 10mm flat head phillips |
15 |
|
| 012 |
170-4501 |
Weldment arm (OBSOLETE) |
1 |
|
| 013 |
170-4502 |
Side broom knob (OBSOLETE) |
1 |
|
| 014 |
170-4503 |
Screw M6 x 12 (OBSOLETE) |
16 |
|
| 015 |
170-4504 |
Idler assembly (OBSOLETE) |
1 |
|
| 016 |
170-4505 |
Stud adjustment (OBSOLETE) |
1 |
|
| 017 |
170-4506 |
Arm pin (OBSOLETE) |
1 |
|
| 018 |
999-1090 |
Screw M5-.8 x 10mm pan head phillips zinc plated |
5 |
|
| 019 |
999-0322 |
Screw 10-24 x 1/2 socket head alloy plain finish |
2 |
|
| 020 |
170-4507 |
Handle (OBSOLETE) |
1 |
|
| 021 |
170-4508 |
Angle handle (OBSOLETE) |
2 |
|
| 022 |
170-4509 |
Frame weldment (OBSOLETE) |
1 |
|
| 023 |
170-4510 |
Side broom bracket (OBSOLETE) |
1 |
|
| 024 |
170-4511 |
Hopper guide (OBSOLETE) |
2 |
|
| 025 |
170-4512 |
Socket set 1/4 x 20 x 1/2 |
1 |
|
| 026 |
170-4513 |
3 Inch caster assembly (OBSOLETE) |
1 |
|
| 027 |
170-4514 |
Left panel (OBSOLETE) |
1 |
|
| 028 |
170-4515 |
Shroud (OBSOLETE) |
2 |
|
| 029 |
170-4516 |
Nut M6 x 1 (OBSOLETE) |
7 |
|
| 030 |
999-0016 |
Washer 1/4 flat plain finish |
6 |
|
| 031 |
170-0321 |
Front end bearing |
3 |
|
| 032 |
170-4517 |
Ring S-2 (OBSOLETE) |
1 |
|
| 034 |
170-4518 |
Pinion (OBSOLETE) |
1 |
|
| 035 |
170-4519 |
Clutch (OBSOLETE) |
1 |
|
| 036 |
999-0630 |
Washer 3/4 SAE flat |
3 |
|
| 037 |
170-4520 |
Nylon gear (OBSOLETE) |
1 |
|
| 038 |
170-3737 |
Washer wave |
1 |
|
| 039 |
999-1182 |
Screw M5-.8 x 16mm pan head slotted stainless steel |
4 |
|
| 040 |
170-4521 |
Brush support (OBSOLETE) |
1 |
|
| 041 |
170-4522 |
Screw M6 socket cap (OBSOLETE) |
1 |
|
| 042 |
170-4524 |
Brush rail 25 mm (OBSOLETE) |
5 |
|
| 043 |
170-4524 |
Brush rail 25 mm (OBSOLETE) |
5 |
|
| 044 |
170-4525 |
Shaft (OBSOLETE) |
1 |
|
| 045 |
170-4526 |
Right panel (OBSOLETE) |
1 |
|
| 046 |
170-4527 |
Side skirt (OBSOLETE) |
2 |
|
| 047 |
170-4528 |
Skirt retainer (OBSOLETE) |
2 |
|
| 049 |
170-4529 |
Ring S-17 (OBSOLETE) |
1 |
|
| 050 |
170-4530 |
Washer 2 x 16 13/32 x 32 |
4 |
|
| 051 |
170-4531 |
12 Inch tire (OBSOLETE) |
2 |
|
| 052 |
170-4532 |
Ring S-16 (OBSOLETE) |
2 |
|
| 053 |
170-4533 |
Main broom knob (OBSOLETE) |
1 |
|
| 054 |
170-2414 |
Washer flat |
3 |
|
| 055 |
170-4534 |
Pivot assembly (OBSOLETE) |
1 |
|
| 056 |
170-4535 |
Nut 1/2 plated (OBSOLETE) |
1 |
|
| 057 |
170-4536 |
Stud adjustment (OBSOLETE) |
1 |
|
| 058 |
170-4537 |
Bracket (OBSOLETE) |
1 |
|
| 059 |
170-4538 |
Cover panel (OBSOLETE) |
1 |
|
| 060 |
170-4539 |
Hopper upper skirt (OBSOLETE) |
1 |
|
| 061 |
N/A |
Not available |
1 |
(Upper retainer skirt) |
| 062 |
170-4541 |
Lower retainer skirt (OBSOLETE) |
1 |
|
| 063 |
170-4541 |
Lower retainer skirt (OBSOLETE) |
1 |
|
| 064 |
999-1184 |
Screw M4-.7 x 12mm oval head stainless steel |
12 |
|
| 065 |
999-0006 |
Washer 3/16 flat zinc plated |
12 |
|
| 067 |
170-8012 |
Nut M4 x .7 hex (OBSOLETE) |
|
|
| 068 |
170-8076 |
Nut M5 x .8 hex jam |
2 |
|
|
|
|
