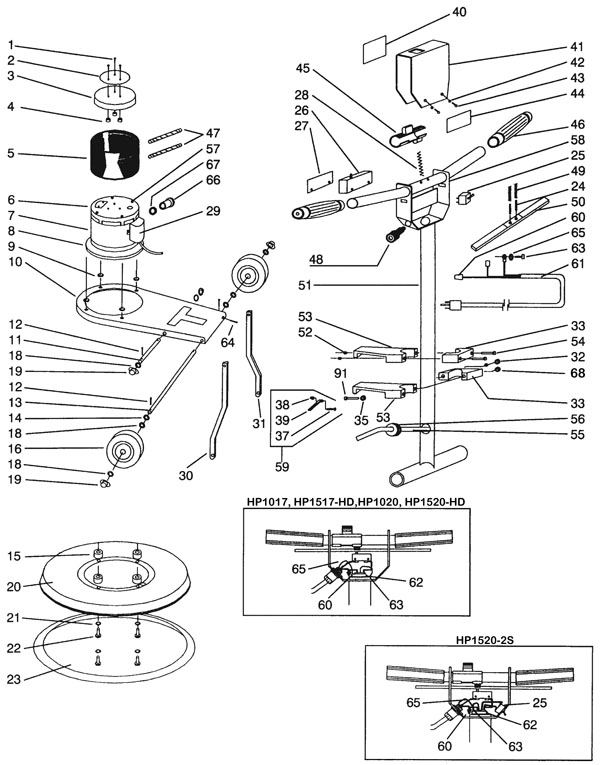

Entire Assembly - 163-8002 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0554 |
Screw 10-24 x 1/2 flat head slotted stainless steel |
3 |
|
| 2 |
163-0082 |
6 1/2 inch round decal |
1 |
|
| 3 |
163-0083 |
Drip motor cover |
1 |
|
| 4a |
163-0084 |
Drip cover spacer |
3 |
(HP1017, HP1020, HP1520-2S) |
| 4b |
163-0170 |
Drip cover spacer |
3 |
(HP1517HD, HP1520HD) |
| 5 |
163-0060 |
Motor cover screen |
1 |
(HPP1520-2S) |
| 6a |
163-0171 |
115V 1HP motor |
1 |
(HP1017, HP1020) |
| 6b |
163-0085 |
115V 60amp 1HP motor and gear assembly |
1 |
(HP1520-2S) |
| 6c |
163-0172 |
115V 60amp 1.5HP motor and gear assembly |
1 |
(HP1517HD, HP1520HD) |
| 7a |
163-0173 |
115V 60amp 1HP motor (black) |
1 |
(HP1017, HP1020) |
| 7b |
163-0174 |
115V 60amp 1.5HP motor (black) |
1 |
(HP1517HD, HP1520HD) |
| 8a |
163-0175 |
2 idler gear assembly (black) |
1 |
(HP1017, HP1020) |
| 8b |
163-0176 |
3 idler gear assembly (black) |
1 |
(HP1517HD, HP1520HD) |
| 9 |
999-0105 |
Washer 5/16 external star lock zinc plated |
4 |
|
| 11 |
163-0086 |
Handle shaft |
1 |
|
| 13 |
163-0290 |
Wheel axle kit with hardware |
1 |
|
| 14 |
163-0051 |
Spring washer |
2 |
|
| 16 |
163-0287 |
Wheel kit (2 wheels with hardware) |
2 |
(Includes (2) wheels, (1) 163-0080 cotter pin, (2) 163-0050 cotter pin, (2) 163-0027 push nuts, (4) 163-0050 spring washers, and (10) 163-0052 washers.) |
| 18 |
163-0052 |
Washer 7/8 steel (pkg of 5) |
12 |
|
| 19 |
163-0042 |
Cone seal (OBSOLETE) |
4 |
|
| 20a |
163-0851 |
17 inch brush cover kit (red) |
1 |
(HP1017, HP1517HD) |
| 20b |
163-0088 |
20 inch brush cover |
1 |
(HP1020, HP1520HD, HP1520-2S) |
| 21 |
999-0406 |
Washer 5/16 internal star lock zinc plated |
4 |
|
| 22 |
163-0089 |
Screw 5/16 x 2 socket head |
4 |
|
| 23a |
163-0178 |
17 inch bumper (black) |
1 |
(HP1017, HP1517HD) |
| 23b |
163-0090 |
20 inch bumper (black) |
1 |
(HP1020, HP1520HD, HP1520-2S) |
| 25 |
163-0057 |
High/low switch |
1 |
(HP1520-2S) |
| 26 |
163-0054 |
On/off switch kit |
1 |
|
| 27 |
163-0092 |
Switch insulation |
1 |
|
| 29 |
163-0159 |
Start capacitor |
1 |
(HP1017, HP1020) |
| 30 |
163-0026 |
Connecting leg kit |
1 |
(includes 2 connecting legs, 4 spring washers, and 8 regular washers) |
| 31 |
163-0026 |
Connecting leg kit |
1 |
(includes 2 connecting legs, 4 spring washers, and 8 regular washers) |
| 32 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
| 33 |
163-0365 |
Handle locking clamp kit |
1 |
(No longer available alone, now must purchase this kit.) |
| 35 |
999-0032 |
Washer 3/8 USS flat plain finish |
3 |
|
| 37 |
163-0097 |
Rivet 5/16 x 1 1/4 long round head |
1 |
|
| 38 |
163-0098 |
Nut 5/16 push |
1 |
|
| 39 |
163-0077 |
Cam lock assembly |
1 |
|
| 40 |
163-0100 |
Switch box decal |
1 |
|
| 41 |
163-0101 |
Switch box cover assembly |
1 |
|
| 42 |
999-0053 |
Washer #10 split lock plain finish |
3 |
|
| 43 |
999-0554 |
Screw 10-24 x 1/2 flat head slotted stainless steel |
2 |
|
| 44 |
163-0102 |
Warning decal |
1 |
|
| 45 |
163-0065 |
Safety switch kit |
1 |
|
| 46 |
163-0066 |
Handle grip (black) (pkg of 2) |
2 |
|
| 47 |
163-0067 |
Clamp spring |
2 |
(HP1520-2S) |
| 48a |
163-0376 |
Strain relief assembly |
1 |
|
| 48b |
163-0069 |
Strain relief nut |
1 |
|
| 49 |
163-0070 |
Trigger spring |
2 |
|
| 51 |
163-0072 |
Complete handle assembly |
1 |
|
| 52 |
999-0635 |
Nut 3/8-16 hex stainless steel |
2 |
|
| 53 |
163-0365 |
Handle locking clamp kit |
1 |
(No longer available alone, now must purchase this kit.) |
| 54 |
999-0505 |
Screw 3/8-16 x 2 flat head socket zinc plated |
3 |
|
| 55 |
163-0074 |
Interconnect cord |
1 |
(HP1520-2S) |
| 57 |
N/A |
Not available |
4 |
(Screw) (HP1017, HP1017HD, 1HP1020, HP1520HD) |
| 58 |
163-0076 |
Handle assembly |
1 |
|
| 59 |
163-0077 |
Cam lock assembly |
1 |
(includes 37, 38, 39) |
| 61a |
163-0055 |
12/3 power cord 50 foot w/ pigtail |
1 |
(OEM) |
| 61b |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) (does not include strain relief) |
| 62a |
163-0180 |
Power cord clamp |
1 |
(HP1017, HP1517HD, HP1020, HP1520HD) |
| 62b |
163-0079 |
Power cord clamp |
1 |
(HP1520-2S) |
| 62c |
991-5001 |
14/3 extension cord 50 foot (yellow) |
1 |
(NON-OEM) |
| 63 |
999-0554 |
Screw 10-24 x 1/2 flat head slotted stainless steel |
2 |
|
| 65 |
999-0053 |
Washer #10 split lock plain finish |
1 |
|
| 66 |
163-0081 |
Strain relief |
1 |
(HP1520-2S) |
| 67 |
163-0069 |
Strain relief nut |
1 |
(HP1520-2S) |
| 68 |
999-0324 |
Nut 3/8-16 nylon insert lock jam zinc plated |
1 |
|
| 91 |
999-0041 |
Bolt 3/8-16 x 2 1/2 hex head full thread grade 5 zinc plated |
1 |
|
| N/S |
163-0095 |
Washer hardened slotted (pkg of 5) |
1 |
|
| N/S |
163-0096 |
Clamp stud (pkg of 5) |
1 |
|
| N/S |
163-0328 |
Solution tank assembly |
1 |
|
|
|
Brushes - 163-9988 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
255-0019 |
17 inch Professional sand screen 120 grit (pkg of 10) |
|
|
|
255-0018 |
17 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 5 |
996-3794 |
15 inch daily cleaning brush |
|
5.1 |
| 1 |
996-0049 |
15 inch heavy grit stripping brush - 80 grit |
1 |
|
| 2 |
996-0022 |
15 inch medium grit scrubbing brush - 180 grit |
1 |
|
| 3 |
996-0009 |
15 inch lite grit scrubbing brush - 500 grit |
1 |
|
| 4 |
996-0264 |
15 inch polypropylene scrubbing brush |
1 |
|
| 5 |
996-0344 |
Carpet brush for 17 inch swing |
1 |
|
| 6 |
996-0070 |
17 inch pad driver |
1 |
|
| 7 |
991-2208 |
3 hole clutch plate (formerly 6 hole) |
1 |
|
|
|
Solution Tank Kit - NON-OEM - 172-2089 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
209-0013 |
4 gallon solution tank kit for round handle side x sides |
1 |
(includes 001-018) |
| 000b |
209-0014 |
4 gallon solution tank kit for square handle side x sides |
1 |
|
| 000c |
209-0017 |
2 1/2 gallon solution tank kit (OBSOLETE) |
1 |
|
| 001 |
209-0033 |
Cap (black) |
1 |
|
| 002 |
209-0034 |
Brass handle rod (OBSOLETE) |
1 |
|
| 003 |
209-0035 |
1/8 inch grommet |
1 |
|
| 004 |
N/A |
Not available |
1 |
(Tank only) |
| 005 |
209-0036 |
Solution valve |
1 |
(includes 006 and 007) |
| 006 |
N/A |
Not available |
1 |
(Washer) |
| 007 |
209-0038 |
Nut 1/4 brass pipe thread straight |
1 |
|
| 008 |
209-0039 |
Hose barb 1/4 |
1 |
|
| 009 |
209-0040 |
Hose 3/8 x 24 inch |
1 |
|
| 010 |
209-0041 |
Coupling 1/8 brass |
1 |
|
| 011 |
209-0042 |
1/8 inch brass nipple |
1 |
|
| 012 |
209-0043 |
Washer 1/8 brass |
2 |
|
| 013 |
209-0044 |
Nut 1/8 brass lock (OBSOLETE) |
1 |
|
| 014 |
209-0045 |
Hose assembly (OBSOLETE) |
1 |
(includes 009-013) |
| 015 |
209-0046 |
5/16 inch u bolt |
2 |
(only used for round handle buffers) |
| 016 |
209-0047 |
Washer bar |
2 |
|
| 017 |
999-0069 |
Nut 5/16-18 hex |
2 |
|
| 018 |
209-0049 |
U bolt assembly (set of 2) |
1 |
(only used for round handle side x sides) (includes 015-017) |
| 019 |
209-0051 |
Advance adapter U-bolts assembly (set of 2) (OBSOLETE) |
1 |
|
|
|
- Pads - 255-1700 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-1740 |
17 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-1735 |
17 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-1764 |
17 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-1742 |
17 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-1712 |
17 inch Cure white pad (pkg of 5) (OBSOLETE) |
|
|
| 06 |
255-1777 |
17 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-1738 |
17 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-1721 |
17 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-1750 |
17 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-1765 |
17 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-1730 |
17 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-1767 |
17 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-1768 |
17 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 14 |
255-1769 |
17 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 15 |
255-1790 |
17 inch premium black stripping pad (pkg of 5) |
|
|
| 16 |
255-1770 |
17 inch premium blue cleaning pad (pkg of 5) |
|
|
| 17 |
255-1792 |
17 inch premium brown stripping pad (pkg of 5) |
|
|
| 18 |
255-1780 |
17 inch premium green scrubbing pad (pkg of 5) |
|
|
| 19 |
255-1760 |
17 inch premium red scrubbing pad (pkg of 5) |
|
|
| 20 |
255-1752 |
17 inch premium tan polishing pad (pkg of 5) |
|
|
| 21 |
255-1720 |
17 inch premium white polishing pad (pkg of 5) |
|
|
| 22 |
255-1711 |
17 inch superspeed rubberized pad (pkg of 5) |
|
|
| 23 |
255-1795 |
17 inch razorback stripping pad (pkg of 5) |
|
|
| 24 |
255-1747 |
17 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 25 |
255-1755 |
17 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 26 |
255-1723 |
17 inch sand screen driver pad (pkg of 2) |
|
|
| 27 |
255-0139 |
17 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 28 |
255-0019 |
17 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 29 |
255-0140 |
17 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 30 |
255-0141 |
17 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 31 |
255-0142 |
17 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 32 |
255-0143 |
17 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 33 |
255-0138 |
17 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 34 |
255-0018 |
17 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 35 |
255-0225 |
17 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 36 |
255-0226 |
17 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 37 |
255-0227 |
17 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 38 |
255-0228 |
17 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 39 |
255-0229 |
17 inch Superscreen sand screen 220 grit (pkg of 10) |
|
|
| 40 |
255-0230 |
17 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 41 |
255-0223 |
17 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 42 |
255-0224 |
17 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 43 |
255-1724 |
17 inch Tiger carpet bonnet (pkg of 2) |
|
|
| 44 |
255-9570 |
17 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 45 |
255-9567 |
17 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 46 |
255-9564 |
17 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 47 |
255-9568 |
17 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 48 |
255-9565 |
17 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 49 |
255-9566 |
17 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 50 |
255-9569 |
17 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 51 |
255-9642 |
17 inch Diamond starter pack (1 of each grit) |
|
|
| 52 |
255-1782 |
17 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 53 |
255-1715 |
17 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 54 |
255-1716 |
17 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
- Frequently Replaced Parts - 999-9515 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
255-0019 |
17 inch Professional sand screen 120 grit (pkg of 10) |
|
|
|
255-0018 |
17 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 14 |
996-3794 |
15 inch daily cleaning brush |
|
14.1 |
| 1 |
163-0055 |
12/3 power cord 50 foot w/ pigtail |
|
(OEM) |
| 2 |
991-5005 |
14/3 replacement power cord 50 foot (yellow) |
|
(NON-OEM) (does not include strain relief) |
| 6 |
163-0054 |
On/off switch kit |
|
|
| 7 |
163-0287 |
Wheel kit (2 wheels with hardware) |
|
(Includes (2) wheels, (1) 163-0080 cotter pin, (2) 163-0050 cotter pin, (2) 163-0027 push nuts, (4) 163-0050 spring washers, and (10) 163-0052 washers.) |
| 8 |
163-0290 |
Wheel axle kit with hardware |
|
|
| 9 |
163-0159 |
Start capacitor |
|
|
| 10 |
996-0049 |
15 inch heavy grit stripping brush - 80 grit |
|
|
| 11 |
996-0022 |
15 inch medium grit scrubbing brush - 180 grit |
|
|
| 12 |
996-0009 |
15 inch lite grit scrubbing brush - 500 grit |
|
|
| 13 |
996-3027 |
15 inch value daily cleaning brush assembly |
|
|
| 14 |
996-0344 |
Carpet brush for 17 inch swing |
|
|
| 15 |
996-0070 |
17 inch pad driver |
|
|
| 16 |
991-2208 |
3 hole clutch plate (formerly 6 hole) |
|
|
|
|
|
