Parts List Complete for GENFLOORCR 2000DC-1

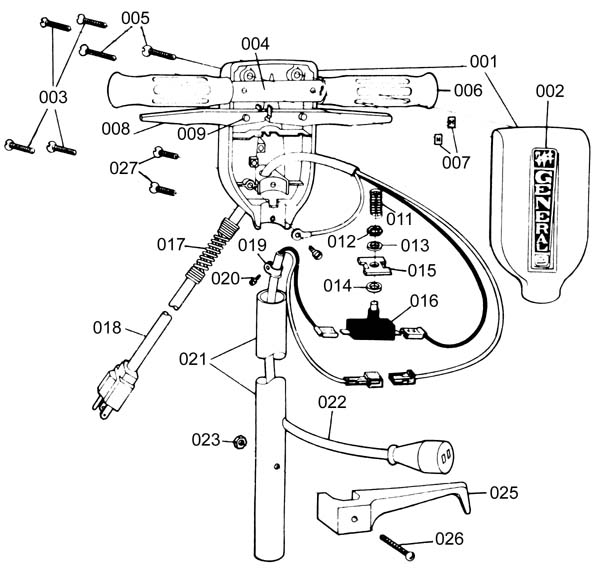

Handle Assembly - 223-1023
RefNbr Part Number Description Req Notes
000a 223-0016 Handle assebly (less cable)
000b 223-0017 Handle assebly (50' cable)
001 223-0018 Switchbox assembly
002 223-0019 Nameplate
003 223-0020 Switchbox screw
004 223-0021 Handle bar
005 223-0022 Handle bar screw
006 223-0023 Handle grip
007 223-0024 Nut (OBSOLETE)
008 223-0025 Switch lever
009 223-0026 Lever pivot pin
011 223-0028 Coil spring
012 223-0029 Switch nut
013 223-0030 Washer
014 223-0105 Washer
015 223-0031 Switch bracket
016 217-0014 On/off switch
017 223-0184 Strain relief (OBSOLETE)
018 223-0035 Cable assembly (for 019, 021, and 023)
019 223-0036 Strain relief (tube wire)
020 223-0037 Strain relief screw
021 223-0038 Handle tube
022 223-0039 Tube wire assembly
023 223-0040 Nut
024 223-0185 Cable hook spacer
025 223-0041 Cable hook
026 223-0186 Cable hook screw
027 223-0295 Screw

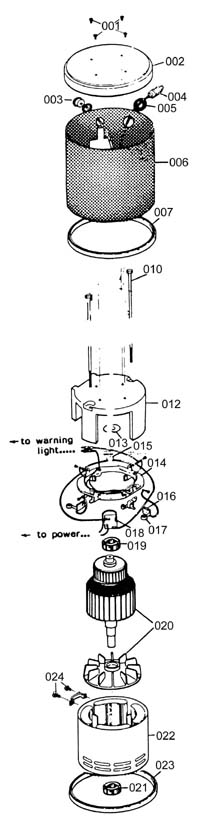

Motor Assembly - 223-1024
RefNbr Part Number Description Req Notes
000 223-0292 1.5 hp motor
001 223-0183 Idler gear
002 223-0137 Motor canopy
003 172-1574 Brush wear light (OBSOLETE)
004 223-0187 Motor lead
005 223-0164 Grommet
006 223-0147 Perforated motor cover
007 223-0148 Motor cover gasket
010 223-0188 Thru bolt
012 223-0189 Top end bell
013 223-0190 Washer helical
014 223-0191 Brush board assembly
015 223-0192 Varistor
016a 223-0193 Carbon brush (pkg of 4) 4
016b 223-0171 Carbon brush (sold individually) 4 for model C-561254X822
017 223-0194 Motor brush spring (OBSOLETE)
018 223-0173 Rectifier
019 223-0195 Upper bearing
020 223-0196 Armature with fan
021 223-0197 Lower bearing
022 223-0198 Field assembly (includes hook bracket)
023 223-0199 Lower end bell
024 223-0200 Hook bracket with hardware (OBSOLETE)

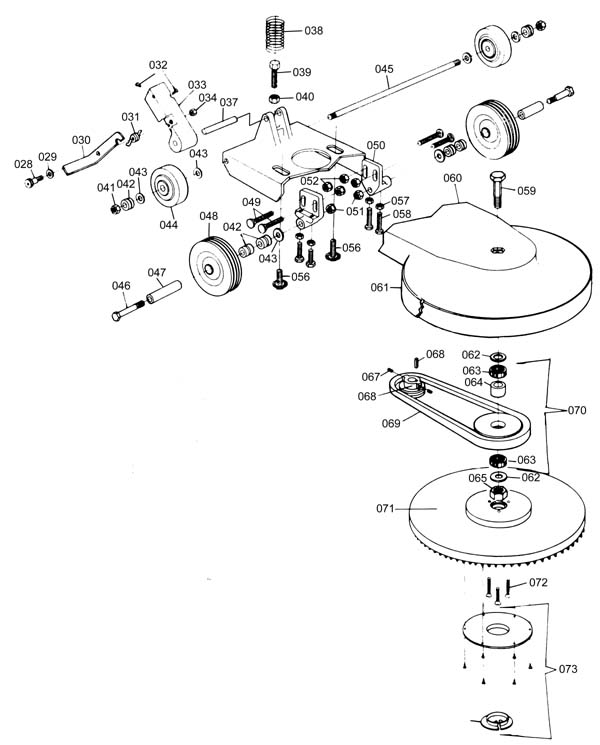

Brush Assembly - 223-1025
RefNbr Part Number Description Req Notes
028 223-0201 Lever pivot
029 223-0105 Washer
030 223-0202 Latch lever
031 223-0203 Latch lever spring
032 223-0044 Handle set screw
033 223-0204 Handle adaptor
034 223-0205 Nut
037 223-0050 Adaptor pin pivot
038 223-0206 Handle adjustment spring
039 223-0207 Handle adjustment screw
040 223-0208 Nut
041 223-0063 Wheel axle nut
042 223-0055 Wheel axle spacer
043 223-0209 Washer
044 223-0210 Wheel
045 223-0211 Rear axle
046 223-0212 Front axle
047 223-0213 Wheel bushing
048 223-0056 Wheel
049 223-0215 Wheel bracket mounting bolt
050 223-0216 Wheel bracket
051 223-0063 Wheel axle nut
052 223-0040 Nut
056 223-0217 Motor mounting bolt
057 223-0218 Nut (OBSOLETE)
058 223-0219 Wheel bracket adjustment bolt
059 223-0220 Spindle
060 223-0221 Apron
061 N/A Not available (021) (Bumper)
062 223-0222 Washer
063 223-0223 Ball bearing
064 223-0224 Brush pulley spacer
065 223-0225 Nut
066 223-0226 Key
067 223-0227 Set screw
068a 223-0228 Motor pulley (2000DC)
068b 223-0234 Motor pulley (2000DC-1)
069a 223-0229 Belt (2000DC)
069b 223-0235 Belt (2000DC-1)
070 223-0230 Brush pully assembly (only sold as assembly with bearings)
071a 223-0231 Driving pad assembly
072 223-0233 Driving pad mounting bolt
073 991-2209 Split retainer - pad holder ring (OBSOLETE)

- Pads - 255-2000
RefNbr Part Number Description Req Notes
01 255-2040 20 inch aqua plus burnishing pad (pkg of 5)
02 255-2035 20 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2064 20 inch Blue ace pad (pkg of 5)
04 255-2042 20 inch Blue Jay burnishing pad (pkg of 5)
05 255-2012 20 inch Cure white pad (pkg of 5)
06 255-2077 20 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2038 20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2021 20 inch gorilla lite burnishing pad (pkg of 5)
09 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2065 20 inch Heat concrete bonding pad (pkg of 5)
11 255-2030 20 inch jaguar burnishing pad (pkg of 5)
12 255-2067 20 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2087 20 inch Melamine Mela-Kleen pad (pkg of 2)
14 255-2068 20 inch Microclean daily cleaning pad (pkg of 2)
15 255-2069 20 inch Micropolish polishing and burnishing pad (pkg of 2)
16 255-2090 20 inch premium black stripping pad (pkg of 5)
17 255-2070 20 inch premium blue cleaning pad (pkg of 5)
18 255-2092 20 inch premium brown stripping pad (pkg of 5)
19 255-2080 20 inch premium green scrubbing pad (pkg of 5)
20 255-2060 20 inch premium red scrubbing pad (pkg of 5)
21 255-2052 20 inch premium tan polishing pad (pkg of 5)
22 255-2020 20 inch premium white polishing pad (pkg of 5)
23 255-2011 20 inch superspeed rubberized pad (pkg of 5)
24 255-2095 20 inch razorback stripping pad (pkg of 5)
25 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10)
26 255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2)
27 255-2023 20 inch sand screen driver pad (pkg of 2)
28 255-0157 20 inch Professional sand screen 100 grit (pkg of 10)
29 255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
30 255-0158 20 inch Professional sand screen 150 grit (pkg of 10)
31 255-0159 20 inch Professional sand screen 180 grit (pkg of 10)
32 255-0160 20 inch Professional sand screen 220 grit (pkg of 10)
33 255-0161 20 inch Professional sand screen 400 grit (pkg of 10)
34 255-0030 20 inch Professional sand screen 60 grit (pkg of 10)
35 255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
36 255-0249 20 inch Superscreen sand screen 100 grit (pkg of 10)
37 255-0250 20 inch Superscreen sand screen 120 grit (pkg of 10)
38 255-0251 20 inch Superscreen sand screen 150 grit (pkg of 10)
39 255-0252 20 inch Superscreen sand screen 180 grit (pkg of 10)
40 255-0253 20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE)
41 255-0254 20 inch Superscreen sand screen 400 grit (pkg of 10)
42 255-0247 20 inch Superscreen sand screen 60 grit (pkg of 10)
43 255-0248 20 inch Superscreen sand screen 80 grit (pkg of 10)
45 255-9591 20 inch Diamond by Gorilla 11000 Grit (pkg of 2)
46 255-9588 20 inch Diamond by Gorilla 1500 Grit (pkg of 2)
47 255-9585 20 inch Diamond by Gorilla 200 Grit (pkg of 2)
48 255-9589 20 inch Diamond by Gorilla 3000 Grit (pkg of 2)
49 255-9586 20 inch Diamond by Gorilla 400 Grit (pkg of 2)
50 255-9587 20 inch Diamond by Gorilla 800 Grit (pkg of 2)
51 255-9590 20 inch Diamond by Gorilla 8000 Grit (pkg of 2)
52 255-9645 20 inch Diamond starter pack (1 of each grit)
53 255-2082 20 inch Turbostrip segmented rotary pad(OBSOLETE)
54 255-2015 20 inch Duala clean and shine pad - low speed (pkg of 5)
55 255-2016 20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Frequently Replaced Parts - 998-0009
RefNbr Part Number Description Req Notes
223-0035 Cable assembly
223-0184 Strain relief (OBSOLETE)
217-0014 On/off switch
223-0173 Rectifier
991-8577 Pad retainer
223-0210 Wheel
223-0056 Wheel
991-1826 Carbon brush for Ohio motor (set of 4) (Ohio motor)
