Parts List Complete for GEERPRES 43805V

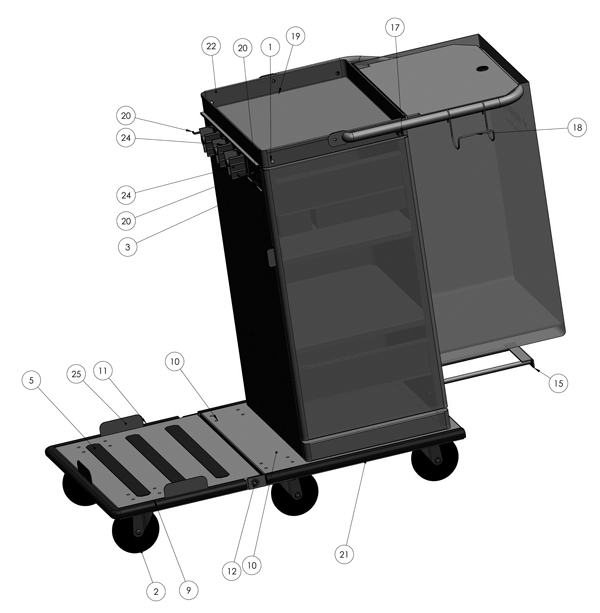

Entire Assembly - 280-0010
RefNbr Part Number Description Req Notes
1 280-0067 Cabinet 1
2 280-0039 5 inch front quiet swivel caster wheel 6
3 280-0069 19 7/8 inch tool holder 1
5 280-0071 15 inch step cut strip 3
9 280-0075 Front tray 1
10 280-0076 Rear tray with hinge 1
11 280-0077 Bumper (black) (sold by the inch)(OBSOLETE) 109 in
12 280-0078 Bushing 2
15 280-0081 Slide bracket 1
17 280-0083 Stopper (OBSOLETE) 2
18 280-0084 Sign hook 1
19 280-0085 Short tool hook 3
20 280-0086 Long tool hook (pkg of 12) 2
21 280-0087 Bumper (black) 2
22 280-0088 Top tray 1
25 280-0091 Front stopper 3
N/S 280-0072 Door support rail 2
N/S 280-0073 Glove box holder 1
N/S 280-0074 Bottle holder 1
N/S 280-0079 Grommet 1
N/S 280-0092 Shim plate 1
N/S 280-0089 Shelf 1
N/S 280-0093 Plated handle offset 1

Bottom Assembly - 280-0011
RefNbr Part Number Description Req Notes
4 280-0070 15 inch tool holder 1
9 280-0075 Front tray 1
10 280-0076 Rear tray with hinge 1
14 280-0080 Plate 1
15 280-0081 Slide bracket 1
16 280-0082 Expansion pin 2
17 280-0083 Stopper (OBSOLETE) 2
19 280-0085 Short tool hook 3

- Commonly Asked For Parts - 280-9999
RefNbr Part Number Description Req Notes
01 280-0113 Wire triange 1
