Parts List Complete for FLRCR.BIZ X20BT


- Pads - 255-2000
RefNbr Part Number Description Req Notes
01 255-2040 20 inch aqua plus burnishing pad (pkg of 5)
02 255-2035 20 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2064 20 inch Blue ace pad (pkg of 5)
04 255-2042 20 inch Blue Jay burnishing pad (pkg of 5)
05 255-2012 20 inch Cure white pad (pkg of 5)
06 255-2077 20 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2038 20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2021 20 inch gorilla lite burnishing pad (pkg of 5)
09 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2065 20 inch Heat concrete bonding pad (pkg of 5)
11 255-2030 20 inch jaguar burnishing pad (pkg of 5)
12 255-2067 20 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2087 20 inch Melamine Mela-Kleen pad (pkg of 2)
14 255-2068 20 inch Microclean daily cleaning pad (pkg of 2)
15 255-2069 20 inch Micropolish polishing and burnishing pad (pkg of 2)
16 255-2090 20 inch premium black stripping pad (pkg of 5)
17 255-2070 20 inch premium blue cleaning pad (pkg of 5)
18 255-2092 20 inch premium brown stripping pad (pkg of 5)
19 255-2080 20 inch premium green scrubbing pad (pkg of 5)
20 255-2060 20 inch premium red scrubbing pad (pkg of 5)
21 255-2052 20 inch premium tan polishing pad (pkg of 5)
22 255-2020 20 inch premium white polishing pad (pkg of 5)
23 255-2011 20 inch superspeed rubberized pad (pkg of 5)
24 255-2095 20 inch razorback stripping pad (pkg of 5)
25 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10)
26 255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2)
27 255-2023 20 inch sand screen driver pad (pkg of 2)
28 255-0157 20 inch Professional sand screen 100 grit (pkg of 10)
29 255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
30 255-0158 20 inch Professional sand screen 150 grit (pkg of 10)
31 255-0159 20 inch Professional sand screen 180 grit (pkg of 10)
32 255-0160 20 inch Professional sand screen 220 grit (pkg of 10)
33 255-0161 20 inch Professional sand screen 400 grit (pkg of 10)
34 255-0030 20 inch Professional sand screen 60 grit (pkg of 10)
35 255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
36 255-0249 20 inch Superscreen sand screen 100 grit (pkg of 10)
37 255-0250 20 inch Superscreen sand screen 120 grit (pkg of 10)
38 255-0251 20 inch Superscreen sand screen 150 grit (pkg of 10)
39 255-0252 20 inch Superscreen sand screen 180 grit (pkg of 10)
40 255-0253 20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE)
41 255-0254 20 inch Superscreen sand screen 400 grit (pkg of 10)
42 255-0247 20 inch Superscreen sand screen 60 grit (pkg of 10)
43 255-0248 20 inch Superscreen sand screen 80 grit (pkg of 10)
45 255-9591 20 inch Diamond by Gorilla 11000 Grit (pkg of 2)
46 255-9588 20 inch Diamond by Gorilla 1500 Grit (pkg of 2)
47 255-9585 20 inch Diamond by Gorilla 200 Grit (pkg of 2)
48 255-9589 20 inch Diamond by Gorilla 3000 Grit (pkg of 2)
49 255-9586 20 inch Diamond by Gorilla 400 Grit (pkg of 2)
50 255-9587 20 inch Diamond by Gorilla 800 Grit (pkg of 2)
51 255-9590 20 inch Diamond by Gorilla 8000 Grit (pkg of 2)
52 255-9645 20 inch Diamond starter pack (1 of each grit)
53 255-2082 20 inch Turbostrip segmented rotary pad (pkg of 4)
54 255-2015 20 inch Duala clean and shine pad - low speed (pkg of 5)
55 255-2016 20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

Squeegee Assembly - 341-0008
RefNbr Part Number Description Req Notes
0 341-0007 Squeegee assembly 1 (includes 1-11)
1 341-0112 Squeegee weldment 1
2a 341-0113 Squeegee blade front rubber 1
2b 341-0241 Squeegee blade front polyurethane 1
3b 341-0114 Squeegee blade rear rubber 1
3b 341-0242 Squeegee blade rear polyurethane 1
4 341-0115 Squeegee wedge 1
5 341-0116 Squeegee knob 2
6 341-0117 Nut M10 2
7 341-0118 Squeegee strap 1
8 341-0119 Caster wheel 2
9 341-0120 Drag wheel bracket 2
10 341-0121 Screw M8 1
11 341-0122 Bumper wheel 2

Brush Deck Assembly - 341-0020
RefNbr Part Number Description Req Notes
1a 341-0019 Brush 1
1b 996-8159 19 inch heavy grit stripping brush-80 grit 1
1c 996-8160 19 inch medium grit scrubbing brush - 180 grit 1
1d 996-8162 19 inch polypropylene scrubbing brush 1
1e 996-8161 19 inch lite grit scrubbing brush - 500 grit 1
1f 341-0246 19 inch pad driver 1
2 341-0020 Brush mount plate 1
3 341-0251 Flange 1
4 341-0022 Flat key 1
5 341-0252 Brush cover 1
6 341-0253 19 inch skirt (rubber) 1
7 341-0254 Brush support 1
8 341-0255 Brush support 1
9 341-0256 Heal block 2
10 341-0219 24V brush motor 1
11 341-0048 Screw M8 x 30mm stainless steel 2
12 341-0044 Washer M8 lock stainless steel 5
13 341-0011 Washer M8 stainless steel 6
14 341-0036 Nut M8 lock stainless steel 5
15 341-0142 Screw M8 x 35mm 3
16 341-0257 Bearing 3
17 341-0039 Screw M8 x 45mm stainless steel 1
18 341-0040 Washer M8 stainless steel 3
19 341-0041 Bumper wheel (orange) 1
20 341-0042 Washer M6 lock stainless steel 8
21 341-0043 Screw M6 x 16mm stainless steel 8
22 341-0010 Screw M8 x 20mm stainless steel 1
23 341-0258 Bushing 1
24 341-0013 Nut lock stainless steel 4

Frame Support Assembly - 341-0021
RefNbr Part Number Description Req Notes
1 341-0046 Support 1
2 341-0047 Squeegee bracket 1
3 341-0048 Screw M8 x 30mm stainless steel 1
4 341-0040 Washer M8 stainless steel 2
5 341-0045 Copper bushing 2
6 341-0036 Nut M8 lock stainless steel 2
7 341-0049 Screw M6 x 30mm stainless steel 1
8 341-0015 Nut M6 stainless steel 1
9 341-0050 Screw M8 x 25mm stainless steel 1
10 341-0259 Gasket (nylon) 4
11 341-0052 Ring 2
12 341-0053 Connecting shaft 1

Frame Assembly - 341-0022
RefNbr Part Number Description Req Notes
1 341-0260 Frame 1
2 341-0261 Caster wheel 2
3 341-0146 Nut M12 lock 2
4 341-0262 24v drive motor 1
5 341-0263 Wheel 2
6 341-0142 Screw M8 x 35mm 8
7 341-0044 Washer M8 lock stainless steel 8
8 341-0011 Washer M8 stainless steel 16
9 341-0264 Motor support plate 4
10 341-0265 Motor support 2
11 341-0036 Nut M8 lock stainless steel 8
12 341-0013 Nut lock stainless steel 2
13 341-0266 Pedal support 1
14 341-0267 Screw M6 x 30 countersunk head 2
15 341-0268 Extension spring 1
N/S 341-0322 Wiring harness 1
N/S 341-2082 Wiring harness 1

Pedal Assembly - 341-0023
RefNbr Part Number Description Req Notes
1 341-0269 Lever 1
2 341-0036 Nut M8 lock stainless steel 6
3 341-0011 Washer M8 stainless steel 12
4 341-0270 Gasket (nylon) 4
5 341-0271 Bushing 2
6 341-0272 Screw M8 x 35 3
7 341-0258 Bushing 4
9 341-0274 Screw M8 x 40 2
10 341-0142 Screw M8 x 35mm 1
11 341-0275 Brush pedal 1

Electric Cabinet Assembly - 341-0024
RefNbr Part Number Description Req Notes
1 341-0063 24V contactor 100amp 1
2 341-0017 Screw M5 x 12mm stainless steel 3
3 341-0034 Washer M5 stainless steel 3
4 341-0035 Nut M5 lock stainless steel 3
5 341-0065 Insulation base 1
6 341-0043 Screw M6 x 16mm stainless steel 2
7 341-0042 Washer M6 lock stainless steel 1
8 341-0064 Washer M6 stainless steel 1
9 341-0015 Nut M6 stainless steel 1
10 341-0068 Relay 1
11a 341-0276 Drive controller 1 (before SN 00010497)
11b 341-2083 Drive controller 1 (after SN 00010497)
12 341-0218 Screw M4 x 30mm 2
13 341-0216 Nut M4 lock 2

Recovery Tank Assembly - 341-0025
RefNbr Part Number Description Req Notes
1 341-0069 Cover 1
2 341-0070 Gasket 1
3 341-0278 Recovery tank 1
4 341-0279 Drain hose 1
5 341-0073 Hose clamp 1
6 341-0075 Float 1
7 341-0032 Screw M5 x 16mm stainless steel 4
8 341-0033 Washer M5 lock stainless steel 4
9 341-0034 Washer M5 stainless steel 4
10 341-0076 Suction filter 1
11 341-0077 Suction gasket 1
12 341-0102 Dead plate 1
13 341-0245 24V 2 stage vacuum motor 1
14 341-0104 Foam gasket 1
15 341-0105 Noise reduction foam 1
16 341-0106 Screw M6 x 100mm stainless steel 3
17 341-0281 Motor cover 1
18 341-0017 Screw M5 x 12mm stainless steel 6
19 341-0034 Washer M5 stainless steel 6
20 341-0282 Suction hose 1

Solution Tank Assembly - 341-0026
RefNbr Part Number Description Req Notes
1 341-0283 Soultion tank 1
2 341-0284 Control box 1
3 341-0272 Screw M8 x 35 2
4 341-0044 Washer M8 lock stainless steel 10
5 341-0011 Washer M8 stainless steel 13
6 341-0285 Support 1
7 341-0060 Screw M8 x 20mm stainless steel 8
8 341-0286 Nipple 1
9 341-0287 Hose 1
10 341-0288 Connector (nylon) 1
11 341-0289 Screw M6 x 20 1
12 341-0087 Tank hinge 2
13 341-0267 Screw M6 x 30 countersunk head 8
14 341-0088 Support plate 5
15 341-0017 Screw M5 x 12mm stainless steel 10
16 341-0086 Hose clamp 1
17 341-0034 Washer M5 stainless steel 1
18 341-0291 Support 1
19 341-0043 Screw M6 x 16mm stainless steel 6
20 341-0064 Washer M6 stainless steel 6
21 341-0042 Washer M6 lock stainless steel 6
22 341-0292 600V 50amp plug 1
23 341-0293 Screw M3 x 30 2
24 341-0099 Nut M3 lock stainless steel 8
25 341-0294 Handle 1
26 341-0142 Screw M8 x 35mm 1
27 341-0295 Lever 1
28 341-0296 Bushing 1
29 341-0050 Screw M8 x 25mm stainless steel 3
30 341-0036 Nut M8 lock stainless steel 1
31 341-0135 Nut M8 1
32 341-0297 Rope 1
33 341-0133 Screw M6 x 25mm 1
34 341-0013 Nut lock stainless steel 1
35 341-0015 Nut M6 stainless steel 1
36 341-0298 Control handle 1
37 341-0299 Microswitch support 1
38 341-0300 Screw M3 x 20 4
39 341-0301 Microswitch 1
40 341-0302 Extension spring 3
41 341-0303 Switch panel 1
42 341-0304 Switch panel decal 1
43 341-0093 Screw M4 x 12 8
44a 341-0095 Key switch assembly 1
44b 341-2084 Keyswitch with estop 1
45 341-0305 50amp overload protector 1
46 341-0306 30amp overload protector 1
47 341-0307 Control panel 1
48 341-0308 Control panel decal 1
49 341-0096 Push switch 2
50 341-0097 Battery meter (square) 1
51 341-0098 Screw M3 x 12mm stainless steel 2
52 341-0195 Speed knob 1
53 341-0196 Switch 1
54 341-0109 Filter sponge 1
55 341-0309 Rope 1
56 341-0310 Brush motor cover 1
57 341-0311 Guide bracket 1
58 341-0268 Extension spring 1
N/S 341-0321 Upper wiring harness 1

Solution Assembly - 341-0028
RefNbr Part Number Description Req Notes
1 341-0124 Fitting 1
2a 341-0312 Hose 3 inch long 1 (OEM)
2b 991-1412 Clear vinyl tubing 5/8 ID 3/4 OD (sold by the inch) 3 (NON-OEM)
3 341-0027 3/8-12 Elbow 2
4 341-0127 Filter assembly 1
5 341-0197 Nipple 1
6 341-0125 Manual ball valve 1
7 341-0313 Valve support 1
8 341-0110 Screw M5 x 16mm stainless steel 4
9 341-0033 Washer M5 lock stainless steel 4
10 341-0314 Washer 4
11 341-0035 Nut M5 lock stainless steel 4
12 341-0315 Hose 1
13 341-0103 24V Solution solenoid valve 1
14 341-0129 Support 1
15 341-0218 Screw M4 x 30mm 2
16 341-0216 Nut M4 lock 2
17a 341-0316 Hose 1 (OEM)
17b 991-1412 Clear vinyl tubing 5/8 ID 3/4 OD (sold by the inch) 21 (NON-OEM)

- Batteries, Brushes, and Chargers - 341-0032
RefNbr Part Number Description Req Notes
1 162-0042 12V 115Ah AGM battery (Group 31) 2
2 777-9102 24V 100amp Lithium Ion battery pack kit w/ charger 1
3 341-0248 24V 15ah offboard charger 1 (OEM)
4 162-5060 24V 20amp battery charger with small SB50 red plug 1 (NON-OEM)
5a 341-0019 Brush 1
5b 996-8159 19 inch heavy grit stripping brush-80 grit 1
5c 996-8160 19 inch medium grit scrubbing brush - 180 grit 1
5e 996-8162 19 inch polypropylene scrubbing brush 1
5d 996-8161 19 inch lite grit scrubbing brush - 500 grit 1
6 996-8157 19 inch pad driver 1
7 341-2081 Battery cable 1

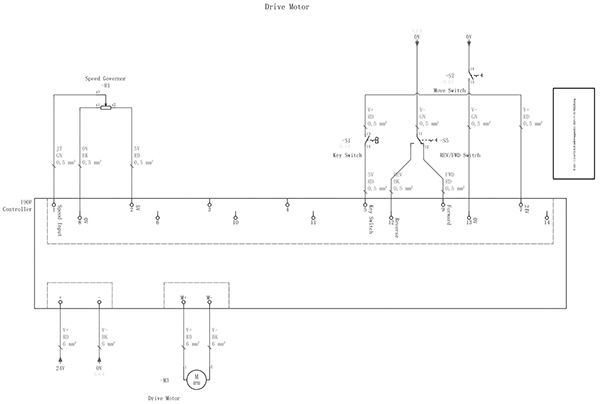

Wiring Diagram-1 -

RefNbr Part Number Description Req Notes

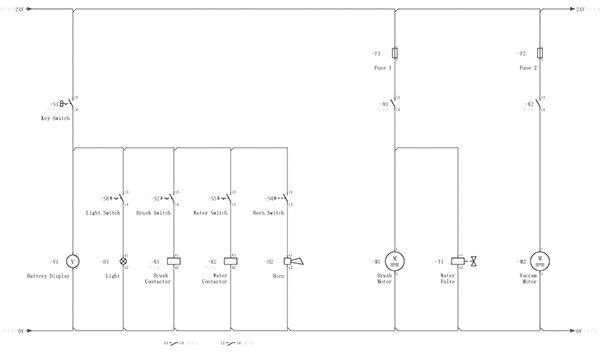

Wiring Diagram-2 -

RefNbr Part Number Description Req Notes

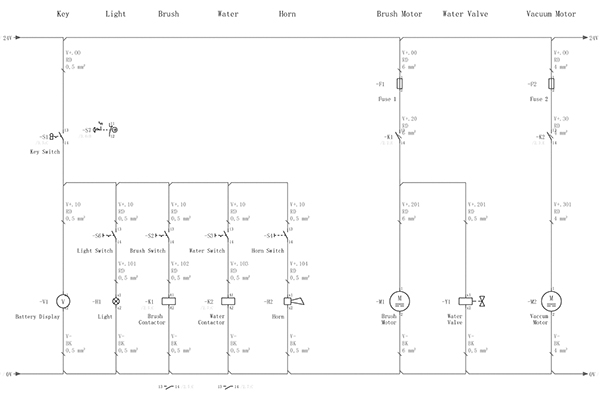

Wiring Diagram-3 -

RefNbr Part Number Description Req Notes

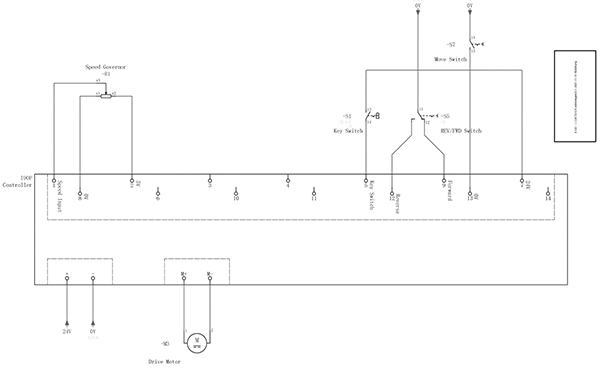

Wiring Diagram-4 -

RefNbr Part Number Description Req Notes
Webpage Problem Reporting
