Parts List Complete for FLRCR.BIZ X15B

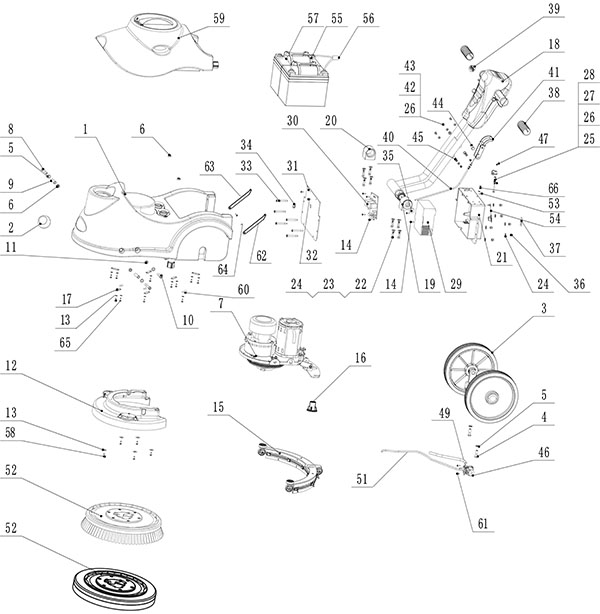

Entire Assembly - 240-1024
RefNbr Part Number Description Req Notes
1 240-2132 Solution tank kit 1
2 240-6607 Solution decal 1
3 240-2134 Wheel and axle kit 1
4 240-2135 Bolt M8 x 30 2
5 999-9097 Washer M8 flat stainless steel 5
6 240-2120 Nut M8 lock 4
7 270-8547 Motor mounting plate kit 1
8 999-1828 Screw M8-1.25 x 55mm socket head stainless steel 2
9 240-2138 Bushing 2
10 240-2139 Screw M8 x 40mm hex socket 1
11 240-2118 Nut M8 1
12 240-2140 Skirt assembly 1
13 240-0463 Washer M4 plain finish 15
14 240-0393 Screw M4 x 12mm 16
15 240-2141 Squeegee assembly 1
16 240-5952 Squeegee hose connector 1
17 240-2174 Plate 6
18 240-2144 Handle assembly kit 1
19 240-2145 Left hand handle block 1
20 240-2146 Right hand handle block 1
21 240-2147 Circuit box 1
22 240-2148 Screw M6 x 15 hex socket 8
23 240-2149 Washer lock 8
24 240-2150 Washer 14
25 240-2151 Screw M5 x 45mm phillips 1
26 240-0643 Washer M5 plain 6
27 240-2152 Recovery tank latch 1
28 240-2153 Pressure spring 1
29 240-2154 Charger kit 1
30 240-2155 Main control plate 1
31 240-2156 Circuit cover 1
32 240-2157 Screw M4 x 12mm 2
33 999-9093 Screw M6-1 x 55mm hex head stainless steel 2
34 240-2159 Waterproof cover 1
35 240-2160 Rubber plug 1
36 240-2161 Cover nut 6
37 240-2162 Charge display decal 1
38 240-2163 Rubber handle grip 2
39 240-6608 Housing decal 1
40 240-5937 Squeegee lift cable 1
41 240-2165 Squeegee lift handle 1
42 240-0050 Screw M5 x 10 3
43 240-2166 Axle 2
44 240-2167 Squeegee lift cable axle 1
45 240-5940 Squeegee lift cable rotate axle 2
46 240-2169 24V solenoid valve 1
47 240-2170 Nut M5 lock 1
49a 240-6027 Hose 1 (OEM)
49b 991-1411 Clear vinyl tubing 3/8 x 1/2 inch (sold by the inch) 10 (NON-OEM)
51a 240-6027 Hose 1 (OEM)
51b 991-1411 Clear vinyl tubing 3/8 x 1/2 inch (sold by the inch) 20 (NON-OEM)
52a 240-2128 15 inch brush 1
52b 996-0551 14 inch heavy grit stripping brush - 80 grit 1 (NON-OEM)
52c 996-0569 14 inch medium grit scrubbing brush - 180 grit 1 (NON-OEM)
52d 996-0531 14 inch lite grit scrubbing brush - 500 grit 1 (NON-OEM)
52e 996-0483 14 inch polypropelene scrubbing brush 1 (NON-OEM)
52f 996-3209 14 inch nylon scrubbing brush 1 (NON-OEM)
52g 996-0075 14 inch Pad driver w/o riser 1 (NON-OEM)
52h 270-8505 15 inch pad driver 1
53 240-2175 Small clamp 1
54 240-2176 Rubber charger insert plug 1
55 162-0001 12V 35Ah AGM battery 2
56a 240-2178 Battery cable assembly US w/ red connectors 1
56b 240-5955 POWER WIRE CANADAIN VERSION 1
57 240-2179 Battery jumper cable 1
58 240-0889 Screw M4 x 16mm 5
59 240-2245 Recovery tank kit 1
60 240-2181 Large clamp 1
61 240-0152 Screw M4 x 8 2
62 270-8549 Left hand support 1
63 270-8548 Right hand support 1
64 240-2065 Screw M5-.8 x 12mm 2
65 240-6391 SCREW M4X10 11
66 240-0861 Screw M5 x 8mm 1

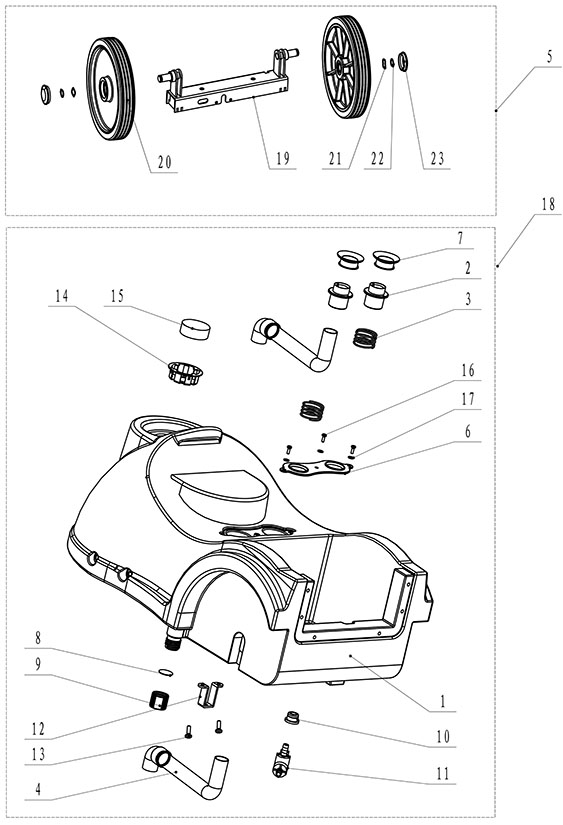

Solution Tank Assembly - 240-1025
RefNbr Part Number Description Req Notes
1 240-2182 Solution tank 1
2 240-2183 Vacuum hose connector 2
3 240-2184 Spring 2
4 240-2185 Vacuum hose 2
5 240-2134 Wheel and axle kit 1 (includes 19-23)
6 240-2045 Plastic plate 1
7 240-2187 Rubber seal 2
8 240-2188 Gasket 1
9 240-2189 Drain cap 1
10 240-2190 Rubber bushing 1
11 240-5973 Solution valve 1
12 240-2191 Cable bracket 1
13 240-0377 Screw M6 x 16mm 2
14 240-2192 Water tank inlet 1
15 240-2193 Water tank inlet filter 1
16 240-0393 Screw M4 x 12mm 3
17 240-0463 Washer M4 plain finish 3
18 240-2132 Solution tank kit 1 (includes 1-4, 6-17)
19 240-2194 Wheel axle 1
20 240-2195 10 inch drive wheel 2
21 240-2196 Wave washer 2
22 240-2197 Snap spring 2
23 240-2198 Wheel cap 2

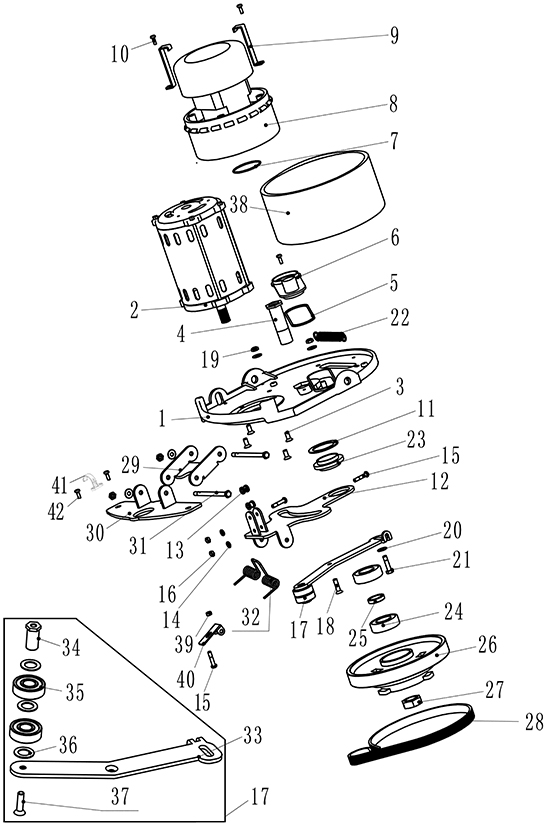

Brush Deck Assembly - 240-1026
RefNbr Part Number Description Req Notes
1 240-2199 Motor mount plate 1
2 240-2200 Brush motor assembly 1
3 999-1383 Screw M6-1 x 16mm hex head stainless steel 4
4 240-2201 Drive belt bolt 1
5 240-2202 Large o-ring 1
6 240-2203 Vacuum sealing cover 1
7 240-2204 Small o-ring 1
8 240-2131 Vacuum motor assembly 1
9 240-2203 Vacuum sealing cover 2
10 240-0393 Screw M4 x 12mm 3
11 270-8550 Washer 1
12 270-8551 Squeegee rotate plate 1
13 270-8552 Squeegee guide wheel 2
14 240-0643 Washer M5 plain 2
15 999-1425 Screw M5-.8 x 25mm pan head stainless steel 3
16 240-2170 Nut M5 lock 2
17 240-2206 Belt adjustment kit 1 (includes 33-37)
18 272-8065 Screw M6 x 25 phillips stainless steel 1
19 999-9131 Nut M6 x 1 nylon lock stainless steel 4
20 240-2150 Washer 3
21 999-1087 Bolt M6-1 x 25mm hex head stainless steel 1
22 270-8553 Spring 1
23 270-8554 Squeegee rotate bushing 1
24 240-2207 Bearing 2
25 270-8555 Bushing 1
26 240-2208 Drive hub 1
27 240-2209 Nut 1
28 240-2210 Drive belt 1
29 240-2211 Squeegee lift plate 1
30 270-8556 Squeegee bracket plate 1
31 240-2212 Squeegee lift rotate bolt 2
32 240-2213 Torsion spring 1
33 270-8557 Belt adjustment plate 1
34 270-8558 Bearing bolt 1
35 270-8559 6201 bearing (OBSOLETE) 2 (only available with 17)
36 270-8560 Washer (OBSOLETE) 3 (only available with 17)
37 270-8561 Screw M6 x 20mm (OBSOLETE) 1 (only available with 17)
38 240-2214 Silencer sponge 1
39 240-2057 Nut M5 1
40 240-2215 Pressure adjustment plate 1
41 270-8562 Drain hose clamp 1
42 240-6397 SCREW PH M4 X 8 2

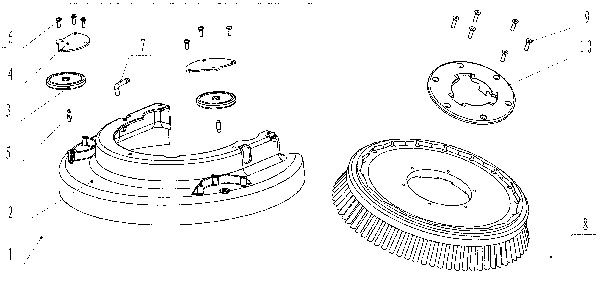

Brush and Brush Skirt Assembly - 240-1027
RefNbr Part Number Description Req Notes
1 240-2140 Skirt assembly 1 (includes 2-7)
2 240-2216 Brush skirt 1
3 240-2217 Bumper wheel 2
4 240-2218 Wheel cover 2
5 240-2219 Shaft 2
6 240-2220 Screw 6
7 270-8563 Elbow 1
8a 240-2128 15 inch brush 1 (includes 9-10)
8b 996-0551 14 inch heavy grit stripping brush - 80 grit 1
8c 996-0569 14 inch medium grit scrubbing brush - 180 grit 1
8d 996-0531 14 inch lite grit scrubbing brush - 500 grit 1
8e 996-0483 14 inch polypropelene scrubbing brush 1
8f 996-3209 14 inch nylon scrubbing brush 1
8g 996-0074 14 inch Pad driver w/ riser 1
8h 270-8505 15 inch pad driver 1 (includes 9-10)
9 240-0439 Screw 1/4 x 1 self-tapping 6
10a 240-2222 Clutch plate 1 (OEM)
10b 991-2208 3 hole clutch plate (formerly 6 hole) 1 (NON-OEM)

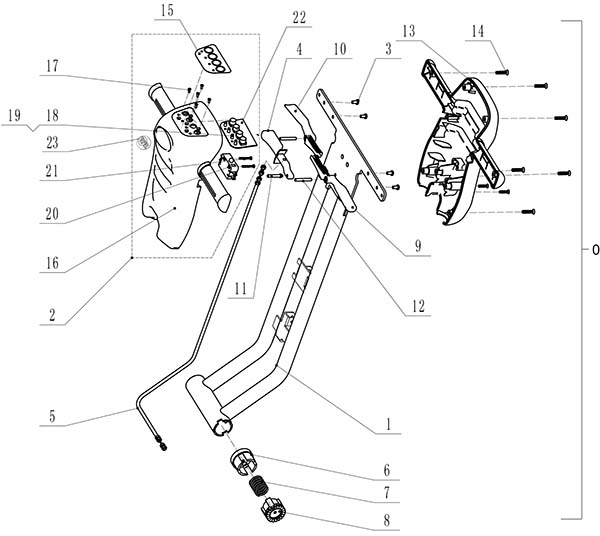

Handle Assembly - 240-1028
RefNbr Part Number Description Req Notes
0 240-2144 Handle assembly kit 1 (includes 1-23)
1 240-2223 Metal handle assembly 1
2 240-2224 Front control housing kit 1 (includes 15-23)
3 999-1274 Screw M5-.8 x 12mm flat head phillips stainless steel 4
4 240-2225 Trigger handle adjustment 1
5 240-2226 Handle adjustment cable 1
6 240-2227 Guide gear bushing 1
7 240-2228 Handle gear spring 1
8 240-2229 Handle adjustment gear 1
9 240-2231 Left and right hand trigger kit 1
10 240-2231 Left and right hand trigger kit 1
11 240-2232 Handle adjustment pin 1
12 240-2233 Trigger pin 2
13 240-2234 Rear control housing 1
14 272-7570 Screw M5 x 25 8
15 240-2235 Switch decal 1
16 240-2236 Front control housing 1
17 999-1947 Screw M4-.7 x 50 hex stainless steel 5
18 240-2237 Insulation bolt 5
19 240-2238 Nut 5
20 272-8640 Switch 1
21 240-0811 Screw M3 x 20mm 2
22 240-2239 Circuit board 1
23 240-6608 Housing decal 1

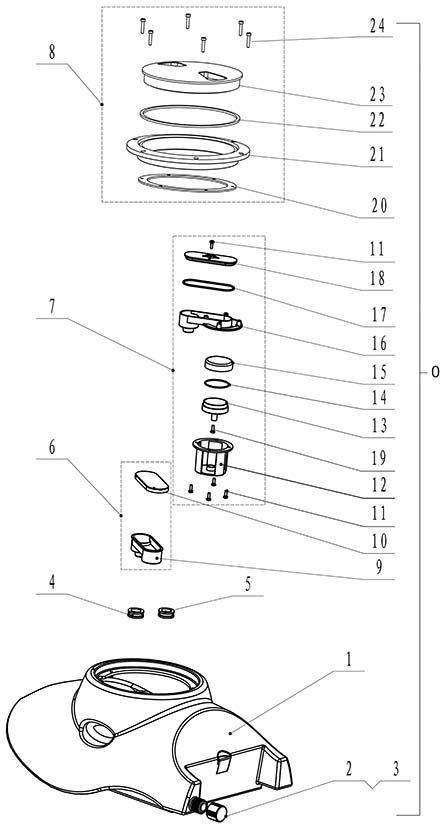

Recovery Tank Assembly - 240-1029
RefNbr Part Number Description Req Notes
0 240-2245 Recovery tank kit 1 (includes 1-24)
1 240-2240 Recovery tank 1
2 240-2188 Gasket 1
3 240-2189 Drain cap 1
4 240-6023 BUSHING TANK RUBBER BLACK 1
5 240-6024 BUSHING TANK RUBBER GREY 1
6 240-2243 Suction kit 1 (includes 9-10)
7 240-2244 Float kit 1 (includes 11-19)
8 240-6017 RECOVERY TANK LID KIT 1 (includes 20-24)
9 240-2246 Outlet base 1
10 240-2247 Cover gasket 1
11 240-2220 Screw 5
12 240-2249 Guide base 1
13 240-2250 Base plug 1
14 240-2204 Small o-ring 1
15 240-2251 Plug cover 1
16 240-2252 Vacuum base 1
17 240-2253 O-ring 1
18 240-2254 Vacuum cover 1
19 240-0462 Screw M4 x 16mm self-tapping 1
20 270-8568 Lid seal (OBSOLETE) 1 (only available with 8)
21 270-8569 Seat for lid (OBSOLETE) 1 (only available with 8)
22 240-5972 SEAL FOR LID 1
23 240-6503 CLEAR LID 1
24 270-8571 Screw M4x12 (OBSOLETE) 6 (only available with 8)

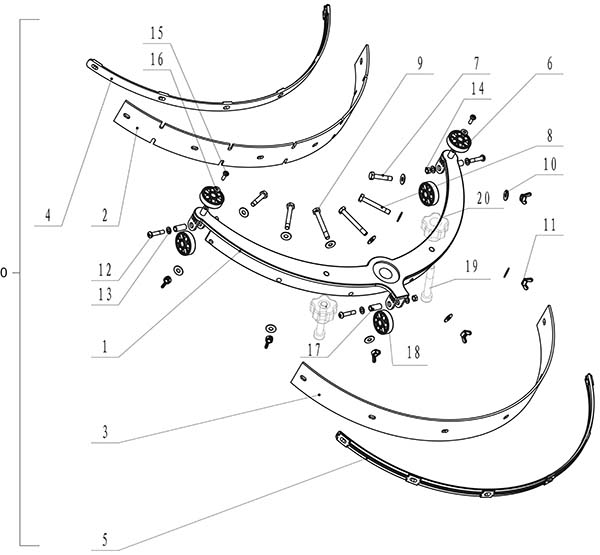

Squeegee Assembly - 240-1030
RefNbr Part Number Description Req Notes
0 240-2141 Squeegee assembly 1 (includes 1-20)
1 240-2259 Squeegee bracket 1
2a 240-2103 Squeegee blade front gum rubber 1
2b 270-8570 Squeegee blade front urethane 1
3a 240-6022 Squeegee blade rear gum rubber 1
3b 270-8572 Squeegee blade rear urethane 1
4 240-2260 Front squeegee strap 1
5 240-2261 Rear squeegee strap 1
6 240-2262 Squeegee wheel 2
7 240-2263 Bolt M6 x 30 hex 2
8 240-2264 Bolt M6 x 45 hex 2
9 240-2265 Bolt M6 x 50 hex 2
10 240-2150 Washer 12
11 240-2266 Wing nut 6
12 272-7569 Screw M5 x 35 3
13 240-0643 Washer M5 plain 6
14 240-2170 Nut M5 lock 3
15 240-0393 Screw M4 x 12mm 2
16 240-0463 Washer M4 plain finish 2
17 240-2267 Bushing 3
18 240-2262 Squeegee wheel 3
19 999-1828 Screw M8-1.25 x 55mm socket head stainless steel 2
20 240-6003 Knob 2

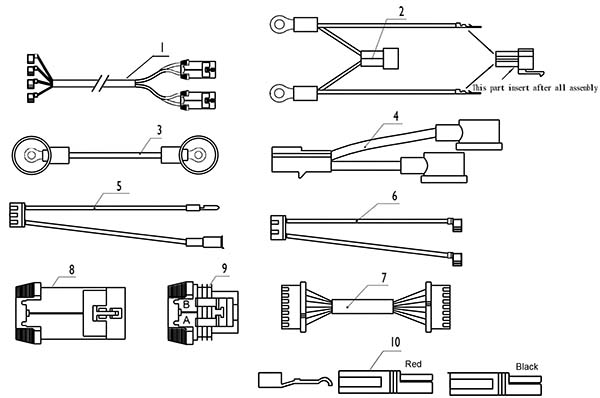

Electrical Parts Assembly - 240-1031
RefNbr Part Number Description Req Notes
1 240-2268 Main power cable CSA 1
1a 240-2268 Main power cable CSA 1
2 240-2269 Main power wire 1
3 240-2179 Battery jumper cable 1
4a 240-2178 Battery cable assembly US w/ red connectors 1
4b 240-5955 POWER WIRE CANADAIN VERSION 1
5 240-2270 Charger input wire 1
6 240-2271 4-leg switch kit 1
7 240-2272 Communication wire 1
8 240-6612 Male connector 1
9 240-6613 Female connector 1
10a 240-6614 Connector terminal 1
10b 240-6615 Connector housing (red) 1
10c 240-6616 Connector housing (black) 1

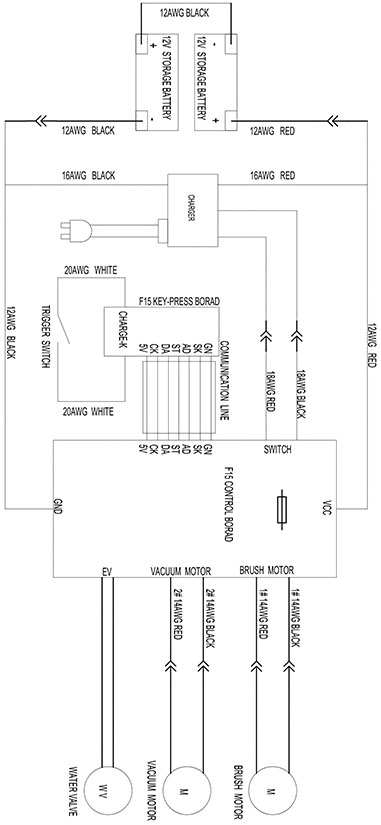

Wiring Diagram -

RefNbr Part Number Description Req Notes

- Batteries, Brushes, and Chargers - 240-1033
RefNbr Part Number Description Req Notes
162-0001 12V 35Ah AGM battery 2
240-2154 Charger kit 1
240-2128 15 inch brush 1
996-0551 14 inch heavy grit stripping brush - 80 grit 1
996-0569 14 inch medium grit scrubbing brush - 180 grit 1
996-0531 14 inch lite grit scrubbing brush - 500 grit 1
996-0483 14 inch polypropelene scrubbing brush 1
996-3209 14 inch nylon scrubbing brush 1
996-0074 14 inch Pad driver w/ riser 1
270-8505 15 inch pad driver 1
