Parts List Complete for FACTORYCAT XR

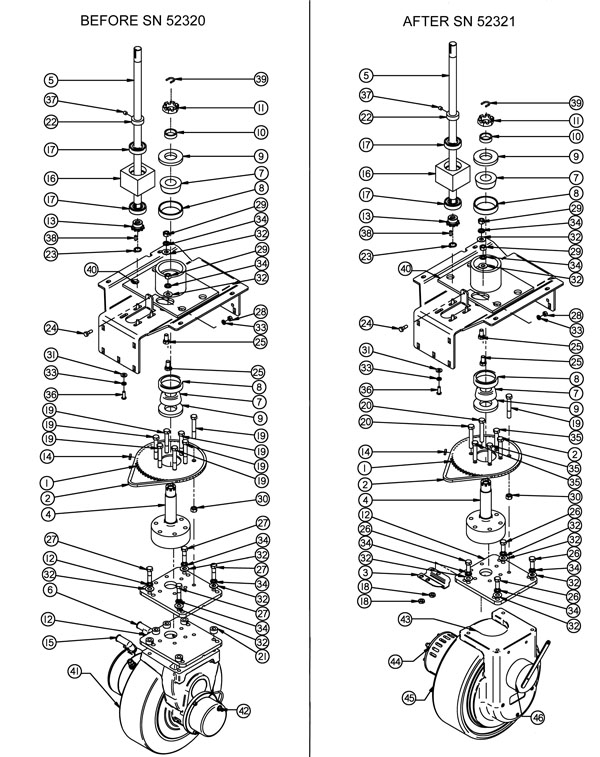

Front Drive Wheel Assembly - 202-0494
RefNbr Part Number Description Req Notes
1 202-1894 60 toothed sprocket 1
2 202-1897 Steering chain 1
3 202-2960 Wire guide 1 (after SN 52321)
4 202-2308 Steering shaft spindle 1
5 202-2527 Lower sheering shaft 1
6 202-2961 Terminal cover (black) 1 (before SN 52320)
7 202-0766 Tapered bearing 2
9 202-0768 Seal 2
10 202-0769 Sleeved bearing 1
11 202-1166 Slotted castle nut 1
12 202-2962 Pivot plate 2
13 202-0280 10 toothed sprocket 1
14 202-0283 Master link 1
15 202-2961 Terminal cover (black) 1 (before SN 52320)
16 202-0771 Bearing block 1
17 202-0160 Bearing 2
18 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel 2 (after SN 52321)
19 999-1488 Bolt 3/8-24 x 2 1/2 hex head stainless steel 7
20 999-1488 Bolt 3/8-24 x 2 1/2 hex head stainless steel 2
21 202-2964 Shaft collar 6 (before SN 52320)
22 202-2216 Shaft collar with set screw 1
23 202-0281 Snap ring 1
24 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 1
25 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 2
26 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 4 (after SN 52321)
27 999-1489 Screw 3/8-16 x 1 1/2 hex head stainless steel 4 (before SN 52320)
28 999-0609 Nut 1/4-20 hex stainless steel 1
29 999-0635 Nut 3/8-16 hex stainless steel 2
30 999-0169 Nut 3/8-24 hex jam plain finish 1
31 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
32 999-0617 Washer 3/8 x 1 flat stainless steel 10
33 999-0632 Washer 1/4 split lock stainless steel 5
34 999-0659 Washer 3/8 medium split lock stainless steel 10
35 999-1490 Screw 12-11 x 1 pan head slotted stainless steel 4 (after SN 52321)
36 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 4
37 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish 1
38 202-0278 Square keyway 1
39 202-2967 S hook 1
41 202-5041 36V 12 inch front drive wheel assembly w/ plate and hardware 1 (before SN 52320 - Polyurethane tire no longer available - Must upgrade to new style drive wheel)
42 202-5041 36V 12 inch front drive wheel assembly w/ plate and hardware 1 (before SN 52320 - Brake no longer available, must upgrade to new style drive wheel)
43a 202-5041 36V 12 inch front drive wheel assembly w/ plate and hardware 1 (includes 44-46) (after SN 52321)
43b 202-3532 36V front drive wheel assembly 1 (for better grip)
44 202-5041 36V 12 inch front drive wheel assembly w/ plate and hardware 1 (after SN 52321)
45a 202-0777 Drive wheel (black) (wheel only) 1 (after SN 52321)
45b 202-0776 Drive wheel (gray) (wheel only) 1 (after SN 52321)
46 202-2455 Brake assembly 1 (after SN 52321)
47 202-0767 Bearing cap 2
48 202-2968 Plate 1 (inlcudes 47)

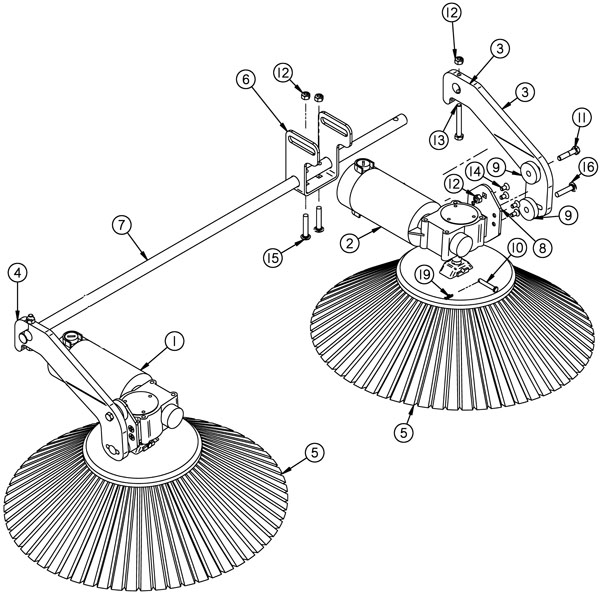

Side Broom Assembly - 202-0495
RefNbr Part Number Description Req Notes
1a 302-0131 36V motor 1 (after SN 5001) (right side)
1b 202-3079 36V motor 1 (before SN 5000) (right side)
2a 202-3066 36V motor left hand 1 (after SN 5001) (left side)
3 202-3068 Left side lifting arm 1
4 202-3069 Right side lifting arm 1
5 202-3070 Polypropelene side broom 2
6 202-3071 Pivot bracket 1
7 202-3072 Axle 1
8 202-3073 Mounting plate 2
9 202-0151 Grommet 4
10 202-0805 Clevis pin 2
11 999-0552 Bolt 5/16-18 x 1 1/2 hex head stainless steel 2
12 999-0423 Nut 5/16-18 nylon insert lock stainless steel 8
13 999-1491 Bolt 5/16-18 x 2 1/2 tapping full thread hex head 2
14 999-1492 Screw 1/4-20 x 1/2 flat head full thread stainless steel 8
15 999-1493 Bolt 5/16-18 x 1 3/4 round head carriage stainless steel 2
16 999-1370 Bolt 5/16-18 x 1 1/2 carriage head stainless steel 2
19 202-0585 Cotter ring 2

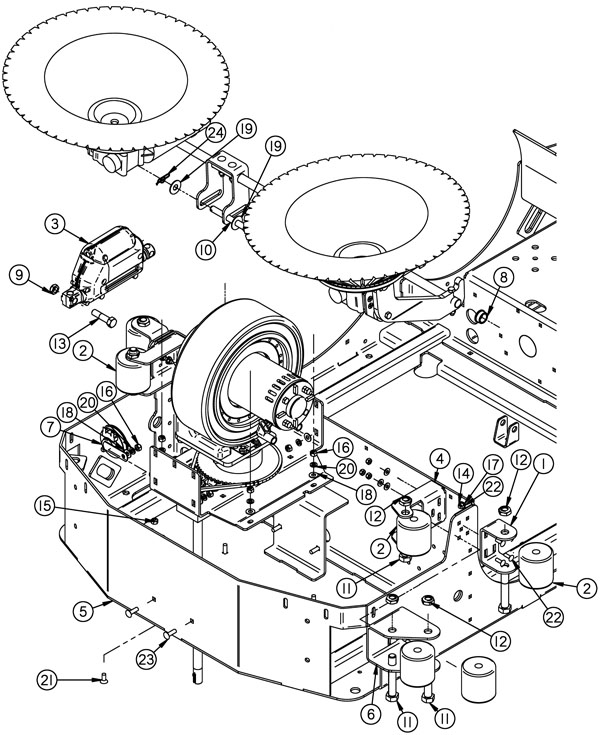

Front Drive Wheel and Side Broom Assembly - 202-0496
RefNbr Part Number Description Req Notes
1 202-0976 20 inch roller bracket 2 (40 inch deck)
2 202-0756 Guide roller 6
3 202-1932 36V actuator 1
4 202-5560 Lower roller bracket 2 (34 inch deck)
5 202-3080 Chassis 1
6 202-3081 Double roller bracket 1 (40 inch deck)
7 202-3082 Horn 1
8 202-1397 Flanged bushing 2
9 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated 1
10 202-3083 Clevis pin 1
11 999-1209 Bolt 5/8-11 x 4 hex head zinc plated 6
12 999-0968 Nut 5/8-11 nylon insert jam lock zinc plated 6
13 999-0657 Bolt 1/2-13 x 2 18-8 hex head stainless steel 1
14 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 9
15 999-0423 Nut 5/16-18 nylon insert lock stainless steel 1
16 999-0423 Nut 5/16-18 nylon insert lock stainless steel 8
17 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 8
18 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 7
19 999-0559 Washer 1/2 x 1/4 flat stainless steel 2
20 999-0553 Washer 5/16 medium split lock stainless steel 8
21 999-1494 Screw 5/16-18 x 3/4 flat head socket stainless steel 1
22 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 13
23 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 8
24 202-2059 Cotter ring 1

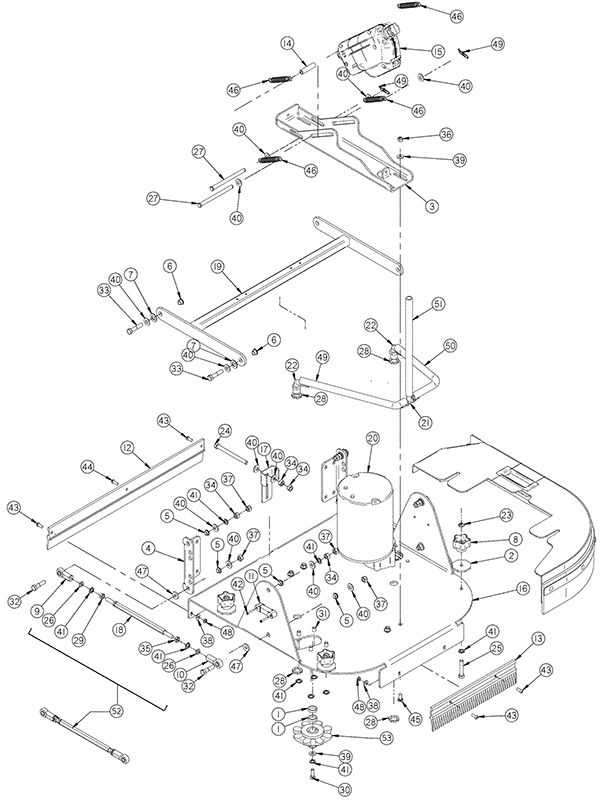

Scrub Deck Assembly - Disk - 202-0497
RefNbr Part Number Description Req Notes
1 202-6063 Spacer. Driver 4
2 202-1946 Adjustment knob plate 4
3 202-1942 Bracket 1
4 202-1879 Bracket 2
5 202-1239 Flanged bearing 8
6 202-0754 Flanged bearing 4
7 202-1181 Washer 1/2 flat bronze 4
8 202-0809 Brass star knob 4
9 202-3085 Left thread rod end 2
10 202-3086 Right thread rod end 2
11 202-5098 2 inch bolt on level 2
12a 202-3087 Front curtain blade 1 (34 and 40 inch)
12b 202-3103 Front curtain blade 1 (45 inch)
13a 202-3088 Rear curtain blade 1 (34 and 40 inch)
13b 202-3104 45 inch rear deck curtain (OBSOLETE) 1 (45 inch)
14 202-3089 Sleeved bearing 1
15 202-5588 36V actuator 1
16a 202-3090 34 and 40 inch scrub deck 1 (34 and 40 inch)
16b 202-3105 45 inch scrub deck 1 (45 inch)
17 202-3091 Adjustment bracket 1
18 202-3092 Adjustable lateral arm 2
19a 202-3093 Lateral brush arm 1 (34 inch)
19b 202-3106 Lateral brush arm 1 (45 inch)
20 202-3094 36V brush motor 2
21 202-0332 1/2 inch barbed tee 1
22 202-0333 Elbow barb 2
23 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel 4
24 202-3095 Bolt 3/8 x 4 1/2 hex head full thread stainless steel 1
25 999-1567 Screw 3/8-24 x 2 hex head stainless steel 4
26 202-3096 Shim 4
27 202-3097 Clevis pin 2
28 999-0330 Nut 1/2-13 acorn brass 4
29 202-3098 Nut hex jam left hand thread 2
30 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 2
31 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel 8
32 202-1970 Bolt 3/8-16 x 1-1/2 hex head stainless steel 4
33 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 4
34 999-0635 Nut 3/8-16 hex stainless steel 6
35 202-3099 Nut 2
36 999-0423 Nut 5/16-18 nylon insert lock stainless steel 4
37 999-1482 Nut 3/8-16 nylon lock stainless steel 8
38 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 5
39 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 6
40 999-0617 Washer 3/8 x 1 flat stainless steel 20
41 999-0659 Washer 3/8 medium split lock stainless steel 22
42 999-1603 Screw 8-32 x 1 flat head phillips SS 4
43 999-1480 Screw 1/4-20 x 5/8 button head socket cap stainless steel 4
44 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 1
45 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 4
46 202-2208 Compression spring 4
47 999-0120 Washer 3/8 SAE flat 4
48 999-0304 Nut 1/4-20 nylon lock jam stainless steel 5
49 202-2036 Cotter pin 2
50 202-3100 Tube (clear) 2
51 202-3101 Wire reinforced hose 1/2 x 14 inch 1
52 202-3102 Lateral arm kit 1 (includes 9-10, 18, 26, 29, and 41)
53a 202-0330 Metal brush driver 1 (before SN 89940)
53b 202-7038 Driver, Brush, Rounded Tooth, Aluminum w/ Insert, Hard coate 1 (after SN 89939)

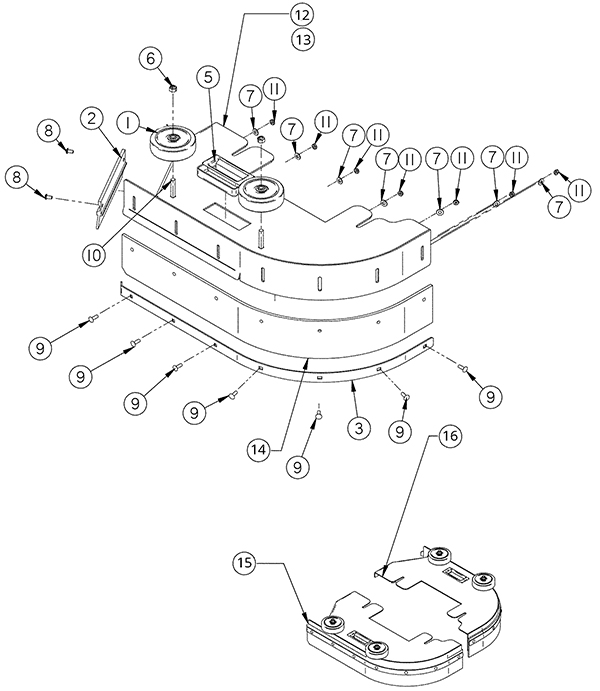

Shroud Assembly - 202-0499
RefNbr Part Number Description Req Notes
1 202-2098 4 inch wheel (gray) 2 (40 and 45 inch only)
2a 202-3349 34 inch shroud curtain blade 1
2b 202-3107 40 and 45 inch shroud curtain blade 1
3 202-3108 Shroud curtain band 1
5 202-0308 Handle 1
6 999-1482 Nut 3/8-16 nylon lock stainless steel 2
7 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 7
8 202-3109 Screw 1/4 x 5/8 button head socket stainless steel 2
9 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 7
10 999-1149 Bolt 3/8-16 x 2 carriage head stainless steel 2
11 999-0304 Nut 1/4-20 nylon lock jam stainless steel 9
12a 202-3110 34 inch left side shroud 1
12b 202-3111 40 inch left side shroud 1
12c 202-3112 45 inch left side shroud 1
13a 202-3113 34 inch right side shroud 1
13b 202-3114 40 inch right side shroud 1
13c 202-3115 45 inch right side shroud 1
14a 202-3116 Wiper blade (linatex) 1
14b 202-3117 Wiper blade (gum rubber) 1
14c 202-7642 Wiper,Shroud,Urethane 34 inch/40 inch/45 inch Disk 1
15a 202-3118 34 inch left side shroud assembly 1 (includes 2a, 3, 5-11, 12a, and 14)
15b 202-3119 40 inch left side shroud assembly 1 (includes 1, 2b, 3, 5-11, 12b, and 14)
15b 202-3120 45 inch left side shroud assembly 1 (includes 1, 2b, 3, 5-11, 12c, and 14)
16a 202-3121 34 inch right side shroud assembly 1 (includes 2a, 3, 5-11, 13a, and 14)
16b 202-3122 40 inch right side shroud assembly 1 (includes 1, 2b, 3, 5-11, 13b, and 14)
16c 202-3123 45 inch right side shroud assembly 1 (includes 1, 2b, 3, 5-11, 13c, and 14)
N/S 202-9607 Inner shroud curtain 1

Wiper Assembly - Cylindrical - 202-0500
RefNbr Part Number Description Req Notes
1 202-1239 Flanged bearing 4
2 202-3124 Shroud arm 1
3 202-3125 Inner wiper retaining band 1
4 202-3126 Outer wiper retaining band 1
5 202-7663 Arm, Shroud Vertical, Rear 1
6 202-3127 4 inch chain (6 inch no longer available) 1
7 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 1
8 999-0593 Nut 5/16-18 hex stainless steel 1
9 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
10 999-0617 Washer 3/8 x 1 flat stainless steel 2
11 999-1634 Bolt 5/16-18 x 1 1/2 hex head stainless steel 2
12 999-1345 Screw 1/4-20 x 1 flat head phillips stainless steel 1
13 999-0734 Screw 5/16-18 x 1 3/4 flat head socket zinc plated 1
14 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 6
15 999-1401 Bolt 1/4-20 x 1 carriage head stainless steel 1
16 202-2832 Bolt 3/8 - 16 x 1 carriage head stainless steel 2
17 202-1968 Clevis pin 1
18 202-2208 Compression spring 1
19 999-0304 Nut 1/4-20 nylon lock jam stainless steel 10
20 999-1019 Nut 5/16-18 hex jam stainless steel 2
21 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel 2
22 202-2036 Cotter pin 1
23 202-3128 Sleeved bearing 2
24 202-3129 Cotter pin 1
25a 202-3130 Left side horizontal wiper arm 1
25b 202-3131 Right side horizontal wiper arm 1
26a 202-3132 Wiper blade (linatex) 1
26b 202-3133 Wiper blade (gum rubber) 1
26c 202-7655 Wiper,Cylindrical,Urethane 1
27 202-3134 Left side wiper assembly 1 (includes 1-24 25a and 26a)
28 202-3135 Right side wiper assembly 1 (includes 1-24, 25b and 26a)

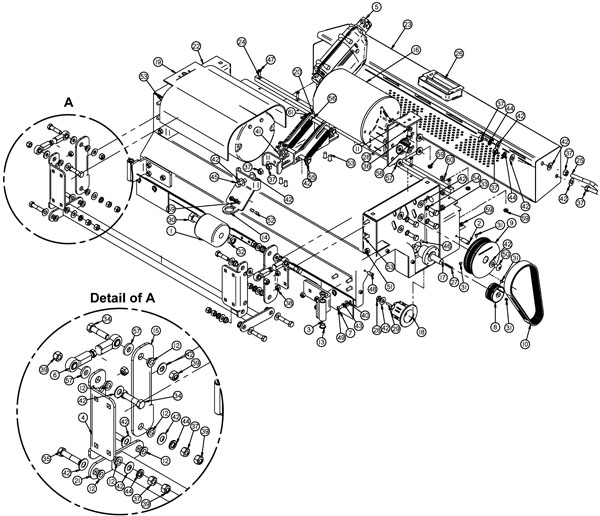

Scrub Deck Assembly - Cylindrical - 202-0501
RefNbr Part Number Description Req Notes
1 202-0756 Guide roller 1
2 202-3136 Retaining pin 2
3 202-3137 Hinge 2
4 202-1879 Bracket 2
5 202-1932 36V actuator 1
6 202-3138 Adjustable ball joint 2
7 202-3139 Curtain blade 2
8 202-3140 32 toothed sprocket 2
9 202-3141 68 toothed sprocket 2
10 202-2877 Belt 2
11 202-3142 Motor adjustment bracket 2
12 202-1239 Flanged bearing 12
13 202-0754 Flanged bearing 4
14 202-3143 Bracket 1
15a 202-3144 34 inch lifting bracket 2 (same for both left and right sides)
15b 202-3159 40 inch right side lifting bracket 2
15c 202-3161 40 inch left side lifting bracket 2
15d 202-3160 45 inch right side lifting bracket 2
15e 202-3162 45 inch left side lifting bracket 2
16 202-3145 36V brush motor 2
17 202-3146 Bearing housing 2
18 202-3147 Brush driver 2
19 202-3148 Motor shield 2
20 202-3149 Lifting bracket 1
21 202-3150 Lateral arm 1
22a 202-3151 34 inch scrub deck 1
22b 202-3163 40 inch scrub deck 1
22c 202-3164 45 inch scrub deck 1
23a 202-3152 34 inch hopper 1
23b 202-3166 40 inch hopper 1
23c 202-3167 45 inch hopper 1
24a 202-2483 34 inch hopper rail 1
24b 202-3165 40 and 45 inch hopper rail 1
25 202-0855 Hopper handle 1
26 202-0308 Handle 1
27 202-0847 Square keyway 2
28 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel 4
29 202-3153 Square keyway 2
30 999-1209 Bolt 5/8-11 x 4 hex head zinc plated 1
31 202-3154 Screw 1/4-20 x 1/4 set 8
32 999-0968 Nut 5/8-11 nylon insert jam lock zinc plated 1
33 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 8
34 999-1489 Screw 3/8-16 x 1 1/2 hex head stainless steel 4
35 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 4
36 999-1498 Screw 3/8-24 x 1 hex head stainless steel 2
37 999-0635 Nut 3/8-16 hex stainless steel 10
38 999-0423 Nut 5/16-18 nylon insert lock stainless steel 16
39 999-1482 Nut 3/8-16 nylon lock stainless steel 8
40 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
41 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 10
42 999-0617 Washer 3/8 x 1 flat stainless steel 34
43 999-0632 Washer 1/4 split lock stainless steel 4
44 999-0659 Washer 3/8 medium split lock stainless steel 6
45 999-0041 Bolt 3/8-16 x 2 1/2 hex head full thread grade 5 zinc plated 1
46 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel 8
47 999-1189 Screw 10-32 x 3/4 flat head phillips stainless steel 6
48 999-0338 Screw 1/4-20 x 1/2 socket head shoulder 8
49 999-1480 Screw 1/4-20 x 5/8 button head socket cap stainless steel 4
50 999-1481 Screw 3/8-16 x 1/2 button head stainless steel 2
51 N/A Not available 8 (Bolt)
52 999-1442 Bolt 1/4-20 x 1/2 carriage stainless steel 2
53 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 14
54 202-3158 Washer 3/8 inch serrated stainless steel 8
55 202-1968 Clevis pin 2
56 202-2208 Compression spring 4
57 999-0120 Washer 3/8 SAE flat 12
58 202-0140 Steering shaft key 2
59 999-0304 Nut 1/4-20 nylon lock jam stainless steel 10
60 999-0423 Nut 5/16-18 nylon insert lock stainless steel 6
61 202-2036 Cotter pin 2

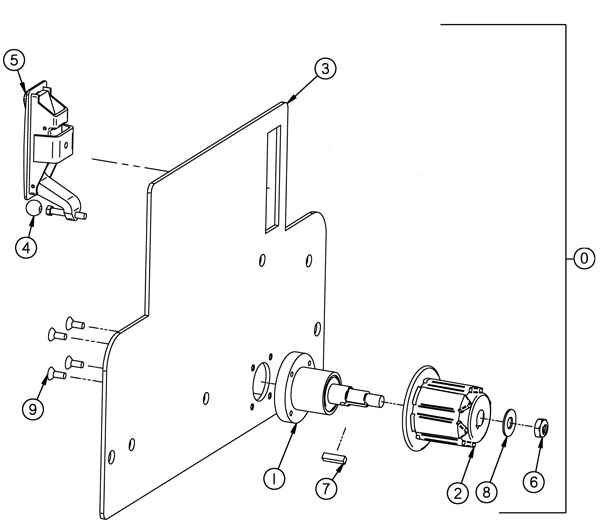

Door Assembly - Cylindrical - 202-0502
RefNbr Part Number Description Req Notes
0 202-3171 Door kit assembly 1 (includes 1-9)
1 202-3168 Idler drive bearing 1
2 202-3147 Brush driver 1
3 202-3169 Brush driver cover 1
4 202-3170 Grommet 1
5 202-0404 Latch 1
6 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel 1
7 202-3153 Square keyway 1
8 999-0617 Washer 3/8 x 1 flat stainless steel 1
9 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel 4

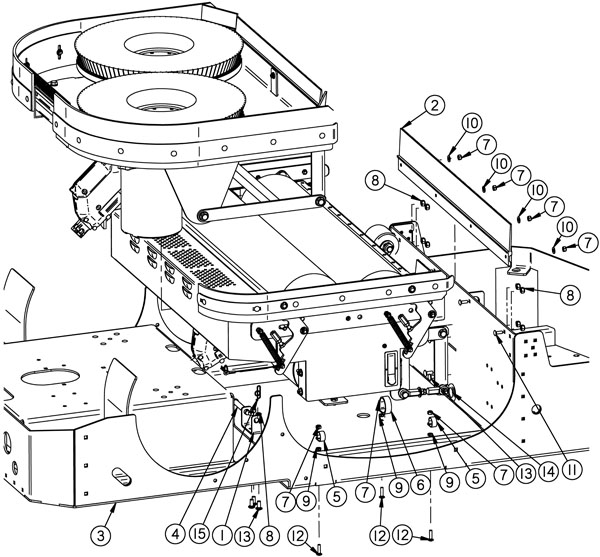

Deck Attachment Assembly - 202-0503
RefNbr Part Number Description Req Notes
1 202-1903 Lifting bracket 1
2 202-3172 Front curtain blade 1
3 202-3080 Chassis 1
4 202-3173 Clevis pin 1
5 202-3174 P clamp 2 (small)
6 202-3175 P clamp 1 (large)
7 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 7
8 999-0423 Nut 5/16-18 nylon insert lock stainless steel 16
9 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 3
10 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
11 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 3
12 999-1401 Bolt 1/4-20 x 1 carriage head stainless steel 3
13 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 6
14 202-2592 Grommet 3
15 202-2059 Cotter ring 1

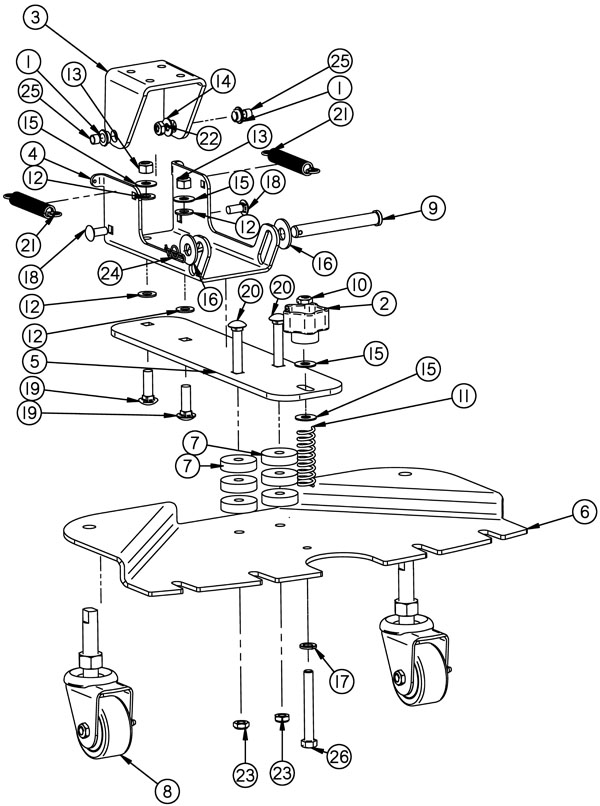

Squeegee Trail Arm Assembly - 202-0504
RefNbr Part Number Description Req Notes
1 202-1239 Flanged bearing 2
2 202-0809 Brass star knob 1
3 202-3177 Pivot bracket 1
4 202-3178 Swing plate 1
5 202-3179 Trail arm 1
6 202-3180 Triangle plate 1
7 202-0151 Grommet 6
8 202-2445 Caster wheel 2
9 202-3083 Clevis pin 1
10 999-1151 Nut 3/8-24 nylon insert jam lock stainless steel 1
11 202-2945 Spring 1
12 999-1007 Washer 3/8 x 1/16 flat nylon 4
13 999-1482 Nut 3/8-16 nylon lock stainless steel 2
14 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
15 999-0617 Washer 3/8 x 1 flat stainless steel 4
16 999-0559 Washer 1/2 x 1/4 flat stainless steel 2
17 999-0659 Washer 3/8 medium split lock stainless steel 1
18 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 2
19 999-1150 Bolt 3/8-16 x 1 1/4 carriage head stainless steel 2
20 999-1149 Bolt 3/8-16 x 2 carriage head stainless steel 2
21 202-2208 Compression spring 2
22 999-0423 Nut 5/16-18 nylon insert lock stainless steel 2
23 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel 2
24 202-2059 Cotter ring 1
25 202-3128 Sleeved bearing 2
26 999-1441 Bolt 3/8-16 x 3 1/2 hex head stainless steel 1

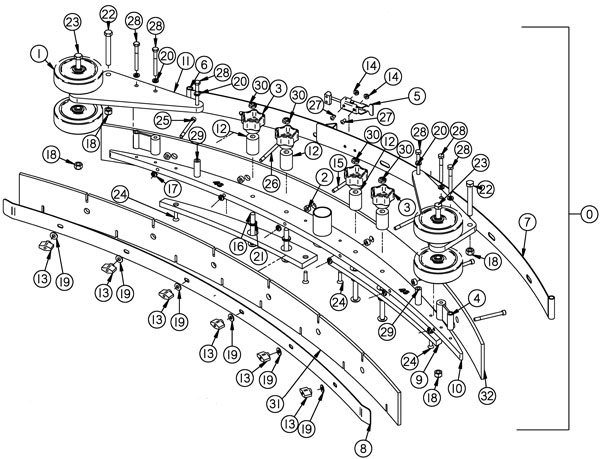

Squeegee Assembly - 34 and 40 inch - 202-0505
RefNbr Part Number Description Req Notes
0a 202-3204 34 inch squeegee assembly 1 (34 inch) (includes 1-5, 6a, 7a, 8a, 9a, 10a, 11-30, 31a and 32a)
0b 202-3212 53 inch squeegee assembly 1 (40 inch) (includes 1-5, 6b, 7b, 8b, 9b, 10b, 11-30, 31c and 32c)
1 202-2098 4 inch wheel (gray) 4
2 202-0702 Spacer 6
3 202-1999 Star knob 4
4 202-3182 Bracket 2
5 202-2898 Latch 1
6a 202-3183 34 inch right side rear squeegee band 1 (34 inch)
6b 202-3205 40 and 45 inch right side rear squeegee band 1 (40 inch)
7a 202-3184 34 inch left side rear squeegee band 1 (34 inch)
7b 202-3206 40 inch left side rear squeegee band 1 (40 inch)
8a 202-3185 34 inch front squeegee band 1 (34 inch)
8b 202-3207 40 inch front squeegee band 1 (40 inch)
9a 202-3186 34 inch bottom weldment plate 2 (34 inch)
9b 202-3209 40 inch bottom weldment plate 1 (40 inch)
10a 202-3187 34 inch squeegee weldment 1 (34 inch)
10b 202-3208 40 inch squeegee weldment 1 (40 inch)
11 202-3188 Caster bracket 2
12 202-3189 Spacer 4
13 202-0711 Clamping knob (pkg of 2) 6
14 999-1269 Nut 10-32 nylon insert jam stainless steel 2
15 202-3191 Screw 1/4-20 x 3 1/4 socket head stainless steel 2
16 999-1273 Screw 3/8-16 x 3 1/2 button head socket stainless steel 4
17 999-0304 Nut 1/4-20 nylon lock jam stainless steel 6
18 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel 4
19 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6
20a 999-0632 Washer 1/4 split lock stainless steel 6 (34 inch)
20b 999-0429 Nut 1/4-20 acorn nickel plated 2 (40 inch)
21 999-0659 Washer 3/8 medium split lock stainless steel 4
22 202-3193 Bolt 3/8-16 x 3 inch hex head stainless steel 2
23 202-3194 Bolt 3/8-16 x 4 inch hex head stainless steel 2
24a 999-1345 Screw 1/4-20 x 1 flat head phillips stainless steel 4 (34 inch)
24b 999-1501 Screw 1/4-20 x 3 1/2 flat head phillips stainless steel 2 (40 inch)
25a 202-3195 Screw 1/4-20 x 2-1/2 inch socket stainless steel 2 (34 inch)
25b 999-1447 Screw 1/4-20 x 1 3/4 flat socket head stainless steel 2 (40 inch)
26 202-3196 Screw 1/4-20 x 3 inch socket stainless steel 2
27 202-3197 Screw 10-32 x 3/8 inch button head socket stainless steel 2
28 202-3198 Screw 1/4-20 x 2-1/2 inch hex head stainless steel 6
29 202-3199 Spacer 2
30 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 4
31a 202-3200 Squeegee blade 34 inch linatex front 1 (34 inch)
31b 202-3201 Squeegee blade 34 inch gum rubber front 1 (34 inch)
31c 202-2937 Squeegee blade 40 inch linatex front 1 (40 inch)
31d 202-2956 Squeegee blade 40 inch gum rubber front 1 (40 inch)
32a 202-3202 Squeegee blade 34 inch linatex rear 1 (34 inch)
32b 202-3203 Squeegee blade 34 inch gum rubber rear (OBSOLETE) 1 (34 inch)
32c 202-2938 Squeegee blade 40 inch linatex rear (red) 1 (40 inch)
32d 202-2957 Squeegee blade 40 inch gum rubber rear 1 (40 inch)

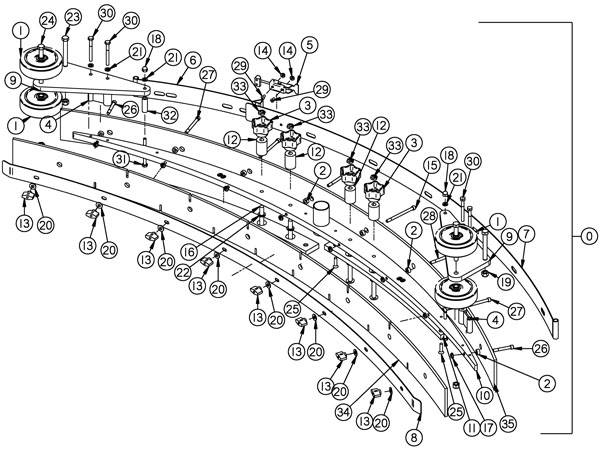

Squeegee Assembly - 45 inch - 202-0507
RefNbr Part Number Description Req Notes
0 202-3218 45 inch squeegee assembly 1 (includes 1-33)
1 202-2098 4 inch wheel (gray) 4
2 202-0702 Spacer 8
3 202-1999 Star knob 4
4 202-3182 Bracket 2
5 202-2898 Latch 1
6 202-3205 40 and 45 inch right side rear squeegee band 1
7 202-3213 45 inch left side rear squeegee band 1
8 202-3214 45 inch front squeegee band 1
9 202-3188 Caster bracket 2
10 202-3215 45 inch squeegee weldment 1
11 202-3216 45 inch bottom weldment plate 2
12 202-3189 Spacer 4
13 202-0711 Clamping knob (pkg of 2) 8
14 999-1269 Nut 10-32 nylon insert jam stainless steel 2
15 202-3191 Screw 1/4-20 x 3 1/4 socket head stainless steel 2
16 999-1499 Screw 3/8-16 x 3 button head socket stainless steel 4
17 999-0304 Nut 1/4-20 nylon lock jam stainless steel 8
18 999-0429 Nut 1/4-20 acorn nickel plated 2
19 999-1482 Nut 3/8-16 nylon lock stainless steel 4
20 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 8
21 999-0632 Washer 1/4 split lock stainless steel 6
22 999-0659 Washer 3/8 medium split lock stainless steel 4
23 999-1500 Bolt 3/8-16 x 3 hex head tapping stainless steel 2
24 999-0795 Bolt 3/8-16 x 4 hex head stainless steel 2
25 999-1345 Screw 1/4-20 x 1 flat head phillips stainless steel 4
26 999-1447 Screw 1/4-20 x 1 3/4 flat socket head stainless steel 2
27 999-1502 Screw 1/4-20 x 2 1/2 hex head socket stainless steel 2
28 999-1503 Screw 1/4-20 x 3 hex head socket stainless steel 2
29 999-1270 Screw 10-32 x 3/8 button head socket stainless steel 2
30 999-1187 Bolt 1/4-20 x 2 1/2 hex head stainless steel 4
31 999-1096 Bolt 1/4-20 x 3 hex head stainless steel 2
32 202-3199 Spacer 2
33 999-9071 Nut 3/8-16 nylon insert jam lock stainless steel 4
34a 202-2947 Squeegee blade 45 inch linatex front 1
34b 202-2948 Squeegee blade 45 inch gum rubber front 1
35a 202-2951 Squeegee blade 45 inch linatex rear 1
35b 202-2952 Squeegee blade 45 inch gum rubber rear 1
35c 202-2954 Rear urethane squeegee blade 60 inch 1

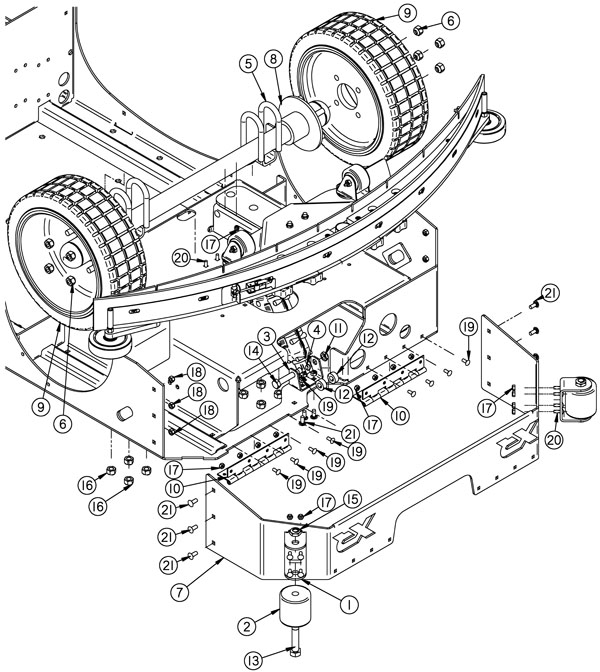

Rear Axle Assembly - 202-0508
RefNbr Part Number Description Req Notes
1 202-0976 20 inch roller bracket 2
2 202-0756 Guide roller 2
3 202-1903 Lifting bracket 1
4 202-1932 36V actuator 1
5 202-1154 U bolt 1/2-13 x 1 1/4 4
6 202-1153 Nut 1/2-20 lug 8
7 202-3219 Rear bumper 1
8 202-3220 Rear axle 1
9 202-3221 14 inch wheel (black) 2
10 202-0403 Hinge 2
11 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated 1
12 202-3222 Shaft collar with set screw 2
13 999-1209 Bolt 5/8-11 x 4 hex head zinc plated 2
14 999-0049 Bolt 1/2-13 x 3 1/2 hex head grade 5 1
15 999-0968 Nut 5/8-11 nylon insert jam lock zinc plated 2
16 999-0842 Nut 1/2-20 nylon insert lock zinc plated 8
17 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 17
18 999-0423 Nut 5/16-18 nylon insert lock stainless steel 9
19 999-1484 Bolt 1/4-20 x 5/8 round head carriage stainless steel 8
20 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 12
21 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 9

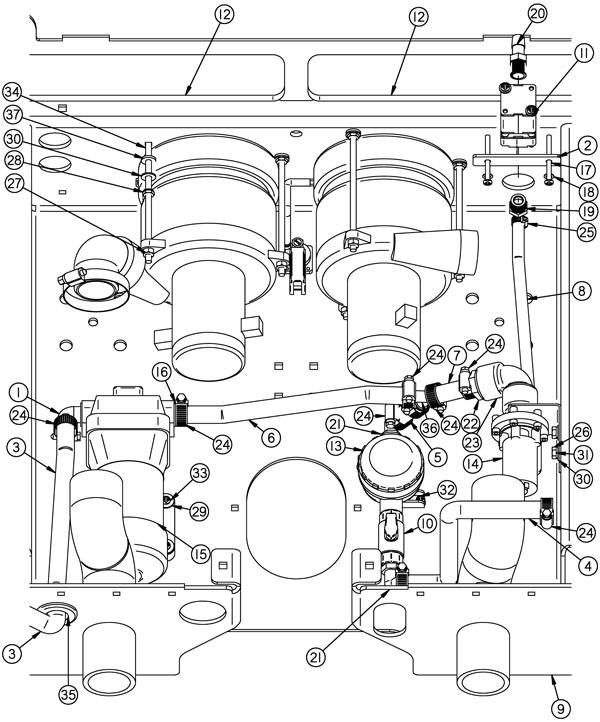

Dual Vacuum Motor Assembly - 202-0509
RefNbr Part Number Description Req Notes
1 202-1906 Vacuum motor housing 2
2 202-1917 Vacuum motor gasket 2
3 202-2903 Hose 1/4 x 9 1/2 inch 1
4a 202-1904 36V 3 stage vacuum motor 2 (Tomcat)
4b 991-1202 36V 3 stage vacuum motor tangential 2 (NON-OEM)
4c 991-1221 Carbon brush without plastic cover (pkg of 2) 4
5 202-1913 Exhaust elbow 2
6 202-2111 2 inch hose cuff 2
7 202-3224 Vacuum muffler hose 2
9 202-3225 90 degree elbow 2
10 202-1916 Unloader valve 2
11 202-1908 Vacuum shut-off switch 1
12 202-1919 Barbed fitting 1
13 202-6394 Muffler, Vac Fan 2
14 997-2011 Hose clamp 4
16 202-3226 Barbed tee 1
17 997-2003 Hose clamp 4
18 202-2066 Hose clamp 2
19 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel 1

Solution Hose Assembly - 202-0510
RefNbr Part Number Description Req Notes
1 202-1008 Barbed elbow 1
2 202-3058 Valve bracket 1
3 202-0104 18 foot rubber hose (blue) 1
4 202-3228 Hose 1/2 x 12 inch (clear) 1
5 202-3229 Operator's manual holder 1
6 202-3230 Hose 1/2 x 10 inch (clear) 1
7 202-3231 Hose 1/2 x 8 inch (clear) 1
8 202-3232 Hose 3/8 x 16 inch (clear) 1
9 202-3080 Chassis 1
10 202-3057 Ball valve 1
11 202-3038 36V solenoid valve 1
12 202-3233 Tank gasket (large) 2
13 202-3234 Inline filter 1
14 202-2895 36V wand spray pump 1
15 202-2368 36V water jet pump 1
16 202-0107 1/2 inch hosebarb 1
17 999-1017 Screw 10-32 x 2 1/4 pan head phillips stainless steel 2
18 202-2589 Nut 10-32 crimp hex 6
19 202-3235 90 degree elbow 1
20 202-3236 Threaded barb 1
21 202-3059 Elbow barb 2
22 202-3241 Threaded barb 1
23 202-3237 Threaded elbow 1
24 202-0680 Hose clamp 9
25 202-3238 Hose clamp 1
26 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
27 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 6
28 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 6
29 999-0998 Washer #10 flat stainless steel 2
30 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 8
31 999-0632 Washer 1/4 split lock stainless steel 2
32 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 2
33 999-0870 Screw 8 x 3/4 pan head phillips stainless steel 2
34 999-1219 Bolt 1/4-20 x 6 carriage head stainless steel 6
35 202-2592 Grommet 1
36 202-3239 Tee 1
37 202-1986 Washer 3/8 x 1-1/8 x 3/32 neoprene thread 6

Tank Lid Assembly - 202-0511
RefNbr Part Number Description Req Notes
1 202-1982 Tank lid gasket (upper) 1
2 202-1983 Tank lid (upper) (clear) 1
3 202-3242 Prop rod 1
4 202-3127 4 inch chain (6 inch no longer available) 2
5 202-3243 Tank cover gasket 1
6 202-0403 Hinge 2
7 999-0429 Nut 1/4-20 acorn nickel plated 6
8 999-0086 Nut 10-32 nylon insert lock zinc plated 4
9 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6
10 999-0632 Washer 1/4 split lock stainless steel 6
11 999-1290 Screw #14 x 1 truss head phillips stainless steel 8
12 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel 4
13 999-1484 Bolt 1/4-20 x 5/8 round head carriage stainless steel 6
14 202-3244 Neoprene washer 2
15a 202-3246 Tank cover (stainless steel) 1
15b 202-3246 Tank cover (stainless steel) 1

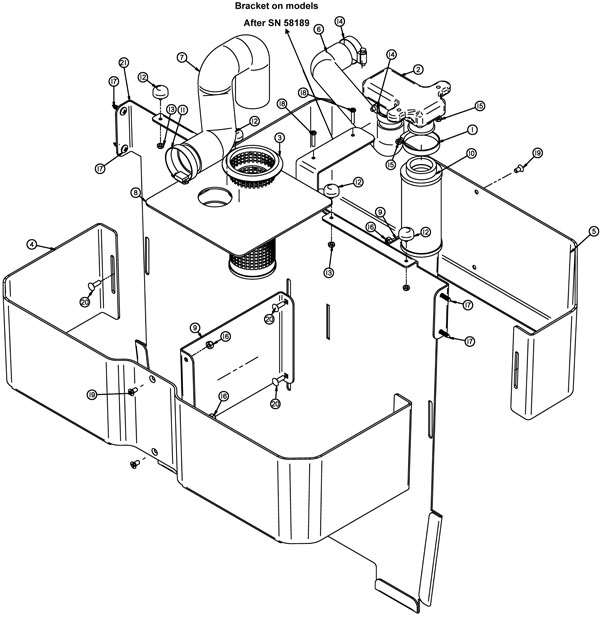

Tank Baffle Assembly - 202-0512
RefNbr Part Number Description Req Notes
1 202-1640 Nylon clamp 1
2a 202-0897 Vacuum box 1
2b 202-1644 Vac box filter 1
3 202-2027 Strainer 1
4 202-3247 Rear tank band 1
5 202-3248 Front tank band 1
6 202-4101 Wire reinforced hose 1 1/2 x 15 inch (black) 1
7 202-3250 Hose 2 x 15 inch 1
8 202-3251 Splash panel 1
9 202-3254 Tank brace 2
10 202-3255 Vacuum screen 1
11 997-2011 Hose clamp 1
12 202-3543 10-24 x 1 threaded stud 4
13 999-1504 Nut 10-24 jam insert lock stainless steel 4
14 202-3256 Hose clamp 2
15 999-0086 Nut 10-32 nylon insert lock zinc plated 2
16 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 8
17 999-1290 Screw #14 x 1 truss head phillips stainless steel 4
18 999-0870 Screw 8 x 3/4 pan head phillips stainless steel 2
19 999-1492 Screw 1/4-20 x 1/2 flat head full thread stainless steel 4
20 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 4
21a 202-3252 Tank baffle (black) 1
21b 202-3253 Tank baffle (stainless steel) 1

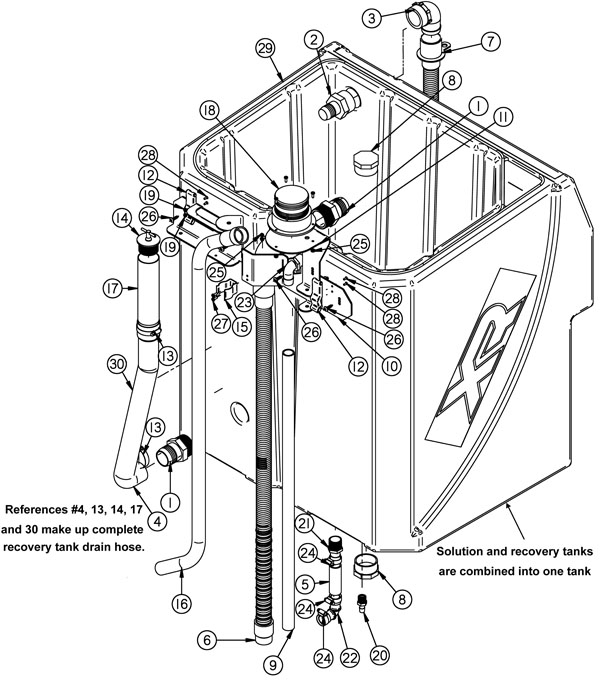

Tank Assembly - 202-0513
RefNbr Part Number Description Req Notes
1 202-2025 Hosebarb 2
2 202-2118 Hosebarb 1
3 202-0703 Elbow 2
4 202-0708 Drain hose 1 (recovery tank drain hose)
5 202-3258 Reinforced tube 1
6 202-3257 Squeegee vacuum hose 1 (squeegee to tank)
7 202-3259 Hose 1 (tank to vacuum motor)
8 202-3033 Tank plug 2
9 202-3260 Sight tube 1 (solution tank drain hose and solution level)
10 202-3261 Utility handle 1
11 202-3262 Strobe light bracket 1
12 202-1487 Latch 2
13 997-2011 Hose clamp 2
14 202-0240 Drain hose plug 1
15 202-0090 Wand clip 1
16 202-0094 54 inch wand tube 1 (optional wand accessory)
17 202-0694 Drain hose end tube 1 (recovery tank drain hose)
18 202-0383 Strobe light 1
19 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel 4
20 202-3263 Fitting 1/2 x 1/2 inch 1
21 202-3264 Fitting 1 x 1 inch 1
22 202-3265 Coupler 1
23 202-3266 Elbow barb 1
24 202-2066 Hose clamp 3
25 999-0086 Nut 10-32 nylon insert lock zinc plated 4
26 999-1290 Screw #14 x 1 truss head phillips stainless steel 5
27 999-1350 Screw 10-32 x 1/2 inch phillips pan head stainless steel 5
28 999-1505 Screw 8-32 x 3/8 flat head phillips stainless steel 4
29a 202-3063 Tank (red) 1
29b 202-3064 Complete conversion kit to new tank-in-tank style (granite) 1
30 202-3039 Drain hose 1 (recovery tank drain hose)

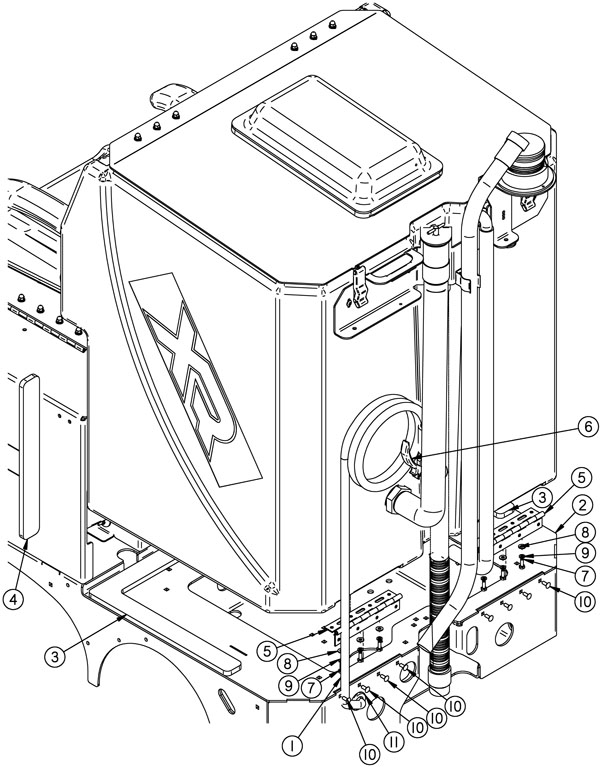

Tank Mounting Assembly - 202-0514
RefNbr Part Number Description Req Notes
1 202-0104 18 foot rubber hose (blue) 1
2 202-3080 Chassis 1
3 202-3233 Tank gasket (large) 2
4 202-3268 Tank gasket (small) 2
5 202-0403 Hinge 2
6 202-0103 Spray nozzle 1
7 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 6
8 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 5
9 999-0632 Washer 1/4 split lock stainless steel 6
10 999-1484 Bolt 1/4-20 x 5/8 round head carriage stainless steel 8
11 202-2592 Grommet 1

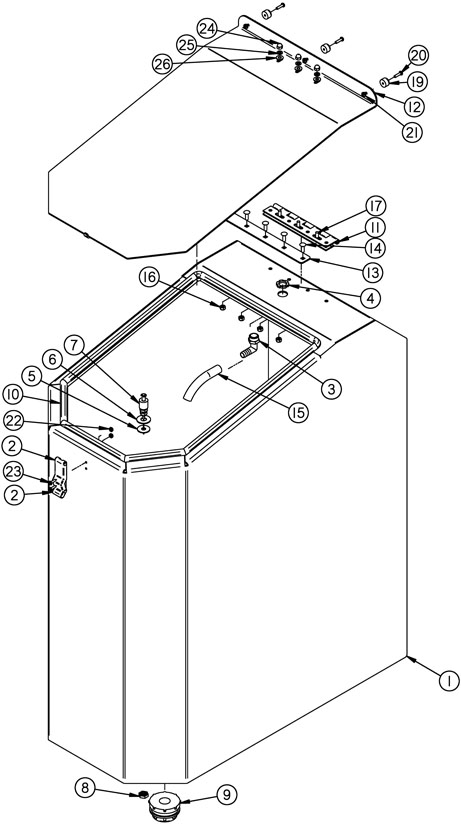

OPTIONAL - Stainless Steel Solution Tank Assembly - 202-0515
RefNbr Part Number Description Req Notes
1 202-3269 Solution tank (stainless steel) 1
2 202-1487 Latch 1
3 202-0333 Elbow barb 1
4 999-0330 Nut 1/2-13 acorn brass 1
5 202-2145 Washer 3/4 rubber 1
6 999-0559 Washer 1/2 x 1/4 flat stainless steel 1
7 202-3270 Float valve switch 1
8 999-1506 Screw M10-1.5 x 22mm socket set 1
9 202-3272 Bulkhead fitting 1
10 202-2385 67 inch push-on rubber gasket 1
11 202-0403 Hinge 1
12 202-3273 Tank cover 1
13 202-3274 Bracket 1
14 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 4
15 N/A Not available 1 (Hose 1/2 x 4 inch)
16 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4
17 999-1484 Bolt 1/4-20 x 5/8 round head carriage stainless steel 3
19 202-3275 Rubber bumper 3
20 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 3
21 999-0086 Nut 10-32 nylon insert lock zinc plated 3
22 999-0357 Nut 8-32 nylon insert lock stainless steel 2
23 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel 2
24 999-0429 Nut 1/4-20 acorn nickel plated 3
25 999-0632 Washer 1/4 split lock stainless steel 3
26 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 3

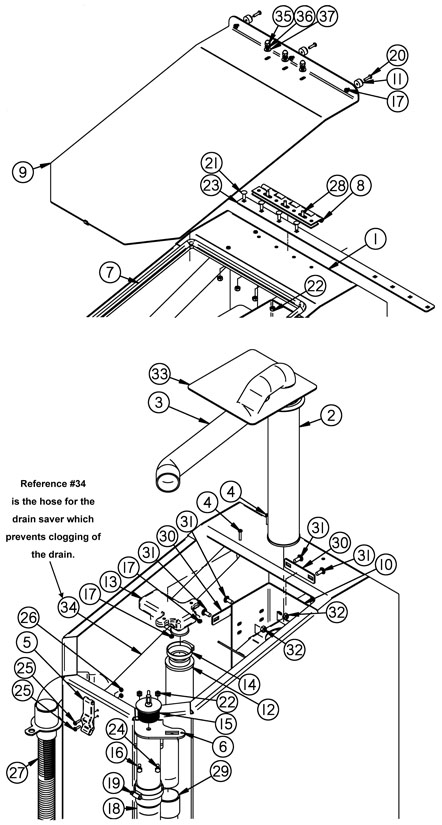

OPTIONAL - Stainless Steel Recovery Tank Assembly - 202-0516
RefNbr Part Number Description Req Notes
2 202-2027 Strainer 1
3 202-3277 Hose 2 x 27 inch (gray) 1
4 999-0870 Screw 8 x 3/4 pan head phillips stainless steel 2
5 202-1487 Latch 1
6 202-2391 Drain hose bracket 1
7 202-2385 67 inch push-on rubber gasket 1
8 202-0403 Hinge 1
9 202-3273 Tank cover 1
10 202-3278 Drain saver curtain 1
11 202-3275 Rubber bumper 3
12 202-3255 Vacuum screen 1
13a 202-0897 Vacuum box 1
13b 202-1644 Vac box filter 1
14 202-1640 Nylon clamp 1
15 202-0240 Drain hose plug 1
16 202-0694 Drain hose end tube 1 (recovery tank drain hose)
17 999-0086 Nut 10-32 nylon insert lock zinc plated 5
18 202-0708 Drain hose 1 (recovery tank drain hose)
19 997-2003 Hose clamp 1
20 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 3
21 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel 4
22 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 6
23 202-3274 Bracket 1
24 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
25 999-0358 Screw 8-32 x 5/8 pan head phillips stainless steel 2
26 999-0357 Nut 8-32 nylon insert lock stainless steel 2
27 202-3259 Hose 1 (tank to vacuum motor)
28 999-1484 Bolt 1/4-20 x 5/8 round head carriage stainless steel 3
29 202-3257 Squeegee vacuum hose 1 (squeegee to tank)
30 202-3279 Tank support strap 2
31 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 4
32 999-0423 Nut 5/16-18 nylon insert lock stainless steel 4
33 202-3251 Splash panel 1
34 202-3280 Hose 1 1/2 x 32 inch with 2 inch cuff 1 (drain saver hose)
35 999-0429 Nut 1/4-20 acorn nickel plated 3
36 999-0632 Washer 1/4 split lock stainless steel 3
37 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 3

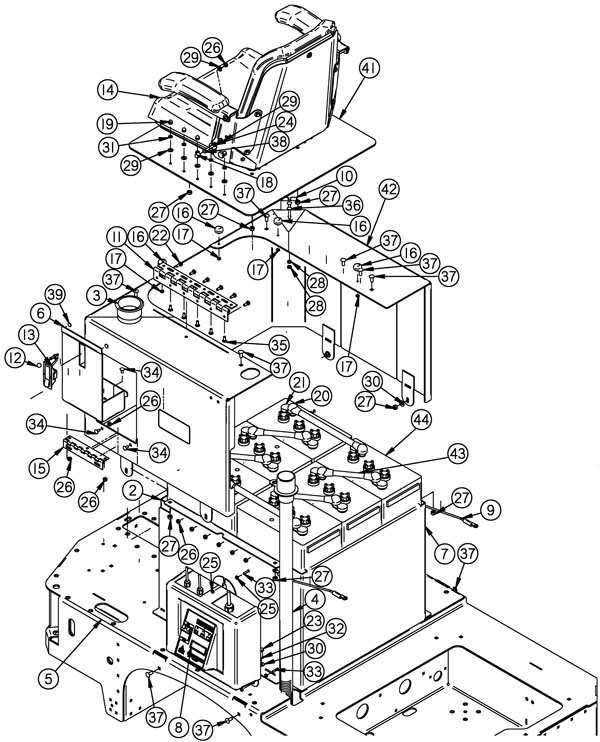

Seat Assembly - Standard - 202-0517
RefNbr Part Number Description Req Notes
2 202-3281 Battery box (OBSOLETE) 1
3 202-5192 Cup holder 1
4 202-3259 Hose 1 (tank to vacuum motor)
5 202-3080 Chassis 1
6a 202-3283 Tray (red) 1
6b 202-3284 Tray (granite) 1
7 202-3285 Seat support 1
8 202-2148 36V 30amp wet SCR battery charger with large SB175 gray plug 1
9 202-3286 Tank cable 2
10 202-3287 Battery connector housing 1
11 202-2363 Hinge 1
12 202-3170 Grommet 1
13 202-0404 Latch 1
14 202-0081 Seat with switch, cover, locking track and mounting 1
15 202-0704 Hinge 1
16 202-3543 10-24 x 1 threaded stud 4
17 999-1504 Nut 10-24 jam insert lock stainless steel 4
18 202-3288 Bolt 1
19 999-0429 Nut 1/4-20 acorn nickel plated 5
20 202-2850 Battery boot 12
21 202-2849 Terminal cover 12
22 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel 6
23 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 4
24 999-0609 Nut 1/4-20 hex stainless steel 1
25 999-0086 Nut 10-32 nylon insert lock zinc plated 6
26 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 11
27 999-0423 Nut 5/16-18 nylon insert lock stainless steel 16
28 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS 2
29 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 7
30 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 8
31 999-0632 Washer 1/4 split lock stainless steel 5
32 999-0553 Washer 5/16 medium split lock stainless steel 4
33 999-1471 Screw #10-21 x 1 flat head phillips stainless steel 3
34 999-1442 Bolt 1/4-20 x 1/2 carriage stainless steel 4
35 999-1484 Bolt 1/4-20 x 5/8 round head carriage stainless steel 5
36 999-0604 Screw 1/4-20 x 1 1/2 carriage head stainless steel 2
37 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 10
38 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel 1
39 202-3289 Felt tab 2
41a 202-3291 Battery box lid (red) 1
41b 202-3292 Battery box lid (granite) 1
42a 202-3293 Battery compartment (red) 1
42b 202-3294 Battery compartment (granite) 1
43 998-0010 Battery jumper cable - ring type (red) 1
N/S 202-0721 Microswitch 1

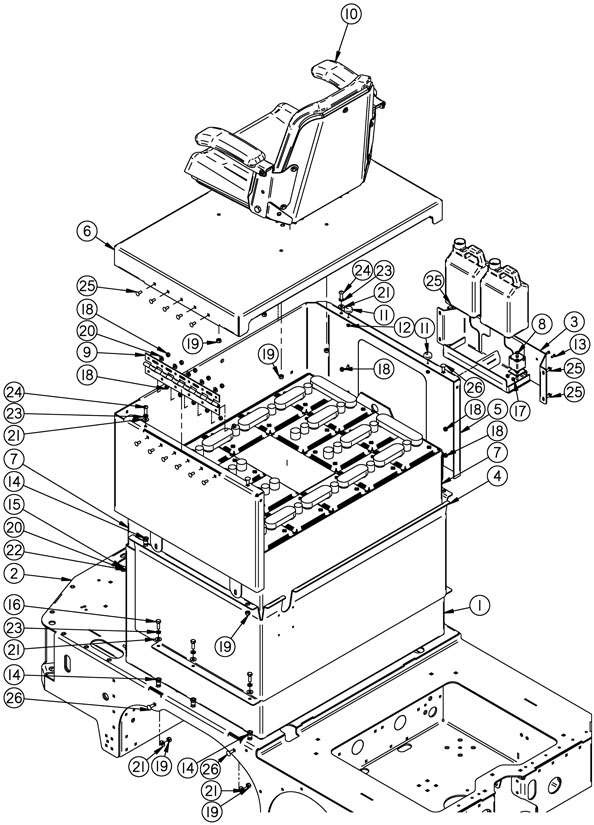

INDUSTRIAL - Seat Assembly - 202-0518
RefNbr Part Number Description Req Notes
1 202-3296 Industrial battery box (OBSOLETE) 1
2 202-3080 Chassis 1
3 202-3297 Industrial soap tray 1
4 202-3298 Industrial seat support (black) 1
5a 202-3299 Industrial battery compartment (red) 1
5b 202-3303 Industrial battery compartment (granite) 1
6a 202-3300 Battery box lid (granite) 1
6b 202-3304 Battery box lid (red) 1
8 202-3301 36V soap pump 1
9 202-2363 Hinge 1
10 202-0081 Seat with switch, cover, locking track and mounting 1
11 202-3543 10-24 x 1 threaded stud 2
12 999-1504 Nut 10-24 jam insert lock stainless steel 2
13 999-1486 Bolt 10-32 x 1/2 round head carriage stainless steel 2
14 999-0069 Nut 5/16-18 hex 8
15 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
16 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 6
17 999-0086 Nut 10-32 nylon insert lock zinc plated 2
18 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 15
19 999-0423 Nut 5/16-18 nylon insert lock stainless steel 8
20 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 7
21 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 10
22 999-0632 Washer 1/4 split lock stainless steel 2
23 999-0553 Washer 5/16 medium split lock stainless steel 8
24 999-1507 Screw 5/16-18 x 1 button head socket stainless steel 2
25 999-1484 Bolt 1/4-20 x 5/8 round head carriage stainless steel 15
26 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 4

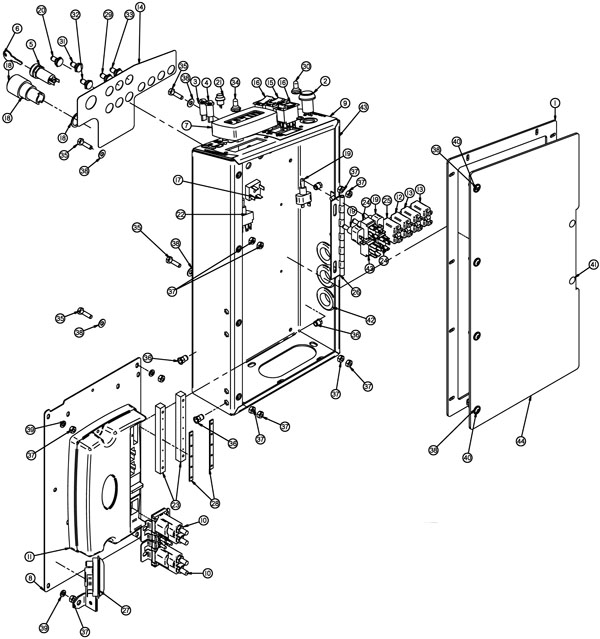

Control Panel Assembly - 202-0519
RefNbr Part Number Description Req Notes
1 202-0818 Access cover gasket 1
2 202-1356 One touch button 1 (activates brush, squeegee and solution at once) (new button is slightly larger - drill hole out to 1 inch; old hole was 7/8 inch)
3 202-0831 Low solution indicator (amber) 1
4 202-0832 Full recovery indicator (red) 1
5a 202-2300 Key switch with key entry (red) and ring (black) 1 (OEM)
5b 991-5161 Key switch with keys 1 (NON-OEM)
6 991-1634 Key (pkg of 2) 1
7 202-1317 LCD window display 1
8 202-3305 Hardware panel (black) 1
9 202-3306 Control panel top plate decal 1
10 202-3307 36V relay with mounting plate 2
11 202-1369 Main controller 1
12 202-2500 10amp fuse 1 (side broom motors)
13 202-2499 15amp fuse 2 (positive and negative busbar)
14 202-3308 Control panel decal 1
15 202-0368 Switch 1 (solution flow)
16 202-0369 2 position rocker switch 2 (squeegee and scrub deck raising and lowering)
17 202-0345 Diode bridge 1
18 202-0826 Emergency shut-off switch 1
19 202-0097 Toggle switch 5 (spray jet, vacuum wand and scrub deck pressure)
20 202-0098 Toggle switch boot (gray) 1
21 202-0879 Push button switch 1 (menu display)
22 202-0521 Toggle switch 1
23 202-0541 Busbar 2
24 202-1992 Toggle switch 1
25 202-0822 2amp fuse 1 (side broom and lift actuator)
26 202-0704 Hinge 1
27 202-0380 Horn 1
28 202-0830 Busbar (5 hole) 2
29 202-1976 Toggle switch protective boot (white) 1
30 202-1864 Toggle switch protective boot (red) 1
31 202-1977 Toggle switch protective boot (yellow) 1
32 202-1866 Toggle switch protective boot (green) 1
33 202-1865 Toggle switch protective boot (blue) 1
34 202-1355 Toggle switch protective boot (black) 1
35 999-9072 Bolt 1/4-20 x 1 hex head cap 4
36 999-0190 Nut 1/4-20 hex plain finish 8
37 999-0609 Nut 1/4-20 hex stainless steel 12
38 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 8
39 999-0632 Washer 1/4 split lock stainless steel 4
40 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 4
41 999-1442 Bolt 1/4-20 x 1/2 carriage stainless steel 5
42 202-2592 Grommet 3
43a 202-3309 Control box (red) 1
43b 202-3310 Control box (granite) 1
44a 202-3311 Access cover (red) 1
44b 202-2574 Access cover (granite) 1

Steering Column Assembly - 202-0520
RefNbr Part Number Description Req Notes
1 202-1181 Washer 1/2 flat bronze 2
2 202-0719 Index plunger 1
3 202-3312 Flanged bearing 2
4 202-3313 Hour meter decal 1
5 202-3314 Patent plate 1
6 202-0142 Upper steering bearing 1
7 202-0143 Bearing mount 2
8 202-2010 48V headlight 2
9 202-0097 Toggle switch 1
10 202-0376 Hour meter 2
11 202-0385 Backup alarm 1
12 202-0381 Horn button 1
13 999-0563 Washer 1/4 x 1/16 flat nylon 6
14 202-1355 Toggle switch protective boot (black) 1
15 999-1508 Bolt 10-32 x 5/8 round carriage head stainless steel 1
16 202-2431 P clamp 1
17 999-0190 Nut 1/4-20 hex plain finish 12
18 202-3315 Blind rivet 4
19 999-0593 Nut 5/16-18 hex stainless steel 4
20 999-0295 Nut 4-40 nylon insert lock stainless steel 4
21 999-0086 Nut 10-32 nylon insert lock zinc plated 3
22 999-0423 Nut 5/16-18 nylon insert lock stainless steel 2
23 999-1485 Washer #10 flat large stainless steel 2
24 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
25 999-0553 Washer 5/16 medium split lock stainless steel 4
26 999-1059 Screw 4-40 x 3/4 pan head phillips zinc plated 4
27 999-1486 Bolt 10-32 x 1/2 round head carriage stainless steel 2
28 999-1509 Screw 10-32 x 3/8 flat head phillips stainless steel 2
29 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 6
30 999-1507 Screw 5/16-18 x 1 button head socket stainless steel 6
31a 202-0716 Pedestal cover (red) 1
31b 202-2013 Pedestal cover (granite) 1
32a 202-0715 Upper steering column (red) 1
32b 202-2012 Upper steering column (granite) 1
33a 202-0714 Lower steering column (red) 1
33b 202-2011 Lower steering column (granite) 1

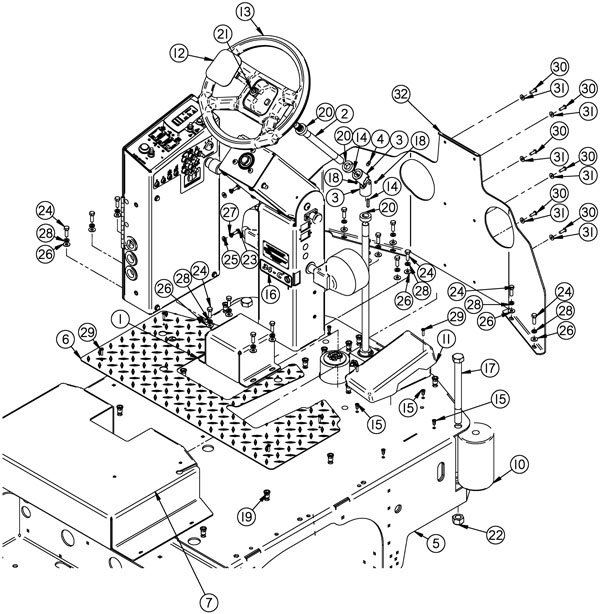

Command Console Assembly - 202-0521
RefNbr Part Number Description Req Notes
1 202-3318 Drive cover 1
2 202-0761 Upper steering shaft 1
3 202-0760 U-joint 1
4 202-2404 Fitting 1
5 202-3080 Chassis 1
6 202-3319 Non-skid floor plate 1
7 202-3320 Raised floor 1 (optional to replace 1 and 6)
10 202-0416 Guide roller 2
11 202-0362 Foot pedal assembly (includes potentiometer) 1
12 202-0773 Steering cover 1
13 202-0772 Steering wheel 1
14 202-0847 Square keyway 2
15 202-2589 Nut 10-32 crimp hex 14
16a 202-3323 34 inch cylindrical decal 1
16b 202-3324 40 and 45 inch cylindrical decal 1
16c 202-3325 34 inch disk decal 1
16d 202-3326 40 inch disk decal 1
17 999-1510 Bolt 3/4-10 x 8 1/2 hex head zinc plated 2
18 202-3154 Screw 1/4-20 x 1/4 set 3
19 999-0069 Nut 5/16-18 hex 20
20 202-2216 Shaft collar with set screw 3
21 999-0968 Nut 5/8-11 nylon insert jam lock zinc plated 1
22 999-1001 Nut 3/4-10 nylon insert lock zinc plated 2
23 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 2
24 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 15
25 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
26 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 15
27 999-0632 Washer 1/4 split lock stainless steel 2
28 999-0553 Washer 5/16 medium split lock stainless steel 15
29 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel 8
30 999-0867 Bolt 1/4-20 x 3/4 button head socket cap stainless steel 6
31 999-0563 Washer 1/4 x 1/16 flat nylon 6
32a 202-3327 Front apron (red) 1
32b 202-3328 Front apron (granite) 1
N/S 202-0436 Tomcat front decal 1
N/S 202-3322 Tomcat decal 1

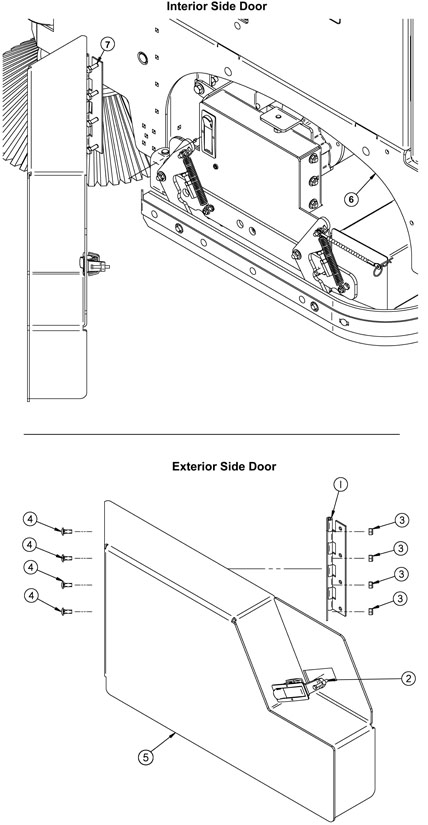

Side Door Assembly - 202-0523
RefNbr Part Number Description Req Notes
1 202-0403 Hinge 1
2 202-0404 Latch 1
3 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4
4 202-2851 Bolt 1/4-20 x 5/8 inch carriage head stainless steel 4
5a 202-3329 40 inch left side door 1
5b 202-3330 40 inch right side door 1
5c 202-3331 45 inch left side door 1
5d 202-3332 45 inch right side door 1
6 202-3080 Chassis 1
7a 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
7b 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4

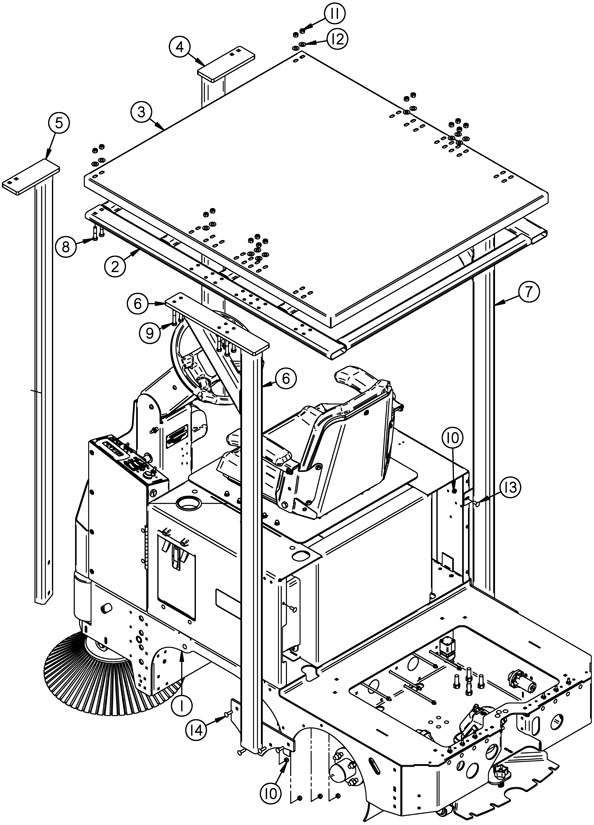

INDUSTRIAL - Overhead Guard Assembly - 202-0524
RefNbr Part Number Description Req Notes
1 202-3080 Chassis 1
2 202-3333 Roof support 1
3 202-3334 Overhead guard 1
4 202-3335 Front right side support 1
5 202-3336 Front left side support 1
6 202-3337 Left side overhead guard support 1
7 202-3338 Right side overhead guard support 1
8 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 4
9 999-9076 Screw 3/8 -16 x 2 1/4 hex head stainless steel 12
10 999-0423 Nut 5/16-18 nylon insert lock stainless steel 9
11 999-1482 Nut 3/8-16 nylon lock stainless steel 16
12 999-0617 Washer 3/8 x 1 flat stainless steel 16
13 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel 2
14 999-9066 Bolt 5/16-18 x 1 carriage head stainless steel 8

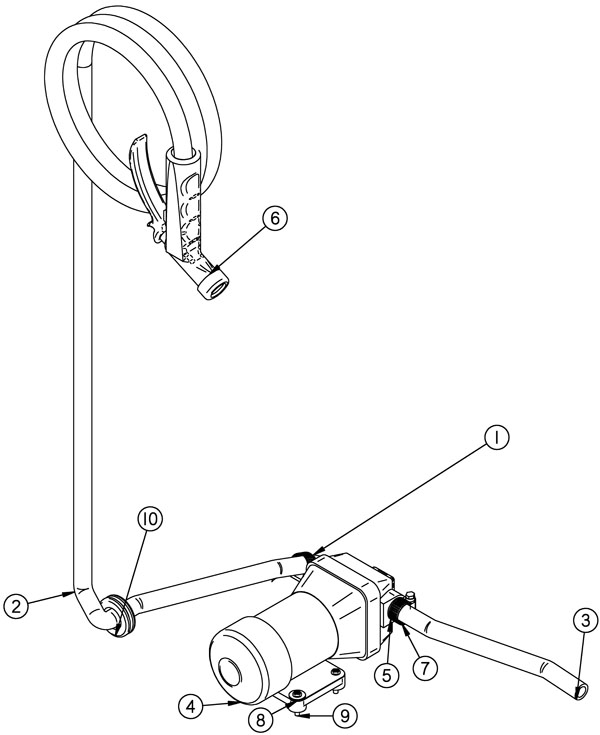

OPTIONAL - Water Jet Assembly - 202-0525
RefNbr Part Number Description Req Notes
1 202-1008 Barbed elbow 1
2 202-0104 18 foot rubber hose (blue) 1
3 202-3230 Hose 1/2 x 10 inch (clear) 1
4 202-2368 36V water jet pump 1
5 202-0107 1/2 inch hosebarb 1
6 202-0103 Spray nozzle 1
7 202-0680 Hose clamp 2
8 999-1485 Washer #10 flat large stainless steel 1
9 999-0870 Screw 8 x 3/4 pan head phillips stainless steel 2
10 202-2592 Grommet 1

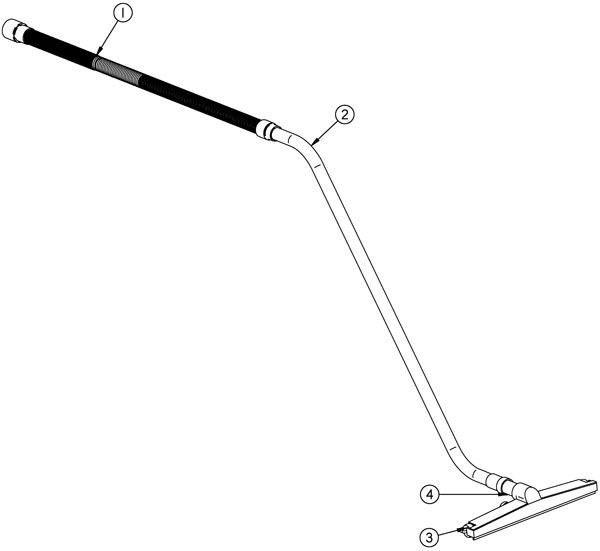

OPTIONAL - Vacuum Wand Assembly - 202-0526
RefNbr Part Number Description Req Notes
1 202-0091 Vacuum hose 1 1/2 x 15 foot with cuffs 1
2 202-0094 54 inch wand tube 1
3 202-0095 Vacuum nozzle 1
4 202-3339 Coupler 1

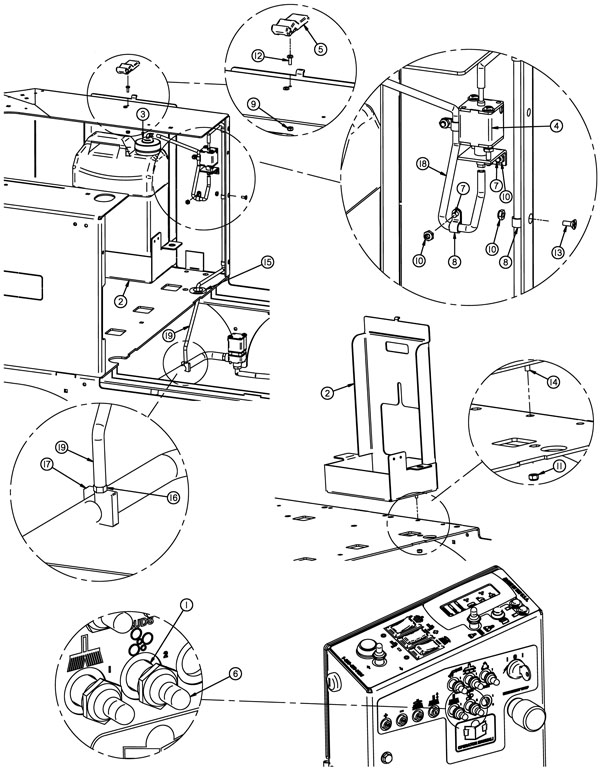

SUDS System Assembly - Standard - 202-0527
RefNbr Part Number Description Req Notes
1 202-3340 Toggle switch 1
2 202-3341 Soap tray (red) 1
3 202-3342 Soap jug cap 1
4 202-3301 36V soap pump 1
5 202-1487 Latch 1
6 202-1866 Toggle switch protective boot (green) 1
7 999-1486 Bolt 10-32 x 1/2 round head carriage stainless steel 4
8 202-2431 P clamp 5
9 999-0357 Nut 8-32 nylon insert lock stainless steel 2
10 999-0086 Nut 10-32 nylon insert lock zinc plated 7
11 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
12 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel 2
13 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel 3
14 999-1484 Bolt 1/4-20 x 5/8 round head carriage stainless steel 2
15 202-2592 Grommet 1
16 202-3343 Barbed fitting 1
17 202-3343 Barbed fitting 1
18 202-3345 Hose 3/16 x 22 inch (clear) 1
19 202-3346 Hose 3/16 x 32 inch (clear) (OBSOLETE) 1

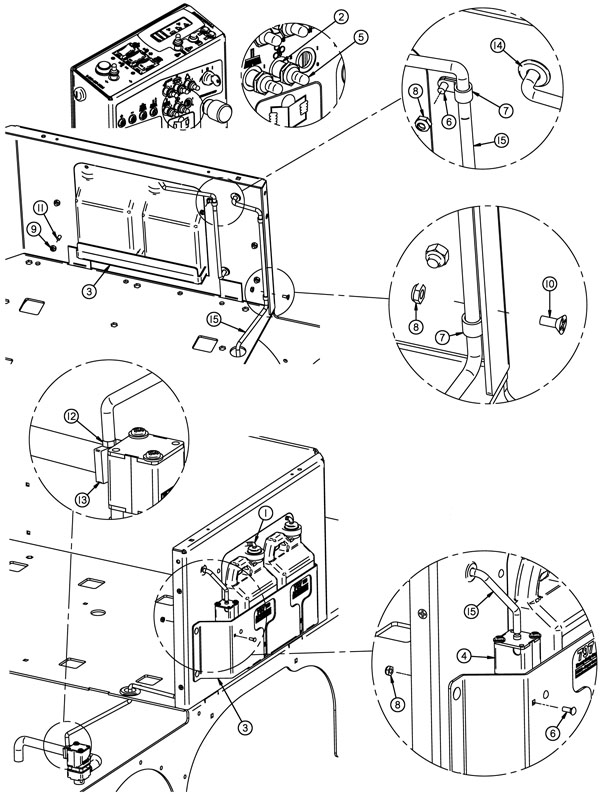

INDUSTRIAL - SUDS System Assembly - 202-0528
RefNbr Part Number Description Req Notes
1 202-3347 Soap jug cap 2
2 202-3340 Toggle switch 1
3 202-3297 Industrial soap tray 1
4 202-3301 36V soap pump 1
5 202-1866 Toggle switch protective boot (green) 1
6 999-1486 Bolt 10-32 x 1/2 round head carriage stainless steel 3
7 202-2431 P clamp 3
8 999-0086 Nut 10-32 nylon insert lock zinc plated 5
9 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 4
10 999-1009 Screw 10-32 x 1/2 flat head phillips stainless steel 2
11 999-1484 Bolt 1/4-20 x 5/8 round head carriage stainless steel 4
12 202-3343 Barbed fitting 1
13 202-3343 Barbed fitting 1
14 202-3348 Rubber grommet 2
15 202-3346 Hose 3/16 x 32 inch (clear) (OBSOLETE) 2

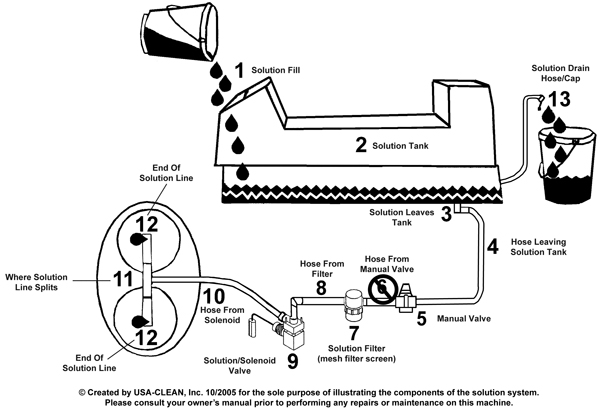

- Simplified Solution System - 202-1372
RefNbr Part Number Description Req Notes
1 202-1983 Tank lid (upper) (clear) Tank Lid Assembly
1 202-1982 Tank lid gasket (upper) Tank Lid Assembly
1 202-3246 Tank cover (stainless steel) Tank Lid Assembly
1 202-3246 Tank cover (stainless steel) Tank Lid Assembly
2 202-3063 Tank (red) Tank Assembly
2 202-3064 Complete conversion kit to new tank-in-tank style (granite) Tank Assembly
3 202-3059 Elbow barb Solution Hose Assembly
4 202-3258 Reinforced tube Tank Assembly
5 202-3057 Ball valve Solution Hose Assembly
7 202-3234 Inline filter Solution Hose Assembly
8 202-3230 Hose 1/2 x 10 inch (clear) Solution Hose Assembly
9 202-3038 36V solenoid valve Solution Hose Assembly
10 202-3101 Wire reinforced hose 1/2 x 14 inch Disk Scrub Deck Assembly
11 202-0332 1/2 inch barbed tee Disk Scrub Deck Assembly
12 202-3100 Tube (clear) Disk Scrub Deck Assembly
12 202-0333 Elbow barb Disk Scrub Deck Assembly
13 202-3260 Sight tube Tank Assembly

- Simplified Recovery System - 202-1373
RefNbr Part Number Description Req Notes
A/W1 202-3204 34 inch squeegee assembly Squeegee Assembly - 34 and 40 inch
A/W1 202-3212 53 inch squeegee assembly Squeegee Assembly - 34 and 40 inch
A/W1 202-3218 45 inch squeegee assembly Squeegee Assembly - 45 inch
A/W2 202-3257 Squeegee vacuum hose Tank Assembly
A/W3 202-3064 Complete conversion kit to new tank-in-tank style (granite) Tank Assembly
A/W3 202-3063 Tank (red) Tank Assembly
A4 202-3255 Vacuum screen Tank Baffle Assembly
A5 991-1202 36V 3 stage vacuum motor tangential Dual Vacuum Motor Assembly
A6 202-3224 Vacuum muffler hose Dual Vacuum Motor Assembly
A6 202-6394 Muffler, Vac Fan Dual Vacuum Motor Assembly

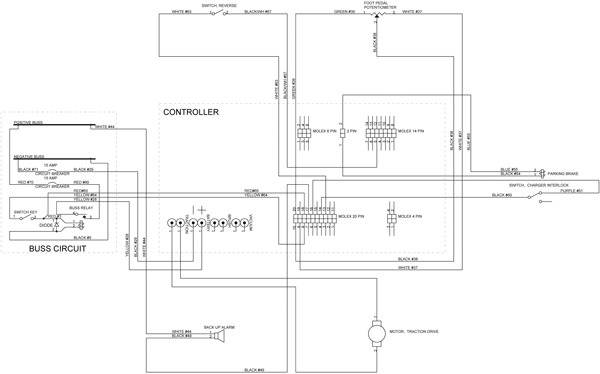

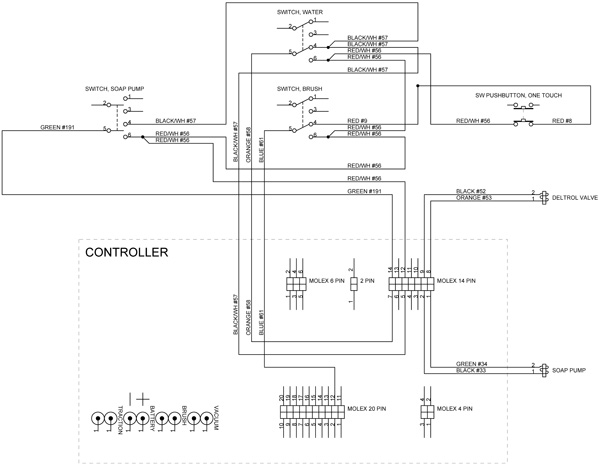

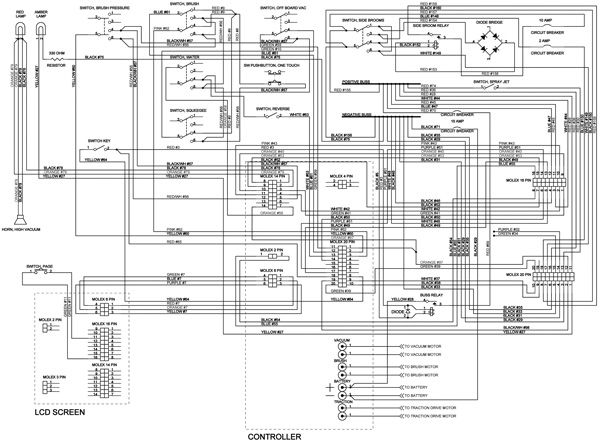

Wiring Diagram - Central Command II -

RefNbr Part Number Description Req Notes

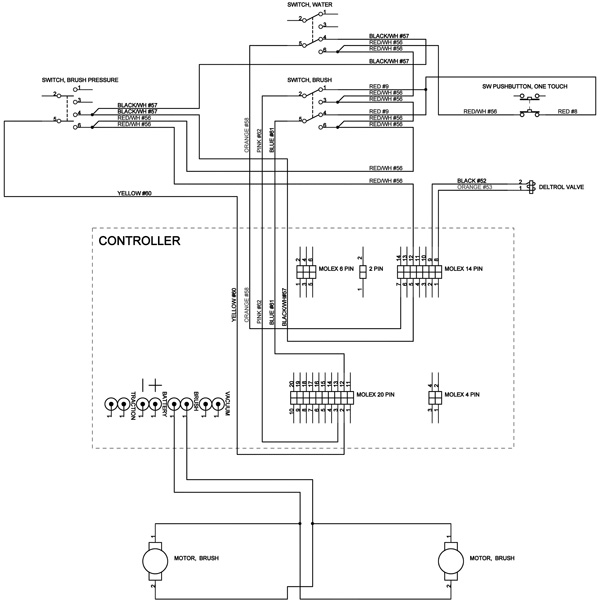

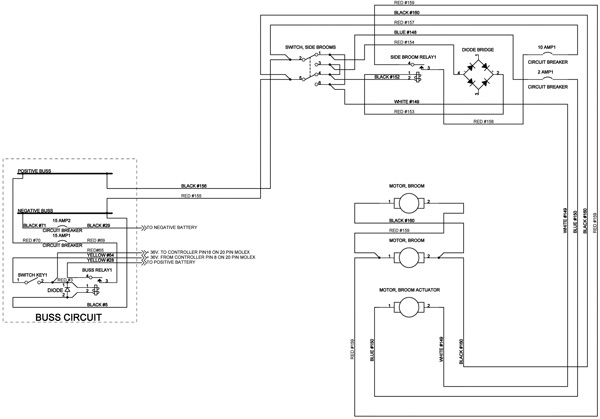

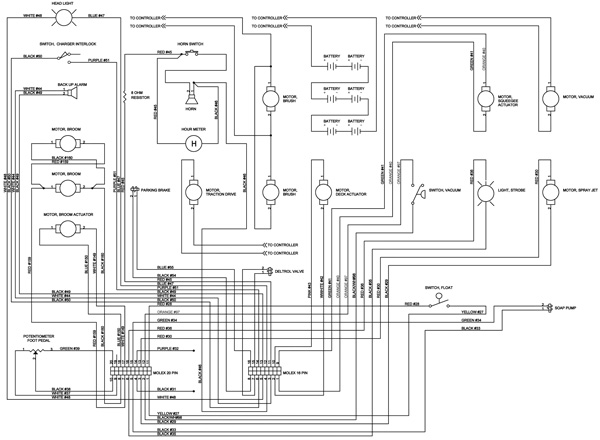

Wiring Diagram - Motors -

RefNbr Part Number Description Req Notes

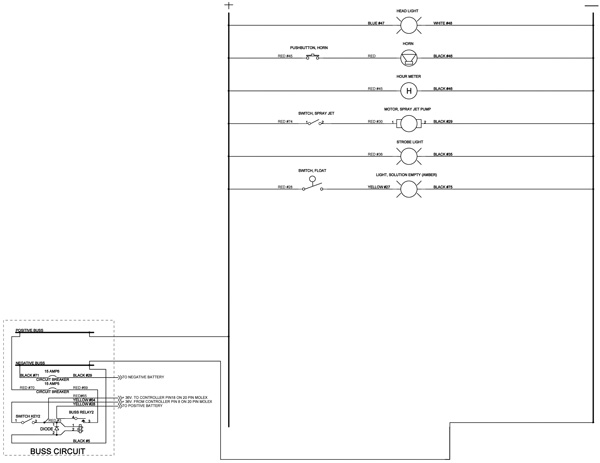

Wiring Diagram - Ladder -

RefNbr Part Number Description Req Notes

Wiring Diagram - Scrub System -

RefNbr Part Number Description Req Notes

Wiring Diagram - Side Broom -

RefNbr Part Number Description Req Notes

Wiring Diagram - Soap System -

RefNbr Part Number Description Req Notes

Wiring Diagram - Traction System -

RefNbr Part Number Description Req Notes

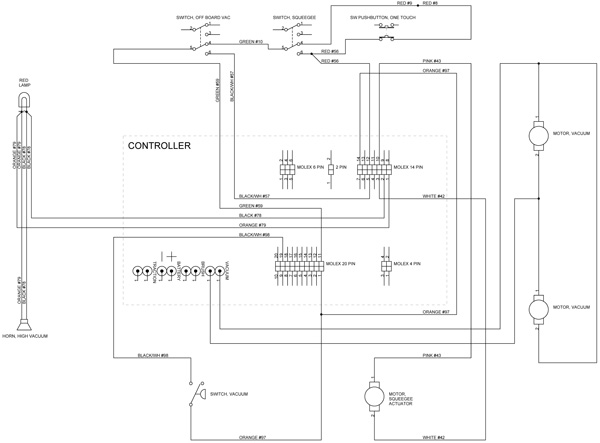

Wiring Diagram - Vacuum System -

RefNbr Part Number Description Req Notes

- Batteries, Brushes and Charger - 40 inch - Disk and Cylindrical - 202-2096
RefNbr Part Number Description Req Notes
1 162-0005 6V 305Ah wet battery (SNSR) 6
1c 162-0019 6V 390Ah wet battery (SNSR) 6
2a 162-0046 6V 335Ah AGM battery (Group J305) 6
2b 162-0048 6V 415Ah AGM battery (Group L16) 6
3a 162-5149 Summit II 24V 40amp battery charger SB175 large gray plug 1 (configured for wet batteries; can be changed to support AGM batteries)
3b 162-5149 Summit II 24V 40amp battery charger SB175 large gray plug 1 (configured for AGM batteries; can be changed to support wet batteries)
4 202-2148 36V 30amp wet SCR battery charger with large SB175 gray plug 1
5 991-2112 175amp charger plug with pins (gray) SB175 1
6 996-1510 20 inch Heavy grit stripping brush - 80 grit 2 (disk)
7 202-1550 20 inch Medium grit scrubbing brush - 180 grit 2 (disk)
8 996-1544 20 inch Lite grit scrubbing brush - 500 grit 2 (disk)
9 996-1545 20 inch Polypropelene scrubbing brush 2 (disk)
10 996-1546 20 inch Pad driver 2 (disk)
11 202-3355 Extra heavy grit scrubbing brush - CYLINDRICAL 2 (cylindrical)
12 202-3356 Medium grit scrubbing brush - CYLINDRICAL 2 (cylindrical)
13 202-3357 Lite grit scrubbing brush - CYLINDRICAL (OBSOLETE) 2 (cylindrical)
14 202-3358 Nylon grit scrubbing brush - CYLINDRICAL 2 (cylindrical)

- Batteries, Brushes and Charger - 46 inch - Disk and Cylindrical - 202-2097
RefNbr Part Number Description Req Notes
1 162-0005 6V 305Ah wet battery (SNSR) 6
1c 162-0019 6V 390Ah wet battery (SNSR) 6
2a 162-0046 6V 335Ah AGM battery (Group J305) 6
2b 162-0048 6V 415Ah AGM battery (Group L16) 6
3a 162-5149 Summit II 24V 40amp battery charger SB175 large gray plug 1 (configured for wet batteries; can be changed to support AGM batteries)
3b 162-5149 Summit II 24V 40amp battery charger SB175 large gray plug 1 (configured for AGM batteries; can be changed to support wet batteries)
4 202-2148 36V 30amp wet SCR battery charger with large SB175 gray plug 1
5 991-2112 175amp charger plug with pins (gray) SB175 1
6 996-1185 Extra heavy grit stripping brush - 46 grit 2 (disk)
7 996-1180 Medium grit scrubbing brush - 180 grit 2 (disk)
8 996-1184 Lite grit scrubbing brush - 500 grit 2 (disk)
9 996-1183 Polypropelene scrubbing brush 2 (disk)
10 996-1181 Pad driver 2 (disk)
11 202-3359 Extra heavy grit scrubbing brush - CYLINDRICAL 2 (cylindrical)
12 202-3360 Medium grit scrubbing brush - CYLINDRICAL 2 (cylindrical)
13 202-3361 Lite grit scrubbing brush - CYLINDRICAL (OBSOLETE) 2 (cylindrical)
14 202-3362 Nylon grit scrubbing brush - CYLINDRICAL 2 (cylindrical)

- Batteries, Brushes and Charger - 34 inch - Disk and Cylindrical - 202-2098
RefNbr Part Number Description Req Notes
1 162-0005 6V 305Ah wet battery (SNSR) 6
1c 162-0019 6V 390Ah wet battery (SNSR) 6
2a 162-0046 6V 335Ah AGM battery (Group J305) 6
2b 162-0048 6V 415Ah AGM battery (Group L16) 6
3a 162-5149 Summit II 24V 40amp battery charger SB175 large gray plug 1 (configured for wet batteries; can be changed to support AGM batteries)
3b 162-5149 Summit II 24V 40amp battery charger SB175 large gray plug 1 (configured for AGM batteries; can be changed to support wet batteries)
4 202-2148 36V 30amp wet SCR battery charger with large SB175 gray plug 1
5 991-2112 175amp charger plug with pins (gray) SB175 1
6 202-0036 17 inch Heavy grit stripping brush - 46 grit 2 (disk)
7 996-0750 17 inch Medium grit scrubbing brush - 180 grit 2 (disk)
8 996-0749 17 inch Lite grit scrubbing brush - 500 grit 2 (disk)
9 996-0748 17 inch polypropylene scrubbing brush 2 (disk)
10 996-0751 17 inch Pad driver 2 (disk)
11 202-3351 Extra heavy grit scrubbing brush - CYLINDRICAL 2 (cylindrical)
12 202-3352 Medium grit scrubbing brush - CYLINDRICAL 2 (cylindrical)
13 202-3353 Lite grit scrubbing brush - CYLINDRICAL (OBSOLETE) 2 (cylindrical)
14 202-3354 Nylon grit scrubbing brush - CYLINDRICAL 2 (cylindrical)

- Commonly Asked For Parts - 202-9973
RefNbr Part Number Description Req Notes
01 202-0702 Spacer 8 53" squeegee
02 202-0711 Clamping knob (pkg of 2) 4 53" squeegee
03 202-3191 Screw 1/4-20 x 3 1/4 socket head stainless steel 2 53" squeegee
04 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 8 53" squeegee
05 202-3211 Screw 1/4-20 x 1-3/4 inch socket stainless steel 2 53" squeegee
06 202-3195 Screw 1/4-20 x 2-1/2 inch socket stainless steel 2 53" squeegee
07 202-3196 Screw 1/4-20 x 3 inch socket stainless steel 2 53" squeegee
08 202-5710 Squeegee vacuum hose 2 x 55 inch
09 202-3785 Recovery drain hose w/ turn cap

- Simplified Electrical System -

RefNbr Part Number Description Req Notes

- Pads - 255-1800
RefNbr Part Number Description Req Notes
01 255-1840 18 inch aqua plus burnishing pad (pkg of 5)
02 255-1835 18 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1864 18 inch Blue ace pad (pkg of 5)
04 255-1842 18 inch Blue Jay burnishing pad (pkg of 5)
05 255-1812 18 inch Cure white pad (pkg of 5)
06 255-1877 18 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1838 18 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1821 18 inch gorilla lite burnishing pad (pkg of 5)
09 255-1850 18 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1865 18 inch Heat concrete bonding pad (pkg of 5)
11 255-1830 18 inch jaguar burnishing pad (pkg of 5)
12 255-1890 18 inch premium black stripping pad (pkg of 5)
13 255-1870 18 inch premium blue cleaning pad (pkg of 5)
14 255-1892 18 inch premium brown stripping pad (pkg of 5)
15 255-1880 18 inch premium green scrubbing pad (pkg of 5)
16 255-1860 18 inch premium red scrubbing pad (pkg of 5)
17 255-1852 18 inch premium tan polishing pad (pkg of 5)
18 255-1820 18 inch premium white polishing pad (pkg of 5)
19 255-1811 18 inch superspeed rubberized pad (pkg of 5)
20 255-1895 18 inch razorback stripping pad (pkg of 5)
21 255-1847 18 inch Redwood maroon floor prep pad (pkg of 10)
22 255-1855 18 inch Ruff non-abrasive brush pad (pkg of 2)
23 255-1823 18 inch sand screen driver pad (pkg of 2)
24 255-0023 18 inch Professional sand screen 100 grit (pkg of 10)
25 255-0145 18 inch Professional sand screen 120 grit (pkg of 10)
26 255-0146 18 inch Professional sand screen 150 grit (pkg of 10)
27 255-0147 18 inch Professional sand screen 180 grit (pkg of 10)
28 255-0148 18 inch Professional sand screen 220 grit (pkg of 10)
29 255-0149 18 inch Professional sand screen 400 grit (pkg of 10)
30 255-0022 18 inch Professional sand screen 60 grit (pkg of 10)
31 255-0144 18 inch Professional sand screen 80 grit (pkg of 10)
32 255-0233 18 inch Superscreen sand screen 100 grit (pkg of 10)
33 255-0234 18 inch Superscreen sand screen 120 grit (pkg of 10)
34 255-0235 18 inch Superscreen sand screen 150 grit (pkg of 10)
35 255-0236 18 inch Superscreen sand screen 180 grit (pkg of 10)
36 255-0237 18 inch Superscreen sand screen 220 grit (pkg of 10)
37 255-0238 18 inch Superscreen sand screen 400 grit (pkg of 10)
38 255-0231 18 inch Superscreen sand screen 60 grit (pkg of 10)
39 255-0232 18 inch Superscreen sand screen 80 grit (pkg of 10)
40 255-1824 18 inch Tiger carpet bonnet (pkg of 2)
41 255-9577 18 inch Diamond by Gorilla 11000 Grit (pkg of 2)
42 255-9574 18 inch Diamond by Gorilla 1500 Grit (pkg of 2)
43 255-9571 18 inch Diamond by Gorilla 200 Grit (pkg of 2)
44 255-9575 18 inch Diamond by Gorilla 3000 Grit (pkg of 2)
45 255-9572 18 inch Diamond by Gorilla 400 Grit (pkg of 2)
46 255-9573 18 inch Diamond by Gorilla 800 Grit (pkg of 2)
47 255-9576 18 inch Diamond by Gorilla 8000 Grit (pkg of 2)
48 255-9643 18 inch Diamond starter pack (1 of each grit)
49 255-1882 18 inch Turbostrip segmented rotary pad (pkg of 4)
50 255-1815 18 inch Duala clean and shine pad - low speed (pkg of 5)
51 255-1816 18 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Frequently Replaced Parts - 999-0028
RefNbr Part Number Description Req Notes
01 162-0005 6V 305Ah wet battery (SNSR)
02 162-0005 6V 305Ah wet battery (SNSR)
03 162-0019 6V 390Ah wet battery (SNSR)
04 162-0046 6V 335Ah AGM battery (Group J305)
05 162-0048 6V 415Ah AGM battery (Group L16)
06 162-5149 Summit II 24V 40amp battery charger SB175 large gray plug
07 162-5149 Summit II 24V 40amp battery charger SB175 large gray plug
08 202-2148 36V 30amp wet SCR battery charger with large SB175 gray plug
09 991-2112 175amp charger plug with pins (gray) SB175
10 998-0010 Battery jumper cable - ring type (red)
11a 202-2300 Key switch with key entry (red) and ring (black) (master switch) (OEM)
11b 991-5161 Key switch with keys (master switch) (NON-OEM)
12 991-1634 Key (pkg of 2)
13 202-0097 Toggle switch (vac)
14 202-0369 2 position rocker switch (brush)
15 202-1897 Steering chain
16 202-0283 Master link
17 202-3038 36V solenoid valve
18 202-3234 Inline filter
19 202-3203 Squeegee blade 34 inch gum rubber rear (OBSOLETE)
20 202-3201 Squeegee blade 34 inch gum rubber front
21 202-3202 Squeegee blade 34 inch linatex rear
22 202-3200 Squeegee blade 34 inch linatex front
23 202-2957 Squeegee blade 40 inch gum rubber rear
24 202-2956 Squeegee blade 40 inch gum rubber front
25 202-2938 Squeegee blade 40 inch linatex rear (red)
26 202-2937 Squeegee blade 40 inch linatex front
27 202-2952 Squeegee blade 45 inch gum rubber rear
28 202-2948 Squeegee blade 45 inch gum rubber front
29 202-2951 Squeegee blade 45 inch linatex rear
30 202-2947 Squeegee blade 45 inch linatex front
31 202-7760 Squeegee Blade,Front,Urethane Clear,Fits 46 inch
32 202-0091 Vacuum hose 1 1/2 x 15 foot with cuffs
33 202-3257 Squeegee vacuum hose
34 202-1983 Tank lid (upper) (clear)
35 202-1982 Tank lid gasket (upper)
36 202-0240 Drain hose plug
37 202-0708 Drain hose
38 202-1904 36V 3 stage vacuum motor (Factory Cat)
39 202-3351 Extra heavy grit scrubbing brush - CYLINDRICAL (34 inch)
40 202-1550 20 inch Medium grit scrubbing brush - 180 grit (40 inch)
41 202-3357 Lite grit scrubbing brush - CYLINDRICAL (OBSOLETE) (40 inch)
42 996-1544 20 inch Lite grit scrubbing brush - 500 grit (40 inch)
43 202-3359 Extra heavy grit scrubbing brush - CYLINDRICAL (46 inch)
44 996-1185 Extra heavy grit stripping brush - 46 grit (46 inch)
45 996-1184 Lite grit scrubbing brush - 500 grit (46 inch)
46 996-0748 17 inch polypropylene scrubbing brush (34 inch)
47 996-5246 17 inch daily cleaning brush (40 inch)
48 996-1183 Polypropelene scrubbing brush (46 inch)
49 996-0751 17 inch Pad driver (34 inch)
50 996-1546 20 inch Pad driver (40 inch)
51 996-1181 Pad driver (46 inch)
52 991-2206 Center-Lok 3 pad holder
Webpage Problem Reporting
