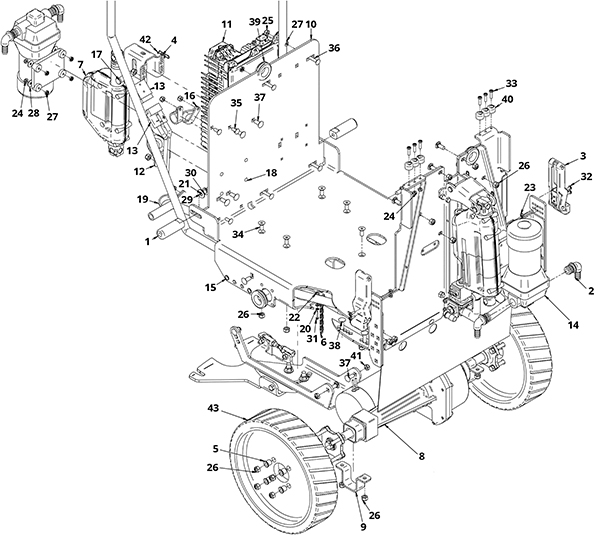

Frame Assembly - 202-0214 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-6323 |
Boss, 2-3/4 inch |
1 |
|
| 2 |
202-1008 |
Barbed elbow |
1 |
|
| 3 |
202-5630 |
Soft draw latch |
1 |
|
| 4 |
202-5026 |
Squeegee lifting bracket |
1 |
|
| 5 |
202-3312 |
Flanged bearing |
1 |
|
| 6 |
202-3409 |
12 inch grounding chain |
1 |
|
| 7 |
202-4042 |
24V actuator |
1 |
|
| 10 |
202-6963 |
Frame, Hero, MS |
1 |
|
| 11 |
202-7022 |
Charger, 24V,37A Onboard, Universal Charger w/Power Cord |
1 |
|
| 12 |
202-7091 |
Bracket, Charger Connector |
1 |
|
| 13 |
991-2103 |
50amp charger plug SB50 with pins (red) |
2 |
|
| 14 |
202-0101 |
60 PSI water jet pump |
1 |
|
| 15 |
202-5284 |
Nut 1/4-20 hex crimp long |
1 |
|
| 16 |
202-3619 |
3/4 inch loop clamp |
1 |
|
| 18 |
999-1570 |
Bolt 10-32 x 1 1/4 round head carriage stainless steel |
1 |
|
| 20 |
999-0148 |
Washer #6 external star lock zinc plated |
1 |
|
| 21 |
999-0562 |
Bolt 3/8-16 x 1 hex head stainless steel |
1 |
|
| 22 |
999-0337 |
Nut 6-32 nylon insert lock stainless steel |
1 |
|
| 23 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
1 |
|
| 24 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
2 |
|
| 25 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
| 26 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
3 |
|
| 27 |
999-1466 |
Nut 1/4-20 lock with external toothed lockwasher SS |
1 |
|
| 28 |
202-3316 |
Washer flat stainless steel |
1 |
|
| 29 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
1 |
|
| 30 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
1 |
|
| 31 |
999-1109 |
Screw 6-32 x 3/4 pan head phillips stainless steel |
1 |
|
| 32 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
1 |
|
| 33 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
1 |
|
| 34 |
202-2831 |
Screw 5/16-18 x 3/4 flat head socket stainless steel |
1 |
|
| 35 |
202-2851 |
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
1 |
|
| 36 |
999-1443 |
Bolt 1/4-20 x 1 1/4 carriage stainless steel |
1 |
|
| 37 |
999-0967 |
Bolt 5/16-18 x 3/4 carriage head stainless steel |
2 |
|
| 38 |
999-9066 |
Bolt 5/16-18 x 1 carriage head stainless steel |
1 |
|
| 40 |
202-3275 |
Rubber bumper |
1 |
|
| 41 |
999-1019 |
Nut 5/16-18 hex jam stainless steel |
1 |
|
| 42 |
202-2059 |
Cotter ring |
1 |
|
| 43a |
202-0491 |
12 inch wheel assembly with plastic hub x-groove kit (black) |
2 |
|
| 43b |
202-5712 |
Rear wheel assembly |
2 |
|
| 43d |
202-1350 |
Pneumatic drive wheel (black) |
2 |
|
| 43e |
202-1349 |
Foam filled drive wheel (gray) (OBSOLETE) |
2 |
|
| 43f |
202-0491 |
12 inch wheel assembly with plastic hub x-groove kit (black) |
2 |
|
| 43g |
202-4180 |
Rear wheel assembly |
2 |
|
| 43h |
202-6837 |
Wheel Assembly,Rear,3.5 inchW Grey Poly |
2 |
|
|
|

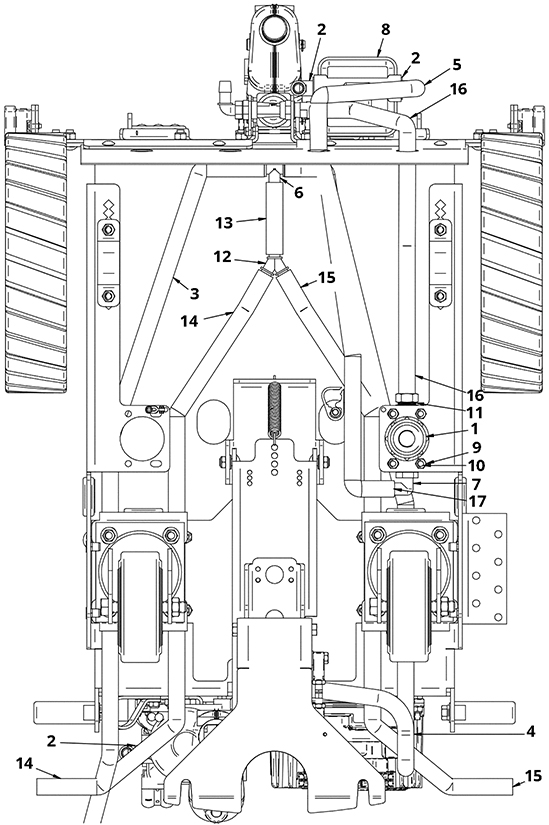

Frame Bottom Assembly - 202-0215 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-3584 |
Inline filter |
1 |
|
| 2 |
202-1008 |
Barbed elbow |
3 |
|
| 3 |
202-6996 |
Tube, Sight, 35/37 Gal |
1 |
|
| 4 |
202-0104 |
18 foot rubber hose (blue) |
1 |
|
| 5 |
202-0104 |
18 foot rubber hose (blue) |
1 |
|
| 6 |
202-0332 |
1/2 inch barbed tee |
1 |
|
| 8 |
202-0101 |
60 PSI water jet pump |
1 |
|
| 9 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
| 10 |
202-5603 |
U-bolt 1/4-20 x 1 |
1 |
|
| 11 |
202-9493 |
Fitting,1/2 inchNPTx3/8 inchBarb,Straight |
1 |
|
| 13 |
202-5106 |
Reinforced hose 1/2 x 60 inch |
1 |
|
| 14 |
202-5106 |
Reinforced hose 1/2 x 60 inch |
1 |
|
| 15 |
202-5106 |
Reinforced hose 1/2 x 60 inch |
1 |
|
| 16 |
202-5106 |
Reinforced hose 1/2 x 60 inch |
1 |
|
| 17 |
202-5106 |
Reinforced hose 1/2 x 60 inch |
1 |
|
|
|
Actuator and Frame Assembly - 202-0216 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-6246 |
Solenoid,24V,3/8 inchNPTx3/8 inch |
1 |
|
| 2 |
202-6952 |
Bracket, Lift Arm Support, LH |
1 |
|
| 3 |
202-6953 |
Bracket, Lift Arm Support, RH |
1 |
|
| 5 |
202-6955 |
Band, Curtain Frame |
1 |
|
| 6 |
202-6978 |
Arm, Actuator |
1 |
|
| 7 |
202-3376 |
24V actuator |
1 |
|
| 8 |
202-7049 |
Bracket, Valve |
1 |
|
| 9 |
999-1017 |
Screw 10-32 x 2 1/4 pan head phillips stainless steel |
2 |
|
| 10 |
202-5193 |
Clevis pin 3/8 x 2 |
2 |
|
| 12 |
999-0297 |
Bolt 1/4-20 x 1 hex head stainless steel |
2 |
|
| 13 |
999-0609 |
Nut 1/4-20 hex stainless steel |
2 |
|
| 14 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
4 |
|
| 15 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
| 16 |
202-2851 |
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
4 |
|
|
|

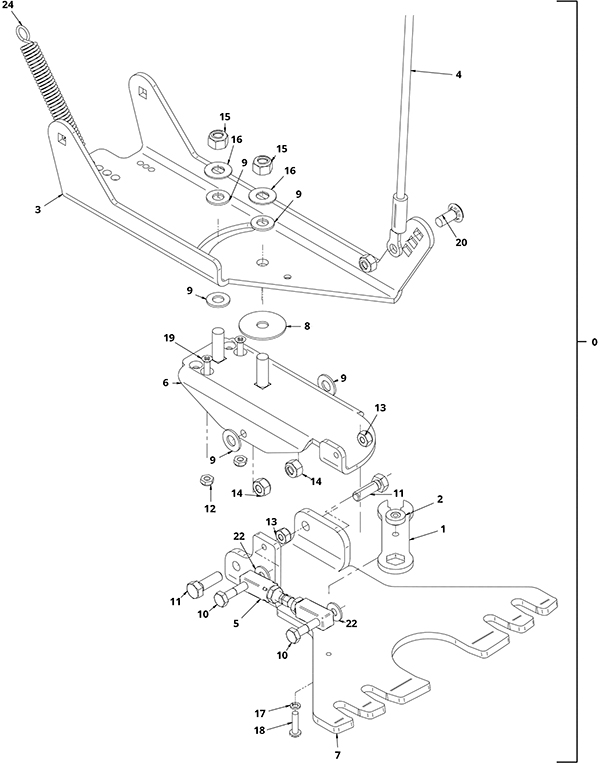

Squeegee Drag Link Assembly - 202-0217 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
202-6425 |
Arm,Squeegee Trail,Assembly |
1 |
(includes 1-24) |
| 3a |
202-6423 |
Plate, Squeegee Swing |
1 |
|
| 3b |
202-6424 |
Plate, Squeegee swing stainless steel |
1 |
|
| 4 |
202-6430 |
Lift Cable,Squeegee,Black 31 inch |
1 |
|
| 5 |
202-6432 |
Body, Adjustable Lateral Arm Assy |
1 |
|
| 6a |
202-7052 |
Arm, Squeegee trail |
1 |
|
| 6b |
202-7053 |
Arm, Squeegee Trail, SS |
1 |
|
| 7a |
202-7055 |
Plate,Triangle,Squeegee |
1 |
|
| 7b |
202-7056 |
Plate, squeegee Triangle stainless steel |
1 |
|
| 8 |
202-9191 |
Washer,3/8 inchIDx1-1/2 inchOD,Nylon |
1 |
|
| 9 |
202-2210 |
Washer 3/8 x 3/4 flat nylon |
5 |
|
| 10 |
999-0298 |
Bolt 1/4-20 x 1 1/4 hex head stainless steel |
2 |
|
| 11 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
| 12 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
2 |
|
| 13 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
| 14 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
3 |
|
| 15 |
999-1482 |
Nut 3/8-16 nylon lock stainless steel |
2 |
|
| 16 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
2 |
|
| 17 |
999-0998 |
Washer #10 flat stainless steel |
1 |
|
| 18 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
1 |
|
| 19 |
999-1189 |
Screw 10-32 x 3/4 flat head phillips stainless steel |
2 |
|
| 20 |
999-0967 |
Bolt 5/16-18 x 3/4 carriage head stainless steel |
1 |
|
| 22 |
999-0563 |
Washer 1/4 x 1/16 flat nylon |
2 |
|
| N/S |
999-1150 |
Bolt 3/8-16 x 1 1/4 carriage head stainless steel |
2 |
|
| N/S |
202-3275 |
Rubber bumper |
1 |
|
|
|
Disk Deck Assembly - 202-0218 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-6396 |
Power Post, Black, 1/4 Terminal |
1 |
|
| 2 |
202-6397 |
Power Post, Red, 1/4 Terminal |
1 |
|
| 3 |
202-6400 |
Terminal Insulator, Black |
1 |
|
| 4 |
202-6401 |
Terminal Insulator, Red |
1 |
|
| 5 |
202-4015 |
24V 1HP brush motor |
2 |
|
| 6 |
202-7038 |
Driver, Brush, Rounded Tooth, Aluminum w/ Insert, Hard coate |
2 |
|
| 7 |
202-7039 |
Spacer, Driver |
2 |
|
| 8 |
202-7092 |
Arm, Lateral, Disk/Edge |
1 |
|
| 9 |
202-5098 |
2 inch bolt on level |
2 |
|
| 10 |
202-7656 |
Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S |
4 |
|
| 12 |
202-0331 |
Brush driver key (pkg of 2) |
2 |
|
| 13 |
202-0332 |
1/2 inch barbed tee |
1 |
|
| 15 |
202-5805 |
Body, Adjustable Lateral Arm |
2 |
|
| 16 |
999-1633 |
Clevis pin 3/8 x 3 1/2 |
2 |
|
| 17 |
999-0330 |
Nut 1/2-13 acorn brass |
8 |
|
| 19 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
| 20 |
999-1856 |
Screw 3/8-24 x 5/8 hex cap stainless steel |
8 |
|
| 21 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
4 |
|
| 22 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
8 |
|
| 23 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
| 24 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
10 |
|
| 25 |
999-0266 |
Washer #8 SAE flat stainless steel |
12 |
|
| 26 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
10 |
|
| 27 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
4 |
|
| 28 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
2 |
|
| 29 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
8 |
|
| 30 |
999-0358 |
Screw 8-32 x 5/8 pan head phillips stainless steel |
4 |
|
| 31 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
4 |
|
| 32 |
999-1818 |
Screw 10-32 x 2 pan head phillips stainless steel |
4 |
|
| 33 |
202-3157 |
Screw 1/4 x 1/4 inch socket head stainless steel |
2 |
|
| 34 |
202-3077 |
Carriage bolt 5/16 x 1-1/2 stainless steel |
2 |
|
| 35 |
202-2851 |
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
9 |
|
| 36 |
999-0919 |
Bolt 5/16-18 x 1 1/4 carriage head stainless steel |
4 |
|
| 37 |
999-1370 |
Bolt 5/16-18 x 1 1/2 carriage head stainless steel |
2 |
|
| 38 |
202-2100 |
Bolt 5/16-18 x 2 carriage head |
2 |
|
| 39 |
202-2208 |
Compression spring |
2 |
|
| 40 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
9 |
|
| 42 |
202-4217 |
Barb elbow 1/2 x 1/4 inch |
2 |
|
| 43 |
202-9499 |
Tee, 1/4 inch, Plastic |
1 |
|
| 47 |
202-5106 |
Reinforced hose 1/2 x 60 inch |
1 |
|
| 48 |
202-5106 |
Reinforced hose 1/2 x 60 inch |
1 |
|
| 49 |
202-5106 |
Reinforced hose 1/2 x 60 inch |
1 |
|
| 50a |
202-2154 |
30 inch deck |
1 |
|
| 50b |
202-2155 |
32 inch deck |
1 |
|
| 50c |
202-2156 |
34 inch deck |
1 |
|
| 51a |
202-6960 |
Band, Rear Curtain, 30 inch |
1 |
|
| 51b |
202-6962 |
Band, Curtain, Rear, 32 inch |
1 |
|
| 51c |
202-6961 |
Band, Rear Curtain, 34 inch |
1 |
|
| 52a |
202-6957 |
Curtain, Rear Deck, 30 inch |
1 |
|
| 52b |
202-6959 |
Curtain, Deck, Rear, 32 inch |
1 |
|
| 52c |
202-6958 |
Curtain, Rear Deck, 34 inch |
1 |
|
|
|

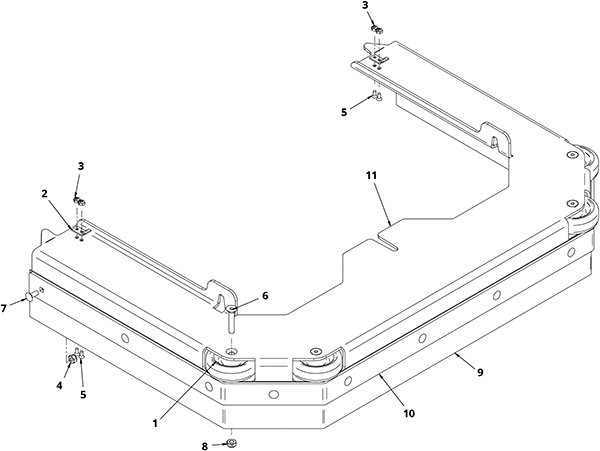

Disk Deck Shroud Assembly - 202-0219 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5405 |
3 inch wheel |
4 |
|
| 3 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
4 |
|
| 4 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
12 |
|
| 5 |
202-3267 |
Screw 8-32 x 3.8 inch flat head phillips stainless steel |
4 |
|
| 6 |
999-1444 |
Screw 5/16-18 x 5/8 flat socket head stainless steel |
4 |
|
| 7 |
202-2851 |
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
12 |
|
| 8 |
999-1019 |
Nut 5/16-18 hex jam stainless steel |
4 |
|
| 9a |
202-6984 |
Curtain, Shroud, 30 inch |
1 |
|
| 9b |
202-6986 |
Curtain, Shorud, 32 inch |
1 |
|
| 9c |
202-6985 |
Curtain, Shroud, 34 inch |
1 |
|
| 10a |
202-6987 |
Band, Shroud, 30 inch |
1 |
|
| 10b |
202-6989 |
Band, Shroud, Curtain, 32 inch |
1 |
|
| 10c |
202-6988 |
Band, Shroud, 34 inch |
1 |
|
| 11a |
202-6965 |
Shroud, 30 inch |
1 |
|
| 11b |
202-6968 |
Shroud, 32 inch |
1 |
|
| 11c |
202-6969 |
Shroud, 34 inch |
1 |
|
|
|

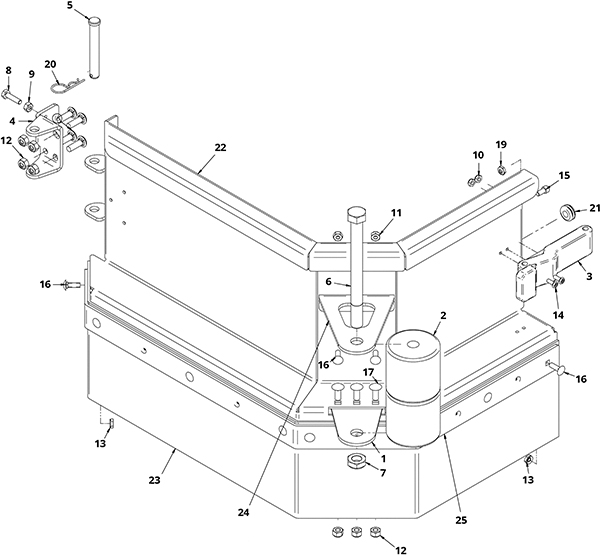

Jaw Assembly - 202-0220 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-6342 |
Bracket, Roller |
1 |
|
| 2 |
202-0756 |
Guide roller |
2 |
|
| 3 |
202-5630 |
Soft draw latch |
1 |
|
| 4a |
202-6983 |
Hinge, Inner Jaw, RH |
1 |
|
| 4b |
202-6982 |
Hinge, Inner Jaw, LH |
1 |
|
| 6 |
999-6723 |
Bolt 5/8-11 x 7 hex head grade 5 zinc plated |
1 |
|
| 7 |
999-0968 |
Nut 5/8-11 nylon insert jam lock zinc plated |
1 |
|
| 8 |
999-0297 |
Bolt 1/4-20 x 1 hex head stainless steel |
1 |
|
| 9 |
999-0609 |
Nut 1/4-20 hex stainless steel |
1 |
|
| 10 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
2 |
|
| 11 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
| 12 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
7 |
|
| 13 |
999-1466 |
Nut 1/4-20 lock with external toothed lockwasher SS |
9 |
|
| 14 |
999-1350 |
Screw 10-32 x 1/2 inch phillips pan head stainless steel |
2 |
|
| 15 |
202-3157 |
Screw 1/4 x 1/4 inch socket head stainless steel |
1 |
(right hand only) |
| 16 |
999-0963 |
Bolt 1/4-20 x 3/4 carriage head stainless steel |
11 |
|
| 17 |
999-0967 |
Bolt 5/16-18 x 3/4 carriage head stainless steel |
3 |
|
| 19 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
1 |
(right hand only) |
| 21 |
202-3348 |
Rubber grommet |
1 |
(right hand only) |
| 22a |
202-7002 |
Jaw, RH, 30 inch |
1 |
|
| 22b |
202-2157 |
32 inch right hand jaw |
1 |
|
| 22c |
202-7010 |
Jaw, RH, 34 inch |
1 |
|
| 22d |
202-7003 |
Jaw, LH, 30 inch |
1 |
|
| 22e |
202-2160 |
32 inch left hand jaw |
1 |
|
| 22f |
202-7011 |
Jaw, LH, 34 inch |
1 |
|
| 23a |
202-7008 |
Curtain, Jaw, 30 inch |
1 |
|
| 23b |
202-2158 |
32 inch jaw curtain |
1 |
|
| 23c |
202-7012 |
Curtain, Jaw, 34 inch |
1 |
|
| 24a |
202-6990 |
Bracket, Roller, Jaw, 30 inch |
1 |
|
| 24b |
202-6337 |
Bracket, Roller, Jaw, 28 inch |
1 |
|
| 24c |
202-6992 |
Bracket, Roller, Jaw, 34 inch |
1 |
|
| 25a |
202-7009 |
Band, Jaw, 30 inch |
1 |
|
| 25b |
202-2159 |
32 inch jaw band |
1 |
|
| 25c |
202-7013 |
Band, Jaw, 34 inch |
1 |
|
| N/S |
999-9066 |
Bolt 5/16-18 x 1 carriage head stainless steel |
4 |
|
|
|

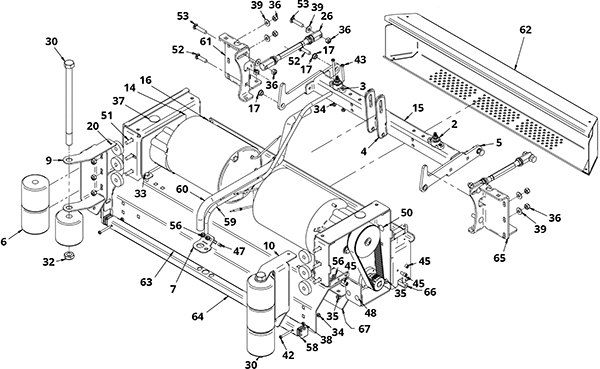

Cylindrical Assembly - 202-0221 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
202-6396 |
Power Post, Black, 1/4 Terminal |
1 |
|
| 3 |
202-6397 |
Power Post, Red, 1/4 Terminal |
1 |
|
| 4 |
202-2161 |
Left arm center bracket |
1 |
|
| 5 |
202-2162 |
Cylindrical lateral arm |
2 |
|
| 6 |
202-0756 |
Guide roller |
6 |
|
| 7 |
202-4022 |
Quick disconnect bracket |
1 |
|
| 9 |
202-6971 |
Bracket, Roller |
1 |
|
| 10 |
202-6971 |
Bracket, Roller |
1 |
|
| 14 |
202-7071 |
Bracket, Motor Adjustment |
2 |
|
| 15 |
202-2163 |
Lift arm cross bar |
1 |
|
| 16 |
202-5098 |
2 inch bolt on level |
2 |
|
| 17 |
202-7656 |
Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S |
4 |
|
| 26 |
202-4224 |
Adjustable lateral arm |
2 |
|
| 30 |
202-4038 |
Screw 5/8-11 x 10 hex head |
2 |
|
| 32 |
999-0968 |
Nut 5/8-11 nylon insert jam lock zinc plated |
2 |
|
| 33 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
| 34 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
6 |
|
| 35 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
24 |
|
| 36 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
22 |
|
| 37 |
202-2244 |
Hole plug 7/8 |
2 |
|
| 38 |
202-2067 |
Nut 10-32 keps |
2 |
|
| 39 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
12 |
|
| 42 |
999-1631 |
Screw 10-32 x 1 1/2 pan head phillips stainless steel |
2 |
|
| 43 |
999-1818 |
Screw 10-32 x 2 pan head phillips stainless steel |
4 |
|
| 45 |
202-3157 |
Screw 1/4 x 1/4 inch socket head stainless steel |
6 |
|
| 48 |
202-2851 |
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
20 |
|
| 50 |
999-0967 |
Bolt 5/16-18 x 3/4 carriage head stainless steel |
8 |
|
| 51 |
999-9066 |
Bolt 5/16-18 x 1 carriage head stainless steel |
6 |
|
| 52 |
999-0919 |
Bolt 5/16-18 x 1 1/4 carriage head stainless steel |
4 |
|
| 53 |
999-1370 |
Bolt 5/16-18 x 1 1/2 carriage head stainless steel |
4 |
|
| 56 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
7 |
|
| 58 |
202-5471 |
Square plug |
2 |
|
| 60 |
202-5106 |
Reinforced hose 1/2 x 60 inch |
1 |
|
| 61a |
202-7083 |
Bracket, Cylindrical Lifting, RH, 25 inch |
1 |
|
| 61b |
202-7085 |
Bracket, Cylindrical Lifting, RH, 29 inch |
1 |
|
| 61c |
202-7087 |
Bracket, Cylindrical Lifting, RH, 33 inch |
1 |
|
| 62a |
202-7044 |
Hopper, 25 inch, SS |
1 |
|
| 62b |
202-7045 |
Hopper, 29 inch, SS |
1 |
|
| 62c |
202-7046 |
Hopper, 33 inch, SS |
1 |
|
| 63a |
202-7041 |
Brushhead, Cylindrical, 25 inch, SS |
1 |
|
| 63b |
202-7042 |
Brushhead, Cylindrical, 29 inch, SS |
1 |
|
| 63c |
202-7043 |
Brushhead, Cylindrical, 33 inch, SS |
1 |
|
| 64a |
202-2164 |
25 inch cylindrical feed tube |
1 |
|
| 64b |
202-2165 |
29 inch cylindrical feed tube |
1 |
|
| 64c |
202-2166 |
33 inch cylindrical feed tube |
1 |
|
| 65a |
202-7082 |
Bracket, Cylindrical Lifting, LH, 25 inch |
1 |
|
| 65b |
202-7084 |
Bracket, Cylindrical Lifting, LH, 29 inch |
1 |
|
| 65c |
202-7086 |
Bracket, Cylindrical Lifting, LH, 33 inch |
1 |
|
| 66a |
202-2167 |
29 inch stiffener stainless steel |
1 |
|
| 66b |
202-2168 |
33 inch stiffener stainless steel |
1 |
|
| 66c |
202-2169 |
37 inch stiffener stainless steel |
1 |
|
| 67a |
202-2170 |
29 inch attinuator |
1 |
|
| 67b |
202-2171 |
33 inch attinuator |
1 |
|
| 67c |
202-2172 |
37 inch attinuator |
1 |
|
| N/S |
202-2173 |
Side support |
1 |
|
| N/S |
999-0963 |
Bolt 1/4-20 x 3/4 carriage head stainless steel |
4 |
|
|
|

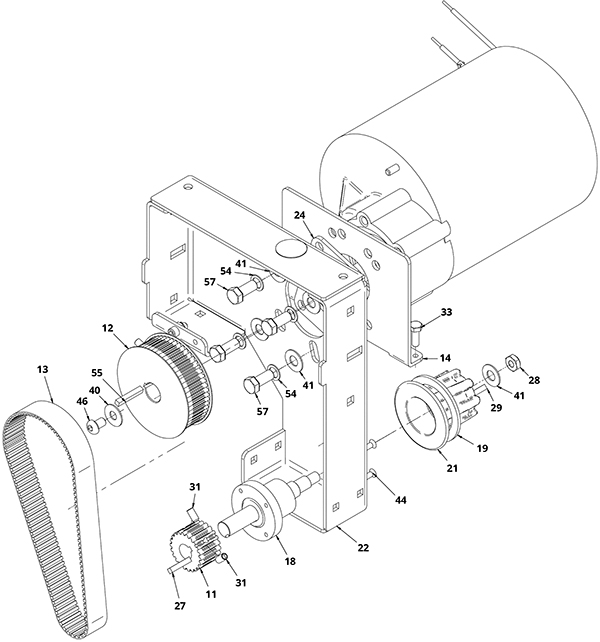

Cylindrical Drive Assembly - 202-0222 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 11 |
202-7058 |
Sprocket, Timing, 26 Tooth |
2 |
|
| 12 |
202-7059 |
Sprocket, Timing, 56 Tooth |
2 |
|
| 13 |
202-7060 |
Belt, Cylindrical |
2 |
|
| 14 |
202-7071 |
Bracket, Motor Adjustment |
2 |
|
| 18 |
202-3146 |
Bearing housing |
2 |
|
| 19 |
202-7788 |
Seal,Cylindrical Driver |
2 |
|
| 21 |
202-8374 |
Driver, Cylindrical Spiral, 8 Spline, Alum HC W/Gasket |
2 |
|
| 22 |
202-2174 |
Side support HD |
2 |
|
| 24 |
202-2175 |
Motor spacer |
2 |
|
| 27 |
202-0847 |
Square keyway |
2 |
|
| 28 |
999-1151 |
Nut 3/8-24 nylon insert jam lock stainless steel |
2 |
|
| 29 |
202-3153 |
Square keyway |
2 |
|
| 31 |
999-1468 |
Screw 1/4-20 x 1/2 knurled point set alloy steel |
8 |
|
| 33 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
| 40 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 41 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
10 |
|
| 44 |
999-1009 |
Screw 10-32 x 1/2 flat head phillips stainless steel |
8 |
|
| 46 |
999-1459 |
Screw 5/16-18 x 1/2 button socket head stainless steel |
2 |
|
| 54 |
202-3158 |
Washer 3/8 inch serrated stainless steel |
8 |
|
| 55 |
202-0140 |
Steering shaft key |
2 |
|
| 57 |
999-1469 |
Screw 3/8-24 x 7/8 hex head zinc plated |
8 |
|
|
|

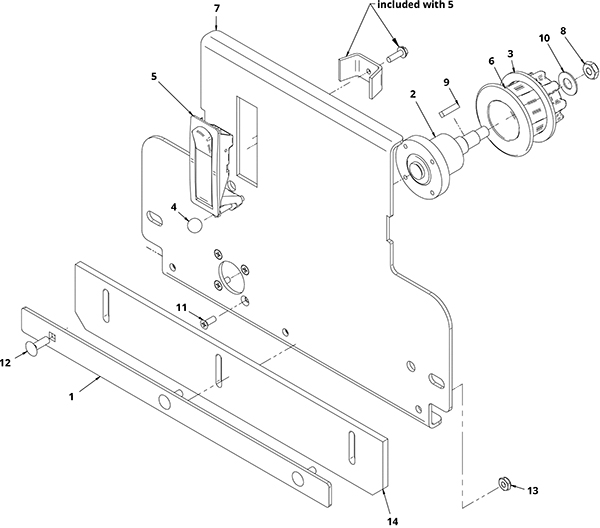

Cylindrical Door Assembly - 202-0223 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
202-3168 |
Idler drive bearing |
1 |
|
| 3 |
202-7788 |
Seal,Cylindrical Driver |
1 |
|
| 6 |
202-8374 |
Driver, Cylindrical Spiral, 8 Spline, Alum HC W/Gasket |
1 |
|
| 8 |
999-1151 |
Nut 3/8-24 nylon insert jam lock stainless steel |
1 |
|
| 9 |
202-3153 |
Square keyway |
1 |
|
| 10 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
1 |
|
| 11 |
999-1009 |
Screw 10-32 x 1/2 flat head phillips stainless steel |
4 |
|
| 12 |
999-0963 |
Bolt 1/4-20 x 3/4 carriage head stainless steel |
3 |
|
| 13 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
3 |
|
| 14a |
202-7073 |
Wiper, Cylindrical, linatex |
1 |
|
| 14b |
202-7072 |
Wiper, Cylindrical, Gum |
1 |
|
| 14c |
202-7074 |
Wiper, Cylindrical, Urethane |
1 |
|
|
|
Caster Foot Assembly - 202-0224 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
202-6999 |
Caster Foot |
1 |
|
| 1b |
202-6998 |
Caster Foot |
1 |
(for mild steel) |
| 2 |
202-7656 |
Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S |
2 |
|
| 3 |
202-9155 |
Bolt,Carriage,5/16-18x7/8 inch |
8 |
|
| 4 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
8 |
|
| 5 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
8 |
|
| 7a |
202-3405 |
5 inch caster wheel (solid gray) |
1 |
(standard |
| 7b |
202-3367 |
5 inch caster wheel (soft gray) |
1 |
(optional) |
|
|

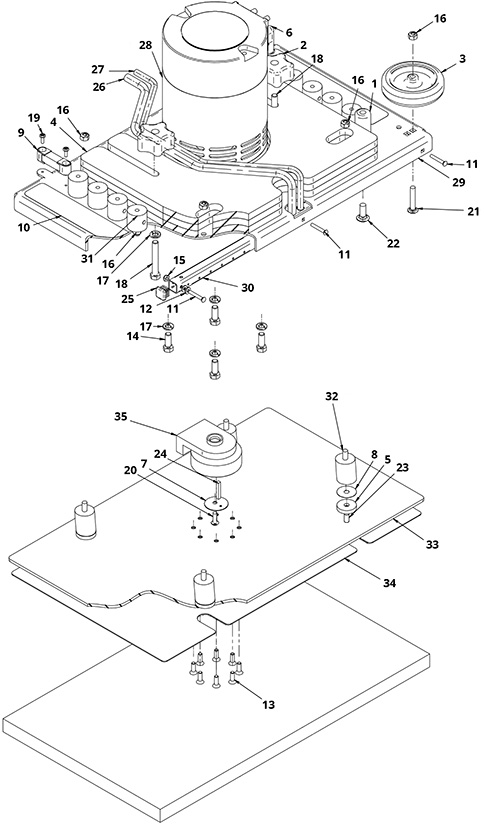

Orbital Deck Assembly - 202-0225 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
202-5079 |
4 inch wheel |
2 |
|
| 4 |
202-6410 |
Weight, 16.5 Lbs, Green |
3 |
|
| 6 |
202-2961 |
Terminal cover (black) |
2 |
|
| 7 |
202-5084 |
Crush washer |
1 |
|
| 8 |
202-2177 |
Isolator shield |
4 |
|
| 9 |
202-5098 |
2 inch bolt on level |
2 |
|
| 10 |
202-9089 |
Decal, Edge, 24 inch |
2 |
|
| 11 |
999-1570 |
Bolt 10-32 x 1 1/4 round head carriage stainless steel |
3 |
|
| 12 |
999-1874 |
Washer #10 nylon flat |
6 |
|
| 13 |
999-0457 |
Screw 1/4-20 x 3/4 flat head phillips stainless steel |
8 |
|
| 14 |
999-0562 |
Bolt 3/8-16 x 1 hex head stainless steel |
4 |
|
| 15 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
3 |
|
| 16 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
16 |
|
| 17 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
6 |
|
| 19 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
4 |
|
| 20 |
999-0867 |
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
1 |
|
| 21 |
202-3077 |
Carriage bolt 5/16 x 1-1/2 stainless steel |
2 |
|
| 22 |
202-2832 |
Bolt 3/8 - 16 x 1 carriage head stainless steel |
2 |
|
| 23 |
999-1258 |
Screw 5/16-18 x 3/4 flat head phillips stainless steel |
4 |
|
| 24 |
202-0140 |
Steering shaft key |
1 |
|
| 25 |
202-9545 |
Plug,Square,3/4 inch,Black |
2 |
|
| 26 |
202-4226 |
Solution hose |
1 |
|
| 28a |
202-5531 |
24V 1 HP motor |
1 |
(standard) |
| 28b |
202-5354 |
24V 1.2 HP motor |
1 |
(optional) |
| 29a |
202-2178 |
20 inch sqaure head deck |
1 |
|
| 29b |
202-5529 |
24 inch square deck |
1 |
|
| 29c |
202-7031 |
Kit, Deck, Square Head, SS, 28 inch |
1 |
|
| 30a |
202-5527 |
20 inch feed tube kit |
1 |
|
| 30b |
202-5530 |
24 inch feed tube kit |
1 |
|
| 30c |
202-5093 |
28 inch solution feed tube |
1 |
|
| 31 |
202-4228 |
Rubber isolator kit |
1 |
|
| 32 |
202-2180 |
Isolator kit |
1 |
|
| 33a |
202-2181 |
20 inch driver plate aluminum |
1 |
|
| 33b |
202-2182 |
24 inch driver plate aluminum |
1 |
|
| 33c |
202-2183 |
28 inch driver plate aluminum |
1 |
|
| 34a |
202-5089 |
Mighty-Lok II grip face pad holder set (brown) |
1 |
|
| 34b |
202-2184 |
24 inch grip face |
1 |
|
| 34c |
202-2185 |
28 inch grip face |
1 |
|
| 35 |
202-2186 |
Eccentric kit |
1 |
|
|
|

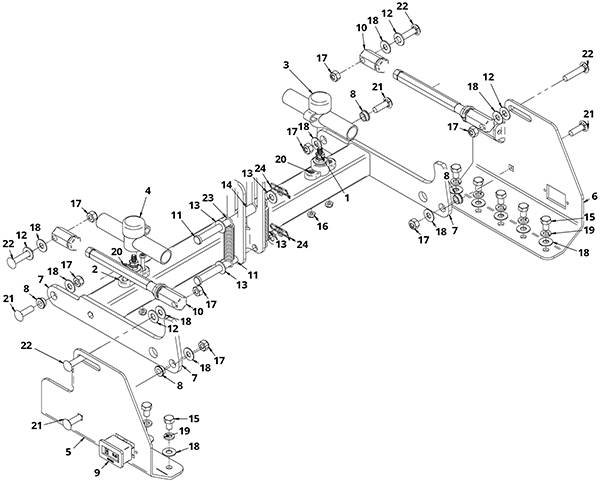

Orbital Lifting Bracket - 202-0226 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-6396 |
Power Post, Black, 1/4 Terminal |
1 |
|
| 2 |
202-6397 |
Power Post, Red, 1/4 Terminal |
1 |
|
| 3 |
202-6400 |
Terminal Insulator, Black |
1 |
|
| 4 |
202-6401 |
Terminal Insulator, Red |
1 |
|
| 5 |
202-7088 |
Bracket. Deck Lifting, LH |
1 |
|
| 6 |
202-7089 |
Bracket, Deck Lifting, RH |
1 |
|
| 7 |
202-7092 |
Arm, Lateral, Disk/Edge |
1 |
|
| 8 |
202-7656 |
Bushing,Flanged,5/16 inchIDx1/2 inchODx 1/4 inch, Hardened S |
4 |
|
| 10 |
202-5805 |
Body, Adjustable Lateral Arm |
2 |
|
| 11 |
999-1633 |
Clevis pin 3/8 x 3 1/2 |
2 |
|
| 12 |
202-2210 |
Washer 3/8 x 3/4 flat nylon |
4 |
|
| 13 |
202-2210 |
Washer 3/8 x 3/4 flat nylon |
4 |
|
| 15 |
999-0547 |
Bolt 5/16-18 x 1/2 hex head stainless steel |
10 |
|
| 16 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
4 |
|
| 17 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
8 |
|
| 18 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
18 |
|
| 19 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
10 |
|
| 20 |
999-1818 |
Screw 10-32 x 2 pan head phillips stainless steel |
4 |
|
| 21 |
999-9066 |
Bolt 5/16-18 x 1 carriage head stainless steel |
4 |
|
| 22 |
999-1370 |
Bolt 5/16-18 x 1 1/2 carriage head stainless steel |
4 |
|
| 23 |
202-2187 |
Spring 3 1/4 x 9/16 inch |
2 |
|
|
|

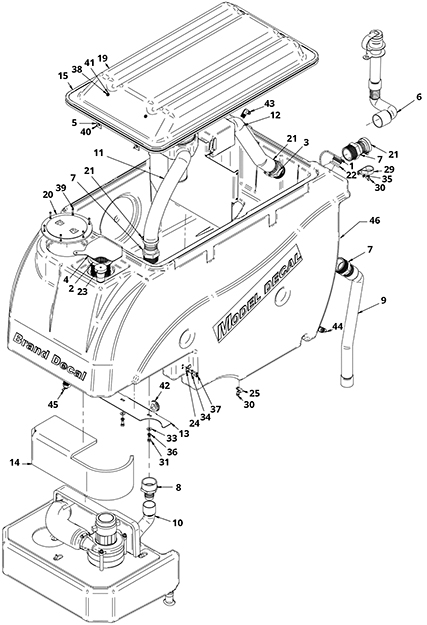

Standard XL Tank Assembly - 202-0227 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-3373 |
Drain hose cap |
1 |
|
| 2 |
202-3036 |
Strainer screen |
1 |
|
| 4 |
202-6360 |
Curtain, Splash |
1 |
|
| 5 |
202-6381 |
Tank Lid Strap W/Grommets |
4 |
|
| 6 |
202-3582 |
Drain hose assembly |
1 |
|
| 9 |
202-3023 |
Squeegee vacuum hose |
1 |
|
| 10 |
202-4262 |
Bandeau to tank hose |
1 |
|
| 11 |
202-6941 |
Hose, Inner Tank |
1 |
|
| 12 |
202-6941 |
Hose, Inner Tank |
1 |
|
| 13 |
202-6956 |
Bracket, Tank Strap |
1 |
|
| 14 |
202-6974 |
Soundeading Kit |
1 |
|
| 15 |
202-4267 |
Push on rubber gasket |
1 |
|
| 19a |
202-7000 |
Cover, Tinted, Complete |
1 |
|
| 19b |
202-2188 |
Cover stainless steel |
1 |
|
| 20 |
202-7054 |
Lid,Screw-On,Tank |
1 |
|
| 25 |
202-2189 |
Loop clamp rubber |
1 |
|
| 30 |
999-0644 |
Bolt 1/4-20 x 1/2 hex head stainless steel |
2 |
|
| 31 |
999-0556 |
Bolt 5/16-18 x 3/4 hex head stainless steel |
2 |
|
| 33 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 34 |
999-0998 |
Washer #10 flat stainless steel |
4 |
|
| 35 |
999-0632 |
Washer 1/4 split lock stainless steel |
2 |
|
| 36 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
2 |
|
| 37 |
999-1350 |
Screw 10-32 x 1/2 inch phillips pan head stainless steel |
4 |
|
| 38 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
2 |
|
| 39 |
999-0870 |
Screw 8 x 3/4 pan head phillips stainless steel |
6 |
|
| 40 |
999-0870 |
Screw 8 x 3/4 pan head phillips stainless steel |
2 |
|
| 41 |
202-3244 |
Neoprene washer |
4 |
|
| 43 |
202-4100 |
Barbed elbow 3/8 x 1/2 inch |
1 |
|
| 44 |
202-3440 |
Barbed elbow |
2 |
|
| 45 |
202-9496 |
Elbow, 1/4 inch Barb x 3/4 inch NPT Black |
1 |
|
| 46a |
202-7035 |
Tank,Solution/Recovery,Granite XL tank |
1 |
|
| 46b |
202-2190 |
Tank (red) |
1 |
|
| 46c |
202-2191 |
Tank (green) |
1 |
|
| N/S |
202-2192 |
Kickstand (OBSOLETE) |
1 |
|
| N/S |
202-2194 |
Tank lid bracket |
1 |
|
| N/S |
999-1269 |
Nut 10-32 nylon insert jam stainless steel |
2 |
|
| N/S |
999-1457 |
Bolt 5/16-18 x 5/8 round head carriage stainless steel |
1 |
|
| N/S |
202-1163 |
Bolt 3/8 x 3/8 shoulder stainless steel |
1 |
|
| N/S |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
| N/S |
202-4234 |
Back cord tip |
1 |
|
|
|
Baffle Assembly - 202-0228 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-6320 |
Flap,Drain Saver Basket |
1 |
|
| 3 |
202-6346 |
Rod, Drain Saver Basket |
2 |
|
| 4 |
202-4326 |
Top stainer with gasket |
1 |
|
| 5 |
202-6413 |
Gasket, Baffle Cap |
1 |
|
| 6 |
202-6414 |
Gasket, Ball Float |
1 |
|
| 7 |
202-6973 |
Baffle, Small Tank, SS |
1 |
|
| 8 |
202-7033 |
Vac Box Filter |
1 |
|
| 9 |
202-7065 |
Drain Saver Basket Complete |
1 |
|
| 10 |
202-7090 |
Strainer,Screen 6 inch |
1 |
|
| 11 |
202-0232 |
Float shut-off ball |
1 |
|
| 12 |
202-0230 |
Strainer gasket |
1 |
|
| 13 |
202-8038 |
4 inch Clear Access Port |
1 |
|
| 14 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
5 |
|
| 15 |
202-2067 |
Nut 10-32 keps |
2 |
|
| 16 |
202-3316 |
Washer flat stainless steel |
3 |
|
| 17 |
999-1290 |
Screw #14 x 1 truss head phillips stainless steel |
4 |
|
| 18 |
999-1631 |
Screw 10-32 x 1 1/2 pan head phillips stainless steel |
2 |
|
| 19 |
999-1009 |
Screw 10-32 x 1/2 flat head phillips stainless steel |
3 |
|
| 20 |
999-1189 |
Screw 10-32 x 3/4 flat head phillips stainless steel |
2 |
|
| 21 |
999-1919 |
#8-15 x 1/2 phillips pan head sheet metal SS |
6 |
|
| 22 |
202-9537 |
O-Ring,3-1/2ID x 3-5/8 OD x 1/16 inch |
1 |
|
|
|
Vacuum Bandeau Assembly - 202-0229 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5483 |
1/4 inch two way ball valve brass |
1 |
|
| 2 |
202-6343 |
Bracket, Baffle |
2 |
|
| 3 |
202-6395 |
Spacers,Plastic,3 inch |
3 |
|
| 4 |
202-6421 |
Motor,Vacuum, 24V, 3 Stage with Connector |
1 |
|
| 6 |
202-6975 |
Bandeau, Plastic |
1 |
|
| 7 |
202-6976 |
Sound Deading Box, Yellow |
1 |
|
| 8 |
202-6394 |
Muffler, Vac Fan |
1 |
|
| 9 |
202-2195 |
Vacuum motor gasket (OBSOLETE) |
1 |
|
| 10 |
202-4266 |
Sound proof barrier |
1 |
|
| 11 |
202-0686 |
90 degree barb 1/4 x 1/4 |
1 |
|
| 12 |
202-1916 |
Unloader valve |
1 |
|
| 14 |
202-9128 |
Clamp,Loop,1/2 inch,Rubber |
3 |
|
| 16 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
3 |
|
| 17 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
| 18 |
999-0632 |
Washer 1/4 split lock stainless steel |
3 |
|
| 19 |
999-1288 |
Washer 1/4 x 1 OD fender stainless steel |
6 |
|
| 20 |
999-0870 |
Screw 8 x 3/4 pan head phillips stainless steel |
8 |
|
| 21 |
202-4235 |
Aerosol rust stopper 1/4 inch - 20 x 2.75 inch |
3 |
|
| 22 |
202-4236 |
Areosol rust stopper 1/4 inch - 20 x 6.0 inch (black) |
3 |
|
| 23 |
202-9475 |
Fitting, 1/4 NPTF x 3/16 Barb |
1 |
|
| 24 |
202-9488 |
Fitting,1/4 inchNPTx1/8 inchBarb |
1 |
|
| 25 |
202-9489 |
Fitting,1/4 inchNPTx1/4 inchBarb |
1 |
|
| 26 |
202-9499 |
Tee, 1/4 inch, Plastic |
1 |
|
| 27 |
202-1986 |
Washer 3/8 x 1-1/8 x 3/32 neoprene thread |
3 |
|
| 29 |
202-4229 |
Hose 1/4 inch x 5 foot |
1 |
|
| 30 |
202-4229 |
Hose 1/4 inch x 5 foot |
1 |
|
| 31 |
202-4229 |
Hose 1/4 inch x 5 foot |
1 |
|
| 32 |
202-4229 |
Hose 1/4 inch x 5 foot |
1 |
|
| 33 |
202-9589 |
Hose 1/4 inch x 5 foot (green) |
1 |
|
| N/S |
202-3503 |
24V soap pump |
1 |
|
|
|
Small Tank Assembly - 202-0230 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-3373 |
Drain hose cap |
1 |
|
| 2 |
202-3036 |
Strainer screen |
1 |
|
| 3 |
202-6302 |
Hose, Baffle to Tank |
1 |
|
| 5 |
202-6360 |
Curtain, Splash |
1 |
|
| 6 |
202-6381 |
Tank Lid Strap W/Grommets |
2 |
|
| 7 |
202-3582 |
Drain hose assembly |
1 |
|
| 10 |
202-3023 |
Squeegee vacuum hose |
1 |
|
| 11 |
202-6941 |
Hose, Inner Tank |
1 |
|
| 12 |
202-6941 |
Hose, Inner Tank |
1 |
|
| 13 |
202-6956 |
Bracket, Tank Strap |
1 |
|
| 14 |
202-6974 |
Soundeading Kit |
1 |
|
| 15a |
202-7001 |
Cover, Tinted, Complete |
1 |
|
| 16 |
202-7034 |
Push-On Rubber Gasket For 264-1410 Lid |
1 |
|
| 17 |
202-7054 |
Lid,Screw-On,Tank |
1 |
|
| 22 |
202-2189 |
Loop clamp rubber |
1 |
|
| 25 |
999-0644 |
Bolt 1/4-20 x 1/2 hex head stainless steel |
2 |
|
| 26 |
999-0556 |
Bolt 5/16-18 x 3/4 hex head stainless steel |
2 |
|
| 27 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 28 |
999-0998 |
Washer #10 flat stainless steel |
4 |
|
| 29 |
999-0632 |
Washer 1/4 split lock stainless steel |
2 |
|
| 30 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
2 |
|
| 31 |
999-1350 |
Screw 10-32 x 1/2 inch phillips pan head stainless steel |
4 |
|
| 32 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
2 |
|
| 33 |
999-0870 |
Screw 8 x 3/4 pan head phillips stainless steel |
6 |
|
| 34 |
999-0870 |
Screw 8 x 3/4 pan head phillips stainless steel |
2 |
|
| 35 |
202-3244 |
Neoprene washer |
4 |
|
| 37 |
202-4100 |
Barbed elbow 3/8 x 1/2 inch |
1 |
|
| 38 |
202-3440 |
Barbed elbow |
2 |
|
| 39 |
202-9496 |
Elbow, 1/4 inch Barb x 3/4 inch NPT Black |
1 |
|
| 40a |
202-7047 |
TANK,SOLUTION/RECOVERY,GRANITE Standard tank |
1 |
|
| 40b |
202-7048 |
TANK,SOLUTION/RECOVERY,RED Standard tank |
1 |
|
| 40c |
202-3621 |
Small tank (green) |
1 |
|
| N/S |
999-1269 |
Nut 10-32 nylon insert jam stainless steel |
2 |
|
| N/S |
202-4234 |
Back cord tip |
1 |
|
|
|

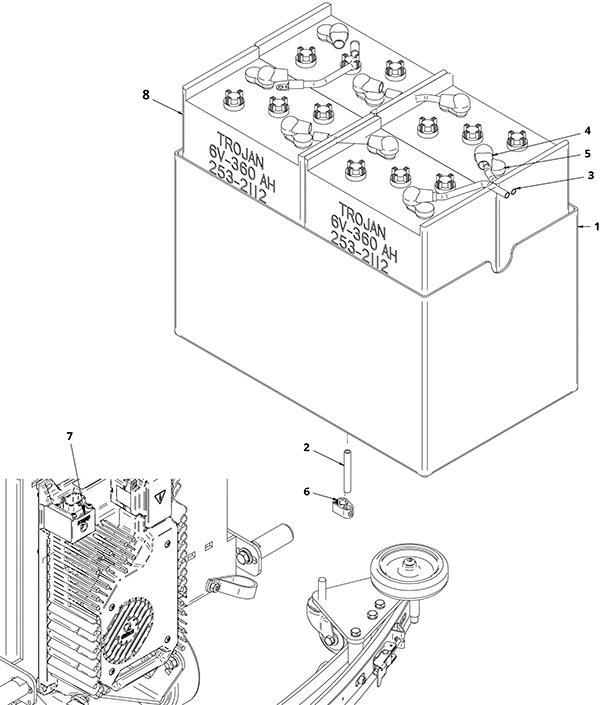

Battery and Charger Assembly - 202-0231 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-3477 |
Battery tray 14 x 24 x 14 inch |
1 |
|
| 2 |
202-3473 |
3 1/4 inch hose (black) |
1 |
|
| 3 |
202-3476 |
Wire harness assembly |
1 |
|
| 4 |
202-2850 |
Battery boot |
8 |
|
| 5 |
202-2849 |
Terminal cover |
8 |
|
| 6 |
202-3475 |
Clamp style pinch valve |
1 |
|
| 7a |
202-1093 |
24V and 36V 36amp battery charger |
1 |
|
| 7b |
202-5723 |
12V 27AH onboard charger |
1 |
|
| 8 |
162-0005 |
6V 305Ah wet battery (SNSR) |
4 |
|
|
|

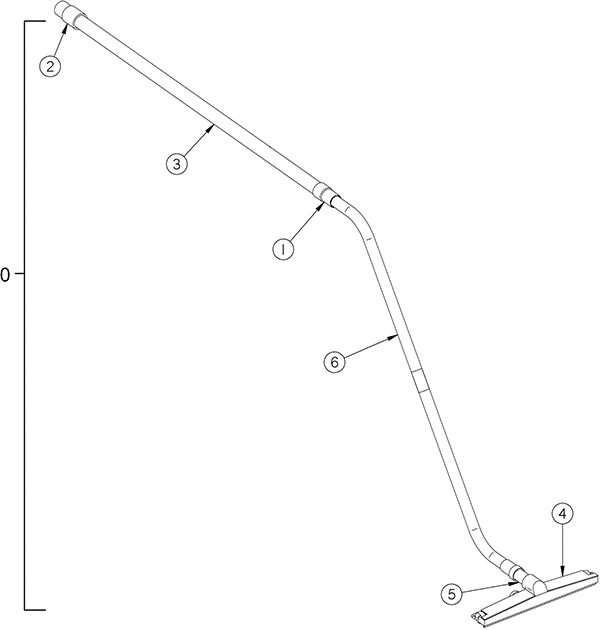

Off-Aisle Vacuum Wand Assembly - 202-0232 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
202-1553 |
Vacuum wand assembly |
1 |
(includes 1-6) |
| 1 |
202-0706 |
1 1/2 inch hose cuff |
1 |
|
| 2 |
202-2111 |
2 inch hose cuff |
1 |
|
| 3 |
202-0091 |
Vacuum hose 1 1/2 x 15 foot with cuffs |
1 |
|
| 4 |
202-0095 |
Vacuum nozzle |
1 |
|
| 6 |
202-0094 |
54 inch wand tube |
1 |
|
|
|

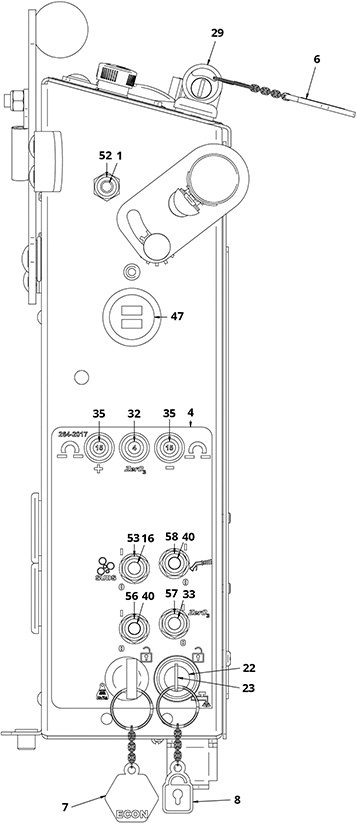

Legacy Central Command Assembly 1 - 202-0233 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5396 |
Toggle switch |
1 |
|
| 4 |
202-7016 |
Decal, Control Panel, Top Carbon/Mini HD |
1 |
|
| 6 |
202-3622 |
Power keychain |
1 |
|
| 7 |
202-3695 |
Econ key fob |
1 |
|
| 8 |
202-3696 |
Manager lockout key fob |
1 |
|
| 16 |
202-3340 |
Toggle switch |
1 |
|
| 23 |
202-3624 |
Manager lockout key |
1 |
|
| 29 |
991-1634 |
Key (pkg of 2) |
3 |
|
| 33 |
202-1992 |
Toggle switch |
1 |
|
| 40 |
202-0097 |
Toggle switch |
2 |
|
| 47 |
202-3625 |
Dual USB ports |
1 |
|
| 52 |
202-1864 |
Toggle switch protective boot (red) |
1 |
|
| 53 |
202-1866 |
Toggle switch protective boot (green) |
1 |
|
| 56 |
202-3465 |
Toggle switch protective boot (orange) |
1 |
|
| 57 |
202-9214 |
Boot,Toggle Switch,Purple |
1 |
|
| 58 |
202-3466 |
Toggle switch protective boot (light blue) |
1 |
|
|
|

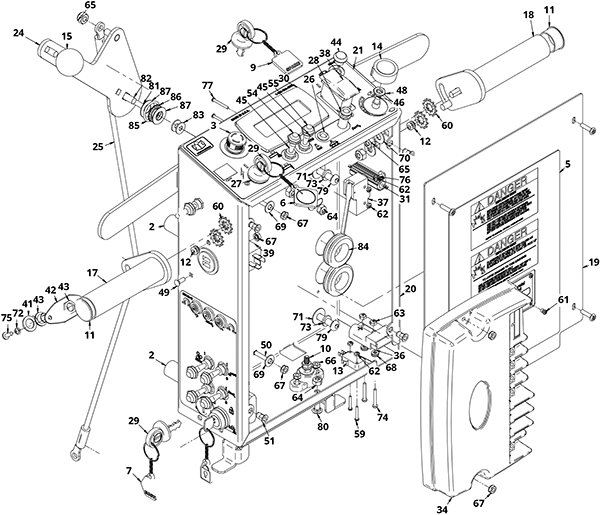

Legacy Central Command Assembly 2 - 202-0234 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
202-4191 |
Emergency stop button |
1 |
|
| 5 |
202-7016 |
Decal, Control Panel, Top Carbon/Mini HD |
1 |
|
| 6 |
202-3622 |
Power keychain |
1 |
|
| 7 |
202-3695 |
Econ key fob |
1 |
|
| 9 |
202-3697 |
Spare key fob |
1 |
|
| 10 |
202-6396 |
Power Post, Black, 1/4 Terminal |
1 |
|
| 12 |
202-1587 |
LED GROMMET |
2 |
|
| 13 |
202-0721 |
Microswitch |
1 |
|
| 14 |
202-0989 |
Control knob with washer (red) |
1 |
|
| 15 |
202-0515 |
Solution flow control knob |
1 |
|
| 17 |
202-6994 |
Handlebar, Adjustable, LH |
1 |
|
| 18 |
202-6995 |
Handlebar, Adjustable, RH |
1 |
|
| 19 |
202-7014 |
Cover, Control Panel |
1 |
|
| 20 |
202-7015 |
Control Panel, LCD Screen, Black |
1 |
|
| 21 |
202-7016 |
Decal, Control Panel, Top Carbon/Mini HD |
1 |
|
| 24 |
202-7050 |
Lever, Squeegee Lift |
1 |
|
| 25a |
202-7057 |
Lift Cable,Squeegee,Black 33 inch |
1 |
|
| 25b |
202-9617 |
Squeegee lift cable 35 1/2 inch |
1 |
|
| 26 |
202-0832 |
Full recovery indicator (red) |
1 |
|
| 27 |
202-2300 |
Key switch with key entry (red) and ring (black) |
2 |
|
| 28 |
202-7203 |
Light,24V,Green,Bulb Style |
1 |
|
| 29 |
991-1634 |
Key (pkg of 2) |
3 |
|
| 30 |
202-1317 |
LCD window display |
1 |
|
| 31 |
202-7287 |
Resistor,Wirewound,8OHM,50W |
1 |
|
| 34 |
202-1369 |
Main controller |
1 |
|
| 36 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 37 |
202-0192 |
Lift limit switch |
1 |
|
| 38 |
202-0369 |
2 position rocker switch |
1 |
|
| 39 |
202-0348 |
15amp relay |
1 |
|
| 41 |
202-3427 |
Button cover |
2 |
|
| 42 |
202-0869 |
Switch cover |
4 |
|
| 43 |
202-0879 |
Push button switch |
4 |
|
| 44 |
202-0879 |
Push button switch |
1 |
|
| 45 |
202-0521 |
Toggle switch |
2 |
|
| 46 |
202-0535 |
Speed control potentiometer |
1 |
|
| 48 |
202-9136 |
Nut,Hex,3/8-32 inch,Zinc |
1 |
|
| 49 |
202-3302 |
Bolt 10-32 x 1/2 carriage head stainless steel |
1 |
|
| 50 |
999-1570 |
Bolt 10-32 x 1 1/4 round head carriage stainless steel |
2 |
|
| 51 |
202-3601 |
Nut #10-32 hex crimp |
4 |
|
| 54 |
202-1865 |
Toggle switch protective boot (blue) |
1 |
|
| 55 |
202-1355 |
Toggle switch protective boot (black) |
1 |
|
| 59 |
202-2371 |
Screw 4-40 x 3/4 round pan head |
2 |
|
| 60 |
202-1133 |
Washer 5/16 internal/external star |
4 |
|
| 61 |
202-3315 |
Blind rivet |
4 |
|
| 62 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
6 |
|
| 63 |
999-0337 |
Nut 6-32 nylon insert lock stainless steel |
2 |
|
| 64 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
7 |
|
| 65 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
6 |
|
| 66 |
999-1464 |
Nut 8-32 keps lock with external tooth lockwasher ss |
2 |
|
| 67 |
202-2067 |
Nut 10-32 keps |
5 |
|
| 68 |
999-0266 |
Washer #8 SAE flat stainless steel |
4 |
|
| 69 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
| 71 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
| 72 |
999-0998 |
Washer #10 flat stainless steel |
8 |
|
| 73 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 74 |
999-0520 |
Screw 10-24 x 1 pan head phillips stainless steel |
2 |
|
| 75 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
10 |
|
| 76 |
202-2370 |
Screw 4-40 x 1/2 Phillips pan head stainless steel |
2 |
|
| 77 |
999-1463 |
Screw 4-40 x 1 pan head phillips stainless steel |
2 |
|
| 79 |
999-1854 |
Screw 5/16 18 x 2 button head socket cap stainless steel |
4 |
|
| 81 |
999-1401 |
Bolt 1/4-20 x 1 carriage head stainless steel |
1 |
|
| 82 |
999-0967 |
Bolt 5/16-18 x 3/4 carriage head stainless steel |
5 |
|
| 83 |
999-0563 |
Washer 1/4 x 1/16 flat nylon |
3 |
|
| 85 |
202-4245 |
Thrust bearing |
1 |
|
| 86 |
202-5232 |
Roller thrust bearing |
1 |
|
| 87 |
202-5233 |
Thrust bearing washer |
2 |
|
| N/S |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
| N/S |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
4 |
|
|
|

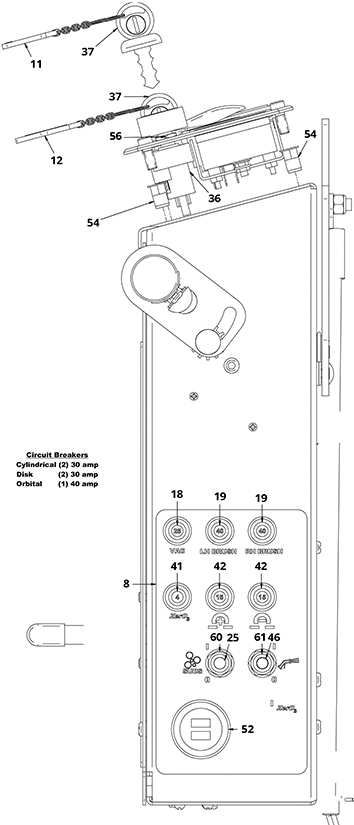

Millitary Central Command Assembly 1 - 202-0235 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 11 |
202-3622 |
Power keychain |
1 |
|
| 12 |
202-3622 |
Power keychain |
|
|
| 18 |
202-2241 |
25amp resettable fuse |
1 |
|
| 19 |
202-4160 |
40amp resettable fuse |
2 |
|
| 25 |
202-3340 |
Toggle switch |
1 |
|
| 36 |
202-2300 |
Key switch with key entry (red) and ring (black) |
1 |
|
| 37 |
991-1634 |
Key (pkg of 2) |
2 |
|
| 46 |
202-0097 |
Toggle switch |
1 |
|
| 52 |
202-3625 |
Dual USB ports |
1 |
|
| 54 |
202-5284 |
Nut 1/4-20 hex crimp long |
4 |
|
| 56 |
202-9136 |
Nut,Hex,3/8-32 inch,Zinc |
1 |
|
| 60 |
202-1866 |
Toggle switch protective boot (green) |
1 |
|
| 61 |
202-3466 |
Toggle switch protective boot (light blue) |
1 |
|
|
|

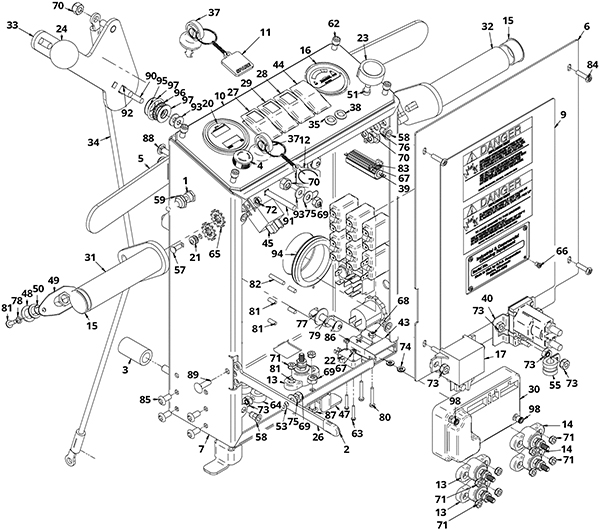

Millitary Central Command Assembly 2 - 202-0236 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5396 |
Toggle switch |
1 |
|
| 2 |
202-5386 |
Handle grip (blue) |
1 |
|
| 4 |
202-4191 |
Emergency stop button |
1 |
|
| 6 |
202-3627 |
Control panel cover |
1 |
|
| 10 |
202-3629 |
Control panel top (red) |
1 |
|
| 11 |
202-3622 |
Power keychain |
1 |
|
| 12 |
202-3622 |
Power keychain |
|
|
| 13 |
202-6396 |
Power Post, Black, 1/4 Terminal |
3 |
|
| 14 |
202-6397 |
Power Post, Red, 1/4 Terminal |
2 |
|
| 16 |
202-4159 |
40amp brush pressure gauge |
1 |
|
| 17 |
202-4165 |
24V 50amp relay |
1 |
|
| 20 |
202-5609 |
36V battery/hour meter |
1 |
|
| 21 |
202-1587 |
LED GROMMET |
2 |
|
| 22 |
202-0721 |
Microswitch |
1 |
|
| 23 |
202-0989 |
Control knob with washer (red) |
1 |
|
| 24 |
202-0515 |
Solution flow control knob |
1 |
|
| 26 |
202-3630 |
Valve lever |
1 |
|
| 27 |
202-3631 |
Rocker switch (amber) |
1 |
|
| 28 |
202-3632 |
Rocker switch (green) |
1 |
|
| 29 |
202-3633 |
Rocker switch (blue) |
1 |
|
| 30 |
202-3634 |
Drive controller |
1 |
|
| 31 |
202-6994 |
Handlebar, Adjustable, LH |
1 |
|
| 32 |
202-6995 |
Handlebar, Adjustable, RH |
1 |
|
| 33 |
202-7050 |
Lever, Squeegee Lift |
1 |
|
| 34 |
202-7057 |
Lift Cable,Squeegee,Black 33 inch |
1 |
|
| 35 |
202-0832 |
Full recovery indicator (red) |
1 |
|
| 37 |
991-1634 |
Key (pkg of 2) |
2 |
|
| 38 |
202-7204 |
Light,24V,Yellow,Bulb Style |
1 |
|
| 39 |
202-7287 |
Resistor,Wirewound,8OHM,50W |
1 |
|
| 43 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 44 |
202-0369 |
2 position rocker switch |
1 |
|
| 45 |
202-0348 |
15amp relay |
1 |
|
| 48 |
202-3427 |
Button cover |
2 |
|
| 49 |
202-0869 |
Switch cover |
4 |
|
| 50 |
202-0879 |
Push button switch |
4 |
|
| 51 |
202-0535 |
Speed control potentiometer |
1 |
|
| 53 |
202-1196 |
Washer 17/64 x 21/64 nylon flat |
1 |
|
| 55 |
202-9128 |
Clamp,Loop,1/2 inch,Rubber |
1 |
|
| 57 |
202-3302 |
Bolt 10-32 x 1/2 carriage head stainless steel |
1 |
|
| 58 |
202-3601 |
Nut #10-32 hex crimp |
4 |
|
| 59 |
202-1864 |
Toggle switch protective boot (red) |
1 |
|
| 62 |
999-0435 |
Screw 1/4-20 x 5/8 socket head alloy plain finish |
4 |
|
| 63 |
202-2371 |
Screw 4-40 x 3/4 round pan head |
2 |
|
| 64 |
202-2964 |
Shaft collar |
4 |
|
| 65 |
202-1133 |
Washer 5/16 internal/external star |
4 |
|
| 66 |
202-3315 |
Blind rivet |
4 |
|
| 67 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
4 |
|
| 68 |
999-0337 |
Nut 6-32 nylon insert lock stainless steel |
2 |
|
| 69 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
8 |
|
| 70 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
6 |
|
| 71 |
999-1464 |
Nut 8-32 keps lock with external tooth lockwasher ss |
10 |
|
| 72 |
202-2067 |
Nut 10-32 keps |
1 |
|
| 73 |
999-1466 |
Nut 1/4-20 lock with external toothed lockwasher SS |
10 |
|
| 74 |
999-0266 |
Washer #8 SAE flat stainless steel |
4 |
|
| 75 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
| 76 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
| 77 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
| 78 |
999-0998 |
Washer #10 flat stainless steel |
8 |
|
| 79 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 80 |
999-0520 |
Screw 10-24 x 1 pan head phillips stainless steel |
2 |
|
| 81 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
18 |
|
| 82 |
999-1574 |
Screw 8-32 x 1 pan head phillips stainless steel |
2 |
|
| 83 |
202-2370 |
Screw 4-40 x 1/2 Phillips pan head stainless steel |
2 |
|
| 84 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
4 |
|
| 85 |
202-3109 |
Screw 1/4 x 5/8 button head socket stainless steel |
4 |
|
| 86 |
999-1854 |
Screw 5/16 18 x 2 button head socket cap stainless steel |
4 |
|
| 88 |
202-2851 |
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
4 |
|
| 89 |
999-0963 |
Bolt 1/4-20 x 3/4 carriage head stainless steel |
4 |
|
| 90 |
999-1401 |
Bolt 1/4-20 x 1 carriage head stainless steel |
1 |
|
| 91 |
999-0605 |
Screw 1/4-20 x 2 carriage head stainless steel |
1 |
|
| 92 |
999-0967 |
Bolt 5/16-18 x 3/4 carriage head stainless steel |
5 |
|
| 93 |
999-0563 |
Washer 1/4 x 1/16 flat nylon |
3 |
|
| 95 |
202-4245 |
Thrust bearing |
1 |
|
| 96 |
202-5232 |
Roller thrust bearing |
1 |
|
| 97 |
202-5233 |
Thrust bearing washer |
2 |
|
| 98 |
202-5233 |
Thrust bearing washer |
2 |
|
|
|

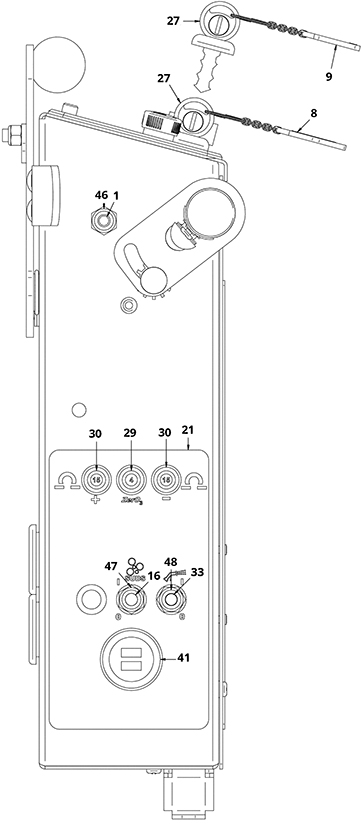

Touch Screen Central Command Assembly 1 - 202-0237 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5396 |
Toggle switch |
1 |
|
| 8 |
202-3622 |
Power keychain |
1 |
|
| 9 |
202-3622 |
Power keychain |
1 |
|
| 16 |
202-3340 |
Toggle switch |
1 |
|
| 21 |
202-7017 |
Decal, Control Panel, Side |
1 |
|
| 27 |
991-1634 |
Key (pkg of 2) |
2 |
|
| 33 |
202-0097 |
Toggle switch |
1 |
|
| 41 |
202-3625 |
Dual USB ports |
1 |
|
| 46 |
202-1864 |
Toggle switch protective boot (red) |
1 |
|
| 47 |
202-1866 |
Toggle switch protective boot (green) |
1 |
|
| 48 |
202-3466 |
Toggle switch protective boot (light blue) |
1 |
|
|
|
Touch Screen Central Command Assembly 2 - 202-0238 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5396 |
Toggle switch |
1 |
|
| 3 |
202-4191 |
Emergency stop button |
1 |
|
| 5 |
202-3638 |
Touch screen protector |
1 |
|
| 6 |
202-3639 |
Control panel top (blue) |
1 |
|
| 8 |
202-3622 |
Power keychain |
1 |
|
| 9 |
202-3697 |
Spare key fob |
1 |
|
| 10 |
202-6396 |
Power Post, Black, 1/4 Terminal |
1 |
|
| 12 |
202-1587 |
LED GROMMET |
1 |
|
| 13 |
202-0721 |
Microswitch |
1 |
|
| 14 |
202-0989 |
Control knob with washer (red) |
1 |
|
| 15 |
202-0515 |
Solution flow control knob |
1 |
|
| 17 |
202-6994 |
Handlebar, Adjustable, LH |
1 |
|
| 18 |
202-6995 |
Handlebar, Adjustable, RH |
1 |
|
| 19 |
202-7014 |
Cover, Control Panel |
1 |
|
| 20 |
202-3641 |
Control panel (black) |
1 |
|
| 22 |
202-7050 |
Lever, Squeegee Lift |
1 |
|
| 23 |
202-7057 |
Lift Cable,Squeegee,Black 33 inch |
1 |
|
| 24 |
202-0832 |
Full recovery indicator (red) |
1 |
|
| 26 |
202-7203 |
Light,24V,Green,Bulb Style |
1 |
|
| 27 |
991-1634 |
Key (pkg of 2) |
2 |
|
| 28 |
202-7287 |
Resistor,Wirewound,8OHM,50W |
1 |
|
| 31 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 32 |
202-0348 |
15amp relay |
1 |
|
| 34 |
202-8389 |
Controller, Touch Screen |
1 |
|
| 35 |
202-8390 |
LCD Touch Screen |
1 |
|
| 37 |
202-3427 |
Button cover |
2 |
|
| 38 |
202-0869 |
Switch cover |
4 |
|
| 39 |
202-0879 |
Push button switch |
4 |
|
| 40 |
202-0535 |
Speed control potentiometer |
1 |
|
| 42 |
202-9136 |
Nut,Hex,3/8-32 inch,Zinc |
1 |
|
| 43 |
202-3302 |
Bolt 10-32 x 1/2 carriage head stainless steel |
1 |
|
| 44 |
999-1570 |
Bolt 10-32 x 1 1/4 round head carriage stainless steel |
2 |
|
| 45 |
202-3601 |
Nut #10-32 hex crimp |
4 |
|
| 46 |
202-1864 |
Toggle switch protective boot (red) |
1 |
|
| 49 |
202-2371 |
Screw 4-40 x 3/4 round pan head |
2 |
|
| 50 |
202-1133 |
Washer 5/16 internal/external star |
4 |
|
| 51 |
202-3315 |
Blind rivet |
4 |
|
| 52 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
8 |
|
| 53 |
999-0337 |
Nut 6-32 nylon insert lock stainless steel |
2 |
|
| 54 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
7 |
|
| 55 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
6 |
|
| 56 |
999-1464 |
Nut 8-32 keps lock with external tooth lockwasher ss |
2 |
|
| 57 |
202-2067 |
Nut 10-32 keps |
5 |
|
| 58 |
999-0266 |
Washer #8 SAE flat stainless steel |
4 |
|
| 59 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
| 60 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
| 61 |
999-0998 |
Washer #10 flat stainless steel |
8 |
|
| 62 |
999-0632 |
Washer 1/4 split lock stainless steel |
4 |
|
| 63 |
999-1288 |
Washer 1/4 x 1 OD fender stainless steel |
4 |
|
| 64 |
999-0520 |
Screw 10-24 x 1 pan head phillips stainless steel |
2 |
|
| 65 |
999-0916 |
Screw 8-32 x 1/2 pan head phillips stainless steel |
10 |
|
| 66 |
202-2370 |
Screw 4-40 x 1/2 Phillips pan head stainless steel |
6 |
|
| 67 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
4 |
|
| 68 |
999-1993 |
Screw #4-40 x 3/8 flat head phillips |
4 |
|
| 69 |
202-3157 |
Screw 1/4 x 1/4 inch socket head stainless steel |
4 |
|
| 70 |
999-1247 |
Screw 1/4-20 x 1 3/4 button head socket cap zinc plated |
4 |
|
| 72 |
202-2851 |
Bolt 1/4-20 x 5/8 inch carriage head stainless steel |
4 |
|
| 73 |
999-1401 |
Bolt 1/4-20 x 1 carriage head stainless steel |
1 |
|
| 74 |
999-0967 |
Bolt 5/16-18 x 3/4 carriage head stainless steel |
5 |
|
| 75 |
999-0563 |
Washer 1/4 x 1/16 flat nylon |
3 |
|
| 77 |
202-4245 |
Thrust bearing |
1 |
|
| 78 |
202-5232 |
Roller thrust bearing |
1 |
|
| 79 |
202-5233 |
Thrust bearing washer |
2 |
|
| N/S |
202-2300 |
Key switch with key entry (red) and ring (black) |
1 |
|
|
|

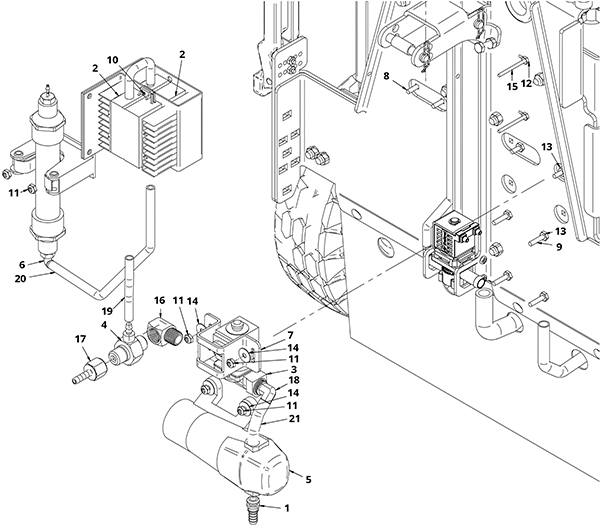

Zer03 Onboard Assembly - 202-0239 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-5846 |
Port 3/8 HB Elbow |
1 |
|
| 2 |
202-5870 |
24VDC O3 Generator Assembly 100/mg |
1 |
|
| 3 |
202-4246 |
24V solution solenoid valve |
1 |
|
| 4 |
202-5892 |
Red Injector |
1 |
|
| 5 |
202-5895 |
Pump,12v, 35PSI, 1 GPM |
1 |
|
| 6 |
202-5903 |
Air Dryer Assembly |
1 |
|
| 8 |
999-1873 |
Bolt 10-32 x 3/4 carriage head stainless steel |
1 |
|
| 9 |
999-1570 |
Bolt 10-32 x 1 1/4 round head carriage stainless steel |
1 |
|
| 10 |
999-0337 |
Nut 6-32 nylon insert lock stainless steel |
1 |
|
| 11 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
4 |
|
| 12 |
999-0515 |
Nut 6-32 k-lock stainless steel |
1 |
|
| 13 |
202-2067 |
Nut 10-32 keps |
2 |
|
| 14 |
202-3316 |
Washer flat stainless steel |
3 |
|
| 15 |
999-6720 |
Screw #6-32 x 2 phillips pan head stainless steel |
1 |
|
| 16 |
202-9463 |
Elbow Fitting,3/8NPTx3/8FNPT |
1 |
|
| 17 |
202-9476 |
Fitting, 3/8 NPTF x 1/4 inch Barb |
1 |
|
| 18 |
202-5379 |
3/8 inch elbow |
1 |
|
| 19 |
202-4247 |
Hose 1/4 inch x 5 foot |
1 |
|
| 20 |
202-4247 |
Hose 1/4 inch x 5 foot |
1 |
|
| 21 |
202-4249 |
Hose 3/8 inch x 5 foot |
1 |
|
|
|
Zer03 Onboard Plumbing Assembly - 202-0240 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-3584 |
Inline filter |
2 |
|
| 2 |
202-6996 |
Tube, Sight, 35/37 Gal |
1 |
|
| 3 |
202-0104 |
18 foot rubber hose (blue) |
1 |
|
| 4 |
202-0332 |
1/2 inch barbed tee |
1 |
|
| 5 |
202-3236 |
Threaded barb |
2 |
|
| 6 |
202-3263 |
Fitting 1/2 x 1/2 inch |
2 |
|
| 7 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
| 8 |
202-5603 |
U-bolt 1/4-20 x 1 |
1 |
|
| 9 |
202-9493 |
Fitting,1/2 inchNPTx3/8 inchBarb,Straight |
2 |
|
| 10 |
202-4229 |
Hose 1/4 inch x 5 foot |
1 |
|
| 11 |
202-4229 |
Hose 1/4 inch x 5 foot |
1 |
|
| 12 |
202-5106 |
Reinforced hose 1/2 x 60 inch |
1 |
|
| 13 |
202-5106 |
Reinforced hose 1/2 x 60 inch |
1 |
|
| 14 |
202-4249 |
Hose 3/8 inch x 5 foot |
1 |
|
|
|

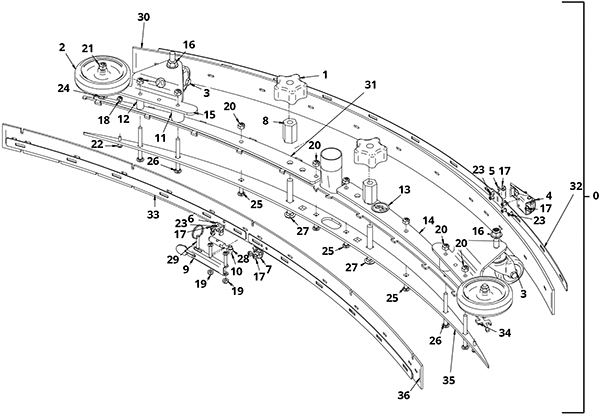

Squeegee Assembly - 202-0241 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0a |
202-3642 |
31 inch squeegee assembly |
1 |
(includes 1-29, 30a, 31a, 32a, 33a, 34a, 35a, 36a) |
| 0b |
202-3643 |
33 inch squeegee assembly |
1 |
(includes 1-29, 30b, 31b, 32b, 33b, 34b, 35b, 36b) |
| 0c |
202-3644 |
37 inch squeegee assembly |
1 |
(includes 1-29, 30c, 31c, 32c, 33c, 34c, 35c, 36c) |
| 0d |
202-3645 |
41 inch squeegee assembly |
1 |
(includes 1-29, 30d, 31d, 32d, 33d, 34d, 35d, 36d) |
| 0e |
202-3646 |
45 inch squeegee assembly |
1 |
(includes 1-29, 30e, 31e, 32e, 33e, 34e, 35e, 36e) |
| 2 |
202-5079 |
4 inch wheel |
1 |
|
| 3 |
202-3590 |
2 inch caster (gray) |
2 |
|
| 6 |
202-3649 |
Front band clip |
1 |
|
| 8 |
202-3651 |
1 1/2 inch standoff |
1 |
|
| 11 |
202-3654 |
Roller spacer |
1 |
|
| 12 |
202-3655 |
Roller spacer |
1 |
|
| 13 |
202-3656 |
41 inch squeegee decal |
1 |
|
| 14 |
202-3657 |
41 inch squeegee weight |
1 |
|
| 15 |
202-3658 |
Right hand squeegee castor bracket |
1 |
|
| 16 |
999-0488 |
Nut 3/8-16 flange lock serrated zinc plated |
2 |
|
| 17 |
999-0337 |
Nut 6-32 nylon insert lock stainless steel |
4 |
|
| 18 |
999-0357 |
Nut 8-32 nylon insert lock stainless steel |
1 |
|
| 19 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
2 |
|
| 20 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
5 |
|
| 21 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
| 22 |
999-1044 |
Screw 10-32 x 3/4 pan head phillips stainless steel |
1 |
|
| 23 |
202-3659 |
Screw #6-32 x 5/16 inch flat head |
3 |
|
| 24 |
202-3077 |
Carriage bolt 5/16 x 1-1/2 stainless steel |
1 |
|
| 25 |
999-1401 |
Bolt 1/4-20 x 1 carriage head stainless steel |
3 |
|
| 26 |
999-9136 |
Screw 1/4-20 x 2 3/4 pan head phillips stainless steel |
2 |
|
| 27 |
999-0626 |
Screw 3/8-16 x 3 carriage head stainless steel |
2 |
|
| 28 |
202-3660 |
Rod end bolt |
1 |
|
| 30a |
202-3662 |
Squeegee blade 31 inch linatex rear |
1 |
|
| 30b |
302-0244 |
Squeegee blade 33 inch linatex rear |
1 |
|
| 30c |
202-3664 |
Squeegee blade 37 inch linatex rear |
1 |
|
| 30d |
202-9613 |
Squeegee blade rear linatex |
1 |
|
| 30e |
202-3666 |
Squeegee blade 45 inch linatex rear |
1 |
|
| 31a |
202-3667 |
31 inch squeegee weight |
1 |
|
| 31b |
202-3668 |
33 inch squeegee weight |
1 |
|
| 31c |
202-3669 |
37 inch squeegee weight |
1 |
|
| 31d |
202-3657 |
41 inch squeegee weight |
1 |
|
| 31e |
202-3670 |
45 inch squeegee weight |
1 |
|
| 32a |
202-3671 |
Squeegee band 31 inch rear with latch |
1 |
|
| 32b |
202-3672 |
Squeegee band 33 inch rear with latch |
1 |
|
| 32c |
202-3673 |
Squeegee band 37 inch rear with latch |
1 |
|
| 32d |
202-9610 |
Squeege band rear |
1 |
|
| 32e |
202-3674 |
Squeegee band 45 inch rear with latch |
1 |
|
| 33a |
202-3675 |
Squeegee band 31 inch front with latch |
1 |
|
| 33b |
202-3676 |
Squeegee band 33 inch front with latch |
1 |
|
| 33c |
202-3677 |
Squeegee band 37 inch front with latch |
1 |
|
| 33d |
202-3678 |
Squeegee band 41 inch front with latch |
1 |
|
| 33e |
202-3679 |
Squeegee band 45 inch front with latch |
1 |
|
| 34a |
202-3680 |
Squeegee body 31 inch stainless steel |
1 |
|
| 34b |
202-3681 |
Squeegee body 33 inch stainless steel |
1 |
|
| 34c |
202-3682 |
Squeegee body 37 inch stainless steel |
1 |
|
| 34d |
202-3683 |
Squeegee body 41 inch stainless steel |
1 |
|
| 34e |
302-0163 |
45 inch squeegee body |
1 |
|
| 35a |
202-3685 |
Squeegee spacer 31 inch bottom |
1 |
|
| 35b |
202-3686 |
Squeegee spacer 33 inch bottom |
1 |
|
| 35c |
202-3687 |
Squeegee spacer 37 inch bottom |
1 |
|
| 35d |
202-3688 |
Squeegee spacer 41 inch bottom |
1 |
|
| 35e |
202-3689 |
Squeegee spacer 45 inch bottom |
1 |
|
| 36a |
202-3690 |
Squeegee blade 31 inch linatex front |
1 |
|
| 36b |
202-3691 |
Squeegee blade 33 inch linatex front |
1 |
|
| 36c |
202-3692 |
Squeegee blade 37 inch linatex front |
1 |
|
| 36d |
202-9611 |
Squeegee blade front linatex |
1 |
|
| 36e |
202-3694 |
Squeegee blade 45 inch linatex front |
1 |
|
|
|
Optional Assembly - 202-0242 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-1008 |
Barbed elbow |
2 |
|
| 2 |
202-5026 |
Squeegee lifting bracket |
1 |
|
| 3 |
202-4042 |
24V actuator |
1 |
|
| 4 |
202-7022 |
Charger, 24V,37A Onboard, Universal Charger w/Power Cord |
1 |
|
| 5 |
202-7091 |
Bracket, Charger Connector |
1 |
|
| 6 |
991-2103 |
50amp charger plug SB50 with pins (red) |
1 |
|
| 7 |
202-0101 |
60 PSI water jet pump |
1 |
|
| 9 |
999-1570 |
Bolt 10-32 x 1 1/4 round head carriage stainless steel |
1 |
|
| 10 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
1 |
|
| 11 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
| 12 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
2 |
|
| 13 |
202-2067 |
Nut 10-32 keps |
1 |
|
| 14 |
999-1466 |
Nut 1/4-20 lock with external toothed lockwasher SS |
1 |
|
| 15 |
202-3316 |
Washer flat stainless steel |
1 |
|
| 16 |
999-1443 |
Bolt 1/4-20 x 1 1/4 carriage stainless steel |
1 |
|
| 17 |
999-0967 |
Bolt 5/16-18 x 3/4 carriage head stainless steel |
2 |
|
| 19 |
202-2059 |
Cotter ring |
1 |
|
|
|
- 15 and 17 Inch Disc Brushes and Pads - 999-9153 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
202-6124 |
Brush, Super-Grit, 15 inch , Green Block Used 30 inch Deck |
|
|
| 1b |
996-3218 |
17 inch super grit brush (green block) |
|
|
| 2a |
202-6123 |
Brush,Tough-Grit,15 inch, Green Block Used on 30 inch Deck |
|
|
| 2b |
996-3219 |
17 inch tough grit brush (green block) |
|
|
| 3a |
202-6113 |
Brush,Midi-Grit,15 inch, Green Block Used on 30 inch Deck |
|
|
| 3b |
202-5725 |
17 inch midi-grit brush (green block) |
|
|
| 4a |
202-6122 |
Brush,Light-Grit,15 inch, Green Block Used on 30 inch Deck |
|
|
| 4b |
996-3220 |
17 inch light grit brush (green block) |
|
|
| 5a |
202-6121 |
Brush, 15 inch, Poly, Green Block Used on 30 inch Deck |
|
|
| 5b |
202-4196 |
17 inch polypropelene brush (green block) |
|
|
| 6a |
202-6119 |
Brush,Nylon,15 inch, Green Block Used on 30 inch Deck |
|
|
| 6b |
996-3221 |
17 inch nylon brush (green block) |
|
|
| 7a |
202-6125 |
Brush,Tampico,15 inch, Green Block Used on 30 inch Deck |
|
|
| 7b |
996-3222 |
17 inch Tampico brush (green block) |
|
|
| 8a |
202-6117 |
Pad Driver, 15 inch, Green Block Used on 30 inch Deck |
|
|
| 8b |
996-3223 |
17 inch pad driver (green block) |
|
|
| 9a |
202-6118 |
Pad Driver, 15 inch SNAP Diamond Driver, Green Block Used on |
|
|
| 9b |
996-3224 |
17 inch diamond driver (green block) |
|
|
| 10a |
202-6128 |
Floor Pads, 15 inch Black - Case of 5 pads |
|
|
| 10b |
202-6278 |
Floor Pads, 17 inch Black - Case of 5 pads |
|
|
|
|
- Frequently Replaced Parts - 999-9154 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
162-0005 |
6V 305Ah wet battery (SNSR) |
|
|
|
162-0046 |
6V 335Ah AGM battery (Group J305) |
|
|
|
202-1093 |
24V and 36V 36amp battery charger |
|
|
|
202-5723 |
12V 27AH onboard charger |
|
|
|
991-2103 |
50amp charger plug SB50 with pins (red) |
|
|
|
998-0010 |
Battery jumper cable - ring type (red) |
|
|
|
202-6246 |
Solenoid,24V,3/8 inchNPTx3/8 inch |
|
|
|
202-4246 |
24V solution solenoid valve |
|
|
|
202-3662 |
Squeegee blade 31 inch linatex rear |
|
|
|
302-0244 |
Squeegee blade 33 inch linatex rear |
|
|
|
202-3664 |
Squeegee blade 37 inch linatex rear |
|
|
|
202-9613 |
Squeegee blade rear linatex |
|
|
|
202-3666 |
Squeegee blade 45 inch linatex rear |
|
|
|
202-3690 |
Squeegee blade 31 inch linatex front |
|
|
|
202-3691 |
Squeegee blade 33 inch linatex front |
|
|
|
202-3692 |
Squeegee blade 37 inch linatex front |
|
|
|
202-9611 |
Squeegee blade front linatex |
|
|
|
202-3694 |
Squeegee blade 45 inch linatex front |
|
|
|
202-7000 |
Cover, Tinted, Complete |
|
|
|
202-2188 |
Cover stainless steel |
|
|
|
202-4267 |
Push on rubber gasket |
|
|
|
202-3023 |
Squeegee vacuum hose |
|
|
|
202-3582 |
Drain hose assembly |
|
|
|
202-6421 |
Motor,Vacuum, 24V, 3 Stage with Connector |
|
|
|
202-4015 |
24V 1HP brush motor |
|
|
|
|
- 29 Inch Cylindrical Brush - 999-9155 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
202-7139 |
Brush, Cylindrical, 27 inch Tough-Grit Used on 29 inch Deck |
|
|
|
202-7136 |
Brush, Cylindrical, 27 inch Midi-Grit Used on 29 inch Deck |
|
|
|
202-7138 |
Brush, Cylindrical, 27 inch Light Grit Used on 29 inch Deck |
|
|
|
202-7137 |
Brush, Cylindrical, 27 inch Nylon Used on 29 inch Deck |
|
|
|
202-7140 |
Brush, Cylindrical, 27 inch Tampico Used on 29 inch Deck |
|
|
|
|
- Edge Pads and Screens - 999-9156 |
|
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
202-9023 |
Pad, 14 inch X 28 inch, White - Case of 5 |
|
|
| 1b |
202-9042 |
Pad, 14 inch X 32 inch, White Case of 5 |
|
|
| 2a |
202-9022 |
Pad, 14 inch X 28 inch, Red - Case of 5 |
|
|
| 2b |
202-9041 |
Pad, 14 inch X 32 inch, Red Case of 5 |
|
|
| 3a |
202-9021 |
Pad, 14 inch X 28 inch, Blue - Case of 5 |
|
|
| 3b |
202-9046 |
Pad, 14 inch X 32 inch, Blue Case of 5 |
|
|
| 4a |
202-9020 |
Pad, 14 inch X 28 inch, Green - Case of 5 |
|
|
| 4b |
202-9040 |
Pad, 14 inch X 32 inch, Green Case of 5 |
|
|
| 5a |
202-9019 |
Pad, 14 inch X 28 inch, Black - Case of 5 |
|
|
| 5b |
202-9039 |
Pad, 14 inch X 32 inch, Black Case of 5 |
|
|
| 6 |
202-9027 |
Pad 14 inch X 28 inch White Sand Paper Driver, Case of 10 |
|
|
| 7 |
202-9028 |
Sand Screen, 14 inch X 28 inch 60 Grit, Case of 10 |
|
|
| 8 |
202-9029 |
Sand Screen, 14 inch X 28 inch 80 Grit, Case of 10 |
|
|
| 9a |
202-9030 |
Sand Screen, 14 inch X 28 inch 100 Grit, Case of 10 |
|
|
| 9b |
202-9051 |
Sand Screen, 14 inch X 32 inch 100 Grit, Case of 10 |
|
|
| 10a |
202-9031 |
Sand Screen, 14 inch X 28 inch 120 Grit, Case of 10 |
|
|
| 10b |
202-9052 |
Sand Screen, 14 inch X 32 inch 120 Grit, Case of 10 |
|
|
| 11 |
202-9032 |
Sand Screen, 14 inch X 28 inch 150 Grit, Case of 10 |
|
|
| 13 |
202-9024 |
Hi-Output Strip Pad , 14 inch X 28 - Case of 5 |
|
|
| 14a |
202-9025 |
Prep Pad, 14 inch X 28 inch - Case of 10 |
|
|
| 14b |
202-9044 |
Prep Pad, 14 inch X 32 inch - Case of 10 - QP |
|
|
| 15a |
202-9026 |
Remover Burnishing Pad 14 inchx28 inch - Case of 5 |
|
|
| 15b |
202-9045 |
Shine Enhancer Pads 14 inch x 32 inch - Case of 5 - SE |
|
|
| 16 |
202-9017 |
Pad, 14 inch X 28 inch, Hog Hair Case of 5 |
|
|
| 17 |
202-7427 |
Velcro Pad,13x27 - Double Faced Velcro Pad |
|
|
| 18 |
202-5089 |
Mighty-Lok II grip face pad holder set (brown) |
|
|
|
|
|
