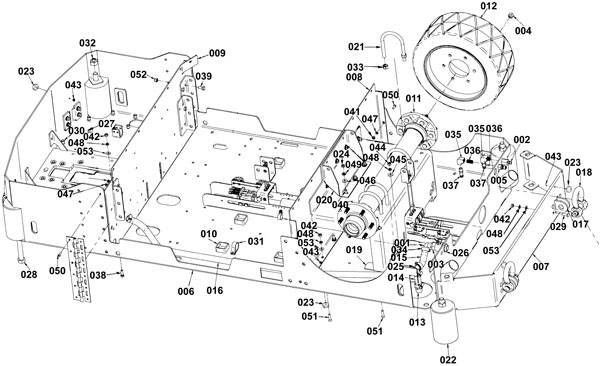

Chassis Assembly - 202-0400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
202-0884 |
Barbed elbow |
1 |
|
| 002 |
202-1231 |
Male coupling |
1 |
|
| 003 |
202-0684 |
Ball valve |
1 |
|
| 004 |
202-1153 |
Nut 1/2-20 lug |
12 |
|
| 005 |
202-1377 |
Quick disconnect |
1 |
|
| 007 |
202-2322 |
Rear bumper |
1 |
|
| 008 |
202-2323 |
Rear splash guard |
1 |
|
| 009 |
202-2324 |
Front splash guard |
1 |
|
| 010 |
202-2325 |
Battery roller (OBSOLETE) |
8 |
|
| 012a |
202-2327 |
Rear wheel (black) |
2 |
|
| 012b |
202-2327 |
Rear wheel (black) |
2 |
|
| 013 |
202-2354 |
Barb 3/4 x 3/4 inch |
1 |
|
| 014 |
202-2330 |
Vinyl tubing 3/4 x 3 inch (clear) |
1 |
|
| 015 |
202-2331 |
Vinyl tubing 3/4 x 3 1/2 inch (clear) |
1 |
|
| 016 |
202-2332 |
Vinyl tubing 3/4 x 46 inch (clear) (OBSOLETE) |
1 |
|
| 017 |
202-2333 |
Shackle bracket |
8 |
|
| 018 |
202-2334 |
Anchor shackle |
4 |
|
| 019 |
202-2335 |
Axle mount |
1 |
|
| 020 |
202-2336 |
Squeegee drag brace |
1 |
|
| 021 |
202-2337 |
U bolt 1/2-20 x 60 (OBSOLETE) |
4 |
|
| 022 |
202-0416 |
Guide roller |
4 |
|
| 023 |
202-3543 |
10-24 x 1 threaded stud |
8 |
|
| 024 |
999-9071 |
Nut 3/8-16 nylon insert jam lock stainless steel |
10 |
|
| 025 |
202-1936 |
Barbed tee |
1 |
|
| 026 |
999-1522 |
Nut 3/4-14 lock stainless steel |
1 |
|
| 027 |
999-0460 |
Nut 10-32 hex |
4 |
|
| 028 |
999-1510 |
Bolt 3/4-10 x 8 1/2 hex head zinc plated |
4 |
|
| 029 |
999-9066 |
Bolt 5/16-18 x 1 carriage head stainless steel |
16 |
|
| 030 |
999-0069 |
Nut 5/16-18 hex |
23 |
|
| 031 |
202-0846 |
Rubber loop clamp |
2 |
|
| 032 |
999-1001 |
Nut 3/4-10 nylon insert lock zinc plated |
4 |
|
| 033 |
999-0842 |
Nut 1/2-20 nylon insert lock zinc plated |
8 |
|
| 034 |
202-2066 |
Hose clamp |
4 |
|
| 035 |
202-2339 |
90 degree brass elbow |
2 |
|
| 036 |
202-2340 |
Hosebarb 1/4 x 1/2 inch |
2 |
|
| 037 |
202-2341 |
Hosebarb 1/4 x 1/2 inch |
2 |
|
| 038 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
6 |
|
| 039 |
999-0493 |
Bolt 3/8-16 x 3/4 hex head stainless steel |
8 |
|
| 040 |
999-0562 |
Bolt 3/8-16 x 1 hex head stainless steel |
12 |
|
| 041 |
999-0609 |
Nut 1/4-20 hex stainless steel |
20 |
|
| 042 |
999-0593 |
Nut 5/16-18 hex stainless steel |
26 |
|
| 043 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
8 |
|
| 044 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
6 |
|
| 045 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
| 046 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
10 |
|
| 047 |
999-0632 |
Washer 1/4 split lock stainless steel |
20 |
|
| 048 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
32 |
|
| 049 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
12 |
|
| 050 |
999-0867 |
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
16 |
|
| 051 |
999-1385 |
Screw 5/16-18 x 1 1/4 flat head phillips stainless steel |
10 |
|
| 052 |
999-0513 |
Nut 3/8-16 nylon insert lock type NE stainless steel |
10 |
|
| 053 |
999-0964 |
Washer 5/16 x 3/4 flat stainless steel |
28 |
|
|
|

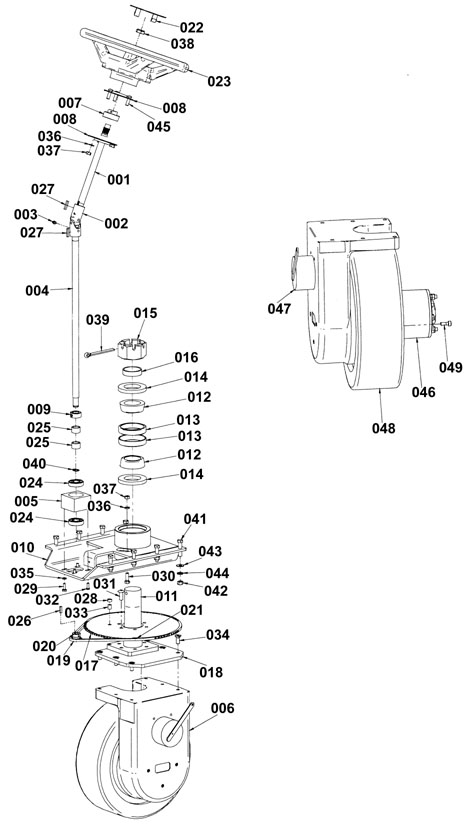

Steering Tower Assembly - 202-0401 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
202-0721 |
Microswitch |
1 |
|
| 002 |
202-0714 |
Lower steering column (red) |
1 |
|
| 003 |
202-0715 |
Upper steering column (red) |
1 |
|
| 004 |
202-0716 |
Pedestal cover (red) |
1 |
|
| 005 |
202-0719 |
Index plunger |
1 |
|
| 006 |
202-1338 |
50amp resettable circuit breaker |
1 |
|
| 007 |
202-2342 |
Front apron |
1 |
|
| 008 |
202-2344 |
Non-skid floor plate |
1 |
|
| 009 |
202-0720 |
Serial number plate |
1 |
|
| 010 |
991-2112 |
175amp charger plug with pins (gray) SB175 |
1 |
|
| 011 |
202-2345 |
Drive cover |
1 |
|
| 012 |
202-2010 |
48V headlight |
2 |
|
| 013 |
202-0362 |
Foot pedal assembly (includes potentiometer) |
1 |
|
| 014 |
202-0385 |
Backup alarm |
1 |
|
| 016 |
202-0381 |
Horn button |
1 |
|
| 017 |
999-0190 |
Nut 1/4-20 hex plain finish |
7 |
|
| 018 |
999-1002 |
Screw 4-40 x 1 round head phillips zinc plated |
1 |
|
| 019 |
999-0995 |
Screw 8-32 x 1 round head phillips zinc plated |
1 |
|
| 020 |
999-0997 |
Screw 10-32 x 1/2 round head phillips zinc plated |
1 |
|
| 021 |
999-0985 |
Washer #4 SAE flat |
1 |
|
| 022 |
999-0266 |
Washer #8 SAE flat stainless steel |
1 |
|
| 023 |
999-0006 |
Washer 3/16 flat zinc plated |
6 |
|
| 024 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
2 |
|
| 025 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
2 |
|
| 026 |
999-0188 |
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
| 027 |
999-0077 |
Nut 8-32 k-lock zinc plated |
2 |
|
| 028 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
1 |
|
| 029 |
999-0556 |
Bolt 5/16-18 x 3/4 hex head stainless steel |
3 |
|
| 030 |
999-0593 |
Nut 5/16-18 hex stainless steel |
1 |
|
| 031 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
1 |
|
| 032 |
999-0998 |
Washer #10 flat stainless steel |
2 |
|
| 033 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
3 |
|
| 034 |
999-0632 |
Washer 1/4 split lock stainless steel |
1 |
|
| 035 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 036 |
999-1008 |
Screw 10-32 x 3/4 round head phillips stainless steel |
2 |
|
| 037 |
999-0986 |
Screw 10-32 x 1 round pan head stainless steel |
3 |
|
| 038 |
999-0986 |
Screw 10-32 x 1 round pan head stainless steel |
1 |
|
| 039 |
999-0867 |
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
12 |
|
| 040 |
999-1524 |
Screw 5/16-18 x 3/4 button head socket stainless steel |
1 |
|
| 041 |
999-1003 |
Bolt 3/8-16 x 1 button head socket cap stainless steel |
2 |
|
| 042 |
999-0563 |
Washer 1/4 x 1/16 flat nylon |
8 |
|
| 043 |
999-1007 |
Washer 3/8 x 1/16 flat nylon |
3 |
|
| 044 |
999-1004 |
Washer #10 .218 x .437 flat stainless steel |
1 |
|
|
|

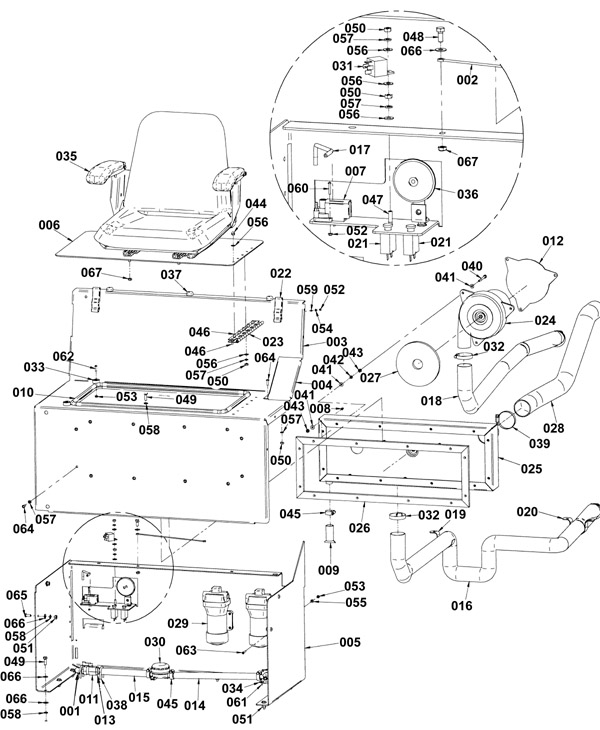

Seat Assembly - 202-0402 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
202-0884 |
Barbed elbow |
1 |
|
| 002 |
202-0875 |
Tank cable |
1 |
|
| 003 |
202-2347 |
Seat pedestal |
1 |
|
| 005 |
202-2349 |
Front upright |
1 |
|
| 007 |
202-1908 |
Vacuum shut-off switch |
1 |
|
| 008 |
202-1919 |
Barbed fitting |
1 |
|
| 009 |
202-1916 |
Unloader valve |
1 |
|
| 010 |
202-2385 |
67 inch push-on rubber gasket |
1 |
|
| 011 |
202-2352 |
Ball valve (OBSOLETE) |
1 |
|
| 012 |
202-2353 |
Vacuum cover box |
1 |
|
| 013 |
202-2354 |
Barb 3/4 x 3/4 inch |
1 |
|
| 014 |
202-2355 |
Vinyl tubing 5/8 x 15 inch (clear) (OBSOLETE) |
1 |
|
| 015 |
202-2356 |
Vinyl tubing 5/8 x 8 inch (clear) |
1 |
|
| 016 |
202-2357 |
98 inch flexible hose (gray) |
1 |
|
| 017 |
202-2358 |
Vinyl tubing 1/8 x 45 inch (clear) (OBSOLETE) |
1 |
|
| 018 |
202-2359 |
72 inch flexible hose (gray) |
1 |
|
| 019 |
202-2360 |
1 1/2 inch pipe strap |
3 |
|
| 020 |
202-2361 |
2 1/2 inch pipe strap |
3 |
|
| 021 |
202-2242 |
30amp fuse |
2 |
|
| 024a |
202-2281 |
36V vacuum motor |
2 |
(Tomcat) |
| 024b |
991-1202 |
36V 3 stage vacuum motor tangential |
1 |
(NON-OEM) |
| 025 |
202-2364 |
Vacuum box (OBSOLETE) |
1 |
|
| 026 |
202-2365 |
Vacuum box gasket |
1 |
|
| 027 |
202-2366 |
Vacuum motor gasket |
2 |
|
| 028 |
202-2367 |
38 inch flexible hose (black) |
1 |
|
| 029 |
202-2368 |
36V water jet pump |
2 |
|
| 030 |
202-1882 |
Inline filter |
1 |
|
| 031 |
202-0348 |
15amp relay |
1 |
|
| 032 |
997-2011 |
Hose clamp |
4 |
|
| 033 |
202-3275 |
Rubber bumper |
2 |
|
| 034 |
202-0208 |
Adjustable solution flow valve |
1 |
|
| 035 |
202-0081 |
Seat with switch, cover, locking track and mounting |
1 |
|
| 037 |
202-3543 |
10-24 x 1 threaded stud |
3 |
|
| 038 |
202-1120 |
U bolt 1/4-20 x 1 3/4 |
2 |
|
| 039 |
997-2003 |
Hose clamp |
1 |
|
| 040 |
999-0683 |
Bolt 1/4-20 x 3 hex head grade 5 zinc plated |
6 |
|
| 041 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
18 |
|
| 042 |
999-0060 |
Washer 1/4 split lock plain finish |
12 |
|
| 043 |
999-0190 |
Nut 1/4-20 hex plain finish |
12 |
|
| 044 |
999-0429 |
Nut 1/4-20 acorn nickel plated |
5 |
|
| 045 |
202-2066 |
Hose clamp |
4 |
|
| 046 |
999-0644 |
Bolt 1/4-20 x 1/2 hex head stainless steel |
11 |
|
| 047 |
999-0297 |
Bolt 1/4-20 x 1 hex head stainless steel |
2 |
|
| 048 |
999-0556 |
Bolt 5/16-18 x 3/4 hex head stainless steel |
13 |
|
| 049 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
16 |
|
| 050 |
999-0609 |
Nut 1/4-20 hex stainless steel |
12 |
|
| 051 |
999-0429 |
Nut 1/4-20 acorn nickel plated |
14 |
|
| 052 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
6 |
|
| 053 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
13 |
|
| 054 |
999-1483 |
Washer #4 large stainless steel |
4 |
|
| 055 |
999-0998 |
Washer #10 flat stainless steel |
8 |
|
| 056 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
16 |
|
| 057 |
999-0632 |
Washer 1/4 split lock stainless steel |
24 |
|
| 058 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
32 |
|
| 059 |
999-0609 |
Nut 1/4-20 hex stainless steel |
4 |
|
| 060 |
999-1059 |
Screw 4-40 x 3/4 pan head phillips zinc plated |
2 |
|
| 061 |
999-0074 |
Screw 10-32 x 1/2 round head slotted zinc plated |
2 |
|
| 062 |
999-1085 |
Screw M5-.8 x 30mm pan head phillips zinc plated |
2 |
|
| 063 |
999-1005 |
Screw 10-32 x 1 1/4 button head socket stainless steel |
8 |
|
| 064 |
999-0867 |
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
14 |
|
| 065 |
202-2312 |
Steering chain |
4 |
|
| 066 |
999-0964 |
Washer 5/16 x 3/4 flat stainless steel |
31 |
|
| 067 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
5 |
|
|
|
Battery Assembly - 202-0403 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 002 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
6 |
|
| 003 |
202-2373 |
Left side panel |
1 |
|
| 004 |
202-2374 |
Lower right side panel |
1 |
|
| 005 |
202-2375 |
Upper right side panel |
1 |
|
| 006 |
202-2376 |
Battery holding bar (OBSOLETE) |
1 |
|
| 007 |
202-2377 |
11 inch hinge |
1 |
|
| 008 |
202-2378 |
Battery lid |
1 |
|
| 009 |
202-2379 |
Mounted battery tray |
1 |
(industrial option) |
| 010 |
202-2380 |
Removable battery tray |
1 |
|
| 011 |
202-2381 |
Battery bracket |
1 |
(industrial option) |
| 013 |
202-2383 |
Battery quick disconnect |
1 |
|
| 017a |
202-0383 |
Strobe light |
1 |
(includes 017b) |
| 017b |
202-2872 |
Light bulb |
1 |
|
| 018 |
999-0429 |
Nut 1/4-20 acorn nickel plated |
20 |
|
| 019 |
999-0644 |
Bolt 1/4-20 x 1/2 hex head stainless steel |
17 |
|
| 020 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
| 021 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
3 |
|
| 022 |
999-0609 |
Nut 1/4-20 hex stainless steel |
7 |
|
| 023 |
999-0593 |
Nut 5/16-18 hex stainless steel |
7 |
|
| 024 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
2 |
|
| 025 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
22 |
|
| 026 |
999-0632 |
Washer 1/4 split lock stainless steel |
16 |
|
| 027 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
7 |
|
| 028 |
999-0074 |
Screw 10-32 x 1/2 round head slotted zinc plated |
2 |
|
| 029 |
999-0326 |
Screw 1/4-20 x 3/4 flat head phillips zinc plated |
4 |
|
| 030 |
999-0867 |
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
3 |
|
| 031 |
999-0964 |
Washer 5/16 x 3/4 flat stainless steel |
5 |
|
| 032 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
5 |
|
|
|
Tank Assembly - 202-0404 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
202-0809 |
Brass star knob |
1 |
|
| 002 |
202-0708 |
Drain hose |
1 |
|
| 003 |
202-0232 |
Float shut-off ball |
1 |
|
| 004 |
202-0230 |
Strainer gasket |
2 |
|
| 005 |
202-2384 |
Rear upright |
1 |
|
| 006 |
202-2385 |
67 inch push-on rubber gasket |
2 |
|
| 007 |
202-2386 |
Recovery tank lid (OBSOLETE) |
1 |
|
| 008 |
202-2387 |
Solution tank lid |
1 |
|
| 009 |
202-2388 |
Recovery tank lid |
1 |
|
| 010 |
202-2389 |
Solution tank |
1 |
|
| 011 |
202-2390 |
Recovery tank |
1 |
|
| 012 |
202-2391 |
Drain hose bracket |
1 |
|
| 014 |
202-2358 |
Vinyl tubing 1/8 x 45 inch (clear) (OBSOLETE) |
1 |
|
| 015 |
202-2393 |
Tank strap |
1 |
|
| 017 |
202-2394 |
Vacuum screen lid gasket |
1 |
|
| 018 |
202-2395 |
Vacuum screen box gasket |
1 |
|
| 019 |
202-2396 |
2 1/2 inch hose cuff |
1 |
|
| 020 |
202-2397 |
Vacuum screen box |
1 |
|
| 021 |
202-2398 |
Vacuum screen box lid |
1 |
|
| 022 |
202-2399 |
Vacuum screen lid |
1 |
|
| 023 |
202-2400 |
17 inch flexible hose (black) |
1 |
|
| 024 |
202-2367 |
38 inch flexible hose (black) |
1 |
|
| 026 |
202-1312 |
Float switch (includes nut and washer) |
2 |
|
| 027 |
202-0333 |
Elbow barb |
1 |
|
| 028 |
202-0238 |
Drain hose end tube (metal) |
1 |
|
| 029 |
202-0240 |
Drain hose plug |
1 |
|
| 030 |
202-0591 |
Solution tank bulkhead fitting |
1 |
|
| 032 |
202-0231 |
Filter screen |
2 |
|
| 033 |
999-0169 |
Nut 3/8-24 hex jam plain finish |
1 |
|
| 034 |
997-2003 |
Hose clamp |
5 |
|
| 035 |
999-0330 |
Nut 1/2-13 acorn brass |
1 |
|
| 036 |
999-0429 |
Nut 1/4-20 acorn nickel plated |
2 |
|
| 037 |
999-0429 |
Nut 1/4-20 acorn nickel plated |
12 |
|
| 038 |
202-2145 |
Washer 3/4 rubber |
2 |
|
| 039 |
202-2066 |
Hose clamp |
1 |
|
| 040 |
999-0644 |
Bolt 1/4-20 x 1/2 hex head stainless steel |
23 |
|
| 041 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
14 |
|
| 042 |
999-0857 |
Screw 3/8-24 x 1 3/4 hex head stainless steel |
1 |
|
| 043 |
999-0609 |
Nut 1/4-20 hex stainless steel |
23 |
|
| 044 |
999-0593 |
Nut 5/16-18 hex stainless steel |
10 |
|
| 045 |
999-0169 |
Nut 3/8-24 hex jam plain finish |
1 |
|
| 046 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
4 |
|
| 047 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
4 |
|
| 048 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
4 |
|
| 049 |
999-1483 |
Washer #4 large stainless steel |
4 |
|
| 050 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
25 |
|
| 051 |
999-0632 |
Washer 1/4 split lock stainless steel |
35 |
|
| 052 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
10 |
|
| 053 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
1 |
|
| 055 |
999-0986 |
Screw 10-32 x 1 round pan head stainless steel |
2 |
|
| 056 |
999-1005 |
Screw 10-32 x 1 1/4 button head socket stainless steel |
1 |
|
| 057 |
999-0867 |
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
2 |
|
| 058 |
999-0918 |
Screw 5/16-18 x 1 flat head slotted brass |
10 |
|
| 059 |
999-0976 |
Bolt 1/4-20 x 1 3/4 hex cap stainless steel |
4 |
|
| 060 |
999-0964 |
Washer 5/16 x 3/4 flat stainless steel |
10 |
|
| 062 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
| 063 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
6 |
|
| 064 |
202-1644 |
Vac box filter |
1 |
|
|
|
Steering and Traction Assembly - 202-0405 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
202-0761 |
Upper steering shaft |
1 |
|
| 004 |
202-0762 |
Lower steering shaft (OBSOLETE) |
1 |
|
| 005 |
202-2405 |
Bearing block |
1 |
|
| 006 |
202-2406 |
Drive wheel assembly (OBSOLETE) |
1 |
|
| 007 |
202-0142 |
Upper steering bearing |
1 |
|
| 008 |
202-0143 |
Bearing mount |
2 |
|
| 009 |
202-2216 |
Shaft collar with set screw |
1 |
|
| 010 |
202-2314 |
Drop plate assembly (OBSOLETE) |
1 |
|
| 011 |
202-2317 |
Pivot shaft |
1 |
|
| 012 |
202-2318 |
Tapered roller bearing |
2 |
|
| 013 |
202-2319 |
Bearing cup |
2 |
|
| 014 |
202-2316 |
Bearing seal |
2 |
|
| 015 |
202-2409 |
Slotted nut |
1 |
|
| 017 |
202-2410 |
90 toothed steering sprocket |
1 |
|
| 018 |
202-2411 |
Pivot plate (OBSOLETE) |
1 |
|
| 019 |
202-2312 |
Steering chain |
1 |
|
| 020 |
202-0280 |
10 toothed sprocket |
1 |
|
| 021 |
202-0283 |
Master link |
1 |
|
| 022 |
202-0773 |
Steering cover |
1 |
|
| 023 |
202-0772 |
Steering wheel |
1 |
|
| 026 |
164-1029 |
Square keyway |
1 |
|
| 027 |
202-0847 |
Square keyway |
2 |
|
| 029 |
999-0020 |
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
2 |
|
| 030 |
999-0031 |
Bolt 5/16-18 x 1 hex head grade 5 zinc plated |
2 |
|
| 031 |
999-1011 |
Screw 3/8-24 x 1 button head socket plain finish |
6 |
|
| 032 |
999-0435 |
Screw 1/4-20 x 5/8 socket head alloy plain finish |
2 |
|
| 033 |
202-1169 |
Clevis pin |
1 |
|
| 034 |
999-0992 |
Screw 3/8-16 x 1 flat head slotted zinc plated |
6 |
|
| 035 |
999-0060 |
Washer 1/4 split lock plain finish |
2 |
|
| 036 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
5 |
|
| 037 |
999-0069 |
Nut 5/16-18 hex |
5 |
|
| 038 |
999-0968 |
Nut 5/8-11 nylon insert jam lock zinc plated |
1 |
|
| 039 |
997-2520 |
Cotter pin |
1 |
|
| 041 |
999-0857 |
Screw 3/8-24 x 1 3/4 hex head stainless steel |
8 |
|
| 042 |
999-0169 |
Nut 3/8-24 hex jam plain finish |
8 |
|
| 043 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
8 |
|
| 044 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
8 |
|
| 045 |
999-1523 |
Bolt 5/16-18 x 1 button head socket zinc plated |
3 |
|
| 046 |
202-2413 |
36V 4HP motor |
1 |
|
| 048 |
202-2415 |
Tire and wheel with hardware |
1 |
|
| 049 |
999-1099 |
Bolt 1/4-20 x 3/4 hex head stainless steel |
19 |
|
|
|

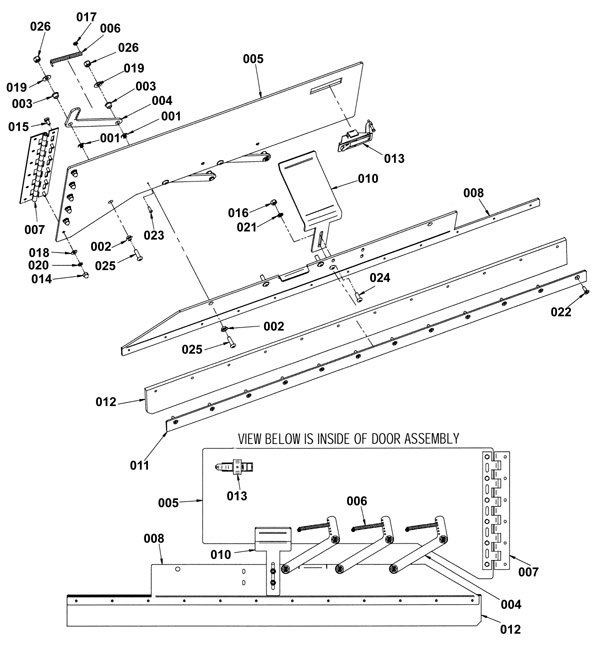

Side Door and Wiper Assembly - 202-0406 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
202-1181 |
Washer 1/2 flat bronze |
4 |
|
| 002 |
202-1239 |
Flanged bearing |
6 |
|
| 003 |
202-0754 |
Flanged bearing |
6 |
|
| 008a |
202-2420 |
Left side wiper |
1 |
|
| 008b |
202-2421 |
Right side wiper (OBSOLETE) |
1 |
|
| 010 |
202-2422 |
Wiper lifting bracket |
1 |
|
| 011 |
202-2423 |
Wiper band (OBSOLETE) |
1 |
|
| 012 |
202-2424 |
Wiper blade linatex (includes left and right blade) |
1 |
|
| 014 |
999-0429 |
Nut 1/4-20 acorn nickel plated |
6 |
|
| 015 |
999-0644 |
Bolt 1/4-20 x 1/2 hex head stainless steel |
6 |
|
| 016 |
999-0593 |
Nut 5/16-18 hex stainless steel |
2 |
|
| 017 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
3 |
|
| 018 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
6 |
|
| 019 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
6 |
|
| 020 |
999-0632 |
Washer 1/4 split lock stainless steel |
6 |
|
| 021 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
2 |
|
| 022 |
999-0326 |
Screw 1/4-20 x 3/4 flat head phillips zinc plated |
12 |
|
| 023 |
999-0965 |
Screw 10-32 x 1/2 button head socket cap stainless steel |
3 |
|
| 024 |
999-1524 |
Screw 5/16-18 x 3/4 button head socket stainless steel |
2 |
|
| 025 |
999-1507 |
Screw 5/16-18 x 1 button head socket stainless steel |
6 |
|
| 026 |
999-0513 |
Nut 3/8-16 nylon insert lock type NE stainless steel |
6 |
|
|
|

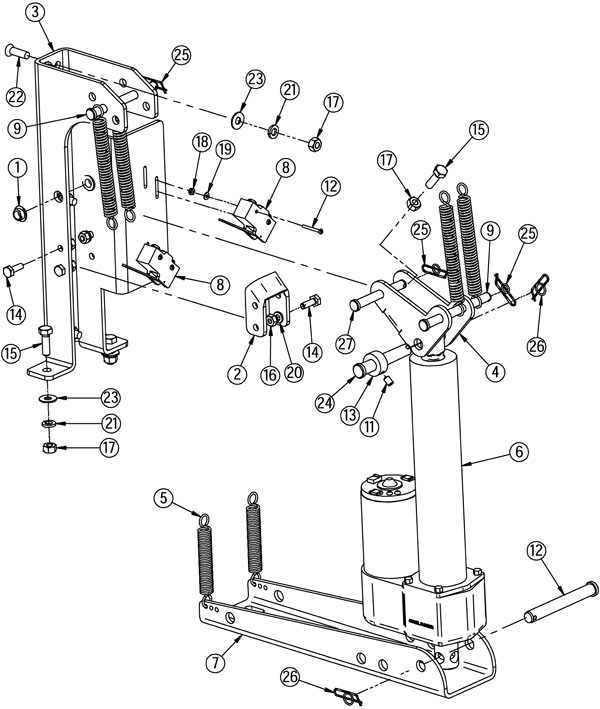

Actuator Slide Assembly - Before SN 390703 - 202-0407 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
202-0787 |
Polyurethane spring |
2 |
|
| 002 |
202-1239 |
Flanged bearing |
2 |
|
| 003 |
202-0783 |
Lifting bracket |
1 |
|
| 004 |
202-0790 |
Compression spring |
8 |
|
| 005a |
202-0784 |
Scrub deck lifting cable |
3 |
|
| 005b |
202-2296 |
Sleeve bearing |
3 |
|
| 006 |
202-0785 |
Squeegee lifting cable |
2 |
|
| 007 |
202-2425 |
Lift bracket |
1 |
|
| 009 |
202-2320 |
Actuator long barrel (OBSOLETE) |
1 |
|
| 010 |
202-2428 |
Long barrel actuator |
1 |
|
| 011 |
202-3037 |
Actuator pin update kit |
1 |
|
| 012 |
202-2430 |
Cable trolley (OBSOLETE) |
2 |
|
| 013 |
202-0192 |
Lift limit switch |
4 |
|
| 014 |
202-0351 |
EMF suppression diode |
4 |
|
| 015 |
202-0186 |
Nylon pulley |
5 |
|
| 016 |
999-0988 |
Washer 1/2 x 1/8 thick nylon flat |
8 |
|
| 017 |
999-0987 |
Stud 1/4-20 x 4 double ended stainless steel |
2 |
|
| 019 |
202-2432 |
Clevis pin |
4 |
|
| 020 |
999-0982 |
Bolt 1/2-13 x 4 hex head cap zinc plated |
4 |
|
| 021 |
999-0095 |
Screw 1/4-20 x 3/8 cup point socket set alloy plain finish |
13 |
|
| 022 |
999-0983 |
Screw 4-40 x 1 pan head phillips zinc plated |
8 |
|
| 023 |
999-0985 |
Washer #4 SAE flat |
8 |
|
| 024 |
999-0892 |
Washer 1/4 x 1 zinc plated fender |
2 |
|
| 025 |
202-3222 |
Shaft collar with set screw |
13 |
|
| 026 |
999-0651 |
Nut 1/4-28 hex stainless steel |
19 |
|
| 027 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
8 |
|
| 028 |
999-0262 |
Nut 1/2-13 nylon insert jam lock zinc plated |
4 |
|
| 029 |
999-0239 |
Nut 10-32 k-lock zinc plated |
8 |
|
| 030 |
202-0789 |
Flanged bushing |
5 |
|
| 031 |
999-0593 |
Nut 5/16-18 hex stainless steel |
7 |
|
| 032 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
7 |
|
| 033 |
999-1008 |
Screw 10-32 x 3/4 round head phillips stainless steel |
4 |
|
| 034 |
999-1385 |
Screw 5/16-18 x 1 1/4 flat head phillips stainless steel |
8 |
|
| 035 |
999-0964 |
Washer 5/16 x 3/4 flat stainless steel |
7 |
|
| 037 |
202-5182 |
Clevis pin |
2 |
|
| 038 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
4 |
|
| 039 |
202-2059 |
Cotter ring |
2 |
|
|
|
Squeegee Assembly - Before SN 42472 - 202-0408 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000 |
202-3008 |
48 inch squeegee assembly |
1 |
(includes 001-050) |
| 001 |
202-0756 |
Guide roller |
4 |
|
| 002 |
202-1239 |
Flanged bearing |
2 |
|
| 003 |
202-1161 |
Washer 1/2 flat thick bronze |
1 |
|
| 006 |
202-2462 |
Rear squeegee retaining band |
1 |
|
| 007a |
202-2439 |
Squeegee blade 48 inch rear gum rubber |
1 |
|
| 007b |
202-2867 |
Squeegee blade 48 inch rear linatex |
1 |
|
| 008 |
202-2436 |
Squeegee weldment |
1 |
|
| 009 |
202-2437 |
Left side wheel bracket |
1 |
|
| 010 |
202-2438 |
Right side wheel bracket |
1 |
|
| 011 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
1 |
|
| 012a |
202-2440 |
Squeegee blade 48 inch front gum rubber |
1 |
(single vacuum system) |
| 012b |
202-2869 |
Squeegee blade 48 inch front linatex |
1 |
(single vacuum system) |
| 012c |
202-2890 |
Squeegee blade 48 inch front gum rubber |
1 |
(dual vacuum system) |
| 012d |
202-4057 |
Squeegee blade 48 inch front linatex |
1 |
(dual vacuum system) |
| 013a |
202-2304 |
Squeegee vacuum hose |
1 |
(includes 013b) |
| 013b |
202-2396 |
2 1/2 inch hose cuff |
1 |
|
| 016 |
202-2441 |
Squeegee swing plate (OBSOLETE) |
1 |
|
| 017 |
202-2442 |
Squeegee trail arm |
1 |
|
| 020 |
202-2445 |
Caster wheel |
2 |
|
| 021 |
202-2463 |
Squeegee triangle plate |
1 |
|
| 022 |
202-0711 |
Clamping knob (pkg of 2) |
8 |
|
| 024 |
999-0688 |
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
4 |
|
| 026 |
202-0161 |
Thrust bearing |
1 |
|
| 028 |
202-1058 |
Washer 5/8 teflon |
1 |
|
| 029 |
999-0860 |
Screw 10-32 x 2 1/2 pan head slotted stainless steel |
2 |
|
| 030 |
999-0506 |
Bolt 1/4-20 x 1 1/2 hex head stainless steel |
4 |
|
| 031 |
202-3006 |
Screw 1/4-20 x 5 pan head phillips stainless steel |
2 |
|
| 032 |
202-2449 |
Nut 5/8-18 nylon locking stainless steel |
2 |
|
| 034 |
997-2003 |
Hose clamp |
1 |
|
| 035 |
999-1441 |
Bolt 3/8-16 x 3 1/2 hex head stainless steel |
2 |
|
| 036 |
999-0982 |
Bolt 1/2-13 x 4 hex head cap zinc plated |
2 |
|
| 037 |
202-2451 |
Bolt 1/2-13 x 11 hex head stainless steel |
1 |
|
| 038 |
999-0118 |
Nut 1/2-13 nylon insert lock zinc plated |
3 |
|
| 039 |
999-1006 |
Screw 3/8-16 x 1 3/4 hex head stainless steel |
2 |
|
| 040 |
999-0635 |
Nut 3/8-16 hex stainless steel |
4 |
|
| 041 |
999-0169 |
Nut 3/8-24 hex jam plain finish |
2 |
|
| 042 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
16 |
|
| 043 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
4 |
|
| 044 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
2 |
|
| 045 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 046 |
999-1003 |
Bolt 3/8-16 x 1 button head socket cap stainless steel |
1 |
|
| 047 |
999-1007 |
Washer 3/8 x 1/16 flat nylon |
6 |
|
| 048 |
999-0118 |
Nut 1/2-13 nylon insert lock zinc plated |
1 |
|
| 049 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
4 |
|
| 050 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
|

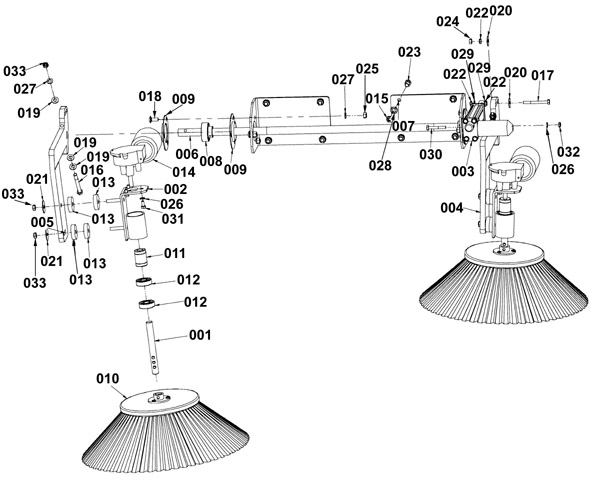

Side Broom Assembly - 202-0409 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
202-2137 |
Side broom drive shaft |
2 |
|
| 002 |
202-5215 |
Motor mount assembly |
2 |
|
| 004 |
202-2465 |
Left side broom lifting arm |
1 |
|
| 005 |
202-2466 |
Right side broom lifting arm |
1 |
|
| 006 |
202-2467 |
Suspension axle shaft |
1 |
|
| 007 |
202-2468 |
Axle support bracket |
1 |
|
| 008 |
202-0142 |
Upper steering bearing |
2 |
|
| 009 |
202-0143 |
Bearing mount |
4 |
|
| 010 |
202-0440 |
Polypropylene fiber side brush |
2 |
|
| 011 |
202-2142 |
Drive coupling |
2 |
|
| 012 |
202-2143 |
Drive tube bearing |
4 |
|
| 014 |
202-2469 |
Side broom motor (OBSOLETE) |
2 |
|
| 015 |
999-0324 |
Nut 3/8-16 nylon insert lock jam zinc plated |
8 |
|
| 016 |
999-0911 |
Screw 5/16-18 x 3 hex head stainless steel |
2 |
|
| 017 |
999-0258 |
Bolt 1/4-20 x 2 hex head grade 5 zinc plated |
1 |
|
| 018 |
999-9069 |
Bolt 5/16-18 x 3/4 carriage head |
6 |
|
| 019 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
6 |
|
| 020 |
999-0892 |
Washer 1/4 x 1 zinc plated fender |
2 |
|
| 021 |
999-1364 |
Washer 5/16 x 1 fender zinc finish |
4 |
|
| 022 |
999-0441 |
Nut 1/4-20 nylon lock jam zinc plated |
3 |
|
| 023 |
999-0493 |
Bolt 3/8-16 x 3/4 hex head stainless steel |
8 |
|
| 024 |
999-0609 |
Nut 1/4-20 hex stainless steel |
1 |
|
| 025 |
999-0593 |
Nut 5/16-18 hex stainless steel |
6 |
|
| 026 |
999-0632 |
Washer 1/4 split lock stainless steel |
7 |
|
| 027 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
8 |
|
| 028 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
8 |
|
| 029 |
999-0563 |
Washer 1/4 x 1/16 flat nylon |
2 |
|
| 030 |
999-0976 |
Bolt 1/4-20 x 1 3/4 hex cap stainless steel |
1 |
|
| 031 |
999-0978 |
Bolt M6-1 x 14mm hex head stainless steel |
6 |
|
| 032 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
1 |
|
| 033 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
6 |
|
|
|

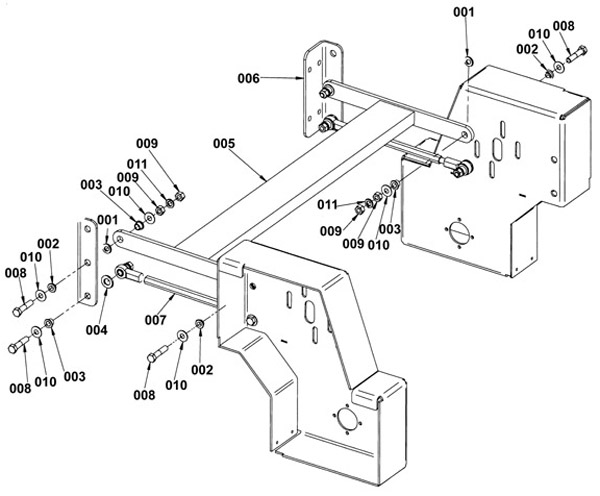

Cylindrical Arm Assembly - 202-0410 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
202-1181 |
Washer 1/2 flat bronze |
4 |
|
| 002 |
202-1239 |
Flanged bearing |
4 |
|
| 003 |
202-0754 |
Flanged bearing |
8 |
|
| 004 |
202-1161 |
Washer 1/2 flat thick bronze |
4 |
|
| 005 |
202-2470 |
Lateral lifting arm |
1 |
|
| 007 |
202-2472 |
Adjustable lateral arm |
2 |
|
| 008 |
999-1006 |
Screw 3/8-16 x 1 3/4 hex head stainless steel |
8 |
|
| 009 |
999-0635 |
Nut 3/8-16 hex stainless steel |
16 |
|
| 010 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
16 |
|
| 011 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
8 |
|
|
|

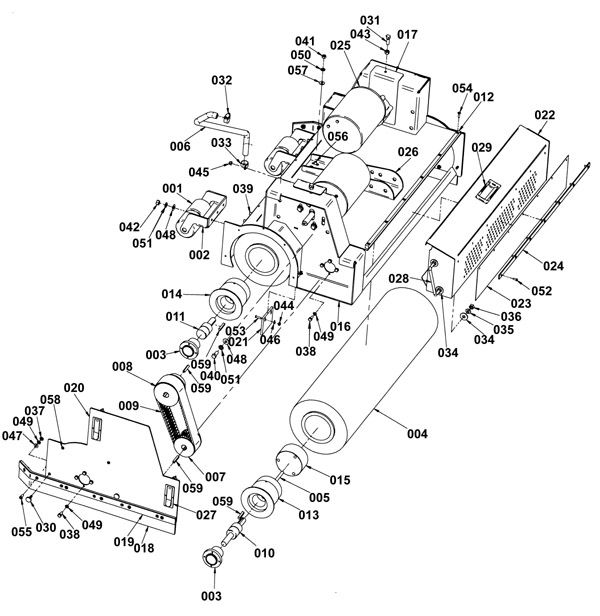

Scrub Deck Assembly - Cylindrical - 202-0411 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
202-0756 |
Guide roller |
4 |
|
| 002 |
202-2473 |
Roller bracket |
2 |
|
| 003 |
202-2474 |
Bearing housing |
4 |
|
| 004 |
NOTE |
Please See Batteries, Brushes, Pad Holders and Charger Pages |
2 |
|
| 006 |
202-2477 |
Tube (clear) |
1 |
|
| 007 |
202-2478 |
Small timing sprocket |
2 |
|
| 008 |
202-2479 |
Large timing sprocket |
2 |
|
| 009 |
202-2480 |
Drive belt |
2 |
|
| 010 |
202-2481 |
Bearing assembly with housing |
2 |
|
| 011 |
202-2482 |
Idler bearing |
2 |
|
| 012 |
202-2483 |
34 inch hopper rail |
1 |
|
| 013 |
202-2484 |
Brush driver |
2 |
|
| 014 |
202-2485 |
Brush idler |
2 |
|
| 015 |
202-2486 |
Internal broom driver |
2 |
|
| 016 |
202-2487 |
Cylindrical brush deck |
1 |
|
| 017 |
202-2488 |
Motor bracket |
2 |
|
| 018 |
202-2489 |
Side curtain blade |
2 |
|
| 019 |
202-2490 |
Blade retaining band |
2 |
|
| 020 |
202-2491 |
Drive cover |
2 |
|
| 022a |
202-2493 |
Hopper |
1 |
(36 inch cylindrical model) |
| 022b |
202-4080 |
Hopper |
1 |
(42 inch cylindrical model) |
| 023 |
202-2494 |
Hopper splash shield |
1 |
|
| 024 |
202-2495 |
Protective strip |
1 |
|
| 025 |
202-2496 |
36V brush motor |
2 |
|
| 026 |
202-2497 |
Scrub deck lifting bracket |
1 |
|
| 028 |
202-0855 |
Hopper handle |
1 |
|
| 030 |
202-1110 |
Thumb screw (set of 2) |
4 |
|
| 031 |
999-1135 |
Bolt 3/8-16 x 1 1/8 hex head stainless steel |
2 |
|
| 032 |
202-0680 |
Hose clamp |
1 |
|
| 033 |
202-2498 |
Scrub deck lifting bracket (OBSOLETE) |
1 |
|
| 034 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
4 |
|
| 035 |
999-1526 |
Washer 3/8 medium split lock zinc |
2 |
|
| 036 |
999-0959 |
Nut 3/8-16 hex |
2 |
|
| 037 |
999-0441 |
Nut 1/4-20 nylon lock jam zinc plated |
12 |
|
| 038 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
16 |
|
| 039 |
999-0493 |
Bolt 3/8-16 x 3/4 hex head stainless steel |
6 |
|
| 040 |
999-0562 |
Bolt 3/8-16 x 1 hex head stainless steel |
8 |
|
| 041 |
999-0593 |
Nut 5/16-18 hex stainless steel |
4 |
|
| 042 |
999-0635 |
Nut 3/8-16 hex stainless steel |
6 |
|
| 043 |
999-0169 |
Nut 3/8-24 hex jam plain finish |
4 |
|
| 044 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
4 |
|
| 045 |
999-0294 |
Nut 1/4-20 hex nylon lock type NE stainless steel |
1 |
|
| 046 |
999-0998 |
Washer #10 flat stainless steel |
4 |
|
| 047 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
| 048 |
999-0611 |
Nut 5/16-18 hex jam brass |
14 |
|
| 049 |
999-0632 |
Washer 1/4 split lock stainless steel |
28 |
|
| 050 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 051 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
14 |
|
| 052 |
999-0074 |
Screw 10-32 x 1/2 round head slotted zinc plated |
7 |
|
| 053 |
999-1008 |
Screw 10-32 x 3/4 round head phillips stainless steel |
4 |
|
| 054 |
999-1189 |
Screw 10-32 x 3/4 flat head phillips stainless steel |
6 |
|
| 055 |
999-0326 |
Screw 1/4-20 x 3/4 flat head phillips zinc plated |
12 |
|
| 056 |
999-1524 |
Screw 5/16-18 x 3/4 button head socket stainless steel |
4 |
|
| 057 |
999-0964 |
Washer 5/16 x 3/4 flat stainless steel |
4 |
|
| 058 |
999-0338 |
Screw 1/4-20 x 1/2 socket head shoulder |
4 |
|
| 059 |
202-4083 |
Square keyway |
10 |
|
|
|

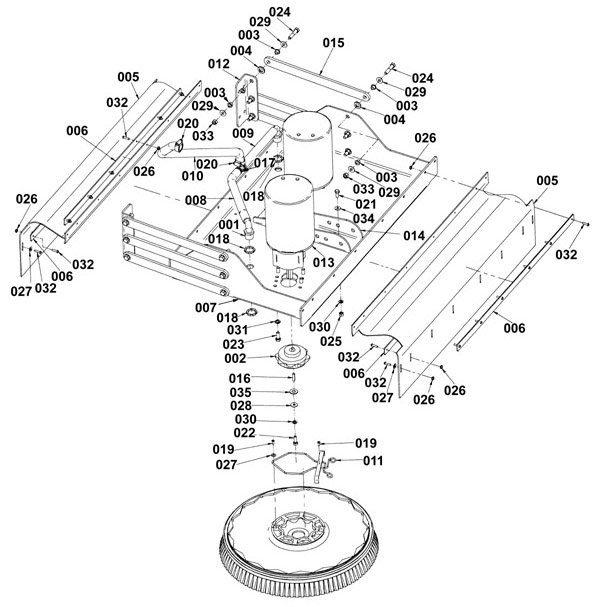

Scrub Deck Assembly - Disk - 202-0412 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
202-0884 |
Barbed elbow |
2 |
|
| 002 |
202-0330 |
Metal brush driver |
2 |
|
| 003 |
202-0754 |
Flanged bearing |
24 |
|
| 004 |
202-1161 |
Washer 1/2 flat thick bronze |
12 |
|
| 005 |
202-2501 |
Deck curtain blade |
2 |
|
| 006 |
202-2502 |
Protective strip |
4 |
|
| 007 |
202-2503 |
Scrub head platform |
1 |
|
| 008 |
202-2504 |
Tubing 5/8 x 10 inch (clear) (OBSOLETE) |
1 |
|
| 009 |
202-2505 |
Tubing 5/8 x 8 inch (clear) (OBSOLETE) |
1 |
|
| 010 |
202-2506 |
Tubing 5/8 x 40 inch (clear) (OBSOLETE) |
1 |
|
| 011 |
202-0320 |
Scrub brush repair kit (clutch/gimball repair) |
2 |
(includes bent wire, bracket and screw for top of clutch plate) |
| 013 |
202-2496 |
36V brush motor |
2 |
|
| 014 |
202-2497 |
Scrub deck lifting bracket |
1 |
|
| 015 |
202-2507 |
Lateral arm |
6 |
|
| 016 |
202-0331 |
Brush driver key (pkg of 2) |
2 |
|
| 017 |
202-1936 |
Barbed tee |
1 |
|
| 018 |
999-1522 |
Nut 3/4-14 lock stainless steel |
4 |
|
| 019 |
999-0997 |
Screw 10-32 x 1/2 round head phillips zinc plated |
4 |
|
| 020 |
202-2066 |
Hose clamp |
2 |
|
| 021 |
999-0976 |
Bolt 1/4-20 x 1 3/4 hex cap stainless steel |
4 |
|
| 022 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
2 |
|
| 023 |
999-0562 |
Bolt 3/8-16 x 1 hex head stainless steel |
8 |
|
| 024 |
999-1006 |
Screw 3/8-16 x 1 3/4 hex head stainless steel |
12 |
|
| 025 |
999-0593 |
Nut 5/16-18 hex stainless steel |
4 |
|
| 026 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
28 |
|
| 027 |
999-0035 |
Washer 3/8 x 1 1/2 fender |
5 |
|
| 028 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 029 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
24 |
|
| 030 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
6 |
|
| 031 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
8 |
|
| 032 |
999-1008 |
Screw 10-32 x 3/4 round head phillips stainless steel |
28 |
|
| 033 |
999-0513 |
Nut 3/8-16 nylon insert lock type NE stainless steel |
12 |
|
| 034 |
999-0964 |
Washer 5/16 x 3/4 flat stainless steel |
4 |
|
| 035 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
2 |
|
|
|

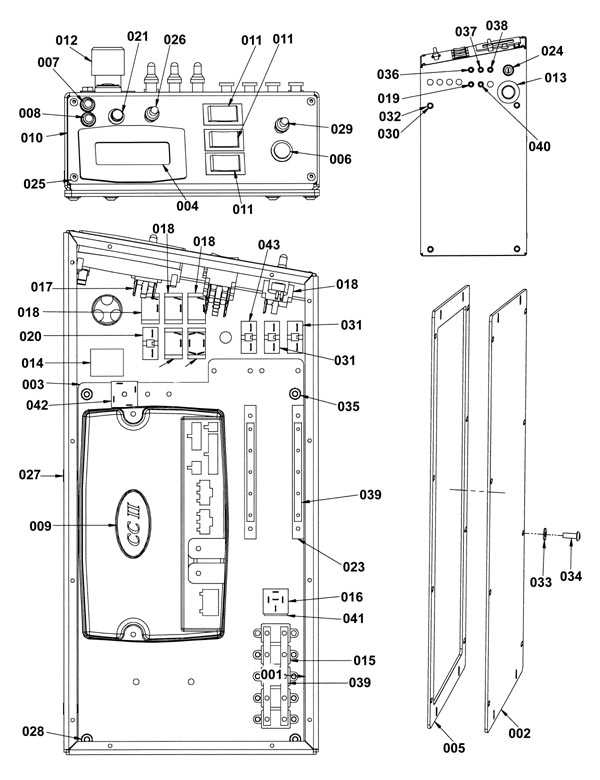

Central Command II Assembly - 202-0413 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
202-2099 |
Control panel |
1 |
|
| 002 |
202-0815 |
Access cover |
1 |
|
| 003 |
202-1994 |
Hardware panel |
1 |
|
| 004 |
202-1317 |
LCD window display |
1 |
(after SN 390-2901) |
| 005 |
202-0818 |
Access cover gasket |
1 |
|
| 006 |
202-1356 |
One touch button |
1 |
(activates squeegee, brushes and solution flow at once) |
| 007 |
202-0831 |
Low solution indicator (amber) |
1 |
|
| 008 |
202-0832 |
Full recovery indicator (red) |
1 |
|
| 009 |
202-1369 |
Main controller |
1 |
|
| 010 |
202-1979 |
Control panel top plate |
1 |
(before SN 390-2900) |
| 011 |
202-0369 |
2 position rocker switch |
3 |
(raises and lowers squeegee and scrub deck) |
| 012 |
202-0826 |
Emergency shut-off switch |
1 |
|
| 013 |
202-0827 |
Emergency legend plate |
1 |
|
| 014 |
202-0825 |
Emergency contact |
1 |
|
| 015 |
202-0343 |
50amp circuit breaker |
5 |
|
| 016 |
202-0348 |
15amp relay |
1 |
|
| 017 |
202-0521 |
Toggle switch |
1 |
|
| 018 |
202-0097 |
Toggle switch |
5 |
|
| 019 |
202-0098 |
Toggle switch boot (gray) |
1 |
|
| 021 |
202-0879 |
Push button switch |
1 |
(LCD menu display) |
| 024a |
202-0537 |
Key switch (brass and silver) |
1 |
(before 02.2006 or SN 44880) |
| 024b |
202-0374 |
Keys (pkg of 2) |
1 |
(before 02.2006 or SN 44880) |
| 024c |
202-2300 |
Key switch with key entry (red) and ring (black) |
1 |
(after 02.2006 or SN 44179) (OEM) |
| 024d |
991-5161 |
Key switch with keys |
1 |
(after 02.2006 or SN 44179) (NON-OEM) |
| 024d |
991-1634 |
Key (pkg of 2) |
1 |
(after 02.2006 or SN 44179) |
| 025 |
999-0965 |
Screw 10-32 x 1/2 button head socket cap stainless steel |
4 |
|
| 026 |
202-1355 |
Toggle switch protective boot (black) |
1 |
(scrub deck pressure) |
| 027 |
999-0190 |
Nut 1/4-20 hex plain finish |
2 |
|
| 028 |
999-0190 |
Nut 1/4-20 hex plain finish |
12 |
|
| 029 |
202-1864 |
Toggle switch protective boot (red) |
1 |
(forward and reverse) |
| 030 |
999-9072 |
Bolt 1/4-20 x 1 hex head cap |
4 |
|
| 031 |
202-2499 |
15amp fuse |
2 |
|
| 032 |
999-0123 |
Washer 1/4 SAE flat zinc plated |
4 |
|
| 033 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
12 |
|
| 034 |
999-0867 |
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
12 |
|
| 035 |
999-0060 |
Washer 1/4 split lock plain finish |
4 |
|
| 036 |
202-1865 |
Toggle switch protective boot (blue) |
1 |
|
| 037 |
202-1976 |
Toggle switch protective boot (white) |
1 |
|
| 038 |
202-1866 |
Toggle switch protective boot (green) |
1 |
|
| 039 |
202-0830 |
Busbar (5 hole) |
4 |
|
| 040 |
202-1977 |
Toggle switch protective boot (yellow) |
1 |
|
| 042 |
202-0345 |
Diode bridge |
1 |
|
| 043 |
202-2500 |
10amp fuse |
1 |
|
| N/S |
202-1992 |
Toggle switch |
1 |
|
| N/S |
202-0990 |
Control knob (blue) |
1 |
(after 02.2006 or SN 44880) (solution flow control) |
|
|

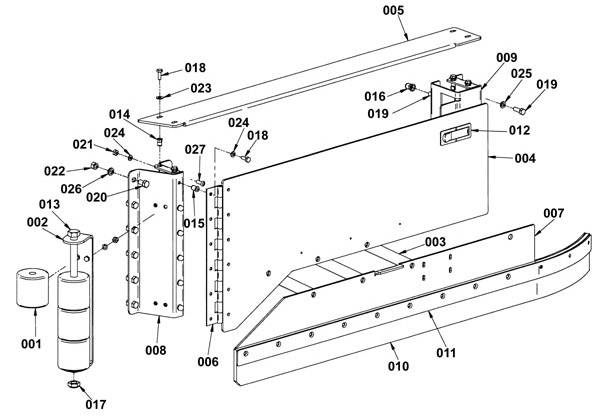

Door, Wiper, and Roller Assembly - 202-0414 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
202-0756 |
Guide roller |
4 |
|
| 002 |
202-0752 |
Roller bracket |
1 |
|
| 005a |
202-2513 |
Left side top support (OBSOLETE) |
1 |
|
| 005b |
202-4084 |
Right side top support (OBSOLETE) |
1 |
|
| 007a |
202-2508 |
Left side wiper weldment (OBSOLETE) |
1 |
|
| 007b |
202-4085 |
Right side wiper weldment |
1 |
|
| 008a |
202-2510 |
Front left side pod |
1 |
|
| 008b |
202-4086 |
Front right side pod |
1 |
|
| 009a |
202-2511 |
Rear left side pod (OBSOLETE) |
1 |
|
| 009b |
202-4087 |
Rear right side pod |
1 |
|
| 010a |
202-2424 |
Wiper blade linatex (includes left and right blade) |
1 |
|
| 010b |
202-2873 |
Wiper blade gum rubber (includes left and right blade) |
1 |
|
| 011 |
202-2512 |
Wiper retaining band |
2 |
|
| 013 |
999-0989 |
Bolt 5/8-11 x 13 hex head grade 5 zinc plated |
1 |
|
| 014 |
999-0190 |
Nut 1/4-20 hex plain finish |
4 |
|
| 016 |
999-0069 |
Nut 5/16-18 hex |
4 |
|
| 017 |
999-0968 |
Nut 5/8-11 nylon insert jam lock zinc plated |
1 |
|
| 018 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
14 |
|
| 019 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
4 |
|
| 020 |
999-0493 |
Bolt 3/8-16 x 3/4 hex head stainless steel |
6 |
|
| 021 |
999-0609 |
Nut 1/4-20 hex stainless steel |
10 |
|
| 022 |
999-0635 |
Nut 3/8-16 hex stainless steel |
6 |
|
| 023 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
| 024 |
999-0632 |
Washer 1/4 split lock stainless steel |
16 |
|
| 025 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 026 |
999-0659 |
Washer 3/8 medium split lock stainless steel |
6 |
|
| 027 |
999-0867 |
Bolt 1/4-20 x 3/4 button head socket cap stainless steel |
6 |
|
|
|

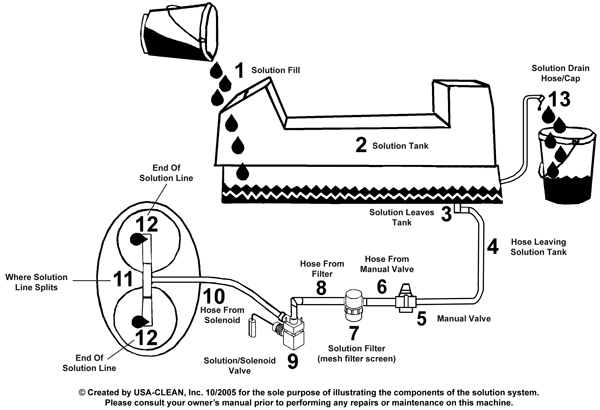

- Simplified Solution System - 202-1374 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-2387 |
Solution tank lid |
|
Tank Assembly |
| 2 |
202-2389 |
Solution tank |
|
Tank Assembly |
| 3 |
202-2354 |
Barb 3/4 x 3/4 inch |
|
Chassis Assembly |
| 4 |
202-2331 |
Vinyl tubing 3/4 x 3 1/2 inch (clear) |
|
Chassis Assembly |
| 5 |
202-2352 |
Ball valve (OBSOLETE) |
|
Seat Assembly |
| 6 |
202-2355 |
Vinyl tubing 5/8 x 15 inch (clear) (OBSOLETE) |
|
Seat Assembly |
| 7 |
202-1882 |
Inline filter |
|
Tank Assembly |
| 8 |
202-2356 |
Vinyl tubing 5/8 x 8 inch (clear) |
|
Seat Assembly |
| 9 |
202-0208 |
Adjustable solution flow valve |
|
Seat Assembly |
| 10 |
202-2506 |
Tubing 5/8 x 40 inch (clear) (OBSOLETE) |
|
Scrub Deck Assembly |
| 11 |
202-1936 |
Barbed tee |
|
Scrub Deck Assembly |
| 12 |
202-0884 |
Barbed elbow |
|
Scrub Deck Assembly |
| 12 |
202-2504 |
Tubing 5/8 x 10 inch (clear) (OBSOLETE) |
|
Scrub Deck Assembly |
| 12 |
202-2505 |
Tubing 5/8 x 8 inch (clear) (OBSOLETE) |
|
Scrub Deck Assembly |
| 13 |
202-0591 |
Solution tank bulkhead fitting |
|
Tank Assembly |
|
|
- Simplified Recovery System - 202-1375 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| A/W1 |
202-3008 |
48 inch squeegee assembly |
|
Squeegee Assembly - Before SN 42472 |
| A/W1 |
N/A |
Not available |
|
(Squeegee assembly) (Squeegee Assembly - After SN 42473) |
| A/W2 |
202-2304 |
Squeegee vacuum hose |
|
Squeegee Assembly - Before SN 42472 |
| A/W3 |
202-2390 |
Recovery tank |
|
Tank Assembly |
| A4 |
202-0232 |
Float shut-off ball |
|
Tank Assembly |
| A4 |
202-1312 |
Float switch (includes nut and washer) |
|
Tank Assembly |
| A5 |
991-1202 |
36V 3 stage vacuum motor tangential |
|
Seat Assembly |
| A6 |
202-2359 |
72 inch flexible hose (gray) |
|
Seat Assembly |
|
|

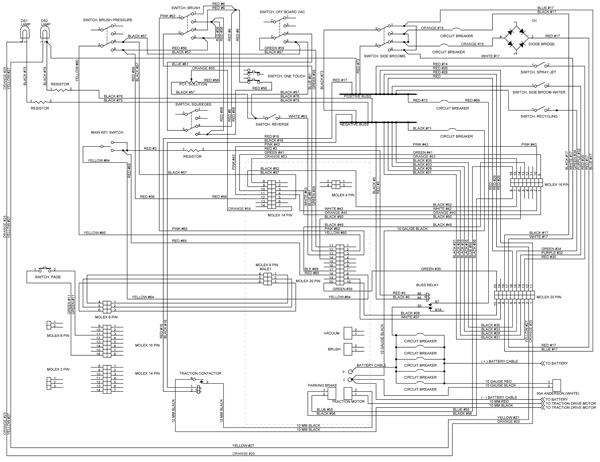

Wiring Diagram - Central Command II with Single Vacuum Motor and Potentiometer - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

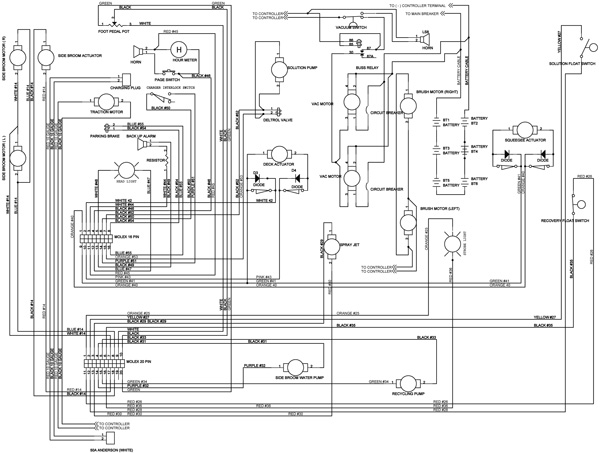

Wiring Diagram - Central Command II with Dual Vacuum Motors - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

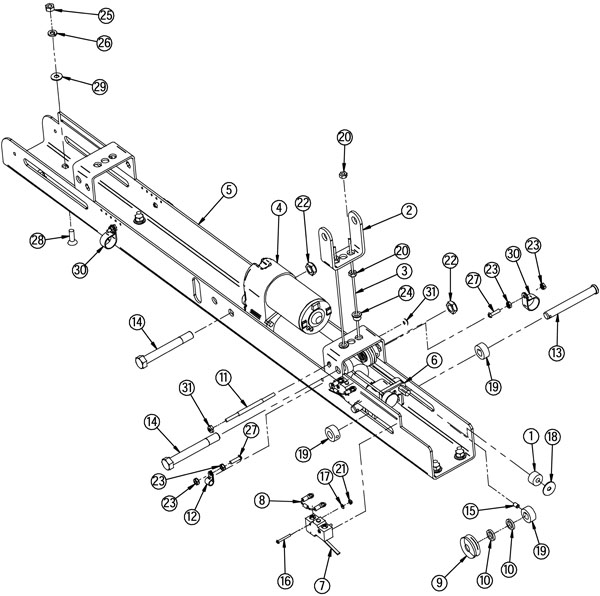

Actuator Slide Assembly - After SN 390704 - 202-2095 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-0787 |
Polyurethane spring |
2 |
|
| 2 |
202-0783 |
Lifting bracket |
1 |
|
| 3 |
202-0785 |
Squeegee lifting cable |
2 |
|
| 4 |
202-2428 |
Long barrel actuator |
1 |
|
| 5 |
202-3037 |
Actuator pin update kit |
1 |
|
| 6 |
202-2430 |
Cable trolley (OBSOLETE) |
1 |
|
| 7 |
202-0192 |
Lift limit switch |
2 |
|
| 8 |
202-0351 |
EMF suppression diode |
2 |
|
| 9 |
202-0186 |
Nylon pulley |
2 |
|
| 10 |
999-0988 |
Washer 1/2 x 1/8 thick nylon flat |
6 |
|
| 11 |
999-0987 |
Stud 1/4-20 x 4 double ended stainless steel |
1 |
|
| 14 |
999-0982 |
Bolt 1/2-13 x 4 hex head cap zinc plated |
2 |
|
| 15 |
999-0095 |
Screw 1/4-20 x 3/8 cup point socket set alloy plain finish |
8 |
|
| 16 |
999-0983 |
Screw 4-40 x 1 pan head phillips zinc plated |
4 |
|
| 17 |
999-0985 |
Washer #4 SAE flat |
4 |
|
| 18 |
999-0892 |
Washer 1/4 x 1 zinc plated fender |
2 |
|
| 19 |
202-3222 |
Shaft collar with set screw |
8 |
|
| 20 |
999-0651 |
Nut 1/4-28 hex stainless steel |
4 |
|
| 21 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
4 |
|
| 22 |
999-0262 |
Nut 1/2-13 nylon insert jam lock zinc plated |
2 |
|
| 23 |
202-2067 |
Nut 10-32 keps |
6 |
|
| 24 |
202-0789 |
Flanged bushing |
2 |
|
| 25 |
999-0593 |
Nut 5/16-18 hex stainless steel |
8 |
|
| 26 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
8 |
|
| 27 |
999-1008 |
Screw 10-32 x 3/4 round head phillips stainless steel |
4 |
|
| 28 |
999-0734 |
Screw 5/16-18 x 1 3/4 flat head socket zinc plated |
8 |
|
| 29 |
999-0964 |
Washer 5/16 x 3/4 flat stainless steel |
8 |
|
| 31 |
999-0304 |
Nut 1/4-20 nylon lock jam stainless steel |
2 |
|
|
|

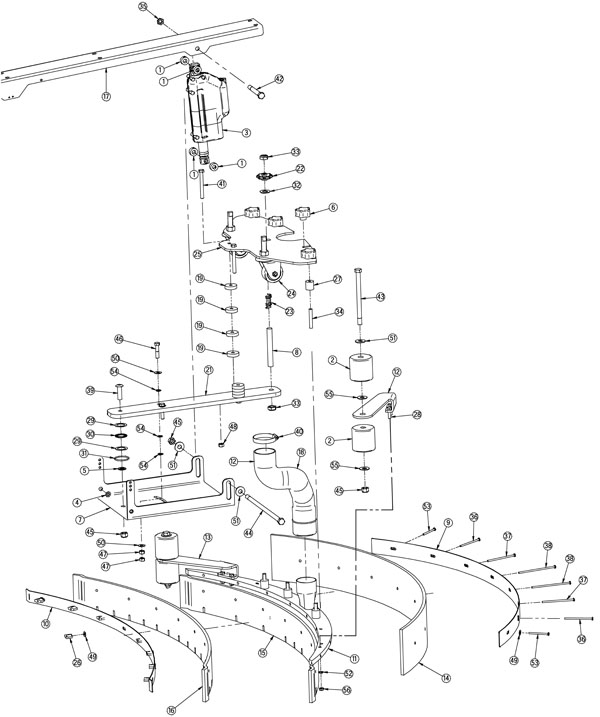

Squeegee Assembly - After SN 42473 - 202-2099 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-4055 |
Shaft collar with set screw (OBSOLETE) |
4 |
|
| 2 |
202-0756 |
Guide roller |
4 |
|
| 3 |
202-1950 |
36V actuator |
1 |
|
| 4 |
202-1239 |
Flanged bearing |
2 |
|
| 5 |
202-1161 |
Washer 1/2 flat thick bronze |
1 |
|
| 7 |
202-4056 |
Squeegee swing plate |
1 |
|
| 9 |
202-2462 |
Rear squeegee retaining band |
1 |
|
| 10 |
202-2435 |
Front squeegee retaining band |
1 |
|
| 11 |
202-2436 |
Squeegee weldment |
1 |
|
| 12 |
202-2437 |
Left side wheel bracket |
1 |
|
| 13 |
202-2438 |
Right side wheel bracket |
1 |
|
| 14a |
202-2439 |
Squeegee blade 48 inch rear gum rubber |
1 |
|
| 14b |
202-2867 |
Squeegee blade 48 inch rear linatex |
1 |
|
| 15a |
202-2440 |
Squeegee blade 48 inch front gum rubber |
1 |
(single vacuum system) |
| 15b |
202-2869 |
Squeegee blade 48 inch front linatex |
1 |
(single vacuum system) |
| 16a |
202-2890 |
Squeegee blade 48 inch front gum rubber |
1 |
(dual vacuum system) |
| 16b |
202-4057 |
Squeegee blade 48 inch front linatex |
1 |
(dual vacuum system) |
| 17 |
202-4058 |
Channel (OBSOLETE) |
1 |
|
| 18a |
202-2304 |
Squeegee vacuum hose |
1 |
(includes 18b) |
| 18b |
202-2396 |
2 1/2 inch hose cuff |
1 |
|
| 21 |
202-2442 |
Squeegee trail arm |
1 |
|
| 24 |
202-2445 |
Caster wheel |
2 |
|
| 25 |
202-2463 |
Squeegee triangle plate |
1 |
|
| 26 |
202-0711 |
Clamping knob (pkg of 2) |
8 |
|
| 28 |
999-0688 |
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
4 |
|
| 30 |
202-0161 |
Thrust bearing |
1 |
|
| 32 |
202-1058 |
Washer 5/8 teflon |
1 |
|
| 33 |
202-2449 |
Nut 5/8-18 nylon locking stainless steel |
2 |
|
| 35 |
999-0262 |
Nut 1/2-13 nylon insert jam lock zinc plated |
1 |
|
| 36 |
999-1527 |
Screw 1/4-20 x 3 1/2 pan head phillips stainless steel |
2 |
|
| 37 |
999-1528 |
Screw 1/4-20 x 4 pan head phillips stainless steel |
2 |
|
| 38 |
999-1529 |
Screw 1/4-20 x 5 pan head phillips stainless steel |
2 |
|
| 39 |
999-1474 |
Screw 1/2-13 x 1 3/4 button head stainless steel |
1 |
|
| 41 |
999-1441 |
Bolt 3/8-16 x 3 1/2 hex head stainless steel |
2 |
|
| 42 |
999-0982 |
Bolt 1/2-13 x 4 hex head cap zinc plated |
1 |
|
| 43 |
999-0982 |
Bolt 1/2-13 x 4 hex head cap zinc plated |
2 |
|
| 44 |
202-4059 |
Screw 1/2-13 x 12 hex head zinc plated |
1 |
|
| 45 |
999-0118 |
Nut 1/2-13 nylon insert lock zinc plated |
4 |
|
| 46 |
999-1006 |
Screw 3/8-16 x 1 3/4 hex head stainless steel |
2 |
|
| 47 |
999-0635 |
Nut 3/8-16 hex stainless steel |
4 |
|
| 48 |
999-0169 |
Nut 3/8-24 hex jam plain finish |
2 |
|
| 49 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
16 |
|
| 50 |
999-0617 |
Washer 3/8 x 1 flat stainless steel |
4 |
|
| 51 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
4 |
|
| 52 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
4 |
|
| 53 |
999-0610 |
Screw 1/4-20 x 2 1/2 pan head phillips stainless steel |
2 |
|
| 54 |
999-1007 |
Washer 3/8 x 1/16 flat nylon |
6 |
|
| 55 |
999-0559 |
Washer 1/2 x 1/4 flat stainless steel |
4 |
|
| 56 |
999-0423 |
Nut 5/16-18 nylon insert lock stainless steel |
4 |
|
|
|
Scrub Deck Lifting Assembly - 202-2100 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-1239 |
Flanged bearing |
2 |
|
| 2 |
202-4060 |
Actuator mounting bracket |
1 |
|
| 3 |
202-4061 |
Actuator anchor (OBSOLETE) |
1 |
|
| 4 |
202-4062 |
Actuator arm |
1 |
|
| 5 |
202-2208 |
Compression spring |
6 |
|
| 6 |
202-2320 |
Actuator long barrel (OBSOLETE) |
1 |
|
| 7 |
202-2497 |
Scrub deck lifting bracket |
1 |
|
| 8 |
202-0192 |
Lift limit switch |
2 |
|
| 11 |
999-0095 |
Screw 1/4-20 x 3/8 cup point socket set alloy plain finish |
1 |
|
| 12 |
999-0983 |
Screw 4-40 x 1 pan head phillips zinc plated |
4 |
|
| 13 |
202-3222 |
Shaft collar with set screw |
1 |
|
| 14 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
4 |
|
| 15 |
999-0424 |
Bolt 5/16-18 x 1 hex head stainless steel |
3 |
|
| 16 |
999-0609 |
Nut 1/4-20 hex stainless steel |
4 |
|
| 17 |
999-0593 |
Nut 5/16-18 hex stainless steel |
9 |
|
| 18 |
999-0295 |
Nut 4-40 nylon insert lock stainless steel |
4 |
|
| 19 |
999-1483 |
Washer #4 large stainless steel |
4 |
|
| 20 |
999-0632 |
Washer 1/4 split lock stainless steel |
4 |
|
| 21 |
999-0553 |
Washer 5/16 medium split lock stainless steel |
8 |
|
| 22 |
999-0734 |
Screw 5/16-18 x 1 3/4 flat head socket zinc plated |
6 |
|
| 23 |
999-0964 |
Washer 5/16 x 3/4 flat stainless steel |
8 |
|
| 26 |
202-2059 |
Cotter ring |
2 |
|
| N/S |
202-2432 |
Clevis pin |
1 |
|
|
|

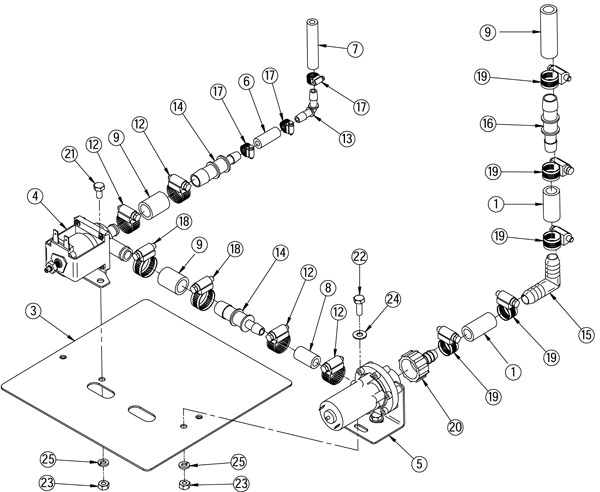

Side Broom Water Assembly - 202-2101 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-4064 |
1/2 inch tubing (clear) |
2 |
|
| 3 |
202-4065 |
Mounting plate |
1 |
|
| 4 |
202-1935 |
36V solution flow valve |
1 |
|
| 5 |
202-2895 |
36V wand spray pump |
1 |
|
| 6 |
202-4066 |
1/4 inch tubing (clear) |
1 |
|
| 7 |
202-4066 |
1/4 inch tubing (clear) |
1 |
|
| 8 |
202-4067 |
3/8 inch tubing (clear) |
1 |
|
| 9 |
202-0299 |
5/8 inch PVC hose (clear) (sold by the foot) |
1 ft |
|
| 13 |
202-4068 |
Barbed elbow |
1 |
|
| 15 |
202-4070 |
90 degree barbed elbow |
1 |
|
| 20 |
202-4072 |
Swivel adapter |
1 |
|
| 21 |
999-0644 |
Bolt 1/4-20 x 1/2 hex head stainless steel |
2 |
|
| 22 |
999-0334 |
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
|
| 23 |
999-0609 |
Nut 1/4-20 hex stainless steel |
4 |
|
| 24 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
| 25 |
999-0632 |
Washer 1/4 split lock stainless steel |
4 |
|
|
|

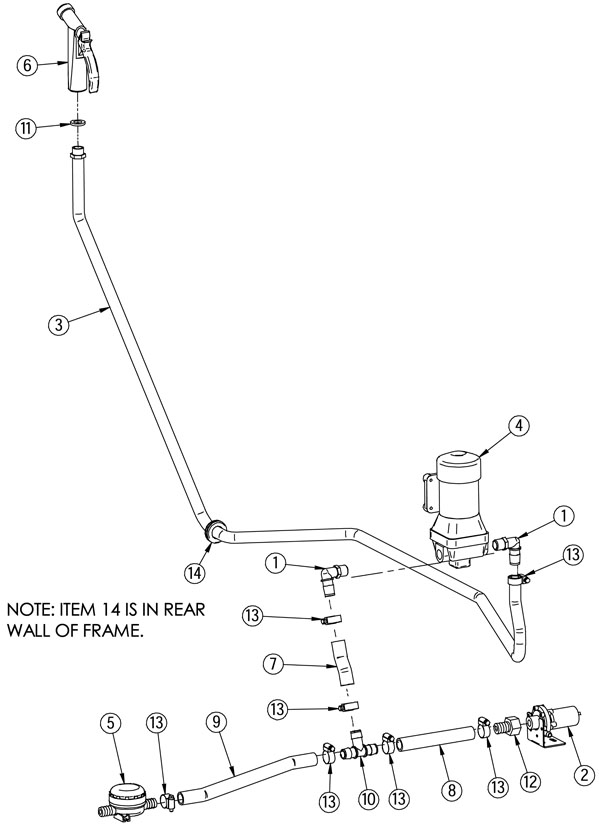

Spray Jet Assembly - 202-2102 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
202-1004 |
Barbed elbow |
2 |
|
| 2 |
202-2895 |
36V wand spray pump |
1 |
|
| 3 |
202-0104 |
18 foot rubber hose (blue) |
1 |
|
| 4 |
202-2368 |
36V water jet pump |
1 |
|
| 5 |
202-1882 |
Inline filter |
1 |
|
| 6 |
202-0103 |
Spray nozzle |
1 |
|
| 7 |
202-4073 |
Hose (clear) (sold by the inch) |
4 in |
|
| 8 |
202-4073 |
Hose (clear) (sold by the inch) |
6 in |
|
| 9 |
202-4073 |
Hose (clear) (sold by the inch) |
13 in |
|
| 11 |
999-1470 |
Rubber washer |
1 |
|
| 12 |
202-4074 |
Barbed adapter |
1 |
|
|
|
- Batteries, Brushes and Charger - Disk and Cylindrical - 202-9978 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0005 |
6V 305Ah wet battery (SNSR) |
6 |
|
| 2 |
162-0046 |
6V 335Ah AGM battery (Group J305) |
6 |
|
| 3 |
162-5149 |
Summit II 24V 40amp battery charger SB175 large gray plug |
1 |
(configured for wet batteries; can be changed to support AGM batteries) |
| 4 |
162-5149 |
Summit II 24V 40amp battery charger SB175 large gray plug |
1 |
(configured for AGM batteries; can be changed to support wet batteries) |
| 5 |
991-2112 |
175amp charger plug with pins (gray) SB175 |
1 |
|
| 6 |
998-0010 |
Battery jumper cable - ring type (red) |
1 |
|
| 7 |
996-1510 |
20 inch Heavy grit stripping brush - 80 grit |
2 |
(disk) |
| 8 |
202-1550 |
20 inch Medium grit scrubbing brush - 180 grit |
2 |
(disk) |
| 9 |
996-1544 |
20 inch Lite grit scrubbing brush - 500 grit |
2 |
(disk) |
| 10 |
996-1545 |
20 inch Polypropelene scrubbing brush |
2 |
(disk) |
| 11 |
996-1546 |
20 inch Pad driver |
2 |
(disk) |
| 12 |
996-6020 |
Extra heavy grit stripping brush - CYLINDRICAL |
2 |
(cylindrical) |
| 13 |
996-6021 |
Medium grit scrubbing brush - CYLINDRICAL |
2 |
(cylindrical) |
| 14 |
996-6021 |
Medium grit scrubbing brush - CYLINDRICAL |
2 |
(cylindrical) |
| 15 |
996-6023 |
Nylon scrubbing brush - CYLINDRICAL |
2 |
(cylindrical) |
|
|
- Simplified Electrical System - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Pads - 255-2000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2040 |
20 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2035 |
20 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2064 |
20 inch Blue ace pad (pkg of 5) |
|
|
| 04 |
255-2042 |
20 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-2012 |
20 inch Cure white pad (pkg of 5) |
|
|
| 06 |
255-2077 |
20 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 07 |
255-2038 |
20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 08 |
255-2021 |
20 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 09 |
255-2050 |
20 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 10 |
255-2065 |
20 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 11 |
255-2030 |
20 inch jaguar burnishing pad (pkg of 5) |
|
|
| 12 |
255-2067 |
20 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 13 |
255-2087 |
20 inch Melamine Mela-Kleen pad (pkg of 2) |
|
|
| 14 |
255-2068 |
20 inch Microclean daily cleaning pad (pkg of 2) |
|
|
| 15 |
255-2069 |
20 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 16 |
255-2090 |
20 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2070 |
20 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2092 |
20 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2080 |
20 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2060 |
20 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2052 |
20 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2020 |
20 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2011 |
20 inch superspeed rubberized pad (pkg of 5) |
|
|
| 24 |
255-2095 |
20 inch razorback stripping pad (pkg of 5) |
|
|
| 25 |
255-2047 |
20 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 26 |
255-2055 |
20 inch Ruff non-abrasive brush pad (pkg of 2) |
|
|
| 27 |
255-2023 |
20 inch sand screen driver pad (pkg of 2) |
|
|
| 28 |
255-0157 |
20 inch Professional sand screen 100 grit (pkg of 10) |
|
|
| 29 |
255-0021 |
20 inch Professional sand screen 120 grit (pkg of 10) |
|
|
| 30 |
255-0158 |
20 inch Professional sand screen 150 grit (pkg of 10) |
|
|
| 31 |
255-0159 |
20 inch Professional sand screen 180 grit (pkg of 10) |
|
|
| 32 |
255-0160 |
20 inch Professional sand screen 220 grit (pkg of 10) |
|
|
| 33 |
255-0161 |
20 inch Professional sand screen 400 grit (pkg of 10) |
|
|
| 34 |
255-0030 |
20 inch Professional sand screen 60 grit (pkg of 10) |
|
|
| 35 |
255-0020 |
20 inch Professional sand screen 80 grit (pkg of 10) |
|
|
| 36 |
255-0249 |
20 inch Superscreen sand screen 100 grit (pkg of 10) |
|
|
| 37 |
255-0250 |
20 inch Superscreen sand screen 120 grit (pkg of 10) |
|
|
| 38 |
255-0251 |
20 inch Superscreen sand screen 150 grit (pkg of 10) |
|
|
| 39 |
255-0252 |
20 inch Superscreen sand screen 180 grit (pkg of 10) |
|
|
| 40 |
255-0253 |
20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE) |
|
|
| 41 |
255-0254 |
20 inch Superscreen sand screen 400 grit (pkg of 10) |
|
|
| 42 |
255-0247 |
20 inch Superscreen sand screen 60 grit (pkg of 10) |
|
|
| 43 |
255-0248 |
20 inch Superscreen sand screen 80 grit (pkg of 10) |
|
|
| 45 |
255-9591 |
20 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 46 |
255-9588 |
20 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 47 |
255-9585 |
20 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 48 |
255-9589 |
20 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 49 |
255-9586 |
20 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 50 |
255-9587 |
20 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 51 |
255-9590 |
20 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 52 |
255-9645 |
20 inch Diamond starter pack (1 of each grit) |
|
|
| 53 |
255-2082 |
20 inch Turbostrip segmented rotary pad (pkg of 4) |
|
|
| 54 |
255-2015 |
20 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 55 |
255-2016 |
20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
