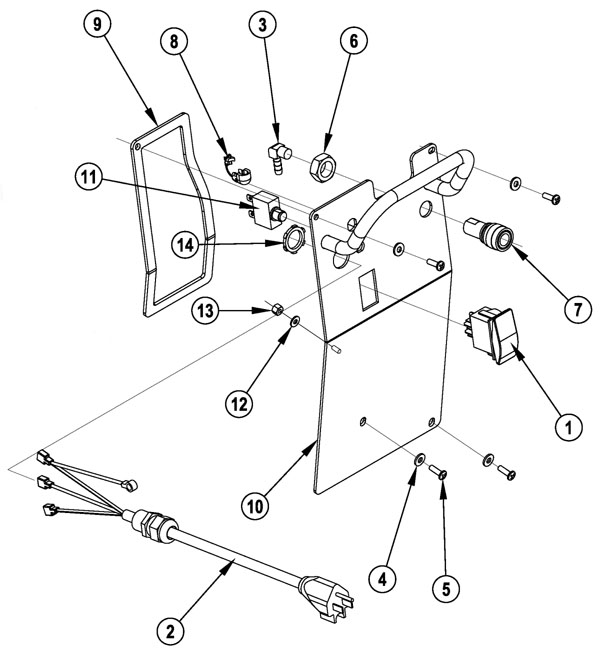

Back Panel Assembly - 272-2346 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-0487 |
2 position rocker switch |
1 |
|
| 2a |
272-2755 |
16/3 power cord 25 foot |
1 |
(OEM) |
| 2b |
991-5006 |
16/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) |
| 3 |
181-1099 |
Male hose barb |
1 |
|
| 4 |
999-0998 |
Washer #10 flat stainless steel |
4 |
|
| 5 |
999-0332 |
Screw 10-24 x 5/8 pan head phillips stainless steel |
4 |
|
| 6 |
999-0003 |
Nut 5/8-18 hex jam stainless steel |
1 |
|
| 7 |
991-8157 |
1/8 inch female quick disconnect socket |
1 |
|
| 8 |
272-2756 |
Strain relief |
1 |
|
| 9 |
272-2757 |
Back panel gasket |
1 |
|
| 10 |
272-2758 |
Back panel weldment |
1 |
|
| 11 |
272-2759 |
Circuit breaker with boot |
1 |
|
| 12 |
999-0092 |
Washer #8 internal star lock zinc plated |
1 |
|
| 13 |
999-1819 |
Nut 8-32 hex stainless steel |
1 |
|
| 14 |
172-4536 |
Nut 1/2-14 conduit lock |
1 |
|
|
|
Base Assembly - 272-2347 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
172-4156 |
Adapter and bracket kit (OBSOLETE) |
1 |
|
| 3 |
272-1574 |
Spring pin 3/16 x 1 inch |
1 |
|
| 4 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
2 |
|
| 5 |
999-0549 |
Washer 5/16 x 3/4 SAE flat stainless steel |
2 |
|
| 6 |
172-4409 |
Nut 5/8-11 hex jam stainless steel |
1 |
|
| 7 |
999-0551 |
Bolt 5/16-18 x 1 3/4 hex head stainless steel |
2 |
|
| 8 |
272-2188 |
Screw 8-10 x 3/4 pan head phillips plastite |
2 |
|
| 9 |
999-1861 |
Screw 10-24 x 7/8 pan head phillips stainless steel |
2 |
|
| 10 |
272-2761 |
Screw 10-14 x 3/5 pan phillips stainless steel |
7 |
|
| 11 |
999-0998 |
Washer #10 flat stainless steel |
2 |
|
| 13 |
997-2002 |
Hose clamp #6 |
2 |
|
| 14 |
172-4012 |
Terminal block |
1 |
|
| 15a |
272-0170 |
115V 60 PSI pump |
1 |
(OEM) |
| 15b |
991-8547 |
115V 60 PSI pump |
1 |
(NON-OEM) |
| 16 |
172-4139 |
35amp rectifier |
1 |
|
| 18 |
272-2764 |
Valve nozzle assembly |
1 |
(includes 29-34 and 36) |
| 19 |
272-2765 |
Base (OBSOLETE) |
1 |
|
| 20 |
272-2766 |
Base panel gasket |
1 |
|
| 21 |
272-2767 |
Hose 1/4 x 21 inch |
1 |
|
| 25 |
172-4078 |
Barb adapter 1/2 X 3/8 NPT |
1 |
|
| 26 |
272-2770 |
Muffler set |
1 |
|
| 28 |
172-0299 |
Brass elbow |
1 |
|
| 29 |
N/A |
Not available |
1 |
(Nipple, only available in 272-2764) |
| 30 |
172-4072 |
Solution hose |
1 |
|
| 31 |
272-0340 |
Solenoid valve |
1 |
|
| 32 |
272-2773 |
Panel mounting elbow |
1 |
|
| 34 |
172-0299 |
Brass elbow |
1 |
|
| 37 |
272-9545 |
Compression spring |
1 |
|
|
|

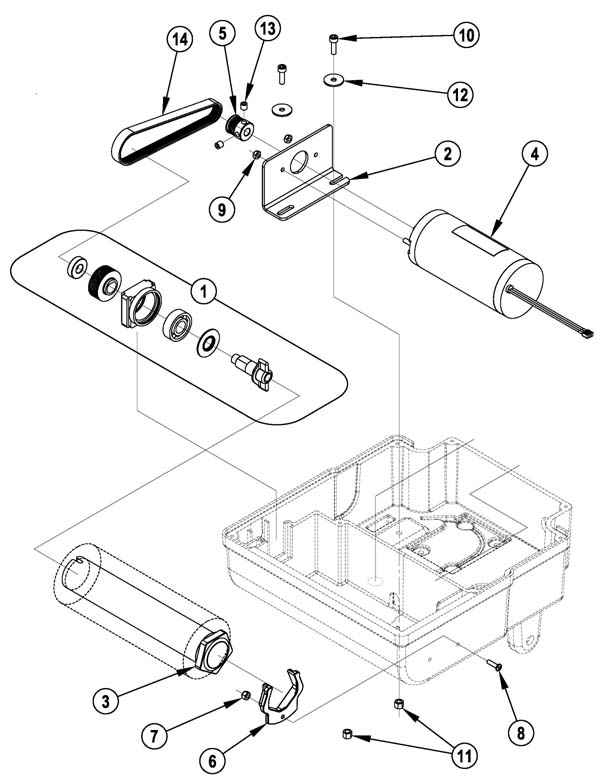

Brush Assembly - 272-2348 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-0517 |
Bearing and spindle kit |
1 |
(includes drive spindle, bearings, and sheave) |
| 2 |
272-2776 |
Motor tension bracket |
1 |
|
| 3 |
272-2777 |
Brush assembly |
1 |
|
| 4 |
272-2778 |
115V 1/4 HP motor |
1 |
|
| 5 |
272-2779 |
Poly-v sheave |
1 |
|
| 6 |
272-0519 |
Brush retainer clip |
1 |
|
| 7 |
999-0442 |
Nut 10-24 nylon insert lock stainless steel |
1 |
|
| 8 |
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
1 |
|
| 9 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
2 |
|
| 10 |
172-0466 |
Screw M6-1 x 20mm socket head stainless steel |
2 |
|
| 11 |
999-0497 |
Nut M6-1 nylon insert lock stainless steel |
2 |
|
| 12 |
172-0548 |
Washer 17/64 x 47/64 flat stainless steel |
2 |
|
| 13 |
999-1840 |
Screw 5/16-18 x 5/16 knurled point socket set alloy steel |
2 |
|
| 14a |
172-8249 |
Poly v-belt |
1 |
(OEM) |
| 14b |
991-2431 |
Poly V- belt |
1 |
(NON-OEM) |
|
|

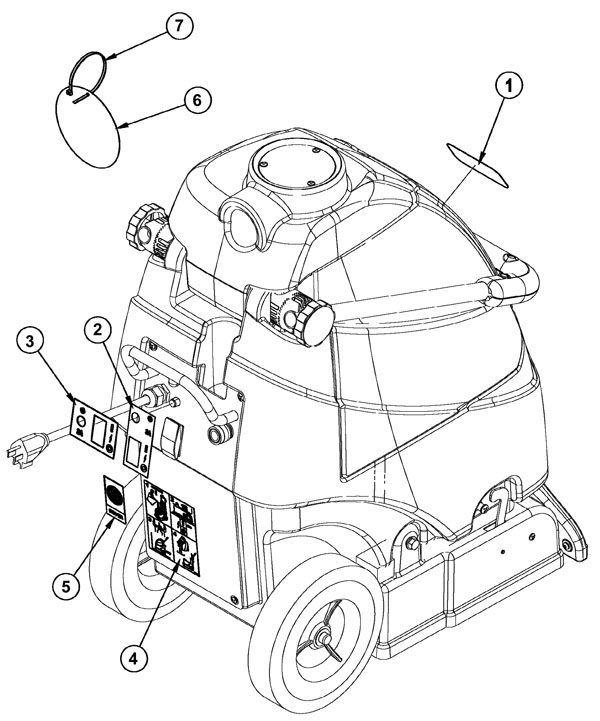

Decal Assembly - 272-2349 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-9538 |
Aquaclean decal |
1 |
|
| 2 |
272-9539 |
Main decal |
1 |
(only used after SN2005987) |
| 3 |
N/A |
Not available |
1 |
(only used before SN2005988) (Switch/breaker decal) |
| 4 |
272-2782 |
Operation instuctions decal |
1 |
|
| 5 |
272-9540 |
CRI decal (silver) |
1 |
|
| 7 |
997-2103 |
8 inch cable tie |
1 |
|
|
|
Handle Assembly - 272-2350 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0705 |
Screw 10-24 x 3/4 pan head phillips stainless steel |
4 |
|
| 2 |
172-1285 |
Screw 1/4-20 x 5/8 pan head phillips plastite |
2 |
|
| 3 |
272-5069 |
Handle adjustment ratchet |
2 |
|
| 4 |
272-0495 |
Spray button |
1 |
|
| 5 |
272-0503 |
Snap action switch |
1 |
|
| 7 |
272-2784 |
Handle cover (OBSOLETE) |
2 |
|
| 9 |
272-2786 |
Wire assembly |
1 |
|
| 10 |
272-5070 |
Knob (OBSOLETE) |
2 |
|
| 11 |
181-0974 |
Handle clamp |
2 |
|
|
|

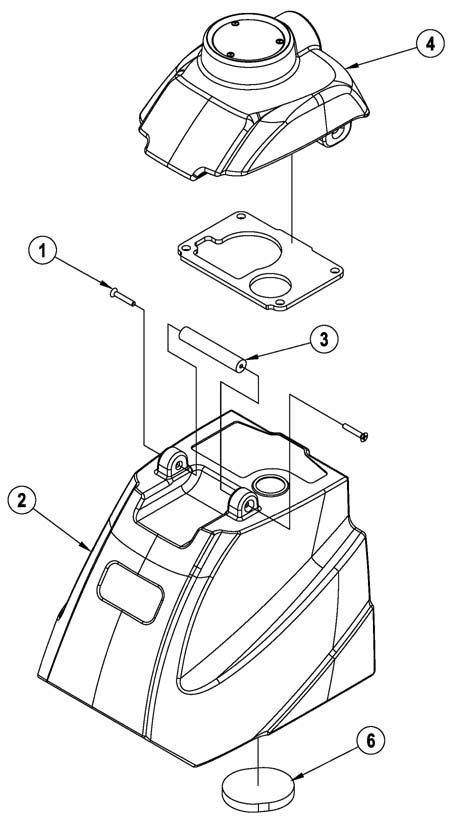

Recovery Assembly - 272-2351 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0748 |
Screw 1/4-20 x 1 1/2 flat head phillips zinc plated |
2 |
|
| 2 |
272-9547 |
Recovery tank |
1 |
|
| 4 |
272-8577 |
Recovery tank lid and gasket assembly |
1 |
|
|
|
Solution Assembly - 272-2352 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
999-0335 |
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
| 2 |
999-0456 |
Screw 1/4-20 x 3/4 pan head phillips stainless steel |
1 |
|
| 3 |
999-0332 |
Screw 10-24 x 5/8 pan head phillips stainless steel |
4 |
|
| 4 |
999-0523 |
Screw 1/4-20 x 1 1/2 pan head phillips stainless steel |
2 |
|
| 5 |
999-0342 |
Screw 1/4-20 x 1 pan head phillips stainless steel |
1 |
|
| 6 |
999-0522 |
Screw 1/4-20 x 1/2 pan head phillips stainless steel |
2 |
|
| 7 |
182-0008 |
Motor mounting screw |
4 |
|
| 8 |
172-4017 |
1/2 inch push cap |
2 |
|
| 9 |
999-0998 |
Washer #10 flat stainless steel |
4 |
|
| 10 |
181-0315 |
8 inch wheel |
2 |
|
| 11 |
997-2002 |
Hose clamp #6 |
1 |
|
| 13 |
172-0260 |
Screen kit with barb |
1 |
|
| 14 |
272-5068 |
Handle adjustment ratchet |
2 |
|
| 16 |
272-9548 |
Solution tank |
1 |
|
| 17 |
272-2792 |
Vacuum cover assembly |
1 |
|
| 19 |
272-2794 |
Axle retainer |
1 |
|
| 20 |
272-2795 |
Motor plate |
1 |
|
| 21 |
272-2796 |
Shoe (OBSOLETE) |
1 |
|
| 25 |
272-2800 |
Vacuum cover gasket |
1 |
|
| 26 |
272-2801 |
Gasket (OBSOLETE) |
1 |
|
| 27 |
272-2802 |
1 1/2 inch stretch vacuum hose |
1 |
|
| 28a |
272-2803 |
120V vacuum motor |
1 |
|
| 28b |
172-6012 |
Carbon brush (pkg of 2) |
1 |
|
| 30 |
172-4078 |
Barb adapter 1/2 X 3/8 NPT |
1 |
|
| 31 |
172-4056 |
90 degree barbed elbow |
1 |
|
| 32 |
997-2103 |
8 inch cable tie |
1 |
|
|
|

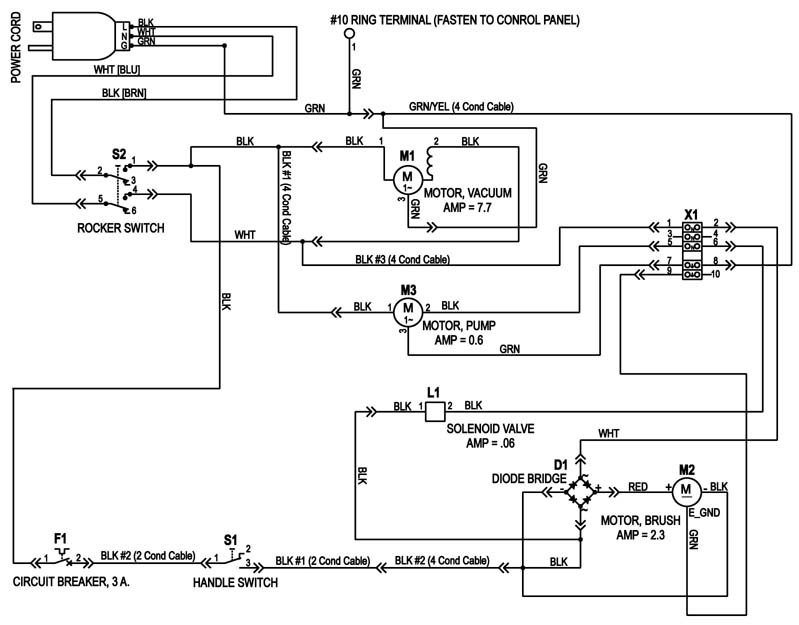

Wiring Diagram - 272-2353 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| F1 |
272-2759 |
Circuit breaker with boot |
1 |
|
| L1 |
272-0340 |
Solenoid valve |
1 |
|
| M1a |
272-2803 |
120V vacuum motor |
1 |
|
| M1b |
991-1208 |
120V 2 stage vacuum motor peripheral |
1 |
|
| M1c |
172-6012 |
Carbon brush (pkg of 2) |
1 |
(set of 2) |
| M2 |
272-2778 |
115V 1/4 HP motor |
1 |
|
| M3a |
272-0170 |
115V 60 PSI pump |
1 |
(OEM) |
| M3b |
991-8547 |
115V 60 PSI pump |
1 |
(NON-OEM) |
| S1 |
272-0503 |
Snap action switch |
1 |
(solution and brush) |
| S2 |
272-0487 |
2 position rocker switch |
1 |
(power) |
| N/S |
272-2805 |
Rectifier wire assembly (black) |
1 |
|
| N/S |
272-2806 |
Rectifier wire assembly (white) |
1 |
|
| N/S |
272-2786 |
Wire assembly |
1 |
|
| N/S |
272-2807 |
16/4 wire assembly |
1 |
|
| N/S |
272-2755 |
16/3 power cord 25 foot |
1 |
(OEM) |
| N/S |
991-5006 |
16/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) |
|
|
- Extractor Fit All Parts - 999-9400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
991-8000 |
12 inch stainless head wand, 1 jet 120 PSI plastic valve |
|
(wands) |
| 001b |
991-8001 |
12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) |
|
(wands) |
| 001c |
991-8002 |
12 inch aluminum head wand, 3 jet, 120 PSI plastic valve |
|
(wands) |
| 001d |
991-8227 |
500psi brass valve |
|
(wands) |
| 002a |
991-8222 |
30 inch stair wand (open spray) |
|
(stair wand) |
| 002b |
991-8223 |
30 inch swivel head ergonomic stair wand (open spray) |
|
(stair wand) |
| 004 |
991-8129 |
Handle 1-1/2 inch low profile comfort grip assist |
|
(wands) |
| 005a |
991-8128 |
120 PSI, acetel plastic valve, low heat 140 degrees |
|
(wands) |
| 005b |
991-8127 |
120 PSI, brass valve, stainless steel stem |
|
(wands) |
| 005d |
991-8171 |
400psi cast aluminum valve |
|
|
| 007 |
991-8130 |
3-1/2 inch wide 120 PSI standard detailer, external spray |
|
(wands) |
| 008 |
991-8132 |
10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 009 |
991-8133 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 010 |
991-8136 |
10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 011 |
991-8137 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 012 |
991-8134 |
10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi |
|
(hose assemblies and parts) |
| 013 |
991-8135 |
20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings |
|
(hose assemblies and parts) |
| 014 |
991-8138 |
10ft 100psi vac/sol hose assembly w/ 1/4 male fittings |
|
(hose assemblies and parts) |
| 015 |
991-8139 |
20ft 100psi vac/sol hose assembly with male fittings |
|
(hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI) |
| 016 |
991-8142 |
10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 017 |
991-8143 |
20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 018 |
991-8140 |
10ft 100psi vac/sol hose assembly w/ 1/4 female fittings |
|
(hose assemblies and parts) |
| 021 |
991-8004 |
1 1/2 inch vacuum hose (sold by the foot) |
|
(hose assemblies and parts) |
| 022 |
991-8005 |
1 1/2 inch replacement hose cuff (black) |
|
(hose assemblies and parts) |
| 023 |
991-8131 |
1 1/2 inch hide-a-hose cuff (no swivel) |
|
(hose assemblies and parts) |
| 026 |
991-8045 |
1/8 inch brass vee jet 8001 |
|
(1/8 brass vee jet) |
| 027 |
991-8046 |
1/8 inch brass vee jet 8001.5 |
|
(1/8 brass vee jet) |
| 028 |
991-8047 |
1/8 inch brass vee jet 8002 |
|
(1/8 brass vee jet) |
| 029 |
991-8048 |
1/8 inch brass vee jet 8003 |
|
(1/8 brass vee jet) |
| 030 |
991-8049 |
1/8 inch brass vee jet 8004 |
|
(1/8 brass vee jet) |
| 031 |
991-8050 |
1/8 inch brass vee jet 8005 (OBSOLETE) |
|
(1/8 brass vee jet) |
| 032 |
991-8051 |
1/8 inch brass vee jet 8006 |
|
(1/8 brass vee jet) |
| 033 |
991-8052 |
1/8 inch brass vee jet 8008 |
|
(1/8 brass vee jet) |
| 034 |
991-8053 |
1/8 inch brass vee jet 8010 |
|
(1/8 brass vee jet) |
| 035 |
991-8054 |
1/8 inch brass vee jet 9502 |
|
(1/8 brass vee jet) |
| 036 |
991-8055 |
1/8 inch brass vee jet 9503 |
|
(1/8 brass vee jet) |
| 037 |
991-8056 |
1/8 inch brass vee jet 9504 |
|
(1/8 brass vee jet) |
| 038 |
991-8057 |
1/8 inch brass vee jet 9505 |
|
(1/8 brass vee jet) |
| 039 |
991-8058 |
1/8 inch brass vee jet 9506 |
|
(1/8 brass vee jet) |
| 040 |
991-8059 |
1/8 inch brass vee jet 9508 |
|
(1/8 brass vee jet) |
| 041 |
991-8060 |
1/8 inch brass vee jet 11001 |
|
(1/8 brass vee jet) |
| 042 |
991-8061 |
1/8 inch brass vee jet 11001.5 |
|
(1/8 brass vee jet) |
| 043 |
991-8062 |
1/8 inch brass vee jet 11002 |
|
(1/8 brass vee jet) |
| 044 |
991-8063 |
1/8 inch brass vee jet 11003 |
|
(1/8 brass vee jet) |
| 045 |
991-8064 |
1/8 inch brass vee jet 11004 |
|
(1/8 brass vee jet) |
| 046 |
991-8065 |
1/8 inch brass vee jet 11005 |
|
(1/8 brass vee jet) |
| 047 |
991-8066 |
1/8 inch brass vee jet 11006 |
|
(1/8 brass vee jet) |
| 048 |
991-8067 |
1/8 inch brass vee jet 11008 |
|
(1/8 brass vee jet) |
| 049 |
991-8068 |
1/8 inch brass vee jet 11010 |
|
(1/8 brass vee jet) |
| 050 |
991-8021 |
1/4 inch brass vee jet 8001 |
|
(1/4 brass vee jet) |
| 051 |
991-8022 |
1/4 inch brass vee jet 8001.5 |
|
(1/4 brass vee jet) |
| 052 |
991-8023 |
1/4 inch brass vee jet 8002 |
|
(1/4 brass vee jet) |
| 053 |
991-3005 |
1/4 inch brass vee jet 8003 |
|
(1/4 brass vee jet) |
| 054 |
991-8025 |
1/4 inch brass vee jet 8004 |
|
(1/4 brass vee jet) |
| 055 |
991-8026 |
1/4 inch brass vee jet 8005 |
|
(1/4 brass vee jet) |
| 056 |
991-8027 |
1/4 inch brass vee jet 8006 |
|
(1/4 brass vee jet) |
| 057 |
991-8028 |
1/4 inch brass vee jet 8008 |
|
(1/4 brass vee jet) |
| 058 |
991-8029 |
1/4 inch brass vee jet 8010 |
|
(1/4 brass vee jet) |
| 059 |
991-8030 |
1/4 inch brass vee jet 9502 |
|
(1/4 brass vee jet) |
| 060 |
991-8031 |
1/4 inch brass vee jet 9503 |
|
(1/4 brass vee jet) |
| 061 |
991-8032 |
1/4 inch brass vee jet 9504 |
|
(1/4 brass vee jet) |
| 062 |
991-8033 |
1/4 inch brass vee jet 9505 |
|
(1/4 brass vee jet) |
| 063 |
991-8034 |
1/4 inch brass vee jet 9506 |
|
(1/4 brass vee jet) |
| 064 |
991-8035 |
1/4 inch brass vee jet 9508 |
|
(1/4 brass vee jet) |
| 065 |
991-8036 |
1/4 inch brass vee jet 11001 |
|
(1/4 brass vee jet) |
| 066 |
991-8037 |
1/4 inch brass vee jet 11001.5 |
|
(1/4 brass vee jet) |
| 067 |
991-8038 |
1/4 inch brass vee jet 11002 |
|
(1/4 brass vee jet) |
| 068 |
991-8039 |
1/4 inch brass vee jet 11003 |
|
(1/4 brass vee jet) |
| 069 |
991-8040 |
1/4 inch brass vee jet 11004 |
|
(1/4 brass vee jet) |
| 070 |
991-8041 |
1/4 inch brass vee jet 11005 (OBSOLETE) |
|
(1/4 brass vee jet) |
| 071 |
991-8042 |
1/4 inch brass vee jet 11006 |
|
(1/4 brass vee jet) |
| 072 |
991-3006 |
1/4 inch brass vee jet 11008 |
|
(1/4 brass vee jet) |
| 073 |
991-8044 |
1/4 inch brass vee jet 11010 |
|
(1/4 brass vee jet) |
| 074 |
991-8069 |
1/4 inch stainless vee jet 8001 |
|
(1/4 stainless vee jet) |
| 075 |
991-8070 |
1/4 inch stainless vee jet 8002 |
|
(1/4 stainless vee jet) |
| 076 |
991-8071 |
1/4 inch stainless vee jet 8003 |
|
(1/4 stainless vee jet) |
| 077 |
991-8072 |
1/4 inch stainless vee jet 8004 |
|
(1/4 stainless vee jet) |
| 078 |
991-8073 |
1/4 inch stainless vee jet 9501 |
|
(1/4 stainless vee jet) |
| 079 |
991-8074 |
1/4 inch stainless vee jet 9502 |
|
(1/4 stainless vee jet) |
| 080 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless vee jet) |
| 081 |
991-8076 |
1/4 inch stainless vee jet 9504 |
|
(1/4 stainless vee jet) |
| 082 |
991-8077 |
1/4 inch stainless vee jet 11003 |
|
(1/4 stainless vee jet) |
| 083 |
991-8078 |
1/4 inch stainless vee jet 11004 |
|
(1/4 stainless vee jet) |
| 084 |
991-8079 |
1/4 inch stainless vee jet 11006 |
|
(1/4 stainless vee jet) |
| 085 |
991-8080 |
1/4 inch stainless vee jet 11008 |
|
(1/4 stainless vee jet) |
| 086 |
991-8081 |
1/4 inch stainless/plastic tee jet 8002 |
|
(1/4 stainless/plastic tee jet) |
| 087 |
991-8082 |
1/4 inch stainless/plastic tee jet 8003 |
|
(1/4 stainless/plastic tee jet) |
| 088 |
991-8083 |
1/4 inch stainless/plastic tee jet 8004 |
|
(1/4 stainless/plastic tee jet) |
| 089 |
991-8084 |
1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) |
|
(1/4 stainless/plastic tee jet) |
| 090 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless/plastic tee jet) |
| 091 |
991-8086 |
1/4 inch stainless/plastic tee jet 9504 |
|
(1/4 stainless/plastic tee jet) |
| 092 |
991-3010 |
1/4 inch stainless/plastic tee jet 11003 |
|
(1/4 stainless/plastic tee jet) |
| 093 |
991-8088 |
1/4 inch stainless/plastic tee jet 11004 |
|
(1/4 stainless/plastic tee jet) |
| 094 |
991-8089 |
1/4 inch stainless/plastic tee jet 11006 |
|
(1/4 stainless/plastic tee jet) |
| 095 |
991-8090 |
1/4 inch stainless/plastic tee jet 11008 |
|
(1/4 stainless/plastic tee jet) |
| 096 |
991-8091 |
1/4 inch x 1/8 hex nipple H21 |
|
|
| 097 |
991-8092 |
1/4 inch x 1/4 hex nipple H22 |
|
|
| 098 |
991-8093 |
1/4 inch x 3/8 hex nipple H23 |
|
|
| 099 |
991-8094 |
45 degree street elbow 1/4 inch H24 |
|
|
| 100 |
991-8095 |
45 degree street elbow 1/8 inch H25 |
|
|
| 101 |
991-8096 |
45 degree union elbow 1/4 inch H26 |
|
|
| 102 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 103 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 104 |
991-8099 |
90 degree street elbow 1/8 inch H29 |
|
|
| 105 |
991-8100 |
90 degree street elbow short 1/8 inch H30 |
|
|
| 106 |
991-8101 |
90 degree union elbow 1/4 inch H31 |
|
|
| 107 |
991-8102 |
90 degree union elbow 1/8 inch H32 |
|
|
| 108 |
991-8103 |
30 degree union elbow 1/4 inch H33 |
|
|
| 109 |
991-8104 |
1/4 inch coupling H34 |
|
|
| 110 |
991-8105 |
1/8 inch coupling H35 |
|
|
| 111 |
991-8106 |
1/4 inch adapter H36 |
|
|
| 112 |
991-8107 |
1/8 inch adapter H37 |
|
|
| 113 |
991-8108 |
1/4 inch branch tee H38 |
|
|
| 114 |
991-8109 |
1/8 inch branch tee H39 |
|
|
| 115 |
991-8110 |
1/8 inch tee H40 |
|
|
| 116 |
991-8111 |
7/16 inch stainless steel hose clamp H41 |
|
|
| 117 |
997-2002 |
Hose clamp #6 |
|
|
| 118 |
991-8113 |
Strainer for 1/8 inch vee jets H43 |
|
|
| 119 |
991-8114 |
Strainer for 1/4 inch vee jets H44 |
|
|
| 120 |
991-8115 |
Strainer/check valve for 1/4 inch vee jets H45 |
|
|
| 121 |
991-8116 |
Brass strainer/check valve for tee jets H46 |
|
|
| 122 |
991-8117 |
500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47 |
|
|
| 123 |
991-8118 |
500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48 |
|
|
| 124 |
991-8119 |
500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49 |
|
|
| 125 |
991-8120 |
1/4 inch brass flood jets K1 or K2 H54 |
|
|
| 126 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
|
|
| 127 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
|
|
| 128 |
991-8144 |
B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55 |
|
|
| 129 |
991-8152 |
B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15 |
|
|
| 130 |
991-8145 |
B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55 |
|
|
| 131 |
991-8153 |
B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15 |
|
|
| 132 |
991-8146 |
BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65 |
|
|
| 133 |
991-8154 |
B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25 |
|
|
| 134 |
991-8147 |
BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65 |
|
|
| 135 |
991-8155 |
B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25 |
|
|
| 136 |
991-8148 |
Hansen 02 male nipple, mate to QD70 |
|
|
| 137 |
991-8156 |
Quick disconnect socket female to QD30 |
|
|
| 138 |
991-8149 |
1/8 inch male quick disconnect |
|
|
| 139 |
991-8157 |
1/8 inch female quick disconnect socket |
|
|
| 140 |
991-8151 |
BH3-61,3/8 inch FPT, Male Nipple, mate to QD85 |
|
|
| 141 |
991-8159 |
BH3-60, 3/8 inch fpt, female coupler, mate to QD45 |
|
|
| 142 |
991-8123 |
Bottom hex nut for Kingston or P valve H57 |
|
|
| 143 |
991-8121 |
1/8 inch brass flood jets K1 or K2 H55 |
|
|
| 144 |
991-8124 |
Inline filter H58 |
|
|
| 145 |
991-8122 |
1/8 inch special brass flood jets for V1245 H56 |
|
|
| 146 |
991-8008 |
120V 50 PSI Flo Jet pump |
|
(pumps) |
| 147 |
991-8009 |
120V 100 PSI Flo Jet pump |
|
(pumps) |
| 148 |
991-8218 |
120V 120 PSI pump |
|
(pumps) |
| 149 |
991-8220 |
1/8 fpt brass female connector |
|
|
| 150 |
991-1835 |
Crevice tool |
|
|
|
|
|
