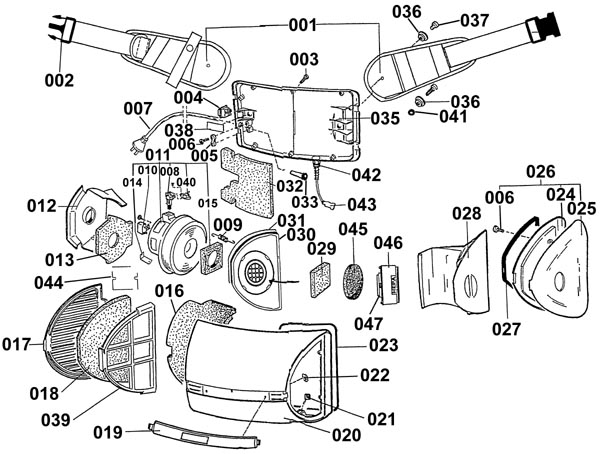

Entire Assembly - 181-2001 |
|
RefNbr |
Part Number |
Description |
Req |
Notes |
004 |
172-0457 |
Master switch |
|
|
005 |
181-0527 |
Protection sleeve kit (OBSOLETE) |
|
This part is no longer available seperatly. You must purchase this kit. |
007a |
181-0497 |
Grounded 10mm cord |
|
|
007b |
181-1399 |
18/3 power cord 2 wire 50 foot |
|
|
007c |
991-5008 |
18/3 replacement power cord 50 foot (beige) |
|
|
007d |
991-5007 |
18/3 replacement power cord 50 foot (black) |
|
(NON-OEM) |
008 |
N/A |
Not available |
2 |
(Carbon brush) |
010a |
N/A |
Not available |
|
Capicator Suppressor (old type fan units) |
010b |
181-1641 |
Capacitor |
|
Capicator Suppressor (new type fan units) |
011a |
181-0500 |
120V vacuum motor |
|
|
011b |
181-0501 |
120V vacuum motor assembly |
|
|
013 |
181-0503 |
Silencer insulation |
|
|
014 |
N/A |
Not available |
|
Grounding plate |
016 |
181-0506 |
Cover insulation |
|
|
017 |
181-1739 |
Exhaust gable (OBSOLETE) |
|
|
018 |
272-8504 |
Exhaust filter (pkg of 3) |
|
|
024 |
272-9567 |
Vacuum suction gable |
|
|
025 |
272-9567 |
Vacuum suction gable |
|
|
026 |
272-9567 |
Vacuum suction gable |
|
|
028a |
181-0518 |
Dust bag (pkg of 5) |
|
|
028b |
181-0519 |
Dust bag high filtration (pkg of 10) (OBSOLETE) |
|
|
028c |
991-9030 |
Paper vacuum bags (pkg of 10 with 2 filters) |
|
(NON-OEM) |
030 |
181-0518 |
Dust bag (pkg of 5) |
|
|
032 |
181-0526 |
Back insulation |
|
|
033 |
181-0527 |
Protection sleeve kit (OBSOLETE) |
|
|
035 |
181-0528 |
Back part (blue) |
|
|
037a |
181-0531 |
Belt screw (OBSOLETE) |
|
140 7096-000 |
037b |
181-0532 |
Screw |
|
140-7343-000 |
039 |
181-0534 |
Filter holder |
|
|
040 |
181-0535 |
Thermo protector (OBSOLETE) |
|
|
042 |
181-0537 |
Anti strain protection power outlet (OBSOLETE) |
|
|
043 |
181-0538 |
Outlet for power nozzle (OBSOLETE) |
|
|
044 |
181-0539 |
Insulation plate (OBSOLETE) |
|
|
|
|

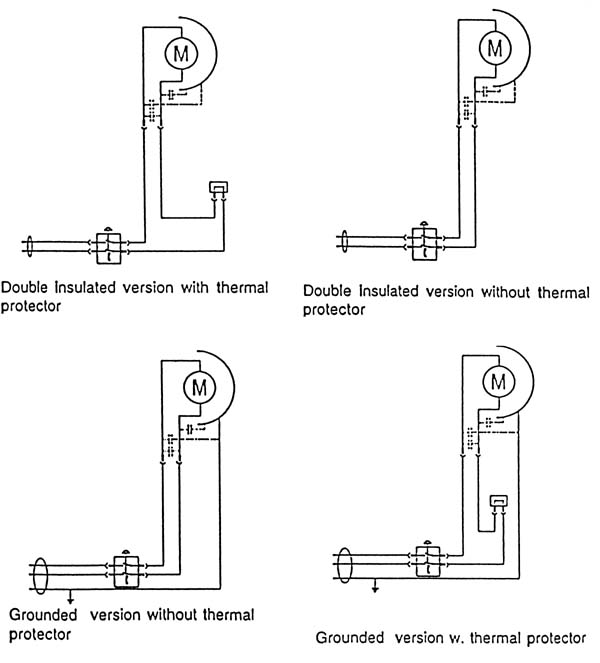

Wiring Diagram - |
|
RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

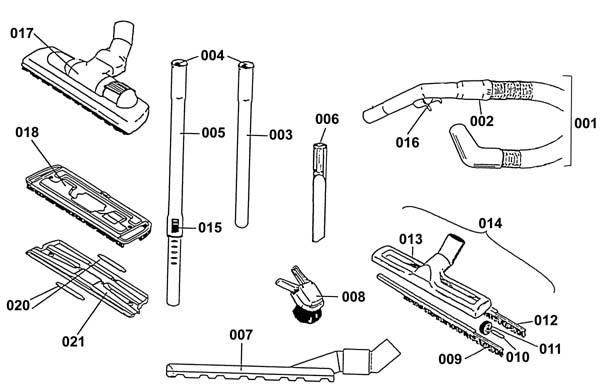

Nozzle Accessories - 181-2004 |
|
RefNbr |
Part Number |
Description |
Req |
Notes |
001a |
181-0542 |
Hose and sleeve |
|
|
001b |
272-8381 |
Hose with bent end and sleeve |
|
|
003 |
272-3426 |
Extension tube |
|
|
004 |
N/A |
Not available |
|
Insert for aluminum extension tubes |
005 |
181-0548 |
Telescopic extension tube aluminum |
|
|
006 |
181-1460 |
Plastic crevice nozzle (black) |
|
|
008 |
181-0551 |
Small combination nozzle |
|
|
009 |
181-0552 |
Front brush strip (OBSOLETE) |
|
|
010 |
N/A |
Not available |
|
(Shaft) |
011 |
N/A |
Not available |
|
(Wheel) |
012 |
181-0555 |
Rear brush strip (OBSOLETE) |
|
|
013 |
181-0556 |
Nozzle top (OBSOLETE) |
|
|
014 |
172-6247 |
Carpet/hard floor tool |
|
|
015 |
181-0558 |
Adjustment knob (OBSOLETE) |
|
|
017 |
181-0560 |
Combination nozzle assembly |
|
|
018 |
181-0561 |
Brush plate (OBSOLETE) |
|
|
020 |
N/A |
Not available |
|
(Not Available) Lint picker |
021 |
N/A |
Not available |
|
(Not Available) Bottom plate |
|
|
