- Commonly Asked For Parts - 181-9919 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01a |
172-8412 |
Dust bag (pkg of 5) |
|
|
| 01b |
991-8530 |
Paper vacuum bags (pkg of 10) |
|
(NON-OEM) |
| 02 |
272-3425 |
Aluminum handle hose |
|
|
| 03 |
272-3411 |
Lid with gasket and foam filter |
|
|
|
|

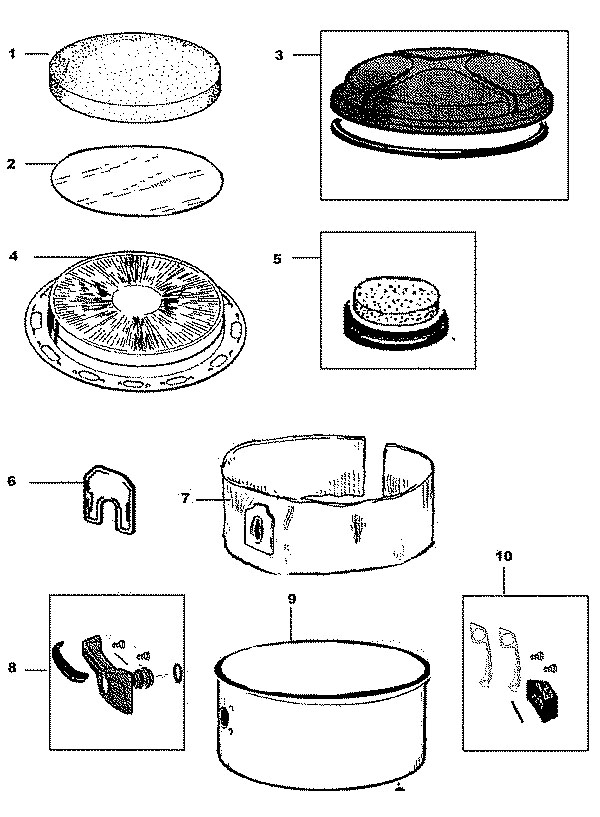

Filters and Upper Parts Assembly - 572-3000 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
272-3410 |
Filter paper |
5 |
|
| 3a |
272-3411 |
Lid with gasket and foam filter |
1 |
|
| 3b |
272-3412 |
Lid with HEPA filter |
1 |
|
| 5 |
272-3413 |
Motor protection kit |
1 |
|
| 6 |
272-3414 |
Dust bag lock |
3 |
|
| 7a |
172-8412 |
Dust bag (pkg of 5) |
10 |
|
| 7b |
272-3415 |
Cloth dust bag |
1 |
|
| 7c |
272-3418 |
Dust bag (pkg of 10) |
10 |
|
|
|

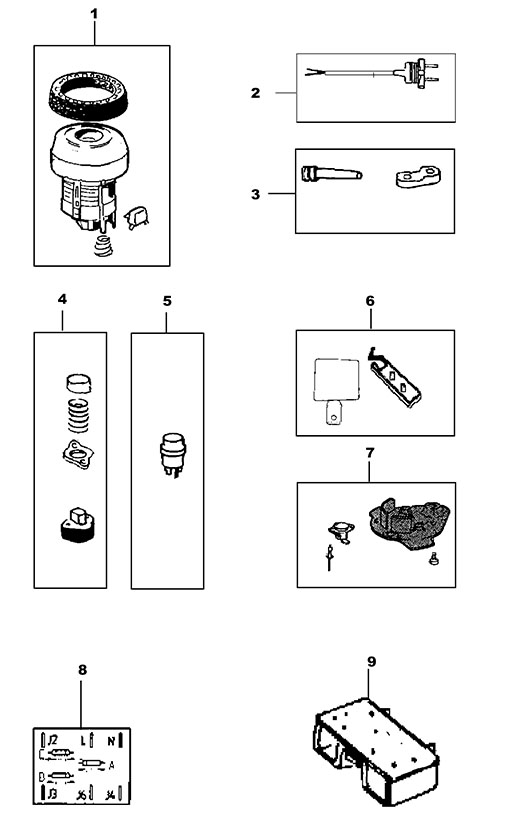

Fan Unit and Cord Assembly - 572-3001 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
472-0411 |
FAN UNIT 230V/50HZ |
1 |
|
| 1b |
272-3427 |
110-120V fan unit |
1 |
|
| 1c |
572-4013 |
240V fan (OBSOLETE) |
1 |
|
| 1d |
472-0412 |
FAN UNIT--100 VOLT |
1 |
|
| 2f |
181-1399 |
18/3 power cord 2 wire 50 foot |
1 |
|
| 2g |
181-0497 |
Grounded 10mm cord |
1 |
|
| 3a |
272-3430 |
Sleeve with anti-strain clip |
1 |
|
| 3b |
181-0527 |
Protection sleeve kit (OBSOLETE) |
1 |
|
| 4 |
181-1660 |
Switch kit (OBSOLETE) |
1 |
|
| 5 |
272-3431 |
Two speed switch |
1 |
|
| 6a |
472-0000 |
OUTLET KIT GD930/UZ930S 230V |
1 |
|
| 6b |
181-1654 |
Electrical outlet |
1 |
|
| 7b |
272-3432 |
Motor plate with thermo protector |
1 |
|
| 8 |
181-1657 |
Anti-static board |
1 |
|
| 9a |
572-4021 |
Two speed circuit board |
1 |
|
| 9b |
472-0398 |
2S CIRCUIT BOARD 110V-120V KIT |
1 |
|
|
|

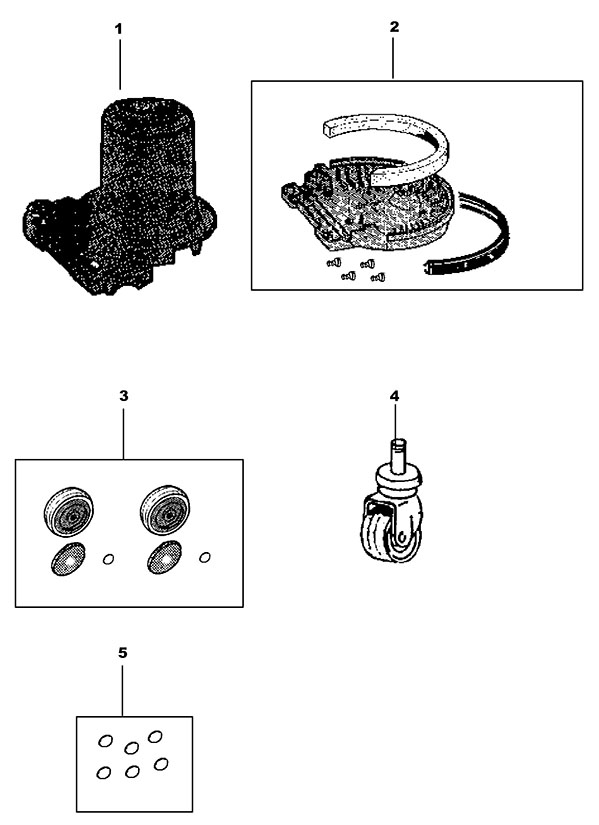

Wheel and Lower Parts Assembly - 572-3002 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
472-0395 |
Stand (OBSOLETE) |
1 |
|
| 1b |
272-3419 |
Stand S2 version |
1 |
|
| 1c |
272-3420 |
Stand (OBSOLETE) |
1 |
|
| 1d |
272-3421 |
Stand S2 version |
1 |
|
| 2b |
272-3422 |
Base and bumper |
1 |
|
| 4 |
272-3424 |
Castor wheel |
1 |
|
|
|

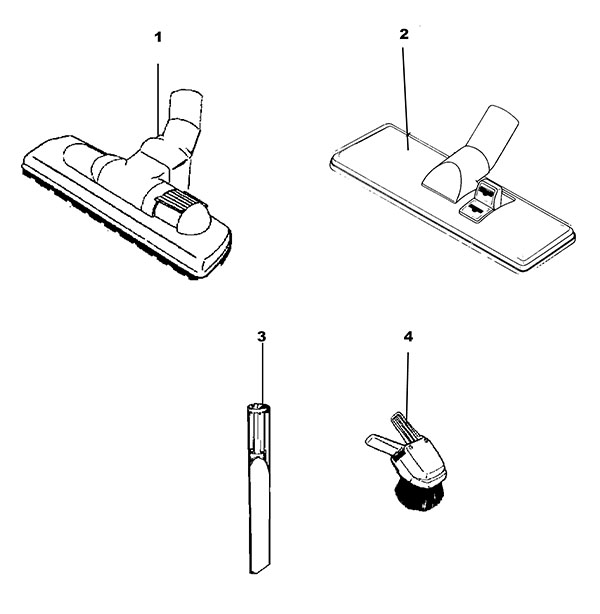

Accessory Assembly - 572-3003 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
181-0560 |
Combination nozzle assembly |
1 |
|
| 3 |
181-1460 |
Plastic crevice nozzle (black) |
1 |
|
| 4 |
181-0551 |
Small combination nozzle |
1 |
|
|
|

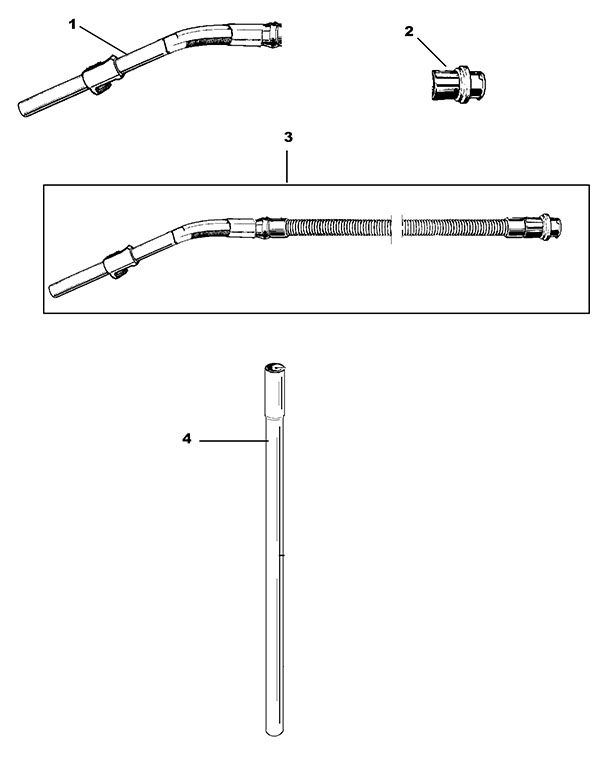

Hose and Tube Assembly - 572-3004 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
272-9570 |
Aluminum wand bend |
1 |
|
| 2 |
181-1683 |
Cuff complete |
1 |
|
| 3 |
272-3425 |
Aluminum handle hose |
1 |
|
| 4 |
272-3426 |
Extension tube |
1 |
|
|
|
