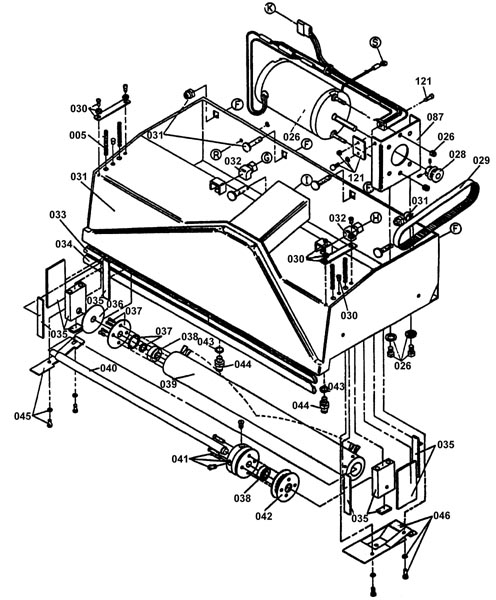

Brush Head Assembly - 172-6025 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 005 |
221-0005 |
Dome pivot spring |
4 |
|
| 026 |
221-0148 |
Brush drive motor assembly |
1 |
|
| 029 |
221-0150 |
Timing belt |
1 |
|
| 030 |
221-0151 |
Spring cover plate assembly |
1 |
|
| 031 |
221-0153 |
Brush chamber assembly |
1 |
|
| 032 |
221-0035 |
90 degree elbow1/8 x 1/4 |
1 |
|
| 033 |
221-0155 |
Back glide |
1 |
|
| 034 |
221-0157 |
Front glide |
1 |
|
| 035 |
221-0158 |
Slide block assembly |
2 |
|
| 037 |
221-0160 |
String guard assembly |
1 |
|
| 038 |
221-0161 |
Brush bearing |
2 |
|
| 039 |
221-0163 |
Rotary brush |
1 |
|
| 040 |
221-0165 |
Brush shaft |
1 |
|
| 041 |
221-0166 |
Rotary brush slinger assembly |
1 |
|
| 042 |
221-0167 |
Rotary brush pulley |
1 |
|
| 043 |
221-0038 |
Washer 7/16 x 5/8 3/32 thick |
1 |
|
| 045 |
221-0170 |
Open end cover plate assembly |
|
|
| 046 |
221-0171 |
Pulley end cover plate assembly |
1 |
|
| 087 |
221-0172 |
Brush drive motor bracket |
2 |
|
| 121 |
221-0173 |
Mounting board |
1 |
|
| N/S |
221-0030 |
Ground wire assembly (OBSOLETE) |
1 |
|
|
|

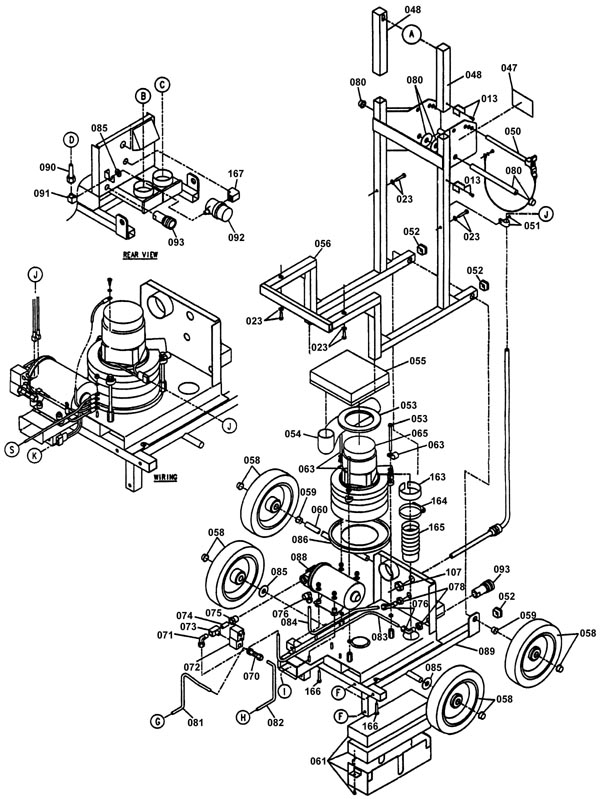

Vacuum Motor and Frame Assembly - 172-6026 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 013 |
221-0072 |
Drain hose clip assembly |
1 |
|
| 023 |
221-0073 |
Solution tank mounting kit (OBSOLETE) |
1 |
|
| 048 |
221-0074 |
Pivot extension lid frame |
2 |
|
| 050 |
221-0076 |
Retaining pin assembly |
1 |
|
| 051 |
221-0077 |
Cord clamp assembly |
1 |
|
| 053 |
221-0079 |
Cooling air duct gasket |
1 |
|
| 054 |
221-0080 |
Exhaust hose 2 inch |
1 |
|
| 055 |
221-0081 |
Cooling air duct |
1 |
|
| 056 |
221-0174 |
Upper frame (OBSOLETE) |
1 |
|
| 058 |
221-0083 |
Wheel assembly (set of 2) |
1 |
|
| 059 |
203-5714 |
1/2 inch Nylon bushing |
2 |
|
| 060 |
221-0085 |
Wheel axle |
1 |
|
| 061 |
221-0086 |
Muffler kit |
1 |
|
| 063a |
221-0175 |
Vacuum motor mounting assembly (2 stage) |
1 |
|
| 063b |
221-0088 |
Vacuum motor mounting assembly (3 stage) |
1 |
|
| 065 |
991-1213 |
120V 3 stage vacuum motor tangential |
1 |
|
| 070 |
221-0177 |
Bushing 1/8 mp x 1/4 c |
1 |
|
| 071 |
221-0091 |
90 degree elbow 1/8 mp x 1/4 c |
1 |
|
| 072 |
221-0092 |
Solenoid 1/8 npt 115 volt |
1 |
|
| 073 |
221-0093 |
Male 1/8 npt branch tee |
1 |
|
| 074 |
221-0094 |
short nipple 1/8 npt |
1 |
|
| 075a |
221-0095 |
3/8 npt reducer bushing (50 psi) |
1 |
|
| 075b |
221-0178 |
Bushing reducer 1/4 npt (100 psi) |
1 |
|
| 076a |
221-0096 |
90 degree elbow 3/8 mp x 1/4 c (50 psi) |
1 |
|
| 076b |
221-0179 |
90 degree elbow 1/4 mp x 1/4 c (100 psi) |
1 |
|
| 080 |
221-0098 |
Handle shaft assembly |
1 |
|
| 081 |
221-0180 |
Solenoid to spray tip tube |
1 |
|
| 082 |
221-0181 |
Solenoid to spray tip tube |
1 |
|
| 083 |
221-0182 |
Pump to accessory line tube |
1 |
|
| 084 |
221-0183 |
Pump to solution intake line tube |
1 |
|
| 085 |
203-5754 |
Nylon shoulder washer |
3 |
|
| 086 |
221-0104 |
Vacuum motor gasket (OBSOLETE) |
1 |
|
| 088a |
221-0105 |
Internal bypass 115 volt 50 psi pump |
1 |
|
| 088b |
221-0184 |
Pump 115 volt 100 psi |
1 |
|
| 089 |
221-0185 |
Lower frame assembly (OBSOLETE) |
1 |
|
| 091 |
221-0108 |
90 degree elbow |
1 |
|
| 092a |
221-0109 |
In-line filter strainer |
1 |
|
| 092b |
221-0110 |
In-line strainer screen |
1 |
|
| 092c |
221-0111 |
In-line strainer cap |
1 |
|
| 093 |
221-0112 |
Quick disconnect |
1 |
|
| 107 |
221-0186 |
Handle to lower frame cord assembly (OBSOLETE) |
1 |
|
| 163 |
221-0114 |
Gasket horn |
1 |
|
| 164 |
221-0115 |
Hose clamp |
1 |
|
| 165 |
221-0116 |
Vacuum exhaust hose assembly (OBSOLETE) |
1 |
|
| 166 |
999-0432 |
Screw 1/4-20 x 1 1/4 pan head phillips zinc plated |
2 |
|
| 167 |
221-0117 |
90 degree elbow 1/4 fp x 1/4 fp |
1 |
|
| N/S |
221-0030 |
Ground wire assembly (OBSOLETE) |
1 |
|
|
|

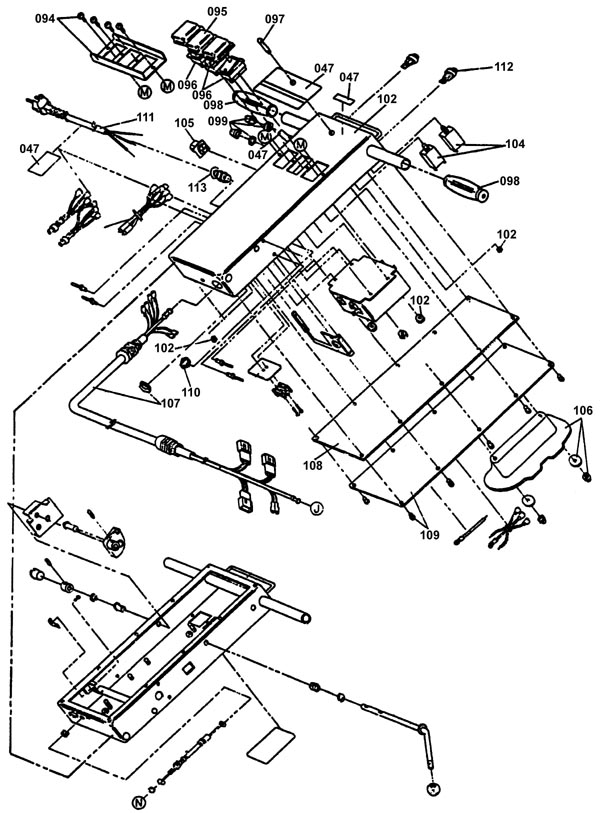

Control Panel Assembly - 172-6027 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 094 |
221-0118 |
Switch guard assembly |
1 |
|
| 095 |
221-0119 |
Rocker switch cover |
3 |
|
| 096 |
221-0120 |
Lighted rocker switch |
3 |
|
| 097 |
221-0121 |
Indicator light with green lens |
1 |
|
| 098 |
221-0122 |
Black handle grip |
2 |
|
| 099 |
221-0123 |
Circuit breaker flex boot |
1 |
|
| 102 |
221-0187 |
Adjustable handle |
1 |
|
| 104 |
221-0188 |
Circuit breaker 3 amp |
1 |
|
| 105 |
221-0126 |
accessory outlet assembly |
1 |
|
| 106 |
221-0127 |
Cord wrap assembly |
1 |
|
| 107 |
221-0186 |
Handle to lower frame cord assembly (OBSOLETE) |
1 |
|
| 108 |
221-0128 |
Handle gasket |
1 |
|
| 109 |
221-0129 |
Cover plate assembly |
1 |
|
| 111 |
221-0410 |
25 foot power cord |
1 |
|
| 113 |
221-0132 |
Power cord strain relief 115 volt (OBSOLETE) |
1 |
|
|
|

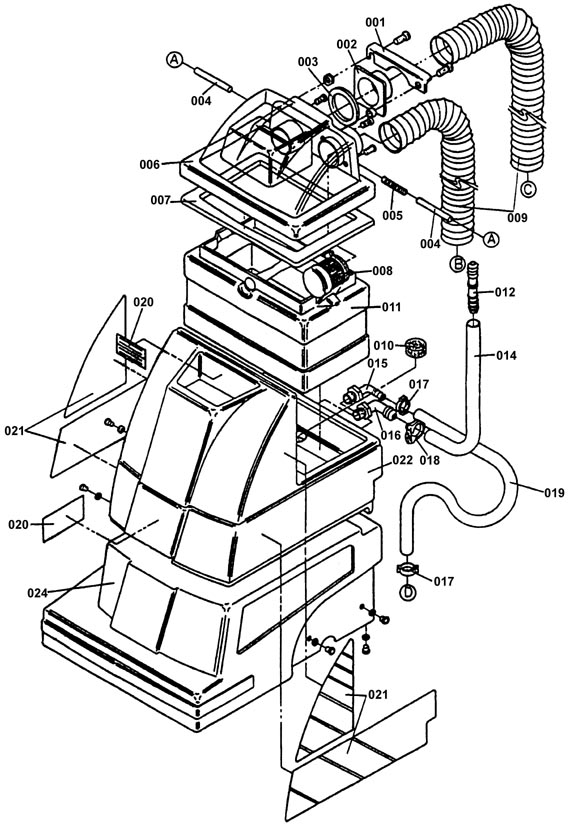

Recovery Tank and Solution Tank Assembly - 172-6028 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
221-0001 |
Adapter retainer clip |
1 |
|
| 002 |
221-0002 |
Adapter hose |
1 |
|
| 003 |
221-0003 |
Vacuum intake seal |
1 |
|
| 004 |
221-0004 |
Lid pivot shaft |
2 |
|
| 005 |
221-0005 |
Dome pivot spring |
1 |
|
| 006 |
221-0006 |
Vacuum lid assembly |
1 |
|
| 007 |
221-0007 |
Vacuum lid gasket |
1 |
|
| 008 |
221-0008 |
Vacuum lid filter screen assembly |
1 |
|
| 009 |
221-0009 |
Wire reinforced 2 inch vacuum hose (by the foot) |
2 |
|
| 010 |
221-0010 |
Solution tank plug |
1 |
|
| 011 |
221-0012 |
Recovery pail |
1 |
|
| 012 |
221-0013 |
Drain nozzle |
1 |
|
| 014 |
221-0014 |
Drain hose |
1 |
|
| 015 |
221-0015 |
90 degree elbow |
1 |
|
| 016 |
221-0016 |
90 degree elbow |
1 |
|
| 017 |
221-0017 |
Hose clamp 5/8 |
2 |
|
| 018 |
221-0018 |
Hose clamp 7/8 |
1 |
|
| 019 |
221-0019 |
Solution hose 3/8 ID |
1 |
|
| 020 |
221-0020 |
Label kit (OBSOLETE) |
1 |
|
| 021 |
221-0022 |
Decal kit (OBSOLETE) |
1 |
|
| 022 |
221-0024 |
Solution tank assembly (OBSOLETE) |
1 |
|
| 024 |
221-0146 |
Motor housing 17 inch |
1 |
|
|
|

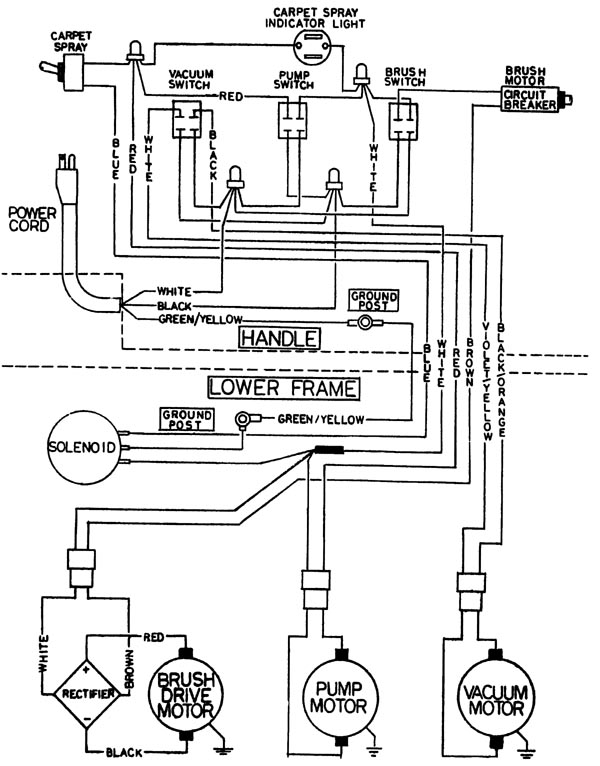

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
- Extractor Fit All Parts - 999-9400 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001a |
991-8000 |
12 inch stainless head wand, 1 jet 120 PSI plastic valve |
|
(wands) |
| 001b |
991-8001 |
12 inch aluminum head wand, 2 jet, 120 PSI (OBSOLETE) |
|
(wands) |
| 001c |
991-8002 |
12 inch aluminum head wand, 3 jet, 120 PSI plastic valve |
|
(wands) |
| 001d |
991-8227 |
500psi brass valve |
|
(wands) |
| 002a |
991-8222 |
30 inch stair wand (open spray) |
|
(stair wand) |
| 002b |
991-8223 |
30 inch swivel head ergonomic stair wand (open spray) |
|
(stair wand) |
| 004 |
991-8129 |
Handle 1-1/2 inch low profile comfort grip assist |
|
(wands) |
| 005a |
991-8128 |
120 PSI, acetel plastic valve, low heat 140 degrees |
|
(wands) |
| 005b |
991-8127 |
120 PSI, brass valve, stainless steel stem |
|
(wands) |
| 005d |
991-8171 |
400psi cast aluminum valve |
|
|
| 007 |
991-8130 |
3-1/2 inch wide 120 PSI standard detailer, external spray |
|
(wands) |
| 008 |
991-8132 |
10ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 009 |
991-8133 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male fittings |
|
(hose assemblies and parts) |
| 010 |
991-8136 |
10ft hide-a-hose vac/sol hose assembly w 1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 011 |
991-8137 |
20ft hide-a-hose vac/sol hose assembly w/1/4 male & 1/4 feml |
|
(hose assemblies and parts) |
| 012 |
991-8134 |
10ft hide-a-hose vac/sol hose w/1/4 female fittings 300psi |
|
(hose assemblies and parts) |
| 013 |
991-8135 |
20ft hide-a-hose vac/sol hose assembly w/1/4 female fittings |
|
(hose assemblies and parts) |
| 014 |
991-8138 |
10ft 100psi vac/sol hose assembly w/ 1/4 male fittings |
|
(hose assemblies and parts) |
| 015 |
991-8139 |
20ft 100psi vac/sol hose assembly with male fittings |
|
(hose assemblies and parts) (Maximum heat rating of 70 degrees and 100 PSI) |
| 016 |
991-8142 |
10ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 017 |
991-8143 |
20ft 100psi vac/sol hose assembly w/1/4 female & 1/4 male |
|
(hose assemblies and parts) |
| 018 |
991-8140 |
10ft 100psi vac/sol hose assembly w/ 1/4 female fittings |
|
(hose assemblies and parts) |
| 021 |
991-8004 |
1 1/2 inch vacuum hose (sold by the foot) |
|
(hose assemblies and parts) |
| 022 |
991-8005 |
1 1/2 inch replacement hose cuff (black) |
|
(hose assemblies and parts) |
| 023 |
991-8131 |
1 1/2 inch hide-a-hose cuff (no swivel) |
|
(hose assemblies and parts) |
| 026 |
991-8045 |
1/8 inch brass vee jet 8001 |
|
(1/8 brass vee jet) |
| 027 |
991-8046 |
1/8 inch brass vee jet 8001.5 |
|
(1/8 brass vee jet) |
| 028 |
991-8047 |
1/8 inch brass vee jet 8002 |
|
(1/8 brass vee jet) |
| 029 |
991-8048 |
1/8 inch brass vee jet 8003 |
|
(1/8 brass vee jet) |
| 030 |
991-8049 |
1/8 inch brass vee jet 8004 |
|
(1/8 brass vee jet) |
| 031 |
991-8050 |
1/8 inch brass vee jet 8005 (OBSOLETE) |
|
(1/8 brass vee jet) |
| 032 |
991-8051 |
1/8 inch brass vee jet 8006 |
|
(1/8 brass vee jet) |
| 033 |
991-8052 |
1/8 inch brass vee jet 8008 |
|
(1/8 brass vee jet) |
| 034 |
991-8053 |
1/8 inch brass vee jet 8010 |
|
(1/8 brass vee jet) |
| 035 |
991-8054 |
1/8 inch brass vee jet 9502 |
|
(1/8 brass vee jet) |
| 036 |
991-8055 |
1/8 inch brass vee jet 9503 |
|
(1/8 brass vee jet) |
| 037 |
991-8056 |
1/8 inch brass vee jet 9504 |
|
(1/8 brass vee jet) |
| 038 |
991-8057 |
1/8 inch brass vee jet 9505 |
|
(1/8 brass vee jet) |
| 039 |
991-8058 |
1/8 inch brass vee jet 9506 |
|
(1/8 brass vee jet) |
| 040 |
991-8059 |
1/8 inch brass vee jet 9508 |
|
(1/8 brass vee jet) |
| 041 |
991-8060 |
1/8 inch brass vee jet 11001 |
|
(1/8 brass vee jet) |
| 042 |
991-8061 |
1/8 inch brass vee jet 11001.5 |
|
(1/8 brass vee jet) |
| 043 |
991-8062 |
1/8 inch brass vee jet 11002 |
|
(1/8 brass vee jet) |
| 044 |
991-8063 |
1/8 inch brass vee jet 11003 |
|
(1/8 brass vee jet) |
| 045 |
991-8064 |
1/8 inch brass vee jet 11004 |
|
(1/8 brass vee jet) |
| 046 |
991-8065 |
1/8 inch brass vee jet 11005 |
|
(1/8 brass vee jet) |
| 047 |
991-8066 |
1/8 inch brass vee jet 11006 |
|
(1/8 brass vee jet) |
| 048 |
991-8067 |
1/8 inch brass vee jet 11008 |
|
(1/8 brass vee jet) |
| 049 |
991-8068 |
1/8 inch brass vee jet 11010 |
|
(1/8 brass vee jet) |
| 050 |
991-8021 |
1/4 inch brass vee jet 8001 |
|
(1/4 brass vee jet) |
| 051 |
991-8022 |
1/4 inch brass vee jet 8001.5 |
|
(1/4 brass vee jet) |
| 052 |
991-8023 |
1/4 inch brass vee jet 8002 |
|
(1/4 brass vee jet) |
| 053 |
991-3005 |
1/4 inch brass vee jet 8003 |
|
(1/4 brass vee jet) |
| 054 |
991-8025 |
1/4 inch brass vee jet 8004 |
|
(1/4 brass vee jet) |
| 055 |
991-8026 |
1/4 inch brass vee jet 8005 |
|
(1/4 brass vee jet) |
| 056 |
991-8027 |
1/4 inch brass vee jet 8006 |
|
(1/4 brass vee jet) |
| 057 |
991-8028 |
1/4 inch brass vee jet 8008 |
|
(1/4 brass vee jet) |
| 058 |
991-8029 |
1/4 inch brass vee jet 8010 |
|
(1/4 brass vee jet) |
| 059 |
991-8030 |
1/4 inch brass vee jet 9502 |
|
(1/4 brass vee jet) |
| 060 |
991-8031 |
1/4 inch brass vee jet 9503 |
|
(1/4 brass vee jet) |
| 061 |
991-8032 |
1/4 inch brass vee jet 9504 |
|
(1/4 brass vee jet) |
| 062 |
991-8033 |
1/4 inch brass vee jet 9505 |
|
(1/4 brass vee jet) |
| 063 |
991-8034 |
1/4 inch brass vee jet 9506 |
|
(1/4 brass vee jet) |
| 064 |
991-8035 |
1/4 inch brass vee jet 9508 |
|
(1/4 brass vee jet) |
| 065 |
991-8036 |
1/4 inch brass vee jet 11001 |
|
(1/4 brass vee jet) |
| 066 |
991-8037 |
1/4 inch brass vee jet 11001.5 |
|
(1/4 brass vee jet) |
| 067 |
991-8038 |
1/4 inch brass vee jet 11002 |
|
(1/4 brass vee jet) |
| 068 |
991-8039 |
1/4 inch brass vee jet 11003 |
|
(1/4 brass vee jet) |
| 069 |
991-8040 |
1/4 inch brass vee jet 11004 |
|
(1/4 brass vee jet) |
| 070 |
991-8041 |
1/4 inch brass vee jet 11005 (OBSOLETE) |
|
(1/4 brass vee jet) |
| 071 |
991-8042 |
1/4 inch brass vee jet 11006 |
|
(1/4 brass vee jet) |
| 072 |
991-3006 |
1/4 inch brass vee jet 11008 |
|
(1/4 brass vee jet) |
| 073 |
991-8044 |
1/4 inch brass vee jet 11010 |
|
(1/4 brass vee jet) |
| 074 |
991-8069 |
1/4 inch stainless vee jet 8001 |
|
(1/4 stainless vee jet) |
| 075 |
991-8070 |
1/4 inch stainless vee jet 8002 |
|
(1/4 stainless vee jet) |
| 076 |
991-8071 |
1/4 inch stainless vee jet 8003 |
|
(1/4 stainless vee jet) |
| 077 |
991-8072 |
1/4 inch stainless vee jet 8004 |
|
(1/4 stainless vee jet) |
| 078 |
991-8073 |
1/4 inch stainless vee jet 9501 |
|
(1/4 stainless vee jet) |
| 079 |
991-8074 |
1/4 inch stainless vee jet 9502 |
|
(1/4 stainless vee jet) |
| 080 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless vee jet) |
| 081 |
991-8076 |
1/4 inch stainless vee jet 9504 |
|
(1/4 stainless vee jet) |
| 082 |
991-8077 |
1/4 inch stainless vee jet 11003 |
|
(1/4 stainless vee jet) |
| 083 |
991-8078 |
1/4 inch stainless vee jet 11004 |
|
(1/4 stainless vee jet) |
| 084 |
991-8079 |
1/4 inch stainless vee jet 11006 |
|
(1/4 stainless vee jet) |
| 085 |
991-8080 |
1/4 inch stainless vee jet 11008 |
|
(1/4 stainless vee jet) |
| 086 |
991-8081 |
1/4 inch stainless/plastic tee jet 8002 |
|
(1/4 stainless/plastic tee jet) |
| 087 |
991-8082 |
1/4 inch stainless/plastic tee jet 8003 |
|
(1/4 stainless/plastic tee jet) |
| 088 |
991-8083 |
1/4 inch stainless/plastic tee jet 8004 |
|
(1/4 stainless/plastic tee jet) |
| 089 |
991-8084 |
1/4 inch stainless/plastic tee jet 9501 (OBSOLETE) |
|
(1/4 stainless/plastic tee jet) |
| 090 |
991-8085 |
1/4 inch stainless/plastic tee jet 9502 |
|
(1/4 stainless/plastic tee jet) |
| 091 |
991-8086 |
1/4 inch stainless/plastic tee jet 9504 |
|
(1/4 stainless/plastic tee jet) |
| 092 |
991-3010 |
1/4 inch stainless/plastic tee jet 11003 |
|
(1/4 stainless/plastic tee jet) |
| 093 |
991-8088 |
1/4 inch stainless/plastic tee jet 11004 |
|
(1/4 stainless/plastic tee jet) |
| 094 |
991-8089 |
1/4 inch stainless/plastic tee jet 11006 |
|
(1/4 stainless/plastic tee jet) |
| 095 |
991-8090 |
1/4 inch stainless/plastic tee jet 11008 |
|
(1/4 stainless/plastic tee jet) |
| 096 |
991-8091 |
1/4 inch x 1/8 hex nipple H21 |
|
|
| 097 |
991-8092 |
1/4 inch x 1/4 hex nipple H22 |
|
|
| 098 |
991-8093 |
1/4 inch x 3/8 hex nipple H23 |
|
|
| 099 |
991-8094 |
45 degree street elbow 1/4 inch H24 |
|
|
| 100 |
991-8095 |
45 degree street elbow 1/8 inch H25 |
|
|
| 101 |
991-8096 |
45 degree union elbow 1/4 inch H26 |
|
|
| 102 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 103 |
991-8098 |
90 degree street elbow short 1/4 inch H28 |
|
|
| 104 |
991-8099 |
90 degree street elbow 1/8 inch H29 |
|
|
| 105 |
991-8100 |
90 degree street elbow short 1/8 inch H30 |
|
|
| 106 |
991-8101 |
90 degree union elbow 1/4 inch H31 |
|
|
| 107 |
991-8102 |
90 degree union elbow 1/8 inch H32 |
|
|
| 108 |
991-8103 |
30 degree union elbow 1/4 inch H33 |
|
|
| 109 |
991-8104 |
1/4 inch coupling H34 |
|
|
| 110 |
991-8105 |
1/8 inch coupling H35 |
|
|
| 111 |
991-8106 |
1/4 inch adapter H36 |
|
|
| 112 |
991-8107 |
1/8 inch adapter H37 |
|
|
| 113 |
991-8108 |
1/4 inch branch tee H38 |
|
|
| 114 |
991-8109 |
1/8 inch branch tee H39 |
|
|
| 115 |
991-8110 |
1/8 inch tee H40 |
|
|
| 116 |
991-8111 |
7/16 inch stainless steel hose clamp H41 |
|
|
| 117 |
997-2002 |
Hose clamp #6 |
|
|
| 118 |
991-8113 |
Strainer for 1/8 inch vee jets H43 |
|
|
| 119 |
991-8114 |
Strainer for 1/4 inch vee jets H44 |
|
|
| 120 |
991-8115 |
Strainer/check valve for 1/4 inch vee jets H45 |
|
|
| 121 |
991-8116 |
Brass strainer/check valve for tee jets H46 |
|
|
| 122 |
991-8117 |
500 PSI ball valve 1/4 inch fpt x 1/4 inch fpt H47 |
|
|
| 123 |
991-8118 |
500 PSI ball valve 3/8 inch fpt x 3/8 inch fpt H48 |
|
|
| 124 |
991-8119 |
500 PSI ball valve 1/4 inch mpt x 3/8 inch fpt H49 |
|
|
| 125 |
991-8120 |
1/4 inch brass flood jets K1 or K2 H54 |
|
|
| 126 |
991-8158 |
1/4 inch BH2-60 female coupler (mate to QD40) |
|
|
| 127 |
991-8150 |
1/4 inch BH2-61 male nipple (mate to QD80) |
|
|
| 128 |
991-8144 |
B2C, 1/4 inch mpt, male nipple, mate to QD50 or QD55 |
|
|
| 129 |
991-8152 |
B12, 1/4 inch mpt, female coupler, mate to QD10 or QD15 |
|
|
| 130 |
991-8145 |
B3C, 1/4 inch fpt, male nipple, mate to QD50 or QD55 |
|
|
| 131 |
991-8153 |
B13, 1/4 inch fpt, female coupler, mate to QD10 or QD15 |
|
|
| 132 |
991-8146 |
BH2C, 1/4 inch, mpt male nipple, mate to QD60 or QD65 |
|
|
| 133 |
991-8154 |
B22, 1/4 inch mpt, female coupler, mate to QD20 or QD25 |
|
|
| 134 |
991-8147 |
BH3C, 1/4 inch fpt, male nipple, mate to QD60 or QD65 |
|
|
| 135 |
991-8155 |
B23, 1/4 inch fpt, female coupler, mate to QD20 or QD25 |
|
|
| 136 |
991-8148 |
Hansen 02 male nipple, mate to QD70 |
|
|
| 137 |
991-8156 |
Quick disconnect socket female to QD30 |
|
|
| 138 |
991-8149 |
1/8 inch male quick disconnect |
|
|
| 139 |
991-8157 |
1/8 inch female quick disconnect socket |
|
|
| 140 |
991-8151 |
BH3-61,3/8 inch FPT, Male Nipple, mate to QD85 |
|
|
| 141 |
991-8159 |
BH3-60, 3/8 inch fpt, female coupler, mate to QD45 |
|
|
| 142 |
991-8123 |
Bottom hex nut for Kingston or P valve H57 |
|
|
| 143 |
991-8121 |
1/8 inch brass flood jets K1 or K2 H55 |
|
|
| 144 |
991-8124 |
Inline filter H58 |
|
|
| 145 |
991-8122 |
1/8 inch special brass flood jets for V1245 H56 |
|
|
| 146 |
991-8008 |
120V 50 PSI Flo Jet pump |
|
(pumps) |
| 147 |
991-8009 |
120V 100 PSI Flo Jet pump |
|
(pumps) |
| 148 |
991-8218 |
120V 120 PSI pump |
|
(pumps) |
| 149 |
991-8220 |
1/8 fpt brass female connector |
|
|
| 150 |
991-1835 |
Crevice tool |
|
|
|
|
|
