Bag Assembly - 182-2016 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
182-0097 |
Cloth bag assembly (red) |
1 |
(OEM) |
| 000b |
991-9035 |
Cloth shake out bag w/liner (red) (S12 and S16) |
1 |
(NON-OEM) |
| 000c |
991-9070 |
Cloth bag with full zipper |
1 |
(NON-OEM) |
| 000d |
991-9092 |
Shake out cloth bag |
1 |
|
| 002 |
182-0144 |
Bag spring |
1 |
|
| 003a |
182-0148 |
Bag adapter |
1 |
|
| 003c |
182-0150 |
Hardware package (OBSOLETE) |
1 |
|
| 003d |
182-0145 |
Bag adapter gasket |
1 |
|
| 005 |
182-0147 |
Rivet package |
1 |
|
| N/S |
182-0150 |
Hardware package (OBSOLETE) |
1 |
|
|
|

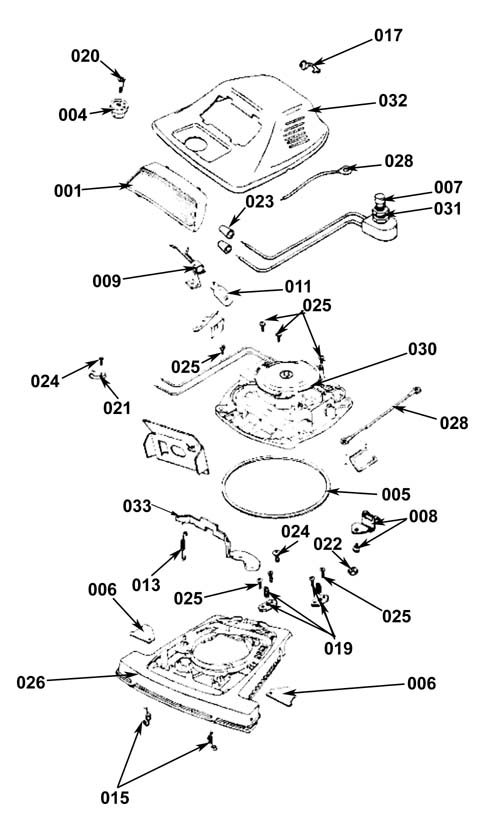

Base Assembly - 182-2103 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
182-0152 |
Lens and housing assembly |
|
|
| 004 |
182-0117 |
Knob assembly (OBSOLETE) |
|
|
| 005 |
182-0010 |
Motor seal gasket |
|
|
| 008 |
182-0119 |
Bag clip retainer bracket |
|
|
| 009 |
182-0153 |
Headlight socket assembly |
|
|
| 011 |
992-9513 |
15watt double bulb |
|
|
| 013 |
182-0011 |
Foot pedal spring |
|
|
| 017 |
182-0017 |
Strain relief bushing |
|
|
| 019 |
182-0013 |
Screw and clamp assembly |
|
|
| 020 |
182-0003 |
Shoulder screw |
|
|
| 022 |
182-0756 |
Nut (pkg of 10) |
|
|
| 023 |
998-0062 |
Wire nut (blue) |
|
|
| 024 |
999-0269 |
Screw 10-24 x 5/8 pan head phillips zinc plated |
|
|
| 025 |
182-0008 |
Motor mounting screw |
|
|
| 026a |
182-0156 |
Base assembly |
|
|
| 026b |
182-0115 |
Right side cam |
|
|
| 026c |
182-0116 |
Left side cam |
|
|
| 026e |
N/A |
Not available |
|
(Washer) |
| 028 |
182-0129 |
Wire and terminal assembly |
|
|
| 029 |
182-0129 |
Wire and terminal assembly |
|
|
| 030 |
182-0009 |
120V vacuum motor assembly |
|
|
| 032a |
182-0151 |
Hood assembly |
|
|
| 032b |
182-0120 |
Sanitaire decal (OBSOLETE) |
|
|
| 032c |
N/A |
Not available |
|
Warning moving parts decal |
| N/S |
182-0113 |
Fan scroll cover |
|
|
|
|

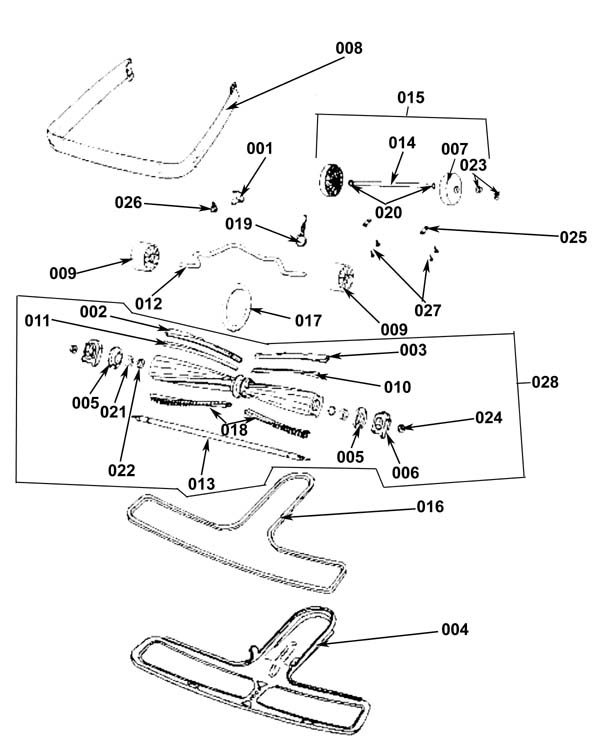

Disturbulator Assembly - 182-2104 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
182-0162 |
Furniture guard clip |
|
|
| 002 |
182-0164 |
Long beater bar |
|
|
| 003 |
182-0165 |
Short beater bar |
|
|
| 004 |
272-5172 |
16 inch bottom plate assembly |
|
|
| 005 |
182-0157 |
Disturbulator cap |
|
|
| 008 |
182-0197 |
Furniture guard |
|
|
| 010 |
N/A |
Not available |
|
(Beater bar support) |
| 011 |
N/A |
Not available |
|
(Beater bar support) |
| 015 |
182-0142 |
Wheel and axle assembly w/ hardware |
|
(includes 007, 014, 020 and 023) |
| 017 |
991-0026 |
Brush roll belt rubber (black) |
|
|
| 018 |
182-0105 |
16 inch bristle strip set |
|
|
| 022 |
182-0159 |
Retaining ring |
|
|
| 024 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
|
|
| 026 |
182-0163 |
Clip (pkg of 10) |
|
|
| 027 |
182-0034 |
Screw 10-14 x 1/2 pan head plastite |
|
|
| 028 |
182-0099 |
16 inch disturbulator assembly |
|
(includes 002, 003, 005, 006, 010, 011, 018, 021, 022 and 024) |
|
|

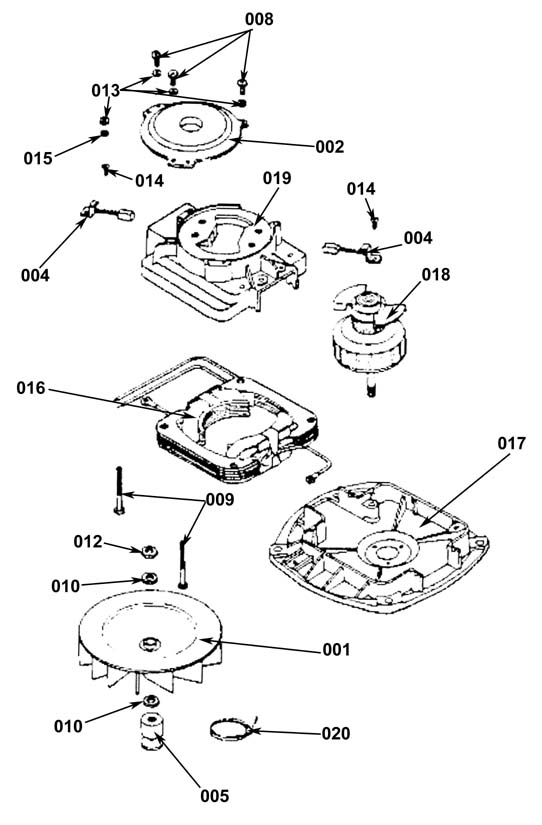

Motor Assembly - 182-2105 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001b |
272-9477 |
Pulley and fan kit (green) |
|
(lifetime warranty) |
| 002 |
182-0054 |
Retainer assembly |
|
|
| 004a |
991-5101 |
Carbon brush (sold individually) |
|
(OEM) |
| 004b |
991-5101 |
Carbon brush (sold individually) |
|
(NON-OEM) |
| 005 |
182-0072 |
Motor pulley |
|
|
| 009 |
182-0068 |
Orlo thread screw |
|
|
| 010 |
182-0070 |
Washer 5/16 x 5/8 x 15/16 fiber flat (pkg of 10) |
|
|
| 011 |
182-0066 |
Rivet (OBSOLETE) |
|
|
| 013 |
999-0308 |
Nut 8-32 plain |
|
|
| 014 |
999-0418 |
Screw 6-32 x 1/4 pan head slotted zinc plated |
|
|
| 015 |
999-0092 |
Washer #8 internal star lock zinc plated |
|
|
| 016 |
182-0009 |
120V vacuum motor assembly |
|
|
| 017a |
N/A |
Not available |
|
(Base - Please use 182-0009) |
| 017b |
182-0064 |
Bearing and retainer (OBSOLETE) |
|
|
| 017d |
999-0453 |
Screw 8-32 x 1/2 pan head phillips thread forming zinc |
|
|
| 018a |
182-0009 |
120V vacuum motor assembly |
|
|
| 019 |
N/A |
Not available |
|
Motor cover |
| 020 |
997-2101 |
6 inch cable tie |
|
|
|
|

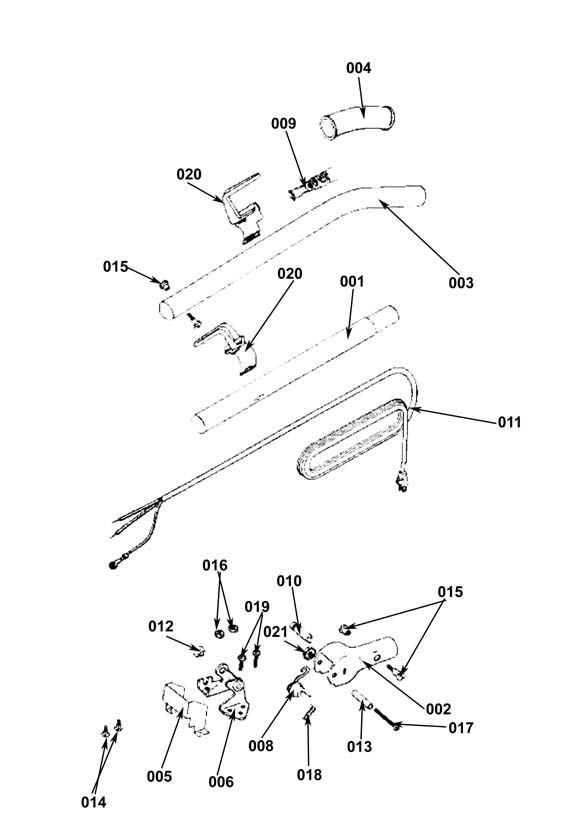

Upper Handle Assembly - 182-2106 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
182-0138 |
Lower handle tube |
|
|
| 002 |
182-0177 |
Handle socket |
|
|
| 003 |
182-0074 |
Upper handle assembly |
|
|
| 005 |
182-0175 |
Handle socket shield |
|
|
| 006 |
182-0180 |
Bracket assembly |
|
|
| 009 |
182-0140 |
Strain relief |
|
|
| 011a |
182-0077 |
18/3 power cord 50 foot (black) |
|
(OEM) |
| 011b |
991-5008 |
18/3 replacement power cord 50 foot (beige) |
|
(NON-OEM) |
| 011c |
991-5007 |
18/3 replacement power cord 50 foot (black) |
|
(NON-OEM) |
| 014 |
182-0081 |
Bolt 10-24 x 5/8 carriage head |
|
|
| 015 |
182-0075 |
Screw and nut assembly |
|
|
| 016 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
|
|
| 019 |
182-0008 |
Motor mounting screw |
|
|
| 020 |
182-0100 |
Cord hook set |
|
|
| N/S |
991-9039 |
Paper vacuum bags (pkg of 3) |
|
(NON-OEM) |
| N/S |
182-0203 |
Paper vacuum bags F & G style (pkg of 5) |
|
|
|
|
Accessories - 182-2107 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
182-0928 |
Hose assembly w/ adapter & coupling |
|
|
| 002 |
182-0929 |
Hose adapter |
|
|
| 003 |
182-0930 |
Nesting wand assembly |
|
|
| 004 |
182-0931 |
Crevice wand |
|
|
| 005 |
182-0150 |
Hardware package (OBSOLETE) |
|
|
| 005 |
182-0932 |
Outer wand (OBSOLETE) |
|
|
| 006 |
182-0933 |
Hose coupling |
|
|
| 007 |
182-0825 |
Combination brush |
|
|
| 008 |
182-0934 |
Hardware package |
|
|
|
|
