Bag Assembly - 182-2016 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 000a |
182-0097 |
Cloth bag assembly (red) |
1 |
(OEM) |
| 000b |
991-9035 |
Cloth shake out bag w/liner (red) (S12 and S16) |
1 |
(NON-OEM) |
| 000c |
991-9070 |
Cloth bag with full zipper |
1 |
(NON-OEM) |
| 000d |
991-9092 |
Shake out cloth bag |
1 |
|
| 002 |
182-0144 |
Bag spring |
1 |
|
| 003a |
182-0148 |
Bag adapter |
1 |
|
| 003c |
182-0150 |
Hardware package (OBSOLETE) |
1 |
|
| 003d |
182-0145 |
Bag adapter gasket |
1 |
|
| 005 |
182-0147 |
Rivet package |
1 |
|
| N/S |
182-0150 |
Hardware package (OBSOLETE) |
1 |
|
|
|
Disturbulator Assembly - 182-2036 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
182-0036 |
Disturbulator tube |
|
|
| 002 |
182-0041 |
12 inch bottom plate assembly |
|
|
| 004 |
N/A |
Not available |
|
(Cap) |
| 008 |
182-0766 |
Furniture guard |
|
|
| 011 |
182-0048 |
Orange bristle strip set |
|
|
| 013 |
182-0768 |
Clip (pkg of 5) |
|
|
| 014 |
182-0769 |
Furniture guard clip (pkg of 6) |
|
|
| 015 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
|
|
| 016 |
N/A |
Not available |
|
(Washer) |
| 017 |
182-0034 |
Screw 10-14 x 1/2 pan head plastite |
|
|
| 018 |
182-0771 |
Screw package |
|
|
| 019 |
N/A |
Not available |
|
(Repair kit) |
| 020a |
182-0084 |
12 inch disturbulator assembly |
|
|
| 020b |
991-9140 |
Brush roll (OBSOLETE) |
|
|
| N/S |
991-0026 |
Brush roll belt rubber (black) |
|
|
|
|
Handle Assembly - 182-2113 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
182-0100 |
Cord hook set |
|
|
| 002 |
182-0075 |
Screw and nut assembly |
|
|
| 003a |
182-0077 |
18/3 power cord 50 foot (black) |
|
|
| 003b |
991-5007 |
18/3 replacement power cord 50 foot (black) |
|
|
| 004 |
182-0008 |
Motor mounting screw |
|
|
| 005 |
182-0079 |
Handle socket assembly |
|
|
| 006 |
999-0211 |
Nut 5/16-18 hex nylon insert lock zinc plated |
|
|
| 007 |
182-0081 |
Bolt 10-24 x 5/8 carriage head |
|
|
| 009 |
182-0140 |
Strain relief |
|
|
| 010 |
182-0074 |
Upper handle assembly |
|
|
| 011 |
182-0138 |
Lower handle tube |
|
|
|
|

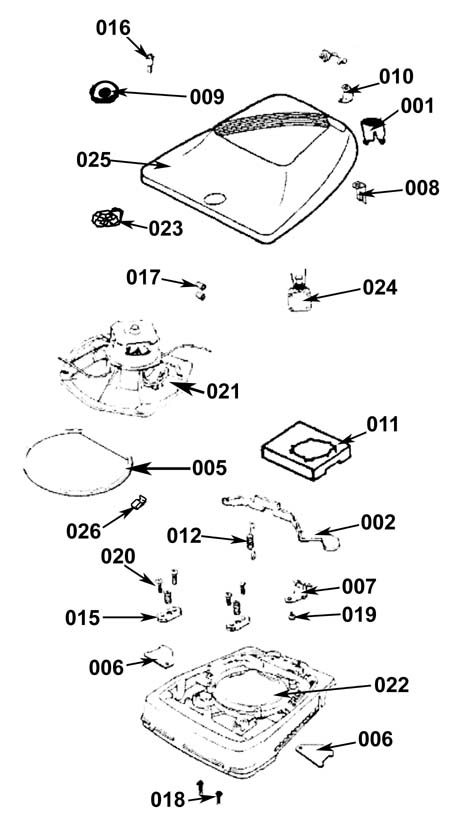

Base Assembly - 182-2119 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
182-0183 |
Switch button |
|
|
| 005 |
182-0010 |
Motor seal gasket |
|
|
| 007 |
182-0119 |
Bag clip retainer bracket |
|
|
| 011 |
182-0757 |
Separator assembly |
|
|
| 012 |
182-0011 |
Foot pedal spring |
|
|
| 015 |
182-0013 |
Screw and clamp assembly |
|
|
| 016 |
182-0003 |
Shoulder screw |
|
|
| 017 |
998-0062 |
Wire nut (blue) |
|
|
| 019 |
182-0034 |
Screw 10-14 x 1/2 pan head plastite |
|
|
| 020 |
182-0012 |
Screw 10-14 x .88 phillips pan plastite |
|
|
| 021 |
182-0185 |
Motor assembly |
|
|
| 022a |
182-0195 |
Base assembly |
|
|
| 022b |
N/A |
Not available |
|
Not available (steel washer) |
| 022d |
182-0116 |
Left side cam |
|
|
| 022e |
182-0115 |
Right side cam |
|
|
| 025 |
182-0181 |
Hood assembly |
|
|
|
|

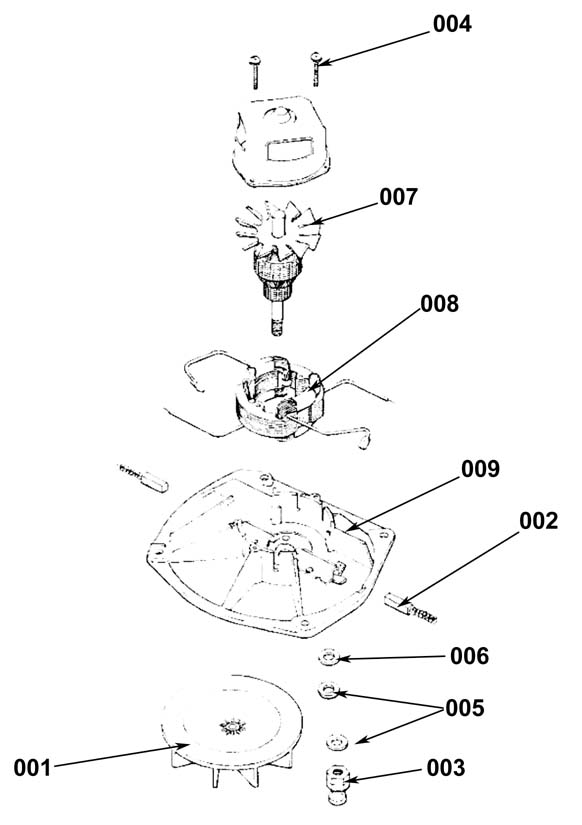

Motor Assembly - 182-2120 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001b |
272-9477 |
Pulley and fan kit (green) |
|
(lifetime warranty) |
| 002a |
182-0200 |
Carbon brush assembly (OBSOLETE) |
|
(OEM) |
| 002b |
991-5102 |
Carbon brush assembly (sold each) (OBSOLETE) |
|
(NON-OEM) |
| 003 |
182-0072 |
Motor pulley |
|
|
| 004 |
182-0762 |
Screw - package of 10 |
|
|
| 005 |
182-0070 |
Washer 5/16 x 5/8 x 15/16 fiber flat (pkg of 10) |
|
|
| 007 |
182-0186 |
Armature & fan assembly (OBSOLETE) |
|
|
| 008 |
182-0760 |
Field assembly |
|
|
| 009 |
182-0187 |
Motor base assembly (OBSOLETE) |
|
|
|
|
