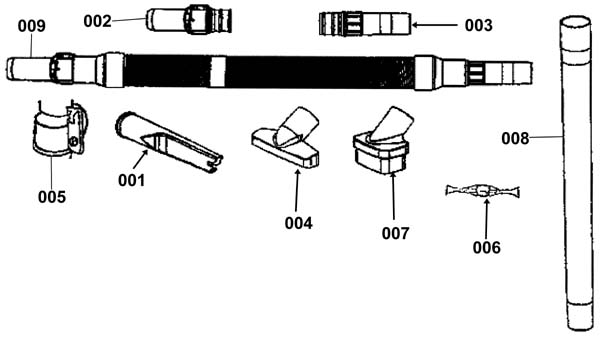

Hose Assembly - 182-2067 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
182-0107 |
Crevice tool |
|
|
| 002 |
182-0651 |
Hose adaptor |
|
|
| 003 |
182-0571 |
Hose coupling |
|
|
| 004 |
182-0110 |
Upholstery nozzle assembly |
|
|
| 007 |
182-0106 |
Dusting brush |
|
|
| 008 |
182-0109 |
Telescopic wand assembly |
|
|
| 009 |
182-0108 |
Hose assembly (OBSOLETE) |
|
|
| N/S |
182-0574 |
Hardware package |
|
|
|
|

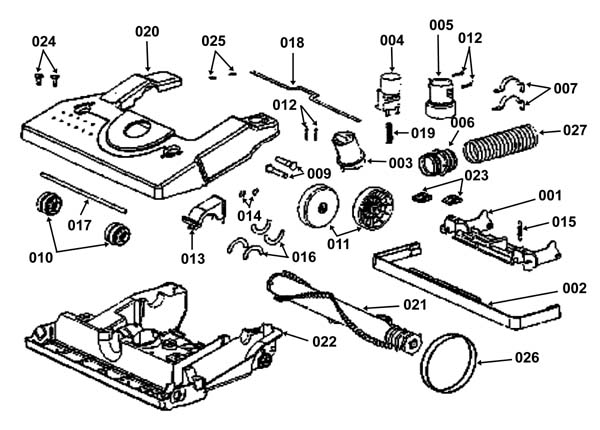

Base Assembly - 182-2068 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
182-0654 |
Wheel carriage |
|
|
| 002 |
182-0576 |
Furniture guard |
|
|
| 003 |
182-0655 |
Operator height adjustment |
|
|
| 004 |
182-0190 |
Handle release (OBSOLETE) |
|
|
| 006 |
182-0656 |
Base adaptor |
|
|
| 011 |
182-0658 |
Rear wheel and bushing (set of 2) (OBSOLETE) |
|
|
| 012 |
182-0583 |
Screw (OBSOLETE) |
|
|
| 013 |
182-0584 |
Belt cap and gasket package |
|
|
| 014 |
182-0585 |
Retaining ring |
|
|
| 015 |
182-0586 |
Spring package |
|
|
| 019 |
182-0589 |
Compression spring |
|
|
| 020 |
182-0590 |
Hood assembly |
|
|
| 021 |
182-0230 |
Disturbulator assembly (OBSOLETE) |
|
|
| 022 |
N/A |
Not available |
|
(Base assembly) |
| 023 |
182-0592 |
Quarter turn receptacle (pack of 10) |
|
|
| 024 |
182-0593 |
Quarter turn fastener |
|
|
| 025 |
182-0594 |
Quarter turn retainer |
|
|
| 026 |
N/A |
Not available |
|
(Belt, pkg of 2) |
| 027 |
182-0579 |
Compression hose (purch) (OBSOLETE) |
|
|
|
|

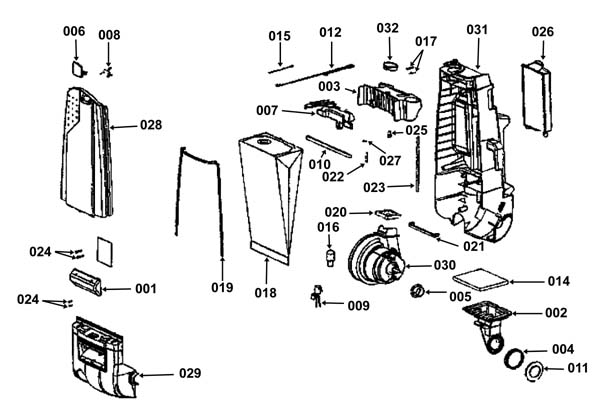

Bag Assembly - 182-2069 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
182-0598 |
Motor cover lens (OBSOLETE) |
|
|
| 006 |
182-0189 |
Bag cover latch |
|
|
| 007 |
182-0612 |
Flange retainer |
|
|
| 008 |
182-0665 |
Air deflector assembly |
|
|
| 009 |
182-0601 |
Headlamp socket and terminal |
|
|
| 011 |
182-0619 |
Motor intake flange |
|
|
| 012 |
182-0608 |
Thermostat and terminal assembly |
|
|
| 014 |
182-0668 |
Motor pre-filter |
|
|
| 016 |
992-9513 |
15watt double bulb |
|
|
| 017 |
182-0583 |
Screw (OBSOLETE) |
|
|
| 018 |
182-0193 |
Paper bag (3pack) Type AA |
|
|
| 019 |
182-0670 |
Bag cover gasket |
|
|
| 020 |
182-0604 |
Motor exhaust gasket |
|
|
| 021 |
182-0616 |
Air duct gasket |
|
|
| 022 |
182-0603 |
Tube adaptor |
|
|
| 024 |
182-0599 |
Screw package |
|
|
| 025 |
998-0062 |
Wire nut (blue) |
|
|
| 026 |
182-0671 |
Hepa filter package |
|
|
| 028 |
182-0111 |
Bag cover assembly |
|
|
| 029 |
182-0597 |
Motor cover assembly - packaged |
|
|
| 030 |
182-0605 |
Hepa motor assembly - packaged |
|
|
| 031 |
182-0167 |
Rear housing |
|
|
| 032 |
182-0609 |
Tool caddy bushing |
|
|
| N/S |
182-0198 |
Latch spring |
|
|
|
|

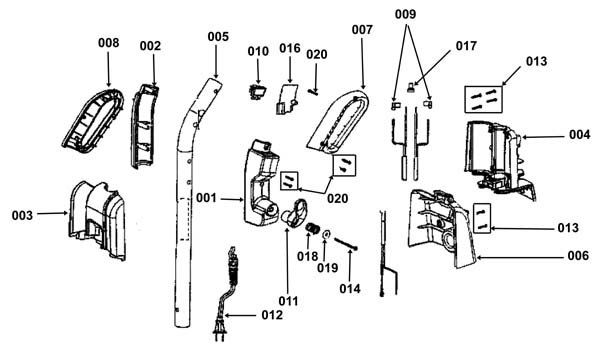

Handle Assembly - 182-2070 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 001 |
182-0631 |
Left switch housing |
|
|
| 002 |
182-0621 |
Right switch housing |
|
|
| 003 |
182-0672 |
Front handle housing |
|
|
| 004 |
182-0633 |
Rear handle housing |
|
|
| 005 |
182-0623 |
Steel handle |
|
|
| 006 |
182-0630 |
Handle cover |
|
|
| 007 |
182-0629 |
Left handle grip |
|
|
| 008 |
182-0620 |
Right handle grip |
|
|
| 009 |
182-0628 |
Upper cord assembly |
|
|
| 010 |
182-0622 |
Rocker switch |
|
|
| 011 |
182-0634 |
Cord retainer |
|
|
| 012 |
182-0627 |
Supply cord and terminal assembly |
|
|
| 013 |
182-0583 |
Screw (OBSOLETE) |
|
|
| 014 |
182-0638 |
Screw package |
|
|
| 016 |
182-0625 |
Wiring shield |
|
|
| 017 |
998-0062 |
Wire nut (blue) |
|
|
| 020 |
182-0624 |
Screw package |
|
|
| N/S |
182-0673 |
Strain relief bushing |
|
|
|
|

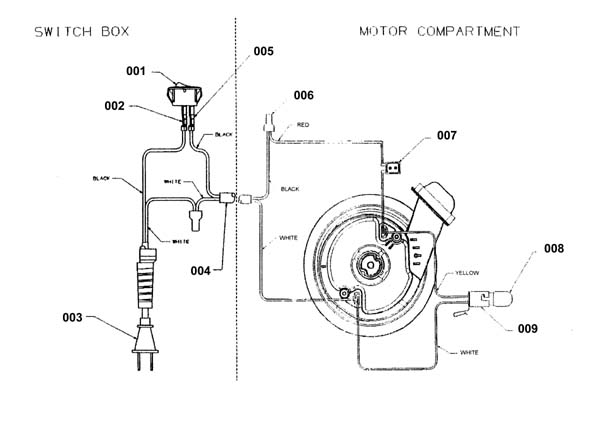

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
