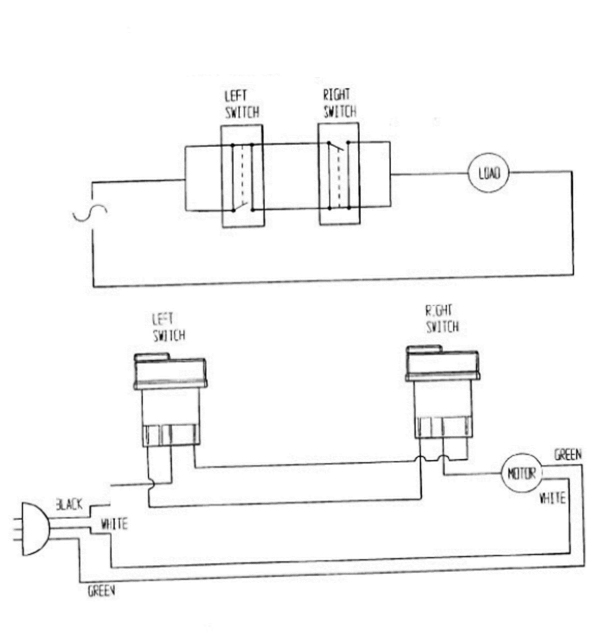

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

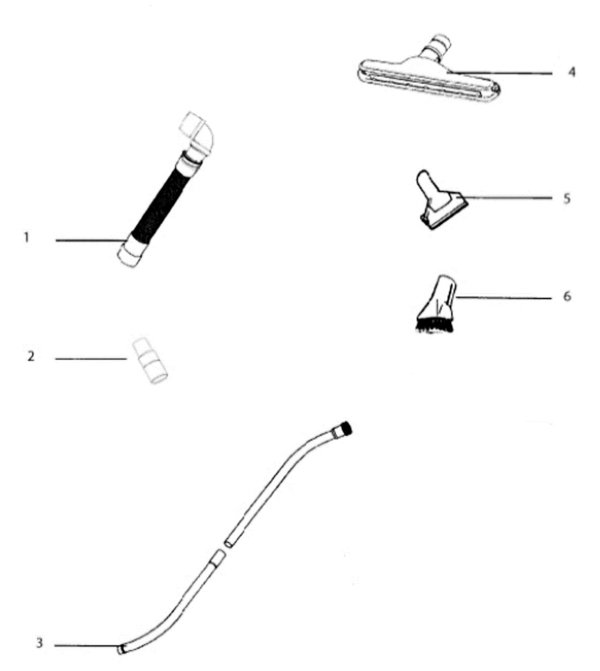

Accessories Assembly - 182-4442 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
182-8050 |
Hose assembly |
1 |
|
| 3 |
N/A |
Not available |
1 |
(Wand) |
| 4 |
N/A |
Not available |
1 |
(Floor tool) |
| 5 |
182-0110 |
Upholstery nozzle assembly |
1 |
|
| 6 |
182-7955 |
Dusting brush |
1 |
|
|
|

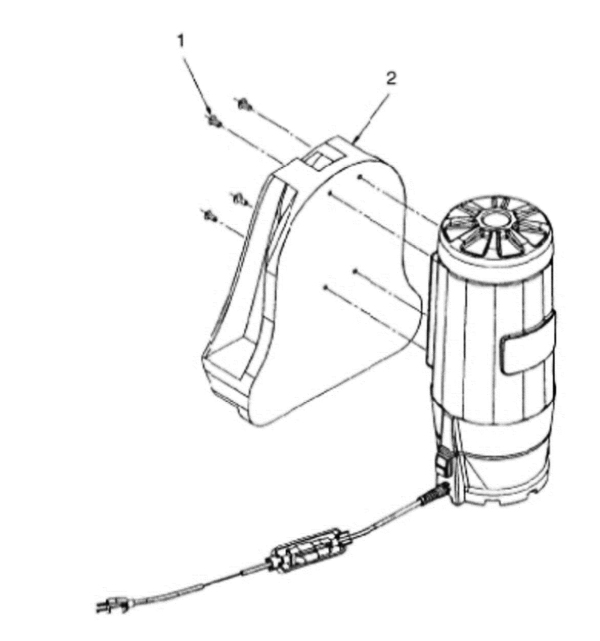

Harness Assembly - 182-4443 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
182-2240 |
Screw |
1 |
(Screw) |
| 2 |
182-8049 |
Strap assembly |
1 |
|
|
|

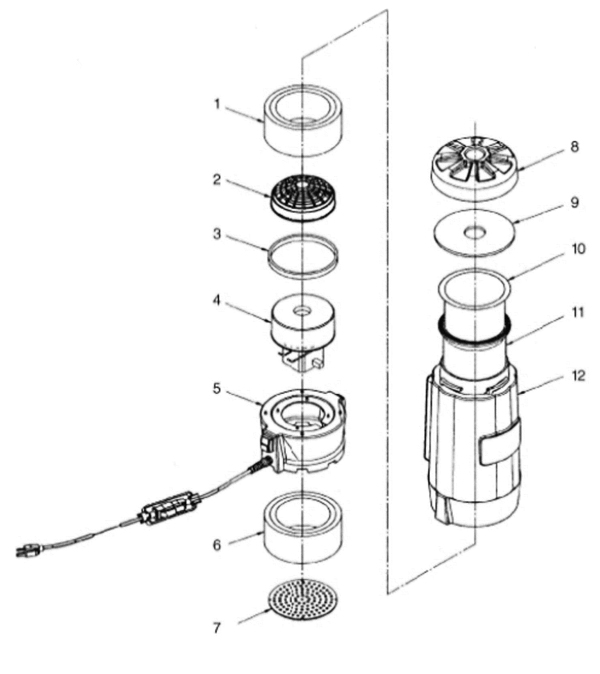

Main Body Assembly - 182-4444 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
1 |
(Filter) |
| 2 |
182-8047 |
Intake filter |
1 |
|
| 3 |
182-2229 |
O-ring |
1 |
(O-ring) |
| 4 |
N/A |
Not available |
1 |
(Motor) |
| 5 |
182-2224 |
Motor housing |
1 |
(Housing) |
| 6 |
N/A |
Not available |
1 |
(Filter) |
| 7 |
182-8048 |
Exhaust filter |
1 |
|
| 8 |
N/A |
Not available |
1 |
(Cover) |
| 9 |
N/A |
Not available |
1 |
(Gasket) |
| 10a |
182-8046 |
Paper bags (pkg of 10) |
1 |
|
| 10b |
991-6013 |
6 quart paper bag (pkg of 10) |
1 |
(NON-OEM) |
| 11 |
182-8045 |
Cloth bag (OBSOLETE) |
1 |
|
| 12 |
N/A |
Not available |
1 |
(Body) |
|
|

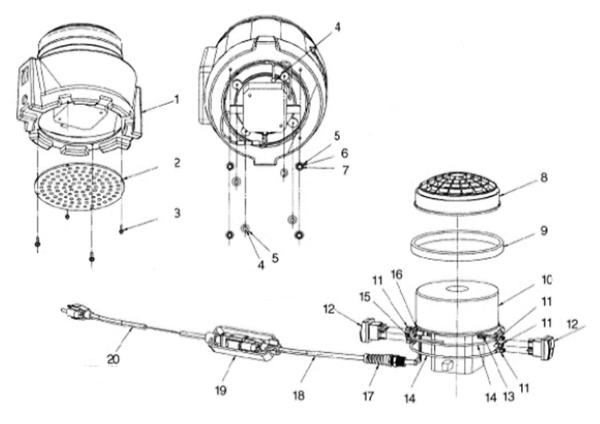

Motor Assembly - 182-4445 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
182-2224 |
Motor housing |
1 |
(Housing) |
| 2 |
182-8048 |
Exhaust filter |
1 |
|
| 3 |
182-2225 |
Screw #8 x 1/2mm |
4 |
(Screw) |
| 4 |
N/A |
Not available |
4 |
(Fasner) |
| 7 |
182-2228 |
Screw #10-32 x 5/8mm hex |
4 |
|
| 8 |
182-8047 |
Intake filter |
1 |
|
| 9 |
182-2229 |
O-ring |
1 |
(O-ring) |
| 10 |
N/A |
Not available |
1 |
(Motor) |
| 11 |
182-2230 |
Terminal |
4 |
(Terminal) |
| 12 |
182-2231 |
Push button switch |
2 |
|
| 14 |
182-2233 |
Wire |
2 |
(Wire) |
| 15 |
182-2234 |
Terminal butt connector |
1 |
(Terminal connector) |
| 16 |
182-2235 |
Terminal ring |
1 |
(Terminal ring) |
| 17 |
182-2236 |
Strain relief |
1 |
|
| 18 |
182-8044 |
Pigtail cord |
1 |
|
| 20 |
182-8043 |
16/3 extension cord 50 foot |
1 |
|
|
|
- Commonly Asked For Parts - 182-9878 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
182-8043 |
16/3 extension cord 50 foot |
|
|
|
|
