Parts List Complete for EUREKA C2132A


Disturbulator Assembly - 182-2096
RefNbr Part Number Description Req Notes
001 182-0141 12 inch bumper
002 182-0032 Push nut
003 182-0043 Rear axle
004 182-0034 Screw 10-14 x 1/2 pan head plastite
005 182-0035 Front axle
006a 182-0084 12 inch disturbulator assembly
006b 991-9140 Brush roll (OBSOLETE)
007 182-0051 Disturbulator cap
008 182-0050 Bearing retainer (includes bearing)
009 182-0038 Ring clip
010 182-0142 Wheel and axle assembly w/ hardware
011 182-0044 Washer
012 182-0045 Rear wheel
013 182-0033 Axle clamp
014 182-0046 Axle spring
015 182-0047 Front wheel
016 991-0026 Brush roll belt rubber (black)
017 182-0048 Orange bristle strip set
018 182-0036 Disturbulator tube
019 182-0052 Cap
020 999-0086 Nut 10-32 nylon insert lock zinc plated
021 182-0039 Shaft
022 182-0041 12 inch bottom plate assembly

Upper Handle Assembly - 182-2101
RefNbr Part Number Description Req Notes
001 182-0138 Lower handle tube
002 182-0074 Upper handle assembly
003 182-0082 Handle grip
004 182-0079 Handle socket assembly
005 182-0140 Strain relief
006a 182-0077 18/3 power cord 50 foot (black)
006b 991-5007 18/3 replacement power cord 50 foot (black) (NON-OEM)
007 182-0081 Bolt 10-24 x 5/8 carriage head
008 182-0075 Screw and nut assembly
009 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated
010 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated
011 182-0008 Motor mounting screw
012 182-0100 Cord hook set

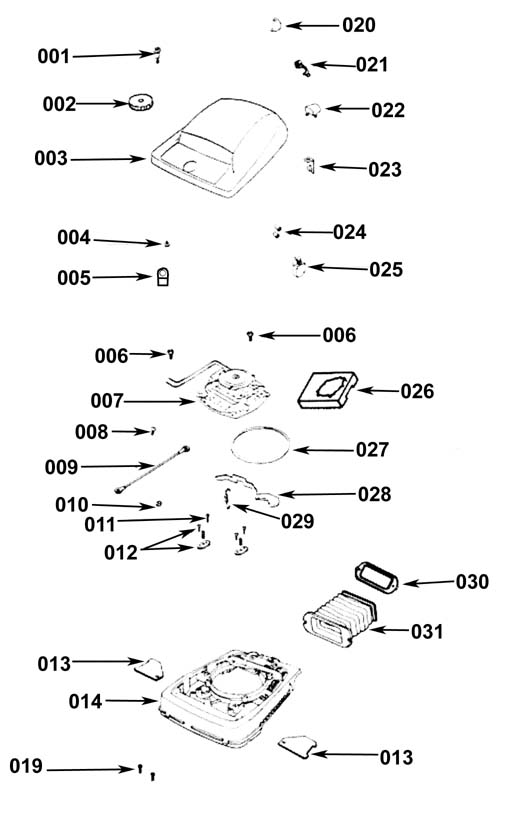

Base Assembly - 182-2116
RefNbr Part Number Description Req Notes
001 182-0003 Shoulder screw
002 182-0004 Knob
003 182-0754 Hood assembly packaged
004 182-0034 Screw 10-14 x 1/2 pan head plastite
005 182-0755 Cable clamp
006 182-0012 Screw 10-14 x .88 phillips pan plastite
007 182-0185 Motor assembly
008 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated
009 182-0129 Wire and terminal assembly
010 182-0756 Nut (pkg of 10)
011 182-0008 Motor mounting screw
012 182-0013 Screw and clamp assembly
013 182-0014 Wheel cover
014a 182-0015 Base assembly
014b 182-0115 Right side cam
014c 182-0116 Left side cam
014d 182-0029 Cam rivet
014e N/A Not available Not available (steel washer)
019 182-0016 Screw
020 182-0018 Bracket
021 182-0017 Strain relief bushing
022 182-0006 Button switch
023 182-0020 Switch clip
024 998-0062 Wire nut (blue)
025 182-0019 Push switch
026 182-0757 Separator assembly
027 182-0010 Motor seal gasket
028 182-0023 Foot pedal
029 182-0011 Foot pedal spring
030 182-0025 Bellows clamp
031 182-0026 Bellows

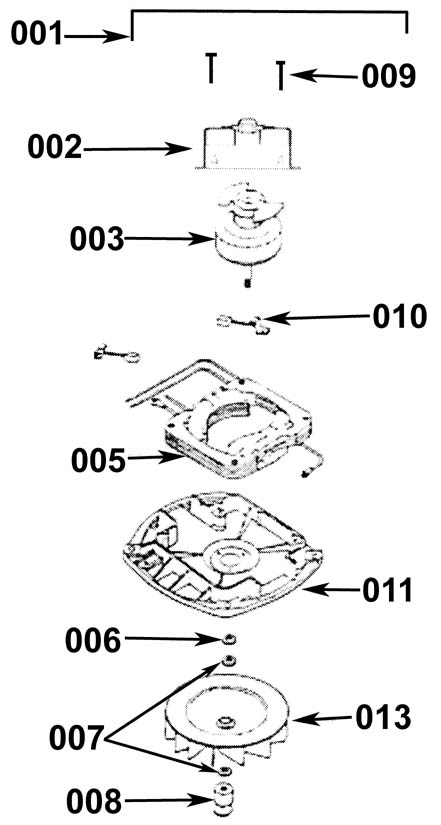

Motor Assembly - 182-2117
RefNbr Part Number Description Req Notes
001 182-0185 Motor assembly
002 182-0758 Fan end housing
003a 182-0186 Armature & fan assembly (OBSOLETE)
003b 182-0759 Fan
005 182-0760 Field assembly
006 182-0761 Washer
007 182-0070 Washer 5/16 x 5/8 x 15/16 fiber flat (pkg of 10)
008 182-0072 Motor pulley
009 182-0762 Screw - package of 10
010a 182-0200 Carbon brush assembly (OBSOLETE) (OEM)
010b 991-5102 Carbon brush assembly (sold each) (OBSOLETE) (NON-OEM)
011a 182-0187 Motor base assembly (OBSOLETE)
011b 182-0065 Bearing
011b 182-0065 Bearing
013a 182-0071 Fan
013b 272-9477 Pulley and fan kit (green) (lifetime warranty)

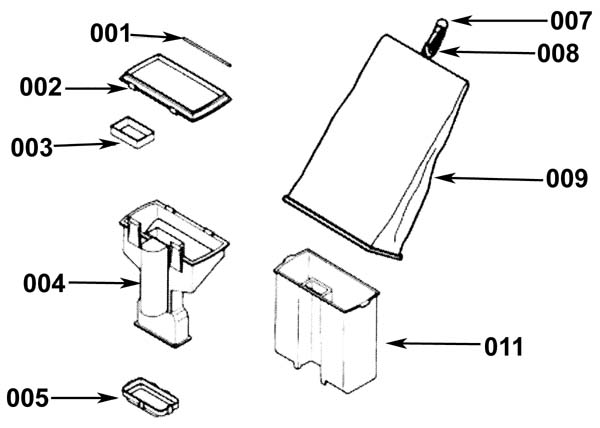

Bag Assembly - 182-2118
RefNbr Part Number Description Req Notes
000 182-0095 Dust cup assembly
001 182-0085 Pin
002 182-0086 Bag lid
003 182-0087 Gasket
004 182-0088 Dust cup support and latch assembly
005 182-0089 Clamp
007 182-0090 Steel ring
008 182-0091 Snap hook
009a 182-0092 Bag assembly (black) (dust cup)
009b 182-0093 Bag gasket
011 182-0094 Dust cup
012 182-0065 Bearing
N/S 182-0096 Hardware package

- Frequently Replaced Parts - 999-9684
RefNbr Part Number Description Req Notes
01 182-0077 18/3 power cord 50 foot (black) (OEM)
02 991-5008 18/3 replacement power cord 50 foot (beige) (NON-OEM)
03 182-0140 Strain relief
04 182-0019 Push switch (power)
05 182-0072 Motor pulley
06 182-0185 Motor assembly
07 182-0092 Bag assembly (black) (dust cup)
08 182-0094 Dust cup
09 182-0091 Snap hook
10 182-0100 Cord hook set
11 182-0759 Fan
12 991-0026 Brush roll belt rubber (black)
13 182-0050 Bearing retainer (includes bearing)
14 182-0048 Orange bristle strip set
15 182-0141 12 inch bumper
