Parts List Complete for EUREKA C2032

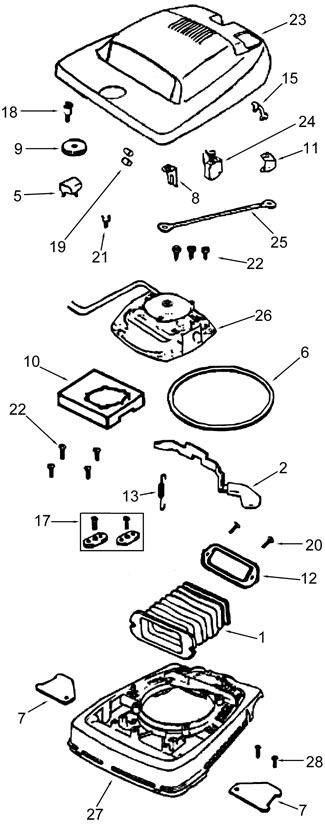

Base Assembly - 182-0102
RefNbr Part Number Description Req Notes
1 182-0026 Bellows 1
2 182-0023 Foot pedal 1
5 182-0006 Button switch 1
6 182-0010 Motor seal gasket 1
7 182-0014 Wheel cover 2
8 182-0020 Switch clip 1
9 182-0004 Knob 1
10 182-0022 Air separator 1
11 182-0018 Bracket 1
12 182-0025 Bellows clamp 1
13 182-0011 Foot pedal spring 1
15 182-0017 Strain relief bushing 1
17 182-0013 Screw and clamp assembly 2
18 182-0003 Shoulder screw 1
19 998-0062 Wire nut (blue) 2
20 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated 2
21 182-0008 Motor mounting screw 1
22 182-0012 Screw 10-14 x .88 phillips pan plastite 7
23 182-1000 Hood assembly 1
24 182-0019 Push switch 1
25 182-0129 Wire and terminal assembly 1
26 182-0009 120V vacuum motor assembly 1
27 182-0015 Base assembly 1
28 182-1002 Screw 2
N/S 182-0115 Right side cam 1
N/S 182-0116 Left side cam 1
N/S 182-0029 Cam rivet 1

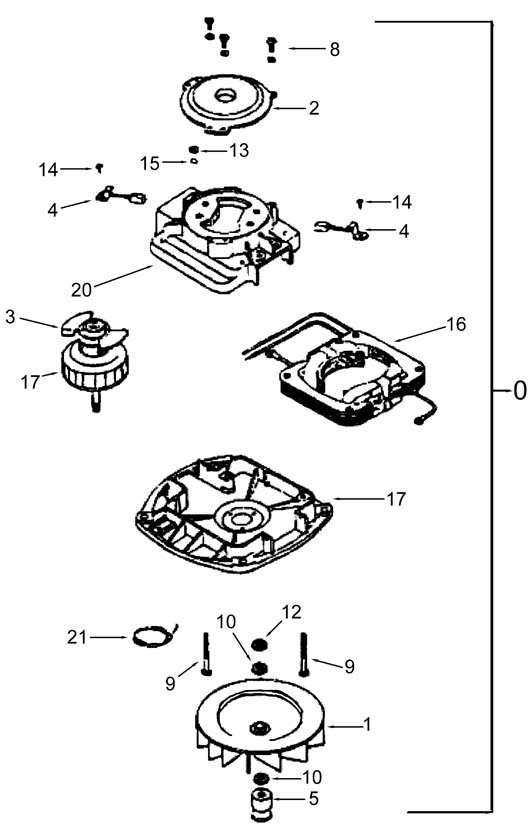

Vacuum Motor Assembly - 182-0103
RefNbr Part Number Description Req Notes
0 182-0009 120V vacuum motor assembly 1 (includes 1 thru 21, bearings, retainer, and rivet)
1a 182-0071 Fan 1
1b 272-9477 Pulley and fan kit (green) 1 (lifetime warranty)
2 182-0054 Retainer assembly 1
3 182-0061 Fan 1
4a 991-5101 Carbon brush (sold individually) 2 (OEM)
4b 991-5101 Carbon brush (sold individually) 2 (NON-OEM)
5 182-0072 Motor pulley 1
8 999-0453 Screw 8-32 x 1/2 pan head phillips thread forming zinc 3
9 182-0068 Orlo thread screw 2
10 182-0070 Washer 5/16 x 5/8 x 15/16 fiber flat (pkg of 10) 2
12 182-0069 Washer 1
13 999-0308 Nut 8-32 plain 1
14 999-0418 Screw 6-32 x 1/4 pan head slotted zinc plated 2
15 999-0092 Washer #8 internal star lock zinc plated 1
16 182-0009 120V vacuum motor assembly 1
17 182-0009 120V vacuum motor assembly 1 (motor housing, only available in assembly)
20 N/A Not available 1 Motor cover
21 997-2101 6 inch cable tie 1
N/S 182-0064 Bearing and retainer (OBSOLETE) 1
N/S 182-0065 Bearing 1
N/S 182-0066 Rivet (OBSOLETE) 1

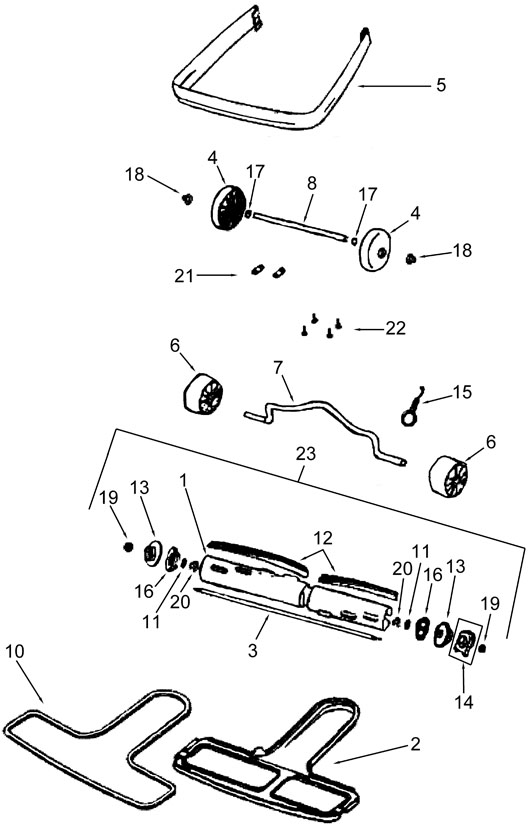

Brush and Wheel Assembly - 182-0104
RefNbr Part Number Description Req Notes
1 182-0036 Disturbulator tube 1
2 182-0041 12 inch bottom plate assembly 1 (includes 10)
3 182-0039 Shaft 1
4 182-0045 Rear wheel 2
5 182-0141 12 inch bumper 1
6 182-0047 Front wheel 2
7 182-0035 Front axle 1
8 182-0043 Rear axle 1
10 182-0040 Foam tape 1
11 182-0049 Washer felt 2
12 182-0048 Orange bristle strip set 2
13 182-0051 Disturbulator cap 2
14 182-0052 Cap 1
15 182-0046 Axle spring 1
16 182-1003 Retainer and bearing 2
17 182-0044 Washer 2
18 182-0032 Push nut 2
19 999-0086 Nut 10-32 nylon insert lock zinc plated 2
20 182-0038 Ring clip 2
21 182-0033 Axle clamp 2
22 182-0034 Screw 10-14 x 1/2 pan head plastite 4
23a 182-0084 12 inch disturbulator assembly 1 (includes 1, 3, 11, 12, 13, 16, 19, 20)
23b 991-9140 Brush roll (OBSOLETE) 1
N/S 182-0142 Wheel and axle assembly w/ hardware 1 (includes 8, 17, 18)

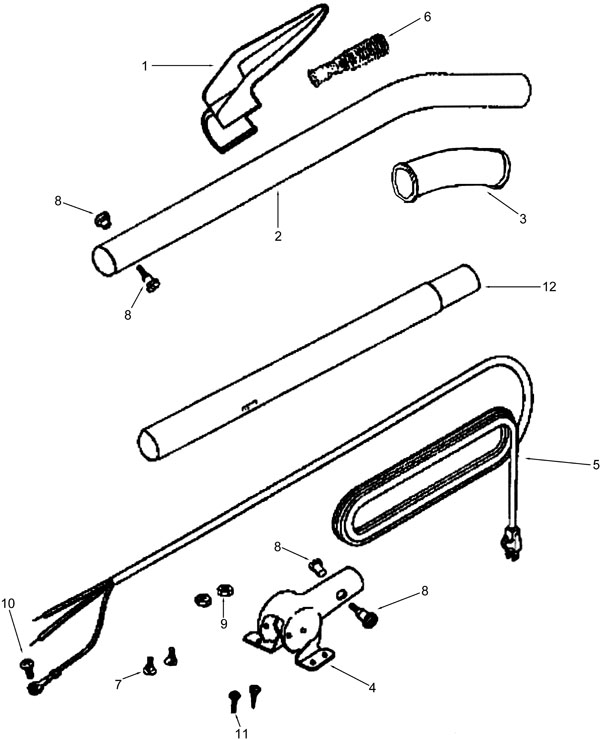

Handle Assembly - 182-0105
RefNbr Part Number Description Req Notes
1 182-0073 Cord retainer 1
2 182-0074 Upper handle assembly 1 (includes item 3)
3 182-0082 Handle grip 1
4 182-0079 Handle socket assembly 1
5a 182-0077 18/3 power cord 50 foot (black) 1 (OEM)
5b 991-5007 18/3 replacement power cord 50 foot (black) 1 (NON-OEM)
5c 991-5008 18/3 replacement power cord 50 foot (beige) 1 (NON-OEM)
6 182-0140 Strain relief 1
7 182-0081 Bolt 10-24 x 5/8 carriage head 2
8 182-0075 Screw and nut assembly 4
9 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 2
10 999-0269 Screw 10-24 x 5/8 pan head phillips zinc plated 1
11 182-0008 Motor mounting screw 2
12 182-1004 Lower handle tube 1

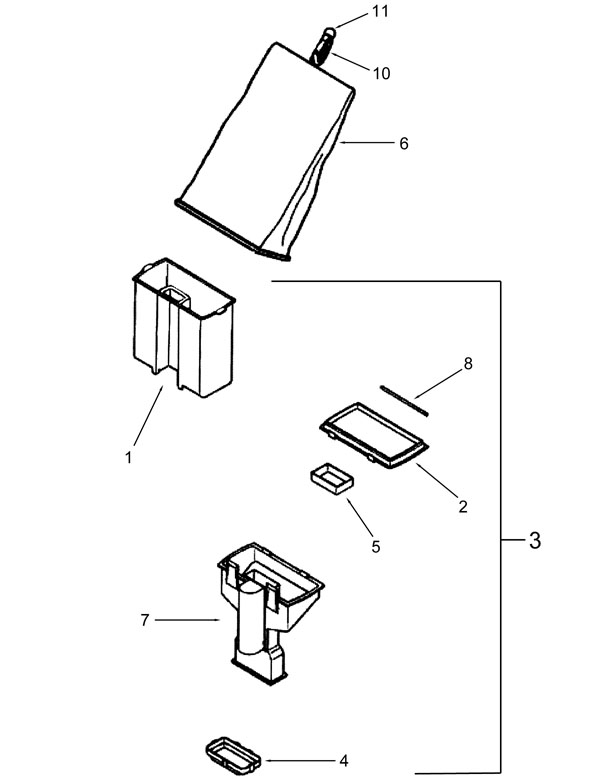

Bag Assembly - 182-0106
RefNbr Part Number Description Req Notes
1 182-0094 Dust cup
2 182-0086 Bag lid
3 182-0095 Dust cup assembly (includes 1, 2, 4, 5, 7, 8)
4 182-0089 Clamp
5 182-0087 Gasket
6a 182-1005 Cloth vacuum bag assembly (includes 6b)
6b 182-0093 Bag gasket
7 182-0088 Dust cup support and latch assembly
8 182-0085 Pin
10 182-0091 Snap hook
11 182-0090 Steel ring
N/S 182-0096 Hardware package
