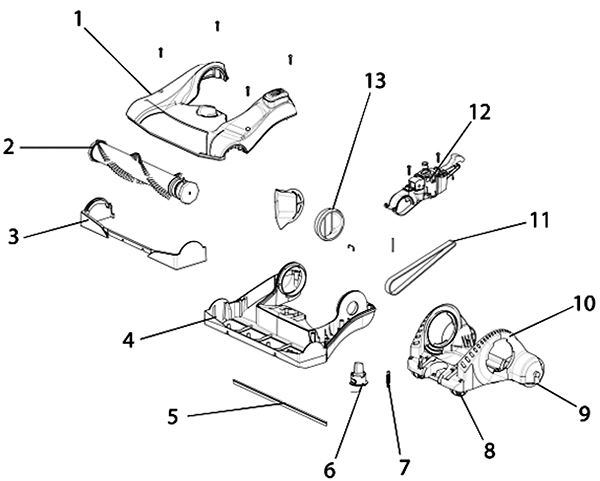

Base and Hood Assembly - 182-2505 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
|
(hood assembly) |
| 2 |
182-2109 |
Brushroll assembly (OBSOLETE) |
|
|
| 3 |
182-2260 |
Furniture guard |
|
|
| 4 |
182-2261 |
Base (OBSOLETE) |
|
|
| 5 |
182-2262 |
Wiper blade (OBSOLETE) |
|
|
| 6 |
182-2263 |
Height adjustment knob (OBSOLETE) |
|
|
| 7 |
182-2264 |
Spring package |
|
|
| 8 |
N/A |
Not available |
|
(front wheel w/overmold) |
| 9 |
N/A |
Not available |
|
(rear wheel w/overmold) |
| 10 |
N/A |
Not available |
|
(wheel carriage assembly) |
| 12 |
N/A |
Not available |
|
(broo assembly) |
| 13 |
182-2271 |
Base elbow seal |
|
|
| N/S |
182-2267 |
Handle release spring |
|
|
|
|

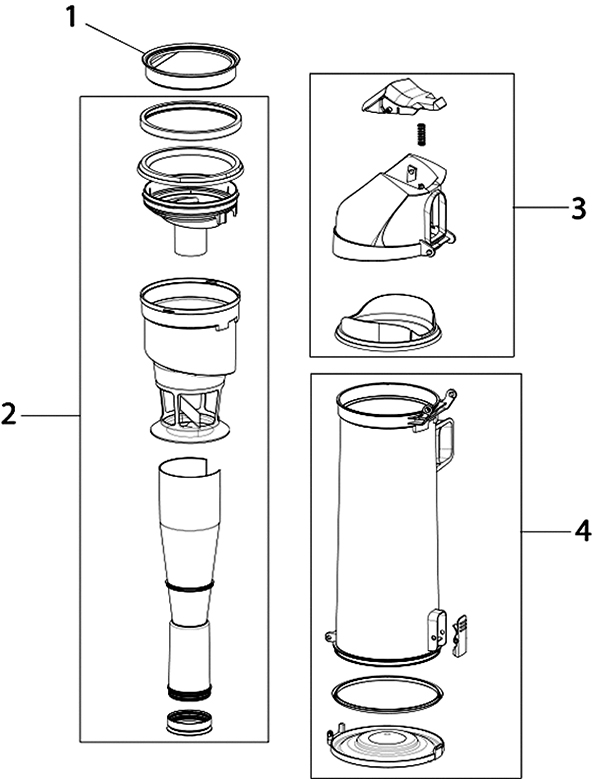

Dust Cap Assembly - 182-2506 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
N/A |
Not available |
|
(cyclone assembly) |
| 3 |
N/A |
Not available |
|
(lid assembly) |
| 4 |
182-2274 |
Cup and bottom lid assembly (OBSOLETE) |
|
|
|
|

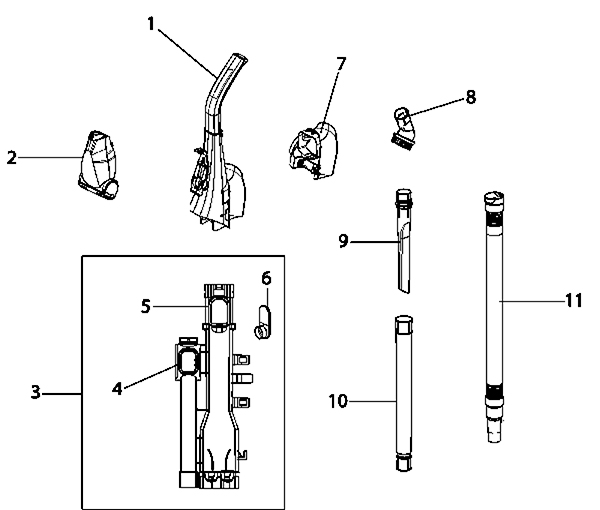

Handle and Accessories - 182-2507 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
N/A |
Not available |
|
(upper handle assembly) |
| 2 |
182-1172 |
Turbo nozzle assembly |
|
|
| 3 |
182-2278 |
Backbone assembly |
|
(includes 4-6) |
| 4 |
182-2279 |
Cup inlet seal |
|
|
| 5 |
182-2280 |
Cup exhaust seal (OBSOLETE) |
|
|
| 6 |
182-2281 |
Cord quick release (OBSOLETE) |
|
|
| 7 |
N/A |
Not available |
|
(hose retainer) |
| 8 |
N/A |
Not available |
|
(brush assembly) |
| 9 |
182-2284 |
Crevice tool (OBSOLETE) |
|
|
| 10 |
182-2285 |
Wand (OBSOLETE) |
|
|
| 11 |
182-0380 |
Hose assembly |
|
|
| N/S |
182-2286 |
Belt (OBSOLETE) |
|
|
|
|

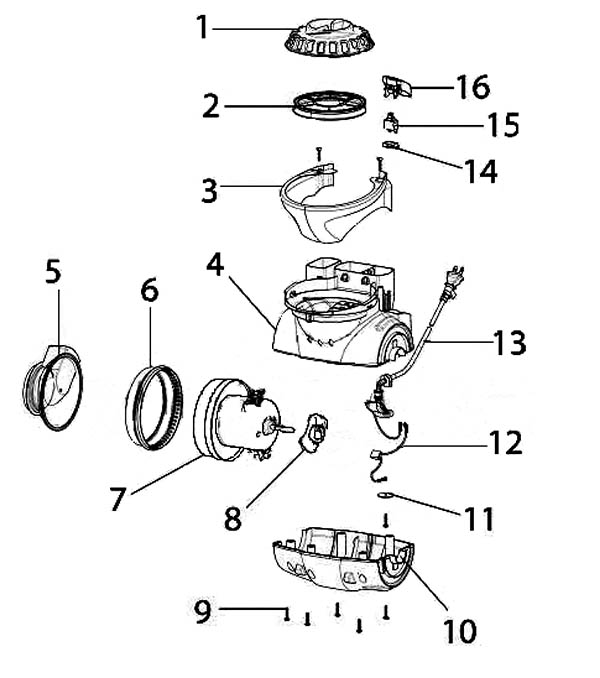

Motor Module - 182-2508 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
182-2287 |
Filter exhaust cover (OBSOLETE) |
|
|
| 2 |
182-2289 |
Filter assembly (OBSOLETE) |
|
|
| 3 |
N/A |
Not available |
|
(fascia and graphics assembly) |
| 4 |
182-2291 |
Upper motor housing |
|
|
| 7 |
182-0381 |
Motor assembly |
|
|
| 8 |
182-2297 |
Motor mount bushing |
|
|
| 9 |
182-2298 |
Screw (pkg of 8) |
|
|
| 10 |
182-2299 |
Lower motor housing |
|
|
| 12 |
182-2300 |
Thermostat and terminal assembly |
|
|
| 13 |
N/A |
Not available |
|
(supply cord and terminal assembly) |
| 15 |
182-1060 |
Switch assembly (OBSOLETE) |
|
|
| 16 |
182-2303 |
Switch pedal button (OBSOLETE) |
|
|
|
|
- Commonly Asked For Parts - 182-9936 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
182-2109 |
Brushroll assembly (OBSOLETE) |
|
|
| 02 |
182-2272 |
Cyclone assembly (OBSOLETE) |
|
|
|
|
