Parts List Complete for ELECTROLUX AERUS GUARDIAN C154B

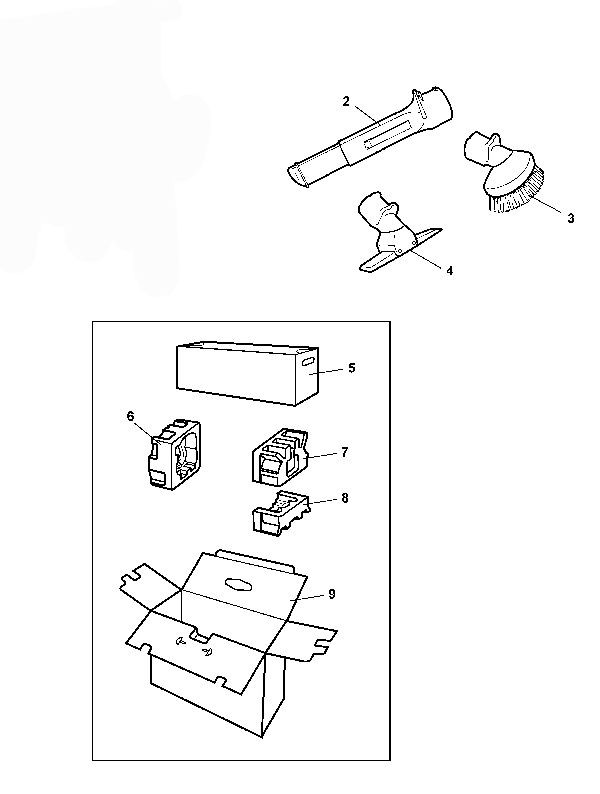

Accessories Assembly - 182-5666
RefNbr Part Number Description Req Notes
2 182-2135 Crevice tool 1
3 182-2136 Dusting brush 1
4 182-2137 Upholstery tool 1
5 182-2138 Accessory tray 1
6 182-2139 Rear protector 1
8 182-2141 Bottom front protector 1
9 182-2142 Carton 1

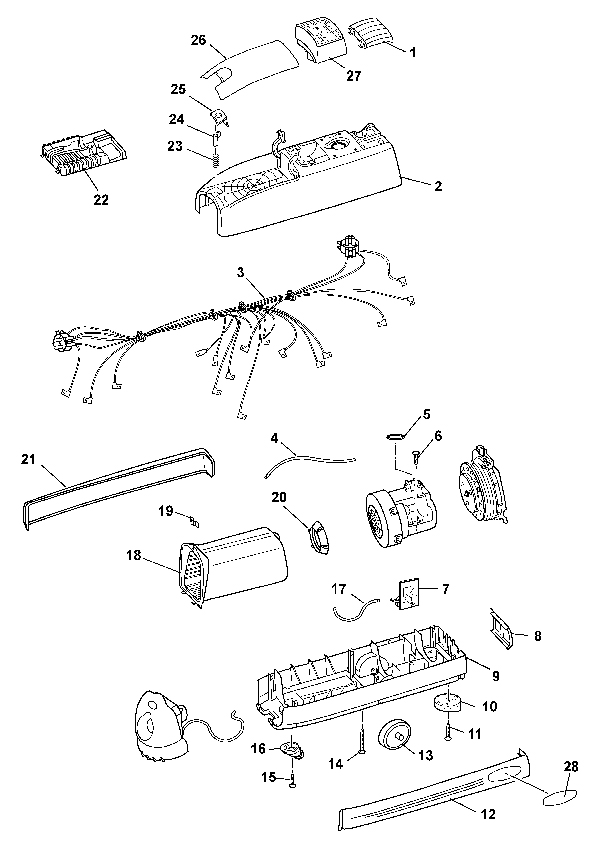

Entire Assembly - 182-5667
RefNbr Part Number Description Req Notes
1 182-2143 Button (OBSOLETE) 1
2 182-2144 Upper body 1
3 182-2145 Wiring harness 1
4 182-2146 Inner body tube 1
5 182-2147 Seal 1
6 182-2148 Screw 2
7 182-2149 Relay board (OBSOLETE) 1
8 182-2150 Rear bumper 1
9 182-2151 Lower body 1
10 182-2152 Rear sled 2
11 182-2153 Screw 2
12 182-2154 Right bumper 1
13 182-2155 Rear wheel 2
14 182-2156 Screw 6
15 182-2153 Screw 1
16 182-2157 Caster assembly 1
17 182-2158 Control tube 1
18 182-2159 Inner body 1
19 182-2160 Latch plate 1
20 182-2161 Motor connector seal 1
21 182-2162 Left hand bumper 1
22 182-2163 Accessory tool tray 1
23 182-2164 Spring 1
24 182-2165 Tool cover actuator 1
25 182-2166 Tool cover latch 1
26 182-2167 Tool cover 1
27 182-2168 HEPA filter 1
28 N/A Not available 2 (Bumper decal)
N/S 182-2462 Front cover and plate 1

Rug and Floor Tool Assembly - 182-5668
RefNbr Part Number Description Req Notes
1 182-2169 Screw 1
2 182-2170 Strap 2
3 182-2171 Right hand sliding pad 1
4 182-2172 Left hand sliding pad 1
5 182-2173 Rod 1
6 182-2174 Rug cleaner bottom 1
7 182-2175 Elbow assembly 1
8 182-2176 Body 1
9 182-2177 Bumper 1
10 182-2178 Floor brush bristle 1
11 182-2179 Screw 2
12 182-2180 Combination rug and floor tool 1
13 182-2181 Wand assembly 2

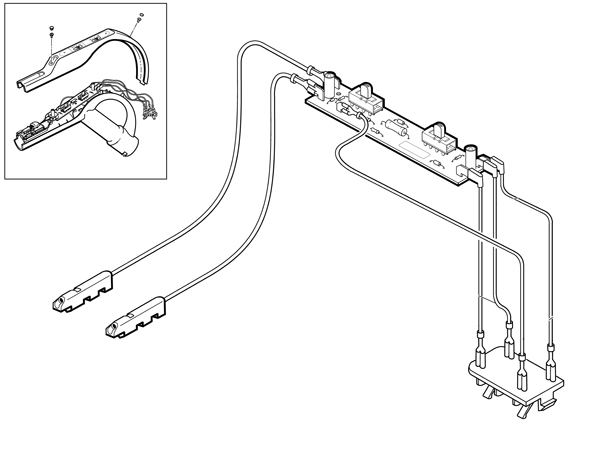

Hose Handle Wiring Diagram -

RefNbr Part Number Description Req Notes

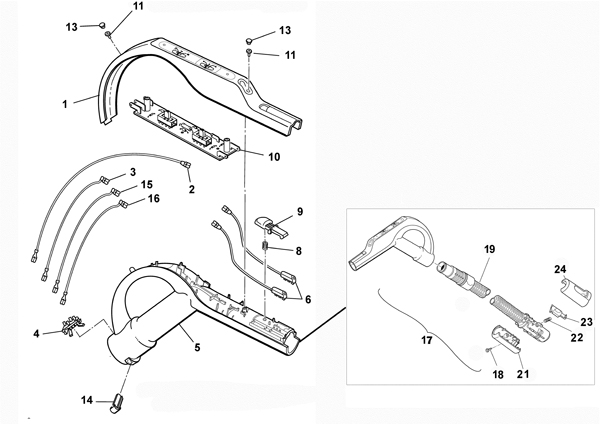

Handle Assembly - 182-5670
RefNbr Part Number Description Req Notes
1 182-2182 Handle cover 1
2 182-2183 Blue contact lead 1
3 182-2184 Red contact lead 1
4 182-2185 Contact block 1
5 182-2186 Handle body 1
6 182-2187 Lead (black) 2
8 182-2188 Spring 1
9 182-2189 Wand latch (OBSOLETE) 1
10 182-2190 Handle switchboard 1
11 182-2191 Screw 2
13 182-2192 Screw cover 2
14 182-2193 Handle retainer (OBSOLETE) 1
15 182-2194 Contact lead (white) 1
16 182-2195 Contact lead (black) 1
17 182-2201 Screw 1
18 182-2196 Hose 2
19 182-2196 Hose 1
21 182-2200 Lower hose sleeve 1
22 182-2199 Spring 1
23 182-2198 Latch 1
24 182-2197 Upper hose sleeve 1

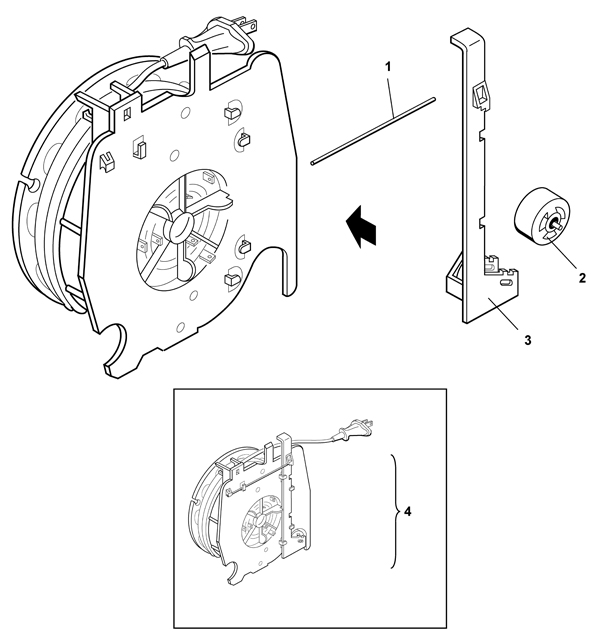

Cordwinder Assembly - 182-5671
RefNbr Part Number Description Req Notes
1 182-2203 Spring 1
2 182-2204 Brake wheel 1
3 182-2205 Actuator 1
4 182-2206 Cordwinder assembly (OBSOLETE) 1

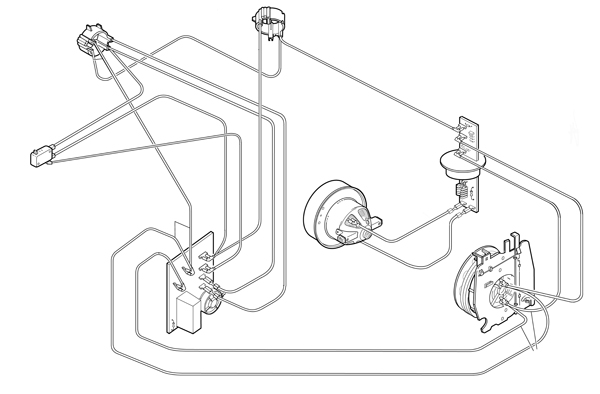

Wiring Diagram -

RefNbr Part Number Description Req Notes

Motor Assembly - 182-5673
RefNbr Part Number Description Req Notes
1 182-2207 Triac 1
2 182-2208 Motor cover 1
3 182-2209 Lower motor mount 1
4 182-2210 Wire harness 1
5 182-2211 Motor seal 1
6 182-2212 Motor assembly 1
7 182-2213 Front motor cover 1

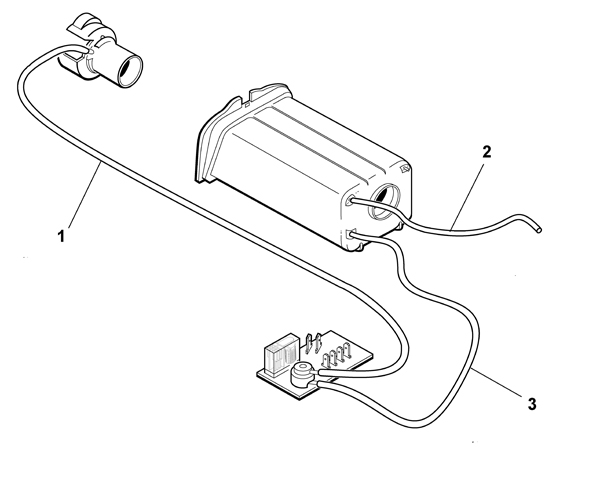

Control Tube Assembly - 182-5674
RefNbr Part Number Description Req Notes
1 182-2214 Control tube 1
2 182-2146 Inner body tube 1
3 182-2158 Control tube 1

Front Cover Plate Assembly - 182-5675
RefNbr Part Number Description Req Notes
1 182-2215 Front handle 1
2 182-2216 Front cover 1
3 182-2217 Front cover latch 1
4 N/A Not available 1
5 182-2218 Hose connector seal 1
6 182-2219 Bag nozzle 1
7 182-2214 Control tube 1
8 182-2220 Bag lockout switch 1
9 182-2221 Front cover plate 1
10 182-2222 Screw 2
11 182-2223 Bag seal 1
12 182-2148 Screw 2
