Parts List Complete for EDIC POWERMATE 1204ACH

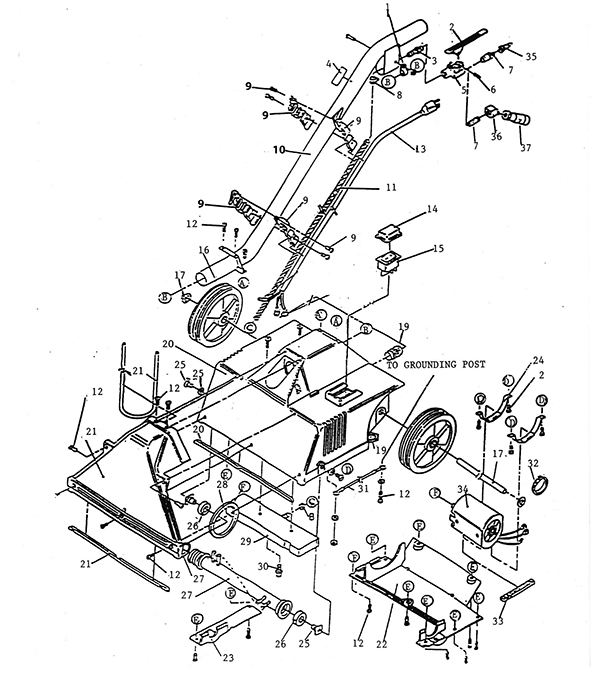

Entire Assembly - 221-0039
RefNbr Part Number Description Req Notes
1 221-0965 Cable clamp 1
2 221-0966 Valve lever 1
3 221-0967 1/4 inch barb 1
4 221-0968 Warning decal 1
5 221-0271 Valve assembly 1
6 221-0969 Tubular rivet 1
7 221-0245 Nipple 1/4 inch 1
8 221-0524 Clamp 1
9 221-0970 Cord hook 1
10 221-0971 One piece handle 1
11 221-0972 Braided hose 4
12 999-1366 Screw 8-32 x 3/8 round head phillips stainless steel 25
13a 221-0973 16/3 power cord 1 (oem)
13b 991-5002 16/3 extension cord 50 foot (orange) 1 (non-oem)
14 221-0119 Rocker switch cover 1
15 221-0120 Lighted rocker switch 1
16 221-0803 4 inch wheel 2
17 221-0974 Axle assembly 1
19 221-0976 Liquid tight strain with nut 1
20 221-0977 Motor housing assembly 1
21 221-0445 Vaccuum shoe 1
22 221-0978 Bottom cover 1
23 221-0979 Belt access cover 1
24 221-0980 Motor strap assembly 2
25 221-0981 Bearing shaft assembly 1
26 221-0982 Brush bearing 2
27 221-0983 Brush assembly 1
28 221-0272 Belt 1
29 221-0984 Weight block 1
30 221-0168 Spray tip (OBSOLETE) 1
31 221-0030 Ground wire assembly (OBSOLETE) 1
32 221-0555 Tie 1
33 221-0985 Motor seal gasket 1
34 221-6764 Brush motor 1
35 221-0112 Quick disconnect 1
36 221-0751 45 degree elbow fitting 1/4 x 1/4 1
N/S 221-0271 Valve assembly 1 (includes 2-3, 5-6)
N/S 221-0986 Power adaptor 1
N/S 221-0975 Screw 10-32 x 1 1/8 truss head 2

- Frequently Replaced Parts - 221-0040
RefNbr Part Number Description Req Notes
221-0973 16/3 power cord 1
991-5002 16/3 extension cord 50 foot (orange) 1
221-0976 Liquid tight strain with nut 1
221-0120 Lighted rocker switch 1
221-6764 Brush motor 1
221-0272 Belt 1
221-0983 Brush assembly 1

- Commonly Asked For Parts - 221-9974
RefNbr Part Number Description Req Notes
01 221-0272 Belt
