Parts List Complete for EAGLEPOW SMARTVAC 464


Crankcase Assembly - 203-5558
RefNbr Part Number Description Req Notes
1 203-3156 Handle rotation pin 2
2 203-3157 Serrated handle lock clamp 2
3 203-3158 Chassis hook 2
4 203-6142 Handle 1
5 203-3160 Handle lock lever 2
6 203-3161 Rear hopper 1
7a 203-4855 Hood 1
7b 203-4855 Hood 1
8 203-4857 Cover (green) 1
9 203-3164 Housing top touch panel 1
10 203-3165 Control housing bottom 1
11a 203-4633 Right hand cover 1
11b 203-4633 Right hand cover 1
12a 203-4634 Left hand cover 1
12b 203-4634 Left hand cover 1
13 203-3168 Bracket 1
14 203-3169 Hopper latch 1
15 203-4859 Pin 2
16 203-3171 Clip 2
17 203-3172 Rear wheel 2
18 203-3173 Front caster 1
19 203-3174 Touch board control 1
20 203-3175 Frame 1
21 203-3176 Left side skirt plate 1
22 203-3177 Left side skirt 1
23 203-4860 Battery tray 1
24 203-4861 Electrical cover 1
25 203-3180 Pin 1
26 203-3181 Electronics bracket 1
27 203-3182 Battery charger/transformer 1
28 203-3183 Control board 1
29 203-3184 Right side skirt 1
30 203-3185 Right side skirt plate 1
31 203-1291 Washer 1
32 203-3187 Charging cord 1
33 189-1414 Washer D12 1
34 203-1976 Nut M12 self locking 1
35 203-3190 Hopper gasket 1
36 203-3191 Bumper wheel 1
37 203-4240 Belt 1
38 203-3193 Spacer 1
39 162-0114 12V 50Ah AGM battery 1
40 203-1356 Circlip 1
41 203-1733 Screw 12 x 45 inch zinc 5
42 203-3197 Screw M4 x 16 1
43 203-3198 Screw 4 x 16 4
44 203-3197 Screw M4 x 16 10
45 203-3200 Screw 6 x 18 2
46 203-4326 Nut 2
47 203-4862 Screw self tapping 3
48 203-3203 Screw 5 x 15 2
49 203-3204 Screw 5 x 20 2
50 203-3205 Nut 2
51 203-3206 Screw M5 x 16 2
52 203-3207 Screw 2
53 203-3211 20amp main card fuse 1
54 203-4128 Charger receptacle 1
55 203-3203 Screw 5 x 15 11
56 999-0920 Screw M6-1 x 16mm button head socket 4
57 203-4478 Screw 2
58 203-4864 Nut M6 4
59 203-3209 Charger wire harness and plug 1
60 203-4865 Battery harness 1
61 203-4269 Touch wire assembly 1
62 203-4866 Washer 4 x 12 1
63 203-4867 Battery clip (black) 1
64 991-2117 Battery charger connector (red) 1
65 203-3275 Nut M5 2
66 203-4482 Screw M5 x 12mm 1
67 203-4868 Washer 5 x 10 1
68 203-4869 Wiring assembly 1
69 203-4870 Washer 1
70 203-4116 Anti static kit 2
71 203-3281 Screw M6 x 16 2
72 203-4871 1.25amp fuse 1
73 203-4872 Control panel decal 1
74 203-4873 Screw M.2 1
75 203-4874 Screw 2

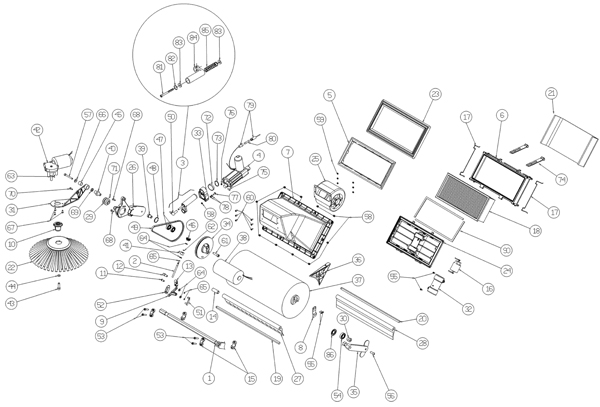

Brush Assembly - 203-5559
RefNbr Part Number Description Req Notes
1 203-3218 Main brush drive shaft 1
2 203-3219 Adjuster rod 1
3 203-4352 Guide assembly 1
4 203-3221 Actuator 1
5 203-3222 Filter frame plate 1
6 203-3223 Filter frame 1
7 203-4875 Blower housing 1
8 203-4250 Brush hooking lever 1
9 203-3226 Side brush driving arm 1
10 203-3227 Side brush drive hub 1
11 203-3228 Pin 1
12 203-3229 Driving arm pin 1
13 203-3230 Connecting rod 1
14 203-3231 Skirt spacer 1
15 203-3232 Main brush drive shaft support 2
16 203-3233 Shaker motor 1
17 203-3234 Filter frame retainer 2
18a 175-4131 Fluted paper filter 1
18b 991-9071 Fluted paper filter 1 (NON-OEM)
19 203-3236 Front skirt holder pin 1
20 203-3237 Rear skirt holder pin 1
21 203-3238 Pre-filter 1
22 203-3239 Side brush 1
23 203-4876 Gasket 1
24 203-3241 Shaker frame 1
25 203-3242 Vacuum motor 1
26 203-3243 Main brush arm 1
27 203-3244 Front skirt 1
28 203-3245 Rear skirt 1
29 203-3246 Pulley 1
30 203-3247 Pin 1 (includes 54 and 86)
31 203-3248 Side brush arm 1
32 203-3249 Shaker motor cover 1
33 203-3250 Spring guide 1
34 203-3251 Pulley 1
35 203-3252 Main brush arm 1
36 203-3253 Conveyor 1
37 203-3254 Main brush with locking retainer 1
38a 203-4877 Carbon brush (sold individually) 2
38b 203-3255 Main brush motor 1
39 203-3256 Pulley pin 1
40 203-3257 Rotation pin 1
41 203-3258 Articulated adjuster rod joint 1
42a 203-4878 Carbon brush (sold individually) 2
42c 203-4880 Motor gear 1
43 203-3260 Screw 4 x 16 1
44 203-3261 Washer D.4 x 18 1
45 203-3264 Washer 1
46 203-3262 Knob 1
47 203-3263 Bearing 2
48 203-3265 Snap ring 1
49 203-3266 Brush belt 1
50 175-4163 Ball joint 1
51 203-3268 Arm clip 1
52 203-3269 Link 1
53 203-3270 Screw 6 x 20 4
55 999-1617 Screw M3.9 x 13mm pan head philliips self tapping SS 2
56 203-1942 Screw M8 x 16 1
57 203-3274 Screw 6 x 50 1
58 203-3275 Nut M5 12
59 203-3276 Nut M4 6
60 203-3197 Screw M4 x 16 6
61 203-3277 Screw 8 x 35 1
62 203-3278 Washer 1
63 203-3279 Key 1
64 203-1291 Washer 4
65 203-1356 Circlip 3
66 203-1171 Washer 6 x 24 1
67 203-3281 Screw M6 x 16 3
68 203-3283 Screw 5 x 12 1
69 203-4881 Washer 2
71 203-3284 Screw 4 x 8 1
72 203-3285 Washer 1
73 189-0093 Snap Ring 1
74 203-3287 Rubber filter latch 2
75 203-4882 Screw M6 x 30 1
76 999-0469 Nut M6-1 nylon insert lock zinc plated 1
77 203-4897 Screw 2
78 203-4868 Washer 5 x 10 2
79 203-4885 Fuse box VR 1
80 203-3212 2.5amp charger and actuator fuse 1
81 203-4886 Screw M6 x 100 1
82 203-4887 Seeger D20 1
83 203-4888 Bushing 2
84 203-3220 Guide spring case 1
85 203-4889 Spring 1
86 203-3247 Pin 1
90 203-4891 Gasket 2

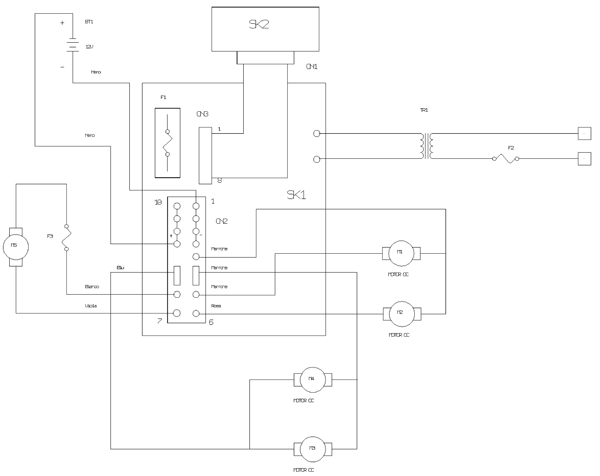

Wiring Diagram -

RefNbr Part Number Description Req Notes

- Frequently Replaced Parts - 991-9013
RefNbr Part Number Description Req Notes
162-0114 12V 50Ah AGM battery 1
203-3182 Battery charger/transformer 1
203-3209 Charger wire harness and plug 1
203-4865 Battery harness 1
203-3172 Rear wheel 2
203-3173 Front caster 2
203-3184 Right side skirt 1
203-3177 Left side skirt 1
203-4871 1.25amp fuse 1
203-3241 Shaker frame 1
203-3239 Side brush 1
175-4131 Fluted paper filter 1 (OEM)
991-9071 Fluted paper filter 1 (NON-OEM)
203-3169 Hopper latch 1
203-3238 Pre-filter 1
203-3254 Main brush with locking retainer 1
