Parts List Complete for EAGLEPOW SMARTVAC 24

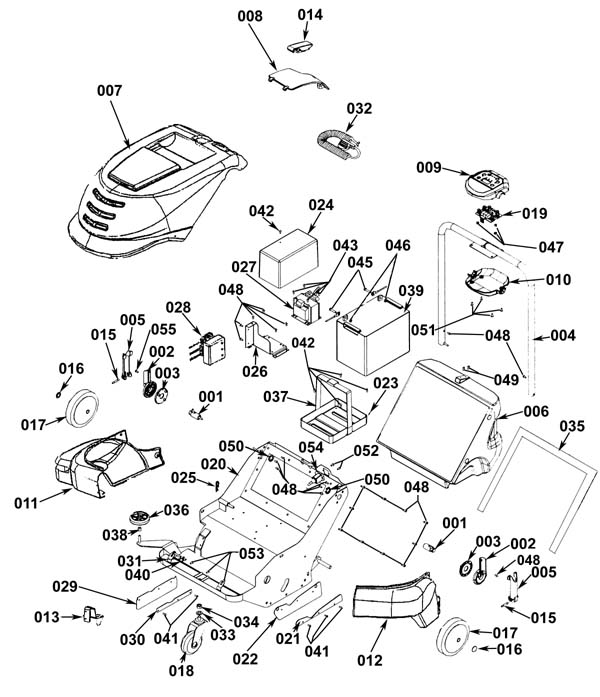

Chassis Assembly - 203-2040
RefNbr Part Number Description Req Notes
001 203-3156 Handle rotation pin 2
002 203-3157 Serrated handle lock clamp 2
003 175-4048 Handle locking pad 2
004 175-4049 Handle tube with grip 1
005 203-3160 Handle lock lever 2
006 203-3161 Rear hopper 1
007 203-3162 Eagle Power cover (OBSOLETE) 1
008 203-3163 Eagle Power door 1
009 203-3164 Housing top touch panel 1
010 203-3165 Control housing bottom 1
011 203-3302 Right side panel - Smart Vac 24 (OBSOLETE) 1
012 203-4117 Left side panel - Smart Vac 24 (OBSOLETE) 1
013 203-3168 Bracket 1
014 203-3169 Hopper latch 1
015 203-3170 Plug 2
016 203-3171 Clip 2
017 203-3172 Rear wheel 2
018 203-3173 Front caster 1
019 203-3174 Touch board control 1
020 203-3175 Frame 1
021 203-3176 Left side skirt plate 1
022 203-3177 Left side skirt 1
023 203-4860 Battery tray 1
024 203-4861 Electrical cover 1
025 203-3180 Pin 1
026 203-3181 Electronics bracket 1
027 203-3182 Battery charger/transformer 1
028 203-3183 Control board 1
029 203-3184 Right side skirt 1
030 203-3185 Right side skirt plate 1
031 203-1291 Washer 1
032 203-3187 Charging cord 1
033 189-1414 Washer D12 1
034 203-1976 Nut M12 self locking 1
035 203-3190 Hopper gasket 1
036 203-3191 Bumper wheel 1
037 203-4240 Belt 1
038 203-3193 Spacer 1
039 162-0114 12V 50Ah AGM battery 1
040 203-1356 Circlip 1
041 203-3196 Screw 4 x 16 6
042 203-3197 Screw M4 x 16 9
043 203-3198 Screw 4 x 16 4
045 203-3200 Screw 6 x 18 2
046 203-3201 Nut M6 (OBSOLETE) 2
047 203-3202 Nut M4 3
048 203-3203 Screw 5 x 15 20
049 203-3204 Screw 5 x 20 2
050 203-3205 Nut 2
051 203-3206 Screw M5 x 16 4
052 203-3207 Screw 2
053 999-0920 Screw M6-1 x 16mm button head socket 3
054 203-3209 Charger wire harness and plug 1
N/S 991-2117 Battery charger connector (red) 1
N/S 991-2118 Battery charger connector (black) 1
N/S 203-3212 2.5amp charger and actuator fuse 2
N/S 203-3211 20amp main card fuse 1

Brush and Filter Assembly - 203-2041
RefNbr Part Number Description Req Notes
001 203-3218 Main brush drive shaft 1
002 203-3219 Adjuster rod 1
003 203-3220 Guide spring case 1
004 203-3221 Actuator 1
005 203-3222 Filter frame plate 1
006 203-3223 Filter frame 1
007 203-4875 Blower housing 1
008 203-3225 Main brush locking retainer 1
009 203-3226 Side brush driving arm 1
010 203-3227 Side brush drive hub 1
011 203-3228 Pin 1
012 203-3229 Driving arm pin 1
013 203-3230 Connecting rod 1
014 203-3231 Skirt spacer 1
015 203-3232 Main brush drive shaft support 2
016 203-3233 Shaker motor 1
017 203-3234 Filter frame retainer 2
018a 175-4131 Fluted paper filter 1 (OEM)
018b 991-9071 Fluted paper filter 1 (NON-OEM)
018c 991-9077 Polyester panel filter (OBSOLETE) 1 (NON-OEM)
019 203-3236 Front skirt holder pin 1
020 203-3237 Rear skirt holder pin 1
021a 203-3238 Pre-filter 1 (OEM)
021b 991-9072 Pre-filter 1 (NON-OEM)
022a 203-3239 Side brush 1
022b 991-7008 Side brush 1
023 203-3240 Filter gasket (OBSOLETE) 1
024 203-3241 Shaker frame 1
025 203-3242 Vacuum motor 1
026 203-3243 Main brush arm 1
027 203-3244 Front skirt 1
028 203-3245 Rear skirt 1
029 203-3246 Pulley 1
030 203-3247 Pin 1 (includes 054)
031 203-3248 Side brush arm 1
032 203-3249 Shaker motor cover 1
033 203-3250 Spring guide 1
034 203-3251 Pulley 1
035 203-3252 Main brush arm 1
036 203-3253 Conveyor 1
037a 203-3254 Main brush with locking retainer 1
037b 991-7009 Main brush with locking retainer 1
038 203-3255 Main brush motor 1
039 203-3256 Pulley pin 1
040 203-3257 Rotation pin 1
041 203-3258 Articulated adjuster rod joint 1
042a 203-3259 Side brush motor 1
042b 189-0093 Snap Ring 1 For shaft
043 203-3260 Screw 4 x 16 1
044 203-3261 Washer D.4 x 18 1
045 203-3264 Washer 1
046 203-3262 Knob 1
047 203-3263 Bearing 2
048 203-3265 Snap ring 1
049 203-3266 Brush belt 1
050 175-4163 Ball joint 1
051 203-3268 Arm clip 1
052 203-3269 Link 1
053 203-3270 Screw 6 x 20 4
054 203-3247 Pin 1 Bearing only available in kit now)
055 999-1617 Screw M3.9 x 13mm pan head philliips self tapping SS 4
056 203-1942 Screw M8 x 16 1
057 203-3274 Screw 6 x 50 1
058 203-3275 Nut M5 10
059 203-3276 Nut M4 6
060 203-3197 Screw M4 x 16 6
061 203-3277 Screw 8 x 35 1
062 203-3278 Washer 1
063 203-3279 Key 1
064 203-1291 Washer 4
065 203-1356 Circlip 3
066 203-1171 Washer 6 x 24 1
067 203-3281 Screw M6 x 16 3
068 203-3283 Screw 5 x 12 1
069 203-3282 Washer 1
070 203-3283 Screw 5 x 12 1
071 203-3284 Screw 4 x 8 1
072 203-3285 Washer 1
073 189-0093 Snap Ring 1
074 203-3287 Rubber filter latch 2
N/S 203-4250 Brush hooking lever 1

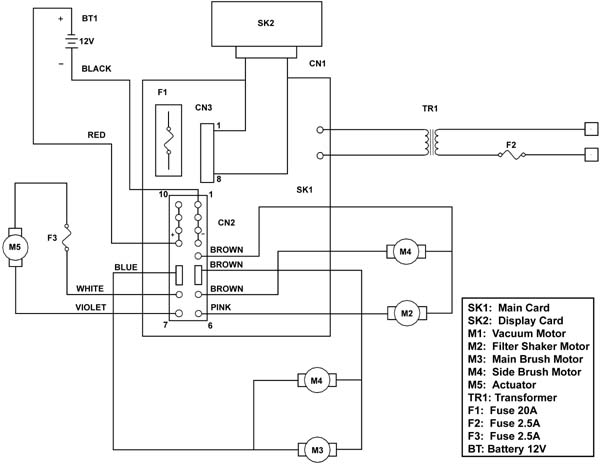

Electrical Diagram -

RefNbr Part Number Description Req Notes
