Parts List Complete for EAGLEPOW RHINO36

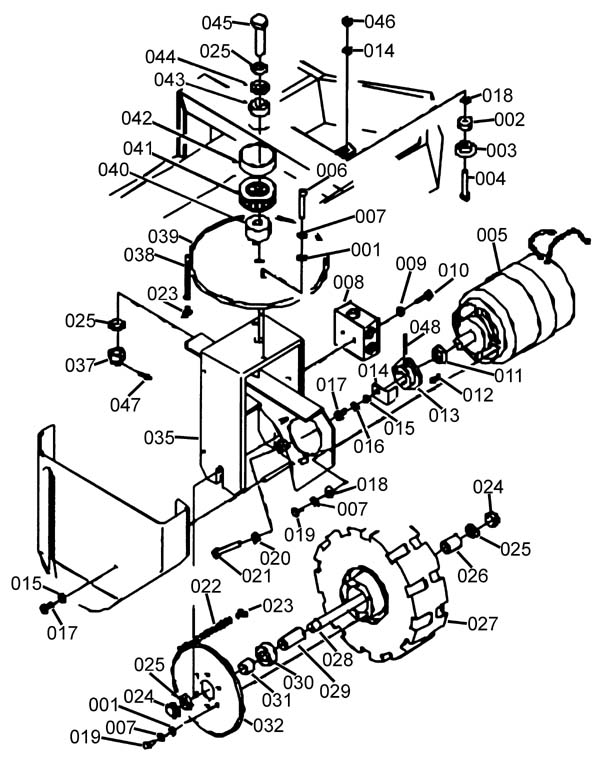

Wheel Assembly - 203-0135
RefNbr Part Number Description Req Notes
001 189-1363 Washer 14
002 189-0609 Spacer 1
003 189-0610 Chain tightener 1
004 189-1373 Screw 8 x 45 inch 1
005 203-2565 Gearmotor 36v 1
006 189-1374 Screw 2
007 189-1369 Washer cham 12
008 189-0612 Electric housing (OBSOLETE) 1
009 189-1375 Washer D4 2
010 189-1376 Screw 4 x 10 inch 2
011 189-1377 Washer 1
012 203-2568 Tongue (OBSOLETE) 1
013 189-0613 Pinion 1
014 189-0614 Plate 1
015 189-1345 Washer d10 cham 4
016 189-1347 Washer 1
017 189-1424 Screw 3
018 189-1378 Washer 5
019 189-1367 Screw 10
020 189-1379 Nut M8 1
021 189-1370 Screw 1
022 189-0615 Traction chain 1
023 189-0616 Chain link 2
024 189-1380 Nut 2
025 189-1381 Washer 4
026 189-0617 Spacer 1
027 189-0618 Driver wheel 1
028 189-0619 Pin 1
029 189-0620 Spacer 1
030 203-2578 Bearing 1
031 189-0622 Spacer 1
032 189-0623 Crown 1
035 203-2581 Fork (OBSOLETE) 1
037 203-2582 Nut 1
038 189-0625 Steering chain 1
039 189-0626 Crown 1
040 189-0627 Spacer 1
041 189-0628 Bearing 1
042 189-0629 Guard 1
043 203-2588 Bearing 1
044 189-0631 Ring 1
045 203-2590 Screw 1
047 203-2591 Split pin (OBSOLETE) 1
048 189-0633 Split pin (OBSOLETE) 1
049 203-2592 Motor drum (OBSOLETE) 1

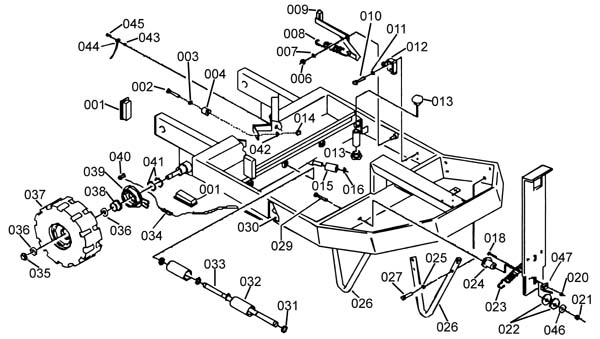

Chassis Assembly - 203-0136
RefNbr Part Number Description Req Notes
001 203-2593 Terminal (OBSOLETE) 4
002 189-1392 Screw 2
003 189-1391 Washer D6 2
004 189-0574 Plug / Stopper 2
007 189-1363 Washer 1
008 189-0575 Spring 1
009 189-0576 Lever 1
010 203-2596 Screw (OBSOLETE) 2
011 189-1375 Washer D4 2
012 203-1754 Microswitch 1
013 203-2597 Plug (OBSOLETE) 6
014 189-1361 Nut 2
015 189-0578 Roller 1
016 189-0579 Seeger 1
018 189-1457 Screw M2 2
020 189-1458 Nut M2 1
022 189-1459 Washer 2
023 189-0582 Spring 2
024 203-2600 Spacer (OBSOLETE) 1
025 189-1369 Washer cham 8
026 203-2601 Hose (OBSOLETE) 2
027 189-1399 Screw M8 zinc 8
030 203-2602 Label (OBSOLETE) 1
031 189-0149 Ring 16
032 189-0586 Roller 8
033 189-0587 Pin 4
034 189-0415 Register 2
035 189-1380 Nut 2
036 189-1381 Washer 4
037 189-0588 Rear wheel rubber 2
038 189-0589 Bushing 2
039 189-0590 Block 2
040 203-2402 Clamp (OBSOLETE) -
041 189-1402 Washer 4
042 189-1345 Washer d10 cham 2
043 189-1403 Washer D8 1
044 189-0591 Cable 1
045 999-0924 Bolt 3/8-16 x 6-15/16 turned eye zinc plated 1
047 203-0193 Lever (OBSOLETE) 1

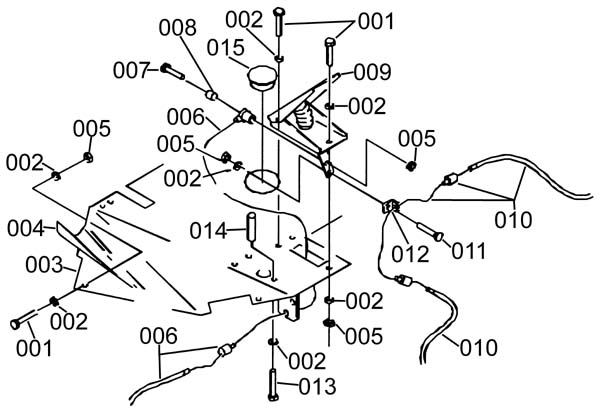

Pedal Brake Assembly - 203-0137
RefNbr Part Number Description Req Notes
001 189-1422 Washer 10
002 189-1345 Washer d10 cham 22
003 203-2611 Footboard (OBSOLETE) 1
004 203-2612 Coating (OBSOLETE) 1
005 189-1361 Nut 12
006 189-0416 Cable 1
007 189-1424 Screw 1
008 189-0523 Bushing 1
009 189-0524 Treadle (OBSOLETE) 1
010 203-2615 Cable 1
011 189-1365 Seat screw 1
012 189-0526 Block / Lock 1
013 189-1424 Screw 1
014 189-0527 Spacer 1
015 189-0741 Cap 1

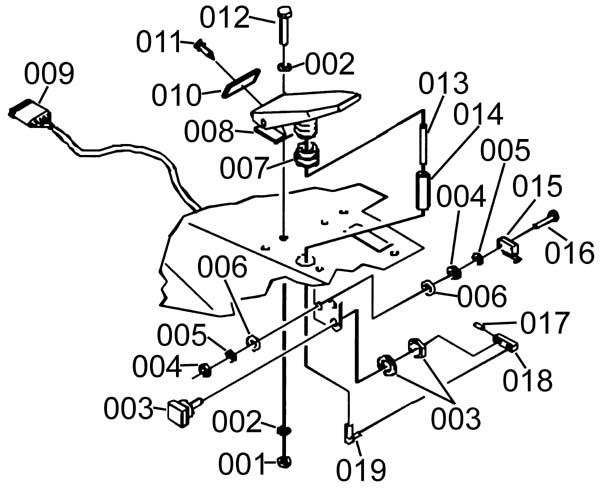

Drive Assembly - 203-0138
RefNbr Part Number Description Req Notes
001 189-1361 Nut 2
002 189-1345 Washer d10 cham 4
003 189-0511 Potentiometer 1
004 189-1425 Nut 4
005 189-1426 Washer 4
006 189-1375 Washer D4 4
007 189-0512 Bushing 1
008 189-0513 Treadle 1
009 203-2622 Wiring (OBSOLETE) 1
010 189-0515 Spacer 1
011 189-1350 Screw 1
012 189-1390 Screw 2
013 189-0516 Bar 1
014 189-0517 Spacer 1
015 189-0261 Microswitch 1
016 189-1427 Screw 2
017 203-2462 Traction level spring 1
018 189-0519 Lever 1
019 189-0327 Articulation 1

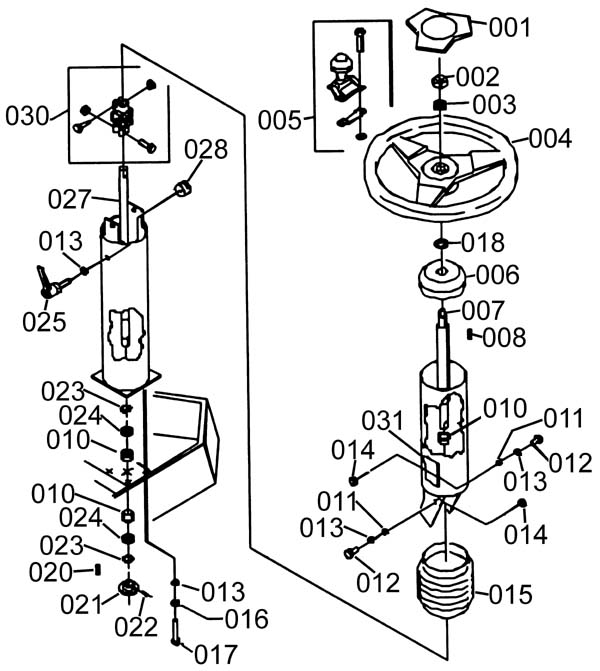

Steering Column Assembly - 203-0139
RefNbr Part Number Description Req Notes
001 203-2629 Cap (OBSOLETE) 1
002 189-1358 Nut 1
003 189-1366 Washer D14 1
004 203-2631 Steering wheel (OBSOLETE) 1
005 189-0637 Knob steering wheel 1
006 189-0638 Cap 1
007 189-0639 Shaft 1
008 203-2062 Key 5x5x20 1
010 189-0465 Bearing 3
011 189-0641 Spacer 2
012 189-1367 Screw 2
013 189-1363 Washer 7
015 189-0642 Protective cover 1
016 189-1369 Washer cham 4
017 189-1370 Screw 4
018 189-1371 Washer 1
020 189-0643 Tongue 1
021 189-0644 Pinion 1
022 189-0633 Split pin (OBSOLETE) 1
023 189-0645 Ring 2
024 189-1372 Washer 2
025 189-0646 Lever 1
027 189-0647 Shaft 1
028 189-0648 Lock 1
030 203-2643 Joint 1
031 203-2644 Label (OBSOLETE) 1

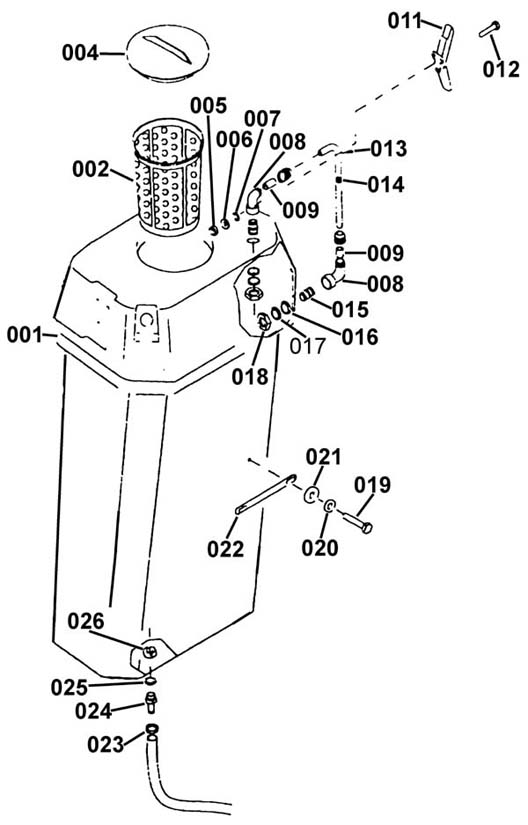

Tank Assembly - 203-0140
RefNbr Part Number Description Req Notes
001 189-0753 Gasket 1
002 203-2646 Filter 1
005 189-1468 Nut 6
006 189-1462 Washer 5 x 14 inch 6
007 189-0755 Gasket 6
008 189-0756 Union / Connector 2
009 189-0757 Hose 2
011 189-3074 Tank latch 2
012 203-2650 Screw (OBSOLETE) 6
013 189-0759 Hose 1
014 189-0760 Sphere ball 1
015 189-0761 Nipple 2
016 189-0762 Rubber gasket 3
017 189-1463 Washer (OBSOLETE) 2
018 189-1464 Nut 8
019 189-1465 Screw 2
020 189-1462 Washer 5 x 14 inch 2
021 189-0763 Bushing 2
022 189-0764 Handle 1
023 189-0716 Clamp 14-24 inch 1
024 189-0765 Union / Connector 1

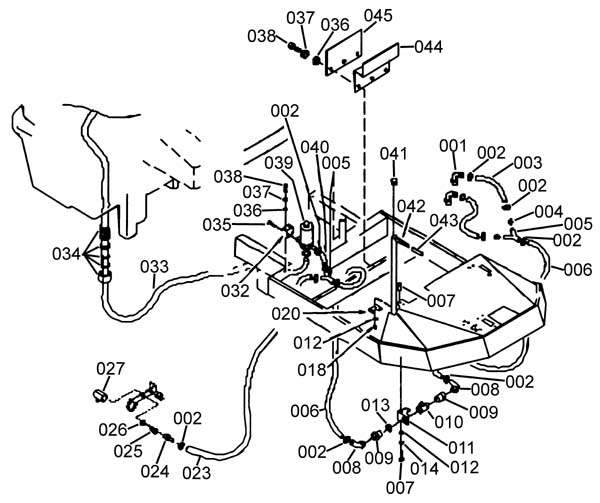

Tank Hydraulic Unit Assembly - 203-0141
RefNbr Part Number Description Req Notes
001 189-0142 Union/connector 2
002 189-0716 Clamp 14-24 inch 13
003 189-0717 Hose 2
004 189-0718 Union / connector 2
006 189-0720 Hose 2
007 189-1390 Screw 4
008 189-0721 Left coupling 2
009 189-0722 Reduction 2
011 189-0724 Support 1
012 189-1345 Washer d10 cham 4
013 189-1455 Washer 1
014 189-1347 Washer 2
018 203-0524 Nut M6 lock 2
020 189-0725 Block / Lock 1
023 189-0726 Hose 1
024 189-0727 Union / Connector 1
025 189-0722 Reduction 1
026 189-1455 Washer 1
027 203-4346 Tap 1
033 189-0729 Hose 1
034 203-2670 Union/connector 1
035 189-1407 Screw 2
036 189-1375 Washer D4 5
037 189-1456 Washer (OBSOLETE) 5
038 189-1352 Screw 5
039 189-0731 Pump 1
040 189-0732 Hose 1
041 189-0733 Cap 1
042 189-0734 Lever 1
043 203-0522 Handle 1
044 203-2675 Plate (OBSOLETE) 1
045 203-2676 Plate (OBSOLETE) 1

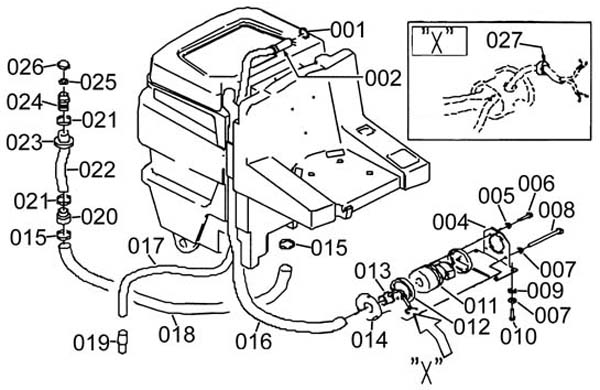

Tank:Suction Assembly - 203-0142
RefNbr Part Number Description Req Notes
001 189-0680 Gasket 1
004 189-0681 Support 1
005 189-1345 Washer d10 cham 4
006 203-0243 Screw (OBSOLETE) 4
007 189-1347 Washer 7
008 189-1348 Screw 3
009 189-1356 Washer 6-18 inch 4
010 189-1424 Screw 4
011 203-2680 3 Stage vac motor 1
012 189-0185 Gasket 2
013 189-0782 Connector 1
014 189-0686 Flange 1
015 189-0687 Clamp 2
017 189-0023 Squeegee vac hose 1
018 189-0024 Recovery drain hose 1
019 189-0118 Sleeve 1
020 189-0689 Connector 1
021 189-0690 Clamp 2
022 189-0691 Drain hose sheath 1
023 189-0692 Drain hose adapter 1
024 189-0693 Hose holder 1
026 189-0695 Cap 1
027 189-0698 Fairlead 1

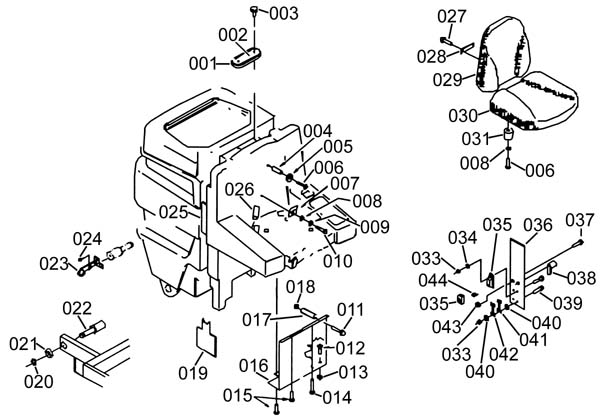

Tank Accessories Assembly 1 - 203-0143
RefNbr Part Number Description Req Notes
001 189-0713 Gasket 1
002 189-0651 Lid 1
003 189-0714 Handwheel 2
004 189-0666 Reinforcement 2
005 189-1356 Washer 6-18 inch 2
006 189-1354 Turned eye screw 6
007 189-0662 Plate 1
008 189-1345 Washer d10 cham 4
009 189-1347 Washer 1
010 189-1357 Screw 6 x 12 inch 1
011 189-1359 Screw 1
012 189-1360 Screw 1
014 203-0243 Screw (OBSOLETE) 2
015 189-1350 Screw 7
016 203-2699 Plate (OBSOLETE) 1
017 203-2700 Spacer (OBSOLETE) 1
018 189-1361 Nut 1
019 203-2701 Panel (OBSOLETE) 1
020 203-2702 Ring (OBSOLETE) 2
021 189-1362 Washer 2
022 189-0669 Pin 2
023 189-0715 Support 1
024 203-4851 Screw 1
025 203-2706 Reinforcement 1
026 203-2707 Terminal (OBSOLETE) 2
027 189-1365 Seat screw 1
028 203-2708 Plate (OBSOLETE) 1
029 203-2709 Seat back (OBSOLETE) 1
030 203-2710 Seat bottom 1
031 189-0574 Plug / Stopper 4
033 203-2457 Nut (OBSOLETE) 4
034 189-1353 Washer D5 2
035A 189-0659 Fuse holders 1
035B 189-0462 Lid 1
036 203-2711 Lid (OBSOLETE) 1
037 189-1454 Screw 3
038 203-2712 Catch/lock (OBSOLETE) 1
039 189-1352 Screw 4
040 203-0145 Washer 4-16 inch 4
041 189-0247 100amp fuse 1
042 189-0456 75amp fuse 1
043 203-0524 Nut M6 lock 1
044A 189-0107 5 amp fuse 4
044B 189-0108 Fuse 1
044C 189-0463 Fuse 1

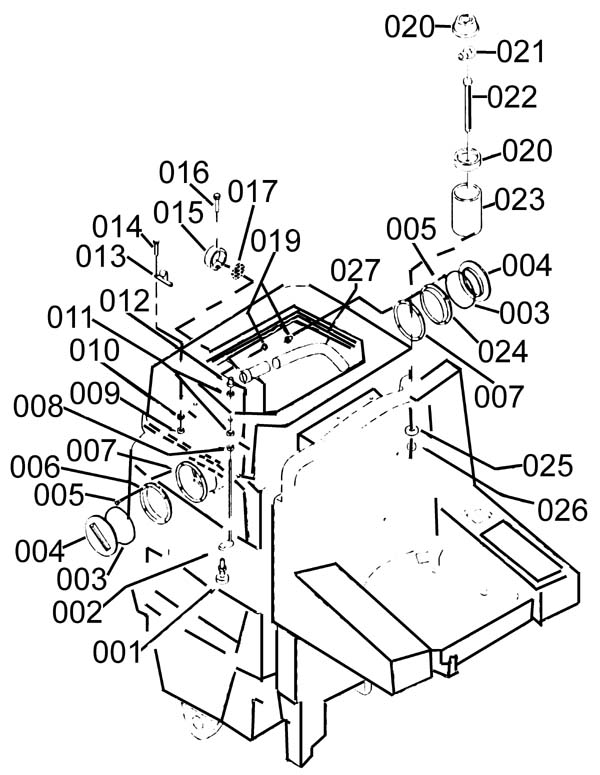

Tank Accessories Assembly - 203-0144
RefNbr Part Number Description Req Notes
001 203-2716 Float switch 1
002 203-2717 Rod (OBSOLETE) 1
004 189-0768 Cap 2
005 203-2719 Screw (OBSOLETE) 8
006 189-1467 Nut 1
007 189-0769 Gasket 2
008 189-1468 Nut 1
009 189-1361 Nut 4
010 189-1345 Washer d10 cham 4
011 189-1462 Washer 5 x 14 inch 2
012 189-1469 Nut 1
013 189-0770 Bracket 2
014 189-1470 Screw 4
015 189-1475 Support 1
016 189-1471 Screw 1
017 189-0771 Filter 1
019 189-1535 Nut zinc black 8
020 189-0653 Flash-light cover 1
021 189-0654 Bulb 1
022 189-1473 Screw 1
023 189-0772 Spacer 1
024 189-1474 Nut 1
025 189-1398 Washer 6 x 24 inch 1
026 203-0524 Nut M6 lock 1
027 189-0773 Streaked hose 1

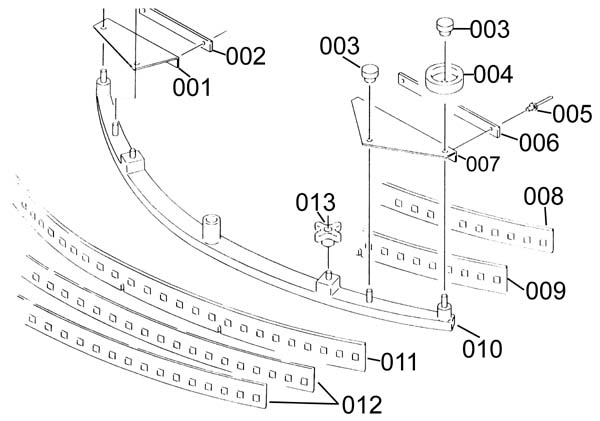

Squeegee95 Assembly - 203-0145
RefNbr Part Number Description Req Notes
001 189-0484 Bumper 1
002 189-0485 Stip / Band 1
003 189-0058 Handle 4
004 189-0188 Bumper wheel 2
005 203-2412 Rivet (OBSOLETE) 4
006 189-0487 Strip / Band 1
008 189-0035 Squeegee blade black 53 inch 1
009 203-2416 Front squeegee blade 1
010 189-0489 Squeegee body 1
011 203-2418 Rear curved squeegee blade 1
012 189-0035 Squeegee blade black 53 inch 2
013 189-0187 Knob 2

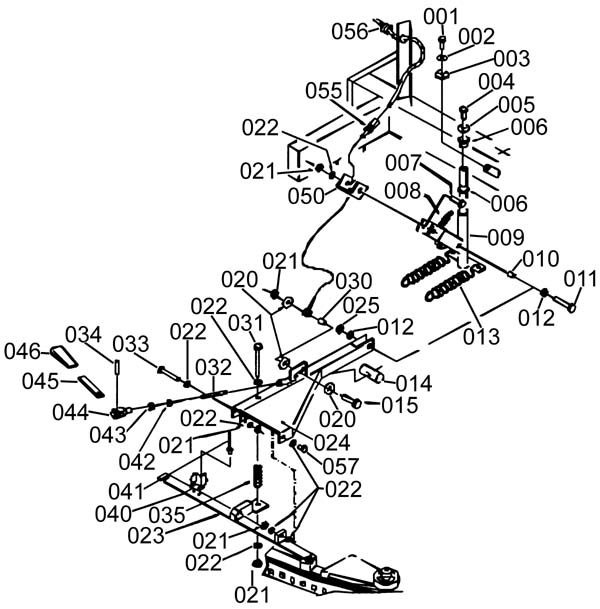

Squeegee Lift Assembly - 203-0146
RefNbr Part Number Description Req Notes
001 189-1357 Screw 6 x 12 inch 1
002 189-1391 Washer D6 1
003 189-1408 Washer 1
004 999-0924 Bolt 3/8-16 x 6-15/16 turned eye zinc plated 1
005 189-1410 Washer D8 zinc 1
006 189-0273 Bearing 2
007 189-1439 Screw 2
008 189-0537 Spring 1
009 189-0538 Clip 1
010 189-0539 Bearing 2
011 189-1412 Screw 1
013 189-0540 Spring 2
014 203-2442 Hooking 1
015 189-1344 Screw M8 1
020 189-1400 Washer 3
022 189-0897 Washer D8 8
023 189-0542 Bracket 1
024 189-0543 Lever 1
025 189-1415 Nut 1
030 203-2739 Spacer (OBSOLETE) 1
031 189-1417 Screw 1
032 189-0545 Bar 1
033 189-1373 Screw 8 x 45 inch 1
035 189-0547 Spring 1
040 189-0115 Duct lock 1
041 189-0548 Tear rivet 2
042 189-1418 Washer 1
043 189-1379 Nut M8 1
044 189-0549 Fork 1
045 189-0550 Lever 1
046 203-0522 Handle 1
050 189-0552 Support (OBSOLETE) 1
055 189-0415 Register 1
056 189-0553 Fairlead 1
057 203-1738 Screw (OBSOLETE) 1

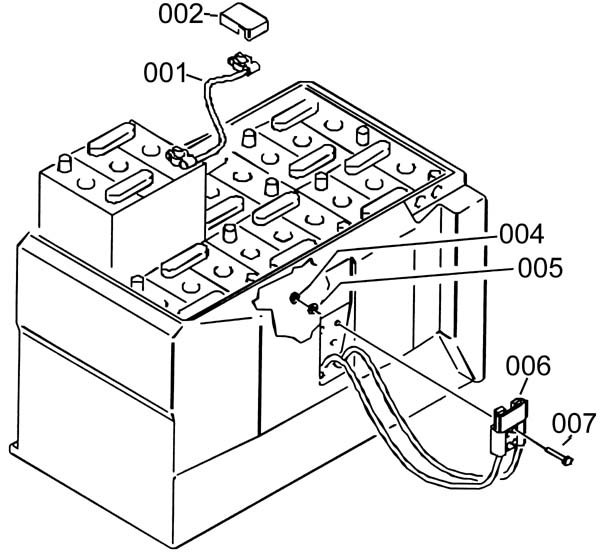

Battery Case Assembly - 203-0147
RefNbr Part Number Description Req Notes
001 189-0745 Pilot light 5
002 189-0742 Terminal cable covers 12
004 189-1361 Nut 4
005 189-1345 Washer d10 cham 4
006 189-0423 Wiring (OBSOLETE) 1
007 189-1354 Turned eye screw 4

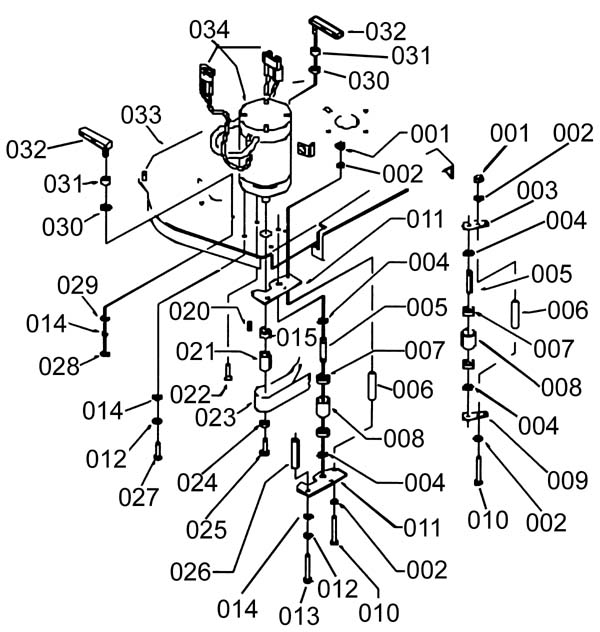

Head95: Motor Assembly - 203-0148
RefNbr Part Number Description Req Notes
001 189-1361 Nut 3
002 189-1345 Washer d10 cham 6
003 203-2343 Plate (OBSOLETE) 1
004 189-0081 Ring 4
005 189-0148 Pin/plug 2
006 189-0147 Bearing 3
007 203-3263 Bearing 4
008 189-0146 Pulley 2
009 189-0710 Plate 1
010 189-1419 Screw 3
011 189-0528 Plate 2
012 189-1369 Washer cham 3
013 189-1420 Screw 2
014 189-1363 Washer 5
015 189-0531 Spacer 1
020 203-2062 Key 5x5x20 1
021 189-0221 Pulley 1
022 203-2350 Screw (OBSOLETE) 1
023 189-0711 Belt 1
025 189-1421 Screw 1
026 189-0529 Spacer 2
027 189-1364 Screw 1
029 189-1393 Washer 2
030 189-1394 Washer D13 2
031 189-0223 Rubber shim 2
032 189-0224 Bracket 2
033 203-2355 Plate (OBSOLETE) 1
034b 189-0534 Connector 1
034c 189-2002 Battery charger connector 1
034d 203-2359 Motor coal (OBSOLETE) 2

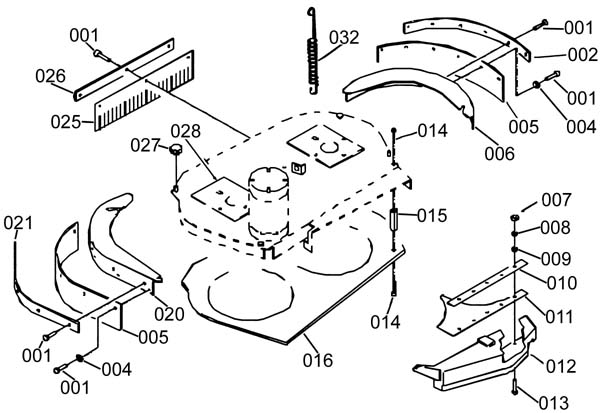

Head95: Flap/Box Assembly - 203-0149
RefNbr Part Number Description Req Notes
001 189-1352 Screw 23
002 189-0783 Flap press 1
004 203-0145 Washer 4-16 inch 10
005 189-0784 Splash guard side flap 2
006 189-0785 Cover 1
007 189-1434 Nut 5
008 189-1433 Washer 5
009 203-0235 Washer 5
010 189-0473 Lamination 1
011 189-0474 Dustpan 1
012 189-0475 Dust collector 1
013 189-1476 Screw 5
014 189-1435 Screw 14
015 189-0476 Head protection spacer 7
016 203-2368 Guard (OBSOLETE) 1
020 189-0787 Cover 1
021 189-0788 Flap press 1
025 189-0789 Splash guard rear flap 1
026 189-0790 Flap press 1
027 203-2432 Knob 2
028 189-0792 Gasket 2
032 189-0222 Spring 1

Head95: Pulley Axle Assembly - 203-0150
RefNbr Part Number Description Req Notes
001 189-1428 Screw M8 8
003 189-1429 Nut 2
004 189-0156 Flange 2
005 189-1363 Washer 8
007 189-0492 Hexagon pin 2
008 189-0207 Guard 2
009 203-0715 Bearing 4
010 189-0493 Hexagon aluminum assembly 2
011 189-0093 Snap Ring 2
012 189-0209 Guard 2
013 189-0494 Pulley 2
014 189-1345 Washer d10 cham 6
015 189-1452 Screw M5-16 zinc plated 6

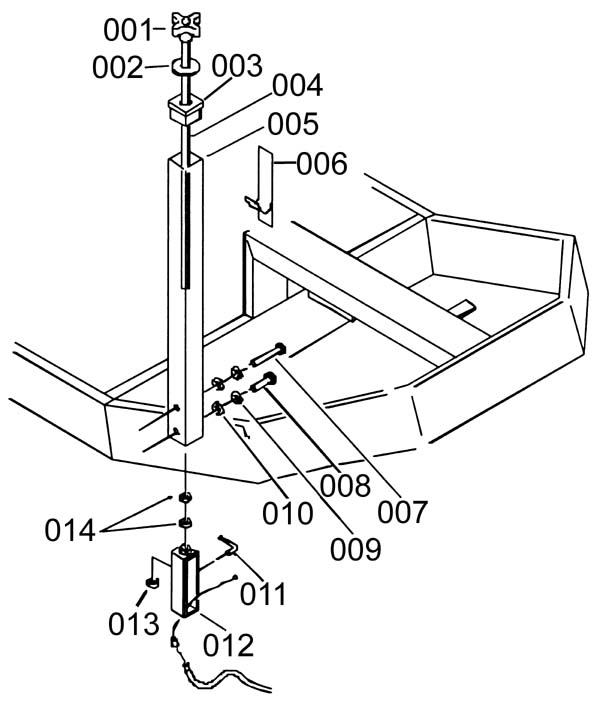

Front Head Lifting Assembly - 203-0151
RefNbr Part Number Description Req Notes
001 189-0187 Knob 1
002 189-1449 Washer D10 1
003 203-2750 Cap (OBSOLETE) 1
004 203-2751 Bar (OBSOLETE) 1
005 203-2752 Structural (OBSOLETE) 1
006 203-2753 Adhesive label (OBSOLETE) 1
007 203-2754 Screw (OBSOLETE) 1
008 189-1367 Screw 1
009 189-1369 Washer cham 2
010 189-1363 Washer 2
011 203-2755 Indicator (OBSOLETE) 1
012 203-2756 Plate (OBSOLETE) 1
014 189-1379 Nut M8 2

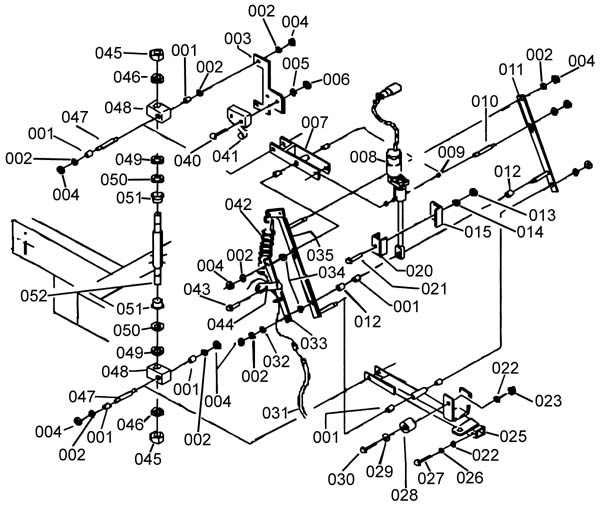

Rear Head Lifting Assembly - 203-0152
RefNbr Part Number Description Req Notes
001 189-0539 Bearing 9
002 189-1363 Washer 10
003 189-0592 Support 1
005 189-1375 Washer D4 2
006 189-1384 Nut M4 2
007 189-0593 Lever 1
008 189-0570 Actuator 1
009 189-0569 Bearing 2
010 189-0595 Pin 1
011 189-0596 Lever 1
012 189-0597 Spacer 2
013 189-1385 Nut 1
014 189-1386 Washer 1
015 189-0598 Support 1
020 189-0599 Spacer 1
021 189-1387 Screw 1
022 189-1345 Washer d10 cham 3
023 999-0469 Nut M6-1 nylon insert lock zinc plated 1
025 189-0600 Lever 1
026 189-1347 Washer 2
027 189-1390 Screw 2
028 189-0574 Plug / Stopper 1
029 189-1391 Washer D6 1
030 189-1392 Screw 1
031 203-2767 Cable 1
032 189-1393 Washer 1
033 189-0602 Plate 1
034 189-1394 Washer D13 2
035 189-0603 Plate 1
040 203-2596 Screw (OBSOLETE) 2
041 203-1754 Microswitch 1
042 189-0604 Spring (OBSOLETE) 2
043 189-1357 Screw 6 x 12 inch 1
044 189-0605 Pin 1
045 189-1358 Nut 2
046 189-1366 Washer D14 2
048 189-0607 Block / Lock 2
049 189-1381 Washer 2
050 189-1372 Washer 2
051 189-0465 Bearing 2
052 189-0608 Pin 1

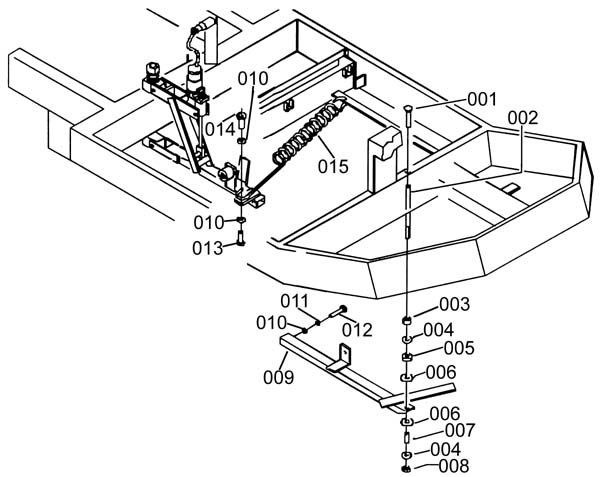

Head Fastener Assembly - 203-0153
RefNbr Part Number Description Req Notes
001 189-1407 Screw 1
002 189-0572 Pivot pin 1
003 189-0751 Spacer 1
004 189-1378 Washer 2
005 189-0223 Rubber shim 1
006 189-1394 Washer D13 2
007 189-0234 Spacer 1
009 189-0568 Lever 1
010 189-1345 Washer d10 cham 4
011 189-1347 Washer 2
012 189-1390 Screw 2
013 189-1392 Screw 1
014 203-2778 Spacer (OBSOLETE) 1
015 189-0222 Spring 1

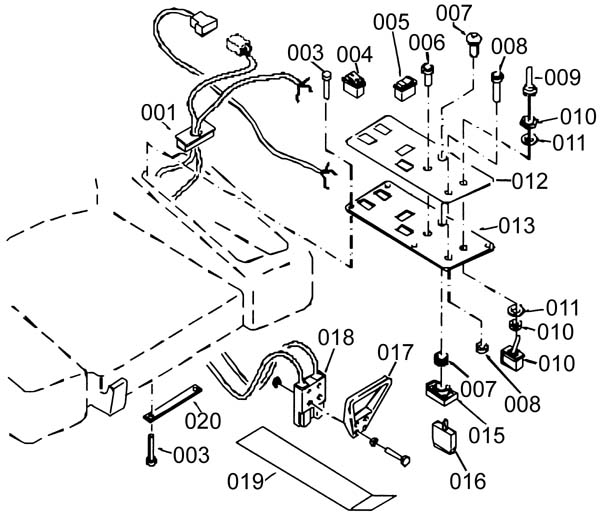

Electric Unit 1 - 203-0154
RefNbr Part Number Description Req Notes
001 203-2779 Terminal (OBSOLETE) 1
003 189-1350 Screw 12
004 203-0698 Lighted switch 2
005 189-2223 Switch 2
006 203-2780 Pilot light 1
007 189-0264 Key switch complete 1
008 203-2781 Push-button (OBSOLETE) 1
008 203-2783 Reflex reflector (OBSOLETE) 1
008 203-2782 Reverse switch (OBSOLETE) 1
009 203-2784 Cap 1
010 203-2785 Switch 1
011 203-2786 Washer 2
012 203-2787 Adesive label (OBSOLETE) 1
013 203-2788 Plate (OBSOLETE) 1
015 189-0264 Key switch complete 1
016 189-0264 Key switch complete 2
017 189-0440 Handle plug anderson 1
018 189-0441 Anderson plug 1
019 203-2790 Plate (OBSOLETE) 1
020 203-2791 Support (OBSOLETE) 3

Electric Unit 2 - 203-0155
RefNbr Part Number Description Req Notes
001 203-2792 Plate (OBSOLETE) 1
002 203-4739 Screw 8
003 189-1447 Screw 1
004 189-1359 Screw 2
005 189-1457 Screw M2 2
006 203-2794 Resistance 12ohm 10w 1
007 189-1458 Nut M2 2
008 189-0445 Spacer 4
009 999-0469 Nut M6-1 nylon insert lock zinc plated 6
011 203-2700 Spacer (OBSOLETE) 1
012 189-1446 Nut M3 8
013 189-1441 Washer 8
014 189-0453 Resistor 1
015 189-0450 Resistance 1
016 189-0451 Thermostat 2
017 189-1379 Nut M8 12
018 189-1369 Washer cham 12
019 203-0882 Support (OBSOLETE) 2
020 189-1400 Washer 4
021 203-2798 Bridge/jumper (OBSOLETE) 1
022 203-2799 Wiring unit (OBSOLETE) 1
023 999-0924 Bolt 3/8-16 x 6-15/16 turned eye zinc plated 4
024 189-0449 Teleswitch 1
025 189-0749 Shunt (OBSOLETE) 1
026 189-1345 Washer d10 cham 4
027 189-0750 Remote control switch 1

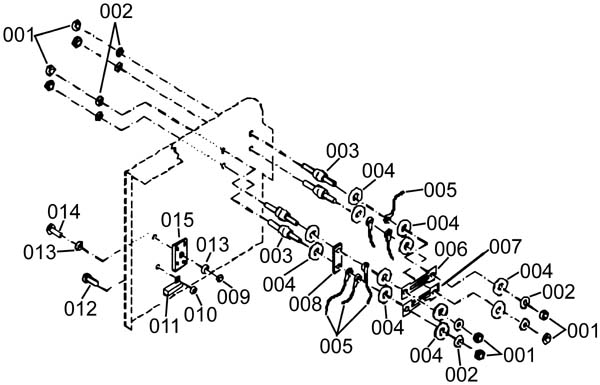

Electric Unit 3 - 203-0156
RefNbr Part Number Description Req Notes
001 189-1379 Nut M8 8
002 189-1369 Washer cham 8
003 203-0882 Support (OBSOLETE) 4
004 189-1400 Washer 12
005 203-2799 Wiring unit (OBSOLETE) 1
006 189-0456 75amp fuse 1
007 189-0247 100amp fuse 1
008 203-2798 Bridge/jumper (OBSOLETE) 1
009 189-1384 Nut M4 1
010 189-1458 Nut M2 2
011 203-2801 Resistance (OBSOLETE) 1
012 189-1457 Screw M2 2
013 189-1375 Washer D4 2
014 203-2802 Screw (OBSOLETE) 1
015 189-0455 Bridge / Jumper 1

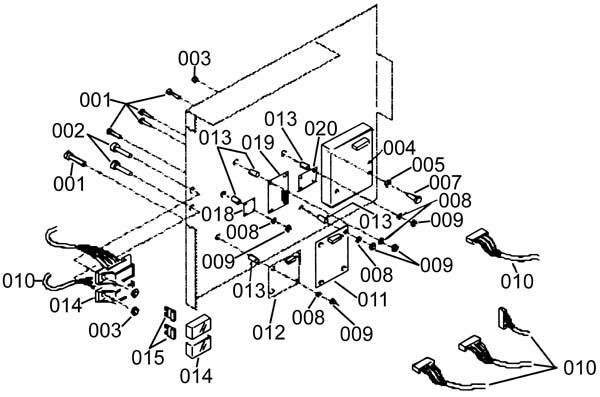

Electric Unit 4 - 203-0157
RefNbr Part Number Description Req Notes
001 189-1427 Screw 17
002 189-1440 Screw 4
003 189-1384 Nut M4 6
004 203-2803 Board 1
005 189-1462 Washer 5 x 14 inch 2
007 203-1712 Screw (OBSOLETE) 2
008 189-1441 Washer 17
009 189-1425 Nut 17
010 203-2799 Wiring unit (OBSOLETE) 1
011 189-0459 Auxiliar Card for Rhino Uno 1
012 203-2805 Board 1
013 203-2806 Spacer (OBSOLETE) 17
014a 189-0462 Lid 2
014b 189-0256 Fuse carrier 2
015a 189-0107 5 amp fuse 7
015b 189-0108 Fuse 1
015c 189-0463 Fuse 1
015d 189-0107 5 amp fuse 1
015e 203-2809 Fuse (OBSOLETE) 1
018 203-2466 Circuit board 1
019 189-0458 Gearcase / board 1
020 203-2808 Board 1

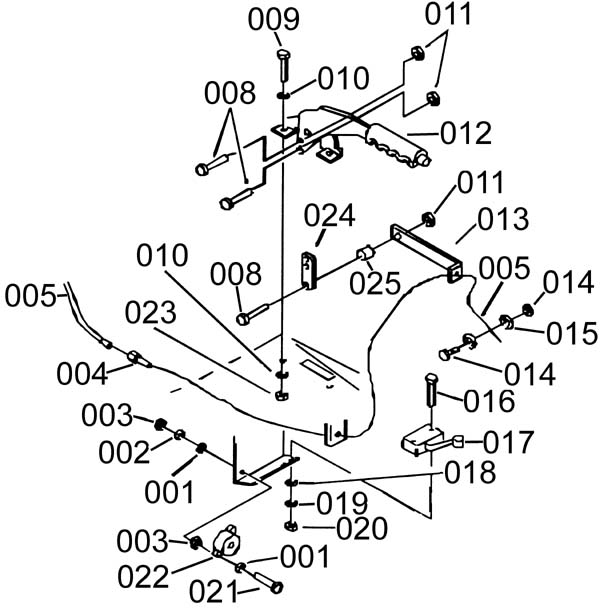

Hand Brake Assembly - 203-0158
RefNbr Part Number Description Req Notes
001 189-1441 Washer 4
002 189-1426 Washer 2
003 189-1425 Nut 4
004 189-0415 Register 1
005 189-0416 Cable 1
008 189-1367 Screw 3
009 189-1390 Screw 2
010 189-1345 Washer d10 cham 4
012 203-2810 Lever 1
013 189-0417 Small bracket 1
014 189-0418 Clamp 1
016 189-1448 Screw 2
017 203-1754 Microswitch 1
018 189-1375 Washer D4 2
019 189-1433 Washer 2
020 203-2457 Nut (OBSOLETE) 2
021 189-1427 Screw 2
022 189-0420 Indicator 1
023 189-1361 Nut 2
024 203-2814 Block/lock (OBSOLETE) 1
025 189-0641 Spacer 1

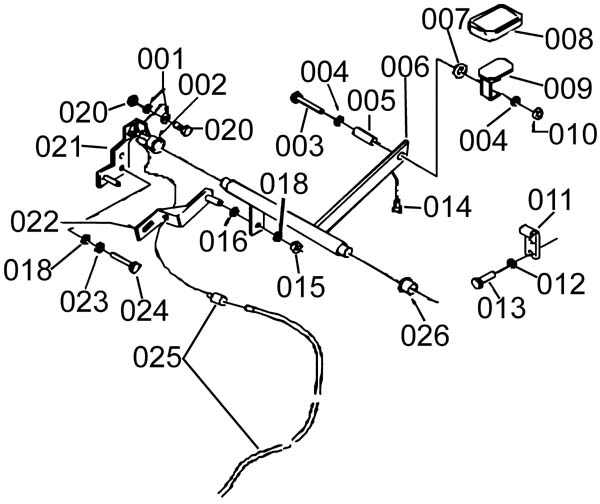

Squeegee Pedal Assembly - 203-0159
RefNbr Part Number Description Req Notes
002 189-0465 Bearing 1
003 189-1392 Screw 1
004 189-1345 Washer d10 cham 2
005 189-0466 Spacer 1
006 189-0467 Lever 1
007 189-1460 Washer 1
008 189-0233 Rubber shim 1
009 189-0468 Threadle 1
010 203-0524 Nut M6 lock 1
011 203-2819 Block (OBSOLETE) 1
012 189-1386 Washer 2
013 203-0243 Screw (OBSOLETE) 2
014 203-2820 Rubber (OBSOLETE) 1
016 189-1393 Washer 1
018 189-1363 Washer 3
020 189-0418 Clamp 1
021 189-0464 Plate (OBSOLETE) 1
022 189-0471 Plate 1
023 189-1369 Washer cham 2
024 189-1439 Screw 2
025 189-0472 Cable 1
026 189-0273 Bearing 1

Brush Assembly - 203-0160
RefNbr Part Number Description Req Notes
001 996-1109 Polypropelene scrubbing brush 2
002 996-1213 Polypropelene scrubbing brush 2
003 996-1111 Medium grit scrubbing brush - 180 grit (set of 2) 2
004 996-1215 Pad driver 2

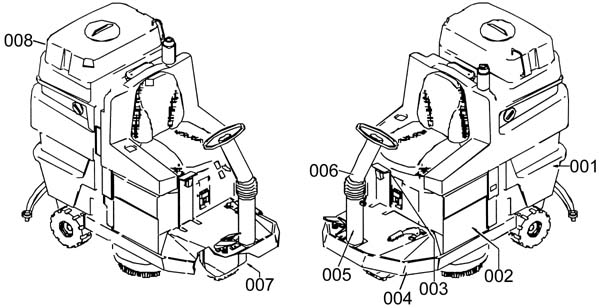

External Parts - 203-0161
RefNbr Part Number Description Req Notes
001 189-0775 Grey tank 1
001 203-2829 Red tank (OBSOLETE) 1
001 203-2827 Green tank (OBSOLETE) 1
002 203-2831 Red box (OBSOLETE) 1
002 203-2830 Black box (OBSOLETE) 1
003 203-2832 Handle (OBSOLETE) 1
004 203-2833 Frame (OBSOLETE) 1
005 189-0503 Steering column 1
006 189-0504 Steering column 1
007 203-2837 Red case (OBSOLETE) 1
007 203-2836 Case (OBSOLETE) 1
008 189-0781 Black tank 1

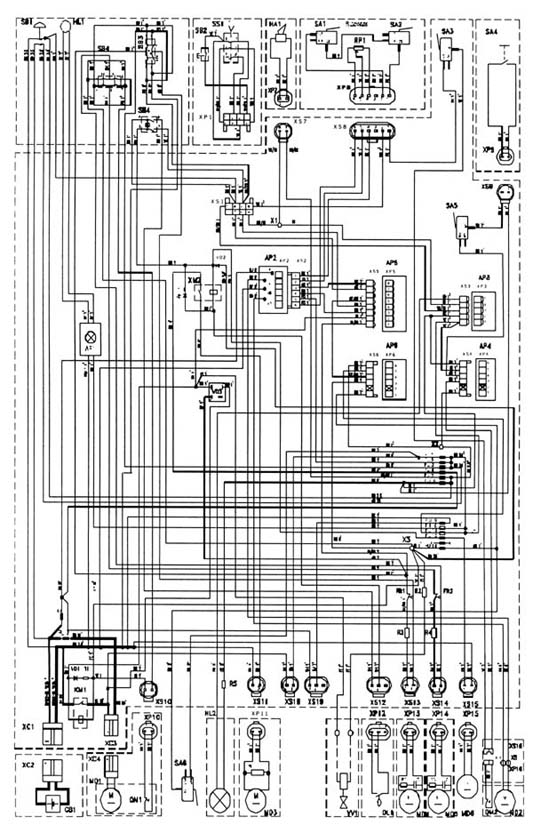

Wiring Diagram -

RefNbr Part Number Description Req Notes

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
