Body Assembly - 203-1046 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 11 |
201-0077 |
Pad drive hub |
1 |
|
| 13a |
201-0093 |
21 inch pad driver (OBSOLETE) |
1 |
|
| 13b |
201-2045 |
27 inch pad driver with hub (OBSOLETE) |
1 |
(Mighty lok) |
| 14 |
201-0080 |
Pad driver support ring |
1 |
|
| 15 |
201-0081 |
Spindle assembly with bub and bearings |
1 |
|
| 17 |
201-0083 |
Tensioner pulley |
1 |
|
| 18 |
201-0084 |
Belt tensioner |
1 |
|
| 19 |
201-0085 |
Hitch pin clip |
2 |
|
| 20 |
991-2012 |
5 inch wheel |
2 |
(5") |
| 22 |
201-0087 |
Wheel bracket (OBSOLETE) |
2 |
|
| 23 |
201-0088 |
Swivel castor |
1 |
|
| 24 |
201-0089 |
Nut 1/2-13 x 1 1/2 |
1 |
|
| 25 |
999-0162 |
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
4 |
|
| 26 |
999-0107 |
Bolt 3/8-16 x 2 hex head grade 5 zinc plated |
1 |
|
| 27 |
999-0115 |
Bolt 1/2-13 x 1 hex head grade 5 |
4 |
|
| 28a |
201-0095 |
21 inch aluminum body frame (OBSOLETE) |
1 |
(21") |
| 28b |
201-0090 |
27 inch aluminum body frame (OBSOLETE) |
1 |
(27") |
| 30a |
201-0097 |
Spindle pulley 6 3/4 inch (OBSOLETE) |
1 |
(6 3/4") |
| 30b |
201-0092 |
Spindle pulley 7 1/2 inch |
1 |
(7 1/2") |
|
|
Handle assembly - 203-1047 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
162-0007 |
12V 12Ah sealed battery |
1 |
|
| 2 |
201-0059 |
Battery cable 16 1/2 inch |
1 |
|
| 3 |
201-0025 |
Bottom battery cover |
1 |
|
| 4 |
999-0578 |
Bolt 3/8-16 x 1/2 hex head grade 5 plain finish |
2 |
|
| 5 |
201-0060 |
Battery box bracket |
1 |
|
| 6 |
201-0061 |
Starter solenoid |
1 |
|
| 8 |
201-0063 |
Tank strap bracket loop |
2 |
|
| 10 |
999-0344 |
Bolt 1/4-20 x 1 1/2 hex head plain finish |
1 |
|
| 11 |
201-0064 |
Throttle cable |
1 |
|
| 12 |
161-0004 |
Steel propane tank |
1 |
|
| 13 |
201-0066 |
Handle grip (OBSOLETE) |
2 |
|
| 14 |
999-0042 |
Bolt 3/8-16 x 3 hex head grade 5 zinc plated |
1 |
|
| 16 |
201-0068 |
Handle bracket left |
1 |
|
| 18 |
201-0070 |
Handle bracket right |
1 |
|
| 19 |
999-0038 |
Bolt 3/8-16 x 1 hex head grade 5 zinc plated |
4 |
|
| 20 |
201-0071 |
Handle main frame (OBSOLETE) |
1 |
|
| 21 |
201-0072 |
Nut 3/8-16 stover lok |
7 |
|
| 22 |
201-0024 |
Battery top cover |
1 |
|
| 23 |
201-0073 |
Battery cable 26 inch |
1 |
|
| 25 |
203-5579 |
Polystyrene |
1 |
|
| 26 |
999-0595 |
Nut 1/4-20 flange lock serrated zinc plated |
1 |
|
|
|

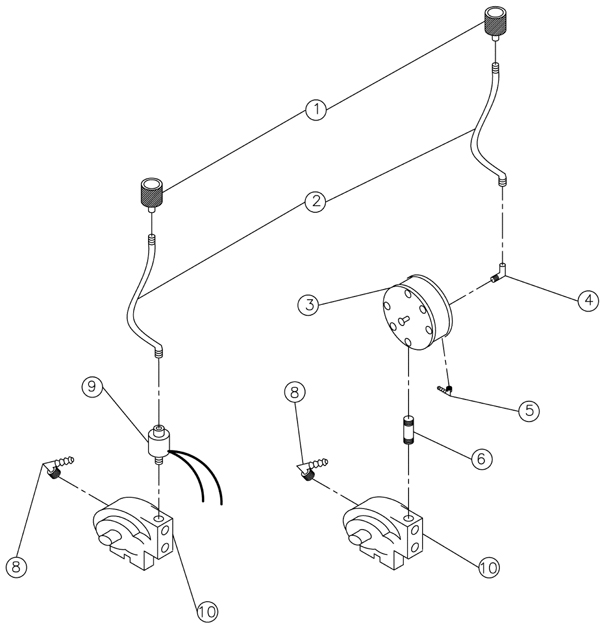

Fuel Assembly - 203-1048 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
201-1059 |
Quick coupler |
1 |
|
| 2a |
201-1051 |
14 inch hose (OBSOLETE) |
1 |
(14 inch) |
| 2b |
201-1052 |
18 1/4 inch hose |
1 |
(20 inch) |
| 3 |
201-0114 |
Lock off |
1 |
(Vacuum) |
| 4 |
203-5586 |
Potentiometer |
1 |
|
| 5 |
201-1054 |
Vacuum hose fitting |
1 |
|
| 8 |
201-1057 |
Fuel hose fitting |
1 |
|
| 9 |
201-1058 |
Lock out |
1 |
(12V) |
| 10 |
991-6001 |
Fuel regulator (T60) |
1 |
(T60-E) |
|
|
- Pads - 255-2700 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
255-2740 |
27 inch aqua plus burnishing pad (pkg of 5) |
|
|
| 02 |
255-2735 |
27 inch Armadillo concrete scrubbing pad (pkg of 5) |
|
|
| 03 |
255-2770 |
27 inch Blue Ace pad (pkg of 5) |
|
|
| 04 |
255-2742 |
27 inch Blue Jay burnishing pad (pkg of 5) |
|
|
| 05 |
255-0065 |
27 inch Cure white pad (pkg of 5) |
|
|
| 07 |
255-2777 |
27 inch Diamondback extreme stripping pad (pkg of 5) |
|
|
| 08 |
255-2738 |
27 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2 |
|
|
| 09 |
255-2721 |
27 inch gorilla lite burnishing pad (pkg of 5) |
|
|
| 10 |
255-2750 |
27 inch gorilla spray buff/polish/burnish pad (pkg of 5) |
|
|
| 11 |
255-2765 |
27 inch Heat concrete bonding pad (pkg of 5) |
|
|
| 12 |
255-2730 |
27 inch jaguar burnishing pad (pkg of 5) |
|
|
| 13 |
255-2767 |
27 inch Laminated 2001 Gorilla polish pad (pkg of 5) |
|
|
| 14 |
255-2769 |
27 inch Micropolish polishing and burnishing pad (pkg of 2) |
|
|
| 15 |
255-2790 |
27 inch premium black stripping pad (pkg of 5) |
|
|
| 17 |
255-2764 |
27 inch premium blue cleaning pad (pkg of 5) |
|
|
| 18 |
255-2792 |
27 inch premium brown stripping pad (pkg of 5) |
|
|
| 19 |
255-2780 |
27 inch premium green scrubbing pad (pkg of 5) |
|
|
| 20 |
255-2760 |
27 inch premium red scrubbing pad (pkg of 5) |
|
|
| 21 |
255-2752 |
27 inch premium tan polishing pad (pkg of 5) |
|
|
| 22 |
255-2720 |
27 inch premium white polishing pad (pkg of 5) |
|
|
| 23 |
255-2795 |
27 inch razorback stripping pad (pkg of 5) |
|
|
| 24 |
255-2747 |
27 inch Redwood maroon floor prep pad (pkg of 10) |
|
|
| 25 |
255-2711 |
27 inch superspeed rubberized pad (pkg of 5) |
|
|
| 26 |
255-9626 |
27 inch Diamond by Gorilla 11000 Grit (pkg of 2) |
|
|
| 27 |
255-9623 |
27 inch Diamond by Gorilla 1500 Grit (pkg of 2) |
|
|
| 28 |
255-9620 |
27 inch Diamond by Gorilla 200 Grit (pkg of 2) |
|
|
| 29 |
255-9624 |
27 inch Diamond by Gorilla 3000 Grit (pkg of 2) |
|
|
| 30 |
255-9621 |
27 inch Diamond by Gorilla 400 Grit (pkg of 2) |
|
|
| 31 |
255-9622 |
27 inch Diamond by Gorilla 800 Grit (pkg of 2) |
|
|
| 32 |
255-9625 |
27 inch Diamond by Gorilla 8000 Grit (pkg of 2) |
|
|
| 33 |
255-9650 |
27 inch Diamond starter pack (1 of each grit) |
|
|
| 34 |
255-2715 |
27 inch Duala clean and shine pad - low speed (pkg of 5) |
|
|
| 35 |
255-2716 |
27 inch 2001 Duala clean and shine pad - high speed (pkg 5) |
|
|
|
|
- Pad Holders - 275-9029 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
991-2214 |
Center-Lok II pad holder - left hand thread (red) |
|
|
| 2a |
991-2201 |
Center-Lok II pad holder - right hand thread (black) |
|
(Pad driver side female, Floor side male) |
| 2b |
991-8577 |
Pad retainer |
|
(Pad driver side male, Floor side female) |
| 3a |
991-2202 |
Big mouth pad holder set (blue) |
|
(includes 3 screws) |
| 3b |
991-2205 |
Deep lock ring and pad grip ring |
|
|
| 4 |
991-2203 |
Big mouth pad holder male thread portion |
|
|
| 5 |
991-2206 |
Center-Lok 3 pad holder |
|
(includes 3 screws) |
| 6 |
996-0372 |
Big mouth pad holder (left hand thread) |
|
|
| 8 |
991-2209 |
Split retainer - pad holder ring (OBSOLETE) |
|
|
| 9 |
N/A |
Not available |
|
(replaced by #3 991-2202) |
| 10 |
991-2211 |
Center lock pad holding cup (male) (yellow) (OBSOLETE) |
|
|
|
|
