Parts List Complete for EAGLEPOW PANTHER32

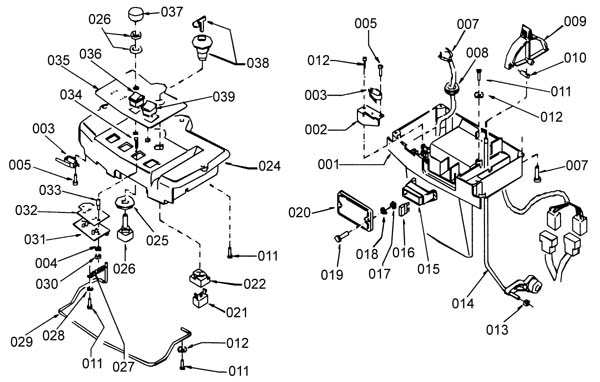

Control Panel - 203-0095
RefNbr Part Number Description Req Notes
000 203-1856 Preassembled control panel (OBSOLETE) 1
001 203-1056 Control panel (OBSOLETE) 1
002 189-2240 Spring 1
003 203-1058 Microswitch 3
004 189-2241 Washer D3 2
005 189-1640 Screw 6
006 189-1624 Screw 3 1/2 x 16 inch 6
007 189-2242 Wiring 1
008 189-1133 Fairlead 1
009 189-0288 Lever 1
010 189-0289 Solution rod 1
011 189-2243 5-10 inch M. 3 screw 4
012 203-0598 Washer (OBSOLETE) 2
013 999-0469 Nut M6-1 nylon insert lock zinc plated 1
014 189-2244 Rod 1
015 189-0659 Fuse holders 1
016 189-0107 5 amp fuse 3
017 189-1637 Nut M6 2
018 189-0755 Gasket 4
019 189-1638 Screw 6 x 20 inch 2
020 189-0834 Lid 1
021 189-0264 Key switch complete 1
022 189-0264 Key switch complete 1
024 203-4364 Control panel 1
026 189-0259 Potentiometer (OBSOLETE) 1
027 189-2246 Spring 1
028 189-1375 Washer D4 1
029 189-2247 Lever 1
030 189-1446 Nut M3 2
031 189-2248 Board 1
032 203-3344 Plate 1
033 189-2250 Spacer 2
034 189-2251 Screw 3 x 6 inch 2
035 203-4312 Control panel decal 1
036 189-2223 Switch 1
037 189-0260 Knob 1
038 189-0264 Key switch complete 1
039 203-3345 Push button 1

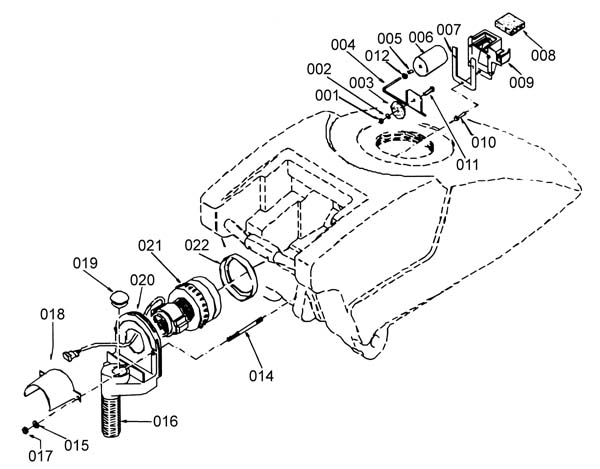

Aspirator - 203-0096
RefNbr Part Number Description Req Notes
001 203-0789 Nut 1
002 189-1462 Washer 5 x 14 inch 1
003 189-1094 Gasket 1
004 203-0799 Rod 1
005 189-2225 Insert 1
006 189-2226 Float 1
007 189-1098 Gasket 1
008 189-0265 Filter 1
009 189-1096 Support 1
010 189-1486 Screw 3
011 189-2227 Screw M5 1
012 189-1489 Nut M6 1
014 189-1626 Screw 2
016 189-2228 Pipe 1
017 203-0524 Nut M6 lock 2
018 189-1099 Suction conveyer 1
019 189-0741 Cap 1
020 189-1100 Cap 1
021 203-0804 Motor 1
022 189-0185 Gasket 1

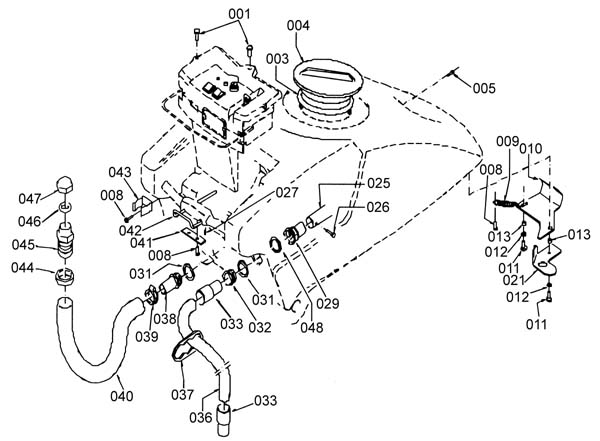

Recovery Tank - 203-0097
RefNbr Part Number Description Req Notes
001 189-1638 Screw 6 x 20 inch 3
003 189-0293 Gasket 1
004 203-4584 Cap 1
005 189-2230 Screw M6 2
008 189-1629 Screw 5 x 12 inch screw 5
009 189-2246 Spring 1
010 189-2231 Coupling 1
011 189-2232 Screw M8 2
012 189-0897 Washer D8 2
013 189-0095 Bushing 2
021 189-2256 Plaque 1
025 189-2257 Pipe 1
026 189-1451 Screw 1
027 189-1634 Screw 4 x 8 inch 1
029 203-0810 Connector 1
031 203-0812 Gasket 2
032 203-0813 Suction opening 1
033 189-0118 Sleeve 2
036 203-0815 Hose 1
037 189-0295 Plaque 1
038 189-0693 Hose holder 1
039 189-2258 Clamp 1
040 189-2259 Tube 1
041 189-2260 Plaque 1
042 189-2261 Push-button 1
043 189-0239 Ductlock 1
044 189-2262 Nut 1
045 189-2263 Connector 1
047 203-1689 Cap 1

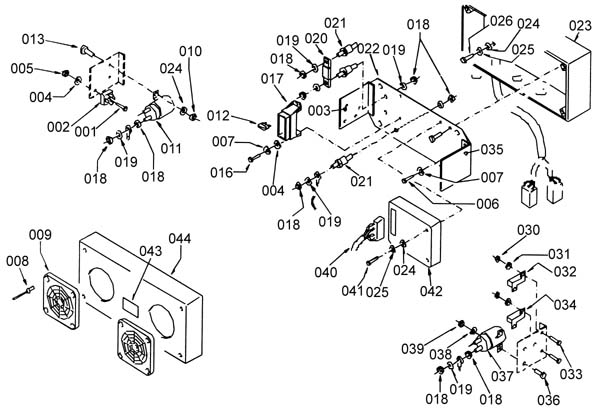

Electric Unit - 203-0098
RefNbr Part Number Description Req Notes
001 189-1527 Screw 4 x 16 inch 1
002 189-0455 Bridge / Jumper 1
003 203-1693 Bracket 1
004 189-1375 Washer D4 8
005 189-1384 Nut M4 2
006 203-0960 Screw M4 4
007 203-4740 Washer D4 4
008 203-1696 Rivet (OBSOLETE) 8
009 203-1697 Grating 2
010 189-1484 Nut M5 2
011 189-0105 Relay 1
012a 189-0255 Fuse 40 amp 1
012b 203-3346 10amp fuse 1
013 203-5002 Screw 5 x 10 inch 2
016 203-1701 Screw M4 2
017 189-0256 Fuse carrier 1
018 189-1379 Nut M8 18
019 189-1403 Washer D8 14
020 203-1703 Fuse 1
021 203-0882 Support (OBSOLETE) 3
022 203-1704 Plate 1
023 203-1705 Box base 1
024 189-1353 Washer D5 6
025 203-4956 Spring lock washer 4
026 189-1629 Screw 5 x 12 inch screw 4
027 189-2243 5-10 inch M. 3 screw 4
030 189-1446 Nut M3 4
031 189-2241 Washer D3 4
032 189-0450 Resistance 1
033 203-4739 Screw 4
034 203-1708 Resistance 1
035 203-1709 Bracket 1
036 189-1442 Screw M6 zinc 2
037 203-4144 Connection (contactor) 1
038 189-1345 Washer d10 cham 2
039 999-0469 Nut M6-1 nylon insert lock zinc plated 2
040 203-1711 Connector 1
041 203-1712 Screw (OBSOLETE) 2
042 203-2870 Traction card 1
043 203-0689 Label (OBSOLETE) 1
044 203-1714 Box cover 1

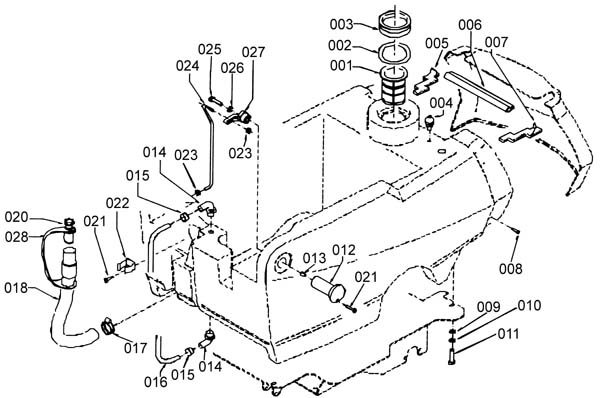

Solution Tank - 203-0099
RefNbr Part Number Description Req Notes
001 189-2266 Filter 1
002 203-1715 Gasket 1
003 203-1716 Gasket 1
004 189-2269 Pin 1
005 203-1718 Gasket (OBSOLETE) 1
006 189-2270 Gasket 1
007 203-1720 Gasket (OBSOLETE) 1
008 189-2271 5-10 inch screw 4
009 189-1532 Washer D10 4
010 189-2272 Washer D10 4
011 189-2273 Screw 10 x 20 inch 4
012 189-1109 Pin 2
013 189-1108 Insert 2
014 189-0142 Union/connector 2
015 189-0141 Clamp 10-16 inch 2
016 203-1724 Hose 1
017 189-0123 Clamp 35-40 inch 1
018 203-0501 Hose 1 Solution drain hose
020 203-4348 Cap assembly 1
021 189-1629 Screw 5 x 12 inch screw 4
022 203-4318 Clasp 1
023 203-0524 Nut M6 lock 2
024 203-1725 Rod 1
025 189-1357 Screw 6 x 12 inch 1
026 189-1356 Washer 6-18 inch 1
027 189-1115 Lever 1
028 203-4348 Cap assembly 1

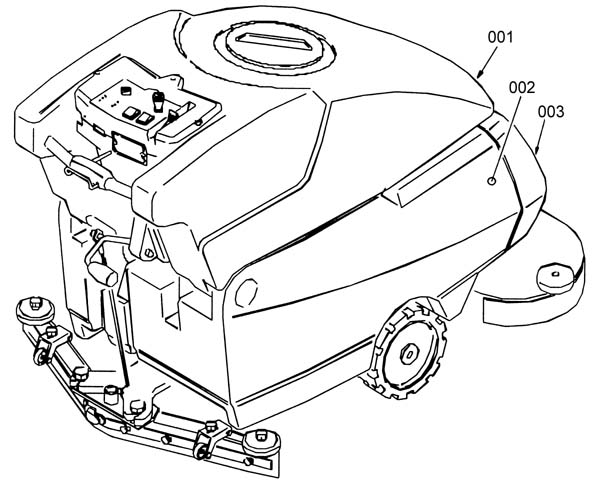

External Parts - 203-0100
RefNbr Part Number Description Req Notes
001a 203-1726 Grey tank (OBSOLETE) 1
001b 203-1727 Red tank 1
001c 203-1728 Blue tank (OBSOLETE) 1
002a 203-1729 Black tank 1
002b 203-1730 Blue tank (OBSOLETE) 1
003 203-1731 Hood 1

Head Lift 1 - 203-0101
RefNbr Part Number Description Req Notes
001 189-1373 Screw 8 x 45 inch 1
003 189-0897 Washer D8 4
004 203-1732 Lever 1
005 203-1733 Screw 12 x 45 inch zinc 1
006 203-1739 Articulation 1
007 189-1414 Washer D12 4
008 189-1413 Nut M12 2
009 203-4836 Screw M12 1
010 203-1740 Support assembly 1
011 189-0677 Spacer 1
012 189-1344 Screw M8 1
013 203-1736 Lever 1
014 189-0095 Bushing 1
015 189-1512 Screw 8 x 20 inch 1
016 189-1403 Washer D8 1
017 203-1737 Support 1
018 203-1738 Screw (OBSOLETE) 1

Head Lift 2 - 203-0102
RefNbr Part Number Description Req Notes
001 203-1741 Lever 2
002 203-1742 Spring 1
003 189-1366 Washer D14 1
004 203-1743 Spring guide 1
005 203-1744 Bushing 4
006 203-5052 Spacer D8 2
007 189-0897 Washer D8 3
009 203-1746 Lever 1
010 203-1747 Screw 1
012 189-1545 3/4 inch screw M8 1
013 189-0523 Bushing 2
014 203-1750 Spacer D8 2
015 189-0168 Bushing 2
016 203-1751 Actuator 1
017 203-0524 Nut M6 lock 2
018 203-1752 Screw M8 3
019 189-0052 Bearing 1
020 189-1483 Screw 6 x 40 inch 1

Head 85 - 203-0103
RefNbr Part Number Description Req Notes
001 189-1472 Nut M4 2
003 203-1754 Microswitch 1
004 203-1755 Gear motor 2
005 203-0644 Square keyway 2
006 203-0182 Screw M8 2
007 189-0901 Bushing 2
008 189-0060 Wheel 2
009 189-0597 Spacer 2
010 203-1068 Head 1
011 189-0897 Washer D8 3
013 203-0971 Washer D6 14
014 189-1357 Screw 6 x 12 inch 14
015 189-1376 Screw 4 x 10 inch 3
016 203-1758 Screw (OBSOLETE) 2
017 203-0145 Washer 4-16 inch 4
018 189-1627 Screw 6-16 inch 4
020 189-2373 Spring 2
021 375-8019 Driver kit (aluminum) 2
022 203-4437 Screw 8 x 30 inch 2
023 189-1449 Washer D10 2
024 189-2374 Distributor 1
026 189-1488 Screw M6 1
027 203-1764 Screw M12 1
028 203-1765 Spacer 2
029 189-1413 Nut M12 1
030 189-1414 Washer D12 1
031 189-2376 Bracket 1
032 203-0524 Nut M6 lock 8
034 189-2237 Wheel 1
035 189-2238 Spacer D6 1
036 189-2271 5-10 inch screw 6
037 203-1767 Flap 2
038 203-1768 Union / connector 1
039 189-1649 Screw 6 x 35 inch 3
040 189-1391 Washer D6 3
041 189-2377 Flap Press 2
042 203-1072 Bumper 1
043 189-2379 Nut 6
044 203-1773 Plaque 1
045 203-4740 Washer D4 2
046 203-1774 Wiring (OBSOLETE) 1

Battery - 203-0104
RefNbr Part Number Description Req Notes
004 203-1775 Belt 2
005 203-1777 Wiring (OBSOLETE) 1
006 203-1778 Belt 2
007 203-1779 Battery plate 4
008 189-1433 Washer 2
009 203-0235 Washer 2
011 203-4737 Screw 1
012 189-1457 Screw M2 2
013 203-1783 Support 1
014 203-4734 4V microswitch 1
015 189-1458 Nut M2 2
016 203-1786 Guard (OBSOLETE) 1

Drive Brake - 203-0105
RefNbr Part Number Description Req Notes
001 203-5026 Wheel 2
002 189-0227 Spacer 2
003 189-0226 Bearing 3
004 189-1497 Screw 6 x 16 inch 2
005 203-0971 Washer D6 4
006 203-1790 Plate 1
007 189-0907 Square keyway 2
008 189-2222 Transaxle 1
009 189-0645 Ring 3
010 189-1544 Screw 6
011 189-0897 Washer D8 9
013 189-1410 Washer D8 zinc 2
014 189-2232 Screw M8 2
015 203-1795 Clip 1
016 189-1357 Screw 6 x 12 inch 1
017 189-0273 Bearing 2
018 203-1796 Washer D20 2
019 203-1797 Brake axle 1
020 203-1798 Plug / stopper 2
021 189-1492 Nut M8 4
022 189-1415 Nut 8
024 203-1799 Small wheel 2
025 203-1800 Screw 10 x 25 inch 8
026 189-0575 Spring 1
027 189-1489 Nut M6 2
028 203-1802 Frame 1
030 999-9108 Screw M6-1 x 30mm hex head stainless steel 1
031 203-4992 Screw 2
032 189-1536 Nut with nylon ring 2
033 189-0233 Rubber shim 1
034 189-0913 Pedal 1
035 189-1373 Screw 8 x 45 inch 1
036 203-1807 Lever 1
037 203-1808 Spacer 8 x 30 inch 1
038 203-1738 Screw (OBSOLETE) 1

Hydraulic Unit - 203-0106
RefNbr Part Number Description Req Notes
001 189-0716 Clamp 14-24 inch 4
002 203-1810 Hose 1
003 203-1811 Union / Connector 2
004 203-3402 Solution solenoid valve 1
005 203-1813 Connector 1
006 189-1403 Washer D8 1
007 189-0897 Washer D8 1
008 203-0840 Washer 2
009 203-0852 Filter 1
010 203-0844 Screw 3 x 6 inch 1
011 203-0145 Washer 4-16 inch 1
012 189-1113 Lever (OBSOLETE) 1
013 203-0852 Filter 1
014 203-0842 Connector 1
015 203-4363 Cover 1
016 203-4346 Tap 1
017 203-1816 Union / Connector 1
018 203-1817 Hose 1

Squeegee - 203-0107
RefNbr Part Number Description Req Notes
000 203-1834 Squeegee unit (OBSOLETE) 1
001 189-5081 Squeegee blade holder 1
002 189-5082 Squeegee blade holder 1
003 203-1820 Squeegee blade curved front 1
004 189-0285 Spring 2
005 189-0897 Washer D8 4
006 189-2237 Wheel 2
007 189-2238 Spacer D6 2
008 189-1536 Nut with nylon ring 8
011 203-0916 Support 2
013 189-1497 Screw 6 x 16 inch 4
014 189-1488 Screw M6 2
015 189-0071 Handle 2
016 189-5084 Body 1
017 203-1822 Squeegee blade curved rear 1
018 189-5085 Squeegee blade holder 1
019 189-0278 Handle 10
021 189-5086 Bushing 2
022 203-0920 Spacer 2
023 189-0060 Wheel 2
024 203-1825 Screw 2
026a 189-5087 Left extension 1
026b 189-5088 Right extension 1
028 189-5089 Support 2

Squeegee Lift - 203-0108
RefNbr Part Number Description Req Notes
001 189-1448 Screw 2
002 189-1491 Screw 1
003 203-1830 Arm 1
004 203-1831 Bushing / Bush 1
005 189-1394 Washer D13 1
006 189-0897 Washer D8 3
007 189-1344 Screw M8 1
008 189-1472 Nut M4 2
010 189-1375 Washer D4 2
011 203-1754 Microswitch 1
012 189-1376 Screw 4 x 10 inch 1
013 203-0903 Washer D5 1
014 203-1832 Bracket 1
015 203-0900 Screw 1
019 189-1400 Washer 2
020 189-1129 Handgrip 1
021 203-0892 Lever 1
022 203-1833 Squeegee lift cable kit 1
023 203-4740 Washer D4 2

Brushes - 203-0109
RefNbr Part Number Description Req Notes
002 996-1204 Nylon brush 2
003 996-1205 Polypropelene scrubbing brush 2
004 996-1098 Extra heavy grit stripping brush - 46 grit 2
005 996-1100 Pad driver 2
N/S 203-3213 Brush lugs

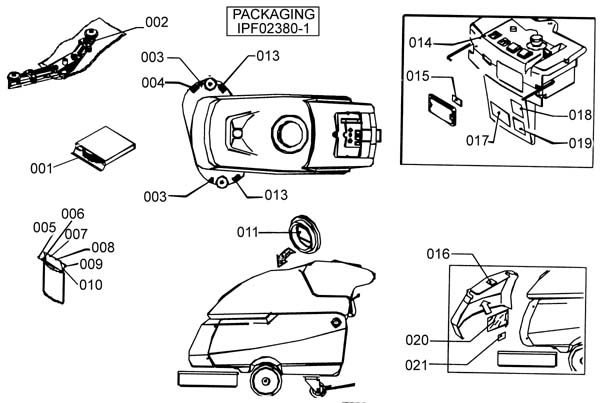

Labels and Documents - 203-0110
RefNbr Part Number Description Req Notes
001 996-1204 Nylon brush 2
002 203-1834 Squeegee unit (OBSOLETE) 1
003 203-1047 Label (OBSOLETE) 2
004 203-1844 Label (OBSOLETE) 1
005 203-1845 Operator's manual (OBSOLETE) 1
006 203-1846 Spare parts (OBSOLETE) 1
007 203-0677 Document (OBSOLETE) 1
008 203-0678 Document (OBSOLETE) 1
009 203-0680 Document (OBSOLETE) 1
010 203-0681 Label (OBSOLETE) 1
011 203-0685 Label (OBSOLETE) 1
013 203-1048 Label (OBSOLETE) 2
014 203-4312 Control panel decal 1
015 203-1847 Label (OBSOLETE) 1
016 203-0689 Label (OBSOLETE) 1
017 203-0679 Document (OBSOLETE) 1
018 203-0760 Label (OBSOLETE) 1
019 203-0935 Label (OBSOLETE) 1
020 203-1848 Elec. diagram envelope (OBSOLETE) 1
021 203-1849 Label (OBSOLETE) 1

Wiring Diagram -

RefNbr Part Number Description Req Notes

Electrical Schematic - 203-0112
RefNbr Part Number Description Req Notes
AP1 203-2870 Traction card
AP2 189-2248 Board
FU1 203-1703 Fuse
FU4 203-3133 30amp fuse
FU5 203-3346 10amp fuse
FV1 203-1850 Diode (OBSOLETE)
FV2 203-1850 Diode (OBSOLETE)
H 203-1054 Hour meter (OBSOLETE)
HL1 189-0832 Circuit board
KM1 203-4144 Connection (contactor)
KM3 189-0105 Relay
M1 203-1755 Gear motor
M2 203-1755 Gear motor
M3 203-0804 Motor
M4 189-2222 Transaxle
M5 203-1751 Actuator
R1 203-1708 Resistance
R2 189-0450 Resistance
RP1 189-0259 Potentiometer (OBSOLETE)
S1 203-1851 Microswitch (OBSOLETE)
S2 189-0258 Microswitch
S3 189-0258 Microswitch
S4 189-0258 Microswitch
S5 203-1754 Microswitch
S6 203-1852 Microswitch (OBSOLETE)
S7 203-1852 Microswitch (OBSOLETE)
S8 203-1754 Microswitch
SB2 189-2223 Switch
SB3 203-3345 Push button
VD1 203-1853 Diode
VD2 189-0455 Bridge / Jumper
VD3 203-1853 Diode
XC1 203-0882 Support (OBSOLETE)
XC2 203-0882 Support (OBSOLETE)
XC3 203-0882 Support (OBSOLETE)
XC4 203-0947 Clamp
XP1 203-4166 50amp charger plug (red)

- Batteries, Brushes, and Chargers - 203-9990
RefNbr Part Number Description Req Notes
0.9835 996-0599 15 inch Pad driver 1
0.9835 162-5060 24V 20amp battery charger with small SB50 red plug 1
0.9835 996-0341 Drive lugs - plastic (pkg of 3) 1
0.9835 996-0287 15 inch polypropylene scrubbing brush 1
0.9835 996-0098 15 inch lite grit scrubbing brush - 500 grit 1
0.9835 996-0122 15 inch medium grit scrubbing brush - 180 grit 1
0.9835 991-2103 50amp charger plug SB50 with pins (red) 1
0.9835 996-0171 15 inch heavy grit stripping brush - 80 grit 1
0.2225 162-0003 6V 225Ah wet battery (SNSR) 4
0.3224 162-0043 6V 224Ah AGM battery (Group GC2) 4

- Pads - 16 inch - 255-1600
RefNbr Part Number Description Req Notes
01 255-1640 16 inch aqua plus burnishing pad (pkg of 5)
02 255-1635 16 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1664 16 inch Blue ace pad (pkg of 5)
04 255-1642 16 inch Blue Jay burnishing pad (pkg of 5)
05 255-1612 16 inch Cure white pad (pkg of 5)
06 255-1677 16 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1638 16 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1621 16 inch gorilla lite burnishing pad (pkg of 5)
09 255-1650 16 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1665 16 inch Heat concrete bonding pad (pkg of 5)
11 255-1630 16 inch jaguar burnishing pad (pkg of 5)
12 255-1687 16 inch Melamine Mela-Kleen pad (pkg of 2)
13 255-1690 16 inch premium black stripping pad (pkg of 5)
14 255-1670 16 inch premium blue cleaning pad (pkg of 5)
15 255-1692 16 inch premium brown stripping pad (pkg of 5)
16 255-1680 16 inch premium green scrubbing pad (pkg of 5)
17 255-1660 16 inch premium red scrubbing pad (pkg of 5)
18 255-1652 16 inch premium tan polishing pad (pkg of 5)
19 255-1620 16 inch premium white polishing pad (pkg of 5)
20 255-1611 16 inch superspeed rubberized pad (pkg of 5)
21 255-1695 16 inch razorback stripping pad (pkg of 5)
22 255-1647 16 inch Redwood maroon floor prep pad (pkg of 10)
23 255-1655 16 inch Ruff non-abrasive brush pad (pkg of 2)
24 255-1623 16 inch sand screen driver pad (pkg of 2)
25 255-0132 16 inch Professional sand screen 100 grit (pkg of 10)
26 255-0133 16 inch Professional sand screen 120 grit (pkg of 10)
27 255-0134 16 inch Professional sand screen 150 grit (pkg of 10)
28 255-0135 16 inch Professional sand screen 180 grit (pkg of 10)
29 255-0136 16 inch Professional sand screen 220 grit (pkg of 10)
30 255-0137 16 inch Professional sand screen 400 grit (pkg of 10)
31 255-0130 16 inch Professional sand screen 60 grit (pkg of 10)
32 255-0131 16 inch Professional sand screen 80 grit (pkg of 10)
33 255-0217 16 inch Superscreen sand screen 100 grit (pkg of 10)
34 255-0218 16 inch Superscreen sand screen 120 grit (pkg of 10)
35 255-0219 16 inch Superscreen sand screen 150 grit (pkg of 10)
36 255-0220 16 inch Superscreen sand screen 180 grit (pkg of 10)
37 255-0221 16 inch Superscreen sand screen 220 grit (pkg of 10)
38 255-0222 16 inch Superscreen sand screen 400 grit (pkg of 10)
39 255-0215 16 inch Superscreen sand screen 60 grit (pkg of 10)
40 255-0216 16 inch Superscreen sand screen 80 grit (pkg of 10)
41 255-1624 16 inch Tiger carpet bonnet (pkg of 2)
42 255-9563 16 inch Diamond by Gorilla 11000 Grit (pkg of 2)
43 255-9560 16 inch Diamond by Gorilla 1500 Grit (pkg of 2)
44 255-9557 16 inch Diamond by Gorilla 200 Grit (pkg of 2)
45 255-9561 16 inch Diamond by Gorilla 3000 Grit (pkg of 2)
46 255-9558 16 inch Diamond by Gorilla 400 Grit (pkg of 2)
47 255-9559 16 inch Diamond by Gorilla 800 Grit (pkg of 2)
48 255-9562 16 inch Diamond by Gorilla 8000 Grit (pkg of 2)
49 255-9641 16 inch Diamond starter pack (1 of each grit)
50 255-1682 16 inch Turbostrip segmented rotary pad (pkg of 4)
51 255-1615 16 inch Duala clean and shine pad - low speed (pkg of 5)
52 255-1616 16 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
