Parts List Complete for EAGLEPOW HS20 W/ DC

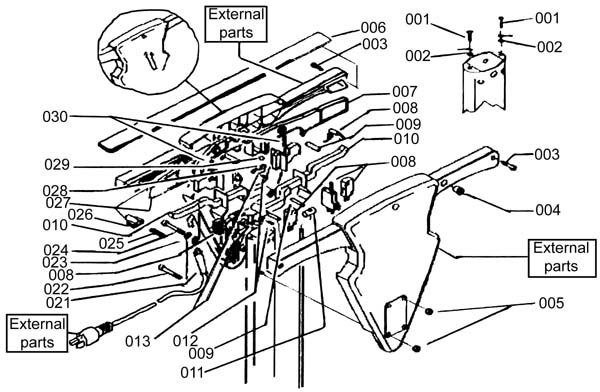

Handgrip - 203-1000
RefNbr Part Number Description Req Notes
001 189-1376 Screw 4 x 10 inch 2
002 189-1433 Washer 2
003 203-1923 Screw 6
004 203-1924 Retro reflector (OBSOLETE) 1
005 203-0898 Nut 4
006 203-1926 Rod (OBSOLETE) 1
007 203-1927 Lever 1
008 203-1928 Complete handle wiring 1
009 203-1929 Pin (OBSOLETE) 4
010 203-1930 Lever 2
011 203-1931 Block 1
013 203-1932 U bolt 2
021 203-1933 Fairlead 1
022 203-1934 Screw 2
023 203-1935 Washer 4
024 203-1936 Screw 2
025 203-0155 Spring 1
026 203-1937 Push button 1
027 203-1938 Lever 1
028 203-1939 Lever 2
029 203-1940 Ball 1
030 203-1941 Spring 2

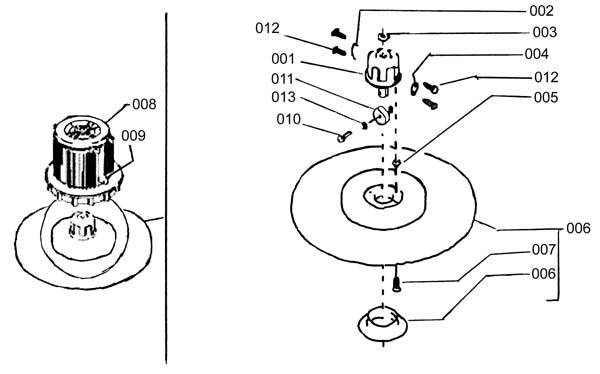

High SpeedAssembly - 203-1001
RefNbr Part Number Description Req Notes
001 203-1077 Wheel group 1
002 203-0886 Spring 1
003 203-1081 Spacer (OBSOLETE) 1
004 203-1082 Spring 1
005 999-1308 Nut M6-1 hex stainless steel 6
006a 203-1084 Standard pad driver 20 inch 1
006b 203-1085 Center lock clamp (OBSOLETE) 1
007 203-1086 Screw 6
008 203-1087 Motor (OBSOLETE) 1
009 203-1877 Half connector cables (OBSOLETE) 1
010 203-1078 Screw 1
011 203-1079 Wheel / Small wheel 1
012 189-1634 Screw 4 x 8 inch 4
013 203-1080 Washer 2

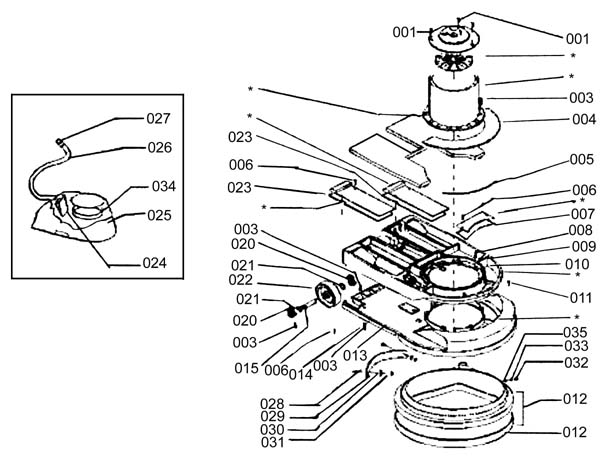

Machind Body - 203-1002
RefNbr Part Number Description Req Notes
001 203-1879 Screw (OBSOLETE) 3
003 203-1880 Screw 15
004 203-1881 Lid 1
005 203-1882 Gasket (OBSOLETE) 1
006 203-1733 Screw 12 x 45 inch zinc 10
007 203-1883 Gasket (OBSOLETE) 1
008 203-1884 Screw (OBSOLETE) 6
009 189-1356 Washer 6-18 inch 6
010 203-1885 Half union (OBSOLETE) 1
011 203-1886 Screw (OBSOLETE) 6
012 203-1088 Guard (OBSOLETE) 1
012a 203-1089 Felt (OBSOLETE) 1
013 203-1888 Plate 1
014 203-0903 Washer D5 4
015 203-1889 Pin 2
020 203-1890 Small block 4
021 189-1394 Washer D13 4
022 203-1891 Wheel 2
023 203-1892 Gasket 2
024 203-1090 Bag (OBSOLETE) 1
025 203-1091 Cap (OBSOLETE) 1
026 203-1092 Hose 1
027 189-0118 Sleeve 1
028 189-1440 Screw 2
029 203-1094 Bulkhead (OBSOLETE) 1
030 203-0145 Washer 4-16 inch 2
031 189-1434 Nut 2
032 189-2243 5-10 inch M. 3 screw 5
033 203-0235 Washer 5
034 203-1095 Gasket (OBSOLETE) 1
035 203-2873 Gasket 5

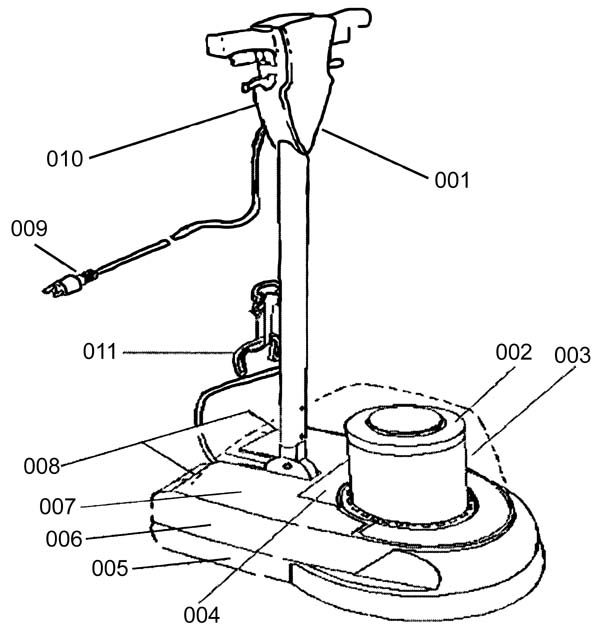

External Parts - 203-1003
RefNbr Part Number Description Req Notes
001 203-1893 Half bearing (OBSOLETE) 1
002 203-1894 Fan grey 1
003 203-1895 Protection jacket 1
004 203-1896 Lid 1
005 203-1097 Plate (OBSOLETE) 1
006 203-1898 Body 1
007 203-1899 Lid 1
008 203-1900 Lid 2
009 203-1901 Cable 1
010 203-1902 Half bearing (OBSOLETE) 1
011 203-1098 Handle 1

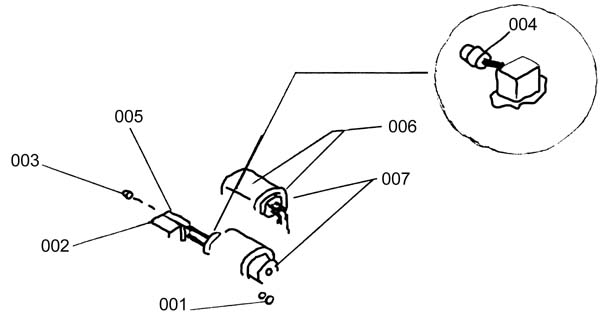

Electrical System - 203-1004
RefNbr Part Number Description Req Notes
001 203-1099 Cap (OBSOLETE) 1
002 203-1100 Tap/Outlet (OBSOLETE) 1
003 203-1101 Cap 1
004 203-1904 Connector (OBSOLETE) 1
005 203-1102 Thermal Protection 1
006 203-1905 Filter 2
007 203-1103 Condenser/Breaker group 1

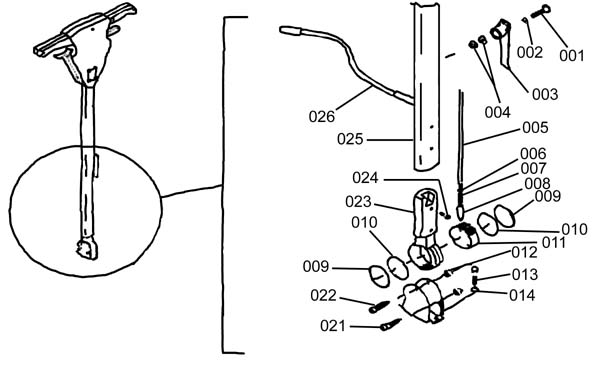

Articulation - 203-1005
RefNbr Part Number Description Req Notes
001 203-0182 Screw M8 1
002 203-0183 Spring 1
003 203-0184 Cable winder 1
004 189-1363 Washer 2
005 203-1912 Tie rod 1
006 189-1391 Washer D6 1
007 203-1913 Spring 2
008 203-1914 Pawl 1
009 203-1915 Washer 2
010 203-1916 Gasket 2
011 203-1917 Unit 1
012 189-1379 Nut M8 3
013 203-1918 Screw 2
014 189-1403 Washer D8 2
021 203-1919 Support 1
023 203-1920 Articulation 1
024 189-2230 Screw M6 2
025 203-1921 Rod (OBSOLETE) 1
026 203-1922 Rod handle cable and connector 1

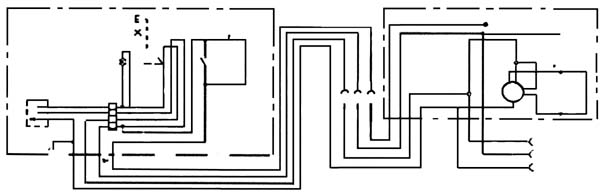

Wiring Diagram 1 -

RefNbr Part Number Description Req Notes

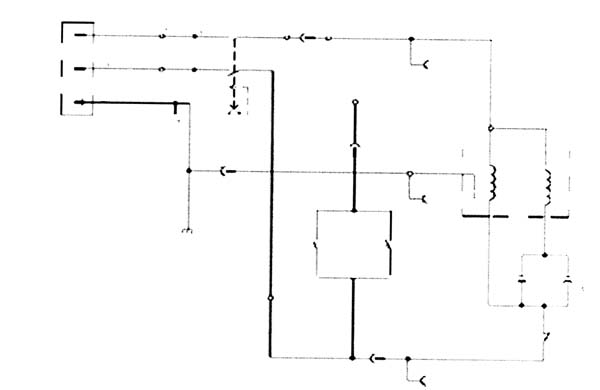

Wiring Diagram 2 -

RefNbr Part Number Description Req Notes

- Pads - 255-2000
RefNbr Part Number Description Req Notes
01 255-2040 20 inch aqua plus burnishing pad (pkg of 5)
02 255-2035 20 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2064 20 inch Blue ace pad (pkg of 5)
04 255-2042 20 inch Blue Jay burnishing pad (pkg of 5)
05 255-2012 20 inch Cure white pad (pkg of 5)
06 255-2077 20 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2038 20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2021 20 inch gorilla lite burnishing pad (pkg of 5)
09 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2065 20 inch Heat concrete bonding pad (pkg of 5)
11 255-2030 20 inch jaguar burnishing pad (pkg of 5)
12 255-2067 20 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2087 20 inch Melamine Mela-Kleen pad (pkg of 2)
14 255-2068 20 inch Microclean daily cleaning pad (pkg of 2)
15 255-2069 20 inch Micropolish polishing and burnishing pad (pkg of 2)
16 255-2090 20 inch premium black stripping pad (pkg of 5)
17 255-2070 20 inch premium blue cleaning pad (pkg of 5)
18 255-2092 20 inch premium brown stripping pad (pkg of 5)
19 255-2080 20 inch premium green scrubbing pad (pkg of 5)
20 255-2060 20 inch premium red scrubbing pad (pkg of 5)
21 255-2052 20 inch premium tan polishing pad (pkg of 5)
22 255-2020 20 inch premium white polishing pad (pkg of 5)
23 255-2011 20 inch superspeed rubberized pad (pkg of 5)
24 255-2095 20 inch razorback stripping pad (pkg of 5)
25 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10)
26 255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2)
27 255-2023 20 inch sand screen driver pad (pkg of 2)
28 255-0157 20 inch Professional sand screen 100 grit (pkg of 10)
29 255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
30 255-0158 20 inch Professional sand screen 150 grit (pkg of 10)
31 255-0159 20 inch Professional sand screen 180 grit (pkg of 10)
32 255-0160 20 inch Professional sand screen 220 grit (pkg of 10)
33 255-0161 20 inch Professional sand screen 400 grit (pkg of 10)
34 255-0030 20 inch Professional sand screen 60 grit (pkg of 10)
35 255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
36 255-0249 20 inch Superscreen sand screen 100 grit (pkg of 10)
37 255-0250 20 inch Superscreen sand screen 120 grit (pkg of 10)
38 255-0251 20 inch Superscreen sand screen 150 grit (pkg of 10)
39 255-0252 20 inch Superscreen sand screen 180 grit (pkg of 10)
40 255-0253 20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE)
41 255-0254 20 inch Superscreen sand screen 400 grit (pkg of 10)
42 255-0247 20 inch Superscreen sand screen 60 grit (pkg of 10)
43 255-0248 20 inch Superscreen sand screen 80 grit (pkg of 10)
45 255-9591 20 inch Diamond by Gorilla 11000 Grit (pkg of 2)
46 255-9588 20 inch Diamond by Gorilla 1500 Grit (pkg of 2)
47 255-9585 20 inch Diamond by Gorilla 200 Grit (pkg of 2)
48 255-9589 20 inch Diamond by Gorilla 3000 Grit (pkg of 2)
49 255-9586 20 inch Diamond by Gorilla 400 Grit (pkg of 2)
50 255-9587 20 inch Diamond by Gorilla 800 Grit (pkg of 2)
51 255-9590 20 inch Diamond by Gorilla 8000 Grit (pkg of 2)
52 255-9645 20 inch Diamond starter pack (1 of each grit)
53 255-2082 20 inch Turbostrip segmented rotary pad (pkg of 4)
54 255-2015 20 inch Duala clean and shine pad - low speed (pkg of 5)
55 255-2016 20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
