Parts List Complete for EAGLEPOW CT45

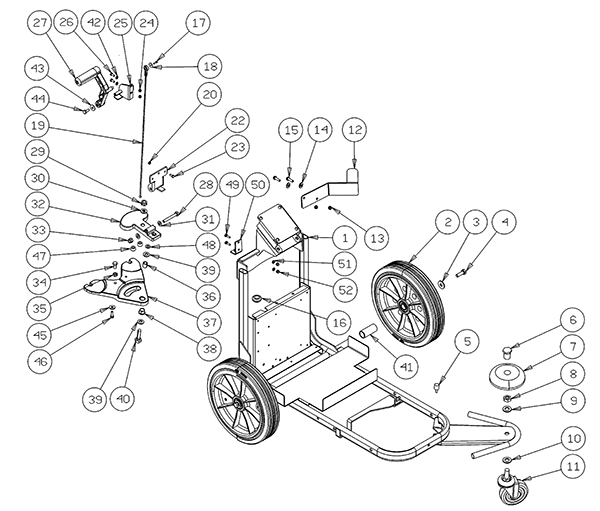

Frame Assembly- Old Style - 203-1037
RefNbr Part Number Description Req Notes
1 203-5523 CT30 frame 1
2 203-4936 Wheel 2
3 203-4212 Washer 8 x 24 2
4 203-4941 Screw M8 x 16 2
5 203-5524 Cap 1
6 203-5022 Bushing 1
7 203-4937 Wheel 1
8 203-5023 Nut M12 1
9a 203-4842 Washer 1 (after 02/2015)
9b 203-1341 Washer D12 1 (before 02/2015)
10a 203-4842 Washer 1 (after 02/2015)
10b 203-1341 Washer D12 1 (before 02/2015)
11 203-4938 Wheel 1
12 203-5525 Bracket 1
13 189-1536 Nut with nylon ring 2
14 203-1286 Washer D6 2
15 189-1497 Screw 6 x 16 inch 2
16 203-5327 Fair lead 1
17 203-1733 Screw 12 x 45 inch zinc 1 (before 09/2014)
18 203-0145 Washer 4-16 inch 1 (before 09/2014)
19a 203-3427 Squeegee lift cable 1 (after 09/2014)
19b 203-5526 Squeegee cable 1 (before 09/2014)
20 189-1484 Nut M5 3
22a 203-5560 Bracket 1 (before 09/2013)
22b 203-5528 Squeegee coupling 1 (after 09/2013)
23 203-4317 Screw 3
24 189-1384 Nut M4 2 (before 09/2014)
25 203-5529 Bracket 1 (before 09/2014)
26 203-3260 Screw 4 x 16 2 (before 09/2014)
27 203-3061 Lever 1 (before 09/2014)
28 189-1491 Screw 1
29 203-5013 Nut 1
30 203-1325 Washer 10 x 21 inch washer 1
31 189-0897 Washer D8 1
32 203-5014 Squeegee support 1
33 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
34 189-1537 Screw 1
35 189-1489 Nut M6 1
36 203-5016 Bushing 1
37 203-5017 Squeegee support 1
38 203-5018 Bushing 1
39 203-1325 Washer 10 x 21 inch washer 2
40 203-5019 Screw 1
41 203-5530 Bushing 2
42 203-3261 Washer D.4 x 18 2 (before 09/2014)
43 203-1377 D. 5 Washer 1 (before 09/2014)
44 203-5531 Screw 1 (before 09/2014)
45 189-1398 Washer 6 x 24 inch 1
46a 203-1289 Screw 1 (after 09/2014)
46b 189-1376 Screw 4 x 10 inch 1 (before 09/2014)
47a 203-5011 Squeegee articulation pin 1 (before 07/2013)
47b 203-5011 Squeegee articulation pin 2 (after 07/2013)
48 189-1128 Spring 1
49 189-1508 Turned eye screw 2 (after 09/2014)
50 203-5532 Squeegee cable bracket 1 (after 09/2014)
51 189-1353 Washer D5 2 (after 09/2014)
52 203-0789 Nut 2 (after 09/2014)

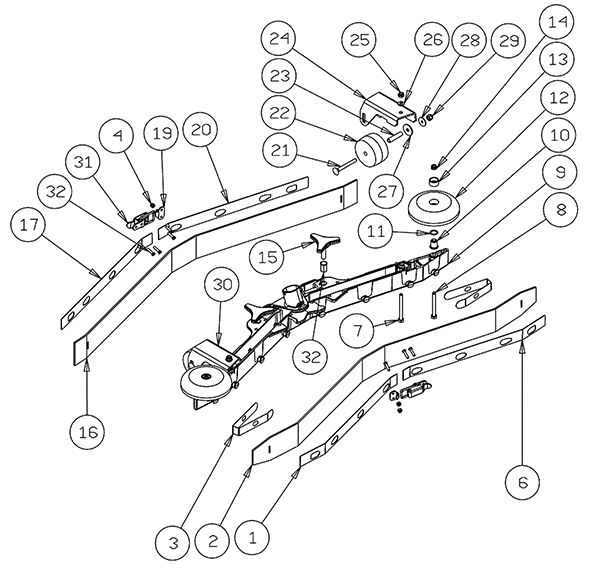

Squeegee Assembly- Old Style - 203-1038
RefNbr Part Number Description Req Notes
1b 203-5534 Sheet metal 1 (after 09/2013)
2a 203-5535 Squeegee blade rubber front 1 (before 07/2013)
2b 203-5535 Squeegee blade rubber front 1 (after 07/2013)
3 203-4780 Closure 2
4 203-4787 Nut M3 8 (after 09/2013)
6b 203-5537 Sheet metal 1 (after 09/2013)
7 189-1539 Screw 2
8 189-1488 Screw M6 2
9 203-5538 Squeegee body 1
10 203-0920 Spacer 2
11 189-0181 Gasket 2
12 189-0060 Wheel 2
13 189-5086 Bushing 2
14 189-1536 Nut with nylon ring 2
15a 203-4768 Knob 2 (before 03/2013)
15b 203-4768 Knob 2 (after 03/2013)
16 203-5539 Squeegee blade rubber rear 1
17 203-5541 Right hand rear squeegee retainer 1 (after 09/2013)
19 203-4772 Socket 2 (after 09/2013)
20a 203-5542 Bracket 1 (before 09/2013)
20b 203-5543 Left hand rear squeegee retainer 1 (after 09/2013)
21 203-5428 Screw M6 2
22 203-5544 Wheel 2
23 203-5430 Spacer 2
24 203-5545 Support 1
25 189-1536 Nut with nylon ring 2
26 203-1286 Washer D6 2
27 189-1398 Washer 6 x 24 inch 2
28 189-1391 Washer D6 2
29 203-0524 Nut M6 lock 2
30 203-5546 Support 1
31 203-4765 Retainer closure 2 (after 09/2013)
32a 203-5426 Insert 2
32b 203-4788 Screw 3 x 8 inch 8 (after 09/2013)

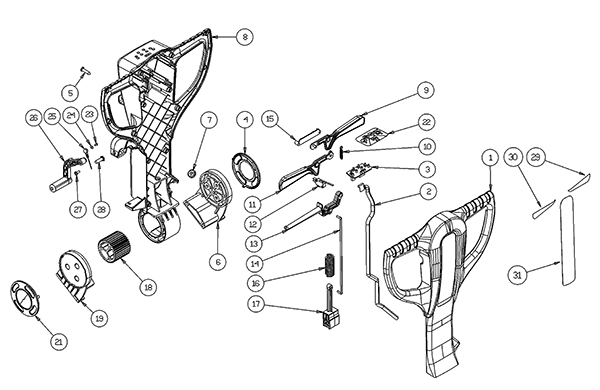

Handle Assembly - 203-1039
RefNbr Part Number Description Req Notes
1 203-5477 Front handle 1
2a 203-5006 Ribbon cable 1 (from 09/2015 - 11/2015)
2b 203-3377 Cable 1 (before 09/2015)
2c 203-5476 Wiring 1 (after 11/2015)
3 203-3394 Circuit board kit 1
4 203-5463 Cover 1
5 203-4931 Screw 4.8 x 19 14
6 206-5462 6 quart paper bag (pkg of 10) 1
7 203-5464 Bearing 1
8 203-5501 Handle 1
9 203-5468 Lever 1
10 203-5469 Spring 1
11 203-5468 Lever 1
12 189-0258 Microswitch 1
13 203-4932 Adjustment lever 1
14 203-5470 Lever 1
15 203-5467 Electronic card support 1
16 203-5471 Spring 1
17 203-5472 Handle support 1
18 203-5502 Gear 1
19 203-5462 Shell 1
21 203-5463 Cover 1
22a 203-5248 Decal 1 (before 09/2015)
22b 203-5249 PCB decal 1 (after 09/2015)
23 203-1733 Screw 12 x 45 inch zinc 1 (after 09/2014)
24 203-0145 Washer 4-16 inch 1 (after 09/2014)
25 203-3427 Squeegee lift cable 1 (after 09/2014)
26 203-3061 Lever 1 (after 09/2014)
27 203-5480 Screw 6 x 12mm 1 (after 09/2014)
28 203-5478 Pin 1 (after 09/2014)
29a 203-5497 Label (green) 1
29b 203-5496 Label (red) 1
29c 203-5495 Label (blue) 1
30a 203-5497 Label (green) 1
30b 203-5496 Label (red) 1
30c 203-5495 Label (blue) 1
31a 203-5500 Label (green) 1
31b 203-5499 Label (red) 1
31c 203-5498 Label (blue) 1

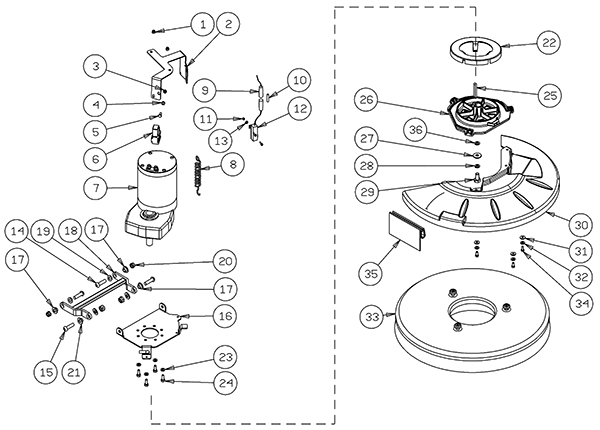

Brush Assembly - 203-1040
RefNbr Part Number Description Req Notes
1 189-1385 Nut 2
2 203-5547 Bracket 1
3 203-0789 Nut 1 (before 09/2015)
4 189-1462 Washer 5 x 14 inch 1 (before 09/2015)
5 203-5002 Screw 5 x 10 inch 1 (before 09/2015)
6 203-5231 24V relay 1 (before 09/2015)
7 203-5446 24V motor 1
8a 203-5455 Spring 1 (before 10/2013)
8b 203-5456 Spring 1 (after 10/2013)
9 203-2075 Fuse box 1 (before 09/2015)
10 203-5459 2.8 amp fuse 1 (before 09/2015)
11 189-1446 Nut M3 2 (before 09/2015)
12 203-5444 Resistance 1 (before 09/2015)
13 203-2223 Spring washer 2 (before 09/2015)
15 203-5452 Screw M8 x 25mm 2
16 203-5548 Support 1
17 203-4804 Bushing 3
18 203-5451 Bracket 1
19 189-0897 Washer D8 4
20 999-0471 Nut M8-1.25 nylon insert lock zinc plated 4
21 203-4811 Bushing 1
22 203-5003 Conveyor 1
23 203-0971 Washer D6 4
24 189-1357 Screw 6 x 12 inch 4
25 203-0644 Square keyway 1
26 375-8019 Driver kit (aluminum) 1
27 189-1400 Washer 1
28 203-4414 Washer 1
29 189-1512 Screw 8 x 20 inch 1
30 203-5549 Brush cover 1
31 189-1462 Washer 5 x 14 inch 3
32 203-4956 Spring lock washer 3
33 203-5550 20 inch polypropelene brush 1
34 203-4317 Screw 3
35 203-5551 Skrit brush 1
36 189-0897 Washer D8 1

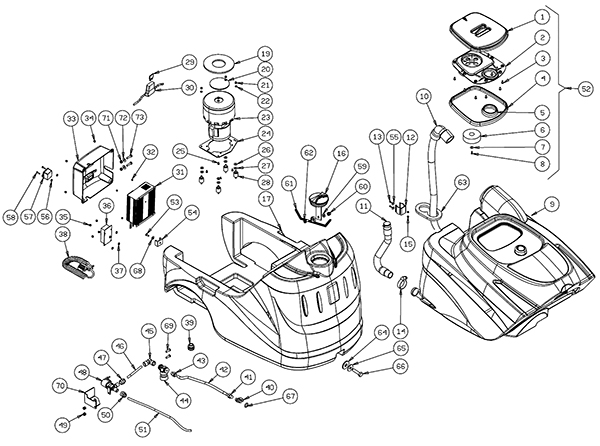

Tank Assembly - 203-1041
RefNbr Part Number Description Req Notes
1 203-4942 Outside recovery tank cover 1
2 203-4943 Inside recovery tank cover 1
3 203-4944 Screw M6 x 10 8
4 203-4945 Gasket 1
5 203-4946 Gasket 1
6 203-4947 Floater 1
7 203-5171 Washer 1
8 189-1629 Screw 5 x 12 inch screw 1
9 203-5552 Recovery tank 1
10 203-3416 Squeegee hose 1
11 203-5043 Recovery tank drain hose 1
12 203-4318 Clasp 1
13 203-3260 Screw 4 x 16 2
14a 203-4948 Clamp 1 (before 12/2014)
14b 203-5505 Clamp 1 (after 12/2014)
15 189-1384 Nut M4 2
16 203-4950 Cap 1
17 203-5553 Solution tank 1
19 203-4953 Gasket 1
20 203-4954 Net 1
21 189-1468 Nut 4
22 203-4956 Spring lock washer 4
23a 203-4666 Carbon brush (sold individually) 2
23b 203-5035 Vacuum motor 1
24 203-4957 Plate 1
25 189-1629 Screw 5 x 12 inch screw 4
26 189-1462 Washer 5 x 14 inch 4
27 189-1462 Washer 5 x 14 inch 4
28 203-4959 Vibration dampener 4
29 203-5507 Fuse 1
30 203-5508 Fuse holder wiring 1
31a 203-5038 Onboard battery charger 1 (before 05/2015)
31b 203-5038 Onboard battery charger 1 (after 05/2015)
32 203-5071 Nut 4
33 203-5510 Cover 1
34 203-3202 Nut M4 4
35 203-3202 Nut M4 4
36a 203-5007 Circuit board kit 1 (before 09/2015)
36b 203-3392 Power card - DO NOT ORDER - SEE NOTE (OBSOLETE) 1 (after 09/2015)
37 203-5178 Washer 4
38 203-3187 Charging cord 1
39 203-4757 Cap 1
40 203-5554 Valve 1
41 203-5555 Connector 1
42 203-5556 Tube (sold by the meter) 33 inches
43a 203-5555 Connector 1 (before 04/2015)
43b 203-5557 Connector 1 (from 04/2015 - 05/2015)
43c 203-5557 Connector 1 (after 05/2015)
44 203-4578 Solution filter with screen 1
45 203-4970 Connector 1
46 203-4965 Tube (sold by the meter) 20 inches
47 203-4972 Connector 1
48 203-5558 Solenoid valve 1
49a 203-4332 Nut 2 (after 05/2013)
49b 189-1629 Screw 5 x 12 inch screw 2 (before 05/2013)
50 203-4972 Connector 1
51 203-4965 Tube (sold by the meter) 48 inches
52 203-4973 Recovery tank cover 1
53 203-5517 Screw M4 x 12mm 1
54 203-5518 Clamp 1
55 203-3261 Washer D.4 x 18 2
56 203-5071 Nut 2
57 203-5519 Plug 1
58 203-5520 Screw M3 x 8mm 2
59 203-0235 Washer 1
60 203-4332 Nut 1
61 203-5179 Plate 1
62 203-5180 Screw 1
63 203-3417 Flange 1
64 189-1398 Washer 6 x 24 inch 1
65 189-1462 Washer 5 x 14 inch 1
66 203-4977 Screw 1
67 189-0133 Gasket 1
68 189-1375 Washer D4 1
69 203-4976 Screw 2 (after 05/2013)
70 203-4975 Solenoid valve guard 1
71 189-1472 Nut M4 2
72 203-0235 Washer 2
73 203-5180 Screw 2
N/S 203-9119 12V battery (gel) (OBSOLETE) 1

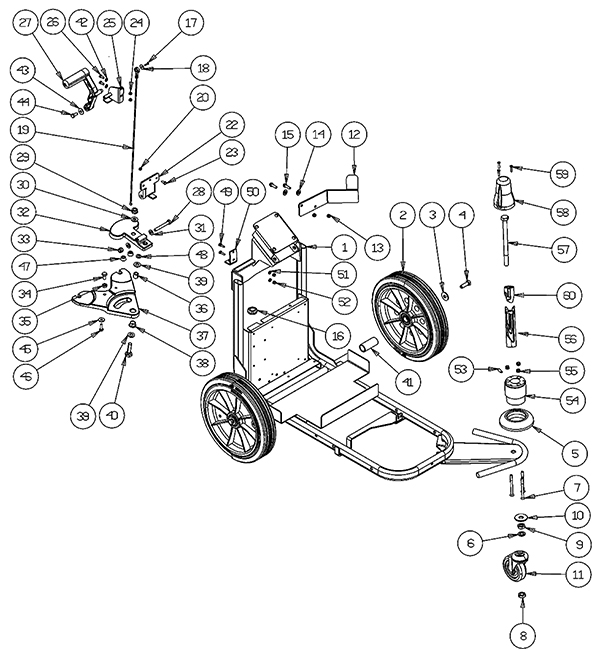

Frame Assembly- New Style - 203-1042
RefNbr Part Number Description Req Notes
1 203-5523 CT30 frame 1
2 203-4936 Wheel 2
3 203-4212 Washer 8 x 24 2
4 203-4941 Screw M8 x 16 2
5 203-5489 Wheel 1
6 203-5418 Washer 1
7 203-5490 Screw M6 x 65mm 3
8 203-5559 Nut 1
9 203-5023 Nut M12 1
10 203-4842 Washer 1
11 203-5491 Wheel 1
12 203-5525 Bracket 1
13 189-1536 Nut with nylon ring 2
14 203-1286 Washer D6 2
15 189-1497 Screw 6 x 16 inch 2
16 203-5327 Fair lead 1
17 203-1733 Screw 12 x 45 inch zinc 1 (before 09/2014)
18 203-0145 Washer 4-16 inch 1 (before 09/2014)
19a 203-3427 Squeegee lift cable 1 (after 09/2014)
19b 203-5526 Squeegee cable 1 (before 09/2014)
20 189-1484 Nut M5 3
22a 203-5560 Bracket 1 (before 09/2013)
22b 203-5528 Squeegee coupling 1 (after 09/2013)
23 203-4317 Screw 3
24 189-1384 Nut M4 2 (before 09/2014)
25 203-5529 Bracket 1 (before 09/2014)
26 203-3260 Screw 4 x 16 2 (before 09/2014)
27 203-3061 Lever 1 (before 09/2014)
28 189-1491 Screw 1
29 203-5013 Nut 1
30 203-1325 Washer 10 x 21 inch washer 1
31 189-0897 Washer D8 1
32 203-5014 Squeegee support 1
33 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
34 189-1537 Screw 1
35 189-1489 Nut M6 1
36 203-5016 Bushing 1
37 203-5017 Squeegee support 1
38 203-5018 Bushing 1
39 203-1325 Washer 10 x 21 inch washer 2
40 203-5019 Screw 1
41 203-5530 Bushing 2
42 203-3261 Washer D.4 x 18 2 (before 09/2014)
43 203-1377 D. 5 Washer 1 (before 09/2014)
44 203-5531 Screw 1 (before 09/2014)
45 189-1398 Washer 6 x 24 inch 1
46a 203-1289 Screw 1 (after 09/2014)
46b 189-1376 Screw 4 x 10 inch 1 (before 09/2014)
47a 203-5011 Squeegee articulation pin 1 (before 07/2013
47b 203-5011 Squeegee articulation pin 1 (after 07/2013)
48 189-1128 Spring 1
49 189-1508 Turned eye screw 2 (after 09/2014)
50 203-5532 Squeegee cable bracket 1 (after 09/2014)
51 189-1353 Washer D5 2 (after 09/2014)
52 203-0789 Nut 2 (after 09/2014)
53 203-5487 Pin 1
54 203-5482 Bushing 1
55 189-1536 Nut with nylon ring 3
56a 203-5486 Pin kit 1 (after 04/2015)
56b 203-5485 Pin 1 (before 04/2015)
57 203-5561 Screw M12 x 160mm 1
58 203-5483 Cover 1
59 203-5562 Screw 3
60 203-5486 Pin kit 1

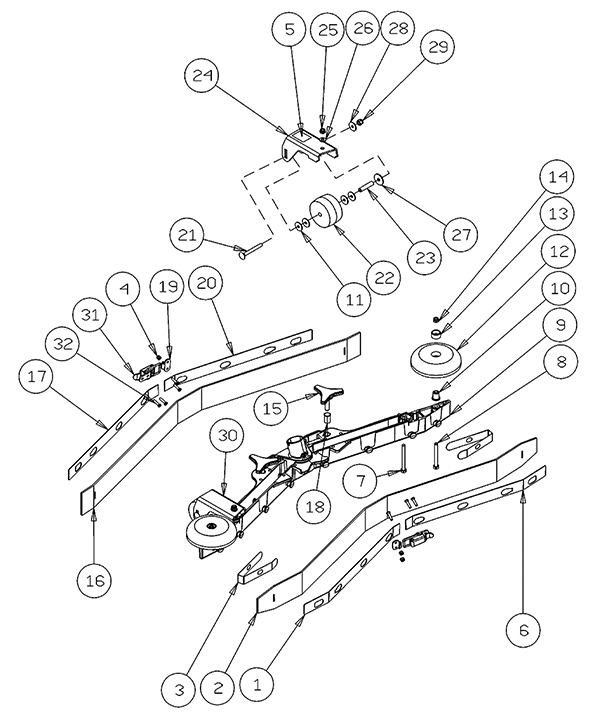

Squeegee Assembly- New Style - 203-1043
RefNbr Part Number Description Req Notes
1 203-5534 Sheet metal 1
2 203-5535 Squeegee blade rubber front 1
3 203-4780 Closure 2
4 203-4787 Nut M3 8
5 203-5421 Decal 2
6 203-5537 Sheet metal 1
7 189-1539 Screw 2
8 189-1488 Screw M6 2
9 203-5538 Squeegee body 1
10 203-0920 Spacer 2
11 189-1393 Washer 4
12 675-9813 Wheel 80D x 22W bumper 2
13 189-5086 Bushing 2
14 189-1536 Nut with nylon ring 2
15 203-4768 Knob 2
16 203-5539 Squeegee blade rubber rear 1
17 203-5541 Right hand rear squeegee retainer 1
18 203-5426 Insert 2
19 203-4772 Socket 2
20 203-5543 Left hand rear squeegee retainer 1
21 203-5428 Screw M6 2
22 203-5429 Wheel 2
23 203-5430 Spacer 2
24 203-5545 Support 1
25 189-1536 Nut with nylon ring 2
26 203-1286 Washer D6 2
27 189-1398 Washer 6 x 24 inch 2
28 189-1391 Washer D6 2
29 203-0524 Nut M6 lock 2
30 203-5546 Support 1
31 203-4765 Retainer closure 2
32 203-4788 Screw 3 x 8 inch 8
N/S 203-5024 Squeegee assembly 1

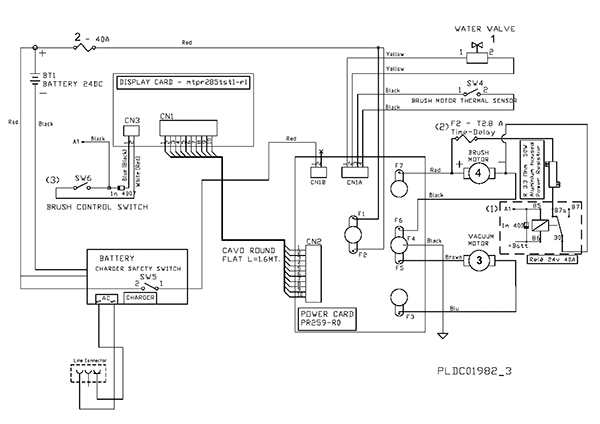

Wiring Assembly-Old Style - 203-1044
RefNbr Part Number Description Req Notes
1 203-5563 Solenoid valve 1
2 203-5507 Fuse 1
3 203-5035 Vacuum motor 1
4 203-5454 Brush motor 1

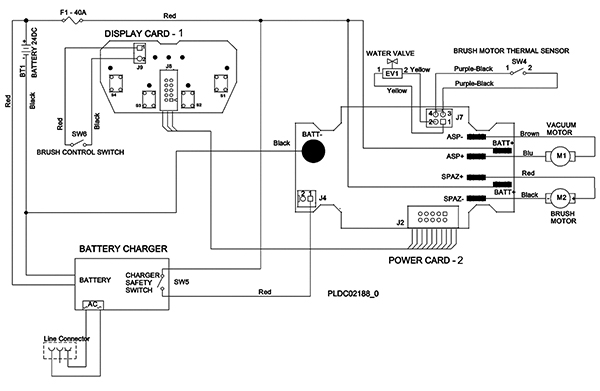

Wiring Assembly-New Style - 203-1045
RefNbr Part Number Description Req Notes
1 203-3393 Display card - DO NOT ORDER - SEE NOTE (OBSOLETE) 1
2 203-3392 Power card - DO NOT ORDER - SEE NOTE (OBSOLETE) 1

- Commonly Asked For Parts - 203-9964
RefNbr Part Number Description Req Notes
01 203-3392 Power card - DO NOT ORDER - SEE NOTE (OBSOLETE)
02 203-3393 Display card - DO NOT ORDER - SEE NOTE (OBSOLETE)
03 203-3394 Circuit board kit
04 203-5024 Squeegee assembly
05 203-3416 Squeegee hose
06 203-3417 Flange
07 203-4953 Gasket
08 203-5233 Squeegee weldment
09 203-3427 Squeegee lift cable
10 203-5249 PCB decal
11 203-5248 Decal
12 203-5535 Squeegee blade rubber front
13 203-5444 Resistance
14 203-5445 Relay
15 203-5446 24V motor
16 203-5447 Squeegee assembly
17 203-0041 Cable 110v. (OBSOLETE) 2
18 203-3433 20 inch pad driver

- Pads - 255-2000
RefNbr Part Number Description Req Notes
01 255-2040 20 inch aqua plus burnishing pad (pkg of 5)
02 255-2035 20 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2064 20 inch Blue ace pad (pkg of 5)
04 255-2042 20 inch Blue Jay burnishing pad (pkg of 5)
05 255-2012 20 inch Cure white pad (pkg of 5)
06 255-2077 20 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2038 20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2021 20 inch gorilla lite burnishing pad (pkg of 5)
09 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2065 20 inch Heat concrete bonding pad (pkg of 5)
11 255-2030 20 inch jaguar burnishing pad (pkg of 5)
12 255-2067 20 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2087 20 inch Melamine Mela-Kleen pad (pkg of 2)
14 255-2068 20 inch Microclean daily cleaning pad (pkg of 2)
15 255-2069 20 inch Micropolish polishing and burnishing pad (pkg of 2)
16 255-2090 20 inch premium black stripping pad (pkg of 5)
17 255-2070 20 inch premium blue cleaning pad (pkg of 5)
18 255-2092 20 inch premium brown stripping pad (pkg of 5)
19 255-2080 20 inch premium green scrubbing pad (pkg of 5)
20 255-2060 20 inch premium red scrubbing pad (pkg of 5)
21 255-2052 20 inch premium tan polishing pad (pkg of 5)
22 255-2020 20 inch premium white polishing pad (pkg of 5)
23 255-2011 20 inch superspeed rubberized pad (pkg of 5)
24 255-2095 20 inch razorback stripping pad (pkg of 5)
25 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10)
26 255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2)
27 255-2023 20 inch sand screen driver pad (pkg of 2)
28 255-0157 20 inch Professional sand screen 100 grit (pkg of 10)
29 255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
30 255-0158 20 inch Professional sand screen 150 grit (pkg of 10)
31 255-0159 20 inch Professional sand screen 180 grit (pkg of 10)
32 255-0160 20 inch Professional sand screen 220 grit (pkg of 10)
33 255-0161 20 inch Professional sand screen 400 grit (pkg of 10)
34 255-0030 20 inch Professional sand screen 60 grit (pkg of 10)
35 255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
36 255-0249 20 inch Superscreen sand screen 100 grit (pkg of 10)
37 255-0250 20 inch Superscreen sand screen 120 grit (pkg of 10)
38 255-0251 20 inch Superscreen sand screen 150 grit (pkg of 10)
39 255-0252 20 inch Superscreen sand screen 180 grit (pkg of 10)
40 255-0253 20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE)
41 255-0254 20 inch Superscreen sand screen 400 grit (pkg of 10)
42 255-0247 20 inch Superscreen sand screen 60 grit (pkg of 10)
43 255-0248 20 inch Superscreen sand screen 80 grit (pkg of 10)
45 255-9591 20 inch Diamond by Gorilla 11000 Grit (pkg of 2)
46 255-9588 20 inch Diamond by Gorilla 1500 Grit (pkg of 2)
47 255-9585 20 inch Diamond by Gorilla 200 Grit (pkg of 2)
48 255-9589 20 inch Diamond by Gorilla 3000 Grit (pkg of 2)
49 255-9586 20 inch Diamond by Gorilla 400 Grit (pkg of 2)
50 255-9587 20 inch Diamond by Gorilla 800 Grit (pkg of 2)
51 255-9590 20 inch Diamond by Gorilla 8000 Grit (pkg of 2)
52 255-9645 20 inch Diamond starter pack (1 of each grit)
53 255-2082 20 inch Turbostrip segmented rotary pad (pkg of 4)
54 255-2015 20 inch Duala clean and shine pad - low speed (pkg of 5)
55 255-2016 20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Batteries, Brushes, and Chargers - 999-9094
RefNbr Part Number Description Req Notes
1 203-9119 12V battery (gel) (OBSOLETE)
2 203-5038 Onboard battery charger
3a 203-5550 20 inch polypropelene brush
3b 996-8191 16 inch heavy grit stripping brush - 80 grit (must have make and model when ordering brush)
3c 996-8192 16 inch medium grit scrubbing brush - 180 grit (must have make and model when ordering brush)
3d 996-8193 16 inch lite grit scrubbing brush - 500 grit (must have make and model when ordering brush)
Webpage Problem Reporting
