Parts List Complete for EAGLEPOW CT30

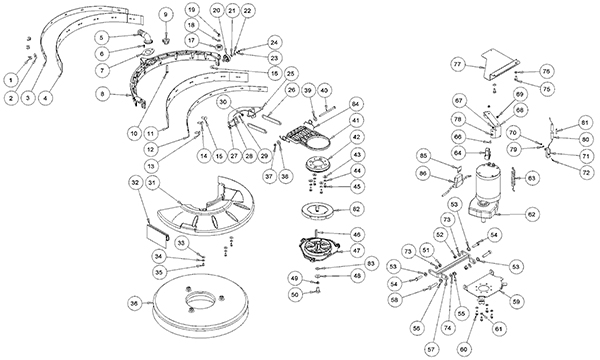

Squeegee Assembly - 203-6060
RefNbr Part Number Description Req Notes
1 203-4978 Nut 6
2 189-1462 Washer 5 x 14 inch 6
3 203-4979 Bracket 1
4a 203-4980 Rear squeegee blade 1
4b 203-9132 Squeegee blade rear linatex 1
5 203-4981 Connector 1
6 189-1629 Screw 5 x 12 inch screw 2
7 203-4982 Flange 1
8 203-4983 Squeegee body 1
9 203-4984 Small knob 2
10 203-4779 Screw M6 x 50mm 2
11a 203-4985 Front squeegee blade 1
11b 203-9131 Squeegee blade front linatex 1
12 203-4986 Bracket 1
13 203-4987 Screw 2
14 203-4988 Screw 2
15 203-4988 Screw 2
16 203-4989 Screw 3
17 203-4636 Wheel 2
18 189-1462 Washer 5 x 14 inch 2
19 189-1629 Screw 5 x 12 inch screw 2
20 203-4636 Wheel 3
21 203-4990 Bushing 3
22 189-1462 Washer 5 x 14 inch 6
23 203-4956 Spring lock washer 3
24 203-0789 Nut 3
25 203-4991 Support 1
26 203-5448 Arm 2
27 189-1445 Turned eye screw 2
28 203-1286 Washer D6 2
29 203-1286 Washer D6 2
30 189-1536 Nut with nylon ring 2
31 203-4993 Brush cover 1
32 203-4994 Brush skirt flap 1
33 189-1462 Washer 5 x 14 inch 3
34 203-4956 Spring lock washer 3
35 203-4317 Screw 3
36 203-4995 18 inch nylon brush 1
37 189-1536 Nut with nylon ring 1
38a 203-1286 Washer D6 1 (before January 28,2015)
38b 189-1391 Washer D6 1 (after January 27, 2015)
39a 203-1286 Washer D6 1 (before January 28, 2015)
39b 189-1391 Washer D6 1 (after January 27, 2015)
40a 203-4996 Screw 1 (before January 28, 2015)
40b 203-5449 Screw M6 x 140mm 1 (after January 27, 2015)
41 203-5219 Side body support 1
42 203-4997 Bracket 1
43 189-1391 Washer D6 4
44 203-0971 Washer D6 4
45 189-1445 Turned eye screw 4
46 203-0644 Square keyway 1
47 203-4999 Drive disk 1
48 189-1400 Washer 1
49 203-4414 Washer 1
50 189-1512 Screw 8 x 20 inch 1
51 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
52 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
53 203-4804 Bushing 3
54a 189-1344 Screw M8 2 (before April 15, 2014)
54b 203-5450 Screw M8 x 35mm 2 (after April 14, 2014)
55 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
56 203-4811 Bushing 1
57 203-5451 Bracket 1
58a 189-1479 Screw 8 x 25 inch 2 (before April 15, 2014)
58b 203-5452 Screw M8 x 25mm 2 (after April 14, 2014)
59 203-5453 Support 1
60 189-1357 Screw 6 x 12 inch 4
61 203-0971 Washer D6 4
62 203-5454 Brush motor 1
63a 203-5455 Spring 1 (before October 30, 2013)
63b 203-5456 Spring 1 (after October 29, 2013)
64 203-5231 24V relay 1 (before September 14, 2015)
66 203-5002 Screw 5 x 10 inch 1 (before September 14, 2015)
67 203-0789 Nut 1
68 203-5457 Bracket 1
69 189-1385 Nut 2
70 189-1446 Nut M3 2
71 203-5444 Resistance 1
72 203-0552 Screw 2
73 189-0897 Washer D8 2
74 189-0897 Washer D8 4
75 203-5002 Screw 5 x 10 inch 3
76 189-1462 Washer 5 x 14 inch 3
77 203-5458 Protection 1
78 189-1462 Washer 5 x 14 inch 1 (Before September 14, 2015)
79 203-2223 Spring washer 2 (Before September 14, 2015)
80 203-2075 Fuse box 1 (After March 02, 2012. Before September 14, 2015)
81 203-5459 2.8 amp fuse 1 (After March 02, 2012. Before September 14, 2015)
82 203-5003 Conveyor 1 (Before September 16, 2017)
83 189-0897 Washer D8 1 (After November 02, 2014)
84 203-5460 Spring 2 (After January 29, 2015)
85 203-3133 30amp fuse 1
86 203-5461 Wiring 1

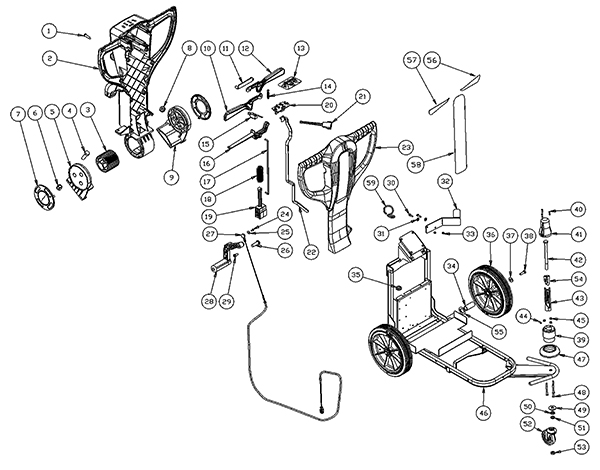

Frame Assembly - 203-6061
RefNbr Part Number Description Req Notes
1 203-4931 Screw 4.8 x 19 14
2 203-5501 Handle 1
3 203-5502 Gear 1
4 203-3092 Screw M8 x 22 4
5 203-5462 Shell 1
6 999-0471 Nut M8-1.25 nylon insert lock zinc plated 4
7 203-5463 Cover 2
8 203-5464 Bearing 1
9 203-5462 Shell 1
10 203-5468 Lever 1
11 203-5467 Electronic card support 1
12 203-5468 Lever 1
13a 203-5248 Decal 1 (Before September 14, 2015)
13b 203-5249 PCB decal 1 (After September 13, 2015)
14 203-5469 Spring 1
15 189-0258 Microswitch 1
16 203-4932 Adjustment lever 1
17 203-5470 Lever 1
18 203-5471 Spring 1
19 203-5472 Handle support 1
20a 203-3394 Circuit board kit 1 (Before September 14, 2015)
20b 203-3393 Display card - DO NOT ORDER - SEE NOTE (OBSOLETE) 1 (After September 13, 2015. Before June 16, 2016)
20c 203-5473 Board 1 (Before June 17, 2016)
21a 203-5474 Wiring push button 1 (Before September 14, 2015)
21b 203-5475 Wiring push button 1 (After September 13, 2015)
22a 203-3377 Cable 1 (Before September 14, 2015)
22b 203-5006 Ribbon cable 1 (After September 13, 2015. Before November 26, 2015)
22c 203-5476 Wiring 1 (After November 25, 2015)
23 203-5477 Front handle 1
24 203-1733 Screw 12 x 45 inch zinc 1
25 203-0145 Washer 4-16 inch 1
26 203-5478 Pin 1
27 203-5479 Squeegee lifting cable 1
28 203-3061 Lever 1
29 203-5480 Screw 6 x 12mm 1
30 189-1497 Screw 6 x 16 inch 2
31 203-1286 Washer D6 2
32 203-4934 Bracket 1
33 189-1536 Nut with nylon ring 2
34a 203-4935 Bushing 2 (Before June 23, 2016)
34b 203-5481 Spacer 2 (After June 22, 2016)
35 203-5327 Fair lead 1
36 203-4936 Wheel 2
37 203-4212 Washer 8 x 24 2
38 203-4941 Screw M8 x 16 2
39 203-5482 Bushing 1
40 203-3196 Screw 4 x 16 3
41 203-5483 Cover 1
42 203-5484 Screw M12 x 170mm 1
43a 203-5485 Pin 1 (Before April 27, 2015)
43b 203-5486 Pin kit 1 (After April 26, 2015)
44 203-5487 Pin 1
45 189-1536 Nut with nylon ring 3
46 203-5488 Frame 1
47 203-5489 Wheel 1
48 203-5490 Screw M6 x 65mm 3
49 203-4842 Washer 1
50 203-5023 Nut M12 1
51 203-5418 Washer 1
52a 203-5491 Wheel 1 (Before February 29, 2017)
52b 203-5491 Wheel 1 (After February 28, 2017)
53 999-1122 Nut M12-1.75 hex nylon insert lock stainless steel 1
54 203-5486 Pin kit 1 (After April 26, 2015)
55 203-5494 Washer M18 4 (After September 3, 2015. Before June 23, 2016)
56a 203-5495 Label (blue) 1
56b 203-5496 Label (red) 1
56c 203-5497 Label (green) 1
57a 203-5495 Label (blue) 1
57b 203-5496 Label (red) 1
57c 203-5497 Label (green) 1
58a 203-5498 Label (blue) 1
58b 203-5499 Label (red) 1
58c 203-5500 Label (green) 1
59 203-4330 Connecting rod 1 (After April 14, 2016)

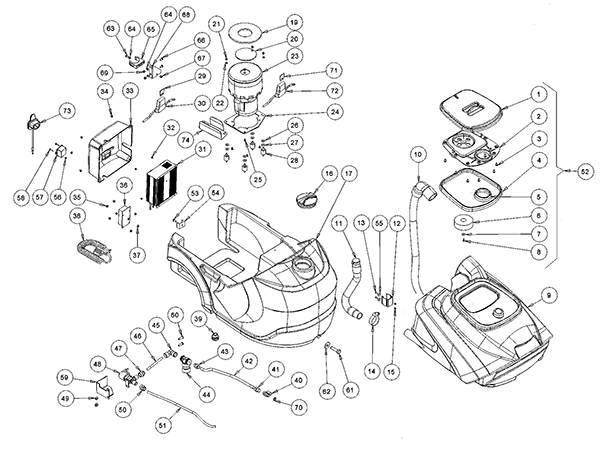

Tank Assembly - 203-6062
RefNbr Part Number Description Req Notes
1 203-4942 Outside recovery tank cover 1
2 203-4943 Inside recovery tank cover 1
3 203-4944 Screw M6 x 10 8
4 203-4945 Gasket 1
5 203-4946 Gasket 1
6 203-4947 Floater 1
7 203-5171 Washer 1
8 189-1629 Screw 5 x 12 inch screw 1
9 203-5504 Recovery tank 1
10 203-4579 Suction squeegee hose 1
11 203-5043 Recovery tank drain hose 1
12 203-4318 Clasp 1
13 203-3260 Screw 4 x 16 2
14a 203-4948 Clamp 1 (Before December 9, 2014)
14b 203-5505 Clamp 1 (After December 8, 2014)
15 189-1384 Nut M4 2
16 203-4950 Cap 1
17 203-5506 Solution tank 1
19a 203-4953 Gasket 1 (Before September 23, 2016)
19b 203-4953 Gasket 1 (After September 22, 2016)
20 203-4954 Net 1
21 189-1468 Nut 4
22 203-4956 Spring lock washer 4
23a 203-4666 Carbon brush (sold individually) 2
23b 203-5035 Vacuum motor 1
24 203-4957 Plate 1
25 189-1629 Screw 5 x 12 inch screw 4
26 189-1462 Washer 5 x 14 inch 4
27 189-1462 Washer 5 x 14 inch 4
28 203-4959 Vibration dampener 4
29 203-5507 Fuse 1
30 203-5508 Fuse holder wiring 1
31a 203-5038 Onboard battery charger 1 (Before February 19, 2013)
31b 203-5038 Onboard battery charger 1 (After February 18, 2013)
32 203-5071 Nut 4
33a 203-5509 Cover 1 (Before July 22, 2014)
33b 203-5510 Cover 1 (After July 21, 2014)
34 203-3202 Nut M4 4
35 203-3202 Nut M4 4
36a 203-3394 Circuit board kit 1
36b 203-5513 Power board 1
37 203-5178 Washer 4
38 203-3187 Charging cord 1
39a 203-4757 Cap 1 (Before October 31, 2016)
39b 203-5514 1/2 inch cap 1 (After November 1, 2016)
40 203-4966 Valve 1
41 203-4967 Connector 1
42 203-4965 Tube (sold by the meter) 1
43a 203-5515 Connector 1 (Before September 11, 2013)
43b 203-5557 Connector 1 (After September 10, 2013)
44a 203-4578 Solution filter with screen 1 (Before February 29, 2012)
44b 203-4578 Solution filter with screen 1 (After February 28, 2012)
45 203-4970 Connector 1
46 203-4965 Tube (sold by the meter) 1
47 203-4972 Connector 1
48 203-5041 Solution solenoid valve 1
49a 189-1629 Screw 5 x 12 inch screw 2 (Before May 23, 2013)
49b 203-4332 Nut 2 (After May 22, 2013)
50 203-4972 Connector 1
52 203-4973 Recovery tank cover 1 includes 1-8
53 203-5517 Screw M4 x 12mm 1
54 203-5518 Clamp 1
55 203-3261 Washer D.4 x 18 2
56 203-5071 Nut 2
57 203-5519 Plug 1
58 203-5520 Screw M3 x 8mm 2
59 203-4975 Solenoid valve guard 1 (After May 22, 2013)
60 203-4976 Screw 2 (After May 22, 2013)
61 203-4977 Screw 1
62 189-1462 Washer 5 x 14 inch 1
63 203-4976 Screw 1 (After September 9, 2014)
64 203-0235 Washer 3 (After September 9, 2014)
65 203-3395 Hose clip 1 (After September 9, 2014)
66 203-5180 Screw 2 (After September 9, 2014)
67 189-1472 Nut M4 1 (After September 9, 2014)
68 203-5521 Bracket 1 (After September 9, 2014)
69 189-1472 Nut M4 2 (After September 9, 2014)
70 203-3140 Gasket OR 106 1 (After April 21, 2014)
71 203-3211 20amp main card fuse 1
72 203-5461 Wiring 1
73 203-5461 Wiring 1 (After January 15, 2017)
74 203-5522 Bracket 1 (After January 15, 2017)

- Commonly Asked For Parts - 203-9973
RefNbr Part Number Description Req Notes
01 203-4578 Solution filter with screen
02 203-4579 Suction squeegee hose
03 203-4639 Pad driver
04 991-2206 Center-Lok 3 pad holder (MFG does not suggest using a pad holder but this can be used.)
05 991-2202 Big mouth pad holder set (blue) (MFG does not suggest using a pad holder but this can be used.)
06 203-3394 Circuit board kit
07 203-4492 Handle support
08 162-0114 12V 50Ah AGM battery
09 203-6143 Squeegee assembly

- Pads - 255-1800
RefNbr Part Number Description Req Notes
01 255-1840 18 inch aqua plus burnishing pad (pkg of 5)
02 255-1835 18 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-1864 18 inch Blue ace pad (pkg of 5)
04 255-1842 18 inch Blue Jay burnishing pad (pkg of 5)
05 255-1812 18 inch Cure white pad (pkg of 5)
06 255-1877 18 inch Diamondback extreme stripping pad (pkg of 5)
07 255-1838 18 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-1821 18 inch gorilla lite burnishing pad (pkg of 5)
09 255-1850 18 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-1865 18 inch Heat concrete bonding pad (pkg of 5)
11 255-1830 18 inch jaguar burnishing pad (pkg of 5)
12 255-1890 18 inch premium black stripping pad (pkg of 5)
13 255-1870 18 inch premium blue cleaning pad (pkg of 5)
14 255-1892 18 inch premium brown stripping pad (pkg of 5)
15 255-1880 18 inch premium green scrubbing pad (pkg of 5)
16 255-1860 18 inch premium red scrubbing pad (pkg of 5)
17 255-1852 18 inch premium tan polishing pad (pkg of 5)
18 255-1820 18 inch premium white polishing pad (pkg of 5)
19 255-1811 18 inch superspeed rubberized pad (pkg of 5)
20 255-1895 18 inch razorback stripping pad (pkg of 5)
21 255-1847 18 inch Redwood maroon floor prep pad (pkg of 10)
22 255-1855 18 inch Ruff non-abrasive brush pad (pkg of 2)
23 255-1823 18 inch sand screen driver pad (pkg of 2)
24 255-0023 18 inch Professional sand screen 100 grit (pkg of 10)
25 255-0145 18 inch Professional sand screen 120 grit (pkg of 10)
26 255-0146 18 inch Professional sand screen 150 grit (pkg of 10)
27 255-0147 18 inch Professional sand screen 180 grit (pkg of 10)
28 255-0148 18 inch Professional sand screen 220 grit (pkg of 10)
29 255-0149 18 inch Professional sand screen 400 grit (pkg of 10)
30 255-0022 18 inch Professional sand screen 60 grit (pkg of 10)
31 255-0144 18 inch Professional sand screen 80 grit (pkg of 10)
32 255-0233 18 inch Superscreen sand screen 100 grit (pkg of 10)
33 255-0234 18 inch Superscreen sand screen 120 grit (pkg of 10)
34 255-0235 18 inch Superscreen sand screen 150 grit (pkg of 10)
35 255-0236 18 inch Superscreen sand screen 180 grit (pkg of 10)
36 255-0237 18 inch Superscreen sand screen 220 grit (pkg of 10)
37 255-0238 18 inch Superscreen sand screen 400 grit (pkg of 10)
38 255-0231 18 inch Superscreen sand screen 60 grit (pkg of 10)
39 255-0232 18 inch Superscreen sand screen 80 grit (pkg of 10)
40 255-1824 18 inch Tiger carpet bonnet (pkg of 2)
41 255-9577 18 inch Diamond by Gorilla 11000 Grit (pkg of 2)
42 255-9574 18 inch Diamond by Gorilla 1500 Grit (pkg of 2)
43 255-9571 18 inch Diamond by Gorilla 200 Grit (pkg of 2)
44 255-9575 18 inch Diamond by Gorilla 3000 Grit (pkg of 2)
45 255-9572 18 inch Diamond by Gorilla 400 Grit (pkg of 2)
46 255-9573 18 inch Diamond by Gorilla 800 Grit (pkg of 2)
47 255-9576 18 inch Diamond by Gorilla 8000 Grit (pkg of 2)
48 255-9643 18 inch Diamond starter pack (1 of each grit)
49 255-1882 18 inch Turbostrip segmented rotary pad (pkg of 4)
50 255-1815 18 inch Duala clean and shine pad - low speed (pkg of 5)
51 255-1816 18 inch 2001 Duala clean and shine pad - high speed (pkg 5)

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)

- Batteries, Brushes, and Chargers - 999-9093
RefNbr Part Number Description Req Notes
1 162-0121 12V 87Ah Discover battery
2 203-5038 Onboard battery charger
3 203-4995 18 inch nylon brush
Webpage Problem Reporting
