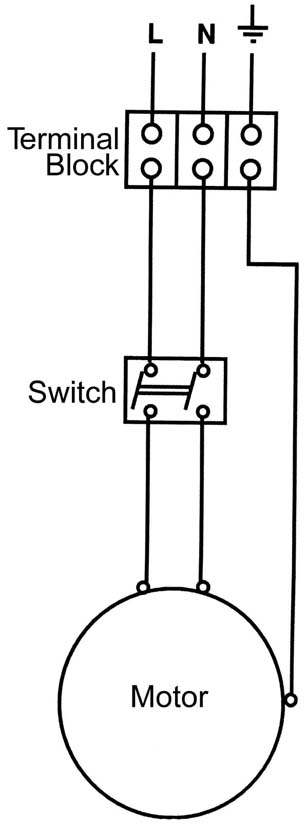

Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

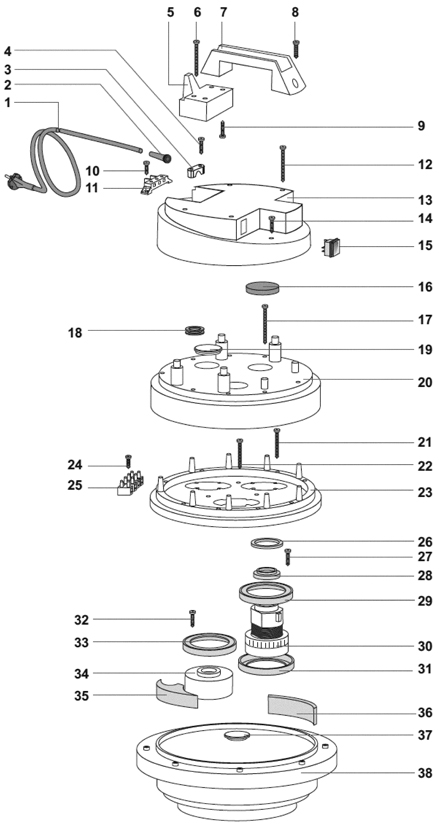

Vac Motor Assembly - 203-2010 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
203-0281 |
16/3 power cord 27 foot |
1 |
(415P/415S/415ST/415PLT) |
| 1b |
203-4621 |
Power cord 14 x 3 (OBSOLETE) |
1 |
(429P) |
| 2 |
203-0280 |
Strain relief (black) |
1 |
|
| 4 |
203-0276 |
Screw M5 x 20mm |
2 |
|
| 6 |
173-4261 |
Screw M5 x 30mm |
4 |
|
| 8 |
203-0307 |
Screw M5 x 30mm |
1 |
|
| 9 |
203-0276 |
Screw M5 x 20mm |
2 |
|
| 10 |
203-0286 |
Screw M5 x 14mm |
2 |
|
| 11 |
203-4599 |
Terminal block |
1 |
|
| 12 |
173-4261 |
Screw M5 x 30mm |
4 |
|
| 13 |
203-4600 |
Single motor cover |
1 |
|
| 14 |
203-0276 |
Screw M5 x 20mm |
2 |
|
| 15 |
203-0275 |
On/off switch |
1 |
|
| 17 |
203-4601 |
Screw 5 x 55 zinc |
9 |
|
| 20 |
203-4602 |
Motor cover |
1 |
|
| 21 |
203-0401 |
Screw M5 x 40mm |
9 |
|
| 22 |
203-0401 |
Screw M5 x 40mm |
3 |
|
| 23 |
173-4274 |
Motor base (gray) |
1 |
|
| 24 |
203-4603 |
Scerw 4 1/2 x 20 (OBSOLETE) |
1 |
|
| 25 |
203-4604 |
Terminal board |
1 |
|
| 26 |
203-0285 |
Motor exhaust gasket |
1 |
|
| 27 |
203-0276 |
Screw M5 x 20mm |
4 |
|
| 29 |
203-0289 |
Motor gasket |
1 |
|
| 30 |
203-4301 |
120V vacuum motor |
1 |
|
| 31 |
203-0289 |
Motor gasket |
1 |
|
| 32 |
203-0276 |
Screw M5 x 20mm |
8 |
|
| 33 |
203-0289 |
Motor gasket |
2 |
|
| 38 |
203-4606 |
Base with gasket |
1 |
|
|
|

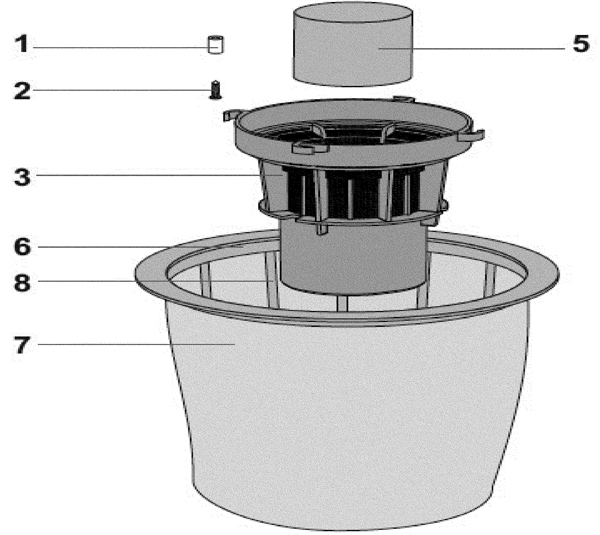

Filter Assembly - 203-2011 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
203-0296 |
Screw M5 x 25mm |
4 |
|
| 3 |
203-4607 |
Body filter assembly (OBSOLETE) |
1 |
|
| 5 |
203-4608 |
Float with gasket (OBSOLETE) |
1 |
|
| 8 |
202-0332 |
1/2 inch barbed tee |
1 |
|
|
|

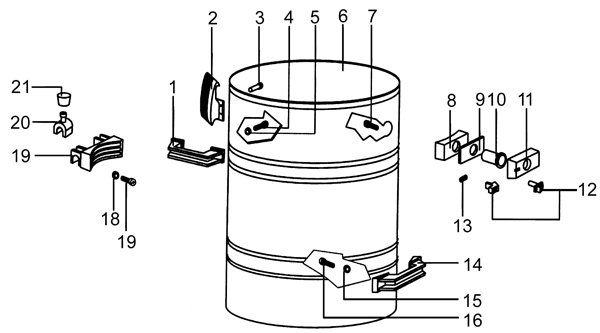

Tank Assembly - 203-2013 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
203-0305 |
Rivet M5 x 19mm |
4 |
|
| 4 |
203-0362 |
Screw 5 x 25 |
4 |
|
| 5 |
203-0341 |
Washer plastic |
4 |
|
| 7 |
203-0307 |
Screw M5 x 30mm |
4 |
|
| 8 |
203-0364 |
Tank adapter |
1 |
|
| 11 |
203-0313 |
Hose adapter |
1 |
|
| 12 |
203-0312 |
Push button |
1 |
|
| 16 |
203-0362 |
Screw 5 x 25 |
2 |
|
| 17 |
203-0356 |
Screw M5 x 25mm |
4 |
|
| 18 |
203-0341 |
Washer plastic |
4 |
|
| 21 |
203-0368 |
Release knob |
2 |
|
|
|

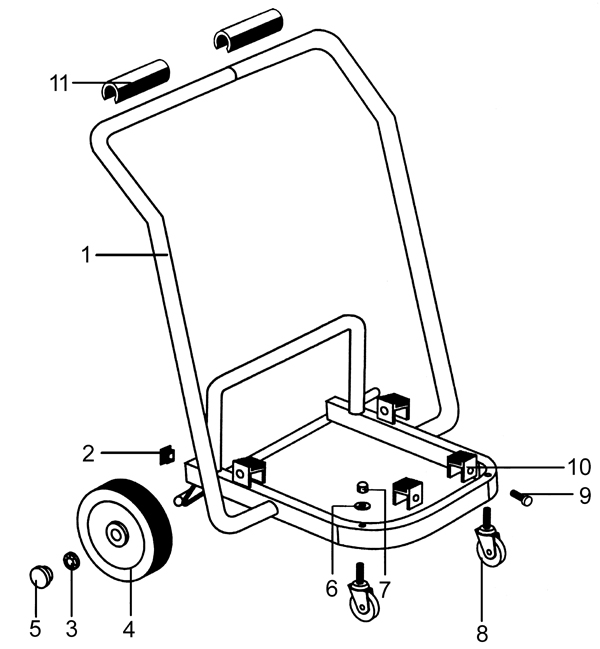

Cart - 203-2014 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 8 |
203-0373 |
Caster wheel |
2 |
|
| 9 |
203-0374 |
Screw M5 x 25mm |
4 |
|
| 11 |
203-0360 |
Handle grip |
2 |
|
|
|
Accessories - 203-9900 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
999-0471 |
Nut M8-1.25 nylon insert lock zinc plated |
3 |
|
| 8 |
203-4648 |
Screw M8 x 30 |
2 |
|
| 23 |
203-3274 |
Screw 6 x 50 |
1 |
|
| 35 |
189-1497 |
Screw 6 x 16 inch |
2 |
|
| 40 |
189-1512 |
Screw 8 x 20 inch |
1 |
|
| 46b |
203-5046 |
Control panel decal |
1 |
(after 05/2012) |
| 47b |
203-4715 |
Support |
1 |
(after 05/2012) |
| 51 |
203-5228 |
Switch guard |
1 |
|
| 57 |
189-1446 |
Nut M3 |
3 |
(before 05/2012) |
| 58 |
189-2241 |
Washer D3 |
3 |
(before 05/2012) |
| 59 |
203-5205 |
Insert |
3 |
(before 05/2012) |
| 60a |
203-4739 |
Screw |
3 |
(after 05/2012) |
| 60b |
189-2251 |
Screw 3 x 6 inch |
3 |
(before 05/2012) |
| 62 |
203-4720 |
Screw 4 x 10 |
3 |
|
|
|

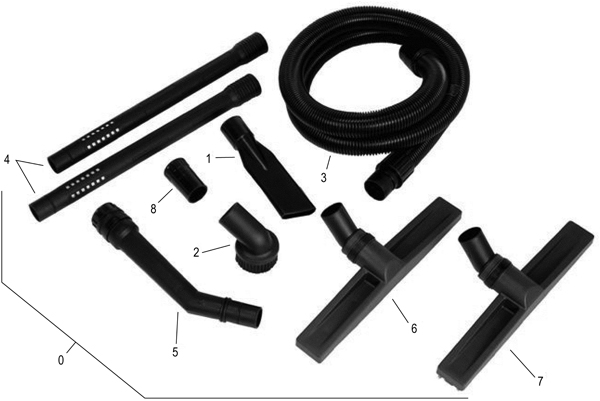

Tools - 203-9974 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
203-2881 |
Complete tool kit |
1 |
(includes 1-8) |
| 1 |
203-2882 |
Crevice tool |
1 |
|
| 3 |
203-1247 |
Flex hose 1 1/2 x 10 foot |
1 |
|
| 4 |
203-1250 |
1 piece wand extension |
2 |
|
| 5 |
203-1249 |
1 piece wand |
1 |
|
| 6 |
203-2884 |
16 inch floor brush |
1 |
|
| 7a |
203-1251 |
Squeegee tool 16 inch |
1 |
|
| 7b |
203-2885 |
Replacement squeegee blade |
2 |
|
|
|
