Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Vacuum Motor Assembly - 203-2010 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
203-0281 |
16/3 power cord 27 foot |
1 |
(415P/415S/415ST/415PLT) |
| 1b |
203-4621 |
Power cord 14 x 3 (OBSOLETE) |
1 |
(429P) |
| 2 |
203-0280 |
Strain relief (black) |
1 |
|
| 4 |
203-0276 |
Screw M5 x 20mm |
2 |
|
| 6 |
173-4261 |
Screw M5 x 30mm |
4 |
|
| 8 |
203-0307 |
Screw M5 x 30mm |
1 |
|
| 9 |
203-0276 |
Screw M5 x 20mm |
2 |
|
| 10 |
203-0286 |
Screw M5 x 14mm |
2 |
|
| 11 |
203-4599 |
Terminal block |
1 |
|
| 12 |
173-4261 |
Screw M5 x 30mm |
4 |
|
| 13 |
203-4600 |
Single motor cover |
1 |
|
| 14 |
203-0276 |
Screw M5 x 20mm |
2 |
|
| 15 |
203-0275 |
On/off switch |
1 |
|
| 17 |
203-4601 |
Screw 5 x 55 zinc |
9 |
|
| 20 |
203-4602 |
Motor cover |
1 |
|
| 21 |
203-0401 |
Screw M5 x 40mm |
9 |
|
| 22 |
203-0401 |
Screw M5 x 40mm |
3 |
|
| 23 |
173-4274 |
Motor base (gray) |
1 |
|
| 24 |
203-4603 |
Scerw 4 1/2 x 20 (OBSOLETE) |
1 |
|
| 25 |
203-4604 |
Terminal board |
1 |
|
| 26 |
203-0285 |
Motor exhaust gasket |
1 |
|
| 27 |
203-0276 |
Screw M5 x 20mm |
4 |
|
| 29 |
203-0289 |
Motor gasket |
1 |
|
| 30 |
203-4301 |
120V vacuum motor |
1 |
|
| 31 |
203-0289 |
Motor gasket |
1 |
|
| 32 |
203-0276 |
Screw M5 x 20mm |
8 |
|
| 33 |
203-0289 |
Motor gasket |
2 |
|
| 38 |
203-4606 |
Base with gasket |
1 |
|
|
|
Filter Assembly - 203-2011 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
203-0296 |
Screw M5 x 25mm |
4 |
|
| 3 |
203-4607 |
Body filter assembly (OBSOLETE) |
1 |
|
| 5 |
203-4608 |
Float with gasket (OBSOLETE) |
1 |
|
| 8 |
202-0332 |
1/2 inch barbed tee |
1 |
|
|
|
Tank Assembly - 203-2015 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 3 |
203-0305 |
Rivet M5 x 19mm |
4 |
|
| 4 |
203-0362 |
Screw 5 x 25 |
4 |
|
| 5 |
203-0341 |
Washer plastic |
4 |
|
| 7 |
203-0307 |
Screw M5 x 30mm |
4 |
|
| 8 |
203-0364 |
Tank adapter |
1 |
|
| 11 |
203-0313 |
Hose adapter |
1 |
|
| 12 |
203-0312 |
Push button |
1 |
|
|
|

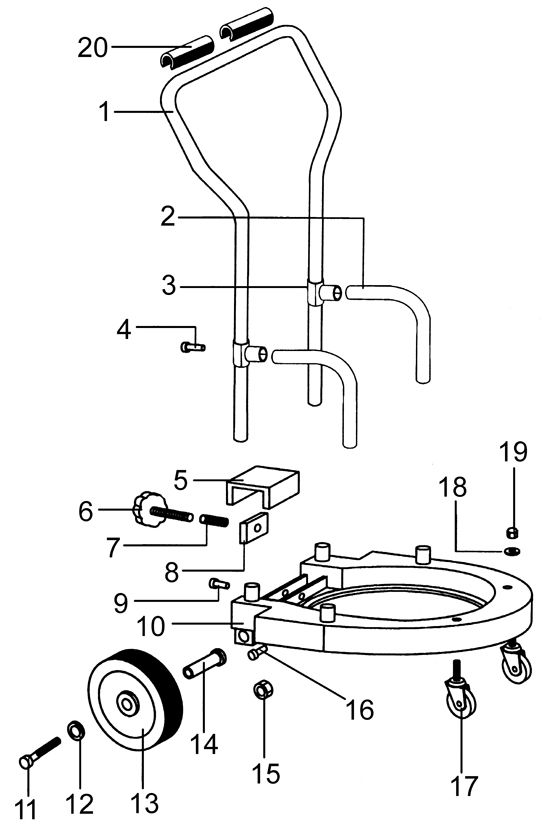

Cart Assembly - 203-2016 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 2 |
203-0378 |
Handle support |
2 |
|
| 4 |
203-0380 |
Rivet 5 x 11 |
2 |
|
| 6 |
203-0382 |
Hand wheel 8 x 60 |
1 |
|
| 8 |
203-0384 |
Threaded plate |
1 |
|
| 9 |
203-0380 |
Rivet 5 x 11 |
2 |
|
| 11 |
203-0386 |
Screw 12 x 140 |
2 |
|
| 16 |
203-0380 |
Rivet 5 x 11 |
2 |
|
| 17 |
203-0373 |
Caster wheel |
2 |
|
| 20 |
203-0360 |
Handle grip |
2 |
|
|
|
Front Mounted Squeegee - 22 inch - 203-2019 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
203-4610 |
22 inch front mount squeegee tool |
1 |
|
| 2 |
203-0404 |
Fixed small block |
1 |
|
| 4 |
203-0406 |
Adjustment plate |
1 |
|
| 5 |
203-0407 |
Driver pivot |
1 |
|
| 7 |
203-0409 |
Adjustment knob |
2 |
|
| 9 |
203-0411 |
Rear squeegee blade |
1 |
|
| 11 |
203-0413 |
Washer M8 plain |
1 |
|
| 12 |
203-0414 |
Wet tool body |
1 |
|
| 14 |
203-0416 |
Front squeegee blade |
1 |
|
| 15 |
203-0417 |
Squeegee bracket |
2 |
|
| 16 |
203-0418 |
Screw 4 x 16 |
16 |
|
| 17 |
173-4285 |
Hose assembly |
1 |
|
| 18 |
203-0420 |
Mounting bracket |
1 |
|
| 21 |
203-0423 |
Screw 5 x 16 |
4 |
|
| 22 |
203-0276 |
Screw M5 x 20mm |
4 |
|
|
|
Front Mounted Squeegee Tool - 30 inch - Models with Polyethylene Tanks - 203-2062 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
173-2898 |
Squeegee blade slotted |
2 |
|
| 3 |
203-4629 |
Blade support (OBSOLETE) |
2 |
|
| 4 |
203-4628 |
Nut nylock 1/4-20 |
2 |
|
| 5 |
173-4286 |
Squeegee weldment |
1 |
|
| 6 |
203-4628 |
Nut nylock 1/4-20 |
2 |
|
| 8 |
173-5054 |
Bolt 1/4-1-3/4 hex head |
2 |
|
| 10 |
173-4299 |
Cross member |
1 |
|
| 11 |
203-4127 |
Latch assembly |
1 |
|
| 12 |
203-4630 |
Bolt 1/4-20 x 1 (OBSOLETE) |
6 |
|
| 13 |
203-4628 |
Nut nylock 1/4-20 |
6 |
|
| 14 |
999-0086 |
Nut 10-32 nylon insert lock zinc plated |
22 |
|
| 15 |
173-4295 |
Screw 10-32 x 5/8 inch stainless steel |
15 |
|
| N/S |
173-4285 |
Hose assembly |
1 |
|
|
|
Tools - 203-9974 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 0 |
203-2881 |
Complete tool kit |
1 |
(includes 1-8) |
| 1 |
203-2882 |
Crevice tool |
1 |
|
| 3 |
203-1247 |
Flex hose 1 1/2 x 10 foot |
1 |
|
| 4 |
203-1250 |
1 piece wand extension |
2 |
|
| 5 |
203-1249 |
1 piece wand |
1 |
|
| 6 |
203-2884 |
16 inch floor brush |
1 |
|
| 7a |
203-1251 |
Squeegee tool 16 inch |
1 |
|
| 7b |
203-2885 |
Replacement squeegee blade |
2 |
|
|
|
