Parts List Complete for EAGLE SAFETY PRO FLOOR STRIPPER

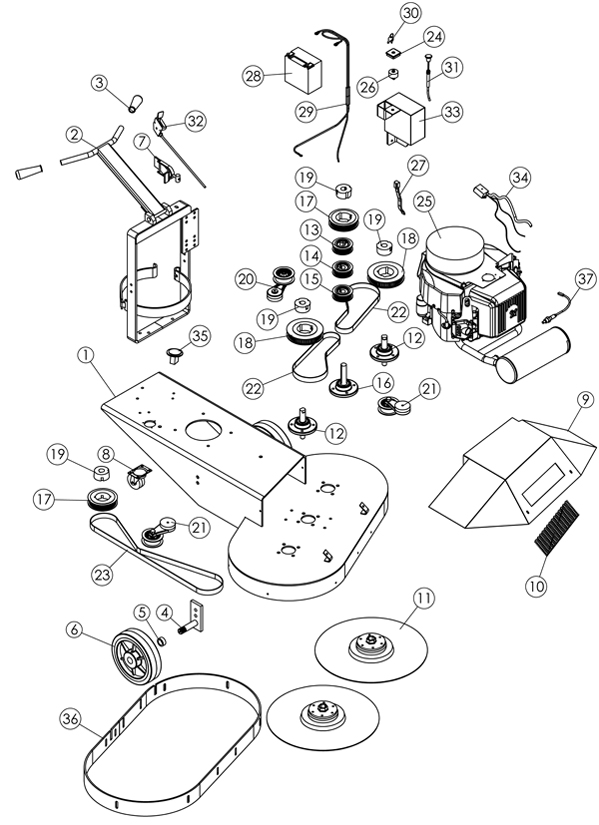

Dual Head Burnisher Eagle Engine Assembly - 160-1093
RefNbr Part Number Description Req Notes
1 N/A Not available 1 (39 inch deck)
2 160-0021 Handle 1
3a 154-0077 Handle grip 2
3b 991-8571 Handle grip 2 (Non-OEM)
4 N/A Not available 2 (Wheel axle assembly)
5 160-0319 Wheel spacer 2
6 160-0394 Drive wheel 2
7 154-0005 Propane tank strap 1
8 160-0395 Caster 1
9 N/A Not available 1 (39 inch belt guard)
10 160-0330 Metal plate 1
11 N/A Not available 2 (Pad driver)
12 N/A Not available 2 (Bearing assembly)
13 N/A Not available 1 (Center sprocket)
14 N/A Not available 1 (Center sprocket)
15 N/A Not available 1 (Center sprocket)
16 N/A Not available 1 (Bearing assembly)
17 N/A Not available 2 (Sprocket)
18 N/A Not available 2 (Chain sprocket)
19 N/A Not available 4 (Taper bushing)
20 N/A Not available 1 (Tensioner)
21 N/A Not available 2 (Engine tensioner)
22 N/A Not available 2 (Belt)
23 N/A Not available 1 (Belt)
24 160-0071 Key switch housing with 9/16 hole 1
25 N/A Not available 1 (Engine)
26 169-0016 Key switch assembly with two keys 1
27 164-1342 Wire harness assembly (OBSOLETE) (OBSOLETE) 1
28 162-0007 12V 12Ah sealed battery 1
29 160-0374 Battery cable 1
30 160-0311 Key 1
31 160-0070 Choke cable (OBSOLETE) 1
32 160-0184 Throttle cable with choke 1
33 160-0130 Battery box 1
34 160-0387 Emissions shut down 1
35 154-0019 Hour meter 1
36 N/A Not available 1 (Dust skirt)
37 160-0214 O2 sensor 1

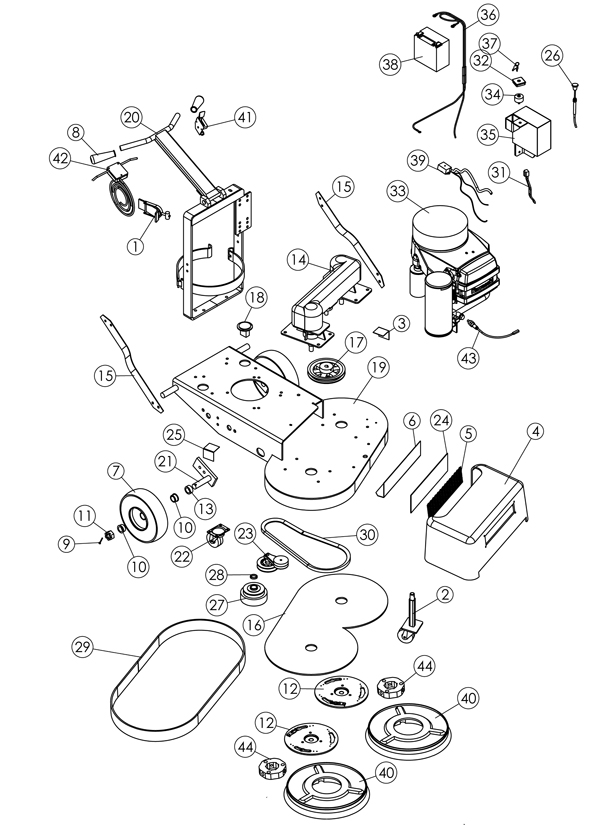

Dual Head Burnisher Kawasaki Engine Assembly - 160-1094
RefNbr Part Number Description Req Notes
1 154-0005 Propane tank strap 1
2 160-0309 Caster wheel 1
3 160-0306 Hood bracket 1
4 160-0308 Aluminum cover 1
5 160-0330 Metal plate 1
6 160-0313 Heat shield support plate 1
7 160-0194 10 inch pneumatic tire (foam filled) 2
8a 154-0077 Handle grip 2
8b 991-8571 Handle grip 2 (NON-OEM)
9 160-0324 Cotter pin 2
10 160-0219 Wheel bearing 4
11 160-0321 Nut 2
12 N/A Not available 2 (Mounting plate)
13 160-0319 Wheel spacer 2
14 160-0177 Gearbox (1 piece) 1
15 160-0316 Handle support 2
16 N/A Not available 1 (Weight)
17 160-0175 Pulley 7.0 x 5/8 inch 1
18 154-0019 Hour meter 1
19 N/A Not available 1
20 160-0021 Handle 1
21 160-0318 Wheel axle 2
22 991-2015 Rear caster wheel 1
23 160-0303 Tensioner 1
24 160-0320 Heat sheild 1
25 N/A Not available 1 (Bracket)
26 160-0070 Choke cable (OBSOLETE) 1
27 160-0087 Centrifugal clutch 1
28 160-0146 Spacer 1
29 160-0191 Splash guard bumper 1
30 160-0174 Belt BX53 1
31 164-1342 Wire harness assembly (OBSOLETE) (OBSOLETE) 1
32 160-0071 Key switch housing with 9/16 hole 1
33 N/A Not available 1 (Engine)
34 169-0016 Key switch assembly with two keys 1
35 160-0130 Battery box 1
36 160-0132 Battery connector for Kawasaki 1
37 160-0311 Key 1
38 162-0007 12V 12Ah sealed battery 1
39 160-0387 Emissions shut down 1
40 160-0190 16 inch brush (sold each) 2
41 160-0184 Throttle cable with choke 1
42 160-0058 Clutch switch kit assembly w/cord and hardware (OBSOLETE) 1
43 160-0214 O2 sensor 1
44 252-1536 Centra flex 2

Solution Tank Assembly - 160-1095
RefNbr Part Number Description Req Notes
1 160-0058 Clutch switch kit assembly w/cord and hardware (OBSOLETE) 1
2 160-0397 Solution lid 1
3 160-0398 Seal 1
4 160-0399 8 gallon solution tank 1
5 160-0400 Tank bracket 1
6 160-0401 Reducer 1/2 to 1/4 inch 1
7 160-0402 Bracket 2
8 160-0403 Manual shut off valve 1
9 160-0404 Quick coupler 1
10 160-0405 Non valved nipple 1
11 160-0406 Connector 2
12 160-0407 32 inch hose assembly 1
13 160-0408 Solution solenoid valve 1
14 160-0409 1/2 inch tee 1
15 N/A Not available 2 (Hose)
16 160-0410 90 degree elbow 2
17 160-0411 Tank strap 2
18 160-0412 Bracket 1

Kawasaki Carburator Assembly - 160-1096
RefNbr Part Number Description Req Notes
1 178-7022 Intake manifold gasket 2
2 178-0166 Insulator 1
3 178-0042 Carb intake gasket 2
4 160-0136 Carburetor assembly 1
5 160-0049 Barb fitting 3/8 x 3/8mp 1
6 160-0139 Vacuum tube 1
7 160-0137 Rubber cap 1/4 1
8 991-6006 Vacuum hose (sold by the foot) 3
9 991-6005 Fuel hose (sold by the foot) 3
10 160-0413 Orifice 1
11a 160-0414 Full load block 1 (13 HP motor only)
11b 160-0115 Fuel load block 1 (17 HP motor only)

Kawasaki Robin Regulator Assembly - 160-1097
RefNbr Part Number Description Req Notes
1 991-6001 Fuel regulator (T60) 1
2 160-0052 Fitting 1/4 barb x 1/4mp 1
3 991-6002 12V fuel lock off (Model 152) 1
4 160-0049 Barb fitting 3/8 x 3/8mp 1
5 160-0415 90 degree elbow 1
6 160-0054 45 degree elbow fitting 1
7 160-0416 Fuel hose with coupling 1

Robin Carburator Assembly - 160-1098
RefNbr Part Number Description Req Notes
1 160-0417 Carburetor assembly 1
2 160-0418 Gasket 2
3 160-0049 Barb fitting 3/8 x 3/8mp 1
4 160-0139 Vacuum tube 1
5 160-0137 Rubber cap 1/4 1
6 991-6006 Vacuum hose (sold by the foot) 1
7 991-6005 Fuel hose (sold by the foot) 1
8 160-0381 Insulator with vacuum tube 1
9 160-0380 Air cleaner gasket 2
10 160-0382 Fuel load block 1
11 160-0419 Orifice 1

Kawasaki Wiring Diagram -

RefNbr Part Number Description Req Notes

Eagle Wiring Diagram -

RefNbr Part Number Description Req Notes

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
