Parts List Complete for DRI-EAZ SAHARA PRO X3

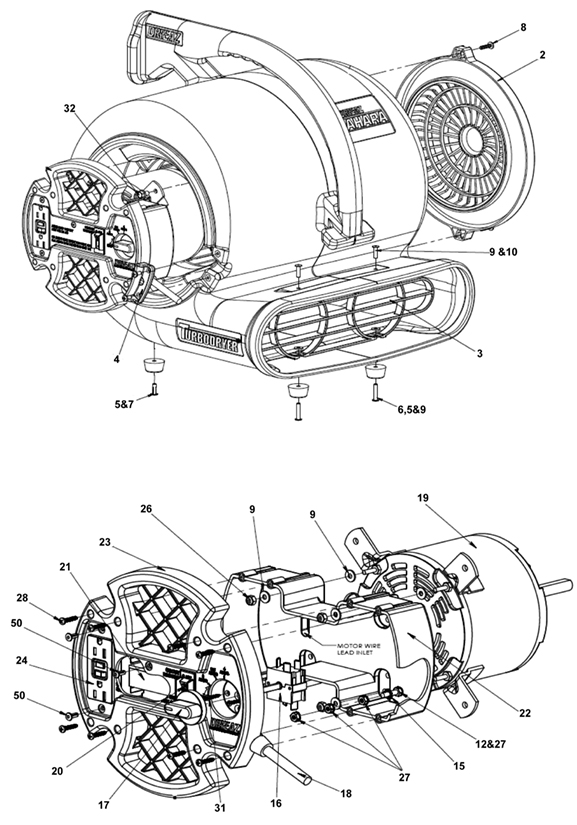

Base and Control Panel Assembly - 233-0000
RefNbr Part Number Description Req Notes
1 182-0727 Blower wheel kit 1
2 233-0089 Inlet grill 1
3 233-0085 Grill snout 1
4 233-0088 Power cord support 1
5 233-0001 Rubber foot 6
6 233-0058 Rivet 2
7 233-0026 Rivet 4
8 999-1816 Screw 10-24 x 3/4 pan head phillips zinc plated 2
10 233-0057 Rivet 2
11 999-0571 Screw 10-24 x 3/8 pan head phillips stainless steel 2
12 999-1069 Bolt 10-24 x 1/2 hex head stainless steel 1
16 233-0053 Switch 1
17 233-0072 Knob 1
18 233-0084 Cord with strain relief 1
19 233-0052 Motor 1
20 233-0018 12amp circuit breaker with switch 1
21 233-0083 Capacitor 1
22 233-0086 5V electrical box 1
24 233-0019 GFI receptacle 1
26 999-0151 Nut 8-32 nylon insert lock zinc plated 4
28 233-0028 Screw 6 x 7/8 8
31 233-0073 Screw 2
32 233-0025 Screw 1/4-20 x 3/8 nyloc patch 4
33 233-0022 Housing (blue) 1
45 233-0076 Box 1
N/S 233-0021 Connector 3

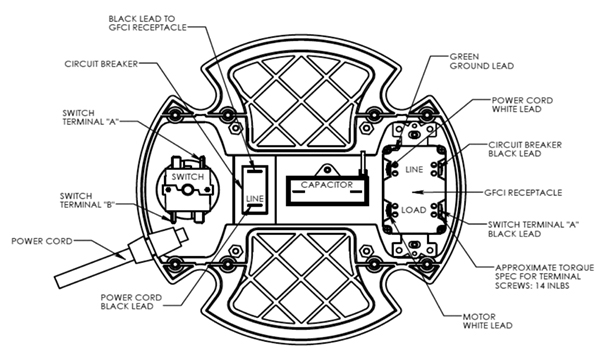

Electrical Diagram -

RefNbr Part Number Description Req Notes

- Commonly Asked For Parts - 233-9994
RefNbr Part Number Description Req Notes
01 233-0018 12amp circuit breaker with switch

- Frequently Replaced Parts - 998-0015
RefNbr Part Number Description Req Notes
233-0084 Cord with strain relief
233-0053 Switch
233-0018 12amp circuit breaker with switch
182-0727 Blower wheel kit
233-0001 Rubber foot
