Parts List Complete for DRI-EAZ LGR 6000

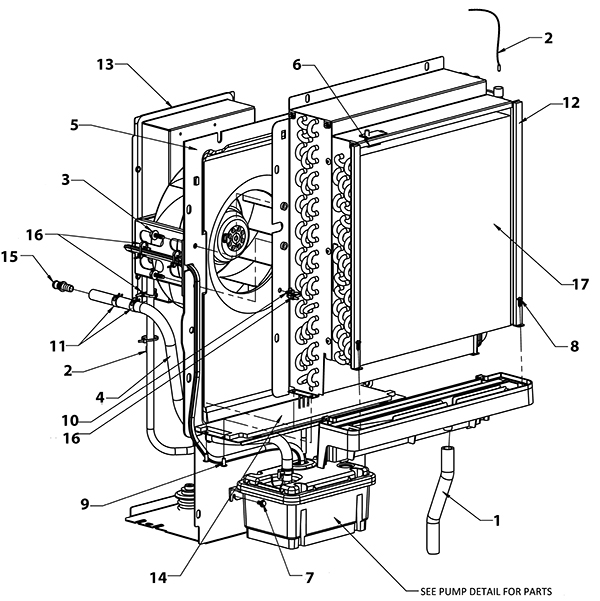

Refrigeration Assembly - 233-0050
RefNbr Part Number Description Req Notes
1 233-0499 Tube 4 in
2 233-0152 Sensor cable assembly 2
3 233-0500 Screw M6 x 18 hex head washer 4
4 233-0240 Tubing 3/8 x 5/8 OD braided pvc 24 in
5 233-0501 Shroud 1
6 233-0412 Sensor assembly 1
7 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc 2
8 233-0502 Screw #8 x 1/2 pan head truss stainless steel 2
9 233-0503 Rivet 2
10 233-0504 Push mount nylon tie 4
11 233-0444 Hose clamp 2
12 233-0060 Gasket 1
13 233-0505 Gasket 65 in
14 233-0506 Gasket 1
15 233-0033 Fitting 1
16 233-0424 Cable tie 5
17 233-0507 Coil assembly 1

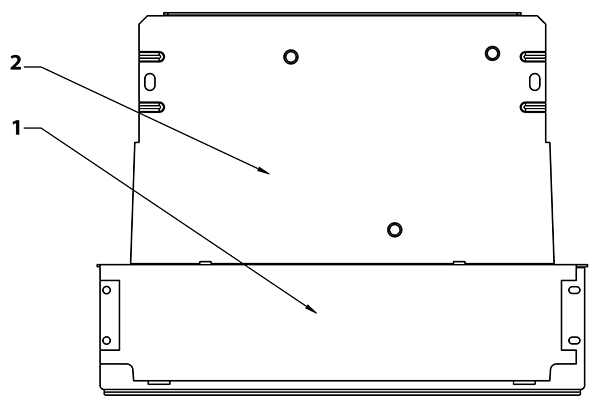

Basket Gasket Assembly - 233-0051
RefNbr Part Number Description Req Notes
1 233-0506 Gasket 1
2 233-0508 Base 1

Stub Axle Assembly - 233-0052
RefNbr Part Number Description Req Notes
1 233-0509 Wheel 1
2 233-0469 Screw M6 x 1 x 25 hex head with washer zinc plated 4
3 233-0510 Washer 5/8 x .640 x 1.187 x .06 stainless steel 2
4 233-0511 Nut 5/8-11 unc thin zinc plated 1
5 233-0512 Dust cap 1
6 233-0513 Axle 1

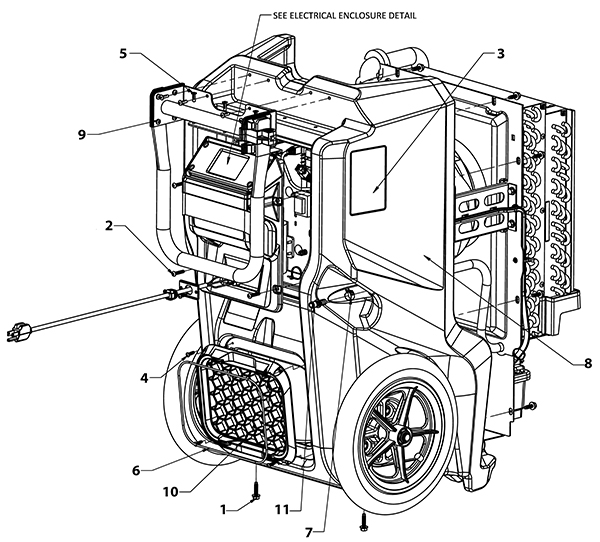

Back Panel Assembly - 233-0053
RefNbr Part Number Description Req Notes
1 233-0469 Screw M6 x 1 x 25 hex head with washer zinc plated 2
2 233-0514 Screw M5-.08 x 25 button head 4
3 233-0515 Decal 1
4 999-0013 Screw 10 x 5/8 pan head phillips sheet metal 4
5 233-0026 Rivet 7
6 233-0516 Ring 1
7 233-0444 Hose clamp 1
8 233-0517 Back panel 1
9 233-0518 Handle assembly 1
10 233-0519 Outlet grill 1
11 233-0033 Fitting 1

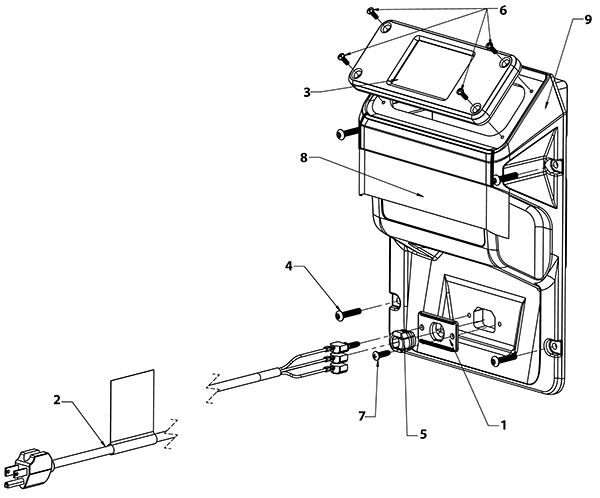

Electrical Enclosure Assembly - 233-0054
RefNbr Part Number Description Req Notes
1 233-0520 Plate 1
2a 233-0054 Power cord assembly 1 (oem)
2b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (non-oem)
3 233-0405 Command hub kit 1
4 233-0514 Screw M5-.08 x 25 button head 4
5 233-0493 Strain relief 1
6 233-0521 Screw 6 x 1/2 hi low phillips pan head 4
7 999-0013 Screw 10 x 5/8 pan head phillips sheet metal 2
8 233-0522 Decal 1
9 233-0523 Enclosure 1

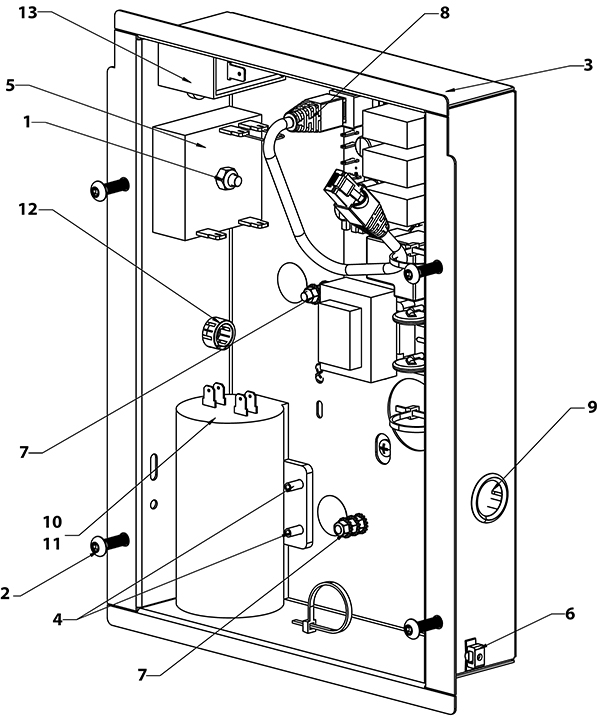

Electrical Box Assembly - 233-0055
RefNbr Part Number Description Req Notes
1 999-9268 Nut #10-24 nylock zinc plated 1
2 233-0514 Screw M5-.08 x 25 button head 4
3 233-0524 Electrical box 1
4 233-0421 Rivet 2
5 233-0525 Speed controller 1
6 233-0504 Push mount nylon tie 1
8 233-0526 Cable assembly 1
9 233-0527 Bushing 1
10 233-0425 440V Capacitor 1
11 233-0528 Capacitor 1
12 233-0529 Bushing 1
13 N/A Not available 1 (circuit breaker)

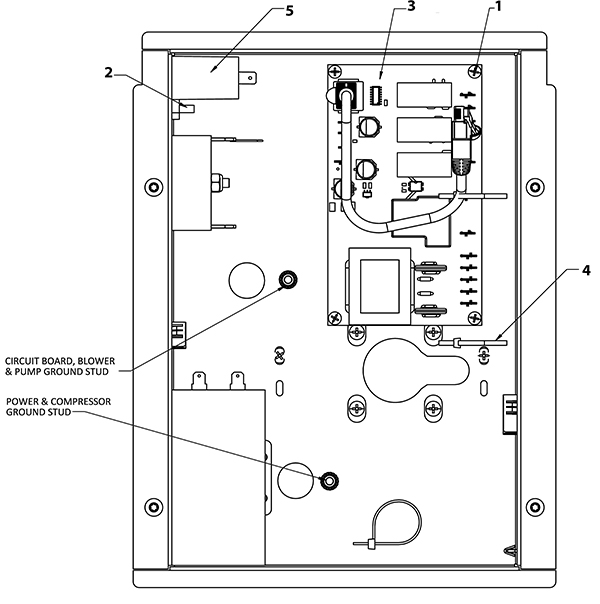

Circuit Board Assembly - 233-0056
RefNbr Part Number Description Req Notes
2 233-0421 Rivet 1
3 233-0423 115V circuit board assembly 1
4 233-0424 Cable tie 2
5 233-0425 440V Capacitor 1

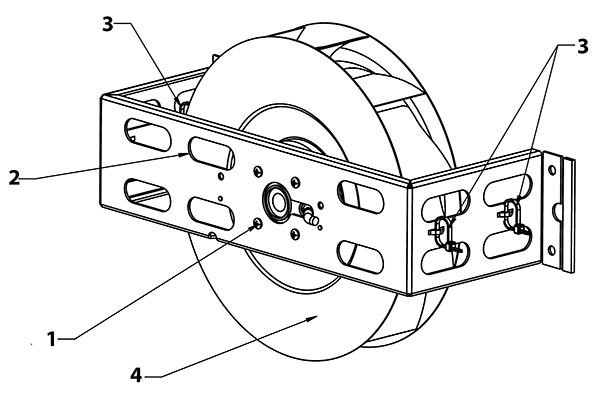

Blower Assembly - 233-0057
RefNbr Part Number Description Req Notes
1 999-1556 Screw M4-.7 x 8mm pan head phillips zinc plated 4
2 233-0530 Bracket 1
3 233-0424 Cable tie 5
4 233-0531 Blower assembly 1

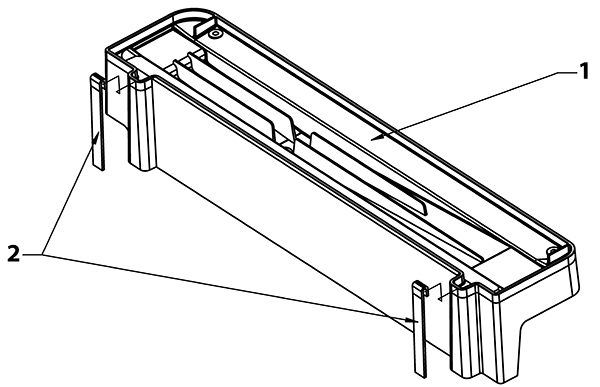

Condensation Tray Assembly - 233-0058
RefNbr Part Number Description Req Notes
1 233-0532 Tray 1
2 233-0505 Gasket 6.5 IN (2 pcs) (3.25 inch each)

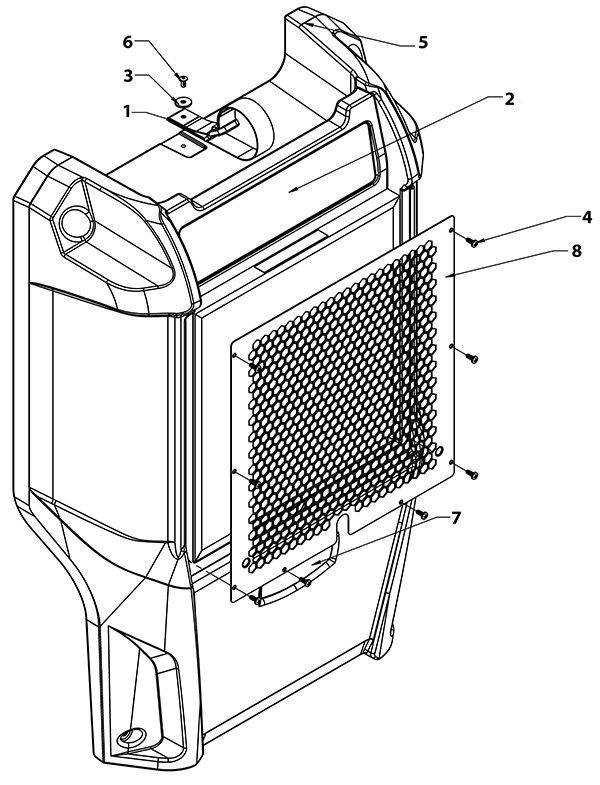

Cover Assembly - 233-0059
RefNbr Part Number Description Req Notes
1 233-0406 Strap assembly 1
2 233-0533 Decal 1
3 233-0534 Washer #10 flat type B wide 1
5 233-0535 Cover 1
6 233-0256 Rivet 1
7 233-0536 Decal 1
8 233-0537 Filter shroud 1

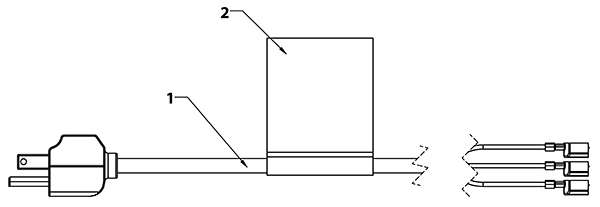

Power Cord Assembly - 233-0060
RefNbr Part Number Description Req Notes
1 233-0054 Power cord assembly 1
2 233-0538 Decal 1

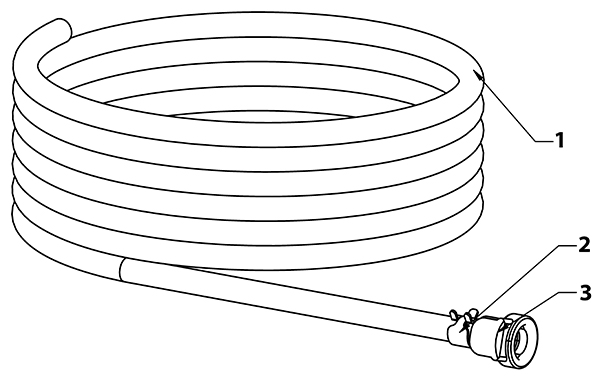

Hose Assembly - 233-0061
RefNbr Part Number Description Req Notes
1 233-0413 Tube 1
2 233-0414 Clamp 1
3 233-0415 Female quick disconnect fitting 1

115V Compressor Assembly - 233-0062
RefNbr Part Number Description Req Notes
1 233-0539 Washer 1
2 233-0540 Vibration mount 3
3 999-9273 Washer 3/8 1.0 OD x .438 ID x .083 zinc plated 3
4 233-0541 Compressor overload 1
5 233-0542 Nut 1
6 233-0543 Insulation 41 in
7 233-0544 Gasket 1
8 233-0545 Cover 1
9 233-0546 115V rotary compressor 1
10 233-0547 Shoulder bolt 5/16-18 x 3/8 x 1 1/4 3
N/S 233-0548 LG compressor retrofit kit 1

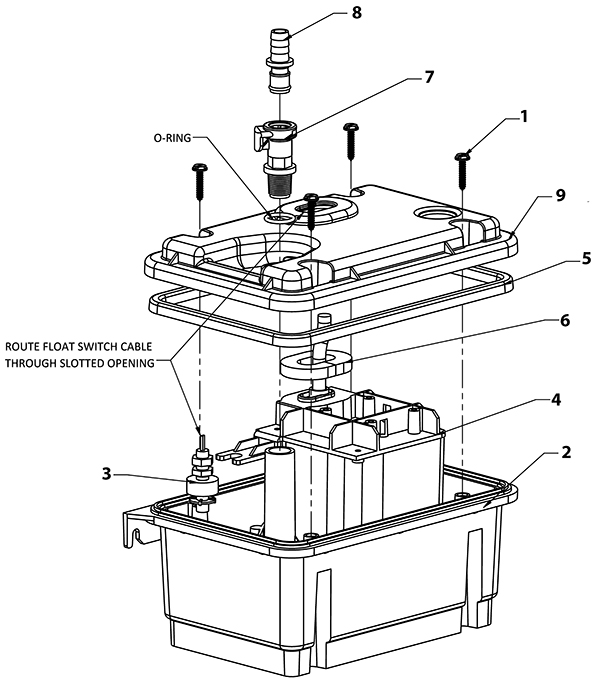

Tank Assembly - 233-0063
RefNbr Part Number Description Req Notes
1 233-0549 Screw #6 x 3/4 slotted hex head with washer stainless steel 4
2 233-0550 Tank 1
3 233-0443 Split magnetic float switch 1
4 233-0551 115V submersible pump 1
5 233-0552 Gasket 1
6 233-0553 Gasket 1 (adhesive side down)
7 233-0554 Fitting 1 (includes check valve and o-ring)
8 233-0033 Fitting 1
9 233-0555 Cover 1

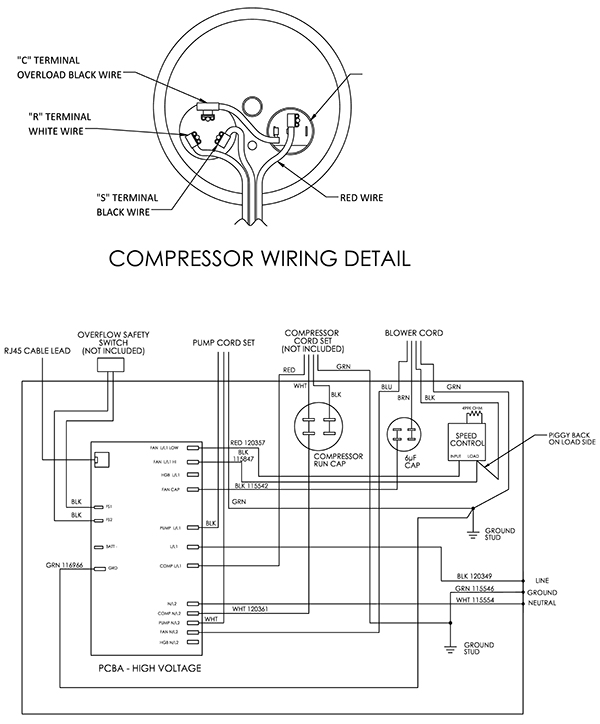

Wiring Diagram -

RefNbr Part Number Description Req Notes

- Frequently Replaced Parts - 233-0083
RefNbr Part Number Description Req Notes
233-0054 Power cord assembly 1
991-5005 14/3 replacement power cord 50 foot (yellow) 1
233-0493 Strain relief 1
