- Commonly Asked For Parts - 179-9999 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
162-0011 |
12V 105Ah wet battery (SNSR) |
|
|
|
179-0017 |
Bulb 36 VDC (OBSOLETE) |
|
|
|
179-2281 |
Strobe LED light |
|
|
|
179-0008 |
Tire and rim assembly |
|
|
|
179-0006 |
Snow tire and rim assembly |
|
|
|
179-0042 |
Circuit breaker assy 10 amp (OBSOLETE) |
|
|
|
179-0014 |
20amp circuit breaker (OBSOLETE) |
|
|
|
179-0002 |
Voltmeter for CartCaddy (OBSOLETE) |
|
|
|
286-0004 |
110V 10amp battery charger |
|
|
|
179-0003 |
Emergency stop button |
|
|
|
179-7011 |
Controller (OBSOLETE) |
|
|
|
286-0046 |
140amp motor controller |
|
|
|
286-0196 |
Adaper harness (OBSOLETE) |
|
|
|
|

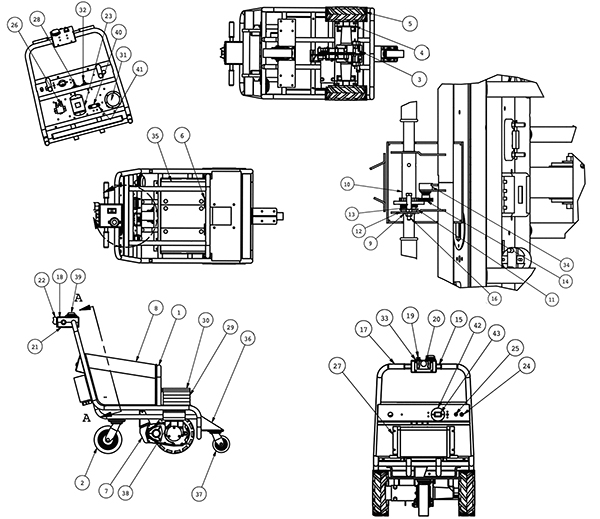

Entire Assembly - 999-9162 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
179-0096 |
Frame weldment |
1 |
|
| 2 |
179-0023 |
8 inch swivel caster wheel |
1 |
|
| 3 |
179-0046 |
Differential (OBSOLETE) |
1 |
(Optional) |
| 4 |
179-0050 |
Axle clamp (OBSOLETE) |
2 |
(Optional) |
| 5 |
179-0006 |
Snow tire and rim assembly |
2 |
|
| 6 |
179-0031 |
Cover hinge (OBSOLETE) |
2 |
|
| 7 |
179-0026 |
Axle bracket (OBSOLETE) |
1 |
|
| 8 |
179-0097 |
Hood weldment |
1 |
|
| 9 |
179-0041 |
Bushing (OBSOLETE) |
2 |
|
| 10 |
179-0010 |
Handle bar gear |
1 |
|
| 13 |
179-0011 |
Return spring (OBSOLETE) |
1 |
|
| 15 |
179-0035 |
Handle (OBSOLETE) |
1 |
|
| 16 |
179-0100 |
Torsion spring centering bolt |
1 |
|
| 17 |
179-0047 |
Handle grip |
2 |
|
| 18 |
179-0101 |
Control cover top |
1 |
|
| 19 |
179-0102 |
Horn switch |
1 |
(Optional) |
| 20 |
179-0003 |
Emergency stop button |
1 |
|
| 21 |
179-0103 |
Control cover bottom |
1 |
|
| 22 |
179-0019 |
Emergency stop switch guard (OBSOLETE) |
1 |
|
| 23 |
286-0046 |
140amp motor controller |
1 |
|
| 24 |
179-0013 |
Key assembly |
1 |
|
| 25 |
179-0042 |
Circuit breaker assy 10 amp (OBSOLETE) |
1 |
|
| 26 |
179-0044 |
36V contactor |
1 |
|
| 27 |
286-0004 |
110V 10amp battery charger |
1 |
|
| 28 |
286-0148 |
JUNCTION BLOCK BLACK |
1 |
|
| 29 |
179-0104 |
Weight 1 inch 5w |
4 |
(Optional) |
| 30 |
179-0105 |
Weight 28.3 lbs |
2 |
(Optional) |
| 31 |
286-0010 |
Horn |
1 |
(Optional) |
| 32 |
286-0149 |
JUNCTION BLOCK RED |
1 |
|
| 33 |
286-0041 |
Horn switch |
1 |
|
| 35 |
162-0011 |
12V 105Ah wet battery (SNSR) |
1 |
(Optional) |
| 36 |
179-0106 |
Caster bracket weldment |
1 |
(Optional) |
| 37 |
179-0107 |
5 inch caster swivel |
1 |
(Optional) |
| 38 |
179-0108 |
Universal transaxle bracket |
2 |
(Optional) |
| 39 |
179-0109 |
Amber light |
1 |
(Optional) |
| 40 |
286-0145 |
FUSE, 100 AMP |
1 |
|
| 41 |
179-0110 |
100amp fuse block |
1 |
|
| 43 |
286-0007 |
Battery charge indicator (OBSOLETE) |
1 |
|
|
|
|
