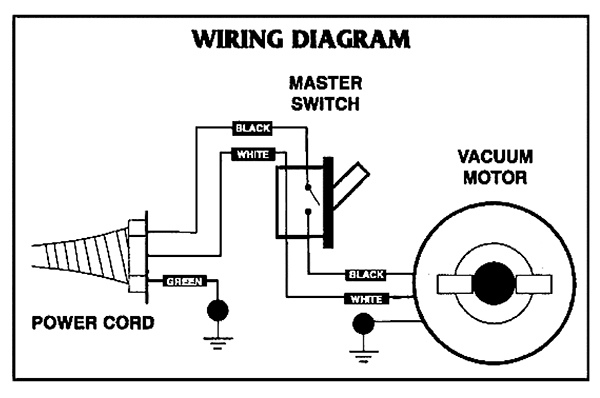

Wiring Assembly - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|

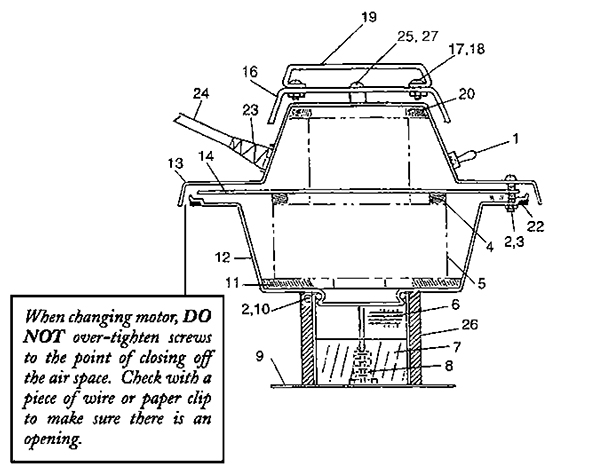

Vacuum Head Assembly (Utility) - 245-0002 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
245-0105 |
Toggle switch |
1 |
|
| 2 |
245-0055 |
Nut #10 nylon lock |
7 |
|
| 4 |
245-0101 |
Gasket |
1 |
(1050, 1050-CC) |
| 5a |
245-0102 |
Vacuum motor |
1 |
|
| 5b |
245-0127 |
Carbon brush |
1 |
|
| 6 |
245-0128 |
Plastic screen |
1 |
|
| 7 |
245-0094 |
Float & bolt |
1 |
|
| 11 |
245-0100 |
Gasket |
1 |
(1050, 1050-CC) |
| 12 |
245-0131 |
Lower motor housing |
1 |
|
| 13 |
245-0132 |
Upper motor housing |
1 |
|
| 14 |
245-0133 |
Inner motor housing |
1 |
(1050, 1050-CC) |
| 16 |
245-0134 |
Bottom handle |
1 |
|
| 20a |
245-0138 |
Top gasket |
1 |
(1050) |
| 20b |
245-0139 |
Top gasket |
1 |
(1050-CC) |
| 23 |
245-0104 |
Strain relief |
1 |
|
| 24 |
245-0103 |
35 foot power cord |
1 |
|
| 25 |
245-0140 |
Screw |
3 |
(1050) |
| 27a |
245-0064 |
3/8 inch spacer |
3 |
(1050-CC) |
| 27b |
245-0141 |
Spacer |
3 |
(1050, 1050-CC) |
| N/S |
245-0142 |
Switch decal |
1 |
|
| N/S |
245-0143 |
Female terminal |
1 |
|
| N/S |
245-0071 |
Ground lead |
1 |
|
|
|

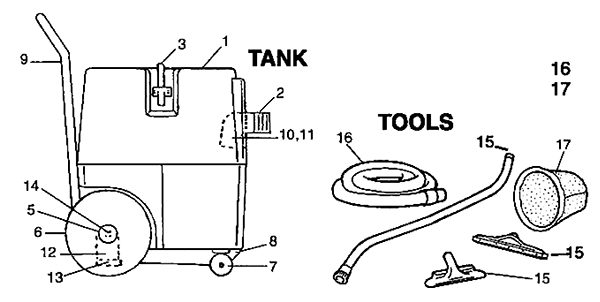

Tank Assembly - 245-0003 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1a |
245-0002 |
Tank |
1 |
(15 gallon) |
| 1b |
245-0145 |
Tank |
1 |
(10 gallon) (includes new hub caps, decals, and clamps) |
| 1c |
245-0146 |
Tank (OBSOLETE) |
1 |
(5 gallon) |
| 6a |
245-0006 |
8 inch gray wheel |
2 |
|
| 6b |
245-0008 |
Heavy duty wheel |
2 |
|
| 7b |
245-0010 |
Heavy duty caster |
2 |
|
| 8 |
245-0011 |
T drain plug |
1 |
|
| 10 |
245-0013 |
Deflector elbow |
1 |
|
| 11 |
245-0014 |
Intake gasket |
1 |
|
| 12 |
245-0015 |
Handle bracket |
2 |
|
| 14a |
245-0017 |
Axle |
1 |
(15 gallon) |
| 14b |
245-0148 |
Axle |
1 |
(5 and 10 gallon) |
| 15a |
245-0036 |
Wet/dry kit |
1 |
|
| 15c |
245-0025 |
11 inch floor and rug tool |
1 |
|
| 15d |
245-0021 |
14 inch squeegee tool |
1 |
|
| 16 |
245-0022 |
Hose with swivel cuff - 10 ft |
1 |
|
| 17b |
245-0150 |
Concrete wet bag |
1 |
|
| 17c |
245-0151 |
Coated bag (OBSOLETE) |
1 |
|
| 17d |
245-0152 |
Pleated bag (OBSOLETE) |
1 |
|
| N/S |
245-0106 |
Paper vacuum bags (pkg of 6) |
1 |
|
|
|
- Commonly Asked For Parts - 245-9991 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 01 |
245-0022 |
Hose with swivel cuff - 10 ft |
|
(For accessory tools) |
| 02 |
245-0113 |
20 inch hose with cuff |
|
(For front mount squeegee) |
| 05 |
245-0025 |
11 inch floor and rug tool |
|
|
| 06 |
245-0021 |
14 inch squeegee tool |
|
|
| 08 |
245-0106 |
Paper vacuum bags (pkg of 6) |
|
|
|
|
