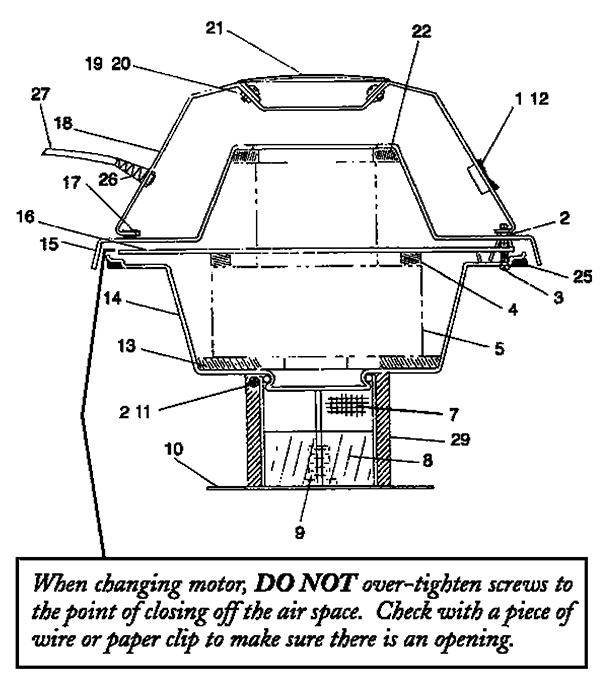

Vacuum Head Assembly - 245-2012 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1 |
245-0019 |
Rocker switch |
1 |
|
| 2 |
245-0055 |
Nut #10 nylon lock |
4 |
|
| 5 |
245-0102 |
Vacuum motor |
1 |
|
| 7 |
245-0128 |
Plastic screen |
1 |
|
| 8 |
245-0094 |
Float & bolt |
1 |
|
| 12 |
245-0153 |
Powerhead receptor (OBSOLETE) |
1 |
|
| 14 |
245-0131 |
Lower motor housing |
1 |
|
| 15 |
245-0154 |
Outside spinning (OBSOLETE) |
1 |
|
| 16 |
245-0133 |
Inner motor housing |
1 |
|
| 18 |
245-0155 |
Top spinning (OBSOLETE) |
1 |
|
| 21 |
245-0156 |
Top handle (OBSOLETE) |
1 |
|
| 26 |
245-0104 |
Strain relief |
1 |
|
| 27 |
245-0103 |
35 foot power cord |
1 |
|
| N/S |
245-0157 |
Ground clip (OBSOLETE) |
2 |
|
| N/S |
245-0158 |
3M splicer (OBSOLETE) |
2 |
|
| N/S |
245-0142 |
Switch decal |
1 |
|
| N/S |
245-0143 |
Female terminal |
1 |
|
| N/S |
245-0071 |
Ground lead |
1 |
|
|
|
Wiring Diagram - |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
|
|
Tank and Tools Assembly - 245-2014 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 1b |
245-0145 |
Tank |
1 |
(includes new hub caps, decals, and clamps) |
| 1c |
245-0146 |
Tank (OBSOLETE) |
1 |
|
| 6a |
245-0006 |
8 inch gray wheel |
2 |
|
| 6b |
245-0008 |
Heavy duty wheel |
2 |
|
| 7b |
245-0010 |
Heavy duty caster |
2 |
|
| 8a |
245-0011 |
T drain plug |
1 |
|
| 8b |
245-0011 |
T drain plug |
1 |
|
| 10 |
245-0013 |
Deflector elbow |
1 |
|
| 11 |
245-0014 |
Intake gasket |
1 |
|
| 12 |
245-0015 |
Handle bracket |
2 |
|
| 15a |
245-0036 |
Wet/dry kit |
1 |
|
| 15c |
245-0025 |
11 inch floor and rug tool |
1 |
|
| 15d |
245-0021 |
14 inch squeegee tool |
1 |
|
| 16 |
245-0022 |
Hose with swivel cuff - 10 ft |
1 |
|
| 17b |
245-0150 |
Concrete wet bag |
1 |
|
| 17c |
245-0151 |
Coated bag (OBSOLETE) |
1 |
|
| 17d |
245-0152 |
Pleated bag (OBSOLETE) |
1 |
|
| 17e |
245-0106 |
Paper vacuum bags (pkg of 6) |
1 |
|
|
|
- Frequently Replaced Parts - 245-9995 |
|
| RefNbr |
Part Number |
Description |
Req |
Notes |
| 02 |
245-0021 |
14 inch squeegee tool |
|
|
| 03 |
245-0022 |
Hose with swivel cuff - 10 ft |
|
|
| 09 |
245-0102 |
Vacuum motor |
|
(5-105) |
| 10 |
245-0090 |
Vacuum motor |
|
(5-085) |
| 11 |
245-0108 |
Vacuum motor |
|
(5-120) |
| 12 |
245-0109 |
Vacuum motor |
|
(7-130) |
| 14 |
245-0006 |
8 inch gray wheel |
|
|
| 17 |
245-0104 |
Strain relief |
|
|
| 18 |
245-0103 |
35 foot power cord |
|
|
| 19 |
245-0105 |
Toggle switch |
|
|
| 20 |
245-0106 |
Paper vacuum bags (pkg of 6) |
|
|
| 23 |
245-0110 |
5-105 Head assembly |
|
|
| 24 |
245-0003 |
Float cage assembly |
|
|
|
|
