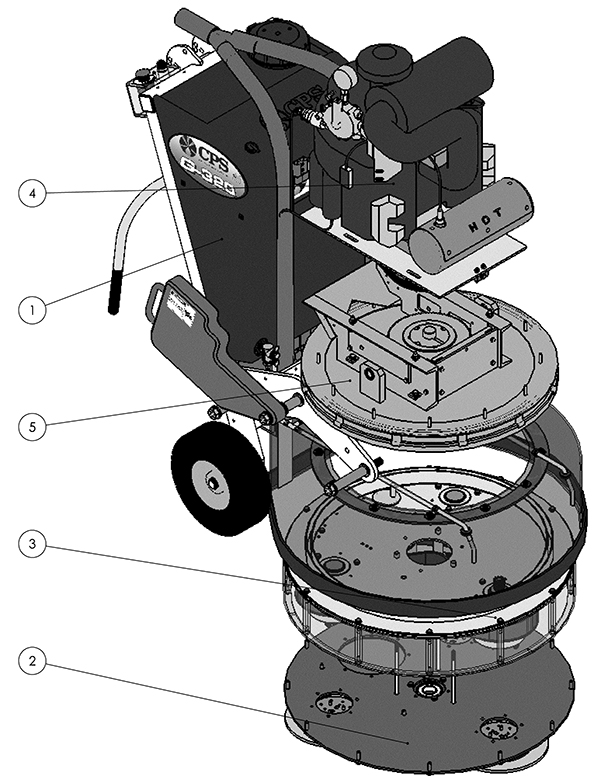

Parts List Complete for CPS G-320 XHD Propane


Propane Assembly - 156-1000
RefNbr Part Number Description Req Notes
1 156-1000 Frame assembly 1
2 156-1001 Lower plate assembly 1
3 156-1002 Upper plate assembly 1
4 156-1003 Engine assembly 1
5 156-1004 Ring gear plate assembly 1

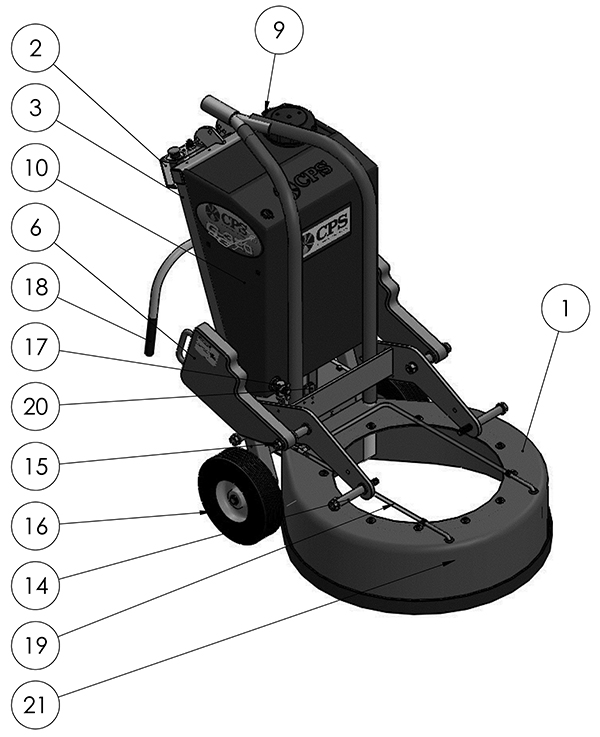

Front Frame Assembly - 156-1001
RefNbr Part Number Description Req Notes
1 156-1005 Shroud assembly 1
2 156-1006 Control box complete 1
3 156-1007 Frame weldment 1
6 156-1008 Weight 4
9 156-1009 Tach-hour meter 1
10 156-1010 Water tank 1
14 156-1011 Spacer 4
15 156-1012 Spacer 4
16 156-1013 Wheel and tire assembly 2
17 156-1014 Water tank valve 1
18 156-1015 Handle bar assembly 1
19 156-1016 Water tubing 2
20 156-1017 Battery disconnect 1
21 156-1016 Water tubing 2

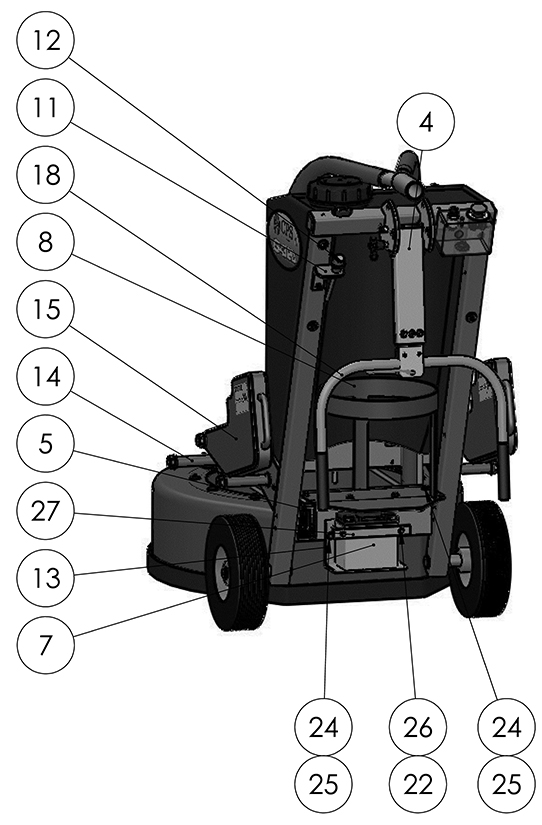

Rear Frame Assembly - 156-1002
RefNbr Part Number Description Req Notes
4 156-1019 Tiller arm assembly 1
5 156-1020 Serial plate 1
7 156-1021 Battery 1
8 156-1022 Propane bracket 1
11 156-1023 Throttle bracket 1
12 156-1024 Throttle cable 1
13 156-1025 Battery bracket 1
14 156-1011 Spacer 2
15 156-1012 Spacer 2
18 156-1015 Handle bar assembly 1
22 999-0060 Washer 1/4 split lock plain finish 4
24 999-1845 Screw 3/8-16 x 5/8 hex head stainless steel 6
25 999-0659 Washer 3/8 medium split lock stainless steel 6
26 999-0864 Screw 1/4-20 x 4 1/2 hex head plain finish 2
27 N/A Not available 1 (battery mount bar grinders)
N/S 999-6743 Screw 1/4-20 x 3/4 socket cap hex head stainless steel 2

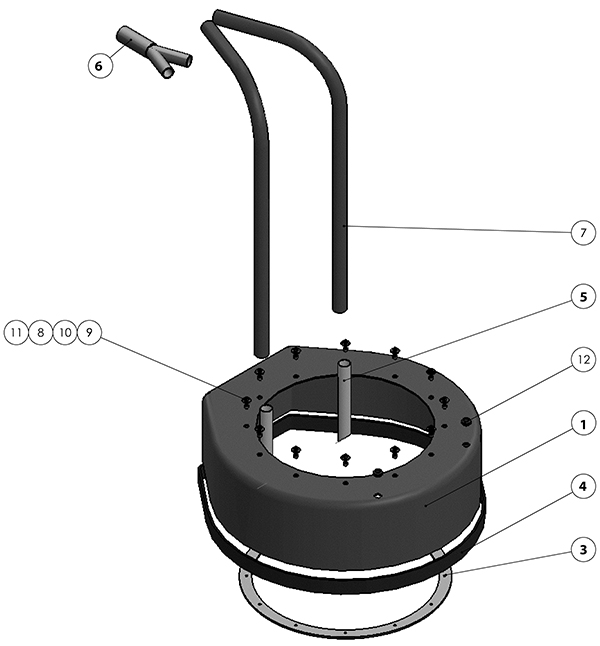

Shroud Assembly - 156-1003
RefNbr Part Number Description Req Notes
1 156-1030 Shroud 1
3 156-1032 Gasket 1
4 156-1033 Velcro hook for shroud (black) 9ft
5 156-1034 Hose 9ft
6 156-1035 Hose pipe 1
7 156-1031 Smoke stacks 2
8 999-0187 Washer 1/2 flat plain finish 12
9 999-0595 Nut 1/4-20 flange lock serrated zinc plated 12
10 999-0016 Washer 1/4 flat plain finish 12
11 156-1039 Plastic spacers 12
12 156-1040 Grommet 2

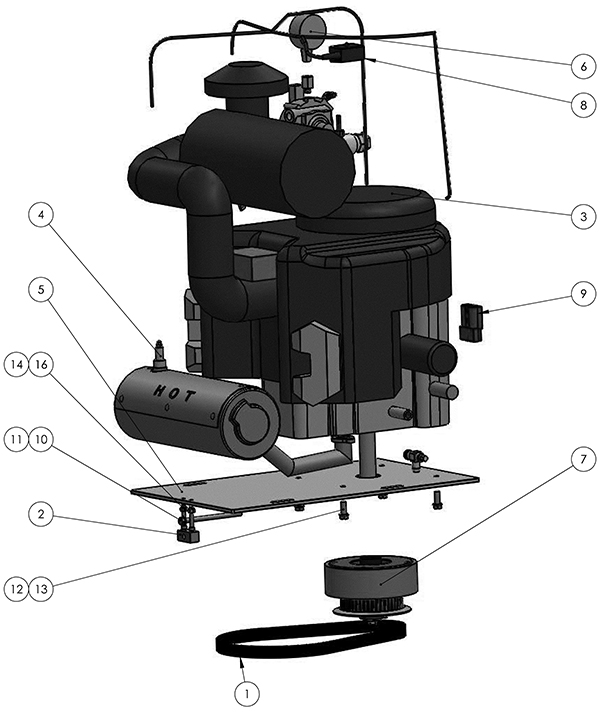

Propane Engine Assembly - 156-1004
RefNbr Part Number Description Req Notes
1 156-1026 Motor drive belt 1
2 156-1018 Belt tensioner 1
3 156-1027 Kawasaki engine 1
4 156-1028 O2 sensor 1
5 156-1029 Propane motor mount plate 1
6 156-1036 Pressure gauge 1
7 156-1037 Clutch 320 (XHD) 1
8 156-1038 Engine wiring harness 1
9 156-1041 Battery disconnect 1
10 999-0007 Screw 5/16-18 x 5 hex head stainless steel 1
11 999-0024 Washer 5/16 flat stainless steel 1
12 999-0659 Washer 3/8 medium split lock stainless steel 4
13 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 4
14 999-0021 Screw 1/4-20 x 1 1/2 socket cap zinc 2
16 156-1042 Lock nut 14-20 2
N/S 999-0060 Washer 1/4 split lock plain finish 2

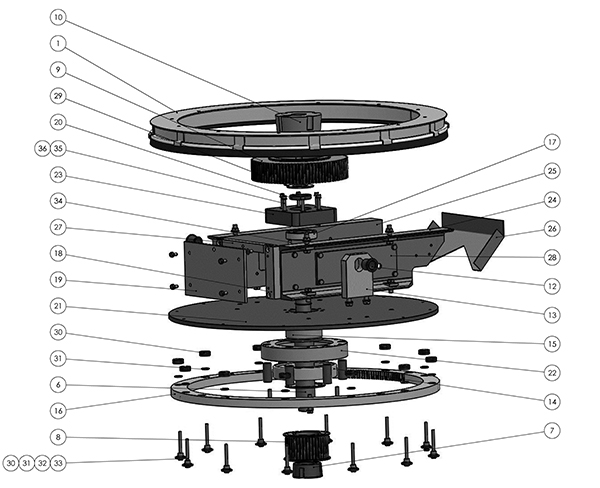

Ring Gear Plate Assembly - 156-1005
RefNbr Part Number Description Req Notes
1 156-0043 Upper labrynth 1
6 156-0044 Center drive shaft 1
7 156-0045 Dodge lock bushing 1
8 156-0046 Gates pulley 1
9 156-0047 Cap 1
10 156-0048 Propane grinder bushing 1
12 156-0050 Pivot head 2
13 156-0051 Head mounting ear 2
14 156-0052 Bearing 1
15 156-0053 Motor collar 1
16 156-0054 Ring gear 1
17 156-0055 Bearing 1
18 156-0056 Corner bracket 2
19 156-0057 Front inspection plate 1
20 156-0058 Oil seal 1
21 156-0059 Ring gear plate 1
22 156-0060 Bearing cup 1
23 156-0061 Bearing cup 1
24 156-0062 Right hand platform riser 1
25 156-0063 Left hand platform riser 1
26 156-0064 Rear sprocket guide 1
27 156-0065 Tensioner screw mount bar 1
28 156-0066 Side inspection plate 2
29 N/A Not available 1 (center shaft spacer)
30 156-0067 Flat washer 48
31 N/A Not available 24 (o-ring)
32 N/A Not available 12 (aluminum spacer)
33 156-0068 Screw 1/4 x 2 1/2 hex head stainless steel 12
34 N/A Not available 3 (roll pin)
35 999-0023 Screw 1/4-20 x 1 3/4 socket cap zinc 6
36 999-0060 Washer 1/4 split lock plain finish 6
N/S 156-0049 External retaining ring (black) 1

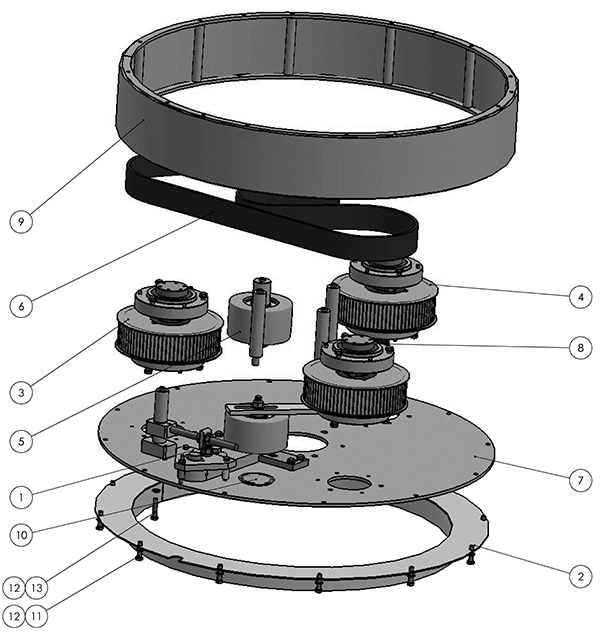

Upper Plate Assembly - 156-1006
RefNbr Part Number Description Req Notes
1 156-0069 Tensioner assembly 1
2 156-0070 Lower labrynth seal 1
3 156-0071 Spindle assembly without pinion 2
4 156-0072 Spindle assembly with pinion 1
5 156-0073 Idler roller assembly 1
6 156-0074 Belt 1
7 156-0075 Upper pulley box cover plate 1
8 156-0076 Gearbox spacer assembly 3
9 156-0077 Pulley box assembly 1
10 N/A Not available 1 (2 1/2 inch plastic plug)
11 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 12
12 156-0078 Lock washer 5-16 13
13 999-0552 Bolt 5/16-18 x 1 1/2 hex head stainless steel 1

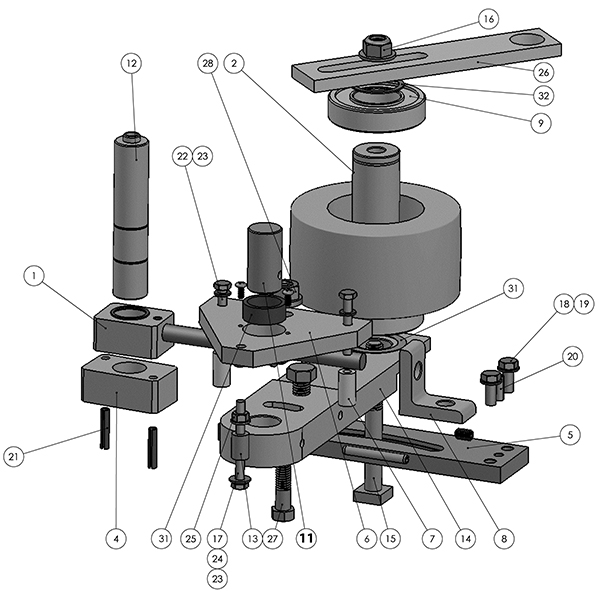

Tensioner Assembly - 156-1007
RefNbr Part Number Description Req Notes
1 156-1079 Tensioner block 1
2 156-1080 Tensioner shaft 1
4 156-1082 Tensioner block 1
5 156-1083 Tensioner clamp bar 1
6 156-1084 Tensioner arm retainer 1
7 156-1085 Spacer 2
8 156-1086 Tensioner angle 1
9 156-0055 Bearing 2
11 156-1088 Tensioner shaft 1
12 156-1089 Tensioner shaft 1
13 156-1090 Spacer 1
14 156-1091 Tensioner arm 1
15 N/A Not available 1 (tee bolt)
16 999-0897 Nut 1/2-13 flange lock serrated zinc plated 1
17 156-0068 Screw 1/4 x 2 1/2 hex head stainless steel 1
18 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel 4
19 156-0078 Lock washer 5-16 4
20 156-1092 Spring pin 2
21 156-1093 Roll pin 2
22 156-1094 Screw 1/4 x 1 3/4 hex head stainless steel 2
23 999-0060 Washer 1/4 split lock plain finish 3
24 999-6684 Washer 1/4 flat stainless steel 1
25 999-0595 Nut 1/4-20 flange lock serrated zinc plated 1
26 156-1095 Upper tensioner arm 1
27 999-1545 Screw 7/16-14 x 1 3/4 hex head stainless steel 1
28 999-0388 Nut 7/16-14 flange lock serrated zinc plated 1
31 N/A Not available 1 (shim)
32 156-1096 Snap ring 1
N/S 156-1081 Bearing sleeve 1
N/S 156-1087 Tension crowned roller 1
N/S 999-0608 Washer 1/2 flat brass 2
N/S 999-0262 Nut 1/2-13 nylon insert jam lock zinc plated 2

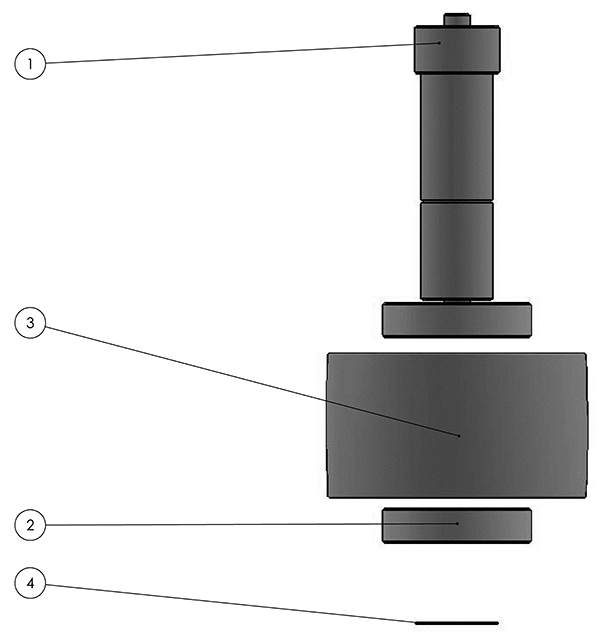

Idler Roller Assembly - 156-1008
RefNbr Part Number Description Req Notes
1 156-1097 Idler shaft 1
2 156-0055 Bearing 2
3 156-1098 Idler roller 1
4 156-1096 Snap ring 1

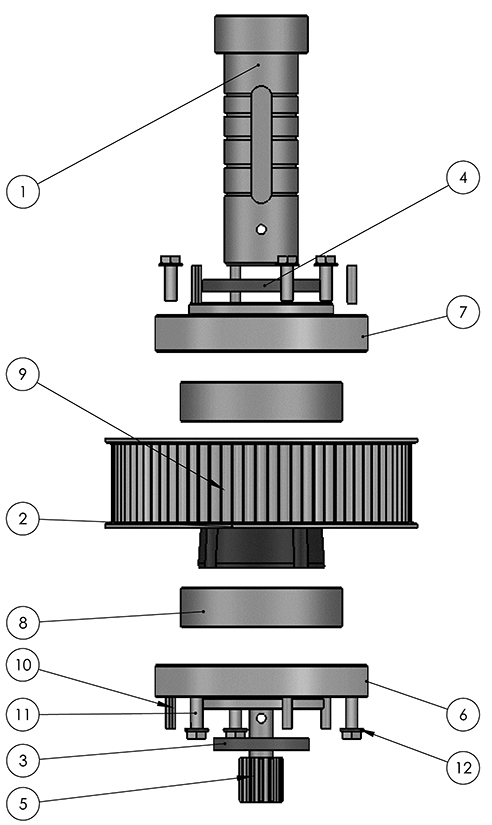

Spindle Assembly - 156-1010
RefNbr Part Number Description Req Notes
1a 156-1107 Grinding shaft for pinion gear 1 (with pinion gear)
1b 156-1106 Grinding shaft without pinion gear 1 (without pinion gear)
2 156-1099 Bushing 1
3 156-1100 Oil seal 1
4 156-1101 Oil seal 1
5 156-1108 Ring gear pinion 1
6 156-1102 Upper grinding bearing cup 1
7 156-1103 Lower grinding bearing cup 1
8 156-1104 Bearing 2
9 156-1105 Aluminum filter 1
10 N/A Not available 6 (roll pin)
11 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 6
12 156-0078 Lock washer 5-16 6

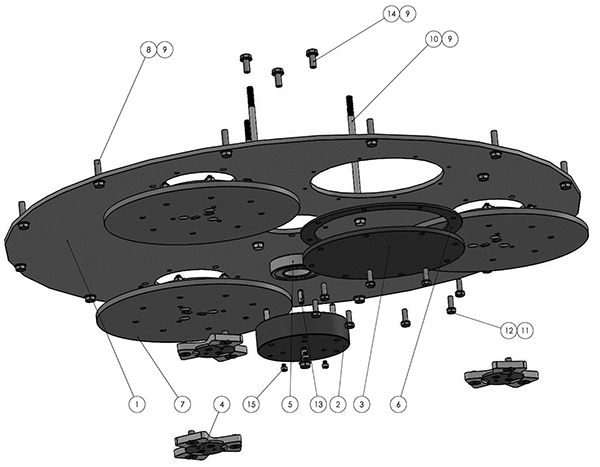

Lower Plate Assembly - 156-1011
RefNbr Part Number Description Req Notes
1 156-1109 Lower cover plate 1
2 156-1110 Pulley box lower bearing cup 1
3 156-1111 Tensioner view plate 1
4 156-1112 Cross complete 3
5 156-0055 Bearing 1
6 156-1113 Tensioner view plate gasket 1
7 156-1114 Flex head assembly 3
8 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel 12
9 156-0078 Lock washer 5-16 18
10 N/A Not available 3 (screw 5/16 x 7 hex head cap)
11 999-0060 Washer 1/4 split lock plain finish 8
12 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 8
13 156-1092 Spring pin 3
14 999-1232 Screw 5/16-18 x 3/4 hex head stainless steel 3
15 156-1115 Screw socket head cap steel alloy black oxide 3

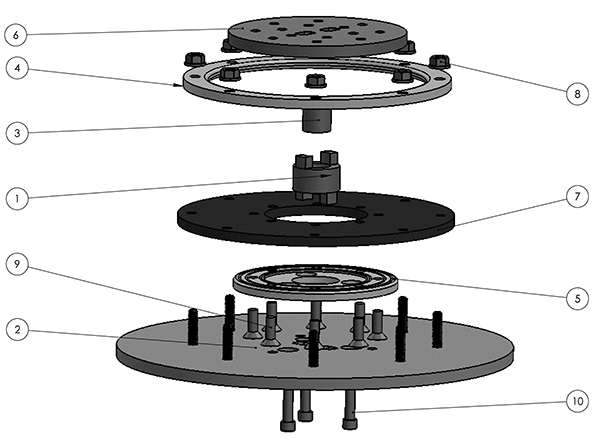

Flex Head Assembly - 156-1012
RefNbr Part Number Description Req Notes
1 156-1116 Drive shaft 1
2 156-1117 Backing plate 1
3 156-1118 Die spring 1
4 156-1119 Outer polycord holder 1
5 156-1120 Grooved inner polycord holder 1
6 156-1121 Grinding disc mounting plate 1
7 156-1122 Diaphram 1
8 999-0595 Nut 1/4-20 flange lock serrated zinc plated 8
9 999-0457 Screw 1/4-20 x 3/4 flat head phillips stainless steel 8
10 999-0157 Screw 5/16-18 x 3/8 cup point socket set alloy plain finish 3

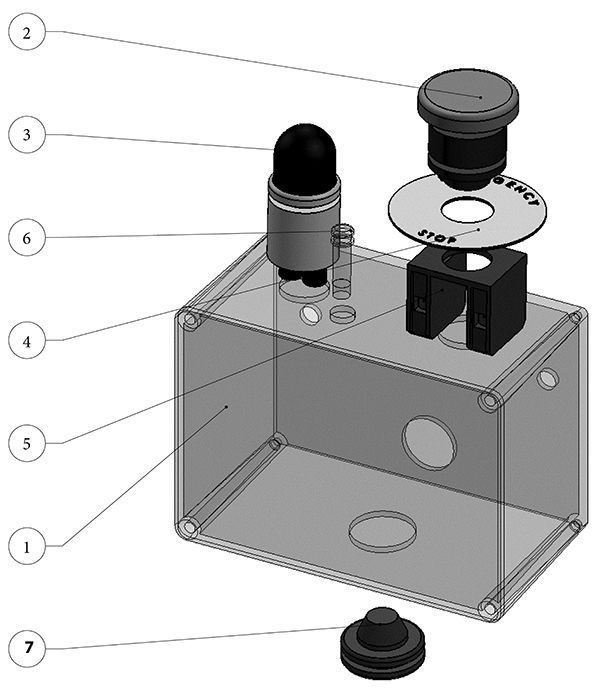

Propane Control Box Assembly - 156-1013
RefNbr Part Number Description Req Notes
1 156-1123 Control box 1
2 156-1124 Emergency stop button 1
3 156-1125 Engine starter button 1
4 156-1126 Legend plate 1
5 156-1127 Contact block 1
6 156-1128 LED (green) 1
7 156-1129 USB charging jack 1
