Parts List Complete for COMAC SIMPLA 50B


- Commonly Asked For Parts - 189-9968
RefNbr Part Number Description Req Notes
01 189-3100 Squeegee blade polyurethane rear
02 189-3098 Squeegee blade polyurethane front
03 189-3099 Squeegee blade gum rubber central
04 206-0866 Knob (OBSOLETE)
05 206-0650 Nut wing (OBSOLETE)
06 250-1232 Female connector
07 189-6371 Male connector (French style)

- Batteries, Brushes, and Chargers - 250-2025
RefNbr Part Number Description Req Notes
01 162-0011 12V 105Ah wet battery (SNSR) 2
02 162-0011 12V 105Ah wet battery (SNSR) 2
03 189-5107 24V 12amp battery charger 1 (Need to know which style plug is needed, French or Italian)
04 996-1385 19 inch heavy grit stripping brush - 80 grit 2
05 996-0124 19 inch medium grit scrubbing brush - 180 grit 2
06 996-1386 19 inch lite grit scrubbing brush - 500 grit 2
07 996-1387 19 inch polypropylene scrubbing brush 2
08 996-0605 19 inch Pad driver 2
09 996-0341 Drive lugs - plastic (pkg of 3) 2
10 189-7644 20 inch pad driver 2

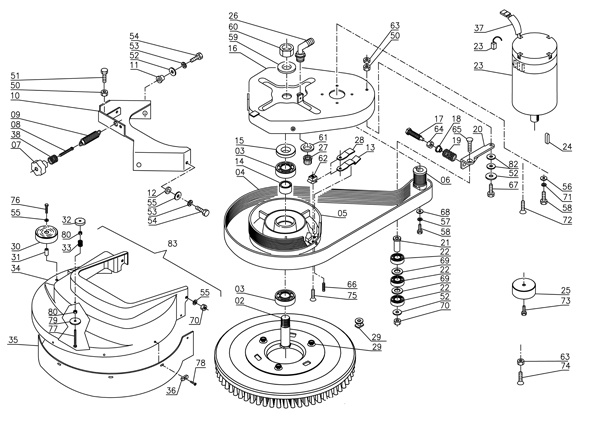

Brush Base Assembly - 250-6666
RefNbr Part Number Description Req Notes
2 250-1585 Shaft 1
3 250-1586 Bearing 2
4 250-1587 Belt 1
5 250-1588 Pulley 1
6a 206-5110 Motor pulley (OBSOLETE) 1
6b 250-1589 Motor pulley 1 (Simpla 61 only)
7 206-0866 Knob (OBSOLETE) 1
8 250-1590 Adjuster 1
9 250-1180 Spring 1
10 206-5114 Support (OBSOLETE) 1
11 189-6200 Bushing 2
12 206-5116 Bushing (OBSOLETE) 2
13 189-4652 Spring 1
14 250-1150 Spacer 1
15 250-1592 Spacer 1
16a 250-1593 Brush base 1
16b 250-1594 Brush base 1 (Simpla 61 only)
17 250-1595 Adjuster 1
18 250-1596 Bushing 1
19 206-0490 Spring (OBSOLETE) 1
20 206-5124 Support (OBSOLETE) 1
21 250-1597 Bushing 1
22 250-1598 Bearing 3
23a 206-5127 Motor (OBSOLETE) 1
23b 189-4424 Carbon brush 4
24 206-5128 Key (OBSOLETE) 1
25 250-1599 Washer 1
26 206-0868 Connector (OBSOLETE) 1
27 206-0868 Connector (OBSOLETE) 1
28 206-5133 Spring (OBSOLETE) 1
29a 250-1600 Brush button 3
29b 250-1601 Brush button 3
30 189-2542 Wheel 1
31 250-1603 Bushing 1
32 206-5158 Handwheel (OBSOLETE) 1
33 206-6005 Spring 1
34a 250-1604 Base cover 1 (Simpla 45 only)
34b 206-5160 Base cover (OBSOLETE) 1 (Simpla 50 only)
35a 250-1605 Splash guard 1 (Simpla 45 only)
35b 206-5161 Splash guard (OBSOLETE) 1 (Simpla 50 only)
36 250-1606 Plaque 8
37 250-1212 Sheath 1
38 206-0870 Spring (OBSOLETE) 1
50 999-1424 Nut M8-1.25 hex stainless steel 3
51 283-1617 SCREW M8X30 UNI 5739 DIN 933 (8.8) GA 1
52 189-6198 Flat washer 2
53 189-9084 Washer M8 lock zinc 1
54 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 2
55 250-1219 Washer 2
57 189-9102 Washer external serrated lock zinc 1
58 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA 4
59 250-1607 Washer 1
60 189-9118 Nut 1
61 206-0871 Lock washer (OBSOLETE) 1
62 206-0872 Nut (OBSOLETE) 1
63 206-5138 Nut (OBSOLETE) 1
64 250-1609 Nut 1
65 206-0873 Screw (OBSOLETE) 1
66 206-0874 Dowel (OBSOLETE) 1
67 189-9112 Screw M8 x 35mm 1
68 250-1610 Washer 1
69 250-1218 Washer 2
70 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
71 283-1770 WASHER 6X2.5X1.8 GROWER GALV. 4
72 283-1699 SCREW M6X16 UNI5933 DIN7991 (10.9) Z 1
73 206-0875 Screw (OBSOLETE) 1
74 250-1614 Screw 1
75 206-0875 Screw (OBSOLETE) 1
76 206-0876 Screw (OBSOLETE) 1
77 206-6001 Screw (OBSOLETE) 1
78 189-6237 Screw M4 x 15mm flat 8
79 206-6002 Washer 1
80 283-1714 NUT M6 UNI 5587 ST.STEEL HIGH 2
82 250-1612 Cupped washer 2
83a 250-1613 Base cover 1 (Simpla 45 only)
83b 206-5176 Base cover assembly (OBSOLETE) 1 (Simpla 50 only)

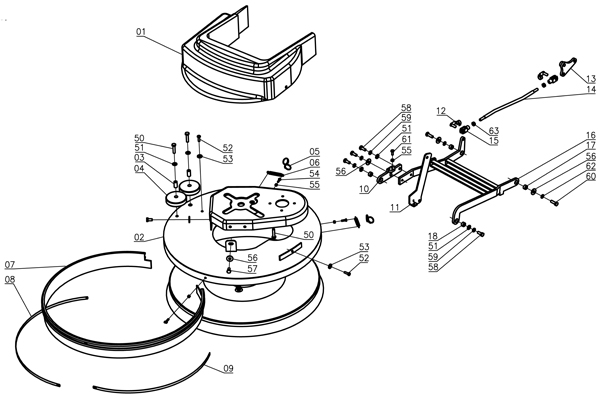

Brush Assembly - 250-6667
RefNbr Part Number Description Req Notes
1 250-1615 Base cover 1 (Simpla 61)
2 250-1616 Support 1 (Simpla 61)
3 189-2543 Bushing 2
4 189-2542 Wheel 2
5 250-1617 Ring 2
6 206-0486 Spring 2
7 250-1618 Splash guard 1 (Simpla 61)
8 250-1619 Right hand blade 1 (Simpla 61)
9 250-1620 Left hand blade 1 (Simpla 61)
10 250-1621 Arm 1 (Simpla 61)
11 250-1622 Arm 1 (Simpla 61)
12 206-0916 Pin (OBSOLETE) 2
13 250-1623 Rocker arm 1 (Simpla 61)
14 250-1624 Tie rod 1 (Simpla 61)
15 206-0918 Fork (OBSOLETE) 2
16 250-1625 Lever 1 (Simpla 61)
17 206-5148 Bushing (OBSOLETE) 2
18 206-5116 Bushing (OBSOLETE) 2
50 206-5173 Screw (OBSOLETE) 3
51 250-1219 Washer 8
52 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
53 206-0578 Washer (OBSOLETE) 2
54 206-0496 Screw (OBSOLETE) 2
55 999-0740 Nut M5-.8 hex stainless steel 4
56 189-6198 Flat washer 5
57 206-1013 Screw (OBSOLETE) 2
58 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 8
59 189-9084 Washer M8 lock zinc 8
60 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 2
61 250-1627 Screw 1
62 206-5171 Washer lock (OBSOLETE) 2
63 206-5138 Nut (OBSOLETE) 2

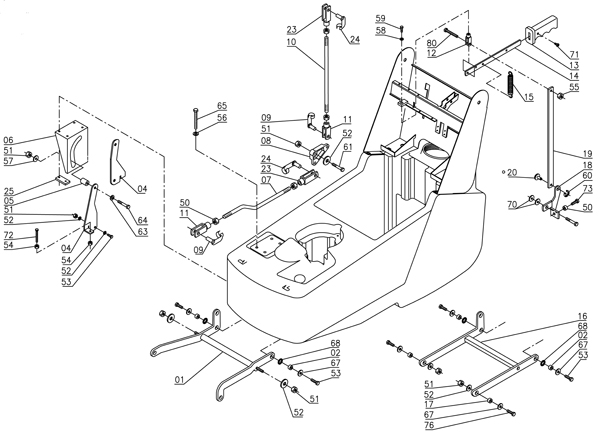

Brush Control Assembly - 250-6668
RefNbr Part Number Description Req Notes
1 206-0914 Arm (OBSOLETE) 1
2 206-5148 Bushing (OBSOLETE) 2
4 206-5149 Support (OBSOLETE) 1
5 206-5150 Roller (OBSOLETE) 1
6 206-5151 Support (OBSOLETE) 1
7 206-0915 Tie rod (OBSOLETE) 1
8 206-5381 Rocker arm (OBSOLETE) 1
9 206-0916 Pin (OBSOLETE) 2
10 206-0917 Tie rod (OBSOLETE) 1
11 206-0918 Fork (OBSOLETE) 2
12 206-5164 Fork 1
13 206-5156 Knob (OBSOLETE) 1
14 206-0919 Lever (OBSOLETE) 1
15 206-0486 Spring 1
16 206-0920 Lever (OBSOLETE) 1
17 206-5116 Bushing (OBSOLETE) 2
18 206-0921 Coupling (OBSOLETE) 1
19 206-0922 Prop (OBSOLETE) 1
20 250-1628 Pin 1
23 206-0923 Fork (OBSOLETE) 2
24 206-0924 Pin (OBSOLETE) 2
25 206-0925 Plate (OBSOLETE) 2
50 206-5138 Nut (OBSOLETE) 5
51 999-0471 Nut M8-1.25 nylon insert lock zinc plated 5
52 250-1219 Washer 4
53 999-0581 Bolt M8-1.25 x 25mm hex head full thread zinc 1
54 999-1308 Nut M6-1 hex stainless steel 2
55 189-5094 Nut M6 1
56 999-6714 Washer M6 x 12mm flat stainless steel 1
57 206-0539 Washer (OBSOLETE) 1
58 999-1261 Washer M6 flat stainless steel 1
59 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA 1
60 250-1629 Seeger ring 1 (SN 04003797 and after)
61 206-0927 Screw (OBSOLETE) 1
63 189-9084 Washer M8 lock zinc 1
64 283-1622 M8X45 HH SCREW UNI5739 DIN933(10.9)GA 1
65 206-5169 Screw (OBSOLETE) 1
67 189-6198 Flat washer 4
68 206-5171 Washer lock (OBSOLETE) 2
70 206-0928 Washer (OBSOLETE) 2
71 206-0609 Screw (OBSOLETE) 1
72 206-5174 Screw (OBSOLETE) 1
73 206-5173 Screw (OBSOLETE) 1
76 283-1617 SCREW M8X30 UNI 5739 DIN 933 (8.8) GA 2
80 206-0930 Screw (OBSOLETE) 1

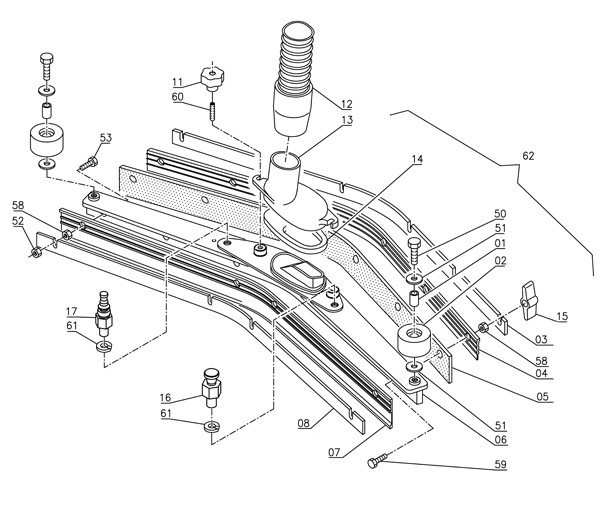

Squeegee Assembly - 250-6669
RefNbr Part Number Description Req Notes
1 189-6219 Bushing 2
2 189-6218 Wheel 2
3a N/A Not available 1 (Simpla 45) (Squeegee blade)
4a N/A Not available 1 (Simpla 45)
4b 189-3100 Squeegee blade polyurethane rear 1 (Simpla 50)
5a N/A Not available 1 (Simpla 45)
5b 189-3099 Squeegee blade gum rubber central 1 (Simpla 50)
6a 250-1631 Squeegee body 1 (Simpla 45)
6b 206-5297 Squeegee body (OBSOLETE) 1 (Simpla 50)
7a N/A Not available 1 (Simpla 45)
7b 189-3098 Squeegee blade polyurethane front 1 (Simpla 50)
8a N/A Not available 1 (Simpla 45) (Squeegee blade)
8b 206-5298 Blade (OBSOLETE) 1 (Simpla 50)
11 206-0866 Knob (OBSOLETE) 2
12 N/A Not available 1
13 189-7553 Adaptor 1
14 N/A Not available 1
15a 206-0650 Nut wing (OBSOLETE) 6 (Simpla 45)
15b 206-0650 Nut wing (OBSOLETE) 8 (Simpla 50)
16 206-0933 Stud bolt (OBSOLETE) 1
17 N/A Not available 1
50 283-1617 SCREW M8X30 UNI 5739 DIN 933 (8.8) GA 2
51 250-1219 Washer 2
52 283-2097 LOCK NUT M6 UNI 7474 DIN 985 ST.STEEL 4
53 999-1312 Screw M6-1 x 20mm hex head stainless steel 4
58 250-1632 Nut 12
59 999-1610 Screw M6-1 x 25mm flat head socket stainless steel 8
60 189-8732 Screw M6 x 40mm hex set flat end stainless steel 2
61 283-1787 WASHER 10X2.5X2.5 GROWER DIN 7980 GAL 2
62a 206-0936 Squeegee assembly (OBSOLETE) 1 (Simpla 45)
62b 250-1633 Squeegee assembly 1 (Simpla 50)

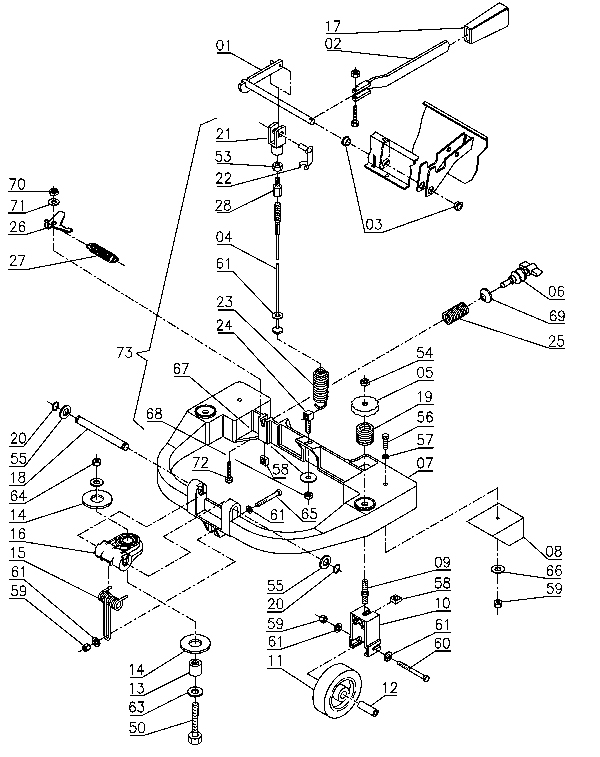

Squeegee Control Assembly - 250-6671
RefNbr Part Number Description Req Notes
1 206-0937 Lever (OBSOLETE) 1
2 206-5271 Lever (OBSOLETE) 1
3 206-5272 Bushing (OBSOLETE) 2
4 N/A Not available 1 (Squeegee lift cable)
5 206-0034 Handwheel (OBSOLETE) 3
6 206-0938 Adjuster (OBSOLETE) 1
7 N/A Not available 1
8 206-5277 Ballast (OBSOLETE) 2
9 206-5278 Pin (OBSOLETE) 2
10 206-5279 Support (OBSOLETE) 2
11 N/A Not available 2 (Wheel)
12 206-5281 Bushing (OBSOLETE) 2
13 206-0939 Bushing (OBSOLETE) 1
14 206-5283 Special washer (OBSOLETE) 2
15 206-5284 Spring (OBSOLETE) 1
16 206-5285 Coupling (OBSOLETE) 1
17 206-5286 Knob (OBSOLETE) 1
18 206-5287 Pin (OBSOLETE) 1
19 206-0940 Spring (OBSOLETE) 2
20 206-0667 Seeger ring (OBSOLETE) 2
21 N/A Not available 1
22 206-0672 Clip (OBSOLETE) 1
23 189-6223 Spring 1
24 206-0943 Coupling (OBSOLETE) 1
25 206-0944 Spring (OBSOLETE) 1
26 206-0945 Coupler (OBSOLETE) 1
27 206-0946 Spring (OBSOLETE) 1
28 206-0678 Extension tube (OBSOLETE) 1
50 206-0947 Screw (OBSOLETE) 1
53 999-0740 Nut M5-.8 hex stainless steel 1
54 206-5138 Nut (OBSOLETE) 2
55 206-5291 Washer (OBSOLETE) 2
56 206-5172 Screw (OBSOLETE) 2
57 283-1770 WASHER 6X2.5X1.8 GROWER GALV. 2
58 206-5292 Special nut (OBSOLETE) 3
59 189-5094 Nut M6 5
60 206-5293 Screw (OBSOLETE) 2
61 999-6714 Washer M6 x 12mm flat stainless steel 6
63 206-0948 Lock washer (OBSOLETE) 1
64 999-1550 Nut M10-1.5 nylon insert lock 1
65 206-5172 Screw (OBSOLETE) 1
66 206-5168 Washer (OBSOLETE) 2
67 999-1261 Washer M6 flat stainless steel 1
68 283-2097 LOCK NUT M6 UNI 7474 DIN 985 ST.STEEL 1
69 206-0950 Washer (OBSOLETE) 1
70 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
71 206-0952 Washer (OBSOLETE) 1
72 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 1
73 206-5273 Cable (OBSOLETE) 1

Frame and Tank Assembly - 250-6672
RefNbr Part Number Description Req Notes
1 206-5237 Frame (OBSOLETE) 1
2 206-0953 Solution tank (OBSOLETE) 1
3 206-0954 Cover (OBSOLETE) 1
4 206-0630 Drain hose 1
5 250-1642 Exhaust pipe plug 1
6 206-0956 Hinge (OBSOLETE) 1
7 206-0957 Recovery tank (OBSOLETE) 1
8 206-0571 Hook (OBSOLETE) 2
9 206-5243 Cover (OBSOLETE) 1
10 206-5244 Cable fastener 4
11 206-5245 Hinge (OBSOLETE) 1
12 189-9086 Handle 1
13 206-0585 Filter holder (OBSOLETE) 1
14 206-5247 Prop (OBSOLETE) 1
15 250-1643 Lever 1
16 250-1644 Spring 1
17 206-0958 Frame (OBSOLETE) 1
18 189-6266 Cap 1
19 206-0959 Gasket (OBSOLETE) 1
20 206-0960 Pipe (OBSOLETE) 1
21 250-1645 Cover 1
22 250-1646 Filter 1
23 250-1647 Base 1
24 206-0962 Gasket 1
25 N/A Not available 1 (Ring nut)
26 206-0964 Elbow (OBSOLETE) 1
27 283-1457 NYLON CAP D.13 2
28 206-0966 Pipe (OBSOLETE) 1
29 206-5262 Castor wheel (OBSOLETE) 1
30 206-0071 Clamp 1
31 206-0628 Clamp (OBSOLETE) 1
32 206-0967 Guide (OBSOLETE) 1
33 206-0968 Connector (OBSOLETE) 1
34 206-0620 Clamp (OBSOLETE) 2
35 206-0969 Connector (OBSOLETE) 1
37 250-1648 Gasket 1
38 250-1649 Fitting assembly 1
39 206-0973 Support bracket (OBSOLETE) 1
40 206-0974 Splash guard (OBSOLETE) 1
42 206-0629 Drain hose plug (OBSOLETE) 1
43 250-1650 Comax DX decal 1
44 250-1651 Comac SX decal 1
45 250-1652 Simpla 45B decal 1
48 250-1653 Simpla 45BT decal 1
49 250-1654 Simpla 50B decal 1
50 206-0976 Screw (OBSOLETE) 12
51 283-1584 SCREW 5X20 UNI7687 GALV 3
52 206-0995 Lock nut (OBSOLETE) 2
53 206-5265 Washer 4 x 9 (OBSOLETE) 2
54 206-5266 Screw (OBSOLETE) 2
55 999-9100 Washer M5 flat stainless steel 2
56 206-5267 Screw (OBSOLETE) 2
57 999-0471 Nut M8-1.25 nylon insert lock zinc plated 5
58 206-5173 Screw (OBSOLETE) 1
59 189-8732 Screw M6 x 40mm hex set flat end stainless steel 1
60 189-9083 Nut M6 x 5 hex 2
61 250-1219 Washer 10
62 206-5171 Washer lock (OBSOLETE) 4
63 206-0977 Screw (OBSOLETE) 8
64 189-9084 Washer M8 lock zinc 6
65 206-0583 Screw (OBSOLETE) 2
66 206-0912 Washer (OBSOLETE) 3
67 206-0978 Rivet (OBSOLETE) 2
68 206-0979 Nut (OBSOLETE) 2
69 206-0980 Screw (OBSOLETE) 2
70 206-0981 Washer (OBSOLETE) 2
71 206-0582 Washer (OBSOLETE) 2
72 206-0982 Drain hose kit (OBSOLETE) 1
73 250-1655 Simpla 50BT decal 1
74 250-1656 S50 BS decal 1
75 250-1657 Simpla 50 BS T decal 1
76 250-1658 Simpla 61 decal 1
77 250-1659 Simpla 61B T decal 1
78 250-1660 Fitting 1

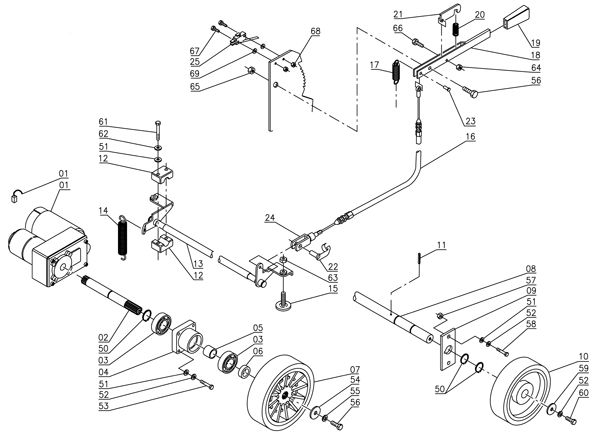

Brake Assembly - 250-6673
RefNbr Part Number Description Req Notes
1a 189-4373 24V drive motor 1
1b 206-0983 Carbon brushes 2
2 206-0984 Axle shaft (OBSOLETE) 2
3 250-1152 Bearing 4
4 N/A Not available 2
5 206-0986 Spacer (OBSOLETE) 2
6 206-0987 Spacer (OBSOLETE) 2
7 206-0988 Traction wheel (OBSOLETE) 2
8 206-5304 Shaft (OBSOLETE) 1
9 206-5305 Support (OBSOLETE) 2
10 206-0564 Wheel 2
11 189-9344 Split pin 1
12 206-0543 Holdfast (OBSOLETE) 4
13 206-0990 Shaft (OBSOLETE) 1
14 250-1115 Spring 1
15 206-5309 Pad (OBSOLETE) 2
16 206-5310 Brake cable (OBSOLETE) 1
17 206-0486 Spring 1
18 206-5311 Lever (OBSOLETE) 1
19 206-5286 Knob (OBSOLETE) 1
20 206-0991 Spring (OBSOLETE) 1
21 206-5314 Lever (OBSOLETE) 1
22 206-5163 Clip (OBSOLETE) 1
23 206-5165 Pin (OBSOLETE) 1
24 206-5164 Fork 1
25 206-0716 Microswitch (OBSOLETE) 1
50 206-5306 Seeger ring 4
51 999-6714 Washer M6 x 12mm flat stainless steel 8
52 189-9102 Washer external serrated lock zinc 8
53 999-1309 Screw M6-1 x 30mm hex head zinc 8
54 206-0539 Washer (OBSOLETE) 2
55 206-5171 Washer lock (OBSOLETE) 2
56 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain 3
57 189-5094 Nut M6 4
58 283-1518 SCREW M6X20 UNI 5739 DIN 933 (8.8) GA 4
59 206-5168 Washer (OBSOLETE) 2
60 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
61 N/A Not available 4
62 283-1770 WASHER 6X2.5X1.8 GROWER GALV. 4
63 206-5138 Nut (OBSOLETE) 2
64 206-0995 Lock nut (OBSOLETE) 1
65 999-0471 Nut M8-1.25 nylon insert lock zinc plated 1
66 999-0528 Screw M4-.7 x 16mm pan head slotted zinc 1
67 206-0996 Screw (OBSOLETE) 2
68 999-1161 Nut M3-.5 hex nylock stainless steel 2
69 206-5358 Washer (OBSOLETE) 2

Water Assembly - 250-6674
RefNbr Part Number Description Req Notes
1 206-0627 Knob (OBSOLETE) 1
2 206-0573 Washer special (OBSOLETE) 1
3 206-5317 Clamp 4
4 189-6201 Compression spring 1 (Spring)
5 206-5322 Rod (OBSOLETE) 1
6 206-0997 Bellows (OBSOLETE) 1
7 N/A Not available 1 (Valve lever)
8 206-0616 Fitting (OBSOLETE) 2
9 189-7634 3/8 double female ball valve 1
10 206-0998 Pipe (OBSOLETE) 1
11a 189-7576 Solenoid valve 1
11b 189-7627 Solenoid valve body 1
12a 206-1001 Pipe (OBSOLETE) 1
12b 206-1002 Pipe (OBSOLETE) 1
12c 250-1661 Hose 1
13 189-6325 Wire tie 2
14 206-1003 Cap (OBSOLETE) 1
15 206-5259 O-ring (OBSOLETE) 1
50 999-0740 Nut M5-.8 hex stainless steel 1
51 206-5328 Nut (OBSOLETE) 1
52 189-8726 Washer M6 flat PVC black 1
53 206-5266 Screw (OBSOLETE) 1
54 250-1662 Split pin 1
55 999-0521 Screw M4-.7 x 12mm pan head phillips zinc 2
56 206-0995 Lock nut (OBSOLETE) 2

Suction Assembly - 250-6675
RefNbr Part Number Description Req Notes
1a 206-5315 Vacuum motor 1
1b 250-1663 Carbon brush 2
2 206-0742 Vacuum hose (OBSOLETE) 1
3 206-1005 Sound deadening hose (OBSOLETE) 1
4 189-6327 Vacuum splash guard 1
5 250-1484 Filter 1
6 189-9116 Float 1
7 189-9146 Rod 1
8 189-4369 Filter gasket 1
9 189-9147 Grommet 1
10 189-9148 Cover 1
11 189-9148 Cover 1
12 189-9150 Coupling 1
13 206-0071 Clamp 2
14 206-5431 Clamp 1
15 206-1006 Pipe (OBSOLETE) 1
16 283-1870 PLASTIC CLAMP 4.5X360 1
17 206-1008 Support (OBSOLETE) 1
18 206-1009 Deading hose (OBSOLETE) 1
19 189-5142 Sound deadening foam 1
20 189-6323 30amp electrical housing connector 2
21 283-1834 CONNECTOR CONTACT 30A 2
22 189-6325 Wire tie 2
23 206-5181 24V vacuum motor 1
52 283-2097 LOCK NUT M6 UNI 7474 DIN 985 ST.STEEL 1
54 283-1816 SPLIT PIN D.2X20 UNI 1336 GALV. 2
55 206-1011 Lock nut (OBSOLETE) 2
58 206-0573 Washer special (OBSOLETE) 2
59 206-0584 Screw (OBSOLETE) 2
60 250-1219 Washer 1
61 206-1013 Screw (OBSOLETE) 1
62 206-0610 Float assembly (OBSOLETE) 1

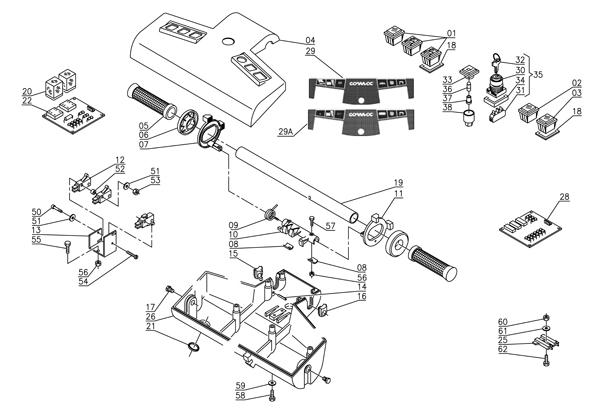

Handle with Traction Assembly - 250-6678
RefNbr Part Number Description Req Notes
1 206-5177 Bipolar switch green (OBSOLETE) 3
2 206-0720 Battery signal 1
3a 206-5179 Bipolar switch yellow (OBSOLETE) 1
3b 206-1043 Switch (OBSOLETE) 1
4 250-1665 Handle bar cover 1
5 206-0694 Handle grip (OBSOLETE) 2
6 250-1666 Washer 2
7 250-1667 Lever 1
8 250-1668 Plaque 2
9 189-6353 Torsion spring 1
10 206-5338 Shaft (OBSOLETE) 1
11 250-1669 Lever 1
12 206-5182 Microswitch 3x22 (OBSOLETE) 3
13 206-1044 Support (OBSOLETE) 1
14 206-5289 Spring pin (OBSOLETE) 1
15 250-1670 Plaque 1
16 250-1671 Plaque 1
17 N/A Not available 2
18 250-1568 Gasket 5
19 250-1672 Pipe 1
20 206-1029 24V 20amp relay (OBSOLETE) 2
21 250-1673 Fairlead 1
22 206-1028 24V chopper card without relays (OBSOLETE) 1
25 206-1030 Braking resistors (OBSOLETE) 1
26 250-1674 Handle bar body 1
28 206-0734 Battery check card (OBSOLETE) 1
29a 206-1046 Decal (OBSOLETE) 1
29b N/A Not available 1
30 206-5214 Master switch (OBSOLETE) 1
31 189-6342 Key switch contact 1
32 189-2658 Key 1
33 206-1031 36V parking lamp (red) (OBSOLETE) 1
34 189-6343 Switch flange 1
35 206-5404 Key switch assembly (OBSOLETE) 1
36 250-1675 Electric bulb 1
37 250-1676 Lamp holder 1
38 206-1051 Body (OBSOLETE) 1
50 206-1019 Screw (OBSOLETE) 3
51 206-0698 Washer 3
52 206-5395 Washer 2
53 999-1161 Nut M3-.5 hex nylock stainless steel 2
54 206-1054 Screw (OBSOLETE) 1
55 999-0528 Screw M4-.7 x 16mm pan head slotted zinc 4
56 250-1426 Nut M4 2
57 250-1677 Screw M3 x 20mm 2
58 283-1668 SCREW M5X30 UNI 7687 DIN 7985 GALV. 6
59 999-1594 Washer M5 external lock stainless steel 6
60 206-0499 Nut (OBSOLETE) 1
61 206-5168 Washer (OBSOLETE) 1
62 999-1589 Screw M5-.8 x 35mm phillips oval head stainless steel 1

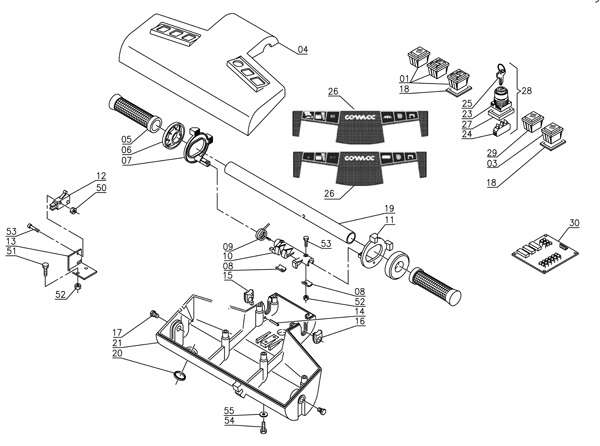

Handle without Traction Assembly - 250-6679
RefNbr Part Number Description Req Notes
1 206-5177 Bipolar switch green (OBSOLETE) 3
3a 206-5179 Bipolar switch yellow (OBSOLETE) 1
3b 206-1043 Switch (OBSOLETE) 1
4 250-1665 Handle bar cover 1
5 206-0694 Handle grip (OBSOLETE) 2
6 250-1666 Washer 2
7 250-1667 Lever 1
8 250-1668 Plaque 2
9 189-6353 Torsion spring 1
10 206-5338 Shaft (OBSOLETE) 1
11 250-1669 Lever 1
12 206-5182 Microswitch 3x22 (OBSOLETE) 1
13 250-1678 Support 1
14 206-5289 Spring pin (OBSOLETE) 1
15 250-1670 Plaque 1
16 250-1671 Plaque 1
17 N/A Not available 2
18 250-1568 Gasket 5
19 250-1672 Pipe 1
20 250-1673 Fairlead 1
21 250-1674 Handle bar body 1
22 206-5180 Check card control batteries 24v (OBSOLETE) 1
23 206-5214 Master switch (OBSOLETE) 1
24 189-6342 Key switch contact 1
25 189-2658 Key 1
26b N/A Not available 1
27 189-6343 Switch flange 1
28 206-5404 Key switch assembly (OBSOLETE) 1
29 206-0720 Battery signal 1
30 206-0734 Battery check card (OBSOLETE) 1
50 999-1161 Nut M3-.5 hex nylock stainless steel 5
51 999-0528 Screw M4-.7 x 16mm pan head slotted zinc 4
52 250-1426 Nut M4 2
53 250-1677 Screw M3 x 20mm 4
54 283-1668 SCREW M5X30 UNI 7687 DIN 7985 GALV. 8
55 999-1594 Washer M5 external lock stainless steel 2

Electrical Assembly - 250-6680
RefNbr Part Number Description Req Notes
1 206-5111 Knob (OBSOLETE) 1
2 206-5352 Cover (OBSOLETE) 1
3 206-5353 Cover (OBSOLETE) 1
4 206-0686 Fuse holder (OBSOLETE) 1
5 206-0687 Plaque (OBSOLETE) 1
6 206-1014 Support (OBSOLETE) 1
7a 206-5363 Double remote control switch (OBSOLETE) 1
7b 206-0708 24V contactor (OBSOLETE) 1
8 250-1679 Cover 1
9 206-0706 Insulator M5 (OBSOLETE) 1
10 206-5354 24V 30amp relay (OBSOLETE) 1
11 250-1259 Fuseholder 2
12 189-3308 Fuse block end cap 1
13 189-5714 Cover 2
14 206-5356 Bolt stud (OBSOLETE) 1
15 206-1015 Connector lever (OBSOLETE) 1
16 206-1026 2 cables black-red and connector 80a (OBSOLETE) 1
17 250-1232 Female connector 1
18 206-0685 3amp fuse (OBSOLETE) 1
19 206-0702 30amp fuse (OBSOLETE) 1
20 206-0701 Fuse 50A (OBSOLETE) 1
21 N/A Not available 1
50 206-5357 Screw (OBSOLETE) 2
51 206-5358 Washer (OBSOLETE) 2
52 206-5359 Nut (OBSOLETE) 1
53 189-8730 Nut M5 x 7mm hex nylock zinc 3
54 283-1507 SCREW M5X12 UNI 5739 (8.8) GALV. 3
55 999-9100 Washer M5 flat stainless steel 3
56 250-1680 Screw M4 x 10mm 1
57 250-1681 Screw M6 x 12mm 1
58 189-9102 Washer external serrated lock zinc 1
59 999-1594 Washer M5 external lock stainless steel 3
60 999-1161 Nut M3-.5 hex nylock stainless steel 3
61 206-5362 Dowel (OBSOLETE) 1
62 206-0995 Lock nut (OBSOLETE) 1
63 206-1019 Screw (OBSOLETE) 2

- Pads - 255-2000
RefNbr Part Number Description Req Notes
01 255-2040 20 inch aqua plus burnishing pad (pkg of 5)
02 255-2035 20 inch Armadillo concrete scrubbing pad (pkg of 5)
03 255-2064 20 inch Blue ace pad (pkg of 5)
04 255-2042 20 inch Blue Jay burnishing pad (pkg of 5)
05 255-2012 20 inch Cure white pad (pkg of 5)
06 255-2077 20 inch Diamondback extreme stripping pad (pkg of 5)
07 255-2038 20 inch EHD Extra Heavy Duty Concrete Leveling Pad (pkg of 2
08 255-2021 20 inch gorilla lite burnishing pad (pkg of 5)
09 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5)
10 255-2065 20 inch Heat concrete bonding pad (pkg of 5)
11 255-2030 20 inch jaguar burnishing pad (pkg of 5)
12 255-2067 20 inch Laminated 2001 Gorilla polish pad (pkg of 5)
13 255-2087 20 inch Melamine Mela-Kleen pad (pkg of 2)
14 255-2068 20 inch Microclean daily cleaning pad (pkg of 2)
15 255-2069 20 inch Micropolish polishing and burnishing pad (pkg of 2)
16 255-2090 20 inch premium black stripping pad (pkg of 5)
17 255-2070 20 inch premium blue cleaning pad (pkg of 5)
18 255-2092 20 inch premium brown stripping pad (pkg of 5)
19 255-2080 20 inch premium green scrubbing pad (pkg of 5)
20 255-2060 20 inch premium red scrubbing pad (pkg of 5)
21 255-2052 20 inch premium tan polishing pad (pkg of 5)
22 255-2020 20 inch premium white polishing pad (pkg of 5)
23 255-2011 20 inch superspeed rubberized pad (pkg of 5)
24 255-2095 20 inch razorback stripping pad (pkg of 5)
25 255-2047 20 inch Redwood maroon floor prep pad (pkg of 10)
26 255-2055 20 inch Ruff non-abrasive brush pad (pkg of 2)
27 255-2023 20 inch sand screen driver pad (pkg of 2)
28 255-0157 20 inch Professional sand screen 100 grit (pkg of 10)
29 255-0021 20 inch Professional sand screen 120 grit (pkg of 10)
30 255-0158 20 inch Professional sand screen 150 grit (pkg of 10)
31 255-0159 20 inch Professional sand screen 180 grit (pkg of 10)
32 255-0160 20 inch Professional sand screen 220 grit (pkg of 10)
33 255-0161 20 inch Professional sand screen 400 grit (pkg of 10)
34 255-0030 20 inch Professional sand screen 60 grit (pkg of 10)
35 255-0020 20 inch Professional sand screen 80 grit (pkg of 10)
36 255-0249 20 inch Superscreen sand screen 100 grit (pkg of 10)
37 255-0250 20 inch Superscreen sand screen 120 grit (pkg of 10)
38 255-0251 20 inch Superscreen sand screen 150 grit (pkg of 10)
39 255-0252 20 inch Superscreen sand screen 180 grit (pkg of 10)
40 255-0253 20 inch Superscreen sand screen 220 grit (pkg10) (OBSOLETE)
41 255-0254 20 inch Superscreen sand screen 400 grit (pkg of 10)
42 255-0247 20 inch Superscreen sand screen 60 grit (pkg of 10)
43 255-0248 20 inch Superscreen sand screen 80 grit (pkg of 10)
45 255-9591 20 inch Diamond by Gorilla 11000 Grit (pkg of 2)
46 255-9588 20 inch Diamond by Gorilla 1500 Grit (pkg of 2)
47 255-9585 20 inch Diamond by Gorilla 200 Grit (pkg of 2)
48 255-9589 20 inch Diamond by Gorilla 3000 Grit (pkg of 2)
49 255-9586 20 inch Diamond by Gorilla 400 Grit (pkg of 2)
50 255-9587 20 inch Diamond by Gorilla 800 Grit (pkg of 2)
51 255-9590 20 inch Diamond by Gorilla 8000 Grit (pkg of 2)
52 255-9645 20 inch Diamond starter pack (1 of each grit)
53 255-2082 20 inch Turbostrip segmented rotary pad(OBSOLETE)
54 255-2015 20 inch Duala clean and shine pad - low speed (pkg of 5)
55 255-2016 20in 2001 Duala clean& shine pad-high speed(pkg 5) (OBSOLETE

- Pad Holders - 275-9029
RefNbr Part Number Description Req Notes
1 991-2214 Center-Lok II pad holder - left hand thread (red)
2a 991-2201 Center-Lok II pad holder - right hand thread (black) (Pad driver side female, Floor side male)
2b 991-8577 Pad retainer (Pad driver side male, Floor side female)
3a 991-2202 Big mouth pad holder set (blue) (includes 3 screws)
3b 991-2205 Deep lock ring and pad grip ring
4 991-2203 Big mouth pad holder male thread portion
5 991-2206 Center-Lok 3 pad holder (includes 3 screws)
6 996-0372 Big mouth pad holder (left hand thread)
7 N/A Not available
8 991-2209 Split retainer - pad holder ring (OBSOLETE)
9 N/A Not available (replaced by #3 991-2202)
10 991-2211 Center lock pad holding cup (male) (yellow) (OBSOLETE)
Webpage Problem Reporting
